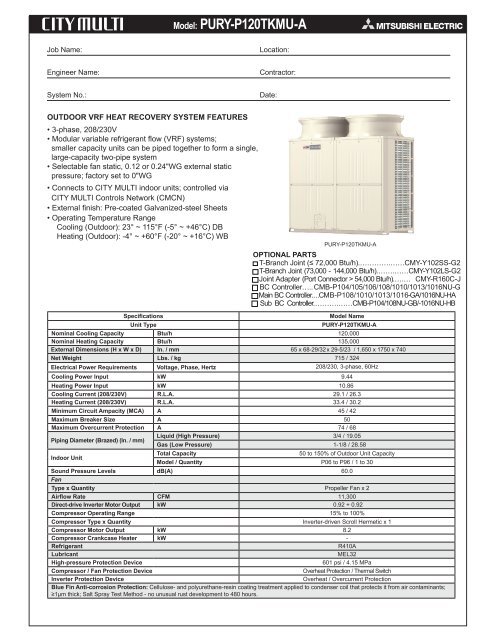

Model: PURY-P120 TKMU-A - Mitsubishi Electric Sales Canada Inc.

Model: PURY-P120TKMU-A
Job Name:
Location:
Engineer Name: Contractor:
System No.:
Date:
OUTDOOR VRF HEAT RECOVERY SYSTEM FEATURES
• 3-phase, 208/230V
• Modular variable refrigerant flow (VRF) systems;
smaller capacity units can be piped together to form a single,
large-capacity two-pipe system
• Selectable fan static, 0.12 or 0.24"WG external static
pressure; factory set to 0"WG
• Connects to CITY MULTI indoor units; controlled via
CITY MULTI Controls Network (CMCN)
• External finish: Pre-coated Galvanized-steel Sheets
• Operating Temperature Range
Cooling (Outdoor): 23° ~ 115°F (-5° ~ +46°C) DB
Heating (Outdoor): -4° ~ +60°F (-20° ~ +16°C) WB
Specifications
PURY-P120TKMU-A
OPTIONAL PARTS
□ T-Branch Joint (≤ 72,000 Btu/h).………….……CMY-Y102SS-G2
□ T-Branch Joint (73,000 - 144,000 Btu/h).…….……CMY-Y102LS-G2
□ Joint Adapter (Port Connector > 54,000 Btu/h).….… CMY-R160C-J
□ BC Controller…..CMB-P104/105/106/108/1010/1013/1016NU-G
□ Main BC Controller....CMB-P108/1010/1013/1016-GA/1016NU-HA
□ Sub BC Controller.……….……CMB-P104/108NU-GB/-1016NU-HB
Model Name
Unit Type
PURY-P120TKMU-A
Nominal Cooling Capacity Btu/h 120,000
Nominal Heating Capacity Btu/h 135,000
External Dimensions (H x W x D) In. / mm 65 x 68-29/32 x 29-5/23 / 1,650 x 1750 x 740
Net Weight Lbs. / kg 715 / 324
Electrical Power Requirements Voltage, Phase, Hertz 208/230, 3-phase, 60Hz
Cooling Power Input kW 9.44
Heating Power Input kW 10.86
Cooling Current (208/230V) R.L.A. 29.1 / 26.3
Heating Current (208/230V) R.L.A. 33.4 / 30.2
Minimum Circuit Ampacity (MCA) A 45 / 42
Maximum Breaker Size A 50
Maximum Overcurrent Protection A 74 / 68
Piping Diameter (Brazed) (In. / mm)
Liquid (High Pressure) 3/4 / 19.05
Gas (Low Pressure) 1-1/8 / 28.58
Indoor Unit
Total Capacity
50 to 150% of Outdoor Unit Capacity
Model / Quantity P06 to P96 / 1 to 30
Sound Pressure Levels dB(A) 60.0
Fan
Type x Quantity Propeller Fan x 2
Airflow Rate CFM 11,300
Direct-drive Inverter Motor Output kW 0.92 + 0.92
Compressor Operating Range 15% to 100%
Compressor Type x Quantity Inverter-driven Scroll Hermetic x 1
Compressor Motor Output kW 8.2
Compressor Crankcase Heater kW -
Refrigerant
R410A
Lubricant
MEL32
High-pressure Protection Device
601 psi / 4.15 MPa
Compressor / Fan Protection Device
Overheat Protection / Thermal Switch
Inverter Protection Device
Overheat / Overcurrent Protection
Blue Fin Anti-corrosion Protection: Cellulose- and polyurethane-resin coating treatment applied to condenser coil that protects it from air contaminants;
≥1μm thick; Salt Spray Test Method - no unusual rust development to 480 hours.

Module: PURY-P120TKMU-A - Dimensions
PURY-P120,144TKMU-A(-BS)
Note 1.Please refer to the next page for information
regarding necessary spacing around the
unit and foundation work.
2.At brazing of pipes,wrap the refrigerant service valve
with wet cloth and keep the temperature of
refrigerant service valve under 120°C(248°F).
740(29-5/32)
(23-5/8)
=(5-29/32)X4
600=150X4
Connecting pipe specifications
Diameter
(2-25/32)
70
Service valve
Refrigerant pipe
19.5
(25/32)
49(1-15/16)
831(32-23/32)
831(32-23/32)
Model
19.5
(25/32)
2X7-ø4.6(3/16) Hole
(Make hole at the plastic fan guard
for snow hood attachment)
Low
pressure
High
pressure
Low
pressure
High
pressure
1750(68-29/32)
Top view
Discharge air
ø19.05 Brazed ø28.58 Brazed ø25.4 ø28.58
(3/4) *2 (1-1/8) *1 (1) (1-1/8)
ø22.2 Brazed ø28.58 Brazed ø25.4 ø28.58
(7/8) *2 (1-1/8) *1 (1) (1-1/8)
PURY-P120TKMU
PURY-P144TKMU
303
(11-15/16)
Control box
*1 Expand the on-site piping and connect to the refrigerant service valve piping.
*2 Use the pipe joint(field supply) and connect to the refrigerant service valve piping.
Intake
air
Intake
air
1650(64-31/32)
Intake
air
1347(53-1/16)
Service
panel
Service panel
5
Refrigerant service valve
Specifications
140 × 77 Knockout hole
(5-17/32)(3-1/16)
NO. Usage
Fan box
ø45 Knockout hole
(1-25/32)
89 77
(3-17/32) (3-1/16)
1
8
4
Refrigerant service valve
Front through hole
1
2
Front through hole
(Uses when twinning
kit (optional parts)
is mounted.)
For pipes
145
217
(10-11/32)
262
54(2-5/32)
2
150 × 94 Knockout hole
(5-29/32)(3-23/32)
ø62.7 or ø34.5 Knockout hole
(2-15/32) (1-3/8)
ø43.7 or ø22.2 Knockout hole
(1-3/4) (7/8)
ø65 Knockout hole
(2-9/16)
ø52 Knockout hole
(2-1/16)
ø34 Knockout hole
(1-11/32)
Bottom through hole
3
2X2-80(3-5/32)X35(1-13/32) Oval hole
(5-23/32)
(8-9/16)
Front through hole
2X3-14(9/16)X20(13/16) Oval hole
20
20
(13/16) (13/16)
57 586(23-3/32) 57
(2-1/4) (2-1/4)
Left side view
For wires
(26-13/16)
29.5 681(678~684) 29.5
(1-3/16) (26-23/32~26-15/16) (1-3/16)
(Mounting pitch)
(740)(29-5/32)
145
(5-23/32)
84
(3-5/16)
526(20-23/32) 75(2-31/32)
541(21-5/16) 58(2-5/16)
562(22-5/32) 140(5-17/32)
Front view
561(22-3/32) 150(5-29/32)
590(23-1/4) 83
516(20-11/32) (3-9/32)
Front through hole
Bottom through hole
Bottom through hole
Front through hole
(7-23/32)
(5-3/4)
(4-25/32)
196
146
121
For transmission cables
4
5
6
7
8
94
(3-23/32)
6 7
3
Unit : mm(in.)
Refrigerant service valve
Refrigerant service valve
80 795(31-5/16) 795(31-5/16) 80
(3-5/32) (Mounting pitch)
(Mounting pitch) (3-5/32)
Bottom view
