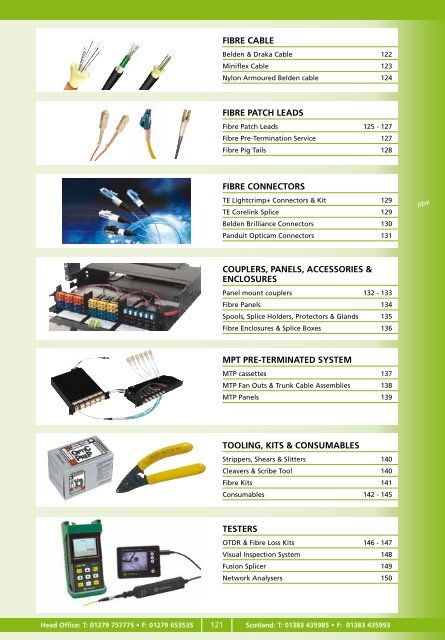

Fibre Products - Minitran

FIBRE CABLE

Belden & Draka Cable 122

Miniflex Cable 123

Nylon Armoured Belden cable 124

FIBRE PATCH LEADS

Fibre Patch Leads 125 - 127

Fibre Pre-Termination Service 127

Fibre Pig Tails 128

FIBRE connectors

TE Lightcrimp+ Connectors & Kit 129

TE Corelink Splice 129

Belden Brilliance Connectors 130

Panduit Opticam Connectors 131

Couplers, Panels, Accessories &

Enclosures

Panel mount couplers 132 - 133

Fibre Panels 134

Spools, Splice Holders, Protectors & Glands 135

Fibre Enclosures & Splice Boxes 136

MPT Pre-Terminated System

MTP cassettes 137

MTP Fan Outs & Trunk Cable Assemblies 138

MTP Panels 139

Tooling, Kits & Consumables

Strippers, Shears & Slitters 140

Cleavers & Scribe Tool 140

Fibre Kits 141

Consumables 142 - 145

Testers

OTDR & Fibre Loss Kits 146 - 147

Visual Inspection System 148

Fusion Splicer 149

Network Analysers 150

Head Office: T: 01279 757775 • F: 01279 653535 121 Scotland: T: 01383 435985 • F: 01383 435993

fibre cable

Tight Buffered & Loose Tube Fibre Cable

For internal/external campus/building backbone

(riser) &/or horizontal cabling applications. Can

be used for linking 2 buildings externally via a

duct (not suitable for direct burial). Cable is LSOH

& watertight. Gel filled on loose tube. Predicted

lifetime 30 years.

Tight buffered ideal for use with

Lightcrimp, Belden Brilliance & epoxy

connectors. Loose tube with Lightcrimp

& epoxy connectors only (pages 128-131)

Draka fibre cable uses patented 'BendBright'

technology for improved bending performance

compared to other fibre cable without any sacrifice

or trade-off on bandwidth or other performance.

OM2 50/125

Multimode

OM3 50/125

Multimode

OM4 50/125

Multimode

OS1/2 9/125

Singlemode

Cut to length

Black Tight Buffered

Orange Loose Tube

Fibre cable Belden P/No Draka P/No Belden P/No Draka P/No

4 core LSOH GUMT504 1026279 GUSN504 1017435



16 core LSOH GUMT516 N/A GUSN516 N/A





16 core LSOH GUMT316 1022506 GUSN316 N/A




12 core LSOH GUMT612 1022510 GUSN612 1022246 (Blue)


24 core LSOH GUMT624 1022512 GUSN624 1022247 (Blue)

4 core LSOH GUMT804 1018910-BLK GUSN804 1016956



16 core LSOH GUMT816 1021653-BLK GUSN816 N/A


Cable type and maximum distance

Application Wavelength Data Rate OM1 OM2 OM3 OM4 OS1 OS2

100BASE-FX 1300nm 100Mbps 2000Mtrs 2000Mtrs 2000Mtrs 2000Mtrs - -

100BASE-LX10 1310nm 100Mbps - - - - 10Km 10Km

1000BASE-SX 850nm 1Gbps 275Mtrs 550Mtrs 800Mtrs 800Mtrs - -

1000BASE-LX 1310nm 1Gbps 550Mtrs 550Mtr 550Mtr 550Mtr 5000Mtrs 5000Mtrs

10GBASE-SR 850nm 10Gbps 33Mtrs 82Mtrs 300Mtrs 450Mtr - -

10GBASE-LX 1310nm 10Gbps - - - - 10Km 10Km

10GBASE-LX4 1310nm 10Gbps 300Mtr 300Mtr 300Mtr 300Mtr 10Km 10Km

40GBASE-SR4 850nm 40Gbps - - 100Mtrs 125Mtrs - -

40GBASE-LR4 1310nm 40Gbps - - - - 10Km 10Km

100GBASE-SR10 850nm 100Gbps - - 100Mtrs 125Mtrs 10Km 10Km

sales@minitran.co.uk

122

www.minitran.co.uk

fibre cable

Miniflex Lightweight Armoured Fibre Cable

Miniflex cable is designed, developed & manufactured in the UK by M2FX. Its loose tube "hinged" sheath

construction is unique & has an extremely small overall diameter of 3mm for 12 cores or less and 5mm

for 24 cores. It is armoured up to 1400N/ 350 lbf which is approximately ten times the performance of

standard armoured cable. It is also extremely flexible and light weight.

Less Space

+ Less Risk

+ Faster Installation

= COST SAVINGS

Patented

grooves

increase

flexibility

& strength

OM3 & OS2 Multicore

Cables

TNCA-XXX_XX_XXX

Black-PBT & White PA LSOH

are standard. Other colours

available to order, minimum

2K runs.

• Half the diameter of other products (24 core only

5mm OD)

• Lightweight armoured jacket (24 core weighs only

13.6Kg/Km)

• Tough, ultra flexible & kink resistant

• Up to 10x the crush resistance of other products

• Ideal for main equipment rooms, data centres,

ducting & catenary applications.

Colour: See below left

Material: PB= (Polybutylene terephthalate)

PA= (Polyamide LSOH)

PE= (Polyethylene)

No of Cores & Cable Type:

043= 4 Core OM3

Cut to length

133= 8 Core OM3

493= 12 Core OM3

195= 24 Core OM3

323= 4 Core OS2

073= 8 Core OS2

033= 12 Core OS2

245= 24 Core OS2

Miniflex TuffDuct & Catenary Duct

Minilex TuffDuct and Catenary duct are suitable for copper & fibre cables in a direct burial or catenary wire

application. Designed for routing cables where there is a need for UV resistance (External use), both have

low friction lining to allow cables to be pushed through easily.

Orange PE 6mm Inner

Dia Tuffduct

OFTD-P-10-6-PE-ORG

Black Aerial 6mm Inner

Dia Catenary

OFAM-P-8-5.5-PE-BLK


fibre cable

Nylon Armoured Fibre Cable

Nylon armoured "Loose Tube" fibre cable is an excellent alternative to metallic armoured CST types. The

Important difference is that the nylon armoured version does not have a reel memory problem, allowing

for easy installation when pulling in longer lengths. This cable is constructed with an orange LSOH outer

jacket with increased swellable yarns as strength members with much improved rodent protection. Cut to length This

cable is also good for direct burial as well as duct applications.

Ideal for use with Lightcrimp and epoxy

style connectors only. See pages 129 & 132

Cut to length

Specification:

Bend radius 25mm or Static 15 x dia. or Dynamic 20x dia. Temperature range: Transport: -30 to 70 deg C

Crush resistance 15000 N/m. Direct burial lees/equal to 150N/Cm

Installation: -5 to 50 deg C

Nylon Armoured Loose Tube Fibre Fibre cable Belden P/No

8 core orange LSOH GURB208

OM2 50/125


Multimode




OM3 50/125


Multimode




OM4 50/125


Multimode




OS1/2 9/125


Singlemode



Cable type and maximum distance

Application Wavelength Data Rate OM1 OM2 OM3 OM4 OS1 OS2

100BASE-FX 1300nm 100Mbps 2000Mtrs 2000Mtrs 2000Mtrs 2000Mtrs - -

100BASE-LX10 1310nm 100Mbps - - - - 10Km 10Km

1000BASE-SX 850nm 1Gbps 275Mtrs 550Mtrs 800Mtrs 800Mtrs - -

1000BASE-LX 1310nm 1Gbps 550Mtrs 550Mtr 550Mtr 550Mtr 5000Mtrs 5000Mtrs

10GBASE-SR 850nm 10Gbps 33Mtrs 82Mtrs 300Mtrs 450Mtr - -

10GBASE-LX 1310nm 10Gbps - - - - 10Km 10Km

10GBASE-LX4 1310nm 10Gbps 300Mtr 300Mtr 300Mtr 300Mtr 10Km 10Km

40GBASE-SR4 850nm 40Gbps - - 100Mtrs 125Mtrs - -

40GBASE-LR4 1310nm 40Gbps - - - - 10Km 10Km

100GBASE-SR10 850nm 100Gbps - - 100Mtrs 125Mtrs 10Km 10Km


124

www.minitran.co.uk

fibre patch Leads

• Tested & supplied with test results.

• Multimode & singlemode options.

• Variety of LSOH jacket colours.

• Twin zip duplex 3mm cables as std.

• Meets/exceeds TIA/EIA-568-B.3.

• Flat Ruggerdised, armoured & non std lengths

made to order.

• APC (Angled Polish Connectors) made to order.

TM

ST SC LC

ST to ST Twin Zip Duplex

ST to SC Twin Zip Duplex

0.5Mtr

FPC-STD005C-*

0.5Mtr

FPC-SCST005DC-*

1.0Mtr

FPC-STD01C-*

1.0Mtr


2.0Mtr

FPC-STD02C-*

2.0Mtr


3.0Mtr

FPC-STD03C-*

3.0Mtr


5.0Mtr

FPC-STD05C-*

5.0Mtr


10Mtr

FPC-STD10C-*

10Mtr


15Mtr

FPC-STD15C-*

15Mtr


20Mtr

FPC-STD20C-*

20Mtr


25Mtr

FPC-STD25C-*

25Mtr


ST to LC Twin Zip Duplex

SC to SC Twin Zip Duplex

0.5Mtr

FPC-STLC005-*

0.5Mtr

FPC-SC005DC-*

1.0Mtr

FPC-STLC01-*

1.0Mtr

FPC-SC01DC-*

2.0Mtr

FPC-STLC02-*

2.0Mtr

FPC-SC02DC-*

3.0Mtr

FPC-STLC03-*

3.0Mtr

FPC-SC03DC-*

5.0Mtr

FPC-STLC05-*

5.0Mtr

FPC-SC05DC-*

10Mtr

FPC-STLC10-*

10Mtr

FPC-SC10DC-*

15Mtr

FPC-STLC15-*

15Mtr

FPC-SC15DC-*

20Mtr

FPC-STLC20-*

20Mtr

FPC-SC20DC-*

25Mtr

FPC-STLC25-*

25Mtr

FPC-SC25DC-*

* For all the above leads replace suffix with:

No suffix = OM1 62.5/125 Yellow

50 = OM2 50/125 Orange

53 = OM3 50/125 Aqua or Violet

54 = OM4 50/125 Magenta

S = OS1/2 9/125 Duplex Yellow

SS = OS1/2 9/125 Simplex Yellow

For Flat Ruggerdised Cable add applicable suffix

(left) followed by F

For Armoured Ruggerdised Cable add applicable

suffix (left) followed by A


Fibre Patch Leads

TM

SC

LC

ST

FC

SC to LC Twin Zip Duplex

LC to LC Twin Zip Duplex

0.5Mtr

FPC-SCLC005-*

0.5Mtr

FPC-LC005-*

1.0Mtr

FPC-SCLC01-*

1.0Mtr

FPC-LC01-*

2.0Mtr

FPC-SCLC02-*

2.0Mtr

FPC-LC02-*

3.0Mtr

FPC-SCLC03-*

3.0Mtr

FPC-LC03-*

5.0Mtr

FPC-SCLC05-*

5.0Mtr

FPC-LC05-*

10Mtr

FPC-SCLC10-*

10Mtr

FPC-LC10-*

15Mtr

FPC-SCLC15-*

15Mtr

FPC-LC15-*

20Mtr

FPC-SCLC20-*

20Mtr

FPC-LC20-*

25Mtr

FPC-SCLC25-*

25Mtr

FPC-LC25-*

* For all the above leads replace suffix with:

No suffix = OM1 62.5/125 Yellow

50 = OM2 50/125 Orange

53 = OM3 50/125 Aqua or Violet

54 = OM4 50/125 Magenta

S = OS1/2 9/125 Duplex Yellow

SS = OS1/2 9/125 Simplex Yellow

For Flat Ruggerdised Cable add applicable

suffix (left) followed by F

For Armoured Ruggerdised Cable add

applicable suffix (left) followed by A

ST to FC Twin Zip Duplex

(OS1/2 9/125 Singlemode Only)

SC to FC Twin Zip Duplex


0.5Mtr

FPC-STFC005S-*

0.5Mtr

FPC-SCFC005S-*

1.0Mtr

FPC-STFC01S-*

1.0Mtr

FPC-SCFC01S-*

2.0Mtr

FPC-STFC02S-*

2.0Mtr

FPC-SCFC02S-*

3.0Mtr

FPC-STFC03S-*

3.0Mtr

FPC-SCFC03S-*

5.0Mtr

FPC-STFC05S-*

5.0Mtr

FPC-SCFC05S-*

10Mtr

FPC-STFC10S-*

10Mtr

FPC-SCFC10S-*

15Mtr

FPC-STFC15S-*

15Mtr

FPC-SCFC15S-*

20Mtr

FPC-STFC20S-*

20Mtr

FPC-SCFC20S-*

25Mtr

FPC-STFC25S-*

25Mtr

FPC-SCFC25S-*

* For ST to FC & SC replace suffix with: F = Flat Ruggerdised Cable

A= Armoured Ruggerdised Cable


126

www.minitran.co.uk

Fibre Patch Leads & Pre-Terminated Fibre cable

TM

LC

FC

LC to FC Twin Zip Duplex


FC to FC Twin Zip Duplex


0.5Mtr Yellow

FPC-FCLC005S-*

0.5Mtr Yellow

FPC-FC005S-*

1.0Mtr Yellow

FPC-FCLC01S-*

1.0Mtr Yellow

FPC-FC01S-*

2.0Mtr Yellow

FPC-FCLC02S-*

2.0Mtr Yellow

FPC-FC02S-*

3.0Mtr Yellow

FPC-FCLC03S-*

3.0Mtr Yellow

FPC-FC03S-*

5.0Mtr Yellow

FPC-FCLC05S-*

5.0Mtr Yellow

FPC-FC05S-*

10Mtr Yellow

FPC-FCLC10S-*

10Mtr Yellow

FPC-FC10S-*

15Mtr Yellow

FPC-FCLC15S-*

15Mtr Yellow

FPC-FC15S-*

20Mtr Yellow

FPC-FCLC20S-*

20Mtr Yellow

FPC-FC20S-*

25Mtr Yellow

FPC-FCLC25S-*

25Mtr Yellow

FPC-FC25S-*

* Replace suffix with: F = Flat Ruggerdised Cable

A= Armoured Ruggerdised Cable

Mini5 Fibre Pre-Termination Service

TM

Minitran offer a fibre pre-termination service for

both TB (Tight Buffered) and LT (Loose Tube) fibre

cables. Simply decide on the cable & connector type

together with optional pulling boot (advisable).

Normal turn around time approx 3 days. Pre-tested

supplied ready to install.

Part Number Matrix

FPC-LC04100-50-L

A= Nylon Armoured, L= Loose Tube, Blank = tight buffered

9 = OS1/2 9/125 Singlemode

50 = OM2 50/125 Multimode



Length In Mtrs

No of Fibre cores

Connector Type: ST, SC, LC or FC


Mini5 Fibre Pigtails

ST, SC, LC & FC Pigtails 900um 1Mtr

Mini5 pigtails are available from stock for the four popular connector types, ST, SC, LC and FC. Other types

E2000, MTRJ, Panduit Optijack and APC style connectors can be made to order.

The Mini5 product is manufactured with colour coded 900um cable to signify the cable type. Fully tested &

supplied with test results. 1Mtr long pigtails as standard.

TM

ST

LC

SC

FC

OM1 ( 62.5/125) White Easy Strip

900um Fibre cable

ST Connector

SC Connector

LC Connector

FPC-STP01

FPC-SCP01

FPC-LCP01

OM3 ( 50/125) Aqua Easy Strip


ST Connector

SC Connector

LC Connector

FPC-STP01-53

FPC-SCP01-53

FPC-LCP01-53

OM2 ( 50/125) Orange Easy Strip


ST Connector

SC Connector

LC Connector

FPC-STP01-50

FPC-SCP01-50

FPC-LCP01-50

OM4 ( 50/125) Magenta Easy Strip


ST Connector

SC Connector

LC Connector

FPC-STP01-54

FPC-SCP01-54

FPC-LCP01-54

OS1/2 ( 9/125) Yellow Easy Strip


ST Connector

FPC-STP01S

SC Connector

FPC-SCP01S

LC Connector

FPC-LCP01S

FC Connector

FPC-FCP01S

Fibre testers:

pages 146-150


128

www.minitran.co.uk

Lightcrimp Plus & corelink Systems

Lightctimp connectors are factory polished, all you have to do is strip the cable, prepare and cleave the

fibre and then crimp the connector.

Lightcrimp Plus Termination Kit

Kits include handtools, high precision cleave tool,

termination instructions & instructional CD-Rom.

Lightcrimp+ SC & LC Kit 1754845-1

Lightcrimp + ST/SC/LC Kit 1754739-1

Lightcrimp Plus Connectors

*The LC is only suitable for 250um

and 900um fibre types. The ST and SC

connectors can be used on 250um/900um

and 3mm jacketed fibre.

OM1 62.5/125 Cable

*250um/900um & 3mm Cable Types

ST Simplex OM1* 5492642-1

SC Simplex OM1* 5492643-1

LC Simplex OM1* 6754483-1

OM2 50/125 Cable

ST OM2 Simplex 6278082-1

SC OM2 Simplex 6278079-2

LC OM2 Simplex * 6754483-2

OM3 50/125 Cable

ST Simplex 6278082-2

SC Simplex 6588291-2

LC Simplex * 6754483-4

OS1 9/125 cable type

ST Simplex 1828953-3

SC Simplex 6693276-1

LC Simplex 6754482-1

Corelink Mechanical Splices

These high performance mechanical splices are quick

and easy to use and are re-usable.

Each pack contains 12 splices and locking keys.

Requires a precision cleaver (page 140).

S/mode & M/mode Corelink Splice 503577-1

Corelink Workstation 503605-1

Splice holders (with adhesive backing)

6 Splice Holder 559066-1

12 Splice Holder 559087-1


Belden Brilliance fibre connectors

Brilliance Connectors

A quick and simple method of fibre termination. Simply strip and cleave the

fibre and insert it into the connector. A small toggle slide on the connector is then locked

into position and your termination is complete. Release the toggle switch re-terminate

the connector. Designed for use on 900um tight buffered fibre.

Features:

• Super fast termination times

• Reusable upto 5 Times

• Low insertion loss typical 0.2dB

• No proprietary tools required

• 100% installation yield Guarantee

LC Connector ST Connector SC Connector

OM1 62.5/125 Simplex Beige AX104240-S1 - AX104244-S1

OM2 50/125 Simplex Black AX104241-S1 AX104249-S1 AX104245-S1

OM3/4 50/125 Simplex Aqua AX104242-S1 AX104250-S1 AX104246-S1

OS2 9/125 Simplex Blue AX104243-S1 AX104251-S1 AX104247-S1

Once the tight-buffered fibre is prepared with a cleave tool, follow these 3 easy steps:

Fool-proof termination in three simple steps... Now that's Brilliance!

1 Insert fibre 2 Activate tab 3 Install boot

Belden Brilliance Tool Kits

Basic tooling required to terminate

Belden Brilliance

1. Fibre stripping tool See Page 140

2. Cleaning spray/cloth See Page 144

3. Cleave tool See Page 140

4. VFL laser fault finder See Page 143

Basic Installation Kit (with

installation guide, demo video,

cleave marker & support handle) AX104268

Field Installation Kit (with

installation guide, demo video, support handle

& adaptors, stripper, tweezers,

marker, wipes, scissors, waste

bottle, glasses, visual fault locator,

cleave inspection microscope,

field cleaver)

AX104270

Precision Installation Kit (includes

all contents of the field kit but

with a precision cleaver instead

of the cleave inspection microscope

& field cleaver)

AX104271


130

www.minitran.co.uk

panduit fibre connectors

OptiCam Pre-Polished Fibre Connectors & Kits

Fast termination eliminates field polishing &

adhesive. For tight buffered cable only.

• Terminate in less than half the time of field polish

connectors.

• Re-termination capability

• Easy to use tooling allows inspection of terminated

fibre for optimum results.

Termination kit has everything needed to

terminate Opticam connectors: Includes cable

strippers, alcohol, screwdriver, safety glasses,

tweezers, kevlar sheers, workmat, cleaver

tool, termination tool, wipes, swabs &

marker pen. All in a carry case.

FCAMKIT

If you already have a fibre cable stripper,

precision cleaver, cleaning fluid & lint

free wipes then you only need to buy

this upgrade kit part number which

includes the termination tool.

FPPKIT-CVY

SC simplex 62.5/125 OM1

SC duplex 62.5/125 OM1

SC simplex 50/125 OM2

SC duplex 50/125 OM2

SC simplex 50/125 OM3

SC duplex 50/125 OM3

SC simplex 9/125 OS1

ST 62.5/125 OM1

ST 50/125 OM2

LC simplex 62.5/125 OM1

LC duplex 62.5/125 OM1

LC simplex 50/125 OM2

LC duplex 50/125 OM2

LC simplex 50/125 OM3

LC duplex 50/125 OM3

LC simplex 9/125 OS1

LC duplex 9/125 OS1

FSCMC6BLY

FSCDMC6BLY

FSCMC5BLY

FSCDMC5BLY

FSCMCXAQY

FSCDMCXAQY

FSCSCBUY

FSTMC5BL

FSTMC6EI

FLCSMC6BLY

FLCDMC6BLY

FLCSMC5BLY

FLCDMC5BLY

FLCSMCXAQY

FLCDMCXAQY

FLCSSCBUY

FLCDSCBUY

Fibre Stripper MT-CFS-2 page 140

Precision Cleaver MT-10010 page 140

Cleaning fluid MT-POC03M page 144

Lint free wipes LINFW page 144

Field Polish Fibre Connectors

Field installable with anaerobic adhesive & polishing

• ST & SC connectors for 900um tight buffered or

3mm jacketed cable.

• LC simplex connectors for 900um tight buffered &

1.6 - 2mm jacketed cable

• LC duplex connectors for 1.6 - 2mm jacketed cable

ST multimode

ST singlemode

SC simplex multimode

SC simplex singlemode

Clip for connecting two SC

simplex connectors

FSTMABL

FSTSABU

FSCMBL

FSC5BU

FSCCLIP-L

LC simplex multimode

LC simplex singlemode

Clip for connecting two LC

simplex connectors

LC duplex multimode

LC duplex singlemode

Fibre Consumables pages 140-145

FLCSMEIY

FLCSSBUY

FLCCLIP-L

FLCDMEIY

FLCDSBUY

Ethernet switches and

converters with fibre ports:

pages 184-185 & 188-189


Epoxy connectors & Panel mount couplers

Epoxy & Polish Connectors

TM

Dual fitting epoxy connectors suitable for both

900Micron and 2.8/3mm jacketed fibre cable. Glue &

polish kits together with crimp tooling can be found

on page ***, Black boots suitable for both cable types

provided as standard.

ST Multimode + Boots

ST Singlemode + Boots

SC Multimode + Boots

SC Singlemode + Boots

LC Multimode + Boots

LC Singlemode + Boots

MTFC-UMST

MTFC-USST

MTFC-UMSC

MTFC-USSC

MTFC-UMLC

MTFC-USLC

Mini5 Fibre panel mount couplers are available in multimode & singlemode variants for for OM1, OM2,

OM3, OM4 and OS1/2. The SC & LC couplers have no need of fixing screws when used with the Mini5

double skin 19" panels (page 134).

ST Couplers

TM

Metallic barrel with serrated washer and locking

nut. Phos/bronze ferrule for OM1/2, Ceramic for

OM3, OS1/2.

Multimode OM1/2

Single/Multimode OM3, OS1/2

FCST-APB

FCST-APBS

SC Simplex Couplers

TM

Plastic body with metallic mounting clips. Phos/

bronze ferrule for OM1/2, Ceramic for OM3/4, OS1/2.

Multimode OM1/2 Beige

Single/Multimode OM3, OS1/2 Blue

Multimode OM4 Aqua

Singlemode OS1/2 APC Green

FCSC-SPBM

FCSC-SCSS

FCSC-SCS4

FCSC-SAPC

SC Duplex Couplers

TM

Plastic body with metallic mounting clips. Phos/





FCSC-DPBM

FCSC-DCSS

FCSC-DCS4

Cable routing &

cable protection

products: pages

160-181

KVM:

pages 193-199


132

www.minitran.co.uk

Epoxy connectors & Panel mount couplers

LC Duplex Couplers

TM

Plastic body with metallic mounting clips. Pho/





Singlemode OS1/2 APC Green

FCLC-DPBM

FCLC-DCSS

FCLC-DCS4

FCLC-DAPC

LC Quad Couplers

TM

Plastic body with metallic mounting clips. Pho/bronze

ferrule for OM1/2, Ceramic for OM3/4, OS1/2.




FCLC-QPBM

FCLC-QCSS

FCLC-QCS4

LC Duplex Keystone Couplers

TM

LC Duplex keystone coupler OM1/2/3/4 & OS1/2

Fibre types, Black moulding for both multimode/

singlemode types.

Phos/Bronze OM1/2

Ceramic OS1/2 OM3/4

FCLC-DPRJ

FCLC-DCRJ

Blanks for Fibre Panels

TM

ST size blank

SC simplex size blank

SC duplex size blank

FCST-BLNK

FCSC-SBLNK

FCSC-DBLNK

Enclosures & accessories: pages 207-224


Fibre panels

Fibre Panels

TM

• Unique design allows LC & SC connectors to snap in

flush to the front panel without screws.

• 1U panels with high density versions

• Basic cable management kit comprising of gland &

self adhesive fibre support.

• 206mm deep sliding tray

• Numbered ports & write on port identification

• 2 x 25mm & 2 x 20mm cable entry holes at rear

• 20mm cable gland with up to 11mm cable entry

unloaded Sliding 1U Fibre Panels

Accepts up to 12 x SC duplex or 12 x LC quad couplers

Accepts up to 24 x SC simplex or 24 x LC duplex couplers

Accepts up to 24 x SC duplex or 24 x LC quad couplers

Accepts up to 16 ST couplers

Accepts up to 24 ST couplers

MAT107SP18

MAT107SP22

MAT107SP24

MAT107SP16

MAT107SP23

Couplers and blanks: page 132-133

Loaded Sliding 1U Fibre Panels

ST OM1/2 Multimode 4 port MAT107SP16C04

ST OM1/2

8 port MAT107SP16C08

Multimode

16 port MAT107SP16C

24 port MAT107SP23C

SC OM1/2 Multimode 4 port (2 x duplex) MAT107SP18C04

SC OM1/2

8 port (4 x duplex) MAT107SP18C08

Multimode

24 port (12 x duplex) MAT107SP18C


SC OM3/4 Multimode & OS1/2 Singlemode 4 port (2 x duplex) MAT107SP18CS04

SC OM3/4 Multimode

8 port (4 x duplex) MAT107SP18CS08

& OS1/2 Singlemode

24 port (12 x duplex) MAT107SP18CS

48 port (24 x duplex) MAT107SP24CS

LC OM1/2 Multimode 24 port (12 x duplex) MAT107SP22CS24

LC OM1/2


Multimode

48 port (12 x quad) MAT107SP18QC

96 port (24 x quad) MAT107SP24QC

LC OM3/4 Multimode & OS1/2 Singlemode 4 port (2 x duplex) MAT107SP22CS04


LC OM3/4 Multimode


& OS1/2 Singlemode



48 port (12 x quad) MAT107SP18QCS

96 port (24 x quad) MAT107SP24QCS

Panel accessories: page 135

Fibre couplers: pages 132-133


134

www.minitran.co.uk

Fibre Panel accessories

Fibre Management Spool

TM

Pair of plastic spools with two adhesive bases.

Designed to fit most fibre panels 900micron fibre

loops around the spool for a neat presentation.

MAT107-SPOOL

Fibre Plastic Splice Holders

TM

6 way

24 way

Self Adhesive plastic splice holders suitable for

45/ 61mm protectors.

24 way version with clear perspex lid.

Grey 6 Position Holder

Black 12 Position Holder

Blue 24 Position Holder

FSPH-6

FSPH-12

FSPH-24

Fibre Splice Protectors

TM

45 or 61mm clear splice protectors used for fusion

splicing of multimode and Singlemode 900 Micron

cables.

45mm clear

61mm clear

FSP45CR

FSP61CR

Fibre Panel Cable Glands

TM

The Mini5 Panels come complete with one 20mm

gland. Additional glands will be required when using

more than one fibre cable into the panel.

20mm Black

25mm Black

MT-GD20BK

MT-GD25BK

Fibre testing: pages 146-150


Fibre wall enclosures & external splicing boxes

Fibre Wall Enclosures

TM

Mini5 unloaded, lockable

fibre wall enclosures

to accept ST, SC or LC

Multimode or Singlemode

couplers. Grey pressed steel

design with the option for

one or two opening doors.

Single Door: 225x50x270mm (WxDxH)

24port ST or FC

MT-FWES24ST

12port SC Duplex

MT-FWES12SC


MT-FWES18SC

Screws (pair) for mounting LC & SC couplers only

Double Door: 358x121x360mm (WxDxH)

96port ST or FC

MT-FWED96ST


MT-FWED48SC

72port LC Duplex

MT-FWED72LC

MT-FWESCREW

External Surface Mount Splice Box

Fibre couplers & accessories are not

included: see pages 132-133

TM

Plastic internal/external IP55 rated splice box for

either multimode or singlemode cables. With

splicing tray and two 20mm glands fitted to the

bottom for entry/exit

Maximum 12 fibres per splice tray.

378x180x74mm (HxWxD)

MT-FOWS

Fibre Underground Splice Enclosure

TM

Designed for inline or spur jointing applications for 2

or 3 fibre multicore cables. IP rated for underground

or aerial use. Black moulded design for minus 40 to

plus 65˚C applications.

Can be placed on aerial, underground, wall mounting

and duct mounting applications. Injection moulded

outer body makes it impenetrable by the elements.

24 splices MT-INLINE01

48 splices MT-INLINE02

Custom pre-terminated fibre leads:

page 127

Fibre consumables: pages 140-145


136

www.minitran.co.uk

Mini5 Pre-terminated MTP fibre

MTP ® Cassette Modules

TM

Mini5 MTP ® Cassette Modules provide rapid and

secure transition between MTP and LC or SC discreet

connectors. They are used to interconnect MTP

backbones with LC or SC patching or connection to

active equipment.

Modular system allows for rapid deployment of

high density data centre infrastructure as well as

improved troubleshooting and reconfiguration

during moves, adds and changes. Cassettes can be

mounted in 1U or 3U 19” multislot chassis.

MTP ® Cassettes contain factory controlled

and tested MTP-LC fanouts to deliver optical

performance and reliability. Low loss MTP Elite and

LC or SC premium versions are offered featuring low

insertion loss for demanding power budget high

speed networks.

Features:

• MTP ® (US Conec) brand MPO standard compliant

multifibre connector

• LC (SFF Data Centre standard), SC discreet interface

• Polarity A (standard), B or C

• Factory terminated and tested

• High performance zirconia sleeve adaptors

Product Code Configurator:

Connector End A Fibre Count Discrete Fibre Type CASS Polarity

Connector

MTP MTP 12 LC LC OS1/OS2 09 A N/A

Standard

MTP Elite MTPE 24 SC SC OM1 62 B1 B1

Part Number example: MTPE24LC50CASSB1

OM2 50 B2 B2

OM3 OM3 C C

OM4

OM4

See our Data

Centre product

section:

pages 97-111

Quicknet preterminated

copper system:

page 47



MTP ® Fan-out Cable Assemblies

TM

• LSZH, OFNP cable jacket

• Female or Male MTP ® connectors

• Factory terminated and tested


Mini5 MTP ® ruggedised fan-out assemblies

route multifibre MTP ® connection into discreet

connectors. They are used to directly interconnect

MTP ® cassettes, panels or backbone MTP ®

assemblies with the active equipment, saving

costly data centre rack space and easing fibre

management.

MTP ® fan-out assemblies are offered in fibre

types in standard 12, 24 or 48 core versions using

a compact and rugged micro cable structure. The

compact cables optimise cableway use and improve

airflow.

Mini5 MTP ® fan-out is built with highest quality

components. Standard MTP ® as well low loss Elite

versions are offered featuring low insertion loss

for demanding high speed networks where power

budgets are critical.

Connector Gender A Fibre Connector Fibre Type Cable Colour Jacket Type

End A Count End B Length

(M)

MTP MTP Female F 12 LC LC OS1/OS2 09 XX Aqua AQ LSZH LS

Standard

MTP MTPE Male M 24 SC SC OM1 62 Purple PU OFNP PL

Elite

48 OM2 50 Orange OR

OM3 OM3

OM4 OM4

Part Number example: MTPF12SC5030ORLS

MTP ® Trunk Cable Assemblies

TM


Mini5 MTP ® trunk multicore cable assemblies

facilitate rapid deployment of high density

backbone cabling in data centres and other high

fibre environments reducing network installation

or reconfiguration time and cost. They are used to

interconnect cassettes, panels or ruggedised MTP®

fan-outs. Compact cables optimise cableway use and

improve airflow.

Standard & Elite versions featuring low insertion

loss for demanding high speed networks.

Connector Gender A Connector Gender B Fibre Type Fibre Cable Polarity Colour Jacket

End A End B Count Length Type

(M)

MTP MTP Fem F MTP MTP Fem F OS1/OS2 09 12 XX A Aqua AQ LSZH LS

Standard

Standard

MTP MTPE Male M MTP MTPE Male M OM1 62 24 B Purple PU OFNP PL

Elite

Elite

OM2 50 48 C Orange OR

OM3 OM3

OM4 OM4

Part Number example: MTPFMTPF091250AAQLS


138

www.minitran.co.uk


MTP ® Slimline Panel

TM

Mini5 MTP ® Slim line Panel provide secure

transition between MTP ® and LC or SC discreet

connector interfaces. They are used to interface

MTP ® backbones with LC or SC patching and active

equipment connection.

The pre-populated panel allows rapid deployment

of high density data centre infrastructure as well

as improved trouble shooting and reconfiguration

during moves, ads and changes. The shallow depth

of the Slimline Panel makes it suitable for copper

racking systems. Scaling up to 96 fibres panel is

available for server rack in data centre environment.

MTP ® Slimline Panels contain factory controlled

and tested MTP ® -LC fan-outs to deliver optical

performance and reliability. Low loss MTP® Elite

and LC Premium versions are offered featuring

improved low insertion losses for demanding low

power budget high speed networks.


MTTP Front Connector Rear MTP Connector Fibre Type Fibre Count

MTTP

LC LC MTP Male standard MTP OS1/OS2 9 12 60

SC SC MTP Male Elite¨ MTPE OM1 62 24 72

OM2 50 36 84

OM3 OM3 48 96

OM4 OM4

Part Number example: MTPPLCMTPEOM460

See our new 'Security'

products section:

pages 243-250


Fibre tooling

Strippers, Shears & Slitter

Miller Strippers are the industry standard fibre

stripping tools.

Miller 2 Hole stripper

MT-CFS-2

Miller 1 Hole stripper

MT-1224

Shears & Cutters for the precise removal of kevlar

from optical cables.

Miller Kevlar Shears

MT-F1KS1

Miller Kevlar Cutters

MT-F19809

Miller Round Jacket Slitter makes the removal of

the outer jacket quick and simple. Use on Cable OD

4.5-28mm. Adjustable depth to 3mm.

Miller Jacket slitter

MT-MK02

Cleavers

TM

Mini5

Professional

Cleave Tool

Mini5 Field Cleaver

The Mini5 Professional Precision Cleaver

provides clean and accurate cleaves for mechanical

connectors, splices and fusion splicing.

Designed to precisely cleave all 125um multimode

or singlemode optical fibers. The highly precise

adjustable diamond blade can perform up to 60,000

cleaves with a typical cleave angle of 90±0.5°.

Mini5 Professional Cleave Tool

MT-PFC20

Mini5 Field Cleaver is designed for use with pre term

connectors and spices.

MT-10010

TE High Precision Cleaver is designed for use with

Lightcrimp plus, Corelinks and splicers. 1871696-1

TE High Precision

Cleaver

Scribe Tool

TM

Economy Scribe Tool

Flat Ruby blade

Carbide Pen Style

MT-F090C

MT-45357

PAL19221

For use with epoxy termination

connectors: Pages 131 & 132


140

www.minitran.co.uk

Fibre tool kits

Basic Fibre Tool Kit

TM

MT-0053 is a basic fibre tool kit, additional kits add

further items.

Supplied in a durable moulded HPX high performance

water proof case, with pressure relief valve.

Starter Tool Kit

Fusion Splice Kit

Anaerobic Tool Kit

MT-0053

MT-0053FS

MT-0053AH

Starter tool kit contents:

• Tri hole fibre stripper

• Kevlar scissors

• Buffer stripper

• Round cable stripper

• Side cutting pliers

• Needle nose pliers

• 4 Bit screw driver

• Black work mat

• Utility knife

• PVC Tape

• Safety glasses

• Fibre disposal unit

• Foam swabs

• Cleaning tissues

• Degreaser wipes

• Ruler

• Fabric tape measure

• 1/2" Nut runner

• Fusion Splice Sleeves

• Black marker pen

• Tie labels

• Heat Shrink tube kit

• 1Mtr 3mm furnication

tube

• Mtr 900µm

Furnication Tube

• Piano Wire

• Fibre Optic wipes

• Tweezers

Fusion Splice kit contents:

The fusion splice kit features all the items in the MT-0053 kit with the following additional items added.

• Cable Cutters

• 50 pack 60mm Splice protection sleeves

• Flashlight

• Spatula.

Anaerobic tool kit contents:

The Anaerobic kit features all the items in the MT-0053 kit with the following additional items added to

allow Anaerobic termination on LC, ST and SC connectors.

• Anaerobic Hardener

• Anaerobic Primer

• Syringes

• Carbide Scribe

• Universal Crimp Tool

• 1.25mm Polishing Puck

• 2.5mm Polishing Puck

• Soft polish Pad

• 1µm Polishing film x 5

• 5µm Polishing film x 5

• 0.3µm Polishing film x 5

• 1.5µm Diamond film x 5

• 0.5µm Diamond film x 5

• Glass Polishing Plate

• 200x Microscope

• 1.25mm Scope adaptor

Copper tool

& test kits:

page 252

Minitran can also offer bespoke kits to suit your individual fibre needs.

Call the Minitran sales office with your fibre tooling requirements.


Fibre syringes & polishing

Anaerobic Adhesive & Syringes

TM

Two part Anaerobic quick cure adhesive is fully cured

in minutes with no additional heat required.

Hardener

Primer

MT-680

MT-7649

Syringes include a 0.9mm application needle.

Syringes 5 Pack

Syringes 25 Pack

MT-3IR5

MT-3IR25

Polishing Plates & Mats

TM

For the optimum polishing of fibre connectors

polishing plates and pads are essential items.

Glass Polish Plate 330x230mm

Glass Polish Plate 150x230mm

Soft polishing pad

Large Black work mat

MT-9111

MT-9111A

MT-053

MT-024

Polishing Pucks

TM

Professional precision stainless steel polishing pucks.

2.5mm Stainless Steel

1.25mm Stainless Steel

MT-6925

MT-6928

Lightweight Tungsten coated Aluminium polishing

pucks.

2.5mm Tungsten/Alum

1.25mm Tungsten/Alum

PAL19201

PAL19261

Polishing Film

TM

Mini5 polishing paper

In packs of 25 and each sheet is 330mmx230mm.

Grade Colour

0.3um White MT-109-03

1um Light Green MT-109-1

2um Aqua MT-109-2

5um Black MT-109-5

9um Light Blue MT-109-9

12um Dark Yellow MT-109-12

15um Dark Grey MT-109-15

3 polish grades in 1 paper (0.3um/1um/5um)

25Pk 330x230mm

MT-109-5-1-03

Diamond Film: 150x100mm per sheet.

Diamond film 1um



MT-0107-1S

MT-0107-3S

MT-0107-30S


142

www.minitran.co.uk

Fibre consumables & testing

Disposal Pots

TM

Handy and safe solution for the disposal of fibre

shards.

Large disposal bin

MT-8828

Small disposal bin

MT-8826

Index Matching Gels

TM

Optical couplant gels can be used to reduce optical

losses on mechanical splices and connectors.

Optical gel pot 0.4oz

Optical gel syringe 0.2oz

MT-0001

MT-0001S

Inspection Microscopes

TM

This compact 200x scope is designed for multimode

use and comes complete with 2.5mm and 1.25mm

universal adaptors. Supplied with a case and batteries.

200X Microscope

MT-MS200X

This 400x scope is designed for singlemode multimode

use and comes complete with 2.5mm universal

adaptor. Supplied with a case and batteries.

400X Microscope

1.25mm Adaptor

MT-FIM400

MT-FIM1.25

Laser Fault Finder

TM

These high power 650nm fault finders can be used to

detect sharp bends and breaks in patch cords, patch

panels and splices. Also useful when terminating

mechanical fibre connectors. 2 x AA batteries & holster

Laser fault finder 2.5mm (for ST, SC & FC) MT-F1900

Laser Fault Finder 1.25mm (for LC) MT-F1900-125

Fibre Continuity Tester

TM

These high power 650nm fault finders can be used

to detect sharp bends and breaks in patch cords,

patch panels and splices. Also useful to use when

terminating mechanical fibre connectors. 2 x AA

batteries & holster.

2.5mm for ST, SC, FC etc & 1.25mm for LC connectors.

Continuity Tester 2.5mm

Continuity Tester 1.25mm

MT-5000U

MT-5000LC


Fibre & connector cleaning Products

Sticklers

TM

Microcare Sticklers can be used for cleaning bulkhead

couplers and test equipment ports. 50 sticks per pack.

2.5mm Cleaning Stick

1.25mm Cleaning Stick

MT-MCC-S25

MT-MCC-S12

Wipes & Cleaning Fluid

TM

High purity lint free wipes for optical applications.

Mini tub of 90 sheets.

Fibre Wipes

MT-WFW

Stickler connector and bulkhead cleaning fluid is a

high purity optical cleaning agent.

Stickler Cleaning Fluid

MT-POC03M

Kim Wipes

Kim wipes are the standard for dry and wet optical

cleaning. 280 wipes per box 100mm x 100mm.

Lint Wipes

LINFW

Connector Cleaning

TM

This handy size cleaner can be used for the dry

cleaning of connector end faces. approx 400 cleans.

Connector Cleaner

Refill Reel 6.5Mtrs

MT-F17020

MT-F17021

Optic Prep

TM

Individual mild solvent impregnated tissues for quick

and easy connector or hand tool cleaning. 50 tissues

per box.

Chemtronics Optic Prep

Mini5 Optic Prep

MT-1003

MT-OP50

Fibre Cleaning Solvent Pen

TM

Handy pen size fibre cleaning solvent pen. Can be

used with all cleaning wipes.

Fibre Cleaning Pen

MT-F16709

Cleaning Wipes

TM

Mini5 Fibre Optic non woven wipes can be used alone

or with cleaning solvents. Provides superior cleaning

without scratching or lint residue.100mm x100mm.

Mini5 Non woven Wipes (pack of 100)

MT-F16702


144

www.minitran.co.uk

Fibre cleaning & marker Products

Isopropyl Alcohol & Bottles

TM

Isopropyl is the ideal alcohol cleaning agent for optical

fibres and connectors 1Ltr bottle.

Isopropyl Alcohol

IPA-1

IPA1

MT-007PL/P

Alcohol bottles for the safe dispensing of Isoproyl.

Auto Plastic bottle

MT-007PL

Auto Glass Bottle

MT-007P

Gel Remover

TM

Dgel cleaner is designed to remove the blocking gels

found on loose tube fibres and on external telephone

cables.

DGel Spray 0.94Ltr

MT-F11091S

Air Duster

TM

Micro dust spray includes extension nozzle to remove

dust from connector bulkeads. 290ml

Canned Air

MT-F1700

Cable Pulling Lubricant

TM

Techlube is a water based gel lubricant optimised for

the pulling of optical fibres in ducting. 3.78Ltrs

Cable Pulling Lube

MT-TLF001J

Buried Cable Marker Tape

TM

Protect and locate buried fibre optic cable by placing

a marker tape above the cable.

Tape is 75mm wide x 305Mtrs long. Continuously

marked, available in detectable and non-detectable

versions.

Non Metalic Fibre Tape

Detectable Fibre Tape

MT-F551165

MT-F16508


OTDR

Greenlee OTDR

Greenlee 920 series OTDRs are designed to be robust and cost effective test instruments.

Simple and easy to use, one button Autotest feature chooses the optimal test settings for the

test link and displays the results on a colour screen.

Result traces can be saved for later uploading via the USB port.

Dual wavelength versions for both the single and multimode units.

Single mode version features a built-in VFL port.

Features:

• Economical

• Protective Rubber boot

• Compact handheld design

• Easy to use

• Fast automated testing

• Up to 35db dynamic range

• Large backlight LCD display

• Measure length and defects of coiled fibre

• Fibre analysis software for data management and

report generation

• RS-232/USB interface

• NiMH batteries for 8 hours continuous

OTDR Trace

View and measure test results using either event

view mode or manual measurement mode.

Hi Res Event View

Easy view and measure in high resolution mode.

Active cursor snaps to the next event in the fibre

analysis table.

Singlemode version features a 650nm 3mw

Visual Fault Locator (VFL) port.

Both kits supplied with SC adaptors, batteries,

charger, trace analysis software and a carry case.

OTDR Multimode kit

850/1300nm

920XC-20M-UPC-SC

OTDR Singlemode kit

1310/1550nm

920XC-20C-UPC-SC

FC Adaptor for 920XC 52026957

ST Adaptor for 920XC 52026958

SC Adaptor for 920XC 52026959


146

www.minitran.co.uk

Fibre Loss Kits

The NEW Greenlee Mini Fibre Test (GMFT) range of fibre test tools allows

you to configure a test kit to suit your exact needs.

2 Year warranty on Greenlee Micro fibre tools.

Optical Power Meters

The GRP series OPM are available in two versions.

Both units are zero reference models but the GRP460

series offer the ability to save and upload 1K of test

results per wavelength.

OPMs

Zero ref setting

Zero ref & Save

Adaptor caps

GRP Series 1.25mm Adaptor

GRP Series SC Adaptor

GRP Series FC Adaptor

GRP Series LC Adaptor

GRP450-02

GRP460-02

GAC021

GAC026

GAC028

GAC029

Optical Light Sources & Visual Fault Finder

The GRP series OLS are available in two versions.

The GDLS350 is for multimode applications and

features 850 & 1300nm outputs, the GDLS355 is for

singlemode applications and features both 1310 and

1550nm outputs.

Additional features include a 2Khz tone generation

which can be picked up by the GRP series OPMs.

Optical Light sources

MM 850nm/1300nm

GDLS350

SM 1310 /1550nm

GDLS355

Adaptor Caps

GDLS series FC Adaptor

GAC022

Visual Fault Finder (VFL)

The GVF610 is a high output 635nm visible

laser source for fault location in splices,

patchcords & connectors. 2.5mm universal

adaptor for ST/SC/FC connectors

GVF610

Power Meter Selector

Do you need to save and print results

YES: use the GRP460-02; NO: use the GRP450-02

The GRP meters are fitted with a 2.5mm universal interface. Use the GAC026 SC interface to

match the GDLS light source interface

Light Source Selector

Are you testing:

Multimode: Use GDLS350 Single mode: Use GDLS355

Both: Use both the GDLS 350 & GDLS355

Visual Fault Locator: If a visual fault locator is required add a GVF610

Deluxe carry case: Add a GDFC if a multi-instrument case is required. Each unit is supplied with

a single case, the deluxe case allows all the instruments to be protected in a single case.


visual inspection system

Visual Inspection System

The GVIS series of inspection scopes offer an unique focusing system and a wide field of view for superb

image quality. Inspection probe features blue LED endface illumination. 8-10 hours of operation from the

advanced Li Ion battery with a 3 hour charge. Each kit is supplied with the monitor and probe, SC bulkhead

adaptor and a 2.5mm connector adaptor.

Each GVIS system is supplied with a cleaning kit. Two versions of the probe and monitor are available, the

-USB version features the ability of realtime image uploading to a PC via the onboard USB port for image

achieving.

300 Monitor & probe Kit GVIS300MP

300 Monitor inc USB capture and Probe Kit GVIS300MP-USB

For those who do not require the monitor, the GVCM410 Video Capture Module allows the GVIS 300 Probe

to be connected directly to a PC via a USB port without using the GVIS300 monitor. The end-face image can

then be displayed directly on the computer using the Greenlee inspection software.

USB Video Capture Module

GVCM410

The GVIS300 probe can be used as a replacement probe or in conjunction with the GVCM410 video capture

module to allow endface inspection via a PC.

GVIS 300 Probe 2.5mm Universal tip

GVIS300P

Accessories

SC bulkhead Adaptor

GAC040

SC/APC Bulkhead Adaptor

GAC041

FC Bulkhead Adaptor

GAC042

LC Bulkhead Adaptor

GAC044

ST Bulkhead Adaptor

GAC046

1.25mm Universal Connector Adaptor

GAC048

2.5mm Universal Connector Adaptor

GAC049

GMFT Deluxe Carry Case

GMFTDC

See our building to building laser links

(FSO): pages 202-203

Fibre runner system. Contact us for details.


148

www.minitran.co.uk

Sumitomo Fusion Splicer

Sumitomo T-71C Fusion Splicer

The Sumitomo T -71C is the Industry’s 1st and ONLY core alignment fusion

splicer with a fully navigational touch screen interface for optimum user

friendliness, SD port for virtually unlimited data storage, plus favorite program, video, audio, and software

uploads; Remote maintenance capability, the largest fiber view and the longest electrode life—with the

legendary reliability common to all Sumitomo splicers. Although it’s also the lightest, smallest, and most

advanced CA fusion splicer in the industry. The T-71C is more ruggedized with superior dust, shock and

water-proof resistance making it the ideal choice for even the harshest environments.

Features:

• Fast dual independent heat shrink ovens

• 7 Second splice time

• High resolution, fully navigational touch screen

monitor

• SD port for unlimited data storage + favorite

program, video, audio and software uploads

• Internet interface for software upgrades

• Industry’s only video & audio playback

• Lightest weight & smallest footprint CA splicer

• Ruggedised design for shock, water & dust

resistance

• Automatic splice start, arc calibration, heater start

and fibre identification

• Hard carrying case with integrated work platform

• Multiple positional monitor with automatic display

inversion

• Fibre holder or fibre clamp selectable

• Long life battery for 200 splice and heater cycles

per charge

• Lynx2-mini and lynx2–customfit® splice-on

connector compatibility

• 3000 splce electrode life

• 2.1Kg with battery

Sumitomo T-71C Splicer Kit

Mini5 Splicer Tool Kit

T-71C

MT-0053FS

All Sumitomo T-71C kits purchased

from Minitran include a one day

fibre training course on the use of

this splicer.

T-71C Kit includes:

Splicer with dual ovens

Sumitomo Precision Cleaver

250um and 900um fibre holders

Jacket stripper

Battery pack

AC interface/Charger

Spare Electrodes

Cleaning Tools

Shring sleeve cooling tray

Fibre sleeves

Manual

Hard Transit case

Labelling systems:

pages 94-96


Network Analysers

The Psiber LANxpert range of network analysers allow network professionals to quickly maintain

and optimise network services. Two models are available, the LE80 for 10/100/1000Mbps copper

networks and the LE85 Gigabit copper and Gigabit fibre version.

Copper Ethernet Network Analyser

The LE80 offers 10/100/1000Mbps Copper Ethernet

network analysis

• Colour touch screen

• Inline packet Inspection

• Identify Traffic Protocols with amount and

percentage breakdowns

• Captures upto 10K packets for analysis

• Measures PoE voltage and Power

• VoIP traffic, call statistics & Quality

• IPv6 detection

• RFC2544 Stress testing

• Identify standard link, frame & traffic problems

• Test cables for wiremap and length

LANXpert Gigabit Analyser

LE80

Gigabit Fibre & Copper Analysers

LE85 Version is designed for analysis of

Gigabit fibre links. Offering a similar core feature

set to the LE80 analyser, except this unit is optmised

for gigabit fibre links.

To test copper links the copper SFP is used.

Two versions of the LE85 are available, the LE85M

for multimode and copper analysis and the LE85S

for singlemode and copper analysis. Additional SFP

are available.

LE85 Multimode/Copper

LE85 Single mode/Copper

Additional SFP Modules

SFP Gigabit Copper

SFP Gigabit SX MM

SFP Gigabit LX SM

LE85M

LE85S

GB-D01AN

MM-F12CY

SM-F22EY

LANXperts are supplied with the relevant modules,

AC adaptor, case and instructions.

LE80

√

-

√

√

-

√

√

√

√

√

√

LE85

√

√

√

√

√

-

-

√

√

√

√

Model

10/100/1000BaseT

Single/Multmode Fibre

Network Analysis

RFC2544 Test

Loopback Test

Cable Test

PoE test

Inline testing

VoIP testing

Packet capture

Traffic Generator


150

www.minitran.co.uk

Fibre Products - Minitran

Transform your PDFs into Flipbooks and boost your revenue!

Delete template?

Save as template ?
