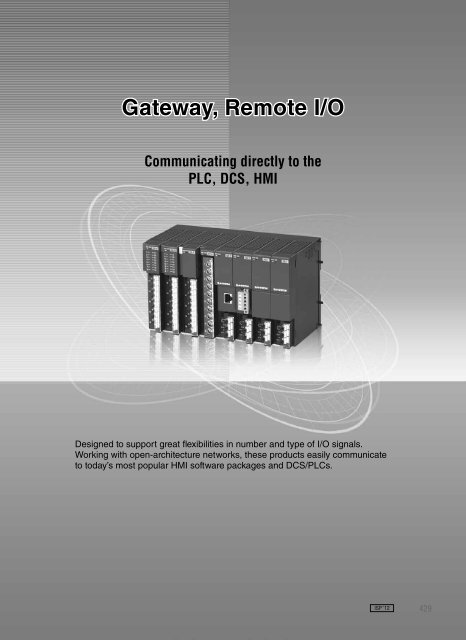

Gateway, Remote I/O
Communicating directly to the
PLC, DCS, HMI
Designed to support great flexibilities in number and type of I/O signals.
Working with open-architecture networks, these products easily communicate
to today’s most popular HMI software packages and DCS/PLCs.
ISP ’12
429

432F
Gateway, Remote I/O R6 / R1 Series
Signal Conditioners
Two-wire
Signal Conditioners
R6 Series
Power Transducers
Indicators
Limit Alarms
Gateway,
Remote I/O
Paperless Recording
System
PC Recorder
Electric Actuators
& Position Sensors
Lightning Surge
Protectors
FUNCTION
MODEL
■ 8 I/O Slot Base
x=S, N or D
Base (8 I/O slots+ Network Module (18mm wide)) R6x-BS8A
Base (8 I/O slots+ Network Module (36.5mm wide)) R6x-BS8B
Base (8 I/O slots for extension)
R6x-BS8P
■ Power Module
DC Power Supply Module
R6x-PF1
AC Power Supply Module
R6-PSM
■ Network Module
Modbus
32 ch. R6-NM1
64 ch. R6-NM2
Modbus/TCP (Ethernet)
32 ch. R6-NE1
64 ch. R6-NE2
DeviceNet 64 ch. R6-ND1
PROFIBUS-DP 62 ch. R6-NP1
CC-Link
Ver. 1.10; Analog 16 ch. R6-NC1
Ver. 2.00; Analog 64 ch. R6-NC3
T-Link
R6-NF1
FUNCTION CH MODEL
■ Analog Input Module (isolated)
x=S, N or D
DC Voltage Input 2 R6x-SV2
DC Current Input 2 R6x-SS2
Thermocouple Input 2 R6x-TS2
RTD Input 2 R6x-RS2
4-20mA Input with Excitation 1 R6x-DS1
■ Analog Output Module (isolated)
DC Voltage Output 2 R6x-YV2
DC Current Output 2 R6x-YS2
■ Discrete Input Module
Discrete Input Di 4 R6x-DA4
■ Discrete Output Module
NPN Transistor Output Do 4 R6x-DC4A
PNP Transistor Output Do 4 R6x-DC4B
■ Blank Filler Module
Blank Filler Module --- R6x-DM
Gateway, Remote I/O
Product Selection Guide
R1 Series
R6S: tension clamp type
R6N: screw terminal type
R6D: euro terminal type
R6 Series
R7 Series
R3 Series
R5 Series
R1 Series
60-UNIT Series
61-UNIT Series
M2BC / M2BD
Gateway, Remote I/O
FUNCTION
MODEL
Universal Input Module (12 points; isolated) RZMS-U9 --- ---
Thermocouple & DC Input Module (8 points; isolated) R1MS-GH3 --- ---
Thermocouple & DC Input Module (16 points) R1M-GH R1D-GH2 R1C-GH
RTD & Potentiometer Input Module (8 points) R1M-J3 --- ---
Contact I/O Module
(4 totalized counter inputs, 8 contact inputs and outputs)
R1M-P4 --- ---
Contact Input Module (32 points) R1M-A1 --- ---
Contact Output Module (32 points) R1M-D1 --- ---
D3 Series
DLA Series
432
Data sheets available on Web in PDF. Visit M-System Data Library at www.m-system.co.jp ISP ’12

Gateway, Remote I/O R7 Series
F 433
Signal Conditioners
R7 Series
Two-wire
Signal Conditioners
FUNCTION
MODEL
FLEX NETWORK
Power Transducers
■ Basic Module
Indicators
Discrete Input, 16 points R7M-DA16 R7E-DA16 R7D-DA16 R7C-DA16 R7L-DA16* 1 R7ML-DA16 R7FN-DA16 R7HL-DA16
NPN Transistor Output,
16 points
R7M-DC16A R7E-DC16A R7D-DC16A R7C-DC16A* 5 R7L-DC16A* 2 R7ML-DC16A R7FN-DC16A R7HL-DC16A
PNP Transistor Output,
16 points
R7M-DC16B R7E-DC16B R7D-DC16B R7C-DC16B* 5 R7L-DC16B* 2 R7ML-DC16B R7FN-DC16B R7HL-DC16B
Discrete Input &
NPN Transistor Output,
--- --- --- --- R7L-DAC16* 3 --- R7FN-DAC16A R7HL-DAC16A
8 points each
Discrete Input &
PNP Transistor Output,
--- --- --- --- --- --- R7FN-DAC16B R7HL-DAC16B
8 points each
Independent I/O Common
Discrete Input &
NPN Transistor Output,
--- --- --- --- --- --- --- R7HL-DAC16ES
8 points each
Relay Contact Output, 8 points R7M-DC8C* 6 --- R7D-DC8C* 6 R7C-DC8C* 6 --- --- R7FN-DC8C R7HL-DC8C
Limit Alarms
Gateway,
Remote I/O
Paperless Recording
System
PC Recorder
Electric Actuators
& Position Sensors
Lightning Surge
Protectors
Relay Contact Output, 8 points --- --- --- R7C-DC8E* 5 --- --- --- ---
Remote Control Relay Control,
4 points
Remote Control Relay Control,
8 points
--- --- --- R7C-RR4* 6 --- --- --- ---
--- --- --- --- R7L-RR8* 4 --- --- ---
DC Voltage / Current Input,
4 points
DC Voltage / Current Input,
4 points
(high speed, non-isolated)
R7M-SV4 R7E-SV4 R7D-SV4 R7C-SV4 R7L-SV4* 4 R7ML-SV4 R7FN-SV4 R7HL-SV4
--- --- --- --- --- --- R7FN-SVF4 R7HL-SVF4
Thermocouple Input, 4 points R7M-TS4 R7E-TS4 R7D-TS4 R7C-TS4 R7L-TS4* 4 R7ML-TS4 R7FN-TS4 R7HL-TS4
RTD Input, 4 points R7M-RS4 R7E-RS4 R7D-RS4 R7C-RS4 R7L-RS4* 4 R7ML-RS4 R7FN-RS4 R7HL-RS4
Thermistor Input, 4 points --- --- --- R7C-RT4A --- --- --- ---
Potentiometer Input, 4 points R7M-MS4 R7E-MS4 R7D-MS4 R7C-MS4 --- --- --- ---
AC Current Input, 4 points R7M-CT4E R7E-CT4E R7D-CT4E R7C-CT4E --- --- --- ---
DC Voltage Output, 2 points R7M-YV2 R7E-YV2 R7D-YV2(A) R7C-YV2 R7L-YV2* 4 R7ML-YV2 R7FN-YV2 R7HL-YV2
DC Current Output, 2 points R7M-YS2 R7E-YS2 R7D-YS2(A) R7C-YS2 R7L-YS2* 4 R7ML-YS2 R7FN-YS2 R7HL-YS2
■ Extension Module
Discrete Input, 8 points R7M-EA8 R7E-EA8 R7D-EA8 R7C-EA8 R7L-EA8 R7ML-EA8 --- ---
Discrete Input, 16 points R7M-EA16 R7E-EA16 R7D-EA16 R7C-EA16 R7L-EA16 R7ML-EA16 --- ---
NPN Transistor Output,
8 points
NPN Transistor Output,
16 points
PNP Transistor Output,
8 points
PNP Transistor Output,
16 points
R7M-EC8A R7E-EC8A R7D-EC8A R7C-EC8A R7L-EC8A R7ML-EC8A --- ---
R7M-EC16A R7E-EC16A R7D-EC16A R7C-EC16A R7L-EC16A R7ML-EC16A --- ---
R7M-EC8B R7E-EC8B R7D-EC8B R7C-EC8B R7L-EC8B R7ML-EC8B --- ---
R7M-EC16B R7E-EC16B R7D-EC16B R7C-EC16B R7L-EC16B R7ML-EC16B --- ---
Relay Contact Output, 8 points --- --- --- R7C-EC8C --- --- --- ---
Gateway, Remote I/O
Product Selection Guide
Gateway, Remote I/O
R6 Series
R7 Series
R3 Series
R5 Series
R1 Series
60-UNIT Series
61-UNIT Series
M2BC / M2BD
D3 Series
DLA Series
■ Gateway Module
Gateway Module
R7G
*1: Momentary or totalized pulse input
*2: One-shot output available
*3: Momentary or totalized pulse input, one-shot output available
*4: Totalized pulse input is available when input extension module is connected
*5: Selectable with extension modules R7C-ECxA, R7C-ECxB, R7C-EC8C
*6: Not usable with extension modules
HLS is the abbreviation for “High-speed Link System” of Step Technica Co., Ltd.
ISP ’12 Specifications are subject to change without notice.
433

434F
Gateway, Remote I/O R3 / R5 Series
Signal Conditioners
Two-wire
Signal Conditioners
Power Transducers
Indicators
Limit Alarms
Gateway,
Remote I/O
Paperless Recording
System
PC Recorder
Electric Actuators
& Position Sensors
Lightning Surge
Protectors
Gateway, Remote I/O
Product Selection Guide
R6 Series
R7 Series
R3 Series
R5 Series
R1 Series
60-UNIT Series
61-UNIT Series
M2BC / M2BD
D3 Series
DLA Series
434
Gateway, Remote I/O
FUNCTION CH MODEL CH MODEL
■ Base
Installation Base R3-BS R5-BS
Installation Base
(free I/O address)
R3-BSW ---
Extender Power Module Base --- R5-EX1
■ Power Module
Power
750mA R3-PS1 ---
Supply 1.5A --- R5-PS
Module
2A R3-PS3 ---
■ Network Module
Modbus R3-NM1 R5-NM1
Modbus/TCP (Ethernet) R3-NE1 R5-NE1
Analog 16 ch. R3-ND1 R5-ND1
DeviceNet Analog 32 ch. R3-ND2 R5-ND2
Analog 64 ch. R3-ND3 ---
DPV1 R3-NP1 ---
PROFIBUS Analog 16 ch. --- R5-NP1
Analog 32 ch. --- R5-NP2
Ver. 1.10;
Analog 16 ch.
R3-NC1
R5-NC1
CC-Link Ver. 1.10;
Analog 32 ch.
R3-NC2
R5-NC2
Ver.2 R3-NC3 ---
LONWORKS
R3-NL1 ---
R3-NL2 ---
T-Link R3-NF1 R5-NF1
FL-net R3-NFL1 ---
■ Network Module (gateway)
Modbus (Ver. 1.10) R3-GM1 ---
Modbus/TCP (Ethernet) R3-GE1 ---
DeviceNet Analog 64 ch. R3-GD1 ---
CC-Link (Ver. 1.10/2.00) R3-GC1 ---
FL-net (OPCN-2) R3-GFL1 ---
■ Analog Input Module (isolated)
Universal Input 4 R3-US4 --- ---
4 R3-SV4
R5-SV1
4
1
millivolt Input R3-SV4A R5T-SV1
DC Voltage Input
R3 Series R5 Series R3 Series R5 Series
4
wide span
voltage
8
R3-SV4B
R5-SV2
2
R3-SV4C
R5T-SV2
R3-SV8 --- ---
R3Y-SV8 --- ---
8
millivolt Input R3-SV8A --- ---
8
wide span
voltage
8
non-isolated
16
non-isolated
R3-SV8B --- ---
R3-SV8C --- ---
R3-SV8N --- ---
R3Y-SV8N --- ---
R3S-SV8N --- ---
R3-SV16N --- ---
R3Y-SV16N --- ---
R3S: tension-clamp type
R3Y: connector type
R5T: screw terminal block type
FUNCTION CH MODEL CH MODEL
4 R3-SS4
R5-SS1
1
R3-SS8
R5T-SS1
8
R3Y-SS8
R5-SS2
2
DC Current Input
R3-SS8N
R5T-SS2
8
non-isolated R3Y-SS8N --- ---
R3S-SS8N --- ---
16 R3-SS16N --- ---
non-isolated
R3Y-SS16N --- ---
4 R3-TS4
R5-TS1
1
Thermocouple Input
8 R3-TS8 R5T-TS1
--- ---
R5-TS2
2
--- --- R5T-TS2
4 R3-RS4
R5-RS1
1
4 R3-RS4A
R5T-RS1
high accuracy
R3S-RS4A
R5-RS2
2
RTD Input
8
R3-RS8
R5T-RS2
1
R3Y-RS8 high resolution R5-RSA1
8
high accuracy
2
R3-RS8A high resolution R5-RSA2
R3-RS8B --- ---
4 R3-MS4 1 R5-MS1
Potentiometer Input
R3-MS8 2 R5-MS2
8
R3Y-MS8 --- ---
R3-DS4
R5-DS1
4
1
4-20mA Input
R3-DS4A
R5T-DS1
with Excitation
8 R3-DS8N
R5-DS2
2
non-isolated
R3Y-DS8N
R5T-DS2
Strain Gauge Input 2 R3-LC2 --- ---
CT Input
4 R3-CT4 1 R5T-CT1
--- --- 2 R5T-CT2
Zero-phase Current Input 4 R3-CZ4 --- ---
R3-CT4A 1 R5T-CTA1
4 R3-CT4B 2 R5T-CTA2
AC Current Input
R3-CT4C --- ---
(clamp-on current sensor use)
R3-CT8A 1 R5T-CTB1
8 R3-CT8B 2 R5T-CTB2
R3-CT8C --- ---
AC Voltage Input
4 R3-PT4 1 R5T-PT1
--- --- 2 R5T-PT2
4
AC Power Input
input circuits R3-WT4 --- ---
AC Power Input
4 R3-WT4A --- ---
(clamp-on current sensor use) input circuits
R3-WT4B --- ---
Multi Power Input 1 system R3-WT1 --- ---
R3-WT1A --- ---
1 system
Multi Power Input
R3-WT1B --- ---
(clamp-on current sensor use)
1 or 2
system R3-WTU --- ---
R3S: tension-clamp type
R3Y: connector type
R5T: screw terminal block type
Data sheets available on Web in PDF. Visit M-System Data Library at www.m-system.co.jp ISP ’12

Gateway, Remote I/O R3 / R5 Series
R3 Series R5 Series R3 Series R5 Series
F 435
Signal Conditioners
Two-wire
Signal Conditioners
FUNCTION CH MODEL CH MODEL
■ Analog Output Module (isolated)
R3-YV4
R5-YV1
DC Voltage Output
4
1
R3S-YV4
R5T-YV1
R3-YV8
R5-YV2
R3Y-YV8
8
2
R5T-YV2
R3-YS4
R5-YS1
1
DC Current Output
4 R3Y-YS4
R5T-YS1
R3S-YS4
R5-YS2
2
--- --- R5T-YS2
■ Pulse I/O Module (isolated)
R3-PA8
R5-PA2
Totalized Pulse Input
Pi 8
Pi 2
R3S-PA8
R5T-PA2
R3-PA16 --- ---
Pi 16
R3Y-PA16 --- ---
High Speed Totalized Pulse Input Pi 4 R3-PA4A --- ---
Low Speed Totalized Pulse Input Pi 4 R3-PA4B --- ---
High Speed Pulse Input Pi 4 R3-PA4 --- ---
Encoder Input Pi 2 R3-PA2 --- ---
Pulse Output
Po 16 R3-PC16A
R5-PC2
Po 2
--- --- R5T-PC2
■ Analog Input Module with Transmitter Output (isolated)
DC Voltage Input --- --- 1 R5-SV1A
DC Current Input --- --- 1 R5-SS1A
Thermocouple Input --- --- 1 R5-TS1A
RTD Input --- --- 1 R5-RS1A
Potentiometer Input --- --- 1 R5-MS1A
4-20mA Input with Excitation --- --- 1 R5-DS1A
■ Alarm Module (isolated)
DC Voltage Input
4 R3-AV4 --- ---
8 R3-AV8 --- ---
DC Current Input
4 R3-AS4 --- ---
8 R3-AS8 --- ---
Thermocouple Input 4 R3-AT4 --- ---
RTD Input 4 R3-AR4 --- ---
4-20mA Input with Excitation 4 R3-AD4 --- ---
R3S: tension-clamp type
R3Y: connector type
R5T: screw terminal block type
FUNCTION CH MODEL CH MODEL
■ Discrete I/O Module
R3-DA16
R5-DA4
Di 4
Discrete Input Di 16 R3Y-DA16
R5T-DA4
R3S-DA16 Di 16 R5-DA16
R3-DA16A --- ---
Di 16
Discrete Input
R3Y-DA16A --- ---
(with excitation supply) Di 32 R3-DA32A --- ---
Di 64 R3-DA64A --- ---
AC Contact Input Di 16 R3-DA16B --- ---
Discrete Input / Output Di 8, Do 8
R3-DAC16 --- ---
R3S-DAC16 --- ---
Discrete Input / Output Di 8, Do 8
R3-DAC16A --- ---
R3S-DAC16A --- ---
Relay Contact Output Do 16
R3-DC16
R5-DC4
Do 4
R3Y-DC16
R5T-DC4
Do 16 R3-DC16A Do 16 R5-DC16
Open Collector Output
(NPN transistor)
Do 32 R3-DC32A --- ---
Do 64 R3-DC64A --- ---
Triac Output Do 16 R3-DC16B --- ---
Do 16 R3-DC16C --- ---
PNP Transistor Output Do 32 R3-DC32C --- ---
Do 64 R3-DC64C --- ---
One-shot Pulse Output
(relay contact)
Do 16 R3-PD16 --- ---
One-shot Pulse Output
(NPN transistor)
Do 16 R3-PD16A --- ---
One-shot Pulse Output
(triac)
Do 16 R3-PD16B --- ---
One-shot Pulse Output
(PNP transistor)
Do 16 R3-PD16C --- ---
Remote Control Relay
R3-RR8 --- ---
Do 8
Control
R3S-RR8 --- ---
■ BCD Code I/O Module
BCD Code Input 7-digit BCD R3-BA32A --- ---
BCD Code Output 7-digit BCD R3-BC32A --- ---
■ Blank Filler Module
Blank Filler Module --- R3-DM --- R5-DM
R3S: tension-clamp type
R3Y: connector type
R5T: screw terminal block type
Power Transducers
Indicators
Limit Alarms
Gateway,
Remote I/O
Paperless Recording
System
PC Recorder
Electric Actuators
& Position Sensors
Lightning Surge
Protectors
Gateway, Remote I/O
Product Selection Guide
Gateway, Remote I/O
R6 Series
R7 Series
R3 Series
R5 Series
R1 Series
60-UNIT Series
61-UNIT Series
M2BC / M2BD
D3 Series
DLA Series
ISP ’12 Specifications are subject to change without notice.
435

436 F
Signal Conditioners
Two-wire
Signal Conditioners
Power Transducers
Indicators
Limit Alarms
Gateway,
Remote I/O
Paperless Recording
System
PC Recorder
Other Remote I/O Series
Field Network Modules
60-UNIT Series
Interfacing analog I/O signals from/to 10-RACK or
18-RACK modules
◆◆Palm-top size plug-in module
60-UNIT
Field Network Modules
61-UNIT Series
Interfacing analog I/O signals from/to Mini-M or
Pico-M modules
◆◆Palm-top size plug-in module
Electric Actuators
& Position Sensors
Lightning Surge
Protectors
61-UNIT
Gateway, Remote I/O
Product Selection Guide
R6 Series
R7 Series
R3 Series
R5 Series
R1 Series
60-UNIT Series
61-UNIT Series
M2BC / M2BD
Gateway, Remote I/O
Communication Controllers
M2BC / M2BD
Wide selection of Mini-M series signal
conditioner inputs
◆◆CC-Link and DeviceNet interface
◆◆Direct interface of various field signals including AC
energy and pneumatic to a PLC
◆◆Power supply to individual modules via the
backplane bus
D3 Series
DLA Series
D3 Series
Max. 10 km Transmission via Twisted-pair Cable
◆◆Simple I/O module configuration
◆◆No software programming required
◆◆Interfacing field signals to the host PLC via Modbus
RTU or Modbus/TCP
◆◆Free combination of I/O signals
Multiplex Transmission System
DLA Series
Simple Setting, Masterless Configuration
◆◆Simple setting by matching the station address of
paired modules
◆◆No total system failure thanks to the masterless
configuration
◆◆All-in-one unit packaging I/O, power and network
interface modules
436
Data sheets available on Web in PDF. Visit M-System Data Library at www.m-system.co.jp ISP ’12
