Molecular Ecology (2001) 10, 603–611

Mitochondrial DNA variation and GIS analysis

Blackwell Science, Ltd

confirm a secondary origin of geographical variation

in the bushcricket Ephippiger ephippiger (Orthoptera:

Tettigonioidea), and resurrect two subspecies

MICHAEL G. RITCHIE,* DAVID M. KIDD† and JENNIFER M. GLEASON*

*Environmental & Evolutionary Biology, Bute Medical Building, University of St Andrews, St Andrews, Fife KY16 9TS, UK,

†Department of Geography, University of Portsmouth, Buckingham Building, Lion Terrace, Portsmouth PO1 3HE, UK

Abstract

Geographic variation within species can originate through selection and drift in situ (primary

variation) or from vicariant episodes (secondary variation). Most patterns of subspecific

variation within European flora and fauna are thought to have secondary origins, reflecting

isolation in refugia during Quaternary ice ages. The bushcricket Ephippiger ephippiger has

an unusual pattern of geographical variability in morphology, behaviour and allozymes in

southern France, which has been interpreted as reflecting recent primary origins rather than

historical isolation. Re-analysis of this variation using Geographical Information Systems

(GIS) suggests a possible zone of hybridization within a complex pattern of geographical

variation. Here we produce a genetic distance matrix from restriction fragment length polymorphism

(RFLP) bandsharing of an approximately 4.5 kb fragment of mitochondrial DNA

(mtDNA), and compare this with predictions resulting from the GIS analysis. The mtDNA

variation supports a postglacial origin of geographical variation. Partial Mantel test comparisons

of genetic distances with matrices of geographical distance, relevant environmental characteristics

and possible refugia show refugia to be the best predictors of genetic distance.

There is no evidence to support isolation by distance. However, environmental contrasts do

explain significant variation in genetic distance after allowing for the effect of refugial origin.

Also, a neighbour-joining tree has a major division separating eastern and western forms. We

conclude that the major source of variation within the species is historical isolation in glacial

refugia, but that dispersal, hybridization and selection associated with environmental features

has influenced patterns of mtDNA introgression. At least two valid subspecies can be defined.

Keywords: genetic distance, GIS, geographical variation, hybrid zone, Mantel analysis, mtDNA

Received 4 June 2000; revision received 23 August 2000; accepted 23 August 2000

Introduction

The study of geographical variation and systematics has

played a major role in the development of theories of

speciation. Geographic variation can arise in a number of

ways but, following from Mayr (1942), two major causes

have been distinguished. Primary variation arises in situ

because of contemporary or recent selection and drift. In

contrast, secondary variation arises from historical vicariant

events. Hewitt and colleagues have argued that most major

Correspondence: Michael G. Ritchie. Fax: 01334 463 6000; E-mail:

mgr@st-and.ac.uk

hybrid zones in Europe reflect divergence during Quaternary

ice ages (e.g. Barton & Hewitt 1985), with periodic expansion

and contraction cycles accentuating and accumulating

genetic differences (Hewitt 1988, 1989, 1996, 1999; see also

Remington 1968; Taberlet et al. 1998).

Despite the common assumption that most hybrid zones

result from secondary contact, steep coincident clines in

organisms can have a primary origin, having arisen in

response to exogenous selection across ecotones (Endler

1977; Harrison 1990). It is not possible to clearly distinguish

primary or secondary origins of hybrid zones from an

examination of their geographical context, because many

areas of secondary contact are likely to occur across ecotones

© 2001 Blackwell Science Ltd

604 M. G. RITCHIE, D. M. KIDD and J . M . GLEASON

(Hewitt 1989). Also, theory suggests that the characteristics

of primary and secondary clines will be identical (Endler

1977; Barton & Hewitt 1985; but see Durrett et al. 2000). Distinguishing

primary and secondary origins of clines and

hybrid zones remains a major, and relatively poorly met, aim

of studies of geographical variation (Thorpe 1984; Harrison

1990, 1993; Willett et al. 1997; Schilthuizen 2000).

The bushcricket (katydid) Ephippiger ephippiger (Feibig

1784) is a flightless tettigoniid with unusual patterns of

geographical variation and, as a result, has been subject to

a number of taxonomic surveys and revisions. The species

is patchily distributed and highly variable in morphology

and behaviour. This is most pronounced in southern

France, from the Pyrenees to the Alps, where a number of

species and subspecies have been described. Harz (1969), a

standard taxonomic reference for European tettigoniids,

recognized three species within the group under consideration

here. E. ephippiger is a medium sized, predominantly

green bushcricket with a monosyllabic calling song found

in central Europe, with the subspecies E. e. vitium (Serville

1831) in western Europe and E. e. ephippiger (Fiebig 1784) in

the east (an additional five subspecies have been described,

Hartley & Warne 1984). E. cunii (Bolivar 1877) is small, almost

black, with a polysyllabic calling song, found in Catalonia.

E. cruciger (Fieber 1853, syn. E. bitterensis) is large, grey or

green, usually with a melanized sulcus on the pronotum

and a mono- or polysyllabic calling song, found around

the Languedoc (see Duijm & Oudman 1983; Kidd &

Ritichie 2000, for distribution maps). Recently, studies have

reduced these forms in taxonomic status. Duijm & Oudman

(1983), Duijm et al. (1983) and Hartley & Warne (1984), after

analyses of morphology and copulation compatabilities,

concluded that only the cunii form was valid (as a subspecies),

and combined E. e. cruciger, E. e. vitium and E. e. ephippiger

into a single highly variable ‘superspecies’ which they

termed E. ephippiger diurnus Kruseman (referred to here as

E. ephippiger for simplicity). Duijm and colleagues (Oudman

et al. 1989, 1990; Duijm 1990) further questioned whether

cunii was valid even as a subspecies. They found low genetic

divergence between forms (Nei’s D, from four allozyme

loci, was around 0.03 between forms). They also examined

the geographical pattern of clines for the morphological

traits used to define the various forms. Visual inspection

implied the clines were usually noncoincident geographically

and extremely wide. Some were 50–100 km wide, which

compares with an average cline width for similar traits of

5–10 km in the Pyrenean hybrid zone of Chorthippus parallelus

(Hewitt 1989; Butlin 1998), an organism which probably

has a higher dispersal than E. ephippiger. Oudman et al.

(1990) concluded that the geographical variation within

E. ephippiger was unlikely to reflect secondary contact: ‘We

see the E. ephippiger complex as a subspecies … with sufficient

gene flow to restrict differentiation. In the south of

France the species has met conditions that have led to

greater differentiation. This has on the one hand the character

of shallow clines, perhaps along environmental gradients

and probably adaptive, and on the other hand a chance

character as the result of genetic drift and random dispersal

effects.’ Oudman et al. (1990) also concluded that no valid

subspecies could be distinguished, the local forms being

‘without taxonomic status’. This interpretation has been

adopted by other authorities (Ragge & Reynolds 1998; p. 71).

We have re-examined E. ephippiger from southern France

from two perspectives. Geographical Information Systems

(GIS) facilitate the detailed examination of spatially patterned

data. We employed GIS to examine concordance between

interpolated trait clines and ecotones, to ask if the broad,

nonconcordant clines are coincident with ecotones, as

would be expected if they result from primary selection.

Additionally, GIS has been used to try to identify clusters in

the geographical variability, which might reflect secondary

origins, separate from or additional to the primary variation.

If geographical clusters truly reflect secondary subdivisions

within the species, we would expect these to be supported

by similar patterns in genetic differentiation. A study of

random amplified polymorphic DNA (RAPD) markers

broadly separated the cunii form from cruciger and vitium

(Ritchie et al. 1997), but this survey was geographically

limited. Here we report restriction fragment length polymorphism

(RFLP) analysis of mitochondrial DNA (mtDNA)

using more extensive samples. Partial Mantel test analyses

(Thorpe 1996) of matrices of genetic distance compared

with geographical distance, ‘environmental distance’ and

potential ice age refugial origins imply that most genetic

variation reflects refugia, though significant partitioning is

also associated with environmental variation.

Background: Geographical Information Systems analysis

of geographical variation in E. ephippiger

Full details of our GIS analysis of geographical variation in

E. ephippiger are available elsewhere (Kidd & Ritchie 2000,

2001). Briefly, data was compiled on geographical variation

in morphological, allozyme and behavioural traits,

as well as abiotic environmental parameters. Individual

and multivariate trait surfaces were interpolated, compared

with environmental data, and examined for covariation

and concordance. Environmental features explained little

other than body size of the organism. In contrast to the

interpretation of these data by Oudman et al. (1990), some

concordance between patches was observed in the interpolated

surfaces, and fairly sharp, coincident transitions in

some traits were detected. Figure 1 indicates the centre of a

relatively steep multivariate cline, which broadly follows

the path of the Aude river. Multivariate discriminant analyses

(with resampled null models) confirmed that the regions

either side of the cline represent significant clusters within

a complex pattern of geographical variability. Kidd &

© 2001 Blackwell Science Ltd, Molecular Ecology, 10, 603–611

GEOGRAPHIC VARIATION IN A BUSHCRICKET 605

Fig. 1 Location of collecting sites for the mtDNA analysis in southern France. Also indicated is the position of the cryptic hybrid zone

inferred in Kidd & Ritchie (2000) from more extensive samples, plus geographical features referred to in the text. Assignment of specimens

to the forms is indicated (V = vitium, Cu = cunii, Cr = cruciger). Inset shows details of the eastern Pyrenees, and the locations of the

Cerdagne, Capcir and Conflent regions.

Ritchie (2000) concluded that the cline represented a

‘cryptic hybrid zone’ where some traits, notably genitalia,

probably reflected secondary contact between forms originating

from western (Iberian) and an unidentified eastern refugia.

This was broadly but imperfectly coincident with the vitium

and cunii forms. The cruciger form was more difficult to fit

into this reconstruction. Some traits, notably the frequency of

some allozymes and the third principal component, broadly

matched the distribution of crickets identified as cruciger,

but this was around both sides of the eastern end of the

potential hybrid zone, near Narbonne (around the mouth

of the Aude). Kidd & Ritchie (2000) suggested three possibilities;

cruciger was not valid, cruciger was a hybrid form,

or cruciger was from a distinct western refugium.

Materials and methods

mtDNA analysis

Samples were collected throughout southern France over

several years by M.G. Ritchie (Fig. 1). During collection,

crickets were provisionally assigned to the forms cunii,

cruciger or vitium according to morphology and behaviour

(a single assignment per locale). Fifty-three individuals

were analysed, including individuals of Ephippiger perforatus,

E. terrestris and Uromenus rugosicollis as outgroup specimens.

DNA was extracted from frozen or ethanol preserved

hind femora using the Puregene DNA Isolation Kit (Gentra

Systems). Based on the Locusta migratoria mtDNA sequence,

we designed primers to amplify the region including cytochrome

oxidase (CO) subunits II and III, ATPase6, NADH

subunits 3 and 5, as well as nine tRNAs, for a total length of

approximately 4.5 kb. Polymerase chain reaction (PCR) conditions

were denaturing 92 °C for 2 min followed by 10 cycles

of 92 °C for 10 s, 55 °C for 15 s, 69 °C for 2 min; and then 30

cycles of 92 °C for 10 s, 60 °C for 15 s; 68 °C for 2 min extended

by 20 s per cycle. Reactions were done in 100 µL volumes

with 3.5 mm MgCl 2

, 0.1 mm dNTP, 1× Optibuffer (Bioline)

and 2 units Bio-X-Act DNA polymerase (Bioline). The forward

primer was located within cytochrome oxidase I (COI) and

the reverse primer within ND5. Their sequences for the

first, C2-J-3120: was GGCAACYTGATCYAMTTTRAATTT-

ACAAAAATAGTGC and for the second, N5-N-7700, was

ACAGCTTTGTCAAATCGYRTTGGGGATGT.



Following PCR, the products were digested singly by eight

different restriction enzymes: DraI, EcoRI, HaeIII, HpaII,

Hsp92II, RsaI, StyI and TaqI (Promega). This resulted in a total

of 119 fragments that were scored for presence and absence.

A similarity (band sharing) index S (Nei & Li 1979) was

calculated from the restriction profiles of each individual as

S = 2Na,b/(Na + Nb), where Na, Nb = number of bands in

individual a, b and Na,b = number of shared bands. A genetic

distance matrix was constructed from 1-S. A phenogram

was produced from this matrix using the neighbour-joining

algorithm (default conditions, randomised input order) in

phylip 3.57c (Felsenstein 1995). Bootstrap values are derived

from 100 resamples (with replacement) of the RFLP data.

Matrix comparisons

Matrix comparisons provide a powerful method of assessing

the association between biological or environmental features

and variation within a species (Douglas & Endler 1982;

Smouse et al. 1986; Thorpe 1996). In order to assess the best

predictors of genetic distance, a series of indicator matrices

were constructed and compared with the genetic distance

matrix. Outgroups and multiple samples from individual

populations were removed, reducing the number of samples

to 30. Within populations, individuals were first removed

if they had missing data (across all samples, the average

proportion of missing data was 1.4%), then randomly if more

than one individual remained. Because replicate individuals

usually group together it was not thought necessary to

bootstrap this process.

Predictor matrices were constructed from geographical

distance, environmental dissimilarity, and two different

vicariant scenarios. Inter-site distances were calculated

from a user-defined network by network tracing in ArcInfo

(Environmental Systems Research Institute 1997). This

method produces a distance matrix not ‘as the crow flies’

but ‘as the cricket crawls’, taking into account the real barriers

of the Pyrenees and Mediterranean (Kidd & Ritchie 2001).

A measure of ‘environmental distance’ between sites was

derived from Kidd & Ritchie’s (2000) multiple linear regression

model of body size. This explained 80% of the variation

in body size using a combination of latitude, altitude,

irradiation, precipitation and distance from the coast (no

other traits were significantly correlated with environmental

parameters). The fitted values of this model were used

as a proxy measure of relevant environmental variance.

Euclidean similarity measures for each population were

calculated and (1-environmental similarity) used to produce

an environmental dissimilarity matrix.

The first matrix constructed to reflect potential refugial

history, the ‘east vs. west refugia’ (E–WR) matrix, simply

contrasted populations which probably originated in eastern

vs. western refugia. Thus, all vitium populations were

assumed to originate in an eastern refugium, and cunii and

cruciger from a western refugium (if pairs of populations

arose from the same refugium they were ascribed a contrast

of 0, 1 if from different refugia). The second matrix, the ‘three

refugia’ (3-R) matrix, was constructed to include the possibility

of a separate western refugium for the cruciger crickets.

To reflect the fact that such a refugium was more proximal

to the main western refugium, contrasts were 0 if populations

probably arose from the same refugium (i.e. if the samples

were considered of the same form), 1 if from the main Iberian

refugium vs. the eastern refugium, 0.2 if from the two separate

western refugia, and 0.8 if from the eastern vs. ‘cruciger’

refugium. Note that in constructing these matrices, the

original assignment of specimens to type during collection

was used, not the position of the sample in the mtDNA tree.

We, therefore, have five matrices: genetic distance is the

response matrix and there are four predictor matrices. The

magnitude of the partial regression coefficients indicates

the relative importance of the different predictors. If differences

in mtDNA reflects simple isolation by distance, geographical

distance would be the best predictor. If primary

selection is most important, then environmental distance

would be the best predictor. If vicariance is the most important,

one of the refugial contrasts would be the best predictor

(and the 3-R matrix best if the cruciger form was from a

distinct refugium). All matrices were transformed to a

mean of zero and unit variance before completing partial

Mantel analyses (Thorpe 1996; Smouse et al. 1986). Individual

Mantel comparisons between genetic distance and

the predictor matrices were each strongly significant. Probability

values are derived from 10 000 randomizations of the

response matrix. Matrix calculations were carried out using

genstat (Genstat Committee 1993) and customised software.

Results

Matrix comparisons

The regression coefficients and associated probability

values for the predictor matrices are influenced by the

number of matrices included in the analysis, and the two

predictor matrices derived from refugial scenarios are

themselves highly correlated. We, therefore, present three

analyses, one with all four predictor matrices, and two

with only one of the refugium contrasts (Table 1). As three

tests were carried out, the critical value is 0.017 (2-tailed) or

0.034 (1-tailed, perhaps justified for tests comparing such

distances). There is no support for any contribution of

isolation by distance. The environmental contrast approaches

significance in each test, but the greatest matrix regression

coefficients are always associated with the refugial contrasts.

Both refugial models are similar, but that involving 3-R has

a greater coefficient. When both are entered, E–WR is not

significant. The value of the matrix coefficient is much

greater for 3-R than the environmental contrast.



Table 1 Partial regression coefficients from three Mantel analyses (E–WR is the matrix constrasting eastern and western refugia, 3-R is that

with an additional refugium for cruciger)

Analysis Matrix Geographic Distance Environment E–WR 3-R

Full model Partial regression coefficient 0.027 0.109 −0.155 0.588

(probability) (ns) (0.032) (ns) (0.018)

E–WR excluded Partial regression coefficient 0.030 0.107 — 0.434

(probability) (ns) (0.027) (0.001)

3-R excluded Partial regression coefficient 0.066 0.102 0.395 —

(probability) (ns) (0.035) (0.001)

(ns), nonsignificant.

Fig. 2 Neighbour-Joining tree produced

from mtDNA RFLP profiles of all individual

bushcrickets used in the study. The assignment

to form initially made in the field and

the population code number from Figs 1

and 3 are indicated. The consensus tree

from the bootstrapped data had a virtually

identical topology. Values are shown for

clades discussed in the text.

mtDNA phylogeography

A neighbour-joining tree based on the mtDNA RFLPs is

not well resolved (Fig. 2). This is probably not surprising

given the high number of samples from regions of

hybridization. Despite this, some clades are well supported.

The deepest division within Ephippiger ephippiger almost

perfectly separates individuals identified as vitium from

the remainder of the samples (Fig. 2). This division fairly

closely corresponds with the location of the putative Kidd



Fig. 3 The branching pattern of a neighbourjoining

tree superimposed on the geography

of the region. This tree contained only one

sample per collecting site. Branch lengths are

determined by geography, but the branching

pattern reflects the genetic distances.

& Ritchie contact zone (compare Fig. 3). The only samples

in the ‘incorrect’ clades are one from Lodeve, which is from

the area of transition between the vitium and other forms,

and one from the Col du Pourtalet. The ‘pure’ vitium clade

is reasonably well supported.

There are other striking features of this tree. The deepest

node within the nonvitium samples separate off a branch

containing cunii samples from the Segre river valley (the

Cerdagne region of the Pyrenees) from the remainder of

the cunii and cruciger samples. A second node separates

off cunii samples from the Têt river valley (the Conflent

region). The remainder of the tree includes samples from a

third Pyrenean valley, that of the river Aude (the Capcir

region) and samples from the Languedoc. This branch,

therefore, contains samples identified as cunii and nearly

all the cruciger samples. The Aude valley is the northernmost

of the eastern Pyrenean valleys sampled here (north of the

main watershed), and leads down into the Languedoc.

Discussion

The large morphological and behavioural variability

within Ephippiger ephippiger has lead to a confusing series of

taxonomic classifications and revisions (Harz 1969; Hartley

& Warne 1984). Previous studies concluded that none of the

described species or subspecies were taxonomically valid,

and that the variation reflected primary differentiation

(Oudman et al. 1989, 1990; Duijm 1990; but see Grandcolas

1987). Our current analyses lead us to conclude that the

major source of variation is historical isolation during

recent glaciations, followed by secondary contact between

eastern and western forms, as has commonly shaped

subspecific variation in European flora and fauna (Taberlet

et al. 1998; Hewitt 1999; Vogel et al. 1999). However, in partial

Mantel analyses, genetic variability is correlated with environmental

contrasts even after allowing for the influence of

refugia, and significant environmental influences are also

detectable on body size (Kidd & Ritchie 2000). Both

secondary contact and environmental selection have therefore

influenced the pattern of genetic variability, though

secondary contact has had the greater effect.

Evidence supporting a vicariant origin of the differentiation

comes from the consistently high Mantel regression

coefficients associated with the refugial contrast matrices

(Table 1), which is also reflected in the deepest node within

the mtDNA relationships separating the samples into eastern

and western forms (Figs 2 and 3). The multivariate

transition identified by Kidd & Ritchie (2000, 2001) lies

within the same geographical region as the division in

mtDNA, but the two are not exactly coincident (Figs 1 and

3). The division in mtDNA occurs to the north of the multivariate

transition, somewhere south of Lodeve and west of

Montpellier. This lack of coincidence could be due to primary

selection patterning differential introgression of traits (see

below), although cytoplasmic DNA introgression through

hybrid zones is not uncommon (Shaw et al. 1990; Whittemore

& Schaal 1991).

Vitium, therefore, represents a form that probably originates

from a refugium to the east of the study area. Many eastern

European subspecies are thought to have originated in

the Balkans or Caucasus (Hewitt 1996, 1999; Taberlet et al.

1998), or perhaps in the Carpathians or Ural mountains

(Lagercrantz & Ryman 1990). Vitium presumably occupies

most of central Europe now, and extends as far west as the central

Pyrenees. One sample from here (from site 2) falls within

the western clade of the mtDNA tree (Fig. 3). E. ephippiger

from this area has been claimed to represent yet another

subspecies, E. moralesagacinoi (Harz 1969), but it seems

more likely that there is another rapid transition between

the eastern and western forms here (Oudman et al. 1990).

The western form, comprising nearly all the samples

identified as cunii or cruciger, has geographically structured

mtDNA variation. Samples from around the Pyrenean

watershed form distinct groups, with one from each of the



three main valleys (Cerdagne, Capcir and Conflent). This

provides a striking contrast with previous conclusions of

extensive gene flow based on allozyme, morphological and

RAPD markers (Oudman et al. 1990; Ritchie et al. 1997). The

two deepest nodes within the western form separate off

individuals from Cerdagne and Conflent. The remainder of

the samples comprise a group including the northernmost

cunii and almost all the cruciger samples, and geographically

corresponds to Capcir and the Languedoc. Clearly, there is

evidence of a shared mtDNA history to these samples,

despite their extensive range (over 150 km). The distinctness

of the cunii from different valleys, and the presence

of cruciger within this clade, disrupts cunii as a

genetic form. The 3-refugium matrix in the Mantel test was

designed to test the distinctness of cruciger, and it always

provided the greatest partial regression coefficient. So

there is some evidence to support the existence of a distinct

cruciger genotype, but the historical processes underlying

the relationship between cunii and cruciger are obscure.

We consider there to be two possible explanations whereby

cruciger may represent a distinct form. The first is that

cruciger was confined to a third refugium east of the Pyrenees,

possibly around the Mediterranean coast. Cruciger would

then have been subject to hybridization, first with the

northernmost samples of cunii expanding from a Spanish

refugium, then latterly with vitium expanding from an eastern

refugium. Cruciger could be facing extinction via introgression

due to this pincer movement. Most reconstructions of

Quaternary glacial refugia in southern Europe only include

major ones in southern Spain, Italy and the Balkans (Taberlet

et al. 1998; Hewitt 1999). Huntley & Birks 1983 (see also Vogel

et al. 1999) suggest that there was another refugium around

the Alpes Maritimes, and there is a suggestion of Pleistocene

coastal Mediterranean refugia including one around the

mouth of the Rhône (Comes & Abbott 1998), but no other

phylogenetic studies support the presence of distinct genotypes

from around this area (Comes & Kadereit 1998).

The second scenario is that cunii and cruciger are from

partially distinct southern refugia, both in Iberia, but have

a long history of hybridization and introgression during

repeated expansion/contraction cycles, with the Languedoc

being most recently invaded by a form already having

undergone hybridization with northern cunii. Repeated

hybridization could explain the imprecision of many of

the taxonomic traits. This scenario is perhaps more likely

given a very high level of Iberian endemism within the

ephippigerinae in general (Harz 1969; Gangwere & Morales

Agacino 1970). Also, several other studies have found

evidence for multiple refugia or variation within Iberia

(Cooper et al. 1995; Comes & Abbott 2000).

Although the main genetic divisions reflect secondary

contact, we also detect evidence supporting primary selection

influencing Ephippiger. This is most apparent in body size

and body ratios (Kidd & Ritchie 2000). However, the

partial Mantel tests show that, after allowing for refugia,

environmental contrasts are still correlated with variation

in mtDNA. Environmental conditions are unlikely to select

directly on mtDNA, it is more likely that indirect selection

influences the introgression of genotypes including mtDNA.

Cunii is probably more cold adapted or robust to inclement

environmental conditions than vitium. Hybrid zones with

a broad front are likely to act as semi-permeable barriers,

with recombination separating out genotypes under direct

selection from linked genetic variation (Barton & Gale 1993),

but patchy, mosaic or intermittent episodes of hybridization

may produce more opportunity for persistence of associations

across different types of genetic markers (Harrison

& Rand 1989; Rieseberg & Wendel 1993; Arnold 1997).

Our studies provide a good example of the value of an

integrative approach, involving techniques from geographical

analysis as well as spatial statistical analysis and

molecular phylogeography, in unravelling the pattern and

historical processes contributing to geographical variation.

Conventional population genetic methods for estimating

substructure within species allow little more than rejection

of the hypotheses that populations are panmictic or show

isolation by distance (Neigel 1997; Bossart & Prowell 1998;

Whitlock & McCauley 1998). Techniques are required

which allow detection of more realistic historical scenarios.

GIS allows independent identification of clusters in population

structure, and phylogeographic and Mantel tests, or

hierarchical analysis of F ST

or its derivatives can assess the

validity of these externally derived predictors of clustering

(Kidd & Ritchie 2001).

These analyses have resurrected two forms of the

bushcricket E. ephippiger from a taxonomic hinterland, and

we conclude that vitium is a valid subspecies. Whether

cruciger and cunii warrant separate subspecies status is

more problematical and will rely on further analyses. The

Mantel tests support their distinction, and several of the

trait surfaces of Kidd & Ritchie (2000) show clusters around

Narbonne. In contrast, the mtDNA relationships imply

that cruciger mtDNA is a derived form of the cunii genotype,

though this might be confused by hybridization

between the northern cunii and cruciger forms. It is difficult

to predict the effect of hybridization on phylogenetic trees

(Arnold 1997).

Finally, what lessons might E. ephippiger have for systematics?

We think it appropriate to designate at least two

forms of E. ephippiger as subspecies because they hybridize in

nature, yet are distinguishable on multiple traits throughout

the majority of their ranges. Some species definitions, particularly

the Phylogenetic (Cracraft 1989) and, depending on

details of hybrid populations, the Cluster species definitions

(Mallet 1995) might justify the elevation of these forms

to species status. We do not accept this due to the obvious

hybridization and lack of obvious incompatibilities between

the forms. However, does the systematic term ‘subspecies’



have genuine biological validity? Mayr (1942, p. 106) thought

not: ‘The taxonomist is an orderly person whose task it is

to assign every specimen to a definite category (or museum

drawer!). This necessary process of pigeonholing has led to

the erroneous belief … that subspecies are clear-cut units

which can easily be separated from one another.… But subspecies

intergrade almost unnoticeably in nearly all the

cases in which there is distributional continuity’. This reflects

Mayr’s (possibly essentialist, Mallet et al. 1998) view that

species were the only ‘true’ biological categories within

organisms. The increasing body of evidence that hybrid

zones result from historical vicariance episodes between

forms that have accumulated multiple concordant genetic

differences over a time scale possibly stretching as far back

as the Pliocene, must support a valid general concept of the

subspecies (Avise & Ball 1990).

Acknowledgements

Matthijs Duijm and Leendert Oudman provided very generous

help during the initial stages of this project. Bill Black, Hans Peter

Comes, Colin Hartley, and Roger Thorpe provided advice, and

several people helped with fieldwork. Klaus-Gerhardt Heller

kindly supplied the specimen of E. perforatus, and Roger Butlin

and Jeff Graves gave advice on the manuscript. The work was

funded by the NERC, UK, via a research fellowship and grant to

MGR.

References

Arnold ML (1997) Natural Hybridisation and Evolution. Oxford

University Press, Oxford.

Avise JC, Ball RMJ (1990) Principles of genealogical concordance

in species concepts and biological taxonomy. Oxford Surveys in

Evolutionary Biology (eds Futuyma D, Antonovics J), pp. 45–67.

Oxford University Press, Oxford.

Barton NH, Gale KS (1993) Genetic analysis of hybrid zones.

In: Hybrid Zones and the Evolutionary Process (ed. Harrison RG),

pp. 13–45. Oxford University Press, Oxford.

Barton NH, Hewitt GM (1985) Analysis of hybrid zones. Annual

Review in Ecology and Systematics, 16, 113–148.

Bossart JL, Prowell DP (1998) Genetic estimates of population

structure and gene flow: limitations, lessons and new directions.

Trends in Ecology and Evolution, 13, 202–206.

Butlin RK (1998) What do hybrid zones in general, and the

Chorthippus parallelus zone in particular, tell us about speciation?

In: Endless Forms: Species and Speciation (eds Howard DJ,

Berlocher SH), pp. 367–378. Oxford University Press, New York.

Comes HP, Abbott RJ (1998) The relative importance of historical

events and gene flow on the population structure of a mediterranean

ragwort, Senecio gallicus (Asteraceae). Evolution, 52, 355–

367.

Comes HP, Abbott RJ (2000) Random amplified polymorphic DNA

(RAPD) and quantitative trait analyses across a major phylogeographic

break in the Mediterranean ragwort Senecio gallicus

Vill (Asteraceae). Molecular Ecology, 9, 61–76.

Comes HP, Kadereit JW (1998) The effect of Quaternary climatic

changes on plant distribution and evolution. Trends in Plant Science,

3, 432–438.

Cooper SJB, Ibrahim KM, Hewitt GM (1995) Postglacial expansion

and genome subdivision in the European grasshopper Chorthippus

parallelus. Molecular Ecology, 4, 49–60.

Cracraft J (1989) Speciation and its ontology: the empirical consequences

of alternative species concepts for understanding

patterns and processes of differentiation. In: Speciation and its

Consequences (eds Otte D, Endler JA), pp. 28–59. Sinauer Associates

Inc, Sunderland, Massachusetts.

Douglas ME, Endler JA (1982) Quantitative matrix comparisons in

ecological and evolutionary investigations. Journal of Theoretical

Biology, 99, 777–795.

Duijm M (1990) On some song characteristics in Ephippiger

(Orthoptera: Tettigonioidae) and their geographic variation.

Netherlands Journal of Zoology, 40, 428–453.

Duijm M, Oudman L (1983) Interspecific mating in Ephippiger

(Orthoptera: Tettigonioidae). Tijdschrift voor Entomologie, 126, 97–

108.

Duijm M, Oudman L, Veldstra BG (1983) Copulation in Ephippiger

(Orthoptera, Tettigonioidae). Tijdschrift voor Entomologie, 126,

91–96.

Durrett R, Buttel L, Harrison R (2000) Spatial models for hybrid

zones. Heredity, 84, 9–19.

Endler JA (1977) Geographic Variation, Speciation and Clines. Princeton

University Press, Princeton.

Environmental Systems Research Institute Inc (1997) ARC Version

7.1.2. Redlands, CA, USA.

Felsenstein J (1995) PHYLIP (Phylogeny Inference Package). University

of Washington, Seattle.

Gangwere SK, Morales Agacino E (1970) The biogeography of

Iberian orthopteroids. Miscelánea Zoológica, 2, 1–75.

Genstat Committee (1993) Genstat 5 Release 3 Reference Manual. Oxford

University Press, Oxford.

Grandcolas P (1987) Distribution and hybridization of species of

the genus Ephippiger Bert. 1827 in the Briançon and Vallouise

regions (Hautes-Alpes, France). In: Evolutionary Biology of

Orthopteroid Insects (ed. Baccetti B), pp. 240–245. Ellis Horwood

Limited, Chichester.

Harrison RG (1990) Hybrid zones: windows on evolutionary process.

In: Oxford Surveys in Evolutionary Biology (eds Futuyma D,

Antonovics J), pp. 69–128. Oxford University Press, Oxford.

Harrison RG (1993) Hybrids and hybrid zones: historical perspective.

In: Hybrid Zones and the Evolutionary Process (ed. Harrison RG),

pp. 3–12. Oxford University Press, Oxford.

Harrison RG, Rand DM (1989) Mosaic hybrid zones and the nature of

species boundaries. In: Speciation and its Consequences (eds Otte D,

Endler JA), pp. 111–133. Sinauer Associates Inc, Sunderland,

Massachusetts.

Hartley JC, Warne AC (1984) Taxonomy of the Ephippiger ephippiger

complex (ephippiger, cruciger and cunii) with special reference to

the mechanics of copulation. Eos, 60, 43–54.

Harz K (1969) Die Orthopteren Europas I. Dr W. Junk, N.V. The

Hague.

Hewitt GM (1988) Hybrid zones — natural laboratories for evolutionary

studies. Trends in Ecology and Evolution, 3, 158–167.

Hewitt GM (1989) The subdivision of species by hybrid zones. In:

Speciation and its Consequences (eds Otte D, Endler JA), pp. 85–110.

Sinauer Associates Inc, Sunderland, Massachusetts.

Hewitt GM (1996) Some genetic consequences of ice ages, and

their role in divergence and speciation. Biological Journal of the

Linnean Society, 58, 247–276.

Hewitt GM (1999) Post-glacial re-colonization of European biota.

Biological Journal of the Linnean Society, 68, 78–112.



Huntley B, Birks HJB (1983) An Atlas of Past and Present Pollen Maps

for Europe. Cambridge University Press, Cambridge.

Kidd D, Ritchie MG (2000) Inferring the patterns and causes of

geographic variation in Ephippiger ephippiger (Orthoptera,

Tettigoniidea) using Geographical Information Systems. Biological

Journal of the Linnean Society, 71, 269–295.

Kidd D, Ritchie MG (2001) A Geographical Information Science

(GIS), approach to exploring variation in the bushcricket Ephippiger

ephippiger. In: GIS, Remote Sensing Applications in Biogeography,

Ecology (eds Millington A, Walsh S, Osborne P), Kluwer,

Dordrecht, in press.

Lagercrantz U, Ryman N (1990) Genetic structure of Norway spruce

(Picea abies): concordance of morphological and allozymic data.

Evolution, 44, 38–53.

Mallet J (1995) A species definition for the modern synthesis.

Trends in Ecology and Evolution, 10, 294–299.

Mallet J, McMillan WO, Jiggins CD (1998) Mimicry and warning

color at the boundary between races and species. In: Endless Forms:

Species and Speciation (eds Howard DJ, Berlocher SH), pp. 390–

403. Oxford University Press, Oxford.

Mayr E (1942) Systematics and the Origin of Species. Columbia University

Press, New York.

Nei M, Li WH (1979) Mathematical model for studying genetic

variation in terms of restriction endonucleases. Proceedings of the

Natl Acad Science of the USA, 76, 5269–5273.

Neigel JE (1997) A comparison of alternative strategies for estimating

gene flow from molecular markers. Annual Reviews in Ecology

and Systematics, 28, 105–128.

Oudman L, Duijm M, Landman W (1990) Morphological and

allozyme variation in the Ephippiger ephippiger complex

(Orthoptera: Tettigonioidae). Netherlands Journal of Zoology,

40, 454–483.

Oudman L, Landman W, Duijm M (1989) Genetic distance in the

genus Ephippiger (Orthoptera, Tettigonioidae) — a reconnaissance.

Tijdschrift voor Entomologie, 132, 177–181.

Ragge DR, Reynolds WJ (1998) The Songs of the Grasshopers and

Crickets of Western Europe. Harley Books, Colchester, UK.

Remington CL (1968) Suture-zones of hybrid interaction between

recently joined biotas. Evolutionary Biology, 2, 321–428.

Rieseberg LH, Wendel JF (1993) Introgression and its consequences

in plants. In: Hybrid Zones and the Evolutionary

Process (ed. Harrison RG), pp. 70–109. Oxford University Press,

Oxford.

Ritchie MG, Racey SN, Gleason JM, Wolff K (1997) Variability of

the bushcricket Ephippiger ephippiger: RAPDs and song races.

Heredity, 79, 286–294.

Schilthuizen M (2000) Ecotone: speciation-prone. Trends in Ecology

and Evolution, 15, 130–131.

Shaw DD, Marchant AD, Arnold ML, Contreras N, Kohlmann B (1990)

The control of gene flow across a narrow hybrid zone: a selective

role for chromosomal rearrangement? Genome, 68, 1761–1769.

Smouse PE, Long JC, Sokal RR (1986) Multiple regression and correlation

extensions of the Mantel test of matrix correspondence.

Systematic Zoology, 35, 627–632.

Taberlet P, Fumagalli L, Wust-Saucy A-G, Cosson J-F (1998) Comparative

phylogeography and postglacial colonization routes in

Europe. Molecular Ecology, 7, 453–464.

Thorpe RS (1984) Primary and secondary transition zones in

speciation and population differentiation: a phylogenetic

analysis of range expansion. Evolution, 38, 233–243.

Thorpe RS (1996) The use of DNA divergence to help determine the

correlates of evolution of mophological characters. Evolution, 50,

524–551.

Vogel JC, Rumsey FJ, Jakob Schneller J, Barrett JA, Gibby M (1999)

Where are the glacial refugia in Europe? Evidence from pteridophytes.

Biological Journal of the Linnean Society, 66, 23–37.

Whitlock MC, McCauley DE (1998) Indirect estimates of gene flow

and migration: F ST

≠ 1/(4Nm + 1). Heredity, 82, 117–125.

Whittemore AT, Schaal BA (1991) Interspecific gene flow in

sympatric oaks. Proceedings of the National Academy of Sciences of

the USA, 88, 2540–2544.

Willett CS, Ford MJ, Harrison RG (1997) Inferences about the origin

of a field cricket hybrid zone from a mitochondrial DNA phylogeny.

Heredity, 79, 484–494.

Mike Ritchie completed his PhD with Godfrey Hewitt, studying

the Chorthippus parallelus hybrid zone in the Pyrenees. There he

encountered Ephippiger ephippiger, and carried out a postdoctoral

fellowship in Hewitt’s laboratory studying the behavioural variation

of this species. Dave Kidd has collaborated with MGR in applying

GIS methods to the study of geographical variation in E. ephippiger.

Jenny Gleason studies molecular evolution and quantitative genetics,

and collaborated with MGR to develop the mtDNA RFLP analysis

of E. ephippiger.

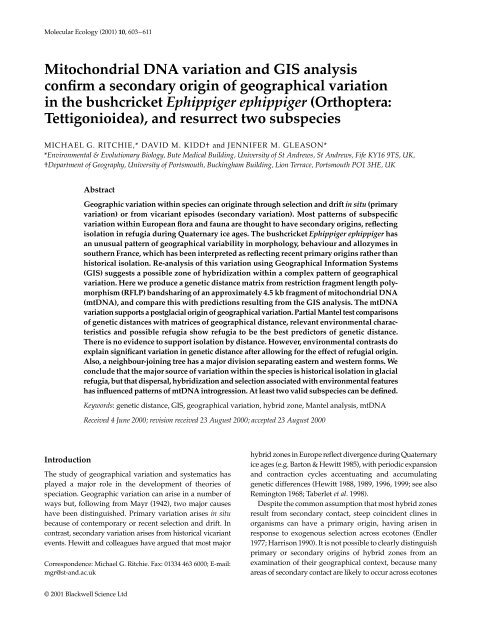

Mitochondrial DNA variation and GIS analysis confirm a secondary ...

Transform your PDFs into Flipbooks and boost your revenue!

Delete template?

Save as template ?
