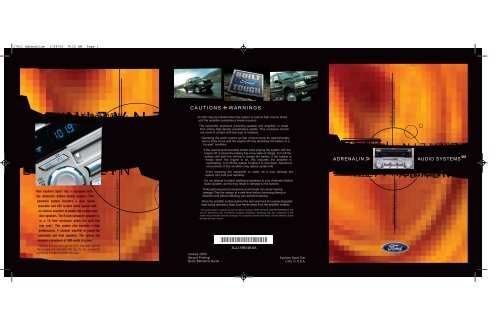

17611_Adrenaline 1/24/03 9:33 AM Page 1<br />
ADRENALIN<br />
ADRENALIN.<br />
ADRENALIN.<br />
ADRENALIN.<br />
ADRENALIN.<br />
ADRENALIN.<br />
Your <strong>Explorer</strong> <strong>Sport</strong> <strong>Trac</strong> is equipped with<br />
the Adrenalin Edition <strong>Audio</strong> System. This<br />
powerful system includes a dual media<br />
(cassette and CD) in-dash audio system with<br />
an internal amplifier to power the custom rear<br />
door speakers. The 8-inch subwoofer speaker is<br />
in a 12 litre enclosure under the split fold<br />
rear seat.* This system also contains a high<br />
performance, 4 channel amplifier to power the<br />
subwoofer and front speakers. The system will<br />
produce a maximum of 485 watts of power.<br />
* Owners should note that the 40% rear seat (behind<br />
the driver) will not fold flat due to the subwoofer<br />
enclosure located beneath the seat.<br />
ADRENALIN-Pioneer <strong>Audio</strong>phile System<br />
CAUTIONS WARNINGS<br />
An odor may be present when the system is used at high volume levels<br />
until the amplifier completes a break-in-period.<br />
The subwoofer enclosure (including speaker and amplifier) is made<br />
from strong high-density polyethylene plastic. This enclosure should<br />
not come in contact with any type of moisture.<br />
Operating the audio system at high volume levels for approximately<br />
two to three hours with the engine off may discharge the battery to a<br />
“no-start” condition.<br />
If the volume level becomes erratic while playing the system with the<br />
engine off, it means the battery has a low state of charge. Turn off the<br />
system and start the vehicle to charge the battery. If the system is<br />
erratic when the engine is on, this indicates the amplifier is<br />
overheating. Turn off the system to allow it to cool down. Numerous<br />
occurrences of this condition may reduce system life.<br />
Avoid exposing the subwoofer to water, as it may damage the<br />
system and void your warranty.<br />
Do not attempt to attach additional speakers to your Adrenalin Edition<br />
<strong>Audio</strong> System, as this may result in damage to the system.<br />
Prolonged exposure to excessive sound levels can cause hearing<br />
damage. Play the system at a safe level without annoying blaring or<br />
distortion and without affecting your sensitive hearing.<br />
Since the amplifier surface (behind the rear seat back trim panel) dissipates<br />
heat during operation, keep your hands away from the amplifier surface.<br />
This audio system is covered by the <strong>Ford</strong> Motor Company NEW VEHICLE LIMITED WARRANTY and<br />
can be serviced by any <strong>Ford</strong> Motor Company dealership. Tampering with any component of this<br />
system may invalidate warranty coverage. For complete warranty information, see the Warranty <strong>Guide</strong><br />
included with your vehicle.<br />
January <strong>2003</strong><br />
Second <strong>Printing</strong><br />
Quick Reference <strong>Guide</strong><br />
*F3L2J19B146AA*<br />
3L2J-19B146-AA<br />
<strong>Explorer</strong> <strong>Sport</strong> <strong>Trac</strong><br />
Litho in U.S.A.<br />
ADRENAL.<br />
ADRENALIN.<br />
A D R E N A LIN.<br />
ADRENALIN.<br />
ADRENALIN<br />
ADRENALIN.<br />
ADRENALIN.<br />
A D R E N A LIN.<br />
ADRENALIN-Pioneer <strong>Audio</strong>phile System<br />
ADRENALIN-Pioneer <strong>Audio</strong>phile System<br />
ADRENALIN-Pioneer <strong>Audio</strong>phile System<br />
ADRENALIN.<br />
ADRENALIN.<br />
AUDIO SYSTEMS<br />
ADRENALIN.<br />
ADRENALIN.<br />
ADRENALIN.
17611_Adrenaline 1/24/03 9:34 AM Page 4<br />
ADRENALIN.<br />
ADRENALIN.<br />
ADRENALIN.<br />
ADRENALIN.<br />
OPERATING INSTRUCTIONS<br />
ADRENALIN<br />
ADRENALIN.<br />
RADIO<br />
01 Ensure that the ignition and audio system are ON.<br />
15 16 Press AM or FM to select the desired frequency band.<br />
10 Press TUNE to move in individual increments up or down the frequency band.<br />
14<br />
13<br />
08<br />
Press SCAN to hear a brief sampling of all listenable stations on the frequency band.<br />
COMPACT DISC<br />
01<br />
ADRENALIN.<br />
ADRENALIN<br />
Ensure that the ignition and audio system are ON.<br />
ADRENALIN.<br />
ENALIN<br />
ADRENALIN.<br />
ADRENALIN.<br />
11<br />
Press CD and/or simply insert a CD into the CD door.<br />
15<br />
16<br />
12<br />
11<br />
06<br />
06<br />
08<br />
Press COMP to activate the compression feature; press again to deactivate.<br />
Press SHUF to play songs on the current CD in random order.<br />
Turn the SEEK control to select the previous or next track.<br />
17<br />
10<br />
09<br />
CASSETTE<br />
01 Ensure that the ignition and audio system are ON.<br />
12 Press TAPE and/or simply insert a tape into the system.<br />
ADRENALIN.<br />
ADRENALIN.<br />
ADRENALIN<br />
ADRENALIN. ADRENALIN.<br />
01 02 03 04 05 06 07 08<br />
05<br />
03<br />
CLOCK<br />
17<br />
04<br />
17<br />
04<br />
Press SIDE 1-2 to change playing sides on the cassette.<br />
Press REW or FF to select the previous or next selection.<br />
ADRENALIN.<br />
ADRENALIN<br />
ADRENALIN.<br />
A D R E N A L IN. ADRENALIN.<br />
ADRENALIN.<br />
Press the RDS control until SELECT HOUR is displayed.<br />
Press the SEL control to decrease (left arrow) or increase (right arrow) the hours.<br />
Press the RDS control again until SELECT MIN is displayed.<br />
Press the SEL control to decrease (left arrow) or increase (right arrow) the minutes.<br />
02 07 09 13<br />
14<br />
Please see your Owner’s <strong>Guide</strong> for more detailed information on these and other<br />
features on your Adrenalin <strong>Audio</strong>phile System.
