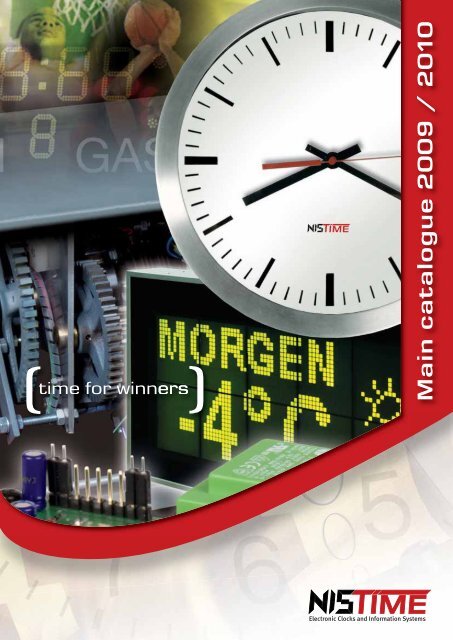

Analogue and digital clocks - NIS time

( )

time for winners

Main catalogue 2009 / 2010

Electronic Clocks and Information Systems

The NIS-time Company

NIS-time is one of the leading manufacturers in Germany of master and slave

clock systems as well as of digital displays.

For 26 years our company has developed and manufactured electro-technical

products of the highest quality with a highly motivated team, completely independent

on the changing of company’s names or owners.

A cooperative climate with our customers and our planning and engineering offices

is the basis of excellent consulting, selling and installation of standard products

and professional implementation of our customized specially designed models. Our

numerous and qualified industry representations and distribution partners in

Germany, Switzerland, Austria and Russia are in close touch with local customers.

This cooperation stimulates and requires regularly new product developments and

permanent adjustment of our products to new technologies and customer

requests.

NIS-time is always abreast of the latest trends.

NIS-time therefore offers the most modern and most practical solutions for your

time and information management. Intelligent, high-quality and modern products

are the reason for our long lasting business success.

NIS-time stands for...

high-quality products you can rely on

customized product development and production

individual consulting and planning

project planning and implementation

product and software training

service and repairs

Do you have any questions on other controls, interfaces, specific large displays or clocks?

Contact us! We will be pleased to help you.

2

1.Information displays 4-19

1. Alphanumeric text displays 7-8

2. Dynamic graphic displays 9

2.1 Multi-matrix display 9

2.2 Fine-matrix display 10

2.3 Mega-matrix display 11-12

3. Numerical price displays 13-16

3.1 LED price display 13-14

3.2 Price display with bistable flap technology 15

3.3 Price display board 16

4. Industrial displays 17-19

- HGV call displays 17

- Car park displays 18

- “Accident prevention day” notices and safety notices displays 18

- Performance and weather data displays 18

- Countdown displays as event clock 19

- Stage text displays and theatre subtitle displays 19

2. LCD and LED digital time and temperature displays 21-25

LCD - time + date + temperature 22-24

LED - time + date + temperature 25

3. Analogue and digital clocks 26-53

Analogue outdoor clocks 28-31

Outdoor advertising clocks 31

Cubic clocks / 4-sided clocks 32

Kit components for analogue outdoor clocks 33-38

Components for tower and facade outdoor clocks for diameter up to 6.0 m 39-40

Analogue indoor clocks 41-46

Classic: our attractive standard clocks 41-42

Metal: our attractive standard clocks with metal case 43

Silver: the inexpensive indoor model in 30 cm and 40 cm format 44

Ball impact-proof clocks according to DIN 18032 45

Clocks for incorporation into tiles for “clean areas” such as operating rooms 46

Kit components for analogue indoor clocks 47

Digital indoor clocks 48-53

The digital easy-LED indoor clock 48

Clocks incorporated into switchboards 49-50

International time zone clocks 51-53

4. Master clocks / Boosters / Time receivers 55-69

NIS-netTime, the self-monitoring network clock system 55-57

TELNU systems 58-59

Multi functional master clocks 60-61

Line amplifier booster (wall and 19“) 62

Timer 4C – 4 circuits switch timer 63

THE master clock for tower clock and slave clock 64

Clock stroke controller 65

Boosters and power supplies 65

Standard booster and power supply units 66

DCF77 receiver 67-68

GPS satellite time receiver 69

5. Scoreboards 70-80

LED scoreboards for sports halls 71-78

Club series: recommended for schools and regional games 72

Evolution series: recommended for supra-regional games 73-75

Master alpha series for big sports halls (FIBA level 1 and 2) 76-77

24/ seconds display and accessories 78

Scoreboards for soccer 79-80

Soccer scoreboards with bistable flap technology 79

LED soccer scoreboards 80

6. General terms and conditions 81

3

01

02

03

04

05

Informationsanzeigen

LCD high-end products

( )


4

Information displays

Information displays

General description of LCD technology

NIS displays are of high quality, reliable and thanks to top-quality materials applicable for almost all purposes.

For professional application we use professional LCD technologies.

COG technology (Chip-On-Glass): control chip and interconnection track are

integrated in the glass and therefore an identical coefficient of expansion at all

temperatures is guaranteed.

The approx. 0,.01 mm thick liquid crystal layer is hermetically sealed between

two glasses .

Transflective LCD technology: a semi-transparent reflector is installed behind the

LCD glass and in front of the acrylic glass in a triple layered structure, which is

illuminated by the sunlight from the back side and which reflects in sunlight.

Transflective LCD technology doesn’t require external brightness control and

renders possible a uniform colour fastness and brightness. The original bright

ness of the LCD display can be restored by exchanging the background lighting

(e.g. usual fluorescent tubes).

Characteristics of display elements

7-segment displays

Available numerical characters and special characters

%, €, KW, KG,°C, +, –, To. UG, EG, OG:

Character height 60, 100, 150 and 250 mm

Background

lighting

Excellent readability: in direct sunlight by reflection, in darkness by backlighting

Viewing angle of more than 140°

Operating temperature in a range of -25°C to +85°C

Extremely long service life of approx. 200,000 h (> 22 years)

Extremely low energy consumption

Large filling factor / small pixel spacing

Low operating and maintenance costs thanks to standard components

Individual monochrome colour design by transflector foil, e.g. yellow, white, green, blue etc.

Environmental stability against UV rays and vibration

LCD displays (characters)


Transmitted light

Available alphanumeric character set

and special characters:

Character heights 14, 22, 38, 64, 120, 150, 250 mm

Incident

light

Reflected incident

light

5

01


Available alphanumeric character set

and special characters

Character height 100 mm

Fine-matrix displays

Resolution 72x52 pixels

(WxH: 320x242 mm)

LCD choice of colours

Standard colours: yellow, white, red, green, blue


Multi-matrix displays


(WxH: 326x95 mm)

Mega-matrix displays


(WxH: 270x315 mm)

Fields of application, implementations and customers

We offer many different types of LCD glasses and LCD technologies and you can use them for numerous indoor and

outdoor applications, implementations and customers. The display systems are used by shops, banks and insurances,

pharmacies, travel agencies and hotels, townships & municipalities, newspaper publishing companies, service stations,

local public passenger traffic, loading stations, logistics areas of forwarding companies, breweries, refineries,

distribution centres, court rooms, exhibition and congress centres, car parks, production halls, theatres etc.

6


1. Alphanumeric text displays

Ticker texts or information boards as a dynamic, current medium e.g. combined with an outdoor advertising system.

We also produce the complete displays with or without case as an installation kit according to your needs.

Excellent representation by sharp-edged character

design for 38/88-segment displays

Ideal readability in direct sunlight by reflection

Moving text display, character height 150 mm, 16 characters, housing WxHxD: 2500x415x130 mm

38-segment display with character height 22/38/64/120/150/250 mm

88-segment display with character height 100 mm

Very sharp character face with high contrast

Character colour monochrome, yellow, white, red, green, blue or others on dark background

Anodized, silver-coloured aluminium housing with Plexiglas front cover

Installation kits without background lighting

Available one-sided or double-sided

Data entry per PC via data cable, other controls on request

Operating voltage 230 V/AC

Standard single-sided moving texts for outdoor area

Viewing angle of more than 140°

Extremely long service life 200,000 h (22 years)

Character optical range character display complete WxHxD in mm display as installation kit WxHxD in mm

height approx in housing, without backlighting

model number model number

22 mm 10 m 20 K-LCL22G20 650x170x130 K-LCL22B20 620x125x90


24 K-LCL38G24 1000x180x130 K-LCL38B24 920x140x90











Other display sizes on request.

Please specify the desired character colour on your order.

7

01

Required Software

K-SOFT-ATS Windows software for text entry as moving text and block text for single-line or multiline displays

incl. USB-RS422 converter with 10 m connection cable

Complements for alphanumeric text display

K-LUFT-KIT Fan with insert and temperature switch (ON at 45°C / OFF at 30°C),

incl. mounting bracket. Recommended for small housings so as to avoid trapped heat

K-LCL77/ZUT


Integration of time, date and weekday for single-line displays in fixed representation format,

LC40 control with external DCF-77 radio receiver with 2.5 m connection cable incl. Windows

software and USB-RS422 converter with 10 m connection cable.

K-FUNDAT-SET Data transmission by radio: radio transmission data with 433-MHz technology. With visual contact a

range of approx. 300 m. Transmitter with USB-RS232 converter, radio receiver installed in the housing.

8


2. Dynamic graphic displays

LCD pixel matrix image boards allow multiple advertising possibilities to challenge your creativity. Individual text

or graphic messages can be easily programmed with a PC. The graphic display consists of individual modules. This

allows the display size to be tailored exactly to the customer’s needs. The matrix image boards can be supplied

complete with housing or without housing as installation kits.

Excellent representation through flexible

character design with all matrix displays

Inverted representation (positive/negative) possible

2.1 Multi-matrix display

The small display for big effects

display system for outdoor and indoor use

excellent readability, even in direct sunlight

single-line or multiline representation possible

fast, smooth display of different character styles and character sizes,

can be combined with special characters and logos

character height 45 mm with two lines and 95 mm with single line representation

character colour yellow, white, red, green or blue on dark background

anodized, silver-coloured aluminium housing with Plexiglas front cover

installation kits without background lighting

available single-sided or double-sided

data entry per PC via data cable, other controls on request

operating voltage 230 V/AC

Ideal readability in direct sunlight by reflection

Angle of view of more than 140°

Extremely long service life 200,000 h (22 years)

Multi-matrix display WxHxD: 815x220x70 mm

Standard multi-matrix display, single-sided, for outdoor use

Character height active resolution display complete WxHxD in mm installation kit (WxH) in mm

(optical range) display area in housing without lighting

(WxH) Model number Model number

652x95 mm 96x16 Pixel K-LCLMAT2GM 815x220x130 K-LCLMAT2GMBS 765x200x90

95/45 mm 978x95 mm 144x16 Pixel K-LCLMAT3GM 1250x220x130 K-LCLMAT3GMBS 1150x200x90

(45/22 m) 1304x95 mm 192x16 Pixel K-LCLMAT4GM 1550x220x130 K-LCLMAT4GMBS 1450x200x90

1630x95 mm 240x16 Pixel K-LCLMAT5GM 1850x220x130 K-LCLMAT5GMBS 1750x200x90

Required software

K-SOFT-MULTIMTX Windows software: software for multi-matrix display, text and graphic entries as ticker text and

ticker-style news, incl. USB-RS422 converter with 10 m connection cable

9

01

2.2 Fine-matrix display

The small display for big effects

Fine-matrix display WxHxD: 900x550x130 mm (type K-F2MTXG/1 for outdoor)

outdoor and indoor display system


different character styles and different character sizes, can be combined with special characters and logos

fixed display height 242 mm, display width is almost unlimited

character colour yellow, white, red, green, blue on dark background

anodized silver-coloured aluminium housing with Plexiglas front cover





Standard fine-matrix display, one-sided, for outdoor use





640x242 mm 144x52 Pixel K-F2MTXG/1 900x550x130 K-F2MTXB/1 770x490x90

242 mm 960x242 mm 216x52 Pixel K-F3MTXG/1 1250x550x130 K-F3MTXB/1 1110x490x90

(120 m) 1280x242 mm 288x52 Pixel K-F4MTXG/1 1550x550x130 K-F4MTXB/1 1450x490x90

1600x242 mm 360x52 Pixel K-F5MTXG/1 1900x550x130 K-F5MTXB/1 1750x490x90


K-SOFT-FEINMTX Windows Software: software image sequences for fine-matrix display, text and graphic inputs,

individual design of display sequences incl. USB-RS422 converter with 10 m connection cable

10


2.3 Mega matrix display

Mega-matrix display WxHxD: 2000x1000x190 mm

The big display for big effects

outdoor and indoor display system


number of lines, character size and graphics freely configurable

different character types and character sizes, combinable with special characters and logos

extendable display height of 315, 630 to 1260 mm display width almost unlimited.

character colour yellow, white, red, green, blue on dark background

anodized, silver-coloured aluminium housing with Plexiglas front cover





Standard mega-matrix display, single and double-sided, for outdoor use

Suitable for time and temperature display alternating with block texts and graphics




825x315 mm 45x17 Pixel K-3MTXG/1 1200x650x190 K-3MTXB/1 1000x450x90

315 mm double-sided type K-3MTXG/2 1200x650x190 K-3MTXB/2 2 x single-sided

(150 m) 1100x315 mm 60x17 Pixel K-4MTXG/1 1500x650x190 K-4MTXB/1 1280x450x90

double-sided type K-4MTXG/2 1500x650x190 K-4MTXB/2 2 x single-sided

630 mm 1375x630 mm 75x34 Pixel K-10MTXG/1 1800x1000x190 K-10MTXB/1 1600x800x90

(300 m) 1650x630 mm 90x34 Pixel K-12MTX/G/1 2000x1000x190 K-12MTX/B/1 1850x800x90

1260 mm

(600 m)

2200x1260 mm 120x68 Pixel K-32MTXG/1 2600x1800x190 K-32MTXB/1 2400x1600x90

Required software and upgrading

K-SOFT-MEGAMTX Windows software: software image sequences for mega matrix display, text and graphic entries

as changing information incl. USB-RS422 converter with 10 m connection cable

K-LCL77-T/ZUT Integration of time and temperature display for mega-matrix display, LC40-control with

external DCF-77 radio receiver with 2.5 m connection cable and temperature sensor in

Sunlight protection housing, with 10 m connection cable, fix representation format

11

01

Standard mega-matrix display, single-sided, for outdoor use

Suitable for tickers or display of alternating ticker and block texts




315 mm 2750x315 mm 150x17 Pixel K-LCLMAT10G 3200x750x130 K-LCLMAT10BS 3000x450x90

(150 m) 4950x315 mm 270x17 Pixel K-LCLMAT18G 5400x750x130 K-LCLMAT18BS 5200x450x90

630 mm 2750x630 mm 150x34 Pixel K-LCLMAT20G 3200x1000x130 K-LCLMAT20BS 3000x800x90

(300 m) 4950x630 mm 270x34 Pixel K-LCLMAT36G 5400x1000x130 K-LCLMAT36BS 5200x450x90


K-SOFT-MFS

Optional for all dynamic graphic displays

12


Windows software: software MFS (matrix ticker text system) for mega-matrix display, text and

graphic entries as ticker-style news information or continuous ticker news text

incl. time control (automatic updating according to date and time)

Upgrading for multi, fine and mega matrix display

K-LUFT-KIT Fan with insert and temperature switch (ON at 45°C / OFF at 30°), incl. mounting bracket,

recommended with small housings so as to prevent trapped heat

K-FUNDAT-SET data transmission by radio: radio data transmission with 433-MHz technology. With visual contact

range of approx. 300 m. Transmitter with USB-RS232 converter, receiver is installed in the housing.


3. Numerical price displays

Big price display board; differ clearly from business rivals and take advantage of outdoor advertising as an important

medium. The information boards are available with LED technology or with bistable flap technology. Prices e.g.

cash register calculator system, operator device or PC can be changed at any time.

Excellent readability day and night using special

“SMD” LED technology

3 automatic brightness positions, automatic

adjustment

3.1 LED price displays

7-segment display with character height 200/250/300 mm

LED brightness 2000 mcd

service life of about 100,000 hours (approx. 11 years)

4-digit display

character colour monochrome yellow or red

only installation kits available

available single-sided or double sided

available for double-sided price display up to 6 products (qualities)

interface for cash register system (manufacturer) for

Gilbarco, Logitron, Wayne Dresser (RS232)

Logitron, Scheidt & Bachmann (RS485)

Tokheim KA, EIN, Rsospt1 (current loop)

Fast and simple price change by radio 869 MHz

(up to approx 10-20 m) or

remote control by cable

Character height dimensions power consumption power consumption

per line WxHxD single-sided per line double-sided per line

200 mm 730x234x20 mm 28 W 38 W

250 mm 969x336x20 mm 38 W 50 W

300 mm 1145x428x20 mm 47 W 63 W

Operating temperature range -20 bis +70 °C

13

01

4 digit, character height 20 cm + dot

LED price display kit

Rückseite

4-digit, character height 25 cm (3 digits), 20 cm (4 digit) + dot

Character optical number single-sided double-sided single-sided double-sided

height range Lines model number model number model number model number

Character colour yellow character colour red

200 mm 100 m 1 K-TNKLED20-1/1G K-TNKLED20-1/2G K-TNKLED20-1/1R K-TNKLED20-1/2R

2 K-TNKLED20-2/1G K-TNKLED20-2/2G K-TNKLED20-2/1R K-TNKLED20-2/2R

















Input devices and interfaces

K-TNKLED-FERN Fast and easy price change per remote control, via cable. Maximum cable length

between the display and the remote control is 300 m (via interface RS485)

Rückseite

4-digit, character height 30 cm (3 digits), 20 cm (4 digit) + dot

K-TNKLED-FUFERN As above, but radio data transmission 869 MHz without cable. Range between the display and

the remote control approx. 10-20 m

K-TNKLED-PK232 Interface to be integrated into the existing cash register system. Protocol card for

RS-232-interfaces for cash register systems manufacturer Gilbarco, Wayne Dresser.

Rückseite

K-TNKLED-PK485 Interface to be integrated into the existing cash register system. Protocol card for RS-485interfaces

for cash register system manufacturer Logitron, Scheidt and Bachmann.

K-TNKLED-PKSS Interface to be integrated into the existing cash register system. Protocol card for current loop

for cash register systems manufacturer Tokheim KA, Omega, EIN, Rsospt 1

Using the control via cash register system a remote control is not necessary.

14



3.2 Price display using bistable flap technology

electromagnetic 7-segment flap displays with character height 150/250/300/450/600 mm

robust system for outdoor use

3-digit display, optional 4th digit

character colour monochrome yellow or white

only installation kits available


available for double-sided price display of up to 6 products (qualities)

interface for cash register systems (manufacturer) for Wayne Dresser (RS232)

Price display using bistable flap technology, installation kit

Extra charge for 4. movable digit

Very good readability during day

time by reflection

Extremely low power consumption

Fast and simple price change with

remote control by cable

Character optical characters dimensions WxHxD single-sided double-sided

height range colour double-sided =

2 x single-sided

model number model number

150 mm 75 m yellow 550x255x80 mm K-TANK15/1G K-TANK15/2G

White K-TANK15/1W K-TANK15/2W









K-KZH710GE bistable 7-segment character height 100 mm yellow for 150 mm price display

K-KZH710WS bistable 7-segment character height 100 mm white for 150 mm price display





K-KZH730GE bistable 7-segment character height 300 mm 450/600 mm price display

K-KZH730WS bistable 7-segment character height 300 mm white for 450/600 mm price display

Input devices and interfaces

K-KLA/EINGABE Control desk with LCD display for price display using bistable 7-segment display technology.

Operating voltage 230V/AC

K-KLA/EIN-WD Control desk for price display as above but without LCD display. Switch between automatic and

manual data transmission. Connection to the cash register system “Wayne-Dresser“

15

01

3.3 Price display boards – application fields

All display boards can be supplied complete with or without housing as installation kits.

16



4. Industrial displays

4.1 HGV call displays

Time is money, "just in time" is the key to success and logistics and material management are focal points of business

activities. Under these perspectives the control of supplier traffic flows for loading or unloading is gaining more and

more importance. For this purpose we offer the NIS-time truck call-up systems.

Whether you need simply to display free access routes to the factory, allocate gate accesses, lanes or loading ramps –

or to display all this information– we can offer you display systems. We provide you the traffic control system that

meets your specifications. Thanks to a wide range of standard software, a choice of data communication technologies

and Windows-based operating software we ensure problem-free operation.

Display board and operating software

17

01

4.2 Car park displays

The NIS car park displays are not only suitable to display occupied/vacant parking spaces , but also offer, according

to the specific type, an elegant solution to directly guide e.g. your visitor groups to the parking area reserved for them.

4.3 Safety displays and “accident-free day” displays

Accidents are expensive and safety in business is important. It becomes more and more important to present the

businesses’ efforts in this respect. It helps not only in motivating one’s own staff members but is also as part of

the business’s public image. The display systems for “accident-free days“ and the safety systems serve to represent

the business. These displays and control systems are individually tailor-made to customers’ needs.

4.4 Performance and weather data displays


Displays of energy production of solar generators and wind power stations or of the measurement data of a weather

station enable an ecologically sensitive public to be informed. The displays and data adaptations are individually

tailor-made to customer specifications.

18


4.5 Countdown displays as an event clock

For sales campaigns or sporting events, over and over again an eye-catcher: the precise count down clock as an additional

attraction of outdoor and indoor advertising boards. Easy target time entry with operator device or per PC.

The time information as well as the summer/winter time changeover is carried out fully automatically via DCF77 time

signal transmitter or GPS satellite time signal. Displays are available according to customer’s specifications in all glass

sizes from our product range supplied complete with housing or without housing as installation kit.

4.6 Stage text displays – subtitle display boards for theatres

True white characters with high resolution (88-segments) on blue-black background ensure optimal readability. The

background lighting is controlled by the stage lighting (e.g. DMX system). The special BTS operating software allows

various creative forms of display. The information speed can be finely adjusted if the sequence of events on stage

doesn’t coincide with the planning.

19

01

Time and temperature displays


with LCD and LED technology

( )


20


At a glance:

Digital time and temperature displays with LCD and LED technology

Digital time and temperature displays – the eye-catcher for outdoor advertising. The displays with permanent

alternation between time and temperatures always attract attention. With time and temperature information the

advertising structure doesn’t loose its appeal even after years of use.

Time and temperature displays for outdoor use, single-sided or multi-sided option models, available complete with

housing or without housing as installation kit. Automatic time display and summer/winter time changeover via DCF77time

signal transmitter or via GPS time signal. DCF77 receiver and temperature sensor are included in delivery.

21

02

22


LCD – numerical displays time + date + temperature

Possible display

sequence

Performance numerical display alphanumerical display

Display alternating time, date and temperature alternating time, temperature and weekday

Temperature display possible in °C (Celsius)

or °F (Fahrenheit)

Character configuration 7-Segment 38-Segment 88-Segment

Character height 60/100/150/250 mm 64/150/220/250 mm 100 mm

Character face narrow character face sharp and thick character face

Model 4 or 6 digit display with integrated colon or decimal place

Display colour display backlit in yellow, white, red, green, blue on dark background

Operating modes radio clock or TELNU system clock

Operating voltage electric power supply 230V/AC

Control device LC40 control HxD: 170x80x67mm / DCF-77 radio receiver with 2.5 m connection cable

WxHxD: 124x50x62mm / temperature sensor with 10 m connection cable

Anodized silver-coloured aluminium housing with Plexiglas front cover and background lighting

(standard fluorescent tube) and wall mounting for single-sided, lateral brackets,

Length 80 mm for double-sided housing

LCD – alphanumeric display time + date + temperature + weekday

Possible display

sequence


Numerical time and temperature displays

Installation kit in front panel framework

Character Seg- number of model displays complete WxHxD installation kits WxHxD

height ment characters in housing in mm without backlighting in mm

Model number Model number

60 mm 7 6 single-sided K-7LC6UT280/1-H 500x280x130 K-7LC6UT6,0/1KIT 435x145x93

double-sided K-7LC6UT280/2-H 500x280x190 K-7LC6UT6,0/2KIT 2 x single-sided

100 mm 7 4 single-sided K-7LC4UT300/1-H 500x300x130 K-7LC4UT10/1KIT 435x235x93

double-sided K-7LC4UT300/2-H 500x300x190 K-7LC4UT10/2KIT 2 x single-sided





Extremely long service life 200,000h (22 years)

Angle of view of over 140°

Alphanumeric time and temperature display

Installation kit in front panel framework

Delivery including:

DCF radio receiver,

control device,

and temperature sensor

Ideal readability in direct sunlight

by reflection

Delivery including:

DCF radio receiver,

control device,

and temperature sensor

Character Seg- number of model displays complete WxHxD installation kits WxHxD

height ment characters in housing in mm without backlighting in mm

Model number Model number

64 mm 38 6 single-sided K-LC6UT280/1-H 500x280x130 K-LC6UT6,4/1KIT 435x145x93

double-sided K-LC6UT280/2-H 500x280x190 K-LC6UT6,4/2KIT 2 x single-sided

100 mm 88 4 single-sided K-LC4UT300/1-H 600x300x130 K-LC4UT10/1KIT 435x235x93

double-sided K-LC4UT300/2-H 600x300x190 K-LC4UT10/2KIT 2 x single-sided





23

02

24


Accessories for installation kits

K-LEUCHT6KIT Mounted backlight for 60/64 mm LCD display with aluminium bracket 1 unit,

fluorescent tube with ballast

K-LEUCHT10KIT Mounted backlight for 100 mm LCD display with aluminium bracket 1 unit,


K-LEUCHT15KIT Mounted backlight for 150 mm LCD display with aluminium bracket 2 units,


K-LEUCHT25KIT Mounted backlight for 250 mm LCD display with aluminium bracket 3 units,


Installation kit with mounted backlight

Optional and complement

K-GEHSTRAHL Sunlight protection housing for temperature sensor against measuring errors with direct sunlight

(necessary whenever the temperature sensor can’t be mounted in the shade)

K-LUFT-KIT Fan with insert and temperature switch (ON at 45°C / OFF at 30°C), incl.

bracket, recommended with small housings to prevent trapped heat

K-AUFDCF/RUN Extra charge for special DCF-77 antenna for moving objects (e.g. rotary clocks)

K-AUF/GPS Extra charge for GPS time receiver for worldwide use

K-GEHSTRAHL K-LUFT-KIT

K-AUFDCF/RUN K-AUF/GPS

Concerning sunlight

protection housings

we recommend:

There is not always the possibility (e.g.

with freestanding advertising columns),

of fixing the temperature sensor in an

optimal way. So as to avoid measuring

errors the sensor should be mounted in

the shade or e.g. on the north side of a

building, where the solar irradiation or

heat emission doesn’t influence the

house wall. Due to the generated circulation

of air the sunlight protection

housing allows an accurate enough

temperature measurement even with

direct sunlight.


LED numerical display time + date + temperature

Very good readability day and night time

by special LED “SMD“ technology

3 automatic self-regulating brightness

adjustments

alternating display of time, date, temperature or individual display

free choice of clock time in 12 or 24 hours format

7 segment numerical display with character height 150/200/250/300 mm

basic version 4-digit, single-sided or double-sided

character colour monochrome yellow or red

operating mode as radio clock

temperature sensor with 5 m connection cable

removable DCF77 radio receiver

Operating voltage 230 V/AC)

Numerical time and temperature display (only installation kits without cases)

Character Seg- number of Model character colour character colour WxHxD

height ments characters yellow red in mm

number Model number Model

150 mm 7 4 single-sided K-LUT15/1BTG K-LUT15/1BTR 550x235x75

double-sided K-LUT15/2BTG K-LUT15/2BTR 550x235x75/20 (Master/Slave)







Optional and complement

K-GEHSTRAHL Sunlight protection housing for temperature sensor against measuring errors with direct sunlight

(necessary whenever the temperature sensor can’t be mounted in the shade)

K-AUF/GPS-BT

Extra charge for GPS time receiver for worldwide use

25

02

Analogue and digital clocks

for indoor and outdoor

( )


26

Analogue and digital clocks


Quality engineering from Germany, for indoor and outdoor use

NIS clocks stand out for their high-quality and reliability. The use of high-quality materials, the experience of many

years and constructive collaboration with our customers ensure these qualities also for the future.

Fields of application:

Building services engineering: hospitals, schools

Administrative buildings: banks, insurance company

Local public transport area: railway stations, airports, omnibus areas

Absolute time: television- and broadcasting studios

Operating modes:

Autonomous clocks /single clocks

Quartz clock: Autonomous clocks that require a manual adjustment at commissioning, basically without automatic

summer / winter time changeover.

Radio-controlled clock

Autonomous, accurate clocks, that are synchronized via the German time signal transmitter DCF77 within a

radius of approx. 1500 km of Frankfurt/M., fully automatic clock hand movement identification (with analogue

clocks) and summer / winter time changeover. Operating voltage: battery-operated or mains-operated 230 V.

Please note! The radio reception in buildings can be restricted due to construction conditions and should be checked

before purchasing and commissioning of autonomous radio-controlled clocks. As a result of our experience of many years we generally

therefore recommend using a very stable master and slave clock system, e.g. clock system NIS-TELNU or NIS-netTime clocks.

System clocks with master clock

• High-quality products you can rely on

• Customized product development and

production

• Individual consulting & planning

• Project planning and implementation

• Product and software training

• Service and repairs

Pulse slave clock:

A system clock that is driven via a master clock with 12/24 V polarity-alternating minute pulse. On installation/

commissioning attention should be paid to connecting all slave clocks to the correct pole. For clocks with date

display on commissioning or after trouble shooting the current date has to be adjusted manually. For analogue

clocks with second hand normally an additional 2 wire line for the second pulse from the master clock or integrated

synchronous second movement is necessary.

NIS TELNU clock:

Intelligent slave clocks that are driven via a TELNU master clock with serial time frame (seconds, minutes, hours,

day, month, weekday and year ) without additional line (operating voltage and data transmission via a 2 wire line).

All analogue clocks (also with display for date and/or second hand display) and digital clocks can be driven by this

system. Fully automatic hand adjustment through electronic clock hand identification with summer/winter time changeover.

On commissioning and also after trouble shooting such as for example cable break or short circuit an automatic adjustment

of the clock system is carried out. Same purchase costs as for classic pulse-driven analogue indoor slave clocks up to dial

diameter 40 cm. not only “counts” an important one-time cost saving on commissioning but also the reliable technology that

provides security and saves operational costs.

NIS-netTime clocks:

Intelligent, self-monitoring (S)NTP network clocks that are synchronized per ToE (Time over Ethernet). The clocks

are integrated with a network cable into the existing LAN and can be driven directly without additional power current

supply (PoE – Power over Ethernet). The time information is provided either by the existing NTP server or via

internet by a NTP pool. All analogue and digital clocks can be driven by this system. With your internet browser (e.g. Internet

Explorer or Mozilla Firefox) you can set comfortably and practically all configurations as e.g. the IP-address (automatically

via DHCP or manually), time zones, e-mail failure notifications and many more adjustments. With the optional NIS-time

ClockExplorer you have a survey of your complete clock system. This administrator tool allows a fast configuration and monitoring

of all clocks in your LAN.

27

03

Analogue outdoor clocks

Analogue outdoor clocks, single, double, or multisided models, available complete with housing or without housing as

installation kit. All NIS analogue outdoor clocks are made of high-quality material (flat slave clock radio-controlled

movement with a thousand times proven brass gear wheels and stainless steel shafts, no plastic material). Operating

temperature range of –30 to +80°C.

round clocks with dial diameter 40/50/60/80 cm

square clocks with dial diameter 40/50/60/80/100 cm

single-sided clocks for wall mounting, double-sided clocks with choice of wall or ceiling bracket

aluminium baton hands (hours and minutes) with black painted finish

flat, robust movement with brass gears and stainless steel shafts operating temperature of –30° to + 80° C

mains-operated 230 V or battery-operated (without lighting)

Plexiglas dial backlit, with choice of 4 dial models according to DIN 41 091

Hour markers

DIN markers

Arabic numerals

Roman numerals


Classic slave clocks, switchable 12 V/24 V/48 V/60 V for polarity-alternating minute impulse

Intelligent TELNU system clocks

Autonomic radio clock, with time signal DCF77or via GPS

Intelligent, self-monitoring NIS-net time clock

28


Hour markers DIN markers Arabic numerals Roman numerals


Round analogue outdoor clocks

Housing with 40/50 cm clocks shock-resistant polycarbonate plastic, housing bottom part grey (similar RAL 7004),

non-glare convex cover of shatter-proof Plexi-Resist. Clocks incl. lighting

Housing with 60/80 cm clocks aluminium powder-coated, white (similar RAL 9010), non-glare convex cover of shatterproof

Plexi-Resist. Clocks incl. lighting

Dial housing Dial model

ø ø

40 cm 45 cm markers single-sided K-ANA40/1RS K-ANA40/1RST K-ANA40/1RSF K-ANA40/1RSN

double-sided K-ANA40/2RS K-ANA40/2RST K-ANA40/2RSF K-ANA40/2RSN

DIN single-sided K-ANA40/1RD K-ANA40/1RDT K-ANA40/1RDF K-ANA40/1RDN

double-sided K-ANA40/2RD K-ANA40/2RDT K-ANA40/2RDF K-ANA40/2RDN

Arabic single-sided K-ANA40/1RA K-ANA40/1RAT K-ANA40/1RAF K-ANA40/1RAN

double-sided K-ANA40/2RA K-ANA40/2RAT K-ANA40/2RAF K-ANA40/2RAN

Roman single-sided K-ANA40/1RR K-ANA40/1RRT K-ANA40/1RRF K-ANA40/1RRN

double-sided K-ANA40/2RR K-ANA40/2RRT K-ANA40/2RRF K-ANA40/2RRN

50 cm 55 cm Markers single-sided K-ANA50/1RS K-ANA50/1RST K-ANA50/1RSF K-ANA50/1RSN
























Annotation: K-ANA40/1RDT: K = complete unit, ANA = analogue outdoor clock, 40 = dial diameter,

/1 = single-sided, R = round, D = DIN dial, T = TELNU clock

A B C D

Dial

ø in mm

singlesideddouble-

sided

400 450 123 230 151

500 550 135 254 151

600 650 150 240 115

800 850 150 266 125

29

03

Square analogue outdoor clocks

For square clocks anodized, silver-coloured aluminium housing with Plexiglas front cover. Clock incl. lighting.

dial housing dial model

ø ø

30


40 cm 45x45 cm Markers single-sided K-ANA40/1QS K-ANA40/1QST K-ANA40/1QSF K-ANA40/1QSN

double-sided K-ANA40/2QS K-ANA40/2QST K-ANA40/2QSF K-ANA40/2QSN

DIN single-sided K-ANA40/1QD K-ANA40/1QDT K-ANA40/1QDF K-ANA40/1QDN

double-sided K-ANA40/2QD K-ANA40/2QDT K-ANA40/2QDF K-ANA40/2QDN

Arabic single-sided K-ANA40/1QA K-ANA40/1QAT K-ANA40/1QAF K-ANA40/1QAN

double-sided K-ANA40/2QA K-ANA40/2QAT K-ANA40/2QAF K-ANA40/2QAN

Roman single-sided K-ANA40/1QR K-ANA40/1QRT K-ANA40/1QRF K-ANA40/1QRN

double-sided K-ANA40/2QR K-ANA40/2QRT K-ANA40/2QRF K-ANA40/2QRN

























100 cm 110x110 cm Markers single-sided K-ANA100/1QST K-ANA100/1QSF K-ANA100/1QSN

double-sided K-ANA100/2QST K-ANA100/2QSF K-ANA100/2QSN

DIN single-sided K-ANA100/1QDT K-ANA100/1QDF K-ANA100/1QDN

double-sided K-ANA100/2QDT K-ANA100/2QDF K-ANA100/2QDN

Arabic single-sided K-ANA100/1QAT K-ANA100/1QAF K-ANA100/1QAN

double-sided K-ANA100/2QAT K-ANA100/2QAF K-ANA100/2QAN

Annotation: K-ANA50/1QDT: K = complete unit, ANA = analogue outdoor clock, 50 = dial diameter,

/1 = single-sided, Q = square, D = DIN dial, T = TELNU clock

A B C C1 D

Dial

ø in mm

singlesideddouble-

sided

400 450 165 223 270 80

500 550 165 223 270 80

600 650 165 223 270 80

800 880 165 223 270 80

1000 1100 165 223 270 80


Complement for slave clocks

Model number model description

K-ANA-NUMS-1 single-sided extra charge for second slave movement with minute pulse and

K-ANA-NUMS-2 double-sided second pulse of a master clock incl. second hand

K-ANA-NUSS-1 single-sided extra charge for electronic synchronous second slave movement with minute pulse

K-ANA-NUSS-2 double-sided of a master clock incl. small power supply 230 V/AC and second hand

Complement for radio-controlled clock / TELNU clock / Nis-netTime clock


K-ANA-FUSS-1 single-sided extra charge for elec. synchronous second radio-contr. movement incl. small power supply

K-ANA-FUSS-2 double-sided 230V/AC and second hand

Complement for radio-controlled clock

Model number description

K-AUFDCF/RUN extra charge for special DCF-77 antenna for moving objects (e.g. rotary clocks)

K-AUF/GPS extra charge for GPS satellite time receiver for worldwide use

Outdoor advertising clocks

clock system & advertising perfectly combined

rectangular, anodized, silver-coloured ALU housing with Plexiglas front cover. Double-sided clocks

with standard brackets

analogue clock, oval dial with 60 cm diameter, backlit, hour markers, short hand /minute hand

DIN matt black

radio-controlled clock, mains-operated with automatic summer / wintertime changeover

advertising space approx. WxH: 600 x 330 mm, backlit

digital temperature display, character height 100 mm with 7 segment LCD technology incl. temperature sensor with

10 m connection cable

Dial diameter dimensions in mm model model number

Oval 60 cm 650x1000x165 mm single-sided K-ANATW/1QL

650x1000x223 mm double-sided K-ANATW/2QL



K-GEHSTRAHL Sunlight protection housing for temperature sensor against measuring errors due to direct

sunlight (necessary whenever the temperature sensor can’t be mounted in the shade)

K-AUF/GPS extra charge for GPS satellite time receiver for worldwide use

31

03

Cubic clock / 4-sided clocks

cubic clock, choice of dial diameter 50/60/80 cm

all over rounded anodized, silver-coloured

aluminium housing, with spherical corner

connections

4-sided, maintenance doors, of toughened

safety glass

DIN hands (hours and minutes) aluminium matt

black painted finish

radio-controlled clock, mains-operated with

automatic summer / winter time changeover

Plexiglas dial, backlit, choice of 3 dial versions

according to DIN 41 091: DIN baton, Arabic

numerals, Roman numerals

reinforced base plate for upper part installation

(Mastadapter on request)

32


Dial A B C D

ø in mm

500 500 680 680 680

600 600 780 780 780

800 800 980 980 980

DCF-77 radio-controlled clock, mains-operated

dial dimension DIN baton Arabic numerals Roman numerals

ø in mm in mm model number model number model number

50cm 680x680x680 mm K-ANAKUB50D K-ANAKUB50A K-ANAKUB50R




model number description

K-ANABQAVSS extra charge for electronic synchronous second radio-controlled movement incl. small power

supply 230 V/AC and second hand for 4-sided cubic clock

K-ANA-BQA02 extra charge for power failure lithium battery

K-AUFDCF/RUN extra charge for special DCF-77 antenna for moving objects (e.g. rotary clocks)

K-AUF/GPS extra charge for GPS satellite time receiver for worldwide use


Kit components for analogue outdoor clocks

Long-lasting products for outdoor use, e.g. movement with brass gear wheels and stainless steel shafts

Slave clock movements

Control via master clock or an easy and inexpensive slave clock control

K-ANU80

K-ANU80/3V

Brass gear wheels and stainless steel shafts

Quality from Germany

K-ANU80SS

Movement

with protection cap

(protection against

condensation water)

K-ANU150

model number description

K-ANU80 outdoor slave movement with wavelength 36 mm for minute pulse of a master clock or slave clock

control, pulse input 12/24/48/60 V switchable for max. 80 cm dial diameter. Inclusive protection

covering against dripping water and condensation water

K-ANU80/3V as ANU80, but pulse input 3 V

K-ANU80M/S as ANU80, but minute and second pulse of a master clock

K-ANU80SS as ANU80, but configured as fully automatic electronic synchronous second movement to control

minute pulse of a master clock or slave clock control, small power supply

unit (K-N230/12IP) necessary

K-N230/12IP small power supply unit 230 V/AC-12 VDC to drive up to four synchronous second movement

ANU80SS. Housing WxHxD: 99x65x37 mm, IP 65

K-ANU150 outdoor slave movement with wavelength 63 mm for maximal dial diameter 150 cm. Minute pulse

of a master clock, pulse input 12/24/48/60 V switchable

K-ANU150BUCHSEN clock hand jack kit appropriate for ANU150 slave movement, consisting of hour and minute

jacks and mounting material

33

03

Radio-controlled slave clock controls

34


Easy and cost-effective solution for single-sided or multi-sided analogue outdoor clocks incl. removable DCF-77

radio receiver with reception quality display.

FUNST-24: radio-controlled, fully automatic analogue clocks control system

Control unit

Viewing window to display signal quality

DCF signal via red/green light-emitting

model number K-FUNST-24 K-FUNST-12-OAK K-FUNST-12

Operating voltage 230 V/AC 230 V/AC 230 V/AC and lead accumulator

12 V with 3.4 Ah (power supply

via street lighting or solar power)

Output current 24 mA = 4 units ANU80 120 mA = 10 Stück ANU80 Slave movement

Slave movement can be connected

Output voltage 24 V polarity-alternating 12 V polarity-alternating minute pulse

Housing IP 65 BxHxT in mm 150x81x67 mm 215x81x67 mm

Time storage at power failure on EPROM, automatic follow-up

Measurements BxHxT: 120x19x29 mm incl. 2.5m connection cable

(DCF-77 antenna)

Operating temperature -25 bis +70°C

FUNST-12: radio-controlled, fully automatic analogue clock control system,

Particularly suitable for power supply via street lighting or via external solar collector with accumulator battery.

Complement for FUNST slave clock control


Viewing window to display

signal quality DCF signal via

red/green light-emitting diode

K-AUF/GPS Extra charge for GPS satellite time receiver for worldwide use

Intelligent DCF time signal

receiver (Signal emission

even during disturbances

in reception)

Intelligent DCF time signal

receiver (Signal emission even

during disturbances in

reception)


Quartz slave clock controls

The quartz control “Miniquarz“ (K-MINIQUARZ) is particularly suitable with external power supply via street lighting

or via solar collector with accumulator battery 12-15 V/DC and can drive up to maximum of 8 12 V slave movement

(ANU80) .

Description K-MINIQUARZ K-BQT 3V

Operating voltage 230 V/AC or 12-15 V/DC 2 Stück Batterien 1,5 V Typ R14 bzw.

External power supply via e.g. accumulator battery 1 lithium battery 3.6 V/7,2 Ah

Output current 100 mA = 8 units ANU80 slave movement 120 mA = 2 units ANU80/3V can be connected

Output voltage 12 V polarity-changing minute pulse 3 V polarity-changing minute pulse

Case WxHxD in mm 80x175x65 mm (IP65) 117x80x33 mm (IP40)

Operating temperature -25 to +70°C 0 0 C bis +50 0 C with R14 batteries

-15 0 C bis +65 0 C with lithium battery

The quartz clock pulse generator “Tandem“ (K-BQT

3V) is an inexpensive option and can drive up to 2

units 3 V slave movement (ANU80/3V) .

Power supply for BQT3V


K-BAT1 units Alkaline manganese batteries R14

K-LIBAT/3V lithium battery 3.6 V/7.2 Ah

K-N230/3VOLT small power supply unit 230V/3V, WxHxD: 85x52x20 mm (IP40)

35

03

Radio-controlled movements & accessories

BQW hour/minute up to 1m dial diameter

BQW-SS hour/minute/second up to 80 cm dial diameter


36


Long-term solution for outdoor use with brass gear wheels and stainless steel shafts

Thanks to energy-saving technology an analogue clock with up to 1m dial diameter can be driven with only one lithium

battery for up to 10 years

Fast commissioning and summer time changeover (switchable 2 or 3 steps a second)

Easy commissioning, time setting fully automatic

Hands control per photo sensor and automatic adjustment

K-BQW

Brass gear wheels and stainless steel shafts


K-BQW-SS

Movement with

protection cap

(protection against

condensation water)

K-BQW Special radio-controlled movement with electronic recog nition and 2.5 m connection cable to

power-on unit for outdoor clocks up to 1m dial diameter

K-BQW-SS as BQW, but additionally fully automatic electronic synchronous second movement,

Second movements up to dial diameter 80 cm small power supply unit (K-N230/12IP) necessary

K-N230/12IP small power supply unit 230 V/AC-12 VDC to drive up to four synchronous second movements

Housing WxHxD: 99x65x37 mm, IP 65


Power-on units for radio-controlled movement

Power-on units for BQW radio-controlled movement, mounted in

weather-proof housing incl. external DCF-77 radio receiver.

BQA01 und BQA02

(without/with battery)

Model K-BQA-01 K-BQA-02 K-BQA-03 K-BQA-04

Number of manageable movements up to maximum 4 movements up to maximum 2 movements

Measurements in mm 80x175x65mm 100x100x45mm 90x90x45mm

Operating mode mains-operated mains-operated only battery-operated only mains-operated

and/or only

battery-operated

Operating temperature -25 to +75°C

Dimensions DCF-77 antenna WxHxD: 120x19x29 mm, connection cable 2.5 m

The power unit BQA-02 allows the operation via mains supply 230 V, current supply via street lighting and via

internal lithium battery with automatic switching between battery-operated and mains-operated.

If battery-operated (BQA-02 or -03) automatic battery capacitance control.

DCF77-radio receiver

K-BQA-03

Complement for power on unit


K-BQA-04

K-AUF/GPS Extra charge for GPS satellite time receiver for worldwide use



37

03

Aluminium hands

38


Solid and balanced aluminium hands according to DIN 41092, black finished hour and minute hands and according to DIN

41071 red finished second hand.

Model number suitable movement description

K-ZEIGER30CM ANU80/BQW baton hands hours and minutes for dial diameter 30 cm





K-ZEIGER100CM BQW baton hands hours and minutes for dial diameter 100 cm

K-ANUZEIG125CM ANU150 baton hands hours and minutes for dial diameter 125 cm

K-ANUZEIG150CM ANU150 baton hands hours and minutes for dial diameter 150 cm

K-ZEIG/N40CM ANU80/BQW nostalgic hands hour and minute for dial diameter 40 cm




K-ZEIGSEK30 ANU80SS/BQW-SS wedge-shaped second hands for dial diameter 30 cm




K-ZEIGSEK80 ANU80SS/BQW-SS wedge-shaped second hands for dial diameter 80 cm


Components for tower and facade outdoor clocks up to 6.0 m diameter for

individual configuration!

Big facade clocks such as customer service in a public space, e.g. train station or administrative buildings or shopping centres.

Combining classic technology (robust and massive drives) and modern electronics (fully automatic radio control and lighting

with power LED) make possible long-lasting and individual solutions.

Extremely robust movement of metal structure

Classic slave movement to be driven via a master clock with minute pulse

Fully automatic clock hand movement control and control logic for DCF77 or GPS time signal

Solid, free-moving baton hand

Lit hand type with power LED available (power transmission via collector ring)

Special dials (e.g. lit hour markers) available

Available up to 6.0 m dial diameter

Application field

Movement with

electronic control

39

03

Slave clock model

tower clock movement for free-moving hands with 230-V/AC motor

A master clock or pulse booster with 230-V pulse output is necessary

Model number dimensions description

40


K-MZW1300 205x205x140 mm up to dial diameter 150 cm




Required master clock


K-FHU-TCC5 Radio-controlled master clock tower clock movement control with 4 x 230-V pulse output and

1 x 24 V pole minute pulse. Maximum 4 tower clock movements and 66 slave clocks can be connected

K-IVSP-LCMZT Pulse input 12-60 V/6mA, output 230 V/1A potential-free changeover-contact for tower clock

movements, pulse length adjustable, necessary for master clocks without 230-V pulse output

Radio-controlled model

Fully automatic hands positioning at start-up and automatic hands adjustment after power failure

Hands control via micro-switch and control logic

Tower clock movement for free-moving hands with 230 V/AC motor

Time signal via DCF77 or GPS satellite


K-AUFMZWDCF Upgrade for the radio-controlled model, complete with control logic, integrated micro-switches

Necessary time receivers for outdoor use

Order number

K-ANTDCF77/1 Radio receiver DCF77 in weather-proof case incl. rotary arm and 10 m connection cable,

current loop, barograph display for signal quality. Dimensions WxHxD: 110x80x67 mm

K-GPS/DCF GPS satellite receiver in weather-proof case. Dimensions WxHxD: 230x75x65 mm.

Operating voltage 230 V/AC.

Free-moving baton hands

Massive, stable hands of steel and aluminium

With illuminated hands (from dial diameter 250 cm) a special tower clock movement is necessary

Dial diameter illuminated not illuminated

100 cm K-ZEIGMZW1M K-ZEIGMZW1MBE

150 cm K-ZEIGMZW1,5 K-ZEIGMZW1,5BE


250 cm K-ZEIGMZW2,5 K-ZEIGMZW2,5BE




Extra charge for special tower clock movement (MZW2500/4000/6000) for illuminated hands model. Incl. external power supply and

collector rings

Artikel-Nr. Beschreibung

K-AUFMZW2500BE extra charge for MZW2500 tower clock movement



Accessories for tower clock movement

Suitable movement MZW1300 MZW2500 MZW4000 MZW6000

Hand collets -Set K-MZW1300BUCHS K-MZW2500BUCHS K-MZW4000BUCHS K-MZW6000BUCHS

IP 65 protective casing K-MZW1300/IP65 K-MZW2500/IP65 K-MZW4000/IP65 K-MZW6000/IP65


Classic: our attractive standard clocks

25 cm

Fine dash

Round clocks with dial diameter 25/30/40/50/60 cm

High-quality, timeless plastic housing with convex, shock-resistant Plexiglas front cover

Single-sided clocks to be mounted on ceiling

Double-sided clocks choice of wall or ceiling bracket

Choice of 3 dial models according to DIN 41 091: fine dash, DIN, Arabic numerals

Flat movement in proofed and tested quality

Aluminium baton hands (hours and minutes) black painted finish

Operating modes

30 cm

Arabic

40 cm

Arabic

50 cm

DIN

25 cm 30 cm – 40 cm

Classic slave clocks 12 V/24 V for alternating polarity minute pulse


NIS-netTime system clocks, intelligent and self-monitoring

Radio-controlled clocks choice between battery-operated or mains operated, with automatic

summer/winter time changeover

60 cm

DIN

41

03

Analog Innenuhren - Classic


ø ø

42


25 cm 25 cm Fine dash single-sided K-INU25/1RS K-INU25/1RST

*)

K-INU25/1RSF K-INU25/1RSN

double-sided K-INU25/2RS K-INU25/2RST K-INU25/2RSF K-INU25/2RSN

DIN single-sided K-INU25/1RD K-INU25/1RDT K-INU25/1RDF K-INU25/1RDN

double-sided K-INU25/2RD K-INU25/2RDT K-INU25/2RDF K-INU25/2RDN

Arabic single-sided K-INU25/1RA K-INU25/1RAT K-INU25/1RAF K-INU25/1RAN

double-sided K-INU25/2RA K-INU25/2RAT K-INU25/2RAF K-INU25/2RAN

30 cm 34 cm Fine dash single-sided K-INU30/1RS K-INU30/1RST K-INU30/1RSF K-INU30/1RSN


















*) single-sided: dial diameter 30/40cm battery-operated, 50/60cm mains-operated double-sided: mains-operated

K-INU30/1RDT K = complete unit, INU = analogue indoor clock, 30 = dial diameter, /1 = single-sided,

R = round, D = DIN dial, T = TELNU system clock

Plastic frame

white ALU/V2A

Cover ring for single-sided 30/40 cm classic clock

A B C D

Dial

ø in mm

singlesided

double

sided

250 250 60 120 100

300 340 60 120 170-300

400 440 60 120 170-250

500 540 60 not available not available

600 640 60 not available not available

Dial diameter 30cm Dial diameter 40cm

Plastic white K-AR30 K-AR40

Aluminium brush-finished K-AR30ALU K-AR40ALU

Stainless steel K-AR30V2A K-AR40V2A

Complement for classic clocks with 25/30/40cm dial diameter

K-INUNASS Damp room model for classic indoor clocks with 25/30/40cm dial diameter.

Protective casing for movement


Metal: our attractive standard clocks in metal case

RAL 9010 RAL 9006 example special colour

Square clocks with dial diameter 30/40 cm

High-quality, timeless metal case with flat, impact-proof Plexiglas front cover

Casing finished in RAL 9010 pure white or RAL 9006 white aluminium, extra charge for other colours

Single-sided clocks to be mounted on wall

Double-sided clocks choice of wall or ceiling bracket

Choice of two dial models according to DIN 41 091: fine dash or Arabic numerals



Operating modes: as classic clocks


ø ø

30 cm 34x34 cm Fine dash single-sided K-INU30/1QS K-INU30/1QST K-INU30/1QSF K-INU30/1QSN

double-sided K-INU30/2QS K-INU30/2QST K-INU30/2QSF K-INU30/2QSN

Arabic single-sided K-INU30/1QA K-INU30/1QAT K-INU30/1QAF K-INU30/1QAN

double-sided K-INU30/2QA K-INU30/2QAT K-INU30/2QAF K-INU30/2QAN

40 cm 44x44 cm Fine dash single-sided K-INU40/1QS K-INU40/1QST K-INU40/1QSF K-INU40/1QSN

double-sided K-INU40/2QS K-INU40/2QST K-INU40/2QSF K-INU40/2QSN

Arabic single-sided K-INU40/1QA K-INU40/1QAT K-INU40/1QAF K-INU40/1QAN

double-sided K-INU40/2QA K-INU40/2QAT K-INU40/2QAF K-INU40/2QAN

K-INU30/1QST K = complete unit, INU = analogue indoor clock, 30 = dial diameter, /1 = single-sided,

Q = square, S = fine dash, T = TELNU system clock

Extra charge for V2A stainless steel case, grain 240 brush finished

single-sided double-sided

30 cm dial diameter K-AUFINUV2A30/1 K-AUFINUV2A30/2

40 cm dial diameter K-AUFINUV2A40/1 K-AUFINUV2A40/2

Complements for classic and metal clocks with dial diameter 25/30/40cm

Pulse slave clocks

K-INU-NUMS-1 (single-sided)

K-INU-NUMS-2 (double-sided)

Extra charge for second slave movement with minute and second pulse of a

master clock incl. second hand (4 wire control line is necessary)

FUNK-/TELNU-/NIS-netTime-Uhren

K-INUSEKZEIG1 (single-sided) Extra charge for mounted second hand for radio-controlled, TELNU and NIS

K-INUSEKZEIG2 (double-sided) netTime clocks

Extra charge for single-sided radio-controlled clocks

K-N230/1,5VOLT Extra charge for power supply 230 V/AC, incl. installation

Extra charge for removable DCF-77 radio antenna for single-sided and double-sided radio-controlled clocks

K-INUDCFNETZ

Extra charge for removable DCF-77/5 antenna (WxHxD: 120x19x29 mm) with 2.5 m connection

cable and integrated power supply 230 V/AC.

43

03

Silver: the inexpensive indoor clock model in 30 cm and 40 cm format

Round clocks with diameter 30 and 38 cm

High-quality metal case with safety glass

Single-sided clocks to be mounted on wall

Choice of two dial models//type: fine dash, Arabic numerals

Flat movement of proved and tested quality


Installation kits to set up double-sided clocks


Classic slave clocks 12V/24 V for alternating polarity minute pulse

Wall or ceiling bracket


Radio-controlled clock, battery-operated with automatic summer / winter time changeover


ø ø

44


25 cm 30 cm Fine dash single-sided K-LB30RS K-LB30RST K-LB30RSF

Arabic single-sided K-LB30RA K-LB30RAT K-LB30RAF

33 cm 38 cm Fine dash single-sided K-LB40RS K-LB40RST K-LB40RSF

Arabic single-sided K-LB40RA K-LB40RAT K-LB40RAF

Installation kits to set up double-sided clocks

Wall or ceiling bracket

K-LB30GARN Wall or ceiling bracket for 2 LB30 clocks, length 100 mm

K-LB40GARN Wall or ceiling bracket for 2 LB40 clocks, length 100 mm

Complements:

TELNU clocks

K-INUSEKZEIG1 single-sided

K-INUSEKZEIG2 double-sided

Extra charge mounted second hand for radio-controlled and TELNU system clocks


Ball impact-proof clocks according to DIN 18032

Single-sided square clocks to be mounted on ceiling, choice of dial diameter 40 or 50 cm dial, DIN dial printing

Anodized, silver-coloured aluminium housing, with shock-resistant Makrolon front cover

Particularly suitable for schools, sports halls etc.

Aluminium dial with DIN hours and minute markers

Flat movement of proofed and tested quality (brass gear wheels and stainless steel shafts)


Dimensions WxHxD: 450x450x70 mm (40 cm)/ 550x550x70 mm (50 cm)

Alternative, ball impact-proof, round clock

Case of shatter-proof Makrolon and cover of Plexi-resist

Particularly suitable for schools, sports halls etc.

Plexiglas dial with DIN hour and minute markers

Flat movement of proved and tested quality (brass gear wheels and stainless steel shafts)

Aluminium baton hands (hours and minutes) black painted finished

Dimensions housing diameter 450 or 550 mm


Classic slave clocks 12 V/24 V for polarity alternating minute pulse


NIS-netTime network clocks, intelligent and self-monitoring

Radio-controlled clock, mains-operated with automatic summer / winter time changeover


ø ø

40 cm 45x45 cm DIN DIN 18032 K-AB40/1QD K-AB40/1QDT K-AB40/1QDF K-AB40/1QDN

50 cm 55x55 cm K-AB50/1QD K-AB50/1QDT K-AB50/1QDF K-AB50/1QDN

40 cm 45 cm DIN ball-impact K-ASB40/1RD K-ASB40/1RDT K-ASB40/1RDF K-ASB40/1RDN

50 cm 55 cm proof K-ASB50/1RD K-ASB50/1RDT K-ASB50/1RDF K-ASB50/1RDN

45

03

Clock incorporation into tiles for “clean areas” such as operation room

Flash-mounting housing with blind frame (340x340 mm) in stainless steel V2A

brush-finished, grain 240

flush-mounting frame for in-wall mounting 296x303x35 mm +/- 1mm

Catch springs for screwless assembly by adjusting into the construction frame

Dial 25 x 25 cm, aluminium

Choice of two dial types: fine dash, Arabic numerals


Also available with red second hand

Finery clocks round in stainless steel V2A brush-finished, grain 240

Base plate of stainless steel, special sealing through double lips and U rubber profile

Case diameter 360 mm

Dial diameter 30 cm, aluminium

Choice of two dial types: fine dash, Arabic numerals


Available also with red second hand (for TELNU system or NIS-netTime network clocks)


Classic slave clocks 12V/24V for alternating-polarity minute pulse


NIS-netTime network clock, intelligent and self-monitoring

Dial housing model dial

ø ø

46


25 cm 34x34 cm in-wall mounting Fine dash K-AOP25/1QS K-AOP25/1QST K-AOP25/1QSN

Single-sided Arabic K-AOP25/1QA K-AOP25/1QAT K-AOP25/1QAN

30 cm 36c m surface-mounting Fine dash K-AOP30/1RS K-AOP30/1RST not available

Single-sided Arabic K-AOP30/1RA K-AOP30/1RAT not available

Complement for minute pulse slave clock


K-INU-NUMS-1 single-sided single-sided extra charge for second slave movement with minute and second pulse of a

master clock incl. second hand for tile-mounted clock (4 wire control line is necessary )

Complement for TELNU and NIS-netTime clocks

In-wall mounting surface-mounting

Model model description

K-INUSEKZEIG1 single-sided extra charge for mounted second hand for TELNU and NIS-netTime clocks


Kit components for analogue indoor clocks

Brass wheels


Modell W6/W7 Modell W9

Model number Description

K-W6 Indoor slave movement for minute pulses of the master clock, pulse input 12/24 V switchable,

for maximum 40 cm dial diameter.

K-W7 Indoor slave movement for minute pulses of the master clock, pulse input 3 V, for maximum

40 cm dial diameter..

K-W9 Indoor slave movement for minute and second pulses of the master clock, pulse input

12/24 V switchable, for maximum 40 cm dial diameter.

K-W9TEL TELNU system movement for 24 V signal of the TELNU master clock, for maximum 40 cm

dial diameter

Model number suitable movement description

K-ZEIGER25I W6/W7/W9 baton hands hour and minute for dial diameter 25 cm



K-ZEIGSEK25I W9 Second hand for dial diameter 25 cm



K-ZEIG25F W9-TEL TELNU hour and minute hands for dial diameter 25 cm



K-ZEIGSEK25F W9-TEL TELNU second hands for dial diameter 25 cm



Modell W9TEL

47

03

The digital easy-LED- indoor clock

Absolutely timeless design with modern and intelligent technology

Blue character colour on request

Digital LED clock for indoor use, single-sided or double-sided to mount

on wall or ceiling (length 90 mm)

High-quality, anodized, silver-coloured aluminium housing with Plexiglas front cover

4-digit display hour and minute choice of character height 45/60/100 mm

6-digit display hour, minute and second character height 60 mm

7-segment LED display for numerical character set

Standard character colour red (green or yellow without extra charge)

Choice of 24-h or 12-h format

Autonomous brightness control depending on the ambient light

Output power: approx. 6 VA

Power supply via integrated 230 V power supply




Radio-controlled clock with integrated DCF77 antenna, mains-operated

Character number of dimensions model

height digits in mm (WxHxD)

48


easy-LED 45/60/100 mm

3 types of display height and

display colour

45 mm 4 295x140x70 single-sided K-EASY45/1T K-EASY45/1F K-EASY45/1N

295x140x70 double-sided K-EASY45/2T K-EASY45/2F K-EASY45/2N



6 390x160x70 single-sided K-EASY6-60/1T K-EASY6-60/1F K-EASY6-60/1N

390x170x150 double-sided K-EASY6-60/2T K-EASY6-60/2F K-EASY6-60/2N



Extra charge for removable DCF-77 radio antenna for radio-controlled clock

K-ANTDCF77/5 Extra charge for removable DCF-77/5 antenna (WxHxD: 120x19x29 mm) with 2.5 m connection cable

Extra charge date display

K-AUFEASYD Extra charge for integrated date display alternating or fixed with multiline model


Clocks incorporated into switchboards

Analogue single-sided clocks for flush-mounting

Choice between 2 dial diameters (diameter 80 and 120 mm) printed

with DIN baton


Frame dimensions: W96xH96xD52 mm / W144xH144xD52 mm

Installation dimensions (cutout size): 91x91 mm (+1 mm) /

138x138 mm (+1 mm)

Front frame light-grey, similar RAL 7032


Classic slave clocks 12 V/24 V for polarity-alternating minute or minute and second pulse


NIS-netTime network clocks, intelligent and self-monitoring, in-built control

Dial dimension

in mm (WxHxD)

display

80 mm 96x96x52 hr./min. K-EIN80NU K-EIN80TEL K-EIN80NTP

hr./min./sec. K-EIN80NUS K-EIN80TELS K-EIN80NTPS

120 mm 144x144x52 hr./min. E-EIN120NU K-EIN120TEL K-EIN120NTP

hr./min./sec. K-EIN120NUS K-EIN120TELS K-EIN120NTPS

Digital easy-LED system flush-mounting clock

Analogue single-sided clocks for flush-mounting

Digital LED system flush-mounting clock

Case according to DIN 43700, WxHxD: 288x144x60.5 mm

Switchboard aperture: W 282 x H 138 mm (+1.0 mm)

4-digit display hour and minute with character height 45 mm

7-segment LED display for numerical character set

Standard character colour red

Choice of 24-h or 12-h format

Autonomous brightness adjustment depending on the ambient light

Power output: approx. 6 VA

Power supply via integrated 230 V power supply




DCF radio-controlled clock, mains-operated

Character number dimension

height of digits in mm (WxHxD)

45 mm 4 288x144x60,5 K-EASYLEDEINTEL K-EASYLEDEINFU K-EASYLEDEINNTP

Extra charge for removable DCF77 radio antenna for radio-controlled clock

K-ANTDCF77/5 Extra charge for removable DCF-77/5 antenna (WxHxD: 120x19x29 mm) with 2.5 m connection cable

49

03

Universal flush-mounting Uni clock

Power failure bridge-over through integrated NiCd accumulator battery

Fully automatic summer time changeover

Operating voltage 230 V

Output power: ca. 3 VA

Data output RS232

Power input: maximum 140 mA (with external 12-V supply)

Power reserve: approx. 18 h with integrated NC accumulator battery

(9 V, 110 mA) only for slave clock

Dimensions: W 96 x H 48 x D 116.5 mm

6-digit display hour, minute and second with character height 13 mm

7 segment LED display for numerical character set



Classic slave clock 12 V/24 V for alternating polarity minute pulse or autonomous quartz clock

DCF77 radio-controlled clock, mains-operated




height of digits in mm WxHxD

50


13 mm 6 96x48x116,5 K-UNI/RT/AK K-UNI/RT/TELNU K-UNI/RT K-UNI/RT/NTP

Extra charge for removable DCF77 radio antenna for radio-controlled clock

K-ANTDCF77/7 removable DCF-77/7 antenna for outdoor use (WxHxD: 99x65x37mm) with 5 m connection cable

K-ANTDCF77/6 removable DCF-77/6 antenna for indoor use (WxHxD: 83x54x22mm) with 2 m connection cable

Extra charge for satellite time receiver

K-GPS/DCF GPS time receiver for worldwide use of radio-controlled clocks

Digital switch board flush-mounting slave clock

Electronic time storage on EEPROM, instead of AKKU

Classic slave clocks 12 V/24 V for polarity-alternating minute or minute and second pulse

Operating voltage 230 V

Power output: approx. 2.5 VA

Power reserve: semiconductor memory (EE-PROM)

Dimensions: W 96 x H 48 x D 116.5 mm

6-digit display hour, minute and second with character height 13 mm

7 segment LED display for numerical character set



height of digits in mm (WxHxD)

13 mm 6 96x48x116,5 K-NSCHALT-R


lnternational time zone clocks

Intelligent solution for international time zone clocks with time

zone converter

Fully automatic time set up at commissioning and after power failure

via the NIS time zone converter that adjusts the local times and

location-dependent summer/winter time of the DCF-77 time signals.

Anodized, silver-coloured aluminium housing with massive round corner

connections and Plexiglas front cover. Operating voltage 230 V/AC incl.

external DCF-77 radio receiver, with 2.5 m connection cable

International time zone clocks with individual design

Time zone converter

51

03

Radio-controlled analogue time zone clock

Analogue clock 25 cm dial diameter with Arabic numerals.

Display hour and minute, capital and central city with second hand

Night indicator with blue LED that is illuminated between 18:00 and 06:00

Customer-specific city names foil lettering underneath the dial

DCF-77 radio receiver included in delivery

Shows the configuration with 3 cities,

the local time is in the centre

52


Extension of the number of cities, e.g. 6 cities = 2 x AWF3, 7 cities = 1 x AWF3 and 1 x AWF4, 8 cities = 2 x AWF4

3 cities 4 cities 5 cities

Model number K-AWF3 K-AWF4 K-AWF5

Dimensions in mm 1000x400x70 1300x400x70 1600x400x70

Complement for analogue time zone clock

K-AUF/GPS Extra charge for GPS satellite time receiver for worldwide use, in place of DCF-77 radio receiver

Special dial model, e.g. world map or image motif, on request.

Also available single cases per city.


Digital LED time zone clock

Standard time zone clocks character height 45/60/ mm,

7-segment numerical LED display red colour

4-digit display hour and minute

Customer-specific city names foil lettering above the LED display

DCF-77 radio receiver included in delivery

Shows the configuration with 3 cities,

the local time is in the centre

Extension of the number of cities, e.g. 6 cities = 2 x AWF3, 7 cities = 1 x AWF3 and 1 x AWF4, 8 cities = 2 x AWF4

3 cities 4 cities 5 cities

Character height 45mm

Model number K-LW3RT45 K-LW4RT45 K-LW5RT45

Dimensions in mm

Character height 60mm

1000x300x70 1300x300x70 1600x300x70

Model number K-LW3RT60 K-LW4RT60 K-LW5RT60

Dimensions in mm 1200x300x70 1600x300x70 2000x300x70

Complement for digital time zone clock

K-AUF/GPS Extra charge for GPS satellite time receiver for worldwide use, in place of DCF-77 radio receiver

53

03

Master clocks/Boosters/Time receivers

Master clocks/Boosters/

Time receivers

( )


54


NIS-netTime, the self-monitoring network clock system

General description of the system

Intelligent, self-monitoring (S)NTP network clocks, that are synchronized per ToE (Time over Ethernet). The clocks

are integrated with a network cable in the existing LAN and can be driven directly without an additional current

supply (PoE – Power over Ethernet). The time information is provided either by the existing NTP server or via internet

by a NTP pool.

All analogue and digital clocks can be driven by this system. With your internet browser (e.g. Internet Explorer or

Mozilla Firefox) you can set comfortably and practically all configurations as e.g. the IP - address (automatically

via DHCP or manually), time zones, e-mail failure notifications and many more adjustments. With the optional NIStime

ClockExplorer you have a survey of your complete clock system. This administrator tool allows fast configuration

and monitoring of all clocks in your LAN.

GPS satellite

DCF

Time

receiver

Communication: clock – PC server - Internet

GPStime

receiver

DCF-77-

radio receiver

NTP time generator

Time synchronization directly via internet or via time generator

Configuration with webserver (HTML) or monitoring

E-Mail notification of standard PC

NTP time

generator

eg PTB or

Time server in

Internet

WorldWideWeb

PC Server

(S)NTP clients with

web server

LAN

Ethernet

PC-Client / Workstation

55

04

NIS-netTime network clock system

Benefits of the new generation SNTP converter

56


No manual configuration e.g. with DIP switch on the device

Configuration and status request possible directly via web

browser, e.g. Windows Internet Explorer

No cost-intensive time-server required

The NIS-netTime clock can be synchronized directly via the NTP

time pool via internet

The IP address can be assigned fixed or also fully automatic

via DHCP.

Type of failure and location can be immediately located. (e-mail

notification with MAC address and location or name)

Operating voltage 48 V/DC via PoE or external supply

48 V/DC or 230 V/AC

Output signal 1,5 / 3,3V and 2 units TELNU signal für B-Quadro

movment

Input power via 48 V/DC PoE (power over Ethernet) for devices

with own power supply: 30 mA, without own power supply:

40 mA

Dimensions WxHxD: 103x67x35 mm

Benefits of the innovative ClockExplorer program

Windows software 32 bit, higher WIN 95

Secured encryption with USB-DONGLE

All connected NIS-netTime clocks can be configured at

the same time

Automatic assignment of the IP address via DHCP

Automatic assignment of the fixed IP address space of

to possible

Continuous status display and monitoring of single

NIS-netTime clocks

Order number

K-NTP-CEP ClockExplorer program

SNTP converter

Casing for outdoor area

Encrypted USB-DONGLE


Benefits of NIS-netTime time generator: additional security for all IT devices

System independent of internet

Secure time input into the network via DCF-77 radio receiver or via GPS satellite time receiver

Easy operating and monitoring with ClockExplorer or per Web Browser

Two-parts LCD display for reception status display of the time receiver


Input signal 1Hz DCF signal (MEZ/MESZ)

Output protocol SNTP (Simple Network Time Protocol)

NTP compatible

Slide box for 19“ sub-rack 3 HE and 24 TE

Time generator type 19“

Order No.

K-SNTP–ZG NIS-netTime time generator in slide box for 19“ sub-rack, 3 HE and 24 TE

WxHxD: 121.5x129x170 mm

Time receiver

Recommendation: Should be installed in outdoor area.

DCF-77-

radio receiver

GPS-

time receiver

Required time receivers for outdoor use

Order No.

K-ANTDCF77/1 Radio receiver DCF77 in weatherproof case incl. rotary arm and 10 m connection cable,

current loop, barograph display for signal quality. Dimensions WxHxD: 110x80x67 mm

Operating voltage from the time generator. Time signal reception possible within approx. 1500

km of Frankfurt am Main.

K-GPS/DCF GPS satellite receiver in weatherproof case. Dimensions WxHxD: 230x75x65 mm.

Operating voltage 230 V/AC.

57

04

Additional benefits of the TELNU system

58


General description of the TELNU system

Block diagram TELNU slave clock system

~

GPS-Satellite

GPS-satellite antenna

230V 50Hz

GPS-satellite receiver

DCF 77 transmitting

antenna, Mainfingen

TELNU 30 master clock


230V 50Hz

/

2


DCF 77 antenna

/

230V 50Hz

TELNU-Booster

TELNU-Booster

/

230V 50Hz 2 230V 50Hz

3

/

max. 33 TELNU-clocks

900 mA ➪

max. 83 TELNU-Uhren

30 mA ➪

In, Outdoor clocks and

wide-span clocks

5 mA

30 mA ➪

2500 mA ➪ 5 mA ➪

/ 2

2

230V 50Hz

4 circuit signal computer

230V 50Hz

FILU LED indoor clocks

5 mA ➪

Radio-controlled clock for PC time

synchronisation

LCD mosaic display (outdoor use)

Lighting

Motor

Buzzer

Gong

Fast and easy start up

Fully automatic time adjustment at start up

after power failure or trouble shooting

Only 2 wire telecommunication cable is required

/ 2

➪ max. 2500 mA

max. 83 TELNU-clocks

230V 50Hz

230V 50Hz

The intelligent system clock driven

via a TELNU master clock

with serial time frame (seconds,

minutes, hours, day, month,

weekday and year) without

additional line (Operating voltage

and data transmission via 2

wire line).

All analogue clocks (also with

display for date and/or second

hand) and digital clocks can be

driven by this system.

Fully automatic hand adjustment

through electronic clock

hand movement control with

summer/winter time changeover.

At commissioning and also after

trouble shooting, for example

cable break or short circuit an

automatic adjustment of the

clock system is carried out.

Same purchase costs as for classic

pulse-driven analogue indoor

slave clocks up to dial diameter

40 cm dial. Not only “counts”

an important, one-time cost

saving at the commissioning,

but also the reliable technology

that provides security and saves

operational costs.

Price advantage for analogue indoor clocks with

second display over pulse slave clocks

Extremely noiseless movement

Signal transmitter to control all kinds of optical or acoustical signals, such as needed in factories and schools at the

beginning and end of shifts, interval times etc.

Signal transmitter to control all kinds of lighting devices such as lighting for advertising banners, shop windows, show cases,

courtyards, parks or halls etc.

Connection to NIS-netTime time generator for time synchronization of the PC clock with automatic summer time changeover

With GPS satellite receiver a world-wide use is possible


TELNU30 master clock

Master clock with frame output for up to 33 TELNU

system clocks or 166 digital system clocks

Only 2 wire line to the system clock required

Transmission of time, weekday and date

Fully automatic pre-settable summer/winter time changeover

for every time zone, worldwide

Integrated real time clock with 10 years power reserve

Fully automatic re-commissioning of the system clocks

after mains power failure

Data saving: summer time changeover dates are saved in

EE-Prom, cannot be lost

Digital frequency adjustment for the accuracy via menu

Optical output pulse display

Easy operating, also without operation manual


Power input 24 VA

Output power 1000 mA

Order number

K-TELNU30 TELNU 30 Master clock without DCF77 antenna. Compact case to be mounted on wall

(with receptacle for quick fitting), protection classification IP 40, also mountable on 35 mm standard

bar. Dimensions WxHxD: 75x150x106 mm


K-ANTDCF77/8FIL K-ANTDCF77/1

K-GPS/DCF

Order number

K-ANTDCF77/8FIL Radio receiver DCF77 in sealed plastic case incl. rotary arm and 2.5 m connection cable, with

special filter for use in environment with high electromagnetic disturbance.

Dimensions WxHxD: 120x19x29mm, operating voltage from the master clock. Time signal

reception possible within approx. 1500km of Frankfurt am Main

K-ANTDCF77/1 Radio receiver DCF77 in weather proof case incl. rotary arm and 10m connection cable,

current loop, barograph display for signal quality. Dimensions WxHxD: 110x80x67mm

Operating voltage from the master clock, time signal reception possible within approx. 1500km

of Frankfur am Main

K-GPS/DCF GPS satellite receiver in weatherproof case. Dimensions WxHxD: 230x75x65 mm.

Operating voltage 230 V/AC. Exact and interference-resistant signals for worldwide use .

59

04

60


CSHU500/ZDA3-S2) – multifunction master clocks

FEATURES

Only 2 wire line to the slave clock required

Transmission of time, weekday and date

Fully automatic pre-settable summer/winter time

changeover

3 slave clock lines adjustable (1/1 min. 1/2 min. 1/1 sec.

DCF-TELNU)

2 signal circuits, a total of 325 switch timers programm

able

Integrated real time clock with 10 years power reserve

Adjustable pulse length of 0.5 to 7.5 sec.

Choice of voltage 12 or 24 V

Automatic tracking of the pulse slave clocks up to

1 week (10080 pulses)

Current measurement device or control for every line

Alarm output for remote signalling of malfunction

RS-232 data output


Input power 15 VA

Output power 400 mA, extensible on 1500 mA

through external power supply unit

K-ZDA3-S2

Order number

K-CSHU500

K-ZDA3-S2

K-CSHU500

Mixed operation, e.g.

Line 1: 1/1 minutes pulse (6 mA per

pulse slave clock)

Line 2: 1/1 seconds pulse (6 mA per

sec. pulse movement)

Line 3: TELNU (30 mA every analogue

TELNU system clock or 6 mA every digital

TELNU system clock)

CSHU500 Master clock, compact housing to be mounted on wall (with receptacle for quick fitting),

protection classification IP 40, also mountable on 35 mm standard bar.


Type 19“ sub-rack installation

19“ slide case 3 HE 24 TE / WxHxD: 121.5x129x170 mm



Order number

K-ANTDCF77/1 Radio receiver DCF-77 in weatherproof housing incl. rotary arm and 10 m

connection cable, current loop, barograph display for signal quality.

Dimensions WxHxD: 110x80x67 mm, operating voltage from time generator.

Time signal reception possible within approx. 1500 km of Frankfurt am Main

K-GPS/DCF GPS satellite receiver in weather-proof housing. Dimensions WxHxD:

230x75x65 mm. Operating voltage 230 V/AC.

K-SK500 K-SOFT-PC

Complement for multifunction master clocks

Order number

K-SK500 Chip card to save the programmed switch timer dates

K-SOFT-PC Windows program on CD for time data transmission on PCs. Only a free serial

interface is necessary. Incl. 2.5 m connection cable with SUB-D plug at Comport

Zur Leistungserweiterung:

K-N230/DC24 Power supply unit CSHU500 master clock, operating voltage 230 V/AC, output 24 V/1.5A


K-N230/19/24 Power supply unit for 19“ ZDA3-S2 master clock, operating voltage 115/230 V/AC, output

24 V/2A, 19“ slide case 3 HE 14 TE

K-N230/19/24/4A Power supply unit for 2 units 19“ ZDA3-S2 master clocks, operating voltage 115/230 V/AC,

output 24 V/4A, 19“ slide case 3 HE 20 TE

K-N230/DC24 K-N230/19/24

61

04

Line Amplifier (Booster)

62


Through the expansion of clock units several boosters can be connected to the master clock. This provides for a

practical, unrestricted expansion of the system.

FEATURES:

K-TELNU-BOOST-W

TELNU-Booster

2 lines with total max. 2500 mA for up to

83 analogue or 416 digital system clocks

LED control for each TELNU line output

Working voltage 230 V/AC

Power consumption 60 VA max.


Impulse booster

1 Line max. 2500 mA for up to 416 minutes or

seconds impulse slave clocks

LED control for line output


Power consumption 60 VA max.


Order number

K-TELNU-BOOST-W Construction of wall fitting, compact housing for wall fastening,

Measurements WxHxD: 250x175x75mm

K-NU-BOOST-W As above, but with pulse amplifier for 1/1 minute impulse

K-TELNU-BOOST19 Construction of 19” sub-rack mounting

19” slide case 3HE 24 TE / WxHxD: 121.5x129x170mm

K-NU-BOOST19 As above, but with pulse amplifier for 1/1 minute impulse


Timer 4C – 4-circuit switch timer

Expansion of the TELNU System

Just as with a TELNU system clock, the exact time and date is

automatically taken from the main TELNU master clock to the

TELNU Timer 4C.

DCF-77-radio-controlled time switch

Naturally, the TELNU Timer 4C can also take the time directly

from a DCF-77 or GPS receiver system.

FEATURES:

Outlets, 4 switch circuits with potential free contact

Daily and weekly program

Switching functions ON, OFF or Impulse

Manual ON/OFF/AUTO for every circuit

and single or total clearing per circuit

292 programmable switch times

Hand shut-off possible

292 switch times for 4 circuits together

Daily and weekly switch programs

Switch method, manual on, off, impulse


Power consumption 3 VA

Output power 230 V~ 3 A cos ϕ =1

Order number

K-TELNU-TIMER4C Connection to the TELNU master clock, compact housing for wall mounting (with socket for

quick fitting), protection category IP 40, also mountable on 35 mm standard rails,

measurements WxHxD 75x150x10mm

K-TIMER4C Constructed in the same way as above, but with a connection to the time receiver

Supplement for Timer 4C

K-TELNU-TIMER4C

K-ANTDCF77/8FIL K-ANTDCF77/1

K-GPS/DCF

K-ANTDCF77/8FIL Radio receiver DCF-77 in sealed plastic housing, including pivot arm and 2.5m connection cable

with special filter for usage in environments with strong electromagnetic

disturbance, measurements WxHxD 120x19x29mm, working voltage from the master clock.

Time signal receiving is possible within approx 1500km from Frankfurt am Main.

K-ANTDCF77/1 Radio receiver DCF77 in weather-proof housing, including pivot arm and 10m connection cable,

current loop capability, bar graph display for signal quality. Measurements WxHxD

110x80x67mm, working voltage from the time generator, time signal receiving is possible

within approx. 1500km of Frankfurt am Main.

K-GPS/DCF GPS satellite receiver in weather-proof housing. Measurements WxHxD 230x75x65mm

Working voltage 230 V/AC.

63

04

64


The master clock for the tower clock and slave clocks

Ideal, compact radio master clock with 5 clock lines for up to

four tower clock movements 240 V/AC operation and up to 66

slave clocks with 24 V minute impulse. Very quick time setting

for start-up (and re start-up) using automatic line time correction.

FEATURES:

Radio clock operation through DCF-77 radio signal or GPS

satellite signal

Electronic time saver and automatic slave clock tracking

after power outage

Simple operation and menu navigation with integrated

LCD display

Quartz clock operation with or without automatic summer

time changing facility

Outlet lines 1-4: 4 x potential free pulse signals, switching

capacity 1 A max. 60W (125 VA) voltage 0.1 – 250 V

Outlet line 5: 24 V minute impulse, output power

400 mA =66 impulse slave clocks, time format 12 h/24 h

adjustable

Pulse length freely adjustable between 1 and 10 seconds

Model No.

K-FHU-TCC5 Tower Clock Controller 5 lines, housing for wall mounting on plaster or 35mm standard rails,

measurements WxHxD 75x158x120mm

DCF-77-Radio receiver

Master clock

Required time receiver for the outside area

K-FHU-TCC5

L1: Relay-output 230/AV




L5: 24 V polarity changing slave clocks

K-ANTDCF77/8FIL Radio receiver DCF77 in sealed plastic housing, including pivot arm, 2.5m connection cable with

special filter for use in environments with strong electromagnetic

disturbance, measurements WxHxD 120x19x29mm, working voltage from the master clock.

Time signal receiving is possible within approx 1500km from Frankfurt am Main.

K-ANTDCF77/1 Radio receiver DCF77 in weather-proof housing, including pivot arm and 10m

connection cable, current loop capability, bar graph display for signal quality. Measurements

WxHxD 110x80x67mm, working voltage from the time generator, time signal receiving is possible

within approx. 1500km of Frankfurt am Main.


Working voltage 230 V/AC


Clock stroke controller

Radio controlled, 3 circuit, clock strocke controller for bell magnets.

FEATURES:

Hourly strike

Half-hourly strike

Quarter of an hour strike

Hourly strike with echo and quarterly strike

Switch-off at night time and limited night switch-off program

Pulse duration approx. 0.1 ... 0.8 sec.. in 0.1 second steps

Pause times approx. 1.0 ... 4.5 sec. in 0.5 second steps

Output L1 to L3: 3 x potential free pulse signals,

switching capacity 4/3/2 A (On/Continuous/Off)

Power consumption approx. 3 VA

Housing for wall mountings on plaster or 35mm standard rails


K-F-UHRS-ST

Order No.

K-F-UHRS-ST 3 circuits hourly chime setting for bell magnets on wall mounting WxHxD 75x150x106mm

Required time receiver for the outside area

K-ANTDCF77/1 Radio receiver DCF77 in weather-proof housing, including pivot arm and 10m

connection cable, current loop capability, bar graph display for signal quality.

Measurements WxHxD 110x80x67mm, working voltage from the time generator,

time signal receiving is possible within approx. 1500km of Frankfurt am Main.


Working voltage 230 V/AC.

Pulse amplifier and power supply

Electronic pulse amplifier EIV Series: EIV230/24 and EIV60/60

The pulse amplifier EIV with 24 volt reserve battery power supply is

designed for second or minute impulse operation.

The time correction can be made using the support

and readjusting switches.

Order No: K-EIV230/24 Order No.: K-EIV60/60

Pulse input 12 bzw. 24 VDC / 6mA 12 -24 oder 60 VDC / 6mA

Pulse output 24 V / 1A 60 V / 0,8 A

Working voltage 230 V/AC extern 60 V/DC

Power consumption 14 VA

Power input 30…40 mA

Measurements WxHxD: 75x150x106 mm

65

04

66


Standard pulse amplifier IV series IV220/24

The pulse amplifier IV’s main purpose is to optimise the performance of

the master clock system. As a simple pulse amplifier with a 24 volt

500mAh NC reserve battery power supply, it is suited to minute impulse

operation.

Special pulse amplifier for tower clocks

IVSP-LCMZT

Suited in particular for tower clock movement with 230 V potentail free pulse

contact. Capacity 230 V/1A, pulse duration adjustable to 2 to 10 seconds

Order No: K-IV220/24 Order No.: K-IVSP-LCMZT

Pulse input 12 / 24 VDC/ 48mA 12 -60 VDC / 6 mA

Pulse output 24 V / 1A floating change over contact

Working voltage 230 V/AC 230 V/AC

Power consumption 14 VA 1,5 VA

Power input 30…40 mA 10 mA


Power supply units:

Suited as an external power supply for master clocks (CSHU500/ZDA3-S2) or for EIV60/60 pulse amplifier. Built into a rack

for wall mounting, including LED voltage display, primary and secondary fuse.

Order No.: K-N230/DC24 K-N230/DC60 K-N230/19/24 K-N230/19/24/4A

Employed with K-CSHU500 K-EIV60/60 K-ZDA3-S2 K-ZDA3-S2

Working voltage 230 V/AC 230 V/AC 230/115 V/AC 230/115 V/AC

Power consumption 24 V/1,5 A 60 V/0,8 A 24 V/2 A 24 V/4 A

Measurements WxHxD: 75x150x106 mm 3 HE 14 TE 3 HE 20 TE

Accessories for the 19” sub-rack carrier

K-GEHBGTR sub-rack with grips for 19” cabinet

84TE/T174.5mm

Type for 19” rack

type for wall mounting


Mode of operation for the DCF77 Receiver

DCF77 stands for: D = Deutscher (German);

C = Langwellensender (Long-wave transmitter);

F = Frankfurt; 77 = Frequency

The DCF77 radio clocks receive the official time of

the Federal Republic of Germany from the National

Metrology Institute (PTB) in Braunschweig, and pass

these on through interfaces to computers and

systems. Through frequency synchronisation of the

DCF77 transmitter in Mainflingen near Frankfurt am

Main, the long-term accuracy of the PTB measurement

standard 1 x 10 E-13 can be attained weekly.

Because of the great degree of accuracy, only this

time is recognised as the legal and official time in

the Federal Republic (see Federal Law Gazette

42/1978, page 1110). The DCF77 signal is transmitted

constantly, with exceptions only of short interruptions

due to delays or technical failures.

During thunder storms at the place of transmission,

the DCF77 transmitter will remain switched off for

the duration of this period.

Time signal

In every second of a minute, with the exception of the 59th, a specific piece of time information is carried. The missing

signal during this one second, indicates an impending minute-change for the next second stroke. At the beginning of every

second, a signal amplitude with a duration of 100 or 200 ms will decrease to 25% of its value. The beginning of the fall in

amplitude signifies the exact beginning of the second. These second marks are synchronised with the DCF77 signal.

Basically, it can be said that the inaccuracy of the time signal received from the DCF77 is matched and compared with the

large time signal sent. The reception is strongly dependent on the restricted bandwidth of the time signal transmitter and

on various other environmental influences. Within a distance of a few hundred kilometres, the DCF77 signal can be received

with a difference of below 0.1ms.

DCF77 Radio time-receiver K-ANTDCF77/1

Radio receiver DCF-77 in weather-proof

housing IP65

Incl. pivot arm and 10m connection cable,

with current loop capability

Signal output optional with active high or

low signal

Pulse formatting to 101.5 and 202.5ms

Bar graph display (5x LEDs) for reception quality

Input sensitivity better at 100 _V/m


Temperature range -25°C to + 75°C

Working voltage 8 to 30 V/DC

Antennae for internal and external areas

DCF Radio Time-Receiver K-ANTDCF77/6

Radio receiver DCF-77 for the internal area

in break-proof, plastic moulded housing

Incl. pivot arm and 2m connection cable

Input sensitivity 500 _V/m


Temperature range 0°C to + 50°C


Calendar

month

Week day

K-ANTDCF77/1

Calendar year

Calendar day

K-ANTDCF77/6

Hour

AM: Coding as

desired E.g.

Weather Information

Minute

67

04

DCF Radio Time-Receiver K-ANTDCF77/7

68


Radio receiver DCF-77 in weather-proof IP-65 housing

Including pivot arm and 5m connection cable

Input sensitivity 500 _V/m




DCF Radio time-receiver K-ANTDCF77/8FIL

Radio receiver DCF-77 in sealed plastic housing IP-67

Including pivot arm and 2.5m connection cable

Special filter for use in environments with strong electromagnetic

disturbance

Red and green receiver indicator

Input sensitivity 30-50 _V/m




DCF Radio time-receiver K-ANTDCF77/RUN

Radio receiver DCF-77 in weather-proof IP-65 housing

Including pivot arm and 5m connection cable

Input filter option for movable objects (E.g., turning

clocks, max. 8 revolutions per minute)

Red and green receiver indicator

Input sensitivity 30-50 _V/m




Having problems changing to summer time clock?

Since the end of 2006, the DCF77 time signal transmitter has been

carrying weather information between the first and fifteenth seconds.

Older controller/processor cannot select this information, with the result

that no information can be interpreted.

Affected products:

The master clocks FHU200, FHU500M(T), FSHU1000, and the

time system ZDA16

Control panel clocks Uni Clock

Analogue clocks setting duo for autonomous radio clocks

Time and temperature displays in LED technology (with N-LED

setting), in bistable swivel armature technology (with NUTD-S), in

LCD technology up to construction year 2002 (with LCD 38

controller).

Solution:

DCF-77-Service-Kit K-DCFSERVICEKIT

Two-part modification set, composed of an intelligent filter

antenna 77/8FIL and an adjustment board for operation of

master clocks or controlling radio clocks.

K-ANTDCF77/7

K-ANTDCF77/8FIL

K-ANTDCF77/RUN

K-DCFSERVICEKIT


GPS Satellite Time Receiver

Das Global Positioning System (GPS) is a satellite system designed in the United States, based on the NAVSTAR satellites

from the company Rockwell, which can be used at any time and at any point on the planet to receive an exact time. In

order to achieve this, a total of 24 satellites are used, travelling in 6 nearly perfect circular paths, with a slope against the

equator at 55°,a total circulation time of around 12 hours and an orbiting height from earth of 20,183 km. Once the position

has been determined, the time period of the data can be transmitted from the individual satellites. Using this data, the

system generates GPS world time, and this is passed to a controllable quartz with an accuracy of ±1 µ second.

Each satellite weighs around 430kg, and contains a transmitter, a receiver, an antenna, an atomic clock for the highest possible

accuracy as well as controls for the satellite’s functions. The main employment of GPS systems is for positioning information

and navigation.

Order No.

Satellite 1

Position known

Position unknown

GPS Satellite Time-Receivers for the world-wide

employment of radio-controlled clocks and master clocks

Adjustment and entering of time zones and summer time

clock changeover points

Data output DCF77 telegram and RS232 interface

Active GPS antennae, with 5m connection cable.



Housing protection type IP 65

Weight approx. 730 g

R1

x

R1

Satellite 2


R1

Satellite 3


K-GPS/DCF GPS Satellite Time-Receiver, standard working voltage 230 V/AC

K-GPS/DCF115 Special working voltage 115 V/AC

K-GPS/DCF240 Special working voltage 240 V/AC

K-GPS/DCF

K-GPS-HALT Aluminium mounting arm for wall and standing fittings, Length 700 mm

x

69

04

Scoreboard Displays

For both indoor and outdoor sports

( )


70

Scoreboard Displays


Scoreboards for sport halls with LED technology

The new BT6000 displays are user-friendly and offer a perfect clearness for the public.

BT6000-Series

Radio control (869 MHz), cable connection is optional

Modular upgradable displays

Display boards for all popular indoor sports

Regular software updates for sports rules that have

changed, for all indoor sports

New Functions

LED displays per FIBA regulations

Programmable dynamic team names (Alpha series)

Programmable 2-digit player’s number from

0 – 99 (Evolution and Master Series)

Programmable 2-digit goal/points tally for every

player (Evolution and Master Series)

Simple operation using the control consoles

New LED Technology

Display with super bright LED (brightness is manually adjustable)

Perfectly clear visibility under all light conditions

Reading angle greater than 160°

Ball safety feature without additional protection (DIN 18032-3)

Product Groups:

Great value Club Series for schools and small sports halls, with numbers at 15 or 20cm in height

Evolution series for national match or league operations with number heights of around 25cm. Evolution

Alpha Series with programmable dynamic team names.

Master Series for FIBA levels 1 and 2, with number heights of 30cm. Dynamic 2-digit player’s number, player’s name,

individual fouls, goals and points tally. Master Alpha Series with programmable dynamic team names.

Radio Control Console

2-line LCD display, 2x20 characters

Main and secondary control console (for extension module)

External power supply 230 V/AC including battery and charger unit

24 Sec. control console

Main control console secondary control console fouls/scores

Basketball

Volleyball

Handball

Tennis

Indoor football

Ice hockey

Indoor hockey

Badminton

Table tennis

Netball

Unihockey

Boxing

Squash

71

...

05

K-BTCHRONOTOP

restricted to the following sports: basketball; handball

volleyball; tennis, table tennis, badminton, indoor football;

boxing

Time of play in red (10 cm)

Scores in red home / away teams from 0 to 99 (10cm)

Stopwatch time display

Time period in green and team fouls in red (10cm)

4x time out displays with LED point

Control station integrated within the rear side

Integrated horn sound

K-BT6015C

time of Play in yellow (15cm)

Current scores in red for home / away teams

from 0 / 999 (15cm)

Stopwatch time display

time period in yellow and team fouls in red (10cm)

Time out display

Radio connection – 868 MHz

3x time out displays in yellow

Horn 120 db

K-BT6215C

Extended BT6015 with 2 extra display board

- Display of individual fouls

- Fixed, labelled player’s numbers from 4 to 15

72


Club Series: recommended for schools and regional match

and league operations For basketball, handball, volleyball, tennis, table tennis,

badminton, netball, ice hockey, unihockey, indoor football, wrestling, boxing, squash, cricket

BT6120C WxHxD: 2000x1000x83mm/30 kg

BT6220C WxHxD: 3000x1000x83mm/60 kg

K-BTCHRONOTOP WxHxD: 550x350x90 mm/3,6 kg

K-BT6015C WxHxD: 1150x750x83mm/12 kg

K-BT6215C WxHxD: 2150x1000x83mm/23 kg

BT6120C

time of Play in yellow (20cm)

Scores in red home / away teams from

0 to 999 (20cm)

Stopwatch display of playing time

Time period in yellow (15cm)

countdown penalty time in yellow (15cm)

Penalty and timeout display in yellow

Display of serve in red


Horn 120 db

3x time out displays with LED point

BT6220C

Extended BT6120 with 2 extra display board

- Display of individual fouls

- Fixed, labelled player’s numbers from 4 to 15

All Club Series:

Including external radio control console and DCF77 radio receiver (without CHRONOTOP), working voltage 230 V/AC


Evolution Series: recommended for national match and

league operations For basketball, handball, volleyball, tennis, table tennis, badminton, netball,

ice hockey, unihockey, indoor football, wrestling, boxing, squash, cricket

Performance

Evolution Series

time of play (25cm)

Scores for home / away from

0 to 999 (25cm)

Play period (20cm)

Team fouls (20cm)

Display of penalty and timeout times

Stop watch display of playing time

Display of serve


Horn 120 db

Red and yellow LEDs


Including external radio control

console and DCF77 radio receiver

K-BT6025E-ALPHA

As with BT6025E,

but with dynamic

team names

Evolution Alpha Series:

Programmable dynamic team names, each with 10 characters with a height of 10 cm

K-BT6125E und K-BT6125E-ALPHA


As BT6125E, but with dynamic

team names

K-BT6125E

Extended BT6025E with 1 extra display board

Countdown of 1 penalty time per team

WxHxD:2000x1300x83mm

40kg

K-BT6025E

WxHxD: 2000x1000x83mm

30kg

73

05



74


K-BT6225E

Extended BT6025E with

2 extra display boards

Display of individual

fouls

Fixed, labelled player’s

numbers from 4 to 15

WxHxD: 3300x1300x83mm

68kg


As BT6225E, but with

dynamic

team names

K-BT6325E

Extended BT6025E with


Display of individual fouls

Fixed, labelled player’s

numbers from 4 to 15

Countdown of 1 penalty

time per team

WxHxD: 3300x1300x83m

80kg


As BT6325E, but with

dynamic team names


Extended Construction of K-BT6025E-ALPHA

For basketball, handball, volleyball, tennis, table tennis, badminton, netball, ice hockey, unihockey,

indoor football, wrestling, boxing, squash, cricket


WxHxD: 4000x1000x83mm/60kg




WxHxD: 4200x2000x83mm/115kg

Particularly suited to handball

Extension of BT6025E-ALPHA

with 2 extra display boards

Countdown of three penalty times

3 x 2-digit player’s numbers

per team (15cm


with extra display boards

Countdown of 3 penalty times


per team (15cm)


Dynamic player numbers

from 0 to 99 in yellow (10cm)


with 6 extra display boards



per team (15cm)


Dynamic player numbers

from 0 to 99 in yellow (10cm)

Individual points / goals tally

per player from 0 to 99

in red (10cm )

75

05

Master-Alpha Series for large

Sport halls (FIBA Level 1 and 2)

For basketball, handball, volleyball, tennis, table

tennis, badminton, netball, ice hockey, unihockey,

indoor football, wrestling, boxing, squash, cricket

Performance –

Master Alpha Series

Time of Play (30cm)

Scores for home/away teams from 0 to 999 (30cm)

Play period (25cm)

Team fouls (25cm)

Display of penalty and timeout times

Stopwatch display of playing time

Display of serve

Dynamic team names, each with 25cm high characters


Horn 120 db

Red and yellow LED


Including external radio control console and

DCF77 radio receiver

K-BT6230M-ALPHA


76



As the basic description above



Extended BT6030M-ALPHA with 1 extra display board

Countdown of 3 penalty times (20cm)

Countdown of time outs

Display of the last individual foul


Extended BT6030-ALPHA with



Dynamic player’s numbers

from 0 to 99 (10cm)

WxHxD: 3950x2000x83 mm/87 kg

Extended BT6030M-ALPHA with






Dynamic player’s numbers from

0 to 99 (10cm)

WxHxD: 3950x2000x83 mm/107 kg


Special Construction FIBA (Basketball) Construction

The currently recommended extended display for individual fouls, display of individual goals / points tally,

and additional player name displays.


WxHxD: 4550x2000x83 mm/147 kg

Extension of BT6030M-ALPHA with extra display boards

Dynamic team names





Dynamic player’s numbers from 0 to 99 (10cm)

Display of points / goals tallies for each player from 0 to 999 (10cm)


WxHxD: 7350x2000x83 mm/277 kg

Extended BT6030M-ALPHA with extra display boards

Dynamic team names





Dynamic player’s numbers from 0 to 99 (10cm)

Display of points / goals tallies for each player from 0 to 999 (10cm)

12 programmable player’s names

77

05

24-Second Display and Accessories

K-BT6002 (two displays)

WxHxD: 435x400x83 mm/7,7 kg per display

K-BT6006 (two display)

WxHxD: 720x610x83 mm/10,5 kg per display

78


2-digit, 24-second display (number 20cm in height)

Horn 120 db

Includes external control console (connected to main

control system)


Fixing is required (see below)

K-BT6008 (two displays) – recommended for FIBA Game Operation

Accessories for BT6002/6006

model no.

K-BT6002/6WA

K-BT6002/6KORB

Accessories for scoreboard display

model no.

K-BTKIT-KABEL

As BT6006, but with 4-sided construction

Component parts for fixing the basket

Operates only with cable connection

Includes external control console (connected to

main control system) Working voltage 230 V/AC

WxHxD: 650x590x650 mm/50 kg per display

As above

Numbers 25cm in height

- time of play in yellow, numbers 15 cm in height

- Stop watch display of playing time

Includes external control console (Connected

to main control system)


WxHxD: 720x610x83 mm / 10.5 kg per Display

Fixing is required (see below)

2 fastening parts for BT6002- and BT6006 display for wall mounting or for

floor mounting

Fastening, e.g.

above the basket

2 fastening parts for BT6002- and BT6006 display for mounting on basketball net.

Additional charge for data transfer per cable including cable set for connecting to the control

console, a connection box and 10m cable. (Recommended for large sport halls with video and/or

TV transmittal)


Scoreboard displays for football

Football scoreboards with bistable flap technology

“Home / Away” with radio

remote controller

7-segment display with bistable flap technology

Numbers 45/60cm in height (visible range up

to 225/300m)

Numbers in yellow or white

1-2-digit display of scores for each team

10 m W Radio transmitter with 433 MHz technology

for use up to approx. 200m from the display screen,

includes 9V battery, WxHxD: 120x65x22mm

Aluminium housing, anodised with silver colour

finish, Plexiglas front cover with vinyl wrap

“Home/Away”



Supplement

Complementing promotional clock

Clock face diameter 80cm with DIN-beams

Display of hours and minutes

White advertising space

Aluminium housing, anodised silver finish, and Plexiglas front cover


230 V/AC radio clock, mains operation

Height of Point for housings WxHxD Article No. size of construction Article No.

numbers every for each figure complete WxHxD for each figure construction set

Team housings

450 mm 1 2500x1500x190 mm K-KLAERG45/2 400x575x82 mm K-KLABSERG452

2 2500x1500x190 mm K-KLAERG45/4 400x575x82 mm K-KLABSERG454

600 mm 1 2500x1500x190 mm K-KLAERG60/2 515x710x82 mm K-KLABSERG602

2 2500x1500x190 mm K-KLAERG60/4 515x710x82 mm K-KLABSERG604

model No.

K-ANAWERB

(Advertising Space)

External analogue promotional clock with clock face diameter of 80cm and advertising space,

housing measurements WxHxD: 2500x1500x190mm

79

05

80


Scoreboard displays for football, rugby, field hockey, beach volleyball,

"Home / Away" with radio remote controller

7-segment LED display

Numbers 45cm in height (visible range up to 225m)

Numbers in red colour

2-digit score display for each team

Radio transmitter with battery. Adjustment for

playing time, current scores

Height of numbers article no description measurements WxHxD

450mm K-LEDERG45/4 2x2-digit scoreboard with added table 2400x1245x86 mm

“Home” and “Away”, including radio control

Supplement playing time display

Day time display during time outs with radio synchronisation

through DCF-77

Aluminium housing, black finish, with Plexiglas front screen

with vinyl wrap for “Home” and “Away” teams.


K-LEDSPZ45/4

K-LEDERG45/4

Height of numbers article no description measurements WxHxD

450 mm K-LEDSPZ45/4 4-digit time display, display selection 2400x620x86 mm

Playing time / time of day / temperature

( )

time for winners

Note

81

82

Note

General Terms and Conditions

1. General Terms

The conditions referred to in this general list of terms apply to both the manufacturer

or supplier, henceforth referred to as the contractor (C), and the receiver

or orderer, henceforth referred to as the contracting body (CB). The CB confirms

that he / she has been made fully aware of all the general terms and conditions

contained within the offer, or the written contract, made by the C; the general

terms and conditions (GTC) are a key component of the agreement between the

orderer and the supplier.

Within the GTC, consumers, are intended to signify normal persons, who come to

engage in a business relationship, without these having to be assigned any kind

of commercial or independent occupational role. Within the terms of the GTC, traders

are defined as normal or legal persons under public or company law or partnerships

with legal capacity, with which a commercial relationship is entered

into, from which they conduct a commercial or an independent occupational role

or activity. Within the GTC, customers are both consumers and traders. Any variational,

conflicting or additional general terms and conditions of business will

not apply to this contract; for such conditions to apply, express written confirmation

of agreement will be required.

2. Contract Completion and Conditions of Payment

By placing an order for an model of goods, the CB makes a binding promise to

wish to procure the ordered model. The C is then obligated to take up the contractual

offer contained within the order. The C will then promptly confirm receipt

of the order either using the email address provided, or by fax. The confirmation

of receipt does not, however, represent a binding acceptance of the offer, although

the declaration of acceptance can be combined with the confirmation of

receipt. The offers of C remain subject to change: The rights to technical changes,

fittings, deliveries, and also changes to form, colour and/or weight are reserved.

The only binding details are those contained within the declaration of acceptance.

The C is obligated to promptly inform the CB of any eventual deviations or

changes between the time of the order and the confirmation of receipt and/or the

declaration of acceptance. The conclusion of the contract shall be subject to the

correct and punctual delivery of the goods through the C’s suppliers. This applies

only in the instance that non-delivery isn’t caused by the C, in particular when

the task is conducted by a contractor commissioned by C’s supplier. In such an

instance, the CB will be informed of the non-delivery immediately, and a prearranged

alternative service will be introduced without delay. For further terms

see section 4. Payments will be made without charges incurred by the C, either

through his / her given account, or by cheque.

3. Reservation of Title

An extended reservation of title is agreed upon between the contractual parties

for the delivered goods. Thereafter, the goods remain the property of the C until

the final payment. The CB is entitled to sell the goods on to third parties as a normal

business transaction. When selling the goods onto third parties, the CB thus

cedes his/her rights in advance upon payment of the amount as yet not rendered

to the C. The CB is not allowed to forfeit or transfer the title prior to full payment

of the goods to the C, if this leads to the property of the C becoming negatively

affected. The CB is obliged to promptly notify the C of any seizures, confiscations,

storages etc. without unnecessary hesitation.

4. Delivery, Costs of Delivery, Split-Delivery

The terms of delivery may only be deemed binding once they have been received

in writing; verbal statements are non-binding. If a delivery time is promised, the

C cannot be held responsible for delays that were the fault of the delivery service.

Also, should non-delivery and/or delay occur as a result of overbearing forces,

industrial action, fire, unforeseeable obstructions, or other circumstances

that cannot be considered the responsibility of the C, the delivery time will be

delayed for the duration of said events. The C is entitled to partially deliver the

goods if a part of the shipment is temporarily unable to be delivered. Additional

delivery costs will not be billed to the CB. The delivery will be performed by courier

to be nominated by the C. The delivery will only be made to the same delivery

address and billing address, which the buyer provided. Should the C be found

responsible for delay against his/her binding written promise, the CB’s claims for

damages are limited to a maximum of 5% of the price of the goods of each delivery

or partial delivery, which couldn’t be put to planned usage because of said

delay. In all cases of late delivery, further claims for compensation from the CB

are excluded, as long as no gross negligence or carelessness on the part of the

C can be proven to have caused the delay.

5. Passing of Risk

The danger of accidental destruction and deterioration of the goods is passed

from the C to the CB once these have been passed to the delivery company (both

by post and train) in the usual way. If it is desired, the C can arrange for transportation

insurance at the cost of the CB.

6. Obligations to inspect and lodge Complaints

If the CB is a trader, he/she is obligated to inspect the goods as soon as possible,

and, in the event of deficiencies, must inform the C within 14 days of the delivery

or construction. Should the CB fail to make this announcement, the goods

will be deemed approved. If a deficiency is discovered later, a claim must be

made immediately after the discovery has been made.

7. Return of the Goods

Should the C take the goods back – in the case of our standard products being

in faultless condition and in CB’s undamaged packaging – these can only be

compensated at 75% of the goods’ total value. Such compensation will not be

paid out directly, but will be used to cover the costs of other deliveries. In all

cases with specially-designed models, the return of goods is not permitted.

8. Assembly and Mounting

Where the subject matter of the contract is also the assembly and mounting of

the delivered goods, this applies only to the actual assembly and mounting. It is

incumbent upon the CB to make arrangements for the procurement of any approvals

from local authorities and other bodies, at his/her own cost. Furthermore,

the CB assumes personal responsibility for meeting all the necessary preconditions

required for the work to be carried out by the C, and at his/her own cost.

Any kind of extra work, such as the mounting of electricity cables and the appropriate

holders for the supplier’s goods, is the duty of the CB and should be cleared

with the C prior to the commencement of work. Should the work of C be delayed

due to any circumstances, be they of the CB’s making or not, the CB will be

responsible for compensating the C financially for any extra unnecessary costs

incurred in work and time wasted.

9. Guarantee

In aberration of the legal guidelines, the parties fundamentally agree to a warranty

period of twenty-four months from the date of the passing of risk; as long

as this involves traders. In the event of any deficiency, the C will be obliged to rectify

the matter. The C is entitled to rectify deficiencies or deliver parts free from

defects, at is/her own determination, within one year of the initial delivery, in

accordance with section 439 of the Civil Code. Rectification involves free of charge

- but non-financially payable - provision of parts and/or assemblies for

exchange at the place of delivery. After one year of the initial delivery date, the

CB’s warranty rights will be limited to rectification or recompense at the current

market value, to be decided by the C. An insignificant depreciation in the value

or capability of the goods remains entirely out of consideration. The rights of the

receiver regarding deterioration and modification of the sales agreement remain

unaffected following failed or abortive rectification. The legal guidelines covering

warranties between businesses, in particular section 377 of the Commercial

Code, apply. Should the CB choose to demand reimbursement of expenses, as

per sections 439 II and 478 II of the Civil Code, these will be limited to a maximum

of 1% of the original value of the deficient goods. Claims for reimbursement

of expenses made by the CB involving further delivery are excluded. Claims that

are brought related to section 478 of the Civil Code are to be covered by the 24month

warranty and the rebate offered by C; this loss offset corresponds to section

478 IV P.1 of the Civil Code.

10. Liability

The C is liable to the CB only in instances of wilful and significant negligence.

Liability for a small degree of negligence on the part of the C, is ruled out between

the two parties. Any potential kind of compensation for damages is limited

to any foreseeable damages that are typical of this type of contract.

11. Disposal

If the CB is a trader and/or a commercial user of our products, he/she obligates

him/herself to dispose of the products bought from the C at his/her own cost,

thus removing the C from any claims that could be made by third parties in relation

to this action, as per the directives detailed under section 10 para. 2 of the

Electrical and Electronic Equipment Act.

12. Export

In the event of our products being exported outside of the Federal Republic of

Germany by the CB, the C will not be liable for any damage caused by the delivered

products to the proprietary rights of any third parties. The CB will be responsible

for covering all damages that may be caused by the export of goods that

were not specifically delivered for export by the C.

13. Liability for Links

With the judgement of the 12th September 1999 (312 O 85/99 “Haftung für

Links”), the Hamburg regional court decided that by publishing links to other

web pages, a website was therefore responsible for the content contained within

those linked pages. Responsibility for this, the regional court ruled, could only be

relinquished by expressly distancing oneself from these links. We hereby

expressly distance ourselves from all the contents of linked sites or graphics, and

in no way make these our own. All violations of or infringements against applicable

law, customs or morals, which we are made aware of, will be deleted forthwith

– i.e. any links, text entries, graphics or similar material - as a consequence.

14. Final Clause

The place of fulfilment and seat of court is 65817 Eppstein. The law of the Federal

Republic of Germany applies. The terms of the Uniform Law on the International

Sale of Goods do not apply. Whether the CB is a businessman/businesswoman,

a legal person under civil law or a private entity under commercial law, the court

of jurisdiction for any disputes arising from this contract is exclusively in the C’s

place of business (i.e. the place of fulfilment). The same rule applies if the CB

possesses no general court of jurisdiction in the Federal Republic of Germany, or

if his/her fixed abode or usual place of residence during the course of the court

proceedings is not known. If individual elements of the contract, including the

general terms and conditions, are deemed to be, or to become, completely or

partially ineffective for the CB, the effectiveness of the remaining elements shall

remain untouched. The totally or partially ineffective term will be replaced by

another, which will be intended to have a more successful commercial impact. In

the event of there being a loophole, the parties shall endeavour to find a term

that will attempt to bring about the objectives of both parties contained within

this agreement.

Electronic Clocks and Information Systems

NIS-time AG

Otto-Volger-Str. 7a

D-65843 Sulzbach a. Ts.

Germany

Tel.: +49 (0) 61 96 - 76 665-0

Fax: +49 (0) 61 96 - 76 665-50

Internet: www.nis-time.com

E-Mail: info@nis-time.com

Ust.IdNr.: DE228960863

( )


NIS-time Representatives:

Sachsen, Sachsen-Anhalt,

Thüringen, Süd-Brandenburg

Industrievertretung A. Vogt

Ludwig-Jahn-Str. 59

D-02785 Olbersdorf

Tel.: 0 35 83 - 69 17 40

Fax: 0 35 83 - 69 34 10

Mecklenburg-Vorpommern,

Berlin, Brandenburg

Hanse Info Werbesysteme

Hauptstraße 80 e

D-18107 Elmenhorst

Tel.: 03 81 - 20 74 67 74

Fax: 03 81 - 76 83 97 8

Niedersachsen

Firma Rodath Werbetechnik

Bergdorfstr. 1

D-31832 Springe-Lüdersen

Tel.: 0 50 45 - 98 44 1

Fax: 0 50 45 - 98 44 3

Your reliable supplier

Analogue and digital clocks - NIS time

Create successful ePaper yourself

Delete template?

Save as template?
