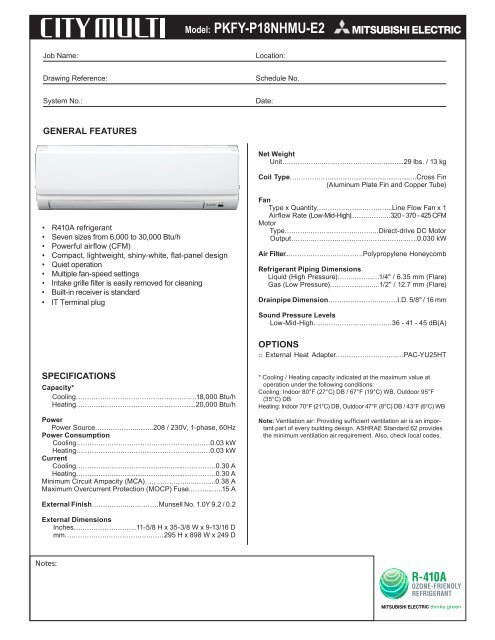

Model: PKFY-P18NHMU-E2
Job Name:
Location:
Drawing Reference:
Schedule No.
System No.:
Date:
GENERAL FEATURES
Net Weight
Unit………………..…...……………..................29 lbs. / 13 kg
Coil Type………………...........................................….Cross Fin
(Aluminum Plate Fin and Copper Tube)
• R410A refrigerant
• Seven sizes from 6,000 to 30,000 Btu/h
• Powerful airflow (CFM)
• Compact, lightweight, shiny-white, flat-panel design
• Quiet operation
• Multiple fan-speed settings
• Intake grille filter is easily removed for cleaning
• Built-in receiver is standard
• IT Terminal plug
Fan
Type x Quantity………………..…………...Line Flow Fan x 1
Airflow Rate (Low-Mid-High)...…….……...320 - 370 - 425 CFM
Motor
Type………..………..………..………..Direct-drive DC Motor
Output………..………..………..………..………..….0.030 kW
Air Filter..…………………………….Polypropylene Honeycomb
Refrigerant Piping Dimensions
Liquid (High Pressure)……............…1/4" / 6.35 mm (Flare)
Gas (Low Pressure)………………..…1/2" / 12.7 mm (Flare)
Drainpipe Dimension……............……...…….I.D. 5/8" / 16 mm
Sound Pressure Levels
Low-Mid-High….…………….…………….36 - 41 - 45 dB(A)
OPTIONS
□ External Heat Adapter……………………….…PAC-YU25HT
SPECIFICATIONS
Capacity*
Cooling…………………………………………….…18,000 Btu/h
Heating……………………………………………....20,000 Btu/h
Power
Power Source………………..........208 / 230V, 1-phase, 60Hz
Power Consumption
Cooling…………………………………………….………0.03 kW
Heating…………………………………………….………0.03 kW
Current
Cooling……...................................................……………0.30 A
Heating……...................................................……………0.30 A
Minimum Circuit Ampacity (MCA)……………….…..……...0.38 A
Maximum Overcurrent Protection (MOCP) Fuse..….......…..15 A
* Cooling / Heating capacity indicated at the maximum value at
operation under the following conditions:
Cooling: Indoor 80°F (27°C) DB / 67°F (19°C) WB, Outdoor 95°F
(35°C) DB
Heating: Indoor 70°F (21°C) DB, Outdoor 47°F (8°C) DB / 43°F (6°C) WB
Note: Ventilation air: Providing sufficient ventilation air is an important
part of every building design. ASHRAE Standard 62 provides
the minimum ventilation air requirement. Also, check local codes.
External Finish……………...….………Munsell No. 1.0Y 9.2 / 0.2
External Dimensions
Inches………………………..11-5/8 H x 35-3/8 W x 9-13/16 D
mm………………………………………295 H x 898 W x 249 D
Notes:

0
0
0
Model: PKFY-P18NHMU-E2 – DIMENSIONS
15-3/16(387) 7-1/2(192)
Top side
Unit : in(mm)
7-3/4(197)
23-9/16(599)
Front side
Mount board
Right side
11-9/16(295)
A
D
Sleeve
(purchased locally)
Left side
Knock out hole
for left piping
Through hole
2-1/8
(55)
27-1/16(688)
35-5/16(898)
Front side(Grille open)
6-1/16(155)
9-3/4(249)
Knock out hole
for right piping
3/16(5)
2-1/2 ~ 3-1/8
( 65 ~ 80)
2-1/2 ~ 3-1/8
( 65 ~ 80)
Terminal block for power supply
Terminal block for transmission
Terminal block for
MA-remote controller
17-15/16(457)Gas pipe
6-5/8(169)
21-3/16(539)Liquid pipe
6-3/16(158)
24(610)Drain hose 7-3/16(184)
Emergency operation switch
(cooling/heating)
5/16(8)
Vane(auto)
Under side
24-1/16(612)
Operation lamp
DEFROST/STAND BY lamp
Refrigerart
Piping
Liquid pipe
1/4F ( 6.35)
Gas pipe
1/2F ( 12.7)
Knock out hole
for lower piping
Drain hose
5/8 ( 16) I.D
C
Louver(manual)
Knock out hole
for lower piping
B
Receiver
Center measurement hole 3/32( 2.5)
0
5/8(16)
1-1/16(28.5)
1-9/16(41)
3-1/16(78.5)
3-9/16(91)
4-1/16(103.5)
4-9/16(116)
6-1/2(166)
7(178.5)
8(203.5)
9-1/8(232.5)
9-15/16(253.5)
77- 3/16( 5.1)
Tapping
screw hole
Wall hole
for
left rear
piping
17-5/8(449)
14-5/8(372.3)
14(356.3)
12-7/8(327.5)
11-7/16(291.5)
10-3/8(265)
15-1/2(394)
4- 5/16( 9) Bolt hole Mount board
8-13/16(225)
7-13/16(200)
10-15/16(278.3)
9-5/16(238)
8-3/8(213)
6-13/16(174)
4-7/8(125)
2-3/4(70)
9/16(15)
9/16(15)
2-1/4(58)
Knock out hole for
left rear piping
2-3/4×12-3/16(70×310)
2-3/4(70)
5/32(3.8)
4-7/8(125)
4-1/2(115)
5-1/2(140)
6-9/16(167)
7-1/16(180.3)
7-13/16(200)
8-13/16(225)
9-5/16(238)
10-3/8(265)
11-7/16(291.5)
7-9/16(193.5)
11-1/16(281)
12-7/8(237.5)
14(356.3)
14-5/8(372.3)
Wall hole for
right rear piping
Indoor unit outline
17-5/8(449)
13/16(21.8)
0
3/4(20)
1-1/4(32.7)
2-1/16(53.5)
2-9/16(66)
5(128.5)
6(153.5)
9-1/16(231.5)
10-3/4(273.2)
Knock out hole for piping
7/16(12.5) 2-3/16(56)
C
A
1-11/16(43)
1-3/4(46)
3/16(6) 2-3/16(56)
1-11/16(43)
2-11/16(69)
3/16(6) 2-3/16(56)
1-3/4(46)
2-5/16(60)
D
1-11/16(43)
1-11/16(43)
2-5/16(59)
B
Min.1/4(7)
250mm,9-13/16inch or greater with
optional drain pump installation.
Required space(Indoor unit)
(mm)
Min.1-31/32(50)
Min.8-5/8
(220)
Air inlet
Air inlet
Air outlet
Min.5-7/8(150)
Min.1-31/32(50)
Min.9-13/16(250)
Mitsubishi Electric Air Conditioning & Refrigeration Systems Wo rks acquired ISO
based on a review of quality warranties for the production of refrigeration and air
conditioning equipment.
ISO Authorization System
The ISO 9000 series is a plant authorization system relating to quality warranties as
development, production, installation and auxiliary services" for products built at
an authorized plant.
Mitsubishi Electric Sales Canada Inc.
www.MitsubishiElectric.ca
Mitsubishi Electric Air Conditioning & Refrigeration Systems Works acquired environmental
The ISO 14000 series is a set of standards applying to environmental protection set by the
International Standard Organization (ISO).
Specifications are subject to change without notice.
SB_PKFY-P18NHMU-E2_201205
