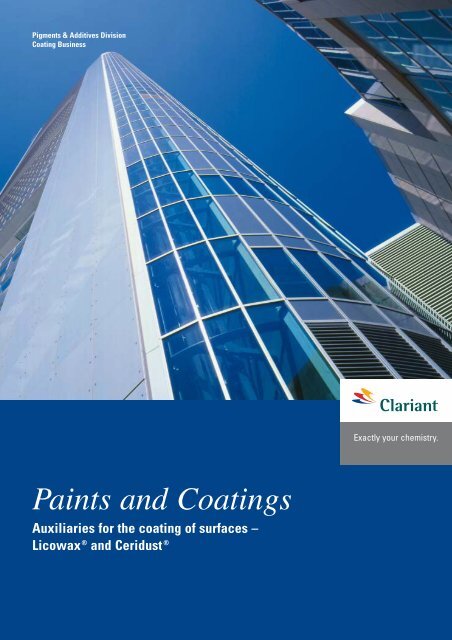

Paints and Coatings - Clariant

Pigments & Additives Division

Coating Business

Paints and Coatings

Auxiliaries for the coating of surfaces –

Licowax ® and Ceridust ®

Exactly your chemistry.

Paints and Coatings

Contents

Function of waxes 4

Product range 8

Properties 10

Test methods 14

Application 14

General information on

the processing of waxes 18

Ceridust and

water-based Coatings 21

UV reactive waxes 22

Examples of formulations

for special applications 23

Safety data 28

Transport and storage 30

Suppliers 31

2

> Auxiliaries for the coating of surfaces

> Licowax and Ceridust

Function of waxes

Waxes are incorporated in paints

and coatings to achieve or improve

the following properties:

Ester waxes based on crude montan wax

4

Licowax KLE

Polyethylene waxes

Licowax PE 520

Licowax PED 521

Licowax PED 522

Ceridust

Ceridust 3620

Ceridust 9615 A

Ceridust 6721

Ceridust 3715

Ceridust 2440

Ceridust 3719

Ceridust 9610 F



TP Ceridust 3921 F


Matting Improving

mar resistance

Outstandingly effective

Enhancing

antiblocking

behaviour

Improving

sandability

Improving

slip

Good effectiveness in most formulations

Improving

handle

Improving Steering Preventing Water Preventing Orientation Texturing

smoothness rheological pigment repellency metal agent

properties settling marking for effect

pigments

5

6

Ceridust

TP Ceridust 9322 F

Ceridust 3910

Ceridust 5551

TP Ceridust 5091

TP Ceridust 5851 R



TP Ceridust 6050 M

Waxes based on other raw materials

Licowax C micropowder

Licowax 371 FP

Licowax R 21

Matting Improving

mar resistance

Enhancing

antiblocking

behaviour

Improving

sandability

Improving

slip

Outstandingly effective Good effectiveness in most formulations

Improving

handle

Improving Steering Preventing Water Preventing Orientation Texturing

smoothness rheological pigment repellency metal agent

properties settling marking for effect

pigments

7

Product range

Waxes and wax micropowders

based on raw montan wax

Licowax KLE is an ester wax which

already contains the optimum amount

of emulsifier.

Ceridust 5551 is a micronized ester

wax. Due to its polar character it

is best suited for use in aqueous

systems.


based on polyethylene wax

Licowax PE 520 is a colorless, odourless,

hard, partially branched-chain

polyethylene wax of low density.

Because of its molecular structure

Licowax PE 520 has a pronounced

matting effect on paint. It is readily

dispersible in hot solvent and produces

fine dispersions with good resistance

to settling.

8

Licowax PED 521 and Licowax PED

522 are partially branched-chain

polar polyethylene waxes.

The Ceridust grades are micropowders

produced by a special process.

Ceridust 3620 is a linear, hard polyethylene

wax. Ceridust 9615 A is a

modified linear polyethylene wax.

Ceridust 6721 is a new brand of a

PP blend offering good matting

and outstanding soft-feel effect.

Ceridust 3715 and 3719 are noted for

their excellent wettability by water or

other polar solvents. Ceridust 9610 F,

Ceridust 9630 F, Ceridust 9325 F and

TP Ceridust 9322 F are hard polyethylene

waxes of linear structure whose

effect is optimized by polytetrafluoroethylene

(PTFE). They are noted for

excellent slip.

Ceridust 3920 F and TP Ceridust 3921 F

are PTFE modified polyethylene waxes

with a very low average particle size

diameter of approx. 6.0 µm. Therefore

they are especially suitable for improving

the surface lubricity and slip

properties in thin film applications.

The Ceridust grades can be finely

dispersed in paints of different systems

simply and with little mechanical

energy.


based on other raw materials

Licowax C micropowder is a hard

highmelting-point amide wax that can

be easily ground and dispersed owing

to its brittleness.

Ceridust 3910 is an especially finegrain

micropowder based on amide

wax; it can be processed with ease

due to its small particle size. Both

wax micropowders exhibit slip which

is advantageous in deformation and

sanding work.

The Ceridust grades 9202 F and

9205 F are a low molecular weight

PTFE characterized by antisticking

properties and a related surface

effect.

Licowax 371 FP is a flexible polymer

with waxlike properties and has

proved effective as an anti-settling

agent for pearl-gloss pigments for

example.

Licowax R 21 is a saponified hydrocarbon

wax which forms particularly

small particle size and stable

dispersions in organic solvents.

9

Properties 1)

Ester waxes based

on crude montan wax

Licowax KLE – – 85

Polyethylene Waxes

Licowax PE 520 – – 120

Licowax PED 521 – – 106

Licowax PED 522 – – 105

Ceridust

Ceridust 3620 8.5 13.0 125

Ceridust 9615 A 6.5 12.0 140

Ceridust 6721 7.0 13.0 154

Ceridust 3715 8.5 14.0 125

Ceridust 2440 8.5 13.0 116

Ceridust 3719 13.0 22.0 116

Ceridust 9610 F 8.5 15.0 125

Ceridust 9630 F 8.5 15.0 130 *

Ceridust 3920 F 6.0 10.0 125

TP Ceridust 3921 F 6.0 10.0 125

Ceridust 9325 F 8.5 15.0 125

The delivery specifications are

given in the relevant data sheets.

10

Particle size 2), Average analytical values %

50 % value µm 90 % value µm

d 50

1) = The DGF standard methods can be obtained

from the Wissenschaftliche Verlagsgesellschaft

mbH, Birkenwaldstrasse 44, D-70191

Stuttgart-N. Slight deviations may occur

when testing to DIN or ASTM standards.

2) = Laser diffraction method

d 90

* = Softening point

Drop point

°C

Acid Acid value value Saponification Saponification value value Density Density Color Color Form Form supplied supplied

mg mg KOH/g KOH/g mg mg KOH/g KOH/g at at 23 23 °C °C

g/cm 3 g/cm 3

30 105 1.01 yellowish flakes

0 0 0.93 white powder, granules, grain 3)

17 – 0.95 almost white flakes


0 – 0.97 white micronized powder








≤ 1 – 1.00 white micronized powder



3) = Fine grain: up to about 2 mm with no

restrictions on the fineness content.

11

Ester waxes based

on crude montan wax

TP Ceridust 9322 F 6.0 10.0 125

Ceridust 3910 6.5 12.0 142

Ceridust 5551 8.5 14.0 98

TP Ceridust 5091 9.0 14.0 113

TP Ceridust 5851 R 9.0 15.0 77

Ceridust 9202 F 4.0 8.0 327 **

Ceridust 9205 F 8.0 18.0 326 **

TP Ceridust 6050 M 8.5 14.0 145

Waxes based on

other raw materials

Licowax C micropowder – < 50.0 142

Licowax 371 FP – – 101

Licowax R 21 – – 106

The delivery specifications are

given in the relevant data sheets.

12

Particle size 2), Average analytical values %

50 % value µm 90 % value µm

d 50

d 90

2) = Laser diffraction method * = Softening point

Drop point

°C

** = Melting point, test method:

differential scanning calorimetry

Acid value Saponification value Density Color Form supplied

mg KOH/g mg KOH/g at 23 °C

g/cm 3



15 – 1.00 yellowish micronized powder




0 – 2.20 almost white micronized powder


6 – 1.00 white micropowder


5 – 0.94 white flakes

13

Test methods

Drop point DIN 51 801/2

ASTM D 127

Softening point DIN EN 1427

ASTM E 28 / D 36

Acid value DIN EN ISO 3682

ASTM D 1386

Saponification DIN EN ISO 3681

value ASTM D 1387

Density DIN 53 479

Application

ASTM D 1505

The mode of action of the Licowax

and Ceridust grades summarized in

section “Function of Waxes” opens

up many uses for these products in

the paint and coatings sector.

14

Matting

The so-called matt effect of paints and

other surface coatings is produced by

a large number of microscopically

small particles that reflect the incident

light diffusely. The particle size is of

crucial importance. Particles visible to

the eye with a diameter of >20 µm do

not produce a good matt effect.

The ideal particle size is about 10 µm.

Particles with a diameter

Enhancing antiblocking behaviour

The micronized waxes Ceridust 9615 A,

Ceridust 6721, Ceridust 9610 F and

Ceridust 9630 F have proved particularly

successful in producing an antiblocking

effect in solvent-containing

paints. Ceridust 9615 A exhibits the

smallest and Ceridust 9630 F the

greatest effect.


are primarily suitable for can and coil

coatings where low COF is required.

A special grade of PTFE will impart

superior slip and anti-blocking

properties.

Improving sandability

In lacquers based on polyurethane,

in acid-curing lacquers and furniture

lacquers based on nitrocellulose, the

addition of Licowax C micropowder

has proved successful in improving the

sandability of primers. So that the wax

can function optimally, it should first

be dispersed in a solvent suited to the

recipe with the help of a bead mill, for

example (see page 24).

Influencing the rheological properties

Licowax PED 521 and Licowax PED 522

have proved highly successful for

preventing sagging and running of

alkyd resin paints (page 25).

Preventing pigment settling

Even small quantities of Ceridust

9615 A – 0.5 % to 1.5 % relative to the

binder – delay the settlement of pigments

and fillers to form a hard sediment.

Sediments do form after some

time but are easily redispersed. An

even more effective way of preventing

settling is to use Licowax PE 520 as

a 10 % dispersion. Preparation of the

dispersion is described under

“Preparation of a wax dispersion”

on page 18.

In order to improve the settling behaviour

of pearl-gloss pigments,

Licowax 371 FP can be used and is

added as a 6 % dispersion to the paint

system. Preparation of this dispersion

is described on page 15 in section

“Licowax 371 FP”.

Making paints water-repellent

Ceridust 9615 A is suitable for making

protective wood finishes and protective

wood stains water-repellent. 2 %

to 6 % of the product incorporated

in the finished paint give the film good

water repellency at the initial drying

stage; in addition excellent film

smoothness is achieved (page 25).

Preventing metal markings

No metal markings of any kind may

occur when metal tools are used on

coated steel strip (coil-coated metal).

This is achieved by adding Ceridust

9610 F, Ceridust 9630 F, Ceridust

3920 F or TP Ceridust 3921 F.

These Ceridust grades have proved

successful with highly matt coil

coatings. Furthermore, the painted

surface should be as insensitive as

possible, so that in everyday domestic

use contact with metallic objects

does not leave any marks (table 1).

Superior surface slip


are modified PE wax/PTFE blends that

are primarily suitable for giving additional

surface slip. The very low mean

particle size diameter of only 6 µm

makes TP Ceridust 9322 F extremely

valuable for any thin film application.

15

Table 1

Test results with a paint recommended chiefly for painting refrigerators

and washing machines.

16

Matting agent

Figure 1:

Settling behaviour of matting agents in a nitrocellulose lacquer. Observation period 4 weeks.

* In nitrocellulose lacquer, 20 % predispersed

Incorporation at

3000 rpm in min

Matting agent

content in %

Ceridust 9615 A 1 15 2

2 60 2

Silica 3 15 2

4 60 2

Ceridust 9615 A and 5 15 2

Silica 1:1

Ceridust 9615 A* 6 15 2

Paint without wax 5 5 4 4

Paint with wax

Paint stoved 10 min. at 80°C

Metal marking by Brass Copper Gold Aluminium

1 % Ceridust 9610 F 4 4 2 2

2 % Ceridust 9610 F 2 2 1 1

3 % Ceridust 9610 F 2 . . . 3 2 1 1 . . . 2

1 % Ceridust 9630 F 3 . . . 4 3 . . . 4 2 2

2 % Ceridust 9630 F 1 . . . 2 1 . . . 2 1 1

3 % Ceridust 9630 F 2 2 1 . . . 2 1 . . . 2

1 % Ceridust 3920 F 4 4 2 2

2 % Ceridust 3920 F 2 2 1 1

3 % Ceridust 3920 F 2 . . . 3 2 1 1 . . . 2

Assessment:

1 = No metal marking

2 = Trace of metal marking

3 = Slight metal marking

4 = Some metal marking

5 = Distinct metal marking

The quantities added are relative

to the total formulation.

Paint stoved 10 min at 140°C

Brass Copper Gold Aluminium

5 5 4 4

3 2 2 1

2 2 1 1

2 . . . 3 2 1 1 . . . 2

2 . . . 3 2 2 1

1 . . . 2 1 . . . 2 1 1

2 2 1 . . . 2 1 . . . 2

3 2 2 1

2 2 1 1

2 . . . 3 2 1 1 . . . 2

17

General information on

the processing of waxes

The waxes described here are insoluble

at room temperature in the common

paint solvents. They dissolve only at

elevated temperatures in aromatic

and a number of aliphatic solvents,

mainly nonpolar hydrocarbons. When

the wax/solvent mixture cools, the

wax precipitates with varying degrees

of crystallinity and remains finely

dispersed in the solvent. By altering

the type and quantity of the components

and the dispersion method, it is

possible to vary the dispersing operation

considerably so as to achieve

differences in the structure of the

particles and the degree of dispersion

and thus in the consistency of the

dispersion.

Similar fine dispersions can be produced

using Ceridust without hot precipitation.

These micronized powders offer the

following advantages:

> No heating of wax and

solvent required.

> No solvent vapours arise.

> The risk of fire is reduced

to a minimum.

> Necessary dispersing machines are

in operation for a short time only,

thus saving time and energy.

> Processing is environmentally safe.

18

Additions of 1% to 5 % wax, relative to

the ready-to-use paint, have proved

successful in practice. Higher additions

are likely to cause impairment of

the paint film in the form of chalking,

cratering, pinholing and deterioration

of recoating properties and intercoat

adhesion.


The Licowax PE 520, which is supplied

in the form of granules, fine grain and

powder, cannot be incorporated directly

into paint systems. It is necessary first

to produce fine wax particles by dissolving

and precipitating the product.

The following methods are suitable:

> Hot precipitation

Heat 2 parts by weight Licowax PE

520 with 18 parts by weight solvent,

mainly composed of aromatics, to

about 100 °C; the resultant solution

must be clear. Stir this solution into

80 parts by weight cold paint. With

this procedure the wax is precipitated

in the paint in a very finely

dispersed form and has hardly any

tendency to settle.

> Preparation of a wax dispersion

An approx. 10 % dispersion in xylene

can be prepared by the following

simple method: Heat 10 parts by

weight Licowax PE 520 and 30 parts

by weight xylene to about 100 °C,

thereby dissolving the wax. After

cooling the solution to about 96 °C

stir into 60 parts by weight cold

xylene. 1% to 5 % wax in the paint

is recommended depending on the

matt effect required.

Licowax PED 521, Licowax PED 522

Dissolve 20 to 30 parts by weight

Licowax PED 521 or Licowax PED 522

at about 90 °C in 80 to 70 parts by

weight xylene or white spirit. Cool the

hot solution to room temperature with

slight stirring and incorporate in the

paint (page 25).

Licowax 371 FP

Heat 6 parts by weight Licowax 371 FP

and 30 parts by weight xylene to

100 °C and cool while stirring to 75 °C.

After reaching this temperature,

the solution is diluted with 64 parts by

weight butyl acetate 98/100 % while

stirring and cooled to room temperature.

The wax content in the finished

paint should be about 1-2 %.

Ceridust 9615 A, Ceridust 6721

The micronized powders can be stirred

directly into the paint. A minimum

mixing time of 15 minutes is advisable

to ensure satisfactory wetting of the

individual wax particles (page 22).

However, it is expedient first to prepare

a stock paste. It is sufficient to admix

20-30 % Ceridust micropowder with a

suitable solvent and to stir the batch

for about 15 minutes. Very homogeneous

dispersions with good stability to

settling are obtained by the additional

use of a small amount of binder. This

procedure is particularly recommended

when other paint additives such as

silica are also included in the paint

formulation.

19

Ceridust 3910

Ceridust 3910 has very fine particles.

It can be stirred slowly direct into the

paint system (normally 1 % to 2 %).

The stirring time should be at least

10 minutes. Subsequent thickening of

such dispersions may occur. In this

case the viscosity can be lowered by

stirring again thoroughly.

Licowax C micropowder

Very fine dispersions with a maximum

solids content of 15 % and an average

particle size of about 3.5 µm can be

produced by dispersing Licowax C

micropowder in the appropriate

solvent in a bead, sand or ball mill.

20

Ceridust 9610 F, Ceridust 9630 F,

Ceridust 3920 F, TP Ceridust 3921 F,

Ceridust 9325 F, TP Ceridust 9322 F

Like all Ceridust grades, these products

can be stirred directly into the paint

system. An addition of 0.8 to 1.5 % by

weight is sufficient in view of the high

efficacy of the different PTFE contents

of the Ceridust grades 9610 F, 9630 F,

3920 F, 3921 F, 9325 F and 9322 F.

The mixing time should be at least 15

minutes to achieve adequate wetting

of the individual wax particles.

Ceridust 9630 F in particular, with its

higher PTFE content, should be mixed

in the form of a masterbatch into the

binder and then added to the paint. In

a highly mobile paint Ceridust 9630 F

tends to settle because of its higher

density.

Ceridust 9202 F, Ceridust 9205 F

These pure PTFE grades can be processed

similarly to Ceridust 9630 F.

Quantity added: 0.3 to 0.8 % by weight.

Ceridust and waterbased

Coatings

Ceridust 3715, Ceridust 2440,

Ceridust 3719 and Ceridust 5551

These grades are micronized powders

with improved wetting properties

specially developed for water-thinnable

paints and aqueous systems. The

following methods are suitable for

incorporating them in paints and

surface coatings:

Stir direct into the paint system;

the mixing time should be at least

15 minutes.

In case that co-solvent is used as part

of the water-based coating formulation

the dispersion of the micronized wax

can be improved by preparing a highly

concentrated wax dispersion which

will then be subsequently added to

the formulation. This procedure ensures

an adequate wetting of the wax

particles and avoids high shear forces

for the binder system as these systems

can be shear sensitive. Trials have

proven that solvents like butylglycol,

butyldiglycol, and DPM are ideal

for the dispersing of the mentioned

micronized waxes. Depending on

the solvent and type of wax concentrations

of approx. 40 % are possible

without the use of any additves.

In the case of pigmented systems,

Ceridust is processed together with

the pigments and fillers. A stirring

time of 15 minutes is generally sufficient

for adequate wetting of the wax

particles.

If the dry film thickness of the coating,

especially in can coating and metal

decoration, is to be < 12 µm, it is advisable

to disperse the wax in the

appropriate binder/solvent mixture by

means of a bead mill or similar machine.

20 % to 30 % wax preparations

can be produced.

If wetting is inadequate, it should be

borne in mind that Ceridust 3715, 2440

or 3719 tend to cream in aqueous

systems and not to settle as in solventcontaining

systems.

Since many water-thinnable binders

are alkaline or have to be adjusted

with amines to a pH of 8 to 9, foaming

of varying degrees of severity may

occur when Ceridust is stirred in. If

the coating contains too much foam,

film defects occur when it is applied.

In this case a silicone-free defoamer

has to be added. The quantities to be

added must be determined in preliminary

trials.

21

UV reactive waxes

TP Ceridust 5091, TP Ceridust 5851 R

TP Ceridust 5091 and TP Ceridust

5851 R feature an entirely new wax

chemistry by making Montan ester

waxes UV reactive. Thus this newly

designed micronized waxes are

enable to polymerize in any given

UV cured coating system. As the

wax is linked to the polymer matrix

there is little to no migration to the

surface of the coating. The benefits

of this new technology are long

lasting improvement of scratch and

mar resistance, slip and abrasion

resistance and inreased water and

chemical resistance.

TP Ceridust 5851 R can improve the

already excellent matting properties

of TP Ceridust 5091 due to a unique

blend of UV reactive wax and a

specialty matting ingredient.

The following test results underpin the

superior performance of UV reactive

waxes vs. non-reactive standard

waxes in UV cured systems.

UV curable topcoat with

100% solids content

Guide formulation

Laromer LR 9007 (BASF) 62.0

Laromer LR 8967 (BASF) 21.5

Talkum 10 MOOS 3.0

Syloid 162 C (Grace) 7.0

Wax (Clariant) 3.0

Tego Airex (Tego) 0.5

Irgacure 500 (Ciba) 3.0

Parts by weight 100.0

22

100

90

80

70

60

50

40

30

20

10

0

1

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

without wax Ceridust 9615 A Ceridust 6721 TP Ceridust 5091 TP Ceridust 5851 R

Figure 3: Matting of UV cured coating (60°).

Wet film thickness 12 µm, curing speed 10 m / min (mercury vapor lamp 160 watt),

wax content 4 % on total formulation.

without wax Ceridust 9615 A Ceridust 6721 TP Ceridust 5091 TP Ceridust 5851 R

measurement weight 1.805 kg

Figure 4: Coefficient of Friction – UV cured coating.

Wet film thickness 12 µm, curing speed 10 m / min (mercury vapor lamp 160 watt),

wax content 4 % on total formulation.

Water-based UV curable coatings

On top of the UV reactive micronized

waxes also non-reactive waxes can be

successfully applied to water-based

UV curable coatings. Particularly the

polar modified micronized waxes like

Ceridust 3715, 2440 and 5551 show

excellent effects. These grades feature

an effective matting effect, better

surface slip and improved scratch

resistance.

UV curable water-based coating


Bayhydrol UV VP LS 2282 60.0

Dehydran 1293 (Cognis) 0.8

Irgacure 500 (Ciba) 0.5

Byk 348 (Byk) 0.5

Wasser 37.3

SchwegoPUR (Schwegmann) 0.9

Parts by weight 100.0

Examples of formulations

for special applications

Matting

Nitrocellulose lacquers

Nitrocellulose lacquers, whose main

component is cellulose nitrate, are

still used on a wide scale for furniture

lacquers. The matting agent used in

these lacquers is almost exclusively

wax. The most important products for

this purpose are Licowax PE 520,

Ceridust 9615 A and Ceridust 6721.

When low-viscosity curtain-coating

paints are manufactured, it is advisable

to incorporate Licowax PE 520 by hot

precipitation (page 18).

Ceridust 9615 A or Ceridust 6721 are

better suited to paints applied by

spray or brush. It tends to settle out

slightly when left to stand for some

time but can be readily redispersed

by stirring. To prevent settling out as

far as possible it is advisable to use

5 % of a 10 % dispersion with Licowax

PE 520.

Gloss

160

140

120

100

80

60

40

20

0

0.5

Frequently the tendency of Ceridust

9615 A or Ceridust 6721 to settle is due

to inadequate wetting of the individual

wax particles. In this case we recommend

that a paint /wax concentrate

should be prepared. The following

procedure is recommended: incorporate

25 to 30 parts by weight Ceridust

in 75 to 70 parts by weight of the paint

to be matted and continue to stir until

a homogeneous paste is obtained.

1.0 2.0

p. Wax

3.0

4.0

without the addition Ceridust 9615 A Licowax PE 520

of wax 10 % dispersion

Figure 2:

NC lacquer Wet film thickness 60 µm Gloss 60°.

After being allowed to stand for 10

to 26 hours this paste is diluted with

the paint in question or is added to

the paint to be matted.


Nitrocellulose wool E 510 12

Dioctyl phthalate (DOP) 1

Vialkyd ®+ AC 371/70 X 5

Alresat ®+ KM 313 2

Butyl acetate 10

Ethyl acetate 25

n-Butanol 15

Xylene 30

Parts by weight 100

23

Polyurethane finishes

> One-pack system

It is difficult to produce a flatting

effect in one-component polyurethane

finishes with wax only. The

basic flatting effect is best produced

with silica, after which Ceridust

9615 A, Ceridust 6721 or Ceridust

5551 should be added to improve

film properties such as handle,

scratch resistance and smoothness.

> Two-pack system

A finer silk-finish effect can be

achieved in two-component polyurethane

coatings with Ceridust

9615 A, Ceridust 6721 or Ceridust

5551. Film properties such as

handle, scratch resistance and

smoothness are also enhanced.


Desmophen solution (component A)

Desmophen ®+ 1300

75 % solution in xylene 32.0

Nitrocellulose chips E 510 1.5

Ethyl acetate 10.4

Butyl acetate 11.0

Methoxypropyl acetate 10.8

Xylol 8.9

Acronal 4L 0.2

Baysilone OL 17 0.2


Desmodur solution (component B)

Desmodur ®+ IL 14.2

Desmodur L 75 9.4

Xylol 1.4


24

Mixing ratio

component A:component B 3:1

Binder content approx. 40 %

Degree of crosslinking approx. 1

Efflux time at 23 °C,

DIN cup 4 mm,

DIN 53 211 approx. 20 sec.

Drying at room

temperature of a

150 µm thick wet film approx. 40 min.

Acid-curing paints

The quantity of wax and method of

incorporation are similar to those

described in detail on page 18 dealing

with nitrocellulose lacquers.


(white, silk-sheen curtain-coating paint)

Note: can also be force-dried,

e.g. 5 min. 120 °C

Stock paint

Vialkyd ®+ AM 421/80 IP 23.00

Titanium dioxide RN 59 23.00

Ceridust 9615 A 1.65

Viamin ®+ HF 164/70 IB

Collodium wool H 33

45 % solution in

25.00

methylisobutyl ketone 5.70

Dibutyl phthalate 1.00

No air liquid ®+ 0.65

Methoxypropylacetate 1.00


Isopropanol 3.00

Additol VXL 6245 0.30

Xylol 5.70


Hardener

p-toluene sulphonic acid 0.60

Phosphoric acid butyl ester 0.40

Butanol 9.00


Mixing ratio

stock paint : hardener 10 : 1

Tack-free drying approx. 15 min.


DIN cup 4 mm,



(colorless silk-sheen paint)

Note: Two-pack system with good

body for furniture

Stock paint

Vialkyd AM 421/80 IP 49.40

Viamin HF 164/70 IB 28.30

Additol VXL 6245 0.30


Xylol 16.50



Hardener

p-toluene sulphonic acid 1.35

Ethanol 8.65


Mixing ratio

stock paint : hardener 10:1

Tack-free drying approx. 10 min.


DIN cup 4 mm,

DIN 53 211 approx. 70 sec.

Paints drying by oxidation

Waxes are not very suitable as the

sole matting agents for oleoresinous

and alkyd paints. However they can

be used to improve substantially the

mar resistance of high-gloss alkyd

resin paints. This is done by adding

2 % to 4 % Ceridust 9615 A, Ceridust

6721 or Ceridust 5551, relative to the

finished paint.

Ceridust 9615 A additionally prevents

the formation of a hard sediment.


(water-soluble house paint,

white, air-drying)

I Resydrol ®+ AY 586 w/ 38 WA 64.0

ammonia, 25 % 0.4

Titanium dioxide RN 59 24.0

Additol VXW 4940 0.2

Additol XW 376 0.4

Additol XW 329 0.4

Additol XL 297/100 0.5

II ammonia, 25 % 0.3

deionized water 9.8


Preparation:

Mix part I in the given sequence,

disperse in a bead mill and adjust to

the desired viscosity with part II.

Aqueous wood laquer for indoor

applications

A matt silk finish effect can be obtained

by using up to 2.0 % Ceridust 5551 or

Ceridust 9615 A on total formulation.


I Mowilith ® LDM 7460 74.50

water 6.10

II water 1.00

Saniprot ®+ 99-73 0.20

1,2-Propandiol 1.00

AMP 90 0.20

BYK ®+ 348 0.50

Texanol ®+ 1.00

Agitan ®+ 295 0.20

III water 3.60

Tafigel ®+ PUR 40 0.30

Methoxybutanol 2.50

Ceridust 5551 or


water 6.90


The raw materials have to be mixed in

the above described order with a propeller

stirrer. To achieve the optimal

dispersion Part III should be made the

day before and processed afterwards

into Part I and II.

Positive wax-based wood stain

Good positive effect, no floating of,

for instance, Remazol dyes after

storage at 50 °C.


2 parts Licowax R 21

5 parts Silicon oil 350 cst

5 parts Spindle oil

2 parts Emulsogen ® P

are heated to approx. 100 °C

and then stirred well while

20 parts water, hot (90-100°C)

are added. The hot concentrate

is then well stirred, while

66 parts water are added cold.

After 12-24 hours, the formulation is

again stirred thoroughly.

25

Wood wax (aqueous)

These are unpigmented, colorless

formulations which are also waterbased

and employed mainly for wood

panel polishes. Apart from an increase

in shine, sensitivity to water can be

improved.


Licowax KLE Emulsion, 12 % 50.00

Mowilith ® DM 772 conc.

Tributoxyethyl phosphate

48.40

(wetting and levelling agent) 1.00

Licowet ® F 3, 1% solution 0.50

Saniprot ®+ 98-70 0.10


Licowax KLE Emulsion, 15 % 51.00

Water 22.50

Mowilith ® DM 772, 46 % 26.00

Licowet F 3, 1% solution 0.50


26

Improving sandability

For furniture lacquers, the addition of

Licowax C micropowder to lacquers

based on polyurethane, acid-curing

lacquers and nitrocellulose lacquers

has proved successful in improving

the sandability of primers. So that the

wax can function optimally it should

first be dispersed in a suitable solvent

in a bead mill. The following formulation

is possible:

Licowax C micropowder 10.00

Xylene 45.00



This dispersion can also be prepared

in a sand or ball mill. Ceridust 3910 is

easier to admix. It is dispersed direct

in the paint by means of a stirrer.

With two-pack polyurethane finishes it

is preferable to incorporate Licowax

PE 520 as a solvent-containing dispersion

in the finish.


for polyurethane sanding primer

Desmophen solution (component A)


75 % solution in xylene

32.0

Nitrocellulose chips E 510 1.5

Ethyl acetate 9.2



Xylol


1.9

10 % dispersion in Xylol 12.0


Desmodur solution (component B)

Desmodur ®+ IL 14.2

Desmodur ®+ L 75 9.4

Xylol 1.4


Mixing ratio

component A : component B 3:1

Binder content approx. 40 %

Efflux time at 23 °C

and DIN cup 4 mm,


Drying time at room

temperature 150 µm

thick wet film approx. 35 min

Influencing the rheological

properties of paints

Licowax PED 521 and Licowax PED

522 have proved very successful in

preventing alkyd resin paints from

sagging and running. 20 parts by

weight Licowax PED 521 or Licowax

PED 522 are dissolved in 80 parts by

weight xylene at 80 °C to 90 °C and the

solution is cooled to room temperature

with slight stirring. The resultant

dispersion is then incorporated in the

paint. The wax preparation must be

added at the very beginning of the

manufacturing process. 0.25 % to 1 %

of the wax preparation, relative to the

binder, is sufficient to produce the

desired effect.

Making paints water-repellent

Ceridust 9615 A is suitable for making

protective wood finishes and protective

wood stains water-repellent. 2 % to 6 %

of the product incorporated in the

finished paint give the film good water

repellency at the initial drying stage.

The finish was applied to pine and

was weathered outdoors for 3 years.

Independent of improved water repellency,

the wax-containing finish decomposed

significantly less than the

wax-free finish.

Assessment of water repellency

after 1 1 2 3

hour year years years

Without

wax

With 3.5 %

Ceridust

3 3 4 4

2 2 2 2

Assessment: 1 = no dissolving

2 = trace of dissolving

3 = slight dissolving

4 = some dissolving

5 = noticeable dissolving

Can coatings

Improved slip behaviour and enhanced

scratch resistance in can coatings

can be achieved by using PTEE containing

waxes such as Ceridust 9610 F,

Ceridust 9630 F or Ceridust 3920 F.

These micronized waxes can be

processed directly into the lacquer.


Duroftal ®+ VPE 6104 68.50

Vestanat ®+ B 1370 (60 % in XBAC) 7.00

Polysolvan ®+ O 12.05

Solventnaphta 180/210 12.05

Ceridust 3920 F 0.40


The components shall be mixed and

well homogenized in the above described

order by using a dissolver.

For this application, a wax dosage of

0.5-1 % has proved to be advantageous.

Coil coatings

A positive effect on slip behaviour and

scratch resistance can be achieved

by using PTFE-containing waxes in

coil coatings.

Especially recommended for this

application are the following Ceridust

grades:

> Ceridust 9610 F



> TP Ceridust 3921 F



Excellent results can be achieved by

using 0.5 to 1.0 % wax.


Duroftal ®+ VPE

(7186/60 SNBMPAC) 51.62

Maprenal ®+ MF 904 5.04

Additol ®+ XL 480 0.06

Ti-Pure ®+ R 900 28.32


p-TSA 50% in isopropanol 0.23

Ceridust 3920 F 0.50


27

Safety data

Toxicological properties

The polyethylene and amide waxes

described in this leaflet as well as

waxes based on crude montan wax

have no properties that are harmful to

health on the basis of experience to

date. The acute oral toxicity (LD50 ) of

these waxes is > 2000 mg/kg in the

rat or mouse.

When Ceridust 9610 F, Ceridust 9630 F,



Ceridust 9202 F and Ceridust 9205 F are

handled, the usual safety precautions

for fluorocarbon-containing products

must be observed. Contamination

of clothes and tobacco products must

be avoided at all costs. Hazardous

decomposition products occur

above 300 °C.

28

Ecological properties

The waxes described are virtually

insoluble in water. Hence they are

attacked only very slowly by microorganisms

in water and cause no

significant biological oxygen demand.

They are eliminated from the effluent

as ballast together with the sludge.

The COD eliminability under the

conditions of sewage treatment is

good (> 95 %). The waxes should

be taken to an authorized site for

disposal.

Status in accordance with the

German federal regulations on

dangerous substances

The Licowax and Ceridust grades

mentioned here are not dangerous

substances according to the German

regulations on dangerous substances

of August 26, 1986.

Status in accordance with the

German chemicals law

The Licowax and Ceridust grades or

its monomers mentioned in this leaflet

are contained in the European inventory

of existing commercial chemical

substances, EINECS. Labelling is not

required under the regulations of the

chemicals law. Please refer to the

relevant safety data sheets for safety

notes on other products named in the

guide formulations.

Notes on the processing of powders

When organic dusts are handled, the

VDI guidelines 2263 “Prevention of

dust fires and dust explosions” or the

corresponding national regulations

must be observed.

Status under food legislation

The waxes described in this brochure

comply with the recommendation of the

German federal health office (BgVV)

for the manufacture of consumer

articles. They are also approved in

most European countries and in the

USA (see general data sheet “Status

of waxes from Clariant under food

legislation”, W 250).

CAS numbers

Licowax KLE 73138-45-1

68920-66-1

Licowax PE 520 09002-88-4

Licowax PED 521 68441-17-8

Licowax PED 522 68441-17-8

Ceridust 3620 09002-88-4

Ceridust 9615 A 09002-88-4

00110-30-5

Ceridust 3715 09002-88-4

Ceridust 2440 08002-74-2

Ceridust 3719 68441-17-8

Ceridust 9610 F 09002-88-4

09002-84-0

Ceridust 9630 F 09002-88-4

09002-84-0

Ceridust 3920 F 09002-88-4

09002-84-0

TP Ceridust 3921 F 09002-88-4

09002-84-0

Ceridust 9325 F 09002-88-4

09002-84-0

TP Ceridust 9322 F 09002-88-4

09002-84-0

Ceridust 3910 00110-30-5

Ceridust 9202 F 09002-84-0

Ceridust 9205 F 09002-84-0

Licowax C micropowder 00110-30-5

Licowax 371 FP 104912-80-3

Ceridust 5551 73138-45-1

Licowax R 21 08002-74-2

73138-59-7

Ceridust 6721 09003-07-0

00110-30-5

TP Ceridust 5091 288395-49-3

TP Ceridust 5851R 288395-49-3

TP Ceridust 6050 M 09003-07-0

29

Transport and storage

Packaging

> Licowax PE 520

> Licowax PED 521

> Licowax PED 522

> Licowax 371 FP

> Ceridust 3620

> Ceridust 9615 A







> TP Ceridust 6073



> TP Ceridust 6050 M









> TP Ceridust 5851 R

> Licowax KLE

> Licowax R 21

are supplied in 3-ply valved paper

sacks.

> Licowax C micropowder




are supplied in PE sacks inside

cartons.

30

Storage

The Licowax and the Ceridust grades

must be stored in a dry place and at

room temperature.

Dispatch, transport

RID, GGVE, ADR, GGVS, ADNR,

IMDG-Code, ICAO/IATA-DGR.

The Licowax and Ceridust grades

described in this brochure are not

dangerous substances within the

meaning of these regulations.

Suppliers

Additol ®+ XL 480

Additol ®+ XL 490

Additol ®+ VXL 6245

Additol ®+ VXW 4940

Additol ®+ XW 376

Additol ®+ XW 329

Additol ®+ XL 297/100

Alftalat ®+ AM 670

Vialkyd ®+ AC 371/70 X

Vialkyd ®+ AM 421/80 IP

Viamin ®+ HF 164/70 IB

Resydrol ®+ AY 586 w/ 38 WA

Duroftal ®+ VPE (7186/60 SNBMPAC)

Duroftal ®+ VPE 6104

Maprenal ®+ F 904

UCB Chemie GmbH

3 Rue Laid Burniat

1348 Louvain-La-Neuve

Belgium

Alresat ®+ KM 313

Akzo Nobel

BYK ®+ 348

BYK-Chemie GmbH

Postfach 100245

46462 Wesel

Germany

Texanol ®+

Eastman Chemical Company

c/o Eastman Chemical B.V.

Charlottenstraße 61

51149 Köln

Germany

Agitan ®+ 295

Tafigel ®+ PUR 40

Münzing Chemie GmbH

Postfach 2762

74017 Heilbronn

Germany

Collodium wool H 33

Collodium wool E 510

Wolff Walsrode AG

29655 Walsrode

Germany

Desmodur ®+ IL

Desmodur ®+ L 75


Bayer AG

51368 Leverkusen-Bayerwerk

Germany

Polysolvan ®+ O

Celanese Chemical Europe GmbH

Lurgiallee 14

60439 Frankfurt/Main

Germany

Solvent Naphta 180 / 210

Haltermann GmbH

Ferdinandstraße 55-57

20095 Hamburg

Germany

Photomer 6019 F





Photomer BP

Cognis Deutschland GmbH

Postfach 130164

40551 Düsseldorf

Germany

Silica HP 94

Crosfield Chemicals

P.O. Box 26, Warrington,

Cheshire/England WA5 1AB

Vestanat ®+ B 1370

Degussa AG

Creanova-Lackrohstoffe

Paul-Baumann-Straße 1

45764 Marl

Germany

Kronos 2059

Kronos Titan GmbH

Peschstraße 5

51373 Leverkusen

Germany

AMP ®+ 90

Angus Chemie GmbH

Zeppelinstraße 30

49479 Ibbenbüren

Germany

Saniprot ®+ 98-70

Saniprot ®+ 99-73

Sanitized Marketing AG

Lyssacherstraße 95

P.O. Box 764

3401 Burgdorf

Switzerland

Ti Pure R 900

Du Pont de Nemours

(Deutschland) GmbH

Postfach 1365

61283 Bad Homburg

Germany

Darocure 1173

Ciba Spezialitätenchemie AG

Klybeckstrasse 141

4002 Basel


31

Please note

This information is based on our present state of knowledge and is intended to provide

general notes on our products and their uses. It should not therefore be construed

as guaranteeing specific properties of the products described or their suitability for

a particular application. Any existing industrial property rights must be observed.

The quality of our products is guaranteed under our General Conditions of Sale.

® = Trademark of Clariant registered in numerous countries.

Edition: October 2006

www.pa.clariant.com

Clariant International Ltd.

Pigments & Additives Division

Marketing Coating Business

Rothausstrasse 61

4132 Muttenz


Phone: +41/61/469-7956

Fax: +41/61/469-7540

Exactly your chemistry.

DA 8267 E_10/06

Paints and Coatings - Clariant

You also want an ePaper? Increase the reach of your titles

Delete template?

Save as template ?
