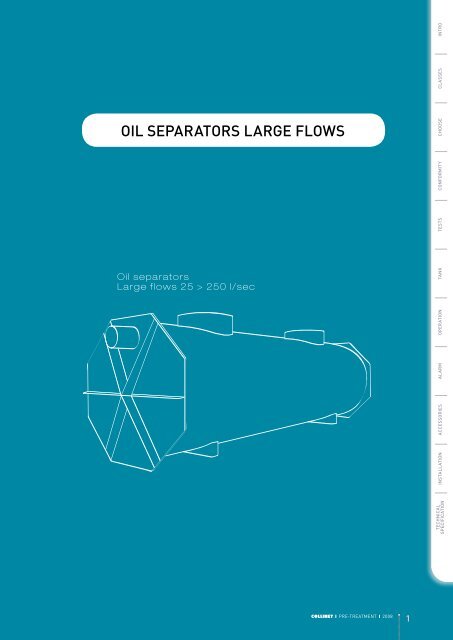

OIL SEPARATORS LARGE FLOWS

OIL SEPARATORS LARGE FLOWS
Oil separators
Large flows 25 > 250 l/sec
TECHNICAL
specification
INSTALLATION
ACCESSORIES
CHOOSE
ALARM
OPERATION
TANK
TESTS
CONFORMITY
CLASSES
INTRO
❙ PRE-TREATMENT ❙ 2008
1

INTRO
EN858-1
TECHNICAL
specification
TESTS
CONFORMITY
CHOOSE
CLASSES
INSTALLATION
ACCESSORIES
ALARM
OPERATION
TANK
Oil separators
◢◢Requirements
An oil separator is designed to catch the source of pollutants
carried by run-off waters.
We offer a wide range of oil separators conform to standards
EN 858-1.
◢◢Fields of application
According to current rules, the oil separators have to be used
for the pre-treatment of surface waters carrying hydrocarbons,
for example:
▢▢ To treat waters stemming from industrial
processes, from the washing of vehicles, from
the cleaning of oil coated elements.
▢▢ To treat rainy waters (drainage waters)
contaminated by the oil resulting from waterproof
zones (car parks, roads, factories, …).
▢▢ To hold wide-spread light liquids and to protect
the surrounding zone (gas stations)
◢◢Advices
1. The rule becomes more and more strict as regards the
quantity of hydrocarbons rejected in natural environment.
It is the reason why we advise to rather use devices
provided with a coalescing filter which assures a
hydrocarbon discharge lower than 5 mg/l.
2. The good working of the separator imposes a sludge
trap large enough for allowing the settling of muds (see
following page).
3. The installation of the separator will largely be facilitated
if the level of water has been correctly measured.
We propose, for that purpose, fixed or adjustable extension
shafts which allow to position the device without
problem.
2
❙ PRE-TREATment ❙ 2008

Classes of separators
INTRO
CHOOSE
CONFORMITY
TECHNICAL
specification
CLASSES
◢◢There are 2 classes of separators:
▢ ▢ Class 1: with coalescing filter
Residual content lower than 5 mg/l according to essay standard EN 858.
▢▢ Class 2: without coalescing filter
Residual content lower than 100 mg/l according to essay standard EN 858.
Choice of the treatment
◢ ◢1. Total treatment
(device without by-pass storm overflow)
Installation straight on the net
For large surfaces with risk of accidental
pollution.
Example : hydrocarbons storage areas,
fuel distribution centers.
TESTS
TANK
Installation right after the storm basin
with flow regulator
with risk of accidental pollution.
The basin requires a lot of space.
OPERATION
◢ ◢2. Partial treatment
(device with by-pass storm overflow)
ALARM
Installation straight on the net,
with by-pass device in the separator
For large surfaces with risk of accidental
limited pollution.
Example: parking areas, roads.
ACCESSORIES
Installation in by-pass on the net,
with by-pass device upstream the separator
For very large surfaces and on an existing net.
INSTALLATION
❙ PRE-TREATment ❙ 2008
3

INTRO
How to choose your device
CLASSES
CHOOSE
CONFORMITY
The choice of an oil separator is often related to specific constraints of the considered case. We
give hereafter a summary of the criteria which can help to dimension the separator. As you can
easily understand, these tables do not consider the particular cases which can arise: please take
contact with our offices in case of doubt.
◢◢Parameters
▢▢ peak flow
▢▢ polluted load to treat
▢▢ density of the hydrocarbons
▢▢ compulsory output level
▢▢ surface to be treated (covered and/or uncovered)
▢▢ implantation site (load class of the lids).
TANK
OPERATION
TESTS
ALARM
ACCESSORIES
INSTALLATION
TECHNICAL
specification
◢◢Covered surfaces
In case of covered surfaces, rejected waters primarily come
from cleaning. The flow rate of the device will thus be calculated
according to the number of taps, heads, and all the
hydrocarbon rejects. For covered carparks, the table opposite
gives the size of the device according to the surface.
Surface parking
m 2
1 to 500 1,5
501 to 1500 3
1501 to 3000 6
3001 to 5000 10
5001 to 8000 15
8001 to 15000 20
For larger surfaces, please contact us.
Flow
l/sec
◢◢Uncovered surfaces
The flow is directly related to the pluviometry, to the surface
of the catchment area and to the slope of the network.
▢▢ Separator without by-pass
For areas smaller than 1.400 m2, you’ll find in the table opposite
the flow rate and the type of separator taking into account
a pluviometry of 150 l/ha/sec. In this case the device treats
the totality of the incoming flow.
▢▢ Separator with by-pass
In this case the device treats ± 1/3 of the total incoming flow,
it allows to absorb an important flow in the event of storm, it
is especially adapted to treat water from uncovered carparks.
We strongly disadvise the use of an oil separator with by-pass
in an area where hydrocarbon is stored.
Surface
m 2
Without by-pass
Flow
l/sec
1 to 100 1,5
Surface
m 2
With by-pass
Flow
l/sec
101 to 200 3 1 to 600 3
201 to 400 6 601 to 1200 6
401 to 670 10 1201 to 2000 10
671 to 1000 15 2001 to 3000 15
1001 to 1400 20 3001 to 4200 20
For larger surfaces, please contact us.
Caution:
For the “Large Flows” separators (larger than 20 l/s) it is
advised to take into account the return 10 years formula.
Please contact us for calculations of flows.
4
❙ PRE-TREATment ❙ 2008

Conformity oil separators
Tests made in keeping with standards EN858 (DIN 1999)
Results between 0,16 and 2,2 mg
EN858-1
INTRO
CLASSES
EN858
Débit
NS
Cl.
Type
PARC INDUS. DES HAUTS-SARTS • B-4040 HERSTAL • BELGIUM
TEL +32 (0)4.256.56.10 • FAX +32 (0)4.256.56.19 • www.collinet.eu
1,5
1
Capacité séparateur
Capacité débourbeur
Capacité stockage
Epaisseur couche
Année de fabrication
L/S Ref.
Séparateur hydrocarbures •Oil separator
850 l
150 l
223 l
180 mm
2008
SKPE1,5/150
# Série
Serial # 3930
Capacity separator
Capacity sludge trap
Storage hydrocarbons
Thickness layer
hydrocarbons
Manufacturing year
CHOOSE
CONFORMITY
Identification plate affixed inside and outside each device.
EC declaration of conformity
We hereby guarantee and declare that the CE marked product, SEPARATOR, fulfils the applicable
provisions of the Directive 89/106/EEC concerning separator system for light liquids as
well as the European norme EN 858-1 “Separator systems for light liquids (e.g. oil and petrol).
Principles of product design, performance and testing, marking and quality control”.
This certificate is valid for all devices described here above and bearing the CE marking originating
from the following sites: COLLINET Assainissement s.a., Herstal, Belgium and for an
undetermined period of time.
INSTALLATION
TESTS
ACCESSORIES
ALARM
OPERATION
TANK
Place and date of issue Signature of an authorised person
Herstal, 11/09/2006 Mr Pierre ANDRE
Administrateur Délégué
TECHNICAL
specification
P.I. Hauts-Sarts ❙ B-4040 Herstal ❙ BELGIUM ❙ +32.4.256.56.10 ❙ +32.4.256.56.19l ❙ TVA BE 0432.172.909
export@collinet.eu ❙ www.collinet.eu
❙ PRE-TREATment ❙ 2008
5

INTRO
Tests reports
TECHNICAL
specification
INSTALLATION
ACCESSORIES
ALARM
OPERATION
TANK
TESTS
CONFORMITY
CHOOSE
CLASSES
6
❙ PRE-TREATment ❙ 2008

The tank
CLASSES
INTRO
15 15
3
12
9
8
14
CHOOSE
4
9
13
5
6
11
TANK
CONFORMITY
TESTS
Simulation
◢◢Advantages
▢▢ Type “Standard”: Tank out
of not recycled pure HDPE,
manufactured by spiral welding
on mandrel. Resistance SN2.
▢▢ Type “Super”: Tank out of not recycled
pure HDPE, manufactured by spiral
welding on mandrel. Resistance SN4.
▢▢ Double wall tank with spiral
reinforcement. Wall thickness: 48, 72, 90 or 130 mm
depending on the flow of the device.
▢▢ In and outlet in HDPE adaptable with PVC.
▢▢ Sludge trap really proportioned in
accordance with standard EN858-1.
▢▢ The polycarbonate coalescing filter in its stainless
steel frame (Aisi 304L) is easily removable and has a
hight level of separation. Hydrocarbons output lower
than 5 mg/liter for hydrocarbons
of density 0,85 according to tests
conditions of standard EN858-1.
▢▢ HDPE float calibrated at 0,85 is
fixed on a mobility bar in stainless
steel, it does not require any human
interference during filling operation. It
ensures the automatic shutting of the
separator as soon as the retention capacity is reached.
Through its position in the separator, this capacity is
maximal and so enables to reduce the draining.
▢▢ Waterproof guarantee: no outer screws.
▢▢ Pre set-up of the sampling unit. Antisplash partition.
▢▢ The separator includes a part being used
for the decantation of muds and a second
part for separation of hydrocarbons.
▢▢ Accessories in High Density Polyethylen
of in stainless steel.
▢▢ Automatic obturator in stainless steel
with polyethylene float calibrated at 0,85.
▢▢ Antisplash partition.
▢▢ Partition between the sludge trap compartment
and the separator compartment.
▢▢ Sifon at the exit of the separator.
▢▢ Device fitted with 2 or 3 cylindrical openings
with ventilation - Ø 630 mm.
▢▢ The device can be equipped with a system
of leak detection.
OPERATION
ALARM
ACCESSORIES
INSTALLATION
TECHNICAL
specification
❙ PRE-TREATment ❙ 2008
7

INTRO
The tank
ACCESSORIES
INSTALLATION
TECHNICAL
specification
ALARM
OPERATION
TANK
TESTS
CONFORMITY
CHOOSE
CLASSES
Cylindrical shaft + ventilation
◢◢Options
▢▢ Optical and audible alarm N8 VARS
▢▢ Anchoring belts
▢▢ Anchorings in stainless steel
▢▢ Ladder in the sludge trap
▢▢ Ladder in the separator
▢▢ Leak detection
▢▢ Automatic obturation of the by-pass channel
▢▢ Cast iron covers (p. 30)
Coalescing cel: hydrocarbons output < 5 mg/l
Sludge trap
8
❙ PRE-TREATment ❙ 2008

Operation of the oil separator
TECHNICAL
specification
TESTS
INTRO
TANK
OPERATION
ALARM
INSTALLATION
ACCESSORIES
CONFORMITY
CHOOSE
CLASSES
◢◢1/ Separator WITHOUT by-pass
▢▢ The first part of the separator (sludge trap)
retains the mud and other particles. Muds
accumulate at the bottom of the sludge trap.
▢▢ Hydrocarbon charged water is directed towards the
second part of the separator and forwards from
bottom to top towards the coalescing cell. The
very small hydrocarbon particles are stuck on the
walls of the cell before going up on the surface.
▢▢ The layer of hydrocarbons grows thicker in time,
which causes “to push” the float towards the
bottom until closing the exit of the separator,
then the retention capacity is reached.
◢◢2/ Separator WITH by-pass
▢▢ Especially for places where there is no storage
of hydrocarbons (for example carparks), the
separators fitted WITH the by-pass device
enables not to treat the entire flow.
▢▢ When the entering flow is higher than the processing
capacity of the separator, the effluent goes through the
by-pass device and directly runs out of the apparatus.
❙ PRE-TREATment ❙ 2008
9

INTRO
Operation of the oil separator
CLASSES
CHOOSE
4
5 5
CONFORMITY
1
3
2
6
TANK
OPERATION
TESTS
1
2
3
4
5
6
Sludge trap compartment (muds ans sand)
Separator compartment (hydrocarbons)
Coalescing cel
Ventilation
Cylindrical openings Ø 630 mm
Automatic obturator
ALARM
ACCESSORIES
INSTALLATION
◢◢3/ The automatic obturation
▢▢ In the event of problems, the automatic obturation
is a safety device preventing from the evacuation of
hydrocarbons towards the draining network (for example:
in case of lack of maintenance or accidental discharge).
▢▢ The obturation of the separator is carried out by a disc
assembled on a float tared to the density of hydrocarbons.
The float follows the layer of hydrocarbons until
obturation when the storage capacity is reached. Each
compartment is accessible by an inspection chamber.
Maintenance instructions
Inside sight of the separator compartment:
coalescing cel + automatic obturator
TECHNICAL
specification
▢▢ Empty sludge and hydrocarbons.
▢▢ The frequency of emptying depends on the
quantity of polluted matters in the separators.
▢▢ The sludge trap will be emptied once a year.
▢▢ The separator compartment will be checked
once a year. If the layer of hydrocarbons is
thicker tan 10 cm, it has then to be removed.
▢▢ In case of accidental heavier flow of
hydrocarbons, the separator has to be totally
emptied and the filled up with clear water.
10
❙ PRE-TREATment ❙ 2008

Level alarm
INTRO
◢◢Hydrocarbon alarm in the separator: OILSET-1000
CLASSES
Hydrocarbons
Water
Control unit
The level alarm OILSET-1000 has especially
been developed to detect an interface
water/hydrocarbon in a separator.
It signals the right moment to carry out
the draining of the separator in order to
avoid rejecting hydrocarbons in the sewers.
The control unit and probe SET-DM3
are in accordance with directive ATEX
94/9/EC.
Approved: II (1) G, [EEx ia] II C, VTT 04
ATEX 031X.
CHOOSE
CONFORMITY
Control unit
TESTS
Hydrocarbons
Water
TANK
◢◢Hydrocarbon/mud alarm equipped with 2 probes: SANDOILSET-2000
Box IP65 (175 x125 x 75mm)
Connection with cable 3 x 0,5 mm 2
OPERATION
Mud
Hydrocarbons
Water
Control unit
Hydrocarbon/mud alarm fitted with 2
probes : SANDOILSET-2000
One probe gives a signal when the layer of
hydrocarbon has been reached. The other
probe generates an alarm when the decanted
sand or mud level arises between
the two sensitive elements of the probe.
Approved: II (1) G, [EEx ia] II C, VTT 04
ATEX 031X
ALARM
ACCESSORIES
Control unit
INSTALLATION
Mud
Hydrocarbons
Water
TECHNICAL
specification
Box IP65 (175 x125 x 75mm)
Connection with cable 3 x 0,5 mm 2
❙ PRE-TREATment ❙ 2008
11

INTRO
Level alarm
CLASSES
CHOOSE
◢◢Mud/sand level alarm in the sludge trap: SANDSET-1000
The SANDSET-1000 is a complete system which makes it possible to detect a decanted sand or mud level at the bottom of a
tank. The ultrasound probe generates an alarm when the sand or mud level arises between the two sensitive elements of the
probe.
The probe does not require any calibration, nor particular maintenance. It only needs to be installed at the right level and to be
set under tension. It is in conformity with directive ATEX 94/9/EC for a use in a potentially explosive atmosphere.
CONFORMITY
Control unit
TESTS
Water
TANK
Control unit
TECHNICAL
specification
INSTALLATION
ALARM
ACCESSORIES
OPERATION
Mud
Water
◢◢Hydrocarbon alarm in the separator: SOLARSET
Communication and warning system supplied with solar energy allowing to detect the hydrocarbon level and to send a SMS
alert message.
12
❙ PRE-TREATment ❙ 2008

Accessories
INTRO
For light flows
◢◢Extension shafts
The whole range is equipped with a sole circular extension
shaft. They can be stacked together (maximum 2) and can be
adjusted by sections of 90 mm.
Ref: RRR630
Ø: 630 mm
Weight: 14 kg
Height 1 extension shaft: 360 mm
Height 2 extension shafts: 720 mm
90
CLASSES
CHOOSE
CONFORMITY
◢◢PE Cover
▢ ▢ Ref. E630
▢ ▢ Load: classe A-15 kN
▢ ▢ Weight: 10 kg
▢ ▢ Ø: 630 mm
▢▢ Screwed on the separator: 3 x M10
▢▢ With waterproof seal
▢▢ Adaptable with or without extension shaft
Circular extension
shaft Ø 630 mm
TESTS
TANK
+ 30 mm
OPERATION
For light and large flows
ALARM
◢◢Cast iron cover
Ref.
Load
class
Weight
kg
Ø Opening
mm
Base
mm
F600 D-400 62 610 850 x 850
100
INSTALLATION
TECHNICAL
specification
ACCESSORIES
Ø 610
❙ PRE-TREATment ❙ 2008
13

INTRO
Installation
CLASSES
Off-the-road
CHOOSE
CONFORMITY
1. The separator has to be buried.
2. Place the separator horizontally at the bottom
of the excavation (lean concrete).
3. Connect in/outlet on the pipe.
Topoil
4. Connect ventilation.
Filling material
5. Place extension shaft (if necessary) and
In
adjust it to the floor level.
6. Fill up the separator with clear water.
At the same time backfill with sand.
7. If several extension shafts are needed, Stabilized sand
a self-holding slab has to be foreseen
(thickness and reinforcement to be defined). Sand bed
PE Cover
Ventilation
Out
TESTS
In carriage zone
ACCESSORIES
ALARM
OPERATION
TANK
1. The separator has to be buried.
2. Place the separator horizontally at the bottom
of the excavation (lean concrete).
3. Connect in/outlet on the pipe.
4. Connect ventilation.
Self holding plate
5. Place extension shaft (if necessary) and
Filling material
adjust it to the floor level.
6. Fill up the separator with clear water.
In
At the same time backfill with sand.
7. In case of placing underneath road traffic,
separators have to be convered with cast Stabilized sand
iron covers (class D-400 kN).
The covers will be sealed in the self-holding Stabilized
concrete slab, which will be supported by trench bottom
the edge of the excavation (thickness and
reinforcement to be defined).
Cast iron cover 400 kN
Ventilation
Out
INSTALLATION
TECHNICAL
specification
Caution: in case of ground water table
First of all, build the ballast concrete plate
on which the separator will be installed.
Don’t forget the reinforcing rods to anchor the
separator.
The concrete mass has to be calculated to
compensate fot the vertical push of the water
when the separator is empty.
Finally the separator has to be straped
with anchoring belts.
Filling material
PE or cast iron cover D-400 kN
to adapt in function ot the type of installation
In
Stabilized sand
Anchoring belts
Ventilation
Out
Ballast
pave concrete
Anchoring in the pave
concrete
14
❙ PRE-TREATment ❙ 2008

Oil separator in HDPE • Large flows
Technical Requirements/Specifications
INTRO
HSKPE
HSKBPPE
CLASSES
1. OIL separator in PE with coalescing filter (output class I)
and sampling unit
▢ ▢ Type “Standard”: Tank out of not recycled pure
HDPE, manufactured by spiral welding on
mandrel, double walled. Resistance SN2.
▢ ▢ Type “Super”: Tank out of not recycled pure
HDPE, manufactured by spiral welding on
mandrel double walled. Resistance SN4.
▢▢ Accessories are made out of polyethylene high density or
stainless steel.
▢▢ The separator is in conformity with the regulations of
standard EN858-1.
▢▢ With coalescing filter: hydrocarbon rejection on treated
flow < 5 mg/l for hydrocarbons of density 0,85 according
to the conditions of standards EN 858-1 (class 1).
▢▢ The separator is fitted with an automatic plugging
device with stainless steel arm and polyethylene float.
▢▢ In and outlet in HDPE adaptable with PVC.
▢▢ Apparatus equipped with 2 access openings ø 630 mm
with percussion caps.
▢ ▢ Fitted with sludge trap really proportioned according
to standards EN858-1. The separator includes a
compartment for the decantation of muds and a second
compartment for separation of hydrocarbons.
▢ ▢ Polycarbonate coalescing filter placed in
a AISI 304 stainless steel framing. High
separation capacity. Easily removable.
▢▢ HDPE float calibrated at 0,85 is fixed on a mobility bar in
stainless steel, it does not require any human interference
during filling operation. It ensures the automatic shutting
of the separator as soon as the retention capacity is
reached.
▢▢ The separator is waterproof guaranteed because it has
not been perforated for the fixing of the internal elements.
▢ ▢ Pre set-up of the sampling unit. Antisplash partition.
▢▢ The separator is equipped with an alarm system.
2. OIL separator in PE with coalescing filter (output class I),
by-pass channel and sampling unit
▢ ▢ Type “Standard”: Tank out of not recycled pure
HDPE, manufactured by spiral welding on
mandrel, double walled. Resistance SN2.
▢ ▢ Type “Super”: Tank out of not recycled pure
HDPE, manufactured by spiral welding on
mandrel double walled. Resistance SN4.
▢▢ Accessories are made out of polyethylene high density or
stainless steel.
▢▢ The separator is in conformity with the regulations of
standard EN858-1.
▢▢ With coalescing filter: hydrocarbon rejection on treated
flow < 5 mg/l for hydrocarbons of density 0,85 according
to the conditions of standards EN 858-1 (class 1).
▢▢ The separator is fitted with an automatic plugging
device with stainless steel arm and polyethylene float.
▢▢ In and outlet in HDPE adaptable with PVC.
▢▢ Apparatus equipped with 2 access openings ø 630 mm
with percussion caps.
▢ ▢ Fitted with sludge trap really proportioned according
to standards EN858-1. The separator includes a
compartment for the decantation of muds and a second
compartment for separation of hydrocarbons.
▢ ▢ Polycarbonate coalescing filter placed in
a AISI 304 stainless steel framing. High
separation capacity. Easily removable.
▢▢ HDPE float calibrated at 0,85 is fixed on a mobility bar in
stainless steel, it does not require any human interference
during filling operation. It ensures the automatic shutting
of the separator as soon as the retention capacity is
reached.
▢▢ The separator is waterproof guaranteed because it has
not been perforated for the fixing of the internal elements.
▢ ▢ Pre set-up of the sampling unit. Antisplash partition.
▢▢ The separator is equipped with an alarm system.
▢▢ With integrated by-pass channel.
INSTALLATION ACCESSORIES
ALARM
OPERATION
TANK
TESTS
CONFORMITY
CHOOSE
Options
▢▢ Anchoring belts
▢▢ Anchorings
▢▢ Cast iron cover class D-400 kN
▢▢ Ladder in the sludge trap compartment
▢▢ Hydrocarbon alarm OILSET-1000, or sludge alarm
SANDSET-1000, or sludge/hydrocarbon alarm
SANDOILSET-2000.Echelle dans la partie séparateur
▢▢ The separator can be fitted with a leak detection system.
TECHNICAL
specification
❙ PRE-TREATment ❙ 2008
15
