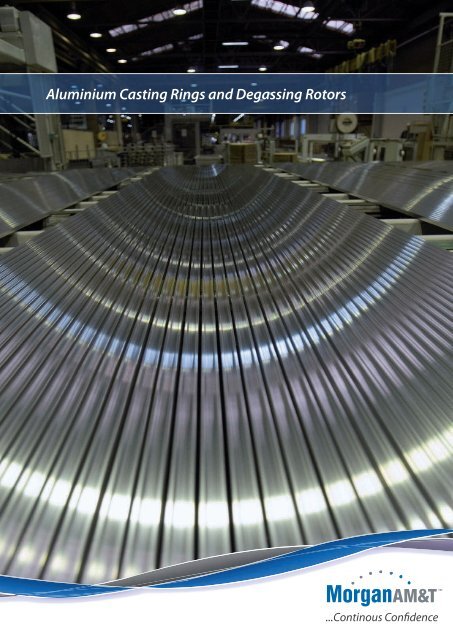

<strong>Aluminium</strong> <strong>Casting</strong> <strong>Rings</strong> <strong>and</strong> <strong>Degassing</strong> <strong>Rotors</strong><br />
...Continous Con� dence
Optimum Grade Selection Characteristics<br />
•<br />
•<br />
•<br />
•<br />
•<br />
•<br />
For <strong>Aluminium</strong> billet casting we o� er � ne grain<br />
isostatic grades with high thermal conductivity<br />
Fine grain isostatic grades with controlled permeability<br />
for gas/oil transfer are also available from our<br />
comprehensive range of quality graphite materials<br />
<strong>Aluminium</strong> <strong>Degassing</strong> <strong>Rotors</strong><br />
Impregnations for optimum strength<br />
<strong>and</strong> oxidation resistance characteristics<br />
Extruded Materials with<br />
highest � exural strengths<br />
Unique proprietary<br />
designed rotors head<br />
Designed for engineering solutions<br />
Our Our Commitment<br />
Commitment<br />
Quick Quick Service Service<br />
Advanced Quality Assurance<br />
Continuous Improvement<br />
Rapid Rapid Prototypes<br />
Prototypes<br />
<strong>Aluminium</strong> <strong>Casting</strong> <strong>Rings</strong> <strong>and</strong><br />
Mould Housings<br />
Morgan o� o� ers a complete <strong>Aluminium</strong> <strong>and</strong> Copper mould<br />
machining <strong>and</strong> graphite liner � tting service for new <strong>and</strong><br />
refurbished mould housings.<br />
The data in this product bulleting relates only to the specifi c material designated herein <strong>and</strong> does not relate to use in combination with any other material or in any process. We believe that the information<br />
contained herein is current as of the date of the Product Bulletin. Since the use of this information <strong>and</strong> these opinions <strong>and</strong> the conditions of use of the product are not within the control of Morgan AM&T, it<br />
is the user’s obligation to determine the conditions of safe use of the product. This information is not to be taken as a warranty or representation for which we assume legal responsibility nor as permission or<br />
recommendation to practice any patented invention without a license. It is off ered solely for your consideration, investigation <strong>and</strong> verifi cation. Photos: <strong>Axxelerate</strong>, Istockphoto, Norsk Hydro, Morgan AM&T<br />
Conception & Design: www.axxelerate.com<br />
•<br />
•<br />
•<br />
• •<br />
MKGS MORGAN KARBON GRAFİT SANAYİ A.Ş.<br />
B2 Blok No. 156-158-160-162 İkitelli / İSTANBUL<br />
Tel: +90 212 671 32 87 - Fax: +90 212 549 48 72<br />
morgankgs@morganplc.com - www.morganamt.com<br />
İkitelli V.D. 548 004 7027
Strip Dies<br />
...Continous Con� dence
Materials, capability <strong>and</strong> service<br />
•<br />
•<br />
•<br />
•<br />
•<br />
•<br />
•<br />
•<br />
The worlds most comprehensive range of<br />
isostatic specialty graphite’s for strip casting<br />
De� ned surface � nish to exceed your requirements<br />
Dimensional surface measured to 5 microns<br />
PROPERTIES UNITS MSG-31 MSG-46 MSG-52<br />
BULK DENSITY g/cm 3 1,80 1.90 1,82<br />
FLEXURAL STRENGTH MPa 35 60 54<br />
COMPRESSIVE STRENGTH MPa 80 110 89<br />
HARDNESS Shore 55 68 55<br />
CTE (ROOM TEMP. to 100 o C/212 o F) 10 -6 / o C 2,5 5,5 4,0<br />
THERMAL Values CONDUCTIVITY quoted are typical of results W/m from reliable K tests 120 <strong>and</strong> should be 120 used for guidance 140 only<br />
ASH CONTENT ppm 900 300 400<br />
AVG. GRAIN SIZE mm 0,025 0,009 0,01<br />
POROSITY % 10 10 14<br />
Strip Dies<br />
Low surface wetting by molten metals <strong>and</strong><br />
High thermal <strong>and</strong> chemical resistance<br />
Good lubrication <strong>and</strong> frictional properties<br />
Excellent restistance to temperature change<br />
Complex parts with close tolerances can<br />
be machined into required shapes<br />
Designed for engineering solutions<br />
Strip Dies<br />
Our Our Commitment<br />
Commitment<br />
Quick Quick Service Service<br />
Advanced Quality Assurance<br />
Continuous Improvement<br />
Rapid Rapid Prototypes<br />
Prototypes<br />
Morgan Carbon supply graphite dies used for the continuous<br />
casting of ferrous <strong>and</strong> non-ferrous metals.<br />
The data in this product bulleting relates only to the specifi c material designated herein <strong>and</strong> does not relate to use in combination with any other material or in any process. We believe that the information<br />
contained herein is current as of the date of the Product Bulletin. Since the use of this information <strong>and</strong> these opinions <strong>and</strong> the conditions of use of the product are not within the control of Morgan AM&T, it<br />
is the user’s obligation to determine the conditions of safe use of the product. This information is not to be taken as a warranty or representation for which we assume legal responsibility nor as permission or<br />
recommendation to practice any patented invention without a license. It is off ered solely for your consideration, investigation <strong>and</strong> verifi cation. Photos: <strong>Axxelerate</strong>, Istockphoto, Norsk Hydro, Morgan AM&T<br />
Conception & Design: www.axxelerate.com<br />
•<br />
•<br />
•<br />
• •<br />
MKGS MORGAN KARBON GRAFİT SANAYİ A.Ş.<br />
B2 Blok No. 156-158-160-162 İkitelli / İSTANBUL<br />
Tel: +90 212 671 32 87 - Fax: +90 212 549 48 72<br />
morgankgs@morganplc.com - www.morganamt.com<br />
İkitelli V.D. 548 004 7027
Billet Sleeves <strong>and</strong> Rod Dies<br />
...Continous Con� dence
Optimum Grade Selection Characteristics<br />
•<br />
•<br />
•<br />
•<br />
•<br />
•<br />
•<br />
Comprehensive material range<br />
Grades for all non-ferrous applications<br />
Superior surface � nishing<br />
PROPERTIES UNITS M-303 MSG-30 MSG-41 MSG-52 MSG-79<br />
BULK DENSITY g/cm 3 1,82 1.85 1,80 1,82 1,80<br />
FLEXURAL STRENGTH MPa 58 50 50 54 54<br />
COMPRESSIVE STRENGTH MPa 117 98 95 89 103<br />
HARDNESS Shore 65 58 57 55 64<br />
CTE (ROOM TEMP. to 100 o C/212 o F) 10 -6 / o C 5,2 4,0 5,0 4,0 4,8<br />
THERMAL CONDUCTIVITY W/m K 110 116 116 140 128<br />
ASH CONTENT ppm 500 300 500 400 500<br />
MAX.GRAIN SIZE mm 0,01 0.1 0,02 0,01 0,05<br />
POROSITY % 9 13 8 14 8<br />
Round Dies<br />
Proven material grades<br />
Superior bore � nish<br />
Dedicated high speed machining<br />
Competitively priced<br />
Our Our Commitment<br />
Commitment<br />
Quick Quick Service Service<br />
Advanced Quality Assurance<br />
Continuous Improvement<br />
Rapid Rapid Prototypes<br />
Prototypes<br />
Graphite lined copper moulds<br />
Morgan Specialty Graphite o� o� ers a complete copper mould<br />
machining <strong>and</strong> liner � tting service for new <strong>and</strong> refurbished<br />
moulds<br />
MKGS MORGAN KARBON GRAFİT SANAYİ A.Ş.<br />
B2 Blok No. 156-158-160-162 İkitelli / İSTANBUL<br />
Tel: +90 212 671 32 87 - Fax: +90 212 549 48 72<br />
morgankgs@morganplc.com - www.morganamt.com<br />
İkitelli V.D. 548 004 7027<br />
The data in this product bulleting relates only to the specifi c material designated herein <strong>and</strong> does not relate to use in combination with any other material or in any process. We believe that the information<br />
contained herein is current as of the date of the Product Bulletin. Since the use of this information <strong>and</strong> these opinions <strong>and</strong> the conditions of use of the product are not within the control of Morgan AM&T, it<br />
is the user’s obligation to determine the conditions of safe use of the product. This information is not to be taken as a warranty or representation for which we assume legal responsibility nor as permission or<br />
recommendation to practice any patented invention without a license. It is off ered solely for your consideration, investigation <strong>and</strong> verifi cation. Photos: <strong>Axxelerate</strong>, Istockphoto, Norsk Hydro, Morgan AM&T<br />
Conception & Design: www.axxelerate.com<br />
•<br />
•<br />
•<br />
• •
High Performance Graphite Parts<br />
...Continous Con� dence
Optimum Grade Selection Characteristics<br />
Morgan supply complex machined graphite components for technically<br />
dem<strong>and</strong>ing applications, our wide range of products include glass fi bre guide<br />
shoes, segmented sealing rings, spark erosion forms, crucibles, resistance heating<br />
elements, fl ow control pins, sampling cups, thermo couple protection sheaths <strong>and</strong><br />
many more. Morgan will be pleased to review your designs <strong>and</strong> off er our advice<br />
on design <strong>and</strong> grade selection based on our experience of exceeding customers<br />
expectations for over 40 years. We look forward to assisting you with all your<br />
future requirements.<br />
•<br />
•<br />
•<br />
•<br />
High Performance<br />
Graphite Parts<br />
Impregnations for optimum strength<br />
<strong>and</strong> oxidation resistance characteristics<br />
Extruded Materials with<br />
highest � exural strengths<br />
Full CMM inspection, digital measurement<br />
<strong>and</strong> collection of surface � nish values with<br />
CNC 3 <strong>and</strong> 4 axis machining capability<br />
Designed for engineering solutions<br />
High Performance<br />
Graphite Parts<br />
Our Our Commitment<br />
Commitment<br />
Quick Quick Service Service<br />
Advanced Quality Assurance<br />
Continuous Improvement<br />
Rapid Rapid Prototypes<br />
Prototypes<br />
From our comprehensive range of graphite materials we are able<br />
to select the most suitable grade for your furnace furniture <strong>and</strong><br />
equipment, linings, jigs, hot pressing moulds, boats <strong>and</strong> furnace<br />
trays for metallurgical powder processing.<br />
The data in this product bulleting relates only to the specifi c material designated herein <strong>and</strong> does not relate to use in combination with any other material or in any process. We believe that the information<br />
contained herein is current as of the date of the Product Bulletin. Since the use of this information <strong>and</strong> these opinions <strong>and</strong> the conditions of use of the product are not within the control of Morgan AM&T, it<br />
is the user’s obligation to determine the conditions of safe use of the product. This information is not to be taken as a warranty or representation for which we assume legal responsibility nor as permission or<br />
recommendation to practice any patented invention without a license. It is off ered solely for your consideration, investigation <strong>and</strong> verifi cation. Photos: <strong>Axxelerate</strong>, Istockphoto, Norsk Hydro, Morgan AM&T<br />
Conception & Design: www.axxelerate.com<br />
•<br />
•<br />
•<br />
• •<br />
MKGS MORGAN KARBON GRAFİT SANAYİ A.Ş.<br />
B2 Blok No. 156-158-160-162 İkitelli / İSTANBUL<br />
Tel: +90 212 671 32 87 - Fax: +90 212 549 48 72<br />
morgankgs@morganplc.com - www.morganamt.com<br />
İkitelli V.D. 548 004 7027
Perfect Solutions for the Glass Industry<br />
...Continous Con� dence
Optimum Grade Selection Characteristics<br />
The glass industry is a major sector that touches many areas of our everyday<br />
life construction, lighting <strong>and</strong> containers. Glass has a performance depending<br />
on the exacting manufacturing processing parameters which need to be<br />
maintained at all time. Morgan AM&T make a vital contribution to glass<br />
manufacturing<br />
•<br />
•<br />
•<br />
•<br />
Float Glass<br />
Exceptional corrosion resistance<br />
Minimal wetability<br />
High levels of thermal <strong>and</strong> mechanical<br />
integrity required for these environments<br />
Key components in � oat-glass systems for<br />
the continuous manufacture of large format<br />
plate glass are made using specialty graphite<br />
components supplied by Morgan AM&T<br />
Our Our Commitment<br />
Commitment<br />
Quick Quick Service Service<br />
Advanced Quality Assurance<br />
Continuous Improvement<br />
Rapid Rapid Prototypes<br />
Prototypes<br />
Glass to metal sealing jigs <strong>and</strong><br />
bottle glass h<strong>and</strong>ling<br />
Precision machined graphite components for the most<br />
dem<strong>and</strong>ing applications in glass forming <strong>and</strong> h<strong>and</strong>ling.<br />
The data in this product bulleting relates only to the specifi c material designated herein <strong>and</strong> does not relate to use in combination with any other material or in any process. We believe that the information<br />
contained herein is current as of the date of the Product Bulletin. Since the use of this information <strong>and</strong> these opinions <strong>and</strong> the conditions of use of the product are not within the control of Morgan AM&T, it<br />
is the user’s obligation to determine the conditions of safe use of the product. This information is not to be taken as a warranty or representation for which we assume legal responsibility nor as permission or<br />
recommendation to practice any patented invention without a license. It is off ered solely for your consideration, investigation <strong>and</strong> verifi cation. Photos: <strong>Axxelerate</strong>, Istockphoto, Norsk Hydro, Morgan AM&T<br />
Conception & Design: www.axxelerate.com<br />
•<br />
•<br />
•<br />
• •<br />
MKGS MORGAN KARBON GRAFİT SANAYİ A.Ş.<br />
B2 Blok No. 156-158-160-162 İkitelli / İSTANBUL<br />
Tel: +90 212 671 32 87 - Fax: +90 212 549 48 72<br />
morgankgs@morganplc.com - www.morganamt.com<br />
İkitelli V.D. 548 004 7027
