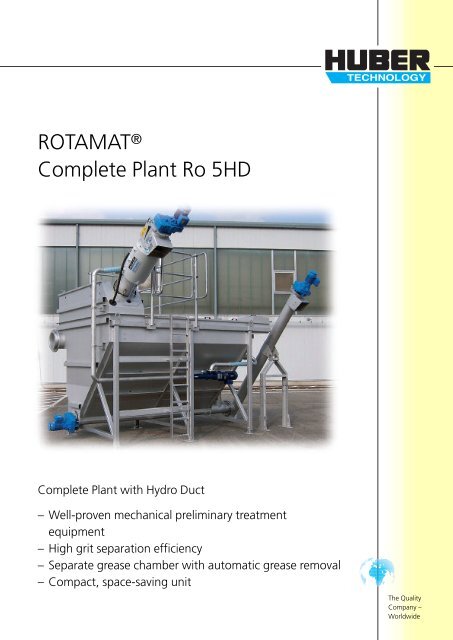

ROTAMAT ®Complete Plant Ro 5HDComplete Plant with Hydro Duct– Well-proven mechanical preliminary treatmentequipment– High grit separation efficiency– Separate grease chamber with automatic grease removal– Compact, space-saving unitThe QualityCompany –Worldwide


➤➤➤ FeaturesThe Ro 5HD Complete Plant combines the benefits ofboth aerated and unaerated grit traps by using a highperformancegrit trap with a small overall plan area.The wastewater flows firstly through an inlet screenthat retains, washes, compacts and dewaters the solidscontained within the flow. The screened wastewaterthen passes into an aerated grit trap that reduces thesettlement of organics within the flow by the action ofan aeration system within the grit trap. Grease alongwith other greasy material are collected in a separateintegrated grease trap chamber from where the greaseis automatically discharged by a well-proven paddlesystem. The flow then enters a second unaeratedupflow grit trap chamber which contains an integralhydro duct that ensures a directed flow approach fromthe bottom of the chamber with positive and uniformupflow distribution. The flow velocity in the unaeratedgrit trap chamber is reduced to such an extent that veryfine grit is easily and reliably separated. Whilst theseparated particles are removed from the grit trap byclassifying screws, they are simultaneously beingstatically dewatered prior to being discharged into acontainer.➤➤➤ Benefits➤ Fully integrated screenings separation, washingand dewatering in one system➤ Very high levels of grit separation➤ Separate grease chamber with automatic greaseremoval system➤ Integral screenings along with grease dewateringsystem➤ Small footprint and space-saving compact design➤ Integral emergency overflow in the grit trap➤ Optional grit washing system➤ Integral emergency by-pass➤➤➤ Technical information➤ Dimensions: see dimension sheet➤ Inlet screen: 1 - 10 mm➤ Throughput capacity: up to 160 l/s➤ Separation efficiency at Qmax:95% of 0.20 – 0.25 mm grain size➤ Completely made of stainless steel (including allclassifying screws)➤ Maximum corrosion protection through acidtreatment in a pickling bathSchematic drawing of a Ro 5HD Complete PlantAutomatic grease removal by means of a paddle systemHans Huber AGMaschinen- und AnlagenbauPostfach 63 · D-92332 BerchingTelephone: + 49 - 84 62 - 201 - 0Telefax: + 49 - 84 62 - 201 - 810e-mail: info@huber.deInternet: www.huber.deSubject to technical alterationROTAMAT ®Complete PlantRo 5HD1,5 / 1 – 4.2005 – 4.2005
