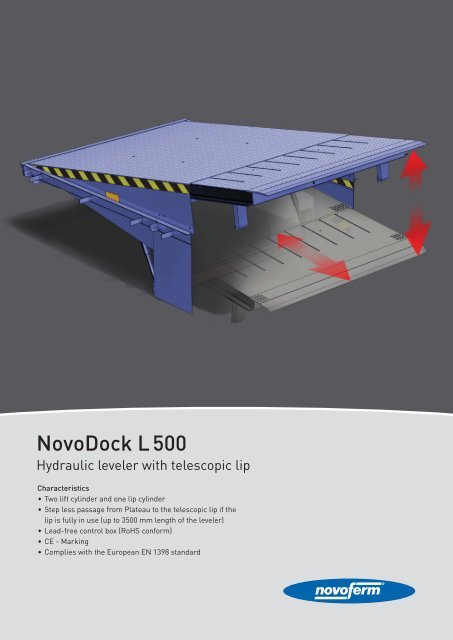

NovoDock L 500Hydraulic leveler with telescopic lipCharacteristicslip is fully in use (up to 3500 mm length of the leveler)

NovoDock L500Hydraulic levelers are every time in use when a perfect,safe and user friendly bridge between the floor and thelorry is necessary. With a telescopic leveler you can loador unload good, safe and fast. The step less passage fromplateau to the lip, if the lip is fully extended, reduces thestrain for the user, the transported good and the loadingequipment.StructureCharacteristics for the Novo Dock L500 are: MaterialThe construction of the frame consists of stable steel profiles andsheets. The plateau and the telescopic lip are produced out of tear plateand a supported with beams.SurfaceAll parts of the steel construction are painted in RAL 5010 (gentianTo ensure an optimal corrosion control, all steel parts are firstsandblasted and than painted with two component coating.Hydraulic operatorBy use of a low pressure hydraulic system the two lift cylinders and thelip cylinder are driven independent from each other.Control box and operatingFor the operation of the leveler a control box is included in the delivery.leveler could be operated only if the door is open. The elements of theOperating elements of the control box Safety appliances ensured even the plateau is unilaterally loaded. The formation of Technical data Nominal length ................2000, 2500, 3000, 3500, 4000 and 4500 mmNominal width ................................................... 1750, 2000, 2250 mm Length of telescopic lip ..................................................500/1000 mm Telescopic lip tear plate ... 12/14 mmLevel equalizationLeveler length telescopic lip 500 mm telescopic lip 1000 mmabove dock below dock above dock below dock outside the permissible gradient range of + 12,5%.Supplies by othertechnical in formations.Options/Equipment
