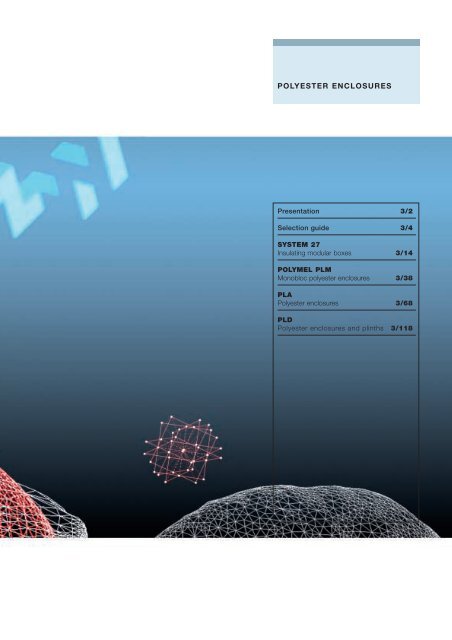

POLYESTER ENCLOSURES - Schneider Electric

POLYESTER ENCLOSURESPresentation 3/2Selection guide 3/4SYSTEM 27Insulating modular boxes 3/14POLYMEL PLMMonobloc polyester enclosures 3/38PLAPolyester enclosures 3/68PLDPolyester enclosures and plinths 3/118

c Insulating modular boxes system 27:composed of the base, with high and low cover variations, transparent andopaque, made of polycarbonate or polyester.c POLYMEL polyester enclosures:monobloc construction, one single piece highly resistant body, withpossible enclosure coupling.c PLA polyester enclosures and plinths:4 construction systems:– fully closed enclosures,– enclosures with self-ventilated top with canopy and closed bottom,– enclosures with closed top and open plinth-type bottom,– enclosures with self-ventilated top with canopy and openplinth-type bottom.Enclosures with front door, and enclosures with front door and back door.3 versions of doors: plain, transparent or ribbed.c PLD-ZD polyester enclosures and plinths:prepared to directly incorporate the fuse holder plinths for electricaldistribution.FLOOR STANDINGPLAPLD-ZDIP65/54/IK10IP43/54/IK1040/960 5/5500 500 320 850 465 3201500 1250 420 850 1115 320■■■■up to 364■■■■3/68 3/1183/3

Hot-press mouldedpolyester enclosuresSelection guidePLATABLE OF MODELS, DIMENSIONS AND REFERENCESPLA enclosures with rear panelCompletely closedSelf-ventilated top with canopyDoorLockDoor openingDegree of protectionPlainRibbedTransparentPlain Ribbed TransparentFlatHandle120°120°IP65IP54Nominal dimensions (mm)Height Width DepthNo. ofdoors500 500 320 1 PLA 553 PLA 553 R PLA 553 KT PLA 553 T PLA 553 TR PLA 553 TKT420 1 PLA 554 PLA 554 R PLA 554 KT PLA 554 T PLA 554 TR PLA 554 TKT750 320 1 PLA 573 PLA 573 R PLA 573 KT PLA 573 T PLA 573 TR PLA 573 TKT420 1 PLA 574 PLA 574 R PLA 574 KT PLA 574 T PLA 574 TR PLA 574 TKT1000 320 2 PLA 5103 PLA 5103 R PLA 5103 KT PLA 5103 T PLA 5103 TR PLA 5103 TKT420 2 PLA 5104 PLA 5104 R PLA 5104 KT PLA 5104 T PLA 5104 TR PLA 5104 TKT1250 320 2 PLA 5123 PLA 5123 R PLA 5123 KT PLA 5123 T PLA 5123 TR PLA 5123 TKT420 2 PLA 5124 PLA 5124 R PLA 5124 KT PLA 5124 T PLA 5124 TR PLA 5124 TKT750 500 320 1 PLA 753 PLA 753 R PLA 753 KT PLA 753 T PLA 753 TR PLA 753 TKT420 1 PLA 754 PLA 754 R PLA 754 KT PLA 754 T PLA 754 TR PLA 754 TKT750 320 1 PLA 773 PLA 773 R PLA 773 KT PLA 773 T PLA 773 TR PLA 773 TKT420 1 PLA 774 PLA 774 R PLA 774 KT PLA 774 T PLA 774 TR PLA 774 TKT1000 320 2 PLA 7103 PLA 7103 R PLA 7103 KT PLA 7103 T PLA 7103 TR PLA 7103 TKT420 2 PLA 7104 PLA 7104 R PLA 7104 KT PLA 7104 T PLA 7104 TR PLA 7104 TKT1250 320 2 PLA 7123 PLA 7123 R PLA 7123 KT PLA 7123 T PLA 7123 TR PLA 7123 TKT420 2 PLA 7124 PLA 7124 R PLA 7124 KT PLA 7124 T PLA 7124 TR PLA 7124 TKT1000 500 320 1 PLA 1053 PLA 1053 R PLA 1053 KT PLA 1053 T PLA 1053 TR PLA 1053 TKT420 1 PLA 1054 PLA 1054 R PLA 1054 KT PLA 1054 T PLA 1054 TR PLA 1054 TKT750 320 1 PLA 1073 PLA 1073 R PLA 1073 KT PLA 1073 T PLA 1073 TR PLA 1073 TKT420 1 PLA 1074 PLA 1074 R PLA 1074 KT PLA 1074 T PLA 1074 TR PLA 1074 TKT1000 320 2 PLA 10103 PLA 10103 R PLA 10103 KT PLA 10103 T PLA 10103 TR PLA 10103 TKT420 2 PLA 10104 PLA 10104 R PLA 10104 KT PLA 10104 T PLA 10104 TR PLA 10104 TKT1250 320 2 PLA 10123 PLA 10123 R PLA 10123 KT PLA 10123 T PLA 10123 TR PLA 10123 TKT420 2 PLA 10124 PLA 10124 R PLA 10124 KT PLA 10124 T PLA 10124 TR PLA 10124 TKT1250 500 320 1 PLA 1253 PLA 1253 R PLA 1253 KT PLA 1253 T PLA 1253 TR PLA 1253 TKT420 1 PLA 1254 PLA 1254 R PLA 1254 KT PLA 1254 T PLA 1254 TR PLA 1254 TKT750 320 1 PLA 1273 PLA 1273 R PLA 1273 KT PLA 1273 T PLA 1273 TR PLA 1273 TKT420 1 PLA 1274 PLA 1274 R PLA 1274 KT PLA 1274 T PLA 1274 TR PLA 1274 TKT1000 320 2 PLA 12103 PLA 12103 R PLA 12103 KT PLA 12103 T PLA 12103 TR PLA 12103 TKT420 2 PLA 12104 PLA 12104 R PLA 12104 KT PLA 12104 T PLA 12104 TR PLA 12104 TKT1250 320 2 PLA 12123 PLA 12123 R PLA 12123 KT PLA 12123 T PLA 12123 TR PLA 12123 TKT420 2 PLA 12124 PLA 12124 R PLA 12124 KT PLA 12124 T PLA 12124 TR PLA 12124 TKT1500 500 320 1 PLA 1553 PLA 1553 R PLA 1553 KT PLA 1553 T PLA 1553 TR PLA 1553 TKT420 1 PLA 1554 PLA 1554 R PLA 1554 KT PLA 1554 T PLA 1554 TR PLA 1554 TKT750 320 1 PLA 1573 PLA 1573 R PLA 1573 KT PLA 1573 T PLA 1573 TR PLA 1573 TKT420 1 PLA 1574 PLA 1574 R PLA 1574 KT PLA 1574 T PLA 1574 TR PLA 1574 TKT1000 320 2 PLA 15103 PLA 15103 R PLA 15103 KT PLA 15103 T PLA 15103 TR PLA 15103 TKT420 2 PLA 15104 PLA 15104 R PLA 15104 KT PLA 15104 T PLA 15104 TR PLA 15104 TKT1250 320 2 PLA 15123 PLA 15123 R PLA 15123 KT PLA 15123 T PLA 15123 TR PLA 15123 TKT420 2 PLA 15124 PLA 15124 R PLA 15124 KT PLA 15124 T PLA 15124 TR PLA 15124 TKTPage 3/73 3/73 3/73 3/75 3/75 3/753/6

Open plinth-type basePlain Ribbed TransparentHandle120°IP54Self-ventilating top with canopy and open plinth-type basePlain Ribbed TransparentHandle180°IP54PLAZ 553 PLAZ 553 R PLAZ 553 KT PLAZ 553 T PLAZ 553 TR PLAZ 553 TKTPLAZ 554 PLAZ 554 R PLAZ 554 KT PLAZ 554 T PLAZ 554 TR PLAZ 554 TKTPLAZ 573 PLAZ 573 R PLAZ 573 KT PLAZ 573 T PLAZ 573 TR PLAZ 573 TKTPLAZ 574 PLAZ 574 R PLAZ 574 KT PLAZ 574 T PLAZ 574 TR PLAZ 574 TKTPLAZ 5103 PLAZ 5103 R PLAZ 5103 KT PLAZ 5103 T PLAZ 5103 TR PLAZ 5103 TKTPLAZ 5104 PLAZ 5104 R PLAZ 5104 KT PLAZ 5104 T PLAZ 5104 TR PLAZ 5104 TKTPLAZ 5123 PLAZ 5123 R PLAZ 5123 KT PLAZ 5123 T PLAZ 5123 TR PLAZ 5123 TKTPLAZ 5124 PLAZ 5124 R PLAZ 5124 KT PLAZ 5124 T PLAZ 5124 TR PLAZ 5124 TKTPLAZ 753 PLAZ 753 R PLAZ 753 KT PLAZ 753 T PLAZ 753 TR PLAZ 753 TKTPLAZ 754 PLAZ 754 R PLAZ 754 KT PLAZ 754 T PLAZ 754 TR PLAZ 754 TKTPLAZ 773 PLAZ 773 R PLAZ 773 KT PLAZ 773 T PLAZ 773 TR PLAZ 773 TKTPLAZ 774 PLAZ 774 R PLAZ 774 KT PLAZ 774 T PLAZ 774 TR PLAZ 774 TKTPLAZ 7103 PLAZ 7103 R PLAZ 7103 KT PLAZ 7103 T PLAZ 7103 TR PLAZ 7103 TKTPLAZ 7104 PLAZ 7104 R PLAZ 7104 KT PLAZ 7104 T PLAZ 7104 TR PLAZ 7104 TKTPLAZ 7123 PLAZ 7123 R PLAZ 7123 KT PLAZ 7123 T PLAZ 7123 TR PLAZ 7123 TKTPLAZ 7124 PLAZ 7124 R PLAZ 7124 KT PLAZ 7124 T PLAZ 7124 TR PLAZ 7124 TKTPLAZ 1053 PLAZ 1053 R PLAZ 1053 KT PLAZ 1053 T PLAZ 1053 TR PLAZ 1053 TKTPLAZ 1054 PLAZ 1054 R PLAZ 1054 KT PLAZ 1054 T PLAZ 1054 TR PLAZ 1054 TKTPLAZ 1073 PLAZ 1073 R PLAZ 1073 KT PLAZ 1073 T PLAZ 1073 TR PLAZ 1073 TKTPLAZ 1074 PLAZ 1074 R PLAZ 1074 KT PLAZ 1074 T PLAZ 1074 TR PLAZ 1074 TKTPLAZ 10103 PLAZ 10103 R PLAZ 10103 KT PLAZ 10103 T PLAZ 10103 TR PLAZ 10103 TKTPLAZ 10104 PLAZ 10104 R PLAZ 10104 KT PLAZ 10104 T PLAZ 10104 TR PLAZ 10104 TKTPLAZ 10123 PLAZ 10123 R PLAZ 10123 KT PLAZ 10123 T PLAZ 10123 TR PLAZ 10123 TKTPLAZ 10124 PLAZ 10124 R PLAZ 10124 KT PLAZ 10124 T PLAZ 10124 TR PLAZ 10124 TKTPLAZ 1253 PLAZ 1253 R PLAZ 1253 KT PLAZ 1253 T PLAZ 1253 TR PLAZ 1253 TKTPLAZ 1254 PLAZ 1254 R PLAZ 1254 KT PLAZ 1254 T PLAZ 1254 TR PLAZ 1254 TKTPLAZ 1273 PLAZ 1273 R PLAZ 1273 KT PLAZ 1273 T PLAZ 1273 TR PLAZ 1273 TKTPLAZ 1274 PLAZ 1274 R PLAZ 1274 KT PLAZ 1274 T PLAZ 1274 TR PLAZ 1274 TKTPLAZ 12103 PLAZ 12103 R PLAZ 12103 KT PLAZ 12103 T PLAZ 12103 TR PLAZ 12103 TKTPLAZ 12104 PLAZ 12104 R PLAZ 12104 KT PLAZ 12104 T PLAZ 12104 TR PLAZ 12104 TKTPLAZ 12123 PLAZ 12123 R PLAZ 12123 KT PLAZ 12123 T PLAZ 12123 TR PLAZ 12123 TKTPLAZ 12124 PLAZ 12124 R PLAZ 12124 KT PLAZ 12124 T PLAZ 12124 TR PLAZ 12124 TKTPLAZ 1553 PLAZ 1553 R PLAZ 1553 KT PLAZ 1553 T PLAZ 1553 TR PLAZ 1553 TKTPLAZ 1554 PLAZ 1554 R PLAZ 1554 KT PLAZ 1554 T PLAZ 1554 TR PLAZ 1554 TKTPLAZ 1573 PLAZ 1573 R PLAZ 1573 KT PLAZ 1573 T PLAZ 1573 TR PLAZ 1573 TKTPLAZ 1574 PLAZ 1574 R PLAZ 1574 KT PLAZ 1574 T PLAZ 1574 TR PLAZ 1574 TKTPLAZ 15103 PLAZ 15103 R PLAZ 15103 KT PLAZ 15103 T PLAZ 15103 TR PLAZ 15103 TKTPLAZ 15104 PLAZ 15104 R PLAZ 15104 KT PLAZ 15104 T PLAZ 15104 TR PLAZ 15104 TKTPLAZ 15123 PLAZ 15123 R PLAZ 15123 KT PLAZ 15123 T PLAZ 15123 TR PLAZ 15123 TKTPLAZ 15124 PLAZ 15124 R PLAZ 15124 KT PLAZ 15124 T PLAZ 15124 TR PLAZ 15124 TKT3/77 3/77 3/77 3/79 3/79 3/793/7

Hot-press mouldedpolyester enclosuresSelection guidePLATABLE OF MODELS, DIMENSIONS AND REFERENCESPLA enclosures with rear doorCompletely closedSelf-ventilated top with canopyDoorLockDoor openingDegree of protectionPlainRibbedTransparentPlain Ribbed TransparentFlatHandle120°120°IP65IP54Nominal dimensions (mm)Height Width DepthNo. ofdoors500 500 320 1 PLA 553 P PLA 553 PR PLA 553 PKT PLA 553 TP PLA 553 TPR PLA 553 TPKT420 1 PLA 554 P PLA 554 PR PLA 554 PKT PLA 554 TP PLA 554 TPR PLA 554 TPKT750 320 1 PLA 573 P PLA 573 PR PLA 573 PKT PLA 573 TP PLA 573 TPR PLA 573 TPKT420 1 PLA 574 P PLA 574 PR PLA 574 PKT PLA 574 TP PLA 574 TPR PLA 574 TPKT1000 320 2 PLA 5103 P PLA 5103 PR PLA 5103 PKT PLA 5103 TP PLA 5103 TPR PLA 5103 TPKT420 2 PLA 5104 P PLA 5104 PR PLA 5104 PKT PLA 5104 TP PLA 5104 TPR PLA 5104 TPKT1250 320 2 PLA 5123 P PLA 5123 PR PLA 5123 PKT PLA 5123 TP PLA 5123 TPR PLA 5123 TPKT420 2 PLA 5124 P PLA 5124 PR PLA 5124 PKT PLA 5124 TP PLA 5124 TPR PLA 5124 TPKT750 500 320 1 PLA 753 P PLA 753 PR PLA 753 PKT PLA 753 TP PLA 753 TPR PLA 753 TPKT420 1 PLA 754 P PLA 754 PR PLA 754 PKT PLA 754 TP PLA 754 TPR PLA 754 TPKT750 320 1 PLA 773 P PLA 773 PR PLA 773 PKT PLA 773 TP PLA 773 TPR PLA 773 TPKT420 1 PLA 774 P PLA 774 PR PLA 774 PKT PLA 774 TP PLA 774 TPR PLA 774 TPKT1000 320 2 PLA 7103 P PLA 7103 PR PLA 7103 PKT PLA 7103 TP PLA 7103 TPR PLA 7103 TPKT420 2 PLA 7104 P PLA 7104 PR PLA 7104 PKT PLA 7104 TP PLA 7104 TPR PLA 7104 TPKT1250 320 2 PLA 7123 P PLA 7123 PR PLA 7123 PKT PLA 7123 TP PLA 7123 TPR PLA 7123 TPKT420 2 PLA 7124 P PLA 7124 PR PLA 7124 PKT PLA 7124 TP PLA 7124 TPR PLA 7124 TPKT1000 500 320 1 PLA 1053 P PLA 1053 PR PLA 1053 PKT PLA 1053 TP PLA 1053 TPR PLA 1053 TPKT420 1 PLA 1054 P PLA 1054 PR PLA 1054 PKT PLA 1054 TP PLA 1054 TPR PLA 1054 TPKT750 320 1 PLA 1073 P PLA 1073 PR PLA 1073 PKT PLA 1073 TP PLA 1073 TPR PLA 1073 TPKT420 1 PLA 1074 P PLA 1074 PR PLA 1074 PKT PLA 1074 TP PLA 1074 TPR PLA 1074 TPKT1000 320 2 PLA 10103 P PLA 10103 PR PLA 10103 PKT PLA 10103 TP PLA 10103 TPR PLA 10103 TPKT420 2 PLA 10104 P PLA 10104 PR PLA 10104 PKT PLA 10104 TP PLA 10104 TPR PLA 10104 TPKT1250 320 2 PLA 10123 P PLA 10123 PR PLA 10123 PKT PLA 10123 TP PLA 10123 TPR PLA 10123 TPKT420 2 PLA 10124 P PLA 10124 PR PLA 10124 PKT PLA 10124 TP PLA 10124 TPR PLA 10124 TPKT1250 500 320 1 PLA 1253 P PLA 1253 PR PLA 1253 PKT PLA 1253 TP PLA 1253 TPR PLA 1253 TPKT420 1 PLA 1254 P PLA 1254 PR PLA 1254 PKT PLA 1254 TP PLA 1254 TPR PLA 1254 TPKT750 320 1 PLA 1273 P PLA 1273 PR PLA 1273 PKT PLA 1273 TP PLA 1273 TPR PLA 1273 TPKT420 1 PLA 1274 P PLA 1274 PR PLA 1274 PKT PLA 1274 TP PLA 1274 TPR PLA 1274 TPKT1000 320 2 PLA 12103 P PLA 12103 PR PLA 12103 PKT PLA 12103 TP PLA 12103 TPR PLA 12103 TPKT420 2 PLA 12104 P PLA 12104 PR PLA 12104 PKT PLA 12104 TP PLA 12104 TPR PLA 12104 TPKT1250 320 2 PLA 12123 P PLA 12123 PR PLA 12123 PKT PLA 12123 TP PLA 12123 TPR PLA 12123 TPKT420 2 PLA 12124 P PLA 12124 PR PLA 12124 PKT PLA 12124 TP PLA 12124 TPR PLA 12124 TPKT1500 500 320 1 PLA 1553 P PLA 1553 PR PLA 1553 PKT PLA 1553 TP PLA 1553 TPR PLA 1553 TPKT420 1 PLA 1554 P PLA 1554 PR PLA 1554 PKT PLA 1554 TP PLA 1554 TPR PLA 1554 TPKT750 320 1 PLA 1573 P PLA 1573 PR PLA 1573 PKT PLA 1573 TP PLA 1573 TPR PLA 1573 TPKT420 1 PLA 1574 P PLA 1574 PR PLA 1574 PKT PLA 1574 TP PLA 1574 TPR PLA 1574 TPKT1000 320 2 PLA 15103 P PLA 15103 PR PLA 15103 PKT PLA 15103 TP PLA 15103 TPR PLA 15103 TPKT420 2 PLA 15104 P PLA 15104 PR PLA 15104 PKT PLA 15104 TP PLA 15104 TPR PLA 15104 TPKT1250 320 2 PLA 15123 P PLA 15123 PR PLA 15123 PKT PLA 15123 TP PLA 15123 TPR PLA 15123 TPKT420 2 PLA 15124 P PLA 15124 PR PLA 15124 PKT PLA 15124 TP PLA 15124 TPR PLA 15124 TPKTPage 3/73 3/73 3/73 3/75 3/75 3/753/8

Open plinth-type basePlain Ribbed TransparentHandle120°IP54Self-ventilating top with canopy and open plinth-type basePlain Ribbed TransparentHandle180°IP54PLAZ 553 P PLAZ 553 PR PLAZ 553 PKT PLAZ 553 TP PLAZ 553 TPR PLAZ 553 TPKTPLAZ 554 P PLAZ 554 PR PLAZ 554 PKT PLAZ 554 TP PLAZ 554 TPR PLAZ 554 TPKTPLAZ 573 P PLAZ 573 PR PLAZ 573 PKT PLAZ 573 TP PLAZ 573 TPR PLAZ 573 TPKTPLAZ 574 P PLAZ 574 PR PLAZ 574 PKT PLAZ 574 TP PLAZ 574 TPR PLAZ 574 TPKTPLAZ 5103 P PLAZ 5103 PR PLAZ 5103 PKT PLAZ 5103 TP PLAZ 5103 TPR PLAZ 5103 TPKTPLAZ 5104 P PLAZ 5104 PR PLAZ 5104 PKT PLAZ 5104 TP PLAZ 5104 TPR PLAZ 5104 TPKTPLAZ 5123 P PLAZ 5123 PR PLAZ 5123 PKT PLAZ 5123 TP PLAZ 5123 TPR PLAZ 5123 TPKTPLAZ 5124 P PLAZ 5124 PR PLAZ 5124 PKT PLAZ 5124 TP PLAZ 5124 TPR PLAZ 5124 TPKTPLAZ 753 P PLAZ 753 PR PLAZ 753 PKT PLAZ 753 TP PLAZ 753 TPR PLAZ 753 TPKTPLAZ 754 P PLAZ 754 PR PLAZ 754 PKT PLAZ 754 TP PLAZ 754 TPR PLAZ 754 TPKTPLAZ 773 P PLAZ 773 PR PLAZ 773 PKT PLAZ 773 TP PLAZ 773 TPR PLAZ 773 TPKTPLAZ 774 P PLAZ 774 PR PLAZ 774 PKT PLAZ 774 TP PLAZ 774 TPR PLAZ 774 TPKTPLAZ 7103 P PLAZ 7103 PR PLAZ 7103 PKT PLAZ 7103 TP PLAZ 7103 TPR PLAZ 7103 TPKTPLAZ 7104 P PLAZ 7104 PR PLAZ 7104 PKT PLAZ 7104 TP PLAZ 7104 TPR PLAZ 7104 TPKTPLAZ 7123 P PLAZ 7123 PR PLAZ 7123 PKT PLAZ 7123 TP PLAZ 7123 TPR PLAZ 7123 TPKTPLAZ 7124 P PLAZ 7124 PR PLAZ 7124 PKT PLAZ 7124 TP PLAZ 7124 TPR PLAZ 7124 TPKTPLAZ 1053 P PLAZ 1053 PR PLAZ 1053 PKT PLAZ 1053 TP PLAZ 1053 TPR PLAZ 1053 TPKTPLAZ 1054 P PLAZ 1054 PR PLAZ 1054 PKT PLAZ 1054 TP PLAZ 1054 TPR PLAZ 1054 TPKTPLAZ 1073 P PLAZ 1073 PR PLAZ 1073 PKT PLAZ 1073 TP PLAZ 1073 TPR PLAZ 1073 TPKTPLAZ 1074 P PLAZ 1074 PR PLAZ 1074 PKT PLAZ 1074 TP PLAZ 1074 TPR PLAZ 1074 TPKTPLAZ 10103 P PLAZ 10103 PR PLAZ 10103 PKT PLAZ 10103 TP PLAZ 10103 TPR PLAZ 10103 TPKTPLAZ 10104 P PLAZ 10104 PR PLAZ 10104 PKT PLAZ 10104 TP PLAZ 10104 TPR PLAZ 10104 TPKTPLAZ 10123 P PLAZ 10123 PR PLAZ 10123 PKT PLAZ 10123 TP PLAZ 10123 TPR PLAZ 10123 TPKTPLAZ 10124 P PLAZ 10124 PR PLAZ 10124 PKT PLAZ 10124 TP PLAZ 10124 TPR PLAZ 10124 TPKTPLAZ 1253 P PLAZ 1253 PR PLAZ 1253 PKT PLAZ 1253 TP PLAZ 1253 TPR PLAZ 1253 TPKTPLAZ 1254 P PLAZ 1254 PR PLAZ 1254 PKT PLAZ 1254 TP PLAZ 1254 TPR PLAZ 1254 TPKTPLAZ 1273 P PLAZ 1273 PR PLAZ 1273 PKT PLAZ 1273 TP PLAZ 1273 TPR PLAZ 1273 TPKTPLAZ 1274 P PLAZ 1274 PR PLAZ 1274 PKT PLAZ 1274 TP PLAZ 1274 TPR PLAZ 1274 TPKTPLAZ 12103 P PLAZ 12103 PR PLAZ 12103 PKT PLAZ 12103 TP PLAZ 12103 TPR PLAZ 12103 TPKTPLAZ 12104 P PLAZ 12104 PR PLAZ 12104 PKT PLAZ 12104 TP PLAZ 12104 TPR PLAZ 12104 TPKTPLAZ 12123 P PLAZ 12123 PR PLAZ 12123 PKT PLAZ 12123 TP PLAZ 12123 TPR PLAZ 12123 TPKTPLAZ 12124 P PLAZ 12124 PR PLAZ 12124 PKT PLAZ 12124 TP PLAZ 12124 TPR PLAZ 12124 TPKTPLAZ 1553 P PLAZ 1553 PR PLAZ 1553 PKT PLAZ 1553 TP PLAZ 1553 TPR PLAZ 1553 TPKTPLAZ 1554 P PLAZ 1554 PR PLAZ 1554 PKT PLAZ 1554 TP PLAZ 1554 TPR PLAZ 1554 TPKTPLAZ 1573 P PLAZ 1573 PR PLAZ 1573 PKT PLAZ 1573 TP PLAZ 1573 TPR PLAZ 1573 TPKTPLAZ 1574 P PLAZ 1574 PR PLAZ 1574 PKT PLAZ 1574 TP PLAZ 1574 TPR PLAZ 1574 TPKTPLAZ 15103 P PLAZ 15103 PR PLAZ 15103 PKT PLAZ 15103 TP PLAZ 15103 TPR PLAZ 15103 TPKTPLAZ 15104 P PLAZ 15104 PR PLAZ 15104 PKT PLAZ 15104 TP PLAZ 15104 TPR PLAZ 15104 TPKTPLAZ 15123 P PLAZ 15123 PR PLAZ 15123 PKT PLAZ 15123 TP PLAZ 15123 TPR PLAZ 15123 TPKTPLAZ 15124 P PLAZ 15124 PR PLAZ 15124 PKT PLAZ 15124 TP PLAZ 15124 TPR PLAZ 15124 TPKT3/77 3/77 3/77 3/79 3/79 3/793/9

Hot-press mouldedpolyester enclosuresSelection guidePLATABLE OF MODELS, DIMENSIONS AND REFERENCESMetal mountingplateInsulating mounting plateBakelitePolyesterUniversal perforatedmounting plateSet of 2 profiles foruniversal chassisModular distribution chassisNominal dimensions (mm)Height Width DepthNo. ofdoorsReferenceNo. ofmodules18 mm500 500 320 1 PMM 55 PMB 55 PMA 55 PMR 55 - - -420 1 PMM 55 PMB 55 PMA 55 PMR 55 - - -750 320 1 PMM 75 PMB 75 PMA 75 PMR 57 - - -420 1 PMM 75 PMB 75 PMA 75 PMR 57 - - -1000 320 2 PMM 510 PMB 510 PMA 510 PMR 55 + PMR 55 - - -420 2 PMM 510 PMB 510 PMA 510 PMR 55 + PMR 55 - - -1250 320 2 PMM 55 + PMM 75 PMB 55 + PMB 75 PMA 55 + PMA 75 PMR 55 + PMR 57 - - -420 2 PMM 55 + PMM 75 PMB 55 + PMB 75 PMA 55 + PMA 75 PMR 55 + PMR 57 - - -750 500 320 1 PMM 75 PMB 75 PMA 75 PMR 75 MOL 75 DLP 57/76 57/76420 1 PMM 75 PMB 75 PMA 75 PMR 75 MOL 75 DLP 57/76 57/76750 320 1 PMM 77 PMB 77 PMA 77 PMR 77 MOL 75 DLP 99/132 99/132420 1 PMM 77 PMB 77 PMA 77 PMR 77 MOL 75 DLP 99/132 99/1321000 320 2 PMM 710 PMB 710 PMA 710 PMR 75 + PMR 75 MOL 75 DLP 57/76 + DLP 57/76 114/152420 2 PMM 710 PMB 710 PMA 710 PMR 75 + PMR 75 MOL 75 DLP 57/76 + DLP 57/76 114/1521250 320 2 PMM 712 PMB 712 PMA 712 PMR 75 + PMR 77 MOL 75 DLP 57/76 + DLP 99/132 156/208420 2 PMM 712 PMB 712 PMA 712 PMR 75 + PMR 77 MOL 75 DLP 57/76 + DLP 99/132 156/2081000 500 320 1 PMM 105 PMB 105 PMA 105 PMR 105 MOL 100 DLP 95/114 95/114420 1 PMM 105 PMB 105 PMA 105 PMR 105 MOL 100 DLP 95/114 95/114750 320 1 PMM 107 PMB 107 PMA 107 PMR 107 MOL 100 DLP 165/198 165/198420 1 PMM 107 PMB 107 PMA 107 PMR 107 MOL 100 DLP 165/198 165/1981000 320 2 PMM 1010 PMB 1010 PMA 1010 PMR 105 + PMR 105 MOL 100 DLP 95/114 + DLP 95/114 190/228420 2 PMM 1010 PMB 1010 PMA 1010 PMR 105 + PMR 105 MOL 100 DLP 95/114 + DLP 95/114 190/2281250 320 2 PMM 1012 PMB 1012 PMA 1012 PMR 105 + PMR 107 MOL 100 DLP 95/114 + DLP 165/198 260/312420 2 PMM 1012 PMB 1012 PMA 1012 PMR 105 + PMR 107 MOL 100 DLP 95/114 + DLP 165/198 260/3121250 500 320 1 PMM 125 PMB 125 PMA 125 PMR 125 MOL 125 DLP 114 P/133 114/133420 1 PMM 125 PMB 125 PMA 125 PMR 125 MOL 125 DLP 114 P/133 114/133750 320 1 PMM 127 PMB 127 PMA 127 PMR 127 MOL 125 DLP 198 P/231 198/231420 1 PMM 127 PMB 127 PMA 127 PMR 127 MOL 125 DLP 198P/231 198/2311000 320 2 PMM 1210 PMB 1210 PMA 1210 PMR 125 + PMR 125 MOL 125 DLP 114P/133 + DLP 114P/133 228/266420 2 PMM 1210 PMB 1210 PMA 1210 PMR 125 + PMR 125 MOL 125 DLP 114P/133 + DLP 114P/133 228/2661250 320 2 PMM 1212 PMB 1212 PMA 1212 PMR 125 + PMR 127 MOL 125 DLP 114P/133 + DLP 198P/231 312/364420 2 PMM 1212 PMB 1212 PMA 1212 PMR 125 + PMR 127 MOL 125 DLP 114P/133 + DLP 198P/231 312/3641500 500 320 1 PMM 155 PMB 155 - PMR 155 MOL 150 - -420 1 PMM 155 PMB 155 - PMR 155 MOL 150 - -750 320 1 PMM 157 PMB 157 - PMR 157 MOL 150 - -420 1 PMM 157 PMB 157 - PMR 157 MOL 150 - -1000 320 2 PMM 1510 PMB 1510 - PMR 155 + PMR 155 MOL 150 - -420 2 PMM 1510 PMB 1510 - PMR 155 + PMR 155 MOL 150 - -1250 320 2 PMM 1512 PMB 1512 - PMR 155 + PMR 157 MOL 150 - -420 2 PMM 1512 PMB 1512 - PMR 155 + PMR 157 MOL 150 - -Page 3/93 3/94 3/94 3/95 3/97 3/112(1) Only for enclosures with closed base reference PLA…(2) Only for enclosures with open plinth-type base reference PLAZ…3/10

Internal doors Bases (1) Plinths (2) Canopies19” fixedrackNo. of units1 = 44.45 mm19” pivotingrackNo. of units1 = 44.45 mmPIPLA 55 ZNPLA 53 ZHPLA 53 TJPLA 53PIPLA 55 ZNPLA 54 ZHPLA 54 TJPLA 54BRF 8 PLA 8 - - PIPLA 57 ZNPLA 73 ZHPLA 73 TJPLA 73BRF 8 PLA 8 BRP 7 PLA 7 PIPLA 57 ZNPLA 74 ZHPLA 74 TJPLA 74PIPLA 55 + PIPLA 55 ZNPLA 103 ZHPLA 103 TJPLA 103PIPLA 55 + PIPLA 55 ZNPLA 104 ZHPLA 104 TJPLA 104PIPLA 55 + PIPLA 57 ZNPLA 123 ZHPLA 123 TJPLA 123PIPLA 55 + PIPLA 57 ZNPLA 124 ZHPLA 124 TJPLA 124PIPLA 75 ZNPLA 53 ZHPLA 53 TJPLA 53PIPLA 75 ZNPLA 54 ZHPLA 54 TJPLA 54BRF 12 PLA 12 - - PIPLA 77 ZNPLA 73 ZHPLA 73 TJPLA 73BRF 12 PLA 12 BRP 11 PLA 11 PIPLA 77 ZNPLA 74 ZHPLA 74 TJPLA 74PIPLA 75 + PIPLA 75 ZNPLA 103 ZHPLA 103 TJPLA 103PIPLA 75 + PIPLA 75 ZNPLA 104 ZHPLA 104 TJPLA 104PIPLA 75 + PIPLA 77 ZNPLA 123 ZHPLA 123 TJPLA 123PIPLA 75 + PIPLA 77 ZNPLA 124 ZHPLA 124 TJPLA 124PIPLA 105 ZNPLA 53 ZHPLA 53 TJPLA 53PIPLA 105 ZNPLA 54 ZHPLA 54 TJPLA 54BRF 17 PLA 17 - - PIPLA 107 ZNPLA 73 ZHPLA 73 TJPLA 73BRF 17 PLA 17 BRP 16 PLA 16 PIPLA 107 ZNPLA 74 ZHPLA 74 TJPLA 74PIPLA 105 + PIPLA 105 ZNPLA 103 ZHPLA 103 TJPLA 103PIPLA 105 + PIPLA 105 ZNPLA 104 ZHPLA 104 TJPLA 104PIPLA 105 + PIPLA 107 ZNPLA 123 ZHPLA 123 TJPLA 123PIPLA 105 + PIPLA 107 ZNPLA 124 ZHPLA 124 TJPLA 124PIPLA 125 ZNPLA 53 ZHPLA 53 TJPLA 53PIPLA 125 ZNPLA 54 ZHPLA 54 TJPLA 54BRF 21 PLA 21 - - PIPLA 127 ZNPLA 73 ZHPLA 73 TJPLA 73BRF 21 PLA 21 BRP 20 PLA 20 PIPLA 127 ZNPLA 74 ZHPLA 74 TJPLA 74PIPLA 125 + PIPLA 125 ZNPLA 103 ZHPLA 103 TJPLA 103PIPLA 125 + PIPLA 125 ZNPLA 104 ZHPLA 104 TJPLA 104PIPLA 125 + PIPLA 127 ZNPLA 123 ZHPLA 123 TJPLA 123PIPLA 125 + PIPLA 127 ZNPLA 124 ZHPLA 124 TJPLA 124PIPLA 155 ZNPLA 53 ZHPLA 53 TJPLA 53PIPLA 155 ZNPLA 54 ZHPLA 54 TJPLA 54BRF 26 PLA 26 - - PIPLA 157 ZNPLA 73 ZHPLA 73 TJPLA 73BRF 26 PLA 26 BRP 25 PLA 25 PIPLA 157 ZNPLA 74 ZHPLA 74 TJPLA 74PIPLA 155 + PIPLA 155 ZNPLA 103 ZHPLA 103 TJPLA 103PIPLA 155 + PIPLA 155 ZNPLA 104 ZHPLA 104 TJPLA 104PIPLA 155 + PIPLA 157 ZNPLA 123 ZHPLA 123 TJPLA 123PIPLA 155 + PIPLA 157 ZNPLA 124 ZHPLA 124 TJPLA 1243/118 3/118 3/89 3/85 3/86 3/863/11

Hot-press mouldedpolyester enclosuresSelection guidePLD-ZDTABLE OF MODELS, DIMENSIONS AND REFERENCESEnclosures Mounting plates Plinth RackEnclosure dimensions (mm)Height Width Depth ReferenceNo. of No. ofNo. of platesReferencedoors locksper enclosureReference Reference850 465 320 PLD-85/00 1 1 APLD-85 1 ZD-53/00 BPLD850 590 320 PLD-86/0 1 1 APLD-86 1 ZD-63/0 BPLD850 785 320 PLD-88/1 1 1 APLD-88 1 ZD-83/1 BPLD850 1115 320 PLD-812/2 2 1 APLD-812 2 ZD-123/2 BPLD850 1115 320 PLD-812/2C 2 2 APLD-812 2 ZD-123/2 BPLDPage 3/121 3/121 3/123 3/1253/12

3/13

Insulating modular boxes resistant against outdoorconditions System 2712348 76 53/14

1 Possibility of usingthe interior part of theTPLSP cover (in PLSPpolyester boxes) to fixthe plates using an M5insert.2 Side lock (optional),may be available withkey lock.3 Insulating polyestermounting plate fixedto the back. Option ofmetallic or bakelite plate.4 Rear view of box withPF-27 wall-fixing piecein place.5 Internal view withoutprotective panel withdetail of the neutral-earthterminal block of themodular chassis.6 Box completelymounted with detail ofhinge, protective paneland removable blankingplate fixing.7 Sealable coverbaselock, screwdriveroperated (standardsupply).8 M6 inserts for fixingthe mounting plate orvarious equipment.3/15

SYSTEM 27Insulating modular boxesIP55 (EN 60529)PLS 3654Insulating modular boxes comprisedof BASES made of fibreglass-reinforcedpolyester and COVERS made ofpolycarbonate or fibreglass-reinforcedpolyester, depending on the model.PLS and PLSO boxes with polycarbonatecovers on the transparent and opaqueversions.PLSP boxes with fibreglass-reinforcedpolyester covers.Opaque bases and covers in greyRAL-7032.c Modular dimensions that, in addition to its individual use, permit couplingof boxes.c Self-extinguishing, double insulation.c Sealing gasket between base and cover.c Dielectric rigidity > 5 kV, insulation resistance > Ω.c Operating temperature from –30 °C to 120 °C for PLS and PLSO modelsand 150 °C for PLSP models.c Easily machined with conventional tools.c Locking screw, screwdriver operated (standard supply).c IK09.3/16

SYSTEM 27Insulating modular boxesIP55 (EN 60529)TABLE OF MODELS, DIMENSIONS AND REFERENCES, MODULAR BOXESLow cover boxesHigh cover boxesTransparent Opaque Polyester TransparentOpaqueHeight(mm)Width(mm)Depth(mm)180 270 180 PLS 1827 PLSO 1827 PLSP 1827 - -270 270 180 PLS 2727 PLSO 2727 PLSP 2727 - -270 270 230 - - - PLS 2727 A PLSO 2727 A270 360 180 PLS 2736 PLSO 2736 PLSP 2736 - -270 360 230 - - - PLS 2736 A PLSO 2736 A270 540 180 PLS 2754 PLSO 2754 PLSP 2754 - -270 540 230 - - - PLS 2754 A PLSO 2754 A360 360 180 PLS 3636 PLSO 3636 PLSP 3636 - -360 540 180 PLS 3654 PLSO 3654 PLSP 3654 - -360 540 230 - - - PLS 3654 A PLSO 3654 A360 720 230 - - - PLS 3672 A PLSO 3672 A540 540 180 PLS 5454 PLSO 5454 PLSP 5454 - -540 540 230 - - - PLS 5454 A PLSO 5454 A540 720 230 - - - PLS 5472 A PLSO 5472 ATABLE OF MODELS, DIMENSIONS AND REFERENCES, BASES AND COVERSBase 135 mmTransparent45 mmLow coverHigh coverOpaque 45 mm Polyester 45 mm Transparent 95 mm Opaque 95 mmHeight(mm)Width(mm)Depth(mm)180 270 180 FPLS 1827 N TPLS 1827 TPLSO 1827 TPLSP 1827 - -270 270 180 FPLS 2727 N TPLS 2727 TPLSO 2727 TPLSP 2727 - -270 270 230 FPLS 2727 N - - - TPLS 2727 A TPLSO 2727 A270 360 180 FPLS 2736 N TPLS 2736 TPLSO 2736 TPLSP 2736 - -270 360 230 FPLS 2736 N - - - TPLS 2736 A TPLSO 2736 A270 540 180 FPLS 2754 N TPLS 2754 TPLSO 2754 TPLSP 2754 - -270 540 230 FPLS 2754 N - - - TPLS 2754 A TPLSO 2754 A360 360 180 FPLS 3636 N TPLS 3636 TPLSO 3636 TPLSP 3636 - -360 540 180 FPLS 3654 N TPLS 3654 TPLSO 3654 TPLSP 3654 - -360 540 230 FPLS 3654 N - - - TPLS 3654 A TPLSO 3654 A360 720 230 FPLS 3672 N - - - TPLS 3672 A TPLSO 3672 A540 540 180 FPLS 5454 N TPLS 5454 TPLSO 5454 TPLSP 5454 - -540 540 230 FPLS 5454 N - - - TPLS 5454 A TPLSO 5454 A540 720 230 FPLS 5472 N - - - TPLS 5472 A TPLSO 5472 ATABLE OF MODELS, DIMENSIONS AND REFERENCES, PLATES AND CHASSISMounting platesModular chassisMetal Polyester BakeliteTo be coupled to boxes(dimensions)To be coupled to boxes(dimensions)Height (mm) Width (mm) Height (mm) Width (mm) Reference No. of modules180 270 PMM 1827 PMA 1827 PMA/B 1827 180 270 DL 27/12 12270 270 PMM 2727 PMA 2727 PMA/B 2727 270 270 DL 27/24 24270 360 PMM 2736 PMA 2736 PMA/B 2736 360 270DL 27/24-2DL 27/36270 540 PMM 2754 PMA 2754 PMA/B 2754 540 270 DL 27/48 48360 540 PMM 3636 PMA 3636 PMA/B 3636360 540 PMM 3654 PMA 3654 PMA/B 3654360 720 PMM 3672 PMA 3672 PMA/B 3672540 540 PMM 5454 PMA 5454 PMA/B 5454540 720 PMM 5472 PMA 5472 PMA/B 547224363/17

SYSTEM 27Insulating modular boxesIP55 (EN 60529)Dimensions (mm)1827…180110138453654…540200 70 200138 45 9521 22702002702002702003602902727…2736…3636…2491 3159415927020014 2249324924924936029012.3122494 2339333936029012494 233933393392.312249339122.2138 45 95122.22.3121222 3*138 45 95122.21382.7122.245322 3*23602905454…540200 70 2003672…3602905472…6 35195 4540200 70 2001 28 37 45196 5720290 70 2901 26 3699339260 260519260 260339260 2605 4350 350720290 70 29012123392.7122.2138 45 952.7122.233912138 952.7122.23 33 33.5138 952702002754…540200 70 2001 26 35195 4249260 2602492.712138 45 95122.2 2.5 3* 2.5540200 70 2001 28 3519769946 5350 350260 260122.7122.24* The thickness of 3 mm corresponds to the polyester cover.A Coupling to the back with low cover.B Coupling to the back with high cover..C D Interior view of back corner, detail of the bosses with M6inserts.E F Interior view of the corner of the polyester cover withhousing for the expandable nut.Ref.: TE-25 for M5 screws.A C EB D F3/18

SYSTEM 27Insulating modular boxesIP65 (EN 60529)Example of couplingSuite of general, busbar, meter and distribution boxes.PS 2C-27UM-27/270S27-DL/48Cover TL-27/270 withcable glandsTL-27/270EGB-27UM-27/270TL-27/270All boxes may be coupled on any of their sides. Thecoupling may be done using UM modular joints andPS fastening pieces.3/19

SYSTEM 27Composition accessoriesOpeningsTo order boxes with lateral openings, you must add the numbers of the sidesthat you wish to have cut to the reference of the basic box.These numbers are indicated on the dimensions panel as well as raised onthe bases themselves. Example: a 270 × 540 mm box with low transparentcover and openings on sides 1, 3 and 5 would be: PLS-2754/1-3-5.Side cut-out press, Ref.: PUC-27.Modular couplingsManufactured with fibreglass-reinforced polycarbonate. Pieces prepared forcoupling the boxes on any of their lateral sides.c Sealing gasket on both sides.c Supplied with all the hardware necessary for fixing and the openings template.To couple to openings (mm)Reference110 (nominal 180) UM 27/180200 (nominal 270) UM 27/270290 (nominal 360) UM 27/3603/20

SYSTEM 27Composition accessoriesBox coupling piecesFor coupling 2, 3, or 4 boxes with the possibility of wall fixing.To coupleReference2 boxes PS2C-273 or 4 boxes PS4C-27M6×18 cylinder head screws.Side coversManufactured with fibreglass-reinforced polyester. Easily machined withconventional tools for cable entry.c With a sealing gasket.c Supplied with all the hardware necessary for fixing and the openings template.To couple to openings (mm) )Reference200 (nominal 270) TL 27/270290 (nominal 360) TL 27/360Wall-fixing partsMaterialPassivated zinc-coated steelStainless steelReferencePF-27PF-27/ I3/21

SYSTEM 27Composition accessoriesPost fixingHas incorporated all the elements necessary for fixing and adjusting to a post.To couple to module width (mm)Reference270 FSP-27/270360 FSP-27/360540 FSP-27/540Rail-fixing piecesRail fixingRailCNT-20NutBN-206Direct wall-fixingStud∅ 8M6×30cylinder head screw50 mm long ribbedhead screwTransport handleMaterialPolyamideReferenceATM-273/22

SYSTEM 27Composition accessoriesLocks for insulated modular boxesTCD-27/4 NTCM-27/4 NSpecificationsTypes of operation withReferenceTCT-27/4 NCL-27Set of 4 locks Screwdriver TCD-27/4 NSet of 6 locks Standard supply in boxes (PLS) Screwdriver TCD-27/6 NSet of 8 locks Screwdriver TCD-27/8 NSet of 4 locks Manual TCM-27/4 NSet of 6 locks Standard in boxes (S27DL) Manual TCM-27/6 NSet of 8 locks Manual TCM-27/8 NSet of 4 triangle locks LT-27 TCT-27/4 NSet of 6 triangle locks LT-27 TCT-27/6 NSet of 8 triangle locks LT-27 TCT-27/8 NDouble bar side lock, possibilityof fixing the wing key to the lockDBPCL-27Side lock with key operationCLL-27CLL-27PPA-27Metal sealing sheet(included in standard supply)Insulated sealTriangle keyPPA-27PPS-27LT-27LT-27Windows for automatic switchesAllow access to the interior of the enclosure, maintaining the IP65 degree ofprotection.Made of transparent polycarbonate.Fig. 1Fig. 2ReferenceCLow cover High coverNo. ofmodules Fig. No. A B Low cover High coverVA 27/2M VA 27/2MA 2 1 78 60 15 25VA 27/4M VA 27/4MA 4 1 78 95 15 25VA 27/6M VA 27/6MA 6 1 78 130 15 25VA 27/8M VA 27/8MA 8 1 78 165 15 25VA 27/10M VA 27/10MA 10 1 78 200 15 25VA 27/12M VA 27/12MA 12 1 78 235 15 25VA 27/16M - 16 2 195 165 13 -VA 27/24M - 24* 2 196 235 13 -VA 27/36M - 36* 2 248 235 13 -VA 27/51M - 51** 2 248 325 13 -* In rows of 12 modules mounted vertically.** In rows of 17 modules mounted horizontally.Fig. 1Fig. 23/23

SYSTEM 27Mounting accessoriesPlates for metersMounting plates for fixing single-phase or three-phase meters made of polyesterwith fibre-glass, in RAL-7032.To couple to boxesSingle-phaseThree-phaseHeight Width No. of meters Reference No. of meters Reference270 270 1M P1M-27 - -1M (displaced) P1M-P27 - -270 360 1M P1M-2736 1T P1T-272M P2M-27 - -270 540 2M P2M-27E 1T P1T-27E (1)2M (vertical) P2M-27V - -3M P3M-27 - -360 540 4M P4M-27V 2T P2T-27- - 3T P3T-27540 540 6M P6M-27V 2T P2T-27E- - 3T P3T-27E360 720 5M P5M-27 3T P3T-27H6M P6M-27V 4T P4T-27540 720 8M P8M-27 3T P3T-27G9M P9M-27 6T P6T-2710M P10M-27 - -(1) 1 vertical three-phase.Fixing nutsMetal insert nuts for fixing equipment on polyester and bakelite insulatedmounting plates.ReferenceThread MTE-3 3TE-4 4TE-5 5TE-6 6TE-8 9TE-10 10TE-12 123/24

SYSTEM 27Current distribution accessoriesAdjustable tiesMade of 6.6 nylon in natural colour or black for outdoor conditions.WhiteReferenceBlackLM∅minimumUse∅maximumLZ25100 LN25100 100 2.5 1.6 22LZ25200 LN25200 200 2.5 1.6 49LZ35150 LN35150 150 3.5 1.6 35LZ35200 LN35200 200 3.5 1.6 49LZ35300 LN35300 300 3.5 1.6 75LZ46150 LN46150 150 4.6 1.6 36LZ46200 LN46200 200 4.6 1.6 49LZ48270 LN48270 270 4.8 1.6 73LZ46390 LN46390 390 4.6 1.6 109LZ76390 LN76390 390 7.6 4.7 108Tightening toolsTo tighten and cut the adjustable ties to size. They facilitate wiring and savetime, preventing the packets of cables from loosening.Tool adjustable according to the thickness of the tie. Can be used with thefollowing models: LZ25100 up to LZ46390. Ref.: MARK3.A very light and ergonomic tool, the cut on the tie is done by twisting thetool. Can be used on the following models of ties: LZ25100 up to LZ46390.Ref.: MARK20, 21.ReferenceAdmissible width tiesMARK3 2.5 ÷ 4.8ReferenceAdmissible width tiesMARK20 2.5 ÷ 4.8MARK21 4.6 ÷ 7.63/25

SYSTEM 27Current distribution accessoriesLocking clipsAllows fixing ties from the series LZ25100 up to LZ46390 on panels up to3.2 mm thick. Material: 6.6 nylon.SFC2SFC1Reference∅ perforationmmMax. panelthickness mmFigureSFC1 6 3.2 1SFC2 6 1 2Fig. 1 Fig. 2StudTo use with soft materials: 7 mm Ø hole, or hard materials: 8 mm Ø hole.Ties up to 9 mm in width can be coupled. Material: black 6.6 nylon.Ref.: LOK01.Tie fixing supportTo attach one or two ties, mounted with a single screw. Material: 6.6 nylon.Allows for attaching ties from the entire range.Reference A B C Fixing screwAdmissible widthtiesKR6 12 18 9 M4 2.5 ÷ 4.8KR8 14.5 25 12 M6 2.5 ÷ 7.63/26

SYSTEM 27Current distribution accessoriesSupport headsTo transform normal ties into ties with fixing heads, introduce a tie into thishead before closing it on the cable bundle. Material: 6.6 nylon.Reference A B CFixing screwAdmissible widthtiesFH18 7.1 13.3 4 M4 2.5FH30 9.5 17.9 4.7 M5 3.5FH50 11.3 22.2 6.2 M6 4.7Self-adhesive support basePermits insertion of 1 tie from 4 points at a 90º angle. Attaches ties from theseries LZ25100 up to LZ46390. Material: 6.6 nylon.Reference A B C DEAdmissible widthtiesMB3A 19.1 19.1 4.8 3.2 13.2 2.5 ÷ 3.5MB4A 28.5 28.5 5.5 4 20.2 2.5 ÷ 4.8adhesive supportTie fixing supportTo attach ties from any series. Material: 6.6 nylon.ReferenceAdmissible widthties mmFixing screwLKC 2.5 7.6 M53/27

SYSTEM 27Current distribution accessoriesLateral tie fixing supportCovers the head of the tie in its end, thus obtaining neater cabling.Material: 6.6 nylon.ReferenceAdmissible widthties mmFixing screwLKM/HE 2.5 7.6 M5Fixing loop for tubes, hoses, etc.2 versions, fixed and adjustable, ∅ from 5 to 25.4 mm. Material: black 6.6nylon.Reference∅ Amin. - max.B CD ENX1 5 3.5 1 6.2 13.7NX3 8 3.9 1 9.4 20.5NX5 12 3.9 1 9.4 24NX8* 14.3 ÷ 15.8 4 1.3 12.6 32NX11 17.4 ÷ 20 4 1.3 12.6 37NX14 22.2 ÷ 25.4 4.3 1.5 16 45*The NX8 model only has 3 adjustment holes.NX 1-3-5 NX 8-11-14Membrane glandFor tube or cable entry. Models EGB-27 made of neoprene.3/28

SYSTEM 27Current distribution accessoriesAdjustable membrane glandsInsulating membrane glands made of PVC with entry that can be adjustedfor cables or tubes (see page 3/30).Fig. 1 Fig. 2Reference Fig. Ø A Ø B* Ø C Ø D E FØ cableCapacityTubeECPC-3 1 25 21.5 18 5 3.2 13 5 to 18 Pg 9 to 11ECPC-5 1 33 29.5 26 5 3.2 20 5 to 26 Pg 9 to 16ECPC-6 1 43 38.5 36 5 3.2 22 5 to 36 Pg 9 to 21ECPC-9 2 70 63 60 28 3 20 28 to 60 Pg 21 to 48ECPC-15 2 98 90 87 28 3 23 28 to 87 Pg 21 to 48* Mounting perforation.Protective sleevesSmall protective sleeves for cables coming out of tubes, as indicated in theinstructions for MI BT 019. Made of flexible and durable PVC, in light greycolour.Reference A Ø B TubePC-1 15.2 12.7 Pg 9PC-2 18.6 16 Pg 11PC-3 20.4 17.8 Pg 13.5PC-4 22.5 19.8 Pg 16PC-5 28.3 25.3 Pg 21PC-6 37 33.6 Pg 29PC-7 47 43 Pg 36Ø BØ A3/29

SYSTEM 27Current distribution accessoriesUseful information about Pg tubes and HIMEL accessories to be coupledMODELS, DIMENSIONS AND REFERENCESDesignationØexteriorSteelFlexiblesteelØ interiorTubesCables inserted*Ø perforations toFlexibleNo. of conductorsPVC steel withInsert ThreadPVC 1 2 3 4To the tubeAdjustablemembrane glandsHIMEL accessories to be coupledProtectivesleevesTo the perforationsAdjustablemembraneglands4 EC-1 to EC-7Pg 9 15.2 12.7 12.4 12 11.1 6 2.5 - - 16 14 ECPC-3 to ECPC-6 PC-1 - -ECN-5 to ECN-1010 4 2.5 EC-2 to EC-7 EC-1Pg 11 18.6 16 15.5 14.5 14.2 16 6 4 2.5 19 17.5 ECPC-5; ECPC-6 PC-2 EC-2 TC-125 ECN-5 to ECN-10 ECN-1EC-3 to EC-7EC-3Pg 13.5 20.4 17.8 17.5 16.3 16 35 10 6 4 21 19.5 ECPC-5; ECPC-6 PC-3 ECPC-3 TC-2ECN-5 to ECN-10EC-4 to EC-7Pg 16 22.5 19.8 18.7 18.5 17.6 50 16 10 6 23 21.5 ECPC-5; ECPC-6 PC-4 EC-4 TC-3ECN-5 to ECN-10EC-5 to EC-7EC-5Pg 21 28.3 25.3 24.7 23 23 70 25 16 10 29 27 ECPC-6 to ECPC-15 PC-5 ECPC-5 TC-4ECN-6 to ECN-10ECN-595 35 25 16 EC-6; EC-7 EC-6 TC-5Pg 29 37 33.6 33.5 31 31 120 50 35 25 38 35.5 ECPC-9; ECPC-15 PC-6 ECPC-6 TCP-5150 ECN-7; ECN-10 ECN-6185 35 EC-7 EC-7Pg 36 47 43 41.5 41 40.3 240 70 50 50 48 45.5 ECPC-9; ECPC-15 PC-7 ECN-7 TC-6300 ECN-1095 70 ECPC-9; ECPC-15Pg 42 54 50 48 48 47 - 120 95 70 55 52.5 ECN-10 - - -120 95 ECPC-9; ECPC-15Pg 48 60 56 54.2 52.5 51.4 - 150 150 120 61 58 ECN-10 - - -* Number and section in mm 2 of the conductors that may be housed inside each tube (orientative).For more information, consult the electrotechnical rules for low voltage (MI BT 019).Plain plugsInsulatorsTo form busbars. Made of fibreglass-reinforced polycarbonate.ASE 27/360AE-25To couple to the side ofbox (mm)No. of platesPlate width (mm)ReferenceAI-25360 4 15/20 ASE 27/360270 4 15/20 AE 25- 1 15/20/30 AI 253/30

SYSTEM 27Current distribution accessoriesSplit bridgesCable section mm 2Reference95 TS-25/95150 TS-25/150240 TS-25/240Sigma safety terminalsBase of safety terminals made of black matte self-extinguishing polyamide-6;terminal of brass MS-58(DIN17660); ring of tempered steel zinc dichromate; cap made of orangeself-extinguishing polypropylene.c Anti-cut. The connection is made using a tightening mechanism thatspreads the pressure out throughout the entire contact surface, avoidingthe occasional rubs and stresses that damage the conductors.c Loosening proof. The ring that surrounds the brass body ensures that thepressure exerted by the conductors cannot open the terminal and loosenthe connection.c Total insulation. All the SIGMA terminals are supplied with a terminal cap,avoiding any accidental contact with live parts.All the calibres may be coupled one to the other, allowing the formation ofstrips of any length. Service voltage: 500 V.ReferenceSectionm/m 2 A B C D ES.04 1 × 4 30 20 13 21 4S.06 1 × 6 33 25 16 24 7S.10 1 × 10 38 28 16 28 6S.16 1 × 16 42 32 19 32 9S.25/35 1 × 35 46 38 23 34 11S.50 1 × 50 52 45 27 40 15S.70 1 × 70 55 50 30 40 15S.95/100 1 × 100 58 54 33 40 20NOTE: each terminal accepts up to 2 conductors of the section indicated.3/31

SYSTEM 27Current distribution accessoriesBypass terminal blocksEarth and neutral bypass terminal blocks with insulated plinth.Direct fixing by pressure on the profile supplied by the chassis itself.ReferenceNumber of terminals × section in (mm 2 )RBLZ/21656* 2 × 16 mm 2 + 5 × 6 mm 2RBLZ/21686 2 × 16 mm 2 + 8 × 6 mm 2RBLZ/216146 2 × 16 mm 2 + 14 × 6 mm 2RBLZ/216296 2 × 16 mm 2 + 29 × 6 mm 2* Included in standard supply.Bimetal BBH terminalsBBH-29BBH-29DTerminals especially designed for branching cables on plates; their mainapplication is busbar connection.BBH terminals are made of a tinned, hot cast copper alloy and are suitablefor connecting to a conductor of copper or aluminium indistinctly (bimetal).BBH-29PBBH-29DPReferenceMain section(mm 2 )Bypass section(mm 2 )BBH-29 6-50 -BBH-29C* 6-50 -BBH-30 10-95 -BBH-31 16-150 -BBH-32 50-240 -BBH-29D 6-50 6-50BBH-29DC* 6-50 6-50BBH-30D 10-95 10-95BBH-31D 25-150 16-150BBH-32D 95-240 5-240ReferenceMain section(mm 2 )Bypass section(mm 2 )BBH-29P 6-50 -BBH-29PC* 6-50 -BBH-29DP 6-50 6-50BBH-29DPC* 6-50 6-50* Include terminal cover CBBH-29.Plate/cable terminalsPlate entry and bypass by cable.ReferenceCable bypasssection (mm 2 )Plate thickness (mm)FigureBPCH 516 1.5 to 16 5 2BPCH 550 1.5 to 50 5 2BPCH 5120 16 to 120 5 2BPCH 1016 1.5 to 16 10 1BPCH 1050 1.5 to 50 10 1BPCH 10120 16 to 120 10 1123/32

SYSTEM 27Natural ventilation accessoriesComplementary accessoriesVentilation devicesTo connect the inside of the enclosure with the exterior atmosphere andprevent condensation.Specifications∅ 19∅ 29ReferenceVM-25VM-27VM-25VM-273/33

SYSTEM 27ApplicationsInsulating modular boxes with distribution chassisS27 DL/48Modular PLS boxes composed of baseand transparent low cover, with hingesand manually-operated and screwdriveroperatedlocks.DL incorporated chassis composed ofautomatic DIN-35 rails, insulated panelprotector and neutral-earth terminalblocks of 2 × 16 + 5 × 6 mm 2 .c Opening for cable entry with TL cover.c Double-insulation mounting.c Excellent resistance to corrosive environments.c Exterior hinges, allowing a door opening of approximately 180°.c Removable blanking plate with a width of 36 mm (2 modules), standardsupply one per row.c A lateral double bar lock CL-27 or key CLL-27 can be incorporated.3/34

SYSTEM 27ApplicationsTABLE OF MODELS, DIMENSIONS AND REFERENCESHeight(A)External dimensions (mm)Width(B)Depth(C)ReferenceTotal capacity in 18 mmmodulesNo. of rowsApprox. weight (kg)180 270 180 S27 DL/12 12 1 1.7270 270 180 S27 DL/24 24 2 2.5360 270 180 S27 DL/24-2 24 2 2.7360 270 180 S27 DL/36 36 3 2.8540 270 180 S27 DL/48 48 4 3.8Dimensions (mm)S27 DL/12S27 DL/36S27 DL/24S27 DL/48S27 DL/24-23/35

SYSTEM 27ApplicationsBlanking plateBlanking plate in self-extinguishing insulating material for total or partialcoverage of the window for automatic switches.c Easily cut to the desired size.No. of modules Reference Length (mm)6 ATP6/DTM 10824 ATP24/DTM 432Cut to size ATP/UND 1100Distribution barsFor the distribution in a single row of automatic switches with a total of12 modules.1 2No. of barsNo. of polesper barReferenceFigure No.1 12 BDS 1/12 12 6 BDS 2/6 23 4 BDS 3/4 34 3 BDS 4/3 43 43/36

3/37

POLYMEL polyester monobloc enclosures1 2 3 4 5 61 The built-in canopyprotects the door andthe sealing gasket.5 Enclosure witha tempered glasstransparent door,maintaining the IP66and IK08 (5J) degrees ofprotection.12 11 10 9 8 79 Depth adjustablemounting plate supportswith positions every12.5 mm.3/38

2 Wall fixing from theoutside with stainlesssteel or polyester wallbrackets.3 The fixing strips,notched every 25 mm,located at the backof the enclosure allowdirect attachment ofmounting rails or otherdevices, thus reducingassembly time.4 Four moulded bosseson the inside of thedoor help to assembleaccessories.For maximum usablespace, the door has agrid pattern for centringcomponents. Dooropening more than 180°.6 The lock system islocated outside thesealed area to maintainthe IP66 degree ofprotection.7 Interior hinges fixedinto the door. The built-inpolyurethane sealinggasket guarantees IP66.8 Ventilation louversprovide naturalventilation of theinterior of enclosure,thus preventingcondensation.10 Direct wall fixing witha plug to maintain thedouble insulation andwatertightness.4 inserts at the backfor fixing the mountingplate.11 Reversible polyesterinternal door with gridpattern for industrialcontrol.12 Self-ventilationwindows at the rear ofthe enclosure.3/39

POLYMELPolyester enclosuresIP66 (EN 60529)PLM-75PLM-75/CMEHot-press moulded fibreglass-reinforcedpolyester enclosure, in grey RAL-7032.Construction specificationsc Body of one single piece: monobloc.c Fully reversible.c Intended for use in both indoor and outdoor environments.c A wide range of accessories enabling use in distribution, control andmeasurement panels for industrial and infrastructure facilities.c Standard double bar lock or three-point lock with handle (without insert).Technical specificationsc Conforms to general rules for empty enclosures established in IEC andEN 62208.c IP66 conforming to IEC 60529 (EN 60529).c High resistance to mechanical impacts IK10 (20 J) conforming to IEC andEN 62262.c Self-extinguishing, conforming to IEC 60695-2-1 (960°).c Extreme operating temperatures from –50 to +150 ºC.c Suitable for double insulation profiles conforming to IEC 60439-1 (EN 60439-1).c Resistant to corrosion.3/40

POLYMELPolyester enclosuresIP66 (EN 60529)TABLE OF MODELS, DIMENSIONS AND REFERENCESExternal dimensions(mm)PlaindoorTransparentdoorPlaindoorTransparentdoorPlaindoorMounting platesAdjustableplatesupportModular Internalchassis doorHeight(A)Width(B)Depth(C)Standard double bar lockNo. oflocksThree-point lock with handle(without insert)WithinsulatingmountingplateMetalInsulatingMicroperforatedUniversal310 215 160 PLM-32* PLM-32/KT* 1 - - PLM-32MB ● ● ● ● - - -308 255 160 PLM-3025 PLM-3025/KT 2 - - PLM-3025MB ● ● ● ● - ● ●430 330 200 PLM-43 PLM-43/KT 2 PLM-43/CME PLM-43 KT/CME PLM-43MB ● ● ● ● ● ● ●530 430 200 PLM-54 PLM-54/KT 2 PLM-54/CME PLM-54 KT/CME PLM-54MB ● ● ● ● ● ● ●647 436 250 PLM-64 PLM-64/KT 2 PLM-64/CME PLM-64 KT/CME PLM-64MB ● ● ● ● ● ● ●747 536 300 PLM-75 PLM-75/KT 2 PLM-75/CME PLM-75 KT/CME PLM-75MB ● ● ● ● ● ● ●847 636 300 PLM-86 PLM-86/KT 2 PLM-86/CME PLM-86 KT/CME PLM-86MB ● ● ● ● ● ● ●1056 852 350 PLM-108(1) PLM-108KT(1) 1 - - PLM-108MB ● ● ● ● ● ● ●* PLM-32 model in polycarbonate.(1) Four-point locking system.3/41

POLYMELPolyester enclosuresIP66 (EN 60529)PLM-… ENCLOSURE DIMENSIONS(EXCEPT PLM-3025)Reference PLM-...Dimensions (mm)PLM-32...108B5 C32 43 54 64 75 86 108M8A 310 430 530 647 747 847 1056Ø 8B 215 330 430 436 536 636 852C 160 200 200 250 300 300 350D 310 280 380 480 580 680 864E 215 200 300 300 400 500 694F 270 380 480 580 680 780 980G 170 260 360 360 460 560 760H 225 325 425 525 625 725 925I 125 225 325 325 425 525 725J 275 375 475 575 675 775 975K 75 150 250 250 350 450 650L 8 13 13 13 15 15 15M 144 181 181 228 278 278 327N 2.3 2.7 2.9 2.9 3 3 4P 132 179 279 279 379 479 684Q 129 168 168 212 261 261 304R 186 247 347 388 487 587 776AEDFHIGJM8RHNK16QPM LØ 8IPLM-30253/42

POLYMELComposition accessoriesEnclosure fastening tiesFor the lateral or vertical coupling of two enclosures.c Made of fibreglass-reinforced self-extinguishing polyester.c Sealing gasket built in, which guarantees the IP66 degree of protection.c Mounting with screws (included in the standard supply).For attachment to enclosuresType of couplingReferencePLM-75 y 86 lateral BU/PLMPLM-108 lateral BU-108/PLM185148398/635Floor-mounting pillarFor the protection of cabling of outdoor installations, distribution panels forcampgrounds, leisure harbours, etc. at which it is necessary to maintain adistance between the installation and the floor. Manufactured with fibreglassreinforcedpolyester.c Steel frame for fixing to the floor.c Easy installation.c High impact resistance.For attachment to enclosuresPLM-54PLM-64355 165ReferenceSFS/PLM200130160100Floor fixing using a frame (1)800251165160100405200Fixing to the enclosure(1) Frame supplied3/43

POLYMELComposition accessoriesCable entry platePlain polyester cable entry plates, with sealing gasket and fastening hardware.For attachment to enclosuresPLM-75/86/108PLM-108ReferenceTLA-4420TLA-6420Wall fixingPFI/PLMWall fixing can be done directly by drilling the back of the enclosure or withthe PF/PLM polyester brackets or PFI/PLM stainless steel brackets. Thebrackets are mounted from the exterior to the back of the enclosure, usinginserts and M8 screws (included in the standard supply).Model PLM-32 is mounted using self-tapping screws.The fixing pieces can be positioned vertically or horizontally.The set is not included in the standard supply of the enclosure.PF/PLMPFI/PLMH2V2H1V115 8** For PLM-32 modeland PFI/PLMFor attachmentto enclosuresFixing centres (mm)Reference Horizontal position Vertical positionInsulatedStainless steelHeight (H1) Width (H2) Height (V1) Width (V2)PLM-32 PF/PLM-32 - 247 239 334 152PLM-3025 PF/PLM - 275 355 410 220PLM-43 PF/PLM PFI/PLM 355 360 490 225PLM-54 PF/PLM PFI/PLM 455 460 590 325PLM-64 PF/PLM PFI/PLM 555 465 690 330PLM-75 PF/PLM PFI/PLM 655 565 790 430PLM-86 PF/PLM PFI/PLM 755 665 890 530PLM-108 PF/PLM PFI/PLM 955 885 1090 7503/44

POLYMELComposition accessoriesPost fixing setAllows the enclosure to be fixed to concrete, wood or aluminium posts up todiameters of 675 mm.c For exterior installations, provisional works or fairs, public lighting panels, etc.c Galvanised steel fixing loop and profiles.c Profiles attach to the back of the enclosure using M8 screws in the inserts(included in the standard supply).c Recommended maximum weight of the installation: 100 kg.For attachment to enclosuresPLM-43PLM-54 and PLM-64PLM-75PLM-86PLM-108ReferenceSFP-300SFP-400SFP-500SFP-600SFP-800Internal doorsInternal door set in fibre-glass reinforced polyester, except model PI-3025/PLM,made of sheet steel finished with polyester-epoxy RAL-7032 paint.Insulating door specifications:c Self-extinguishing.c Grid pattern on the inside of the door for alignment of equipment.c Quick locking through 1/4 turn sealable screws.c Door opens in both directions.Reference A B C DCDBPI-3025/PLM* 248 165 62 76PIP-43 315 205 152 26PIP-54 415 305 152 26PIP-64 515 305 194 32PIP-75 615 405 244 32PIP-86 715 505 244 32PIP-108 850 650 269 37A* Plain internal door, dimensions A and B corresponding to the usable surface of the door.3/45

POLYMELComposition accessoriesSpare doorsDoors to be changed or repositioned on PLM enclosures.c Made of fibreglass-reinforced self-extinguishing polyester in grey RAL-7032.c For maximum usable surface, the plain door has a grid pattern for centringcomponents.c Door opening to > 180°.Type of doorFor attachment to enclosuresPlainTransparentPLM-3025 PUPLM-3025 KTPLM-3025PLM-43 PUPLM-43 KTPLM-43PLM-54 PUPLM-54 KTPLM-54PLM-64 PUPLM-64 KTPLM-64PLM-75 PUPLM-75 KTPLM-75PLM-86 PUPLM-86 KTPLM-86PLM-108 PUPLM-108 KTPLM-108Locks for polyester enclosuresLocks up to PLM-86Standard double bar lock, with zinc-alloy inserts, operation with LDB 5or DBP wing key (conforming to DIN 43668).Reference: CDB/PLM.TRANSFORMING INSERT OF STANDARD LOCK INTO STANDARDISED VERSIONSSpecificationsType of key operation ref.Referencev 6 mm square lock LC-7 TC6/CRNv 7 mm square lock LC-7 TC7/CRNv 8 mm square lock LC-8 TC8/CRNTriangle lock with ∆ 6.5 mm side LT-8 TT7/CRNTriangle lock with ∆ 8 mm side LT-8 TT8/CRNHandle lock with 405 keyTL/PLMHandle lock with key 220Stainless steel padlockingdevice (up to PLM 86)Fixed wing lockDouble bar wingTL220/PMKPLMCDB/PLMDBP3/46

POLYMELComposition accessoriesPLM... CME locksStandard handle locks without insert in models PLM… CME.LOCKS (INSERTS) FOR PLM...CME ENCLOSURESSpecificationsType of key operation ref.ReferenceDouble bar lock LDB 5 TDB/PLDTriangle lock with ∆ 8 mm side LT-8 TT7/PLDLock with key type 405TCL/PLDKey-operated LockReinforced typeTLR/PLDKey-operated LockTJIS/PLDPadlock lockManual lockBCME/PLTEM/PLDFour-point locks for PLM-108Standard double-bar lock for model PLM-108 in its plain door and KTtransparent door versions. Operation with LDB 5 key or DBP wingkey (conforming to DIN 43668).TRANSFORMATION FROM FOUR-POINT LOCK TO DIFFERENT TYPES OFLOCKS OR FOR ENCLOSURESSpecificationsType of key operation ref.Referencev 6 mm square lock LC-7 TC 6/PLv 7 mm square lock LC-7 TC 7/PLv 8 mm square lock LC-8 TC 8/PLTriangle lock with ∆ 7 mm side LT-8 TT 7/PLTriangle lock with ∆ 8 mm side LT-8 TT 8/PLPadlocking deviceBC/PLSTANDARD TRANSFORMATION FOR PLM-108 ENCLOSURE RETRACTABLEHANDLE LOCK WITH DIFFERENT TYPESSpecificationsType of key operation ref.ReferenceDouble bar lock LDB 5 TEDB/PLv 6 mm square lock LC-7 TEC 6/PLv 7 mm square lock LC-7 TEC 7/PLv 8 mm square lock LC-8 TEC 8/PLTriangle lock with ∆ 7 mm side LT-8 TET 7/PLTriangle lock with ∆ 8 mm side LT-8 TET 8/PLLock with key type 405TEL/PLKey-operated LockReinforced typeTER/PLLock with JIS keyTEL-JIS/PLLock with FAC keyManual lockHandle without lockPadlocking deviceHandle for PLM-108TEL-FAC/PLTEM/PLTE/PLBCME/PLTEM/PL3/47

POLYMELMounting accessoriesMounting platesA complete range of mounting plates comprised of 4 versions able toprovide all the mountings required for this installation system.c Metal plates of galvanised sheet steel.c Microperforated plates made of galvanised sheet steel with 3.6 mm ∅holes, 12.5 mm apart.c Universal perforated plates for fast fixing of equipment, made of zinc steel.c Insulating bakelite or polyester plates.MetalMicroperforatedMetalPerforatedUniversalBakelitePolyesterSSE15SS12,5PD10,5 10,512,5PPø6,5A-7525 2520ø8,5A-75Pø3,6Universal perforated12,512,5 25 25B-7512,512,512,5B-75BakelitePolyesterFor attachmentto enclosuresMetalBakeliteInsulatedPolyesterPerforatedUniversalHeight(A)Width(B)P S ReferenceThickness(mm)Weight(kg)ReferenceThickness(mm)Weight(kg)ReferenceThickness(mm)Weight(kg)ReferenceThickness(mm)Weight(kg)Reference D E310 215 265 150 MM-32 2 0.6 MB-32 4 0.2 MP-32 4 0.3 MF-32 2 0.3 MR-32 255 154308 255 265 200 MM-3025 2 0.6 MB-3025 4 0.3 MP-3025 4 0.4 MF-3025 2 0.5 MR-3025 253 228430 330 365 250 MM-43 2 1.6 MB-43 4 0.5 MP-43 4 0.7 MF-43 2 1.5 MR-43 348 251530 430 465 350 MM-54 2 2.5 MB-54 4 0.9 MP-54 4 1.2 MF-54 2 2.4 MR-54 450 351647 435 565 350 MM-64 2 3.1 MB-64 4 1.1 MP-64 4 1.4 MF-64 2 3 MR-64 555 351747 536 665 450 MM-75 2 4.6 MB-75 4 1.7 MP-75 4 2.1 MF-75 2 4.3 MR-75 645 451847 636 765 550 MM-86 2.5 9.9 MB-86 4 2.3 MP-86 5 3.8 MF-86 2.5 9 MR-86 750 5511056 812 965 750 MM-108 2.5 16.9 MB-108 5 5.7 MP-108 5 6.5 MF-108 2.5 16 MR-108 945 7513/48

BPOLYMELMounting accessoriesAdjustable plate supportSupports designed to fit 200, 250, 300 and 350 mm deep enclosures.With positioning notches along its entire length for depth adjustment of themounting plate every 12.5 mm.c Made of galvanised sheet steel.c Quick fixing to the enclosure.For attachment to enclosures Reference A BPLM-43 and 54 DPLM-200 156 94PLM-64 DPLM-250 200 100PLM-75 and 86 DPLM-300N 250 100PLM-108 DPLM-350 306 106AFixing accessories for universal platesFixing nutFixing screw with washerThread typePackagingLength(mm)PackagingM3 TFP 3 100 - - -M4 TFP 4 100TOR 10/4 A 10 100TOR 16/4 A 16 100M5 TFP 5 100TOR 12/5 A 12 100TOR 18/5 A 18 100M6 TFP 6 100TOR 12/6 A 12 100TOR 18/6 A 18 100151126 mm1530 303/49

POLYMELMounting accessoriesRail fixing setc Insulating support and self-tapping screw for quick fixing of L brackets and35 mm symmetrical rails (Ref. TCO/PLM).c Insulating support and M6 inserted bolt for quick fixing of L brackets and35 mm symmetrical rails (Ref. TCO-M6/PLM).TCO/PLMReferenceTCO/PLMTCO-M6/PLMType of screwSelf-tappingM62535 mm symmetrical rail35 mm symmetrical rails to support equipment, specially adapted to the width ofthe enclosures.Fixing at the back of the enclosure using the TCO/PLM set.For attachment to enclosures Reference WidthPLM-32 CO-200/PLM 180PLM-43 CO-300/PLM 280PLM-54 and 64 CO-400/PLM 380PLM-75 CO-500/PLM 480PLM-86 CO-600/PLM 580PLM-108 CO-800/PLM 7953/50

POLYMELCurrent distribution accessoriesGCR tiesClip in fasteners to be installed directly on 19” racks and on slotted MRmounting plates.Reference: GCR.Adjustable tiesMade of 6.6 nylon in natural colour or black for outdoor conditions.WhiteReferenceBlackLM∅minimumUse∅maximumLZ25100 LN25100 100 2.5 1.6 22LZ25200 LN25200 200 2.5 1.6 49LZ35150 LN35150 150 3.5 1.6 35LZ35200 LN35200 200 3.5 1.6 49LZ35300 LN35300 300 3.5 1.6 75LZ46150 LN46150 150 4.6 1.6 36LZ46200 LN46200 200 4.6 1.6 49LZ48270 LN48270 270 4.8 1.6 73LZ46390 LN46390 390 4.6 1.6 109LZ76390 LN76390 390 7.6 4.7 108Tightening toolsTo tighten and cut to size the adjustable ties. They facilitate wiring and savetime, preventing the packets of cables from loosening.Tool adjustable according to the thickness of the tie. Can be used with thefollowing models: LZ25100 up to LZ46390. Ref.: MARK3.A very light and ergonomic tool, the cut on the tie is done by twisting thetool. Can be used on the following models of ties: LZ25100 up to LZ46390.Ref.: MARK20, 21.ReferenceAdmissible width tiesMARK3 2.5 ÷ 4.8ReferenceAdmissible width tiesMARK20 2.5 ÷ 4.8MARK21 4.6 ÷ 7.63/51

POLYMELCurrent distribution accessoriesLocking clipsAllows fixing ties from the series LZ25100 up to LZ46390 on panels up to3.2 mm thick. Material: 6.6 nylon.SFC2SFC1Reference∅ PerforationmmMax. panelthickness mmFigureSFC1 6 3.2 1SFC2 6 1 2Fig. 1 Fig. 2StudTo use with soft materials: 7 mm Ø hole, or hard materials: 8 mm Ø hole.Ties are attached up to 9 mm width. Material: black 6.6 nylon.Ref.: LOK01.Tie fixing supportTo attach one or two ties, mounted with a single screw. Material: 6.6 nylon.Allows for attaching ties from the entire range.Reference A B C Fixing screwAdmissible widthtiesKR6 12 18 9 M4 2.5 ÷ 4.8KR8 14.5 25 12 M6 2.5 ÷ 7.63/52

POLYMELCurrent distribution accessoriesSupport headsTo transform normal ties into ties with fixing heads, introduce a tie into thishead before closing it on the cable bundle. Material: 6.6 nylon.Reference A B C Fixing screwAdmissible widthtiesFH18 7.1 13.3 4 M4 2.5FH30 9.5 17.9 4.7 M5 3.5FH50 11.3 22.2 6.2 M6 4.7Self-adhesive support basePermits insertion of 1 tie from 4 points at a 90º angle. Attaches ties from theseries LZ25100 up to LZ46390. Material: 6.6 nylon.Reference A B C DEAdmissible widthtiesMB3A 19.1 19.1 4.8 3.2 13.2 2.5 ÷ 3.5MB4A 28.5 28.5 5.5 4 20.2 2.5 ÷ 4.8adhesive supportTie fixing supportTo attach ties from any series. Material: 6.6 nylon.ReferenceAdmissible widthties mmFixing screwLKC 2.5 7.6 M53/53

POLYMELCurrent distribution accessoriesLateral tie fixing supportCovers the head of the tie in its end, thus obtaining neater cabling.Material: 6.6 nylon.ReferenceAdmissible widthties mmFixing screwLKM/HE 2.5 7.6 M5Fixing loop for tubes, hoses, etc.2 versions, fixed and graduated, ∅ from 5 to 25.4 mm. Material: black 6.6 nylon.Reference∅ Amin. - max.B CD ENX1 5 3.5 1 6.2 13.7NX3 8 3.9 1 9.4 20.5NX5 12 3.9 1 9.4 24NX8* 14.3 ÷ 15.8 4 1.3 12.6 32NX11 17.4 ÷ 20 4 1.3 12.6 37NX14 22.2 ÷ 25.4 4.3 1.5 16 45*The NX8 model only has 3 adjustment holes.NX 1-3-5 NX 8-11-143/54

POLYMELCurrent distribution accessoriesAdjustable membrane glandsInsulating membrane glands made of PVC with entry that can be adjustedfor cables.Fig. 1 Fig. 2Reference Fig. Ø A Ø B* Ø C Ø D E FØ cableCapacityTubeECPC-3 1 25 21.5 18 5 3.2 13 5 to 18 Pg 9 to 11ECPC-5 1 33 29.5 26 5 3.2 20 5 to 26 Pg 9 to 16ECPC-6 1 43 38.5 36 5 3.2 22 5 to 36 Pg 9 to 21ECPC-9 2 70 63 60 28 3 20 28 to 60 Pg 21 to 48ECPC-15 2 98 90 87 28 3 23 28 to 87 Pg 21 to 48* Mounting perforation.Protective sleevesSmall protective sleeves for cables coming out of tubes, as indicated in theinstructions for MI BT 019. Made of flexible and durable PVC, in light greycolour.Reference A Ø B TubePC-1 15.2 12.7 Pg 9PC-2 18.6 16 Pg 11PC-3 20.4 17.8 Pg 13.5PC-4 22.5 19.8 Pg 16PC-5 28.3 25.3 Pg 21PC-6 37 33.6 Pg 29PC-7 47 43 Pg 36Ø BØ A3/55

POLYMELCurrent distribution accessoriesUseful information about Pg tubes and HIMEL accessories to be coupledMODELS, DIMENSIONS AND REFERENCESDesignationØexteriorSteelFlexiblesteelØ interiorTubesCables inserted*Ø perforationstoFlexibleNo. of conductorsPVC steel withInsert ThreadPVC 1 2 3 4HIMEL accessories to be coupledTo the tubesAdjustablemembrane glandsProtectivesleevesTo the perforationsAdjustablemembraneglands4 EC-1 to EC-7Pg 9 15.2 12.7 12.4 12 11.1 6 2.5 - - 16 14 ECPC-3 to ECPC-6 PC-1 - -ECN-5 to ECN-1010 4 2.5 EC-2 to EC-7 EC-1Pg 11 18.6 16 15.5 14.5 14.2 16 6 4 2.5 19 17.5 ECPC-5; ECPC-6 PC-2 EC-2 TC-125 ECN-5 to ECN-10 ECN-1EC-3 to EC-7EC-3Pg 13.5 20.4 17.8 17.5 16.3 16 35 10 6 4 21 19.5 ECPC-5; ECPC-6 PC-3 ECPC-3 TC-2ECN-5 to ECN-10EC-4 to EC-7Pg 16 22.5 19.8 18.7 18.5 17.6 50 16 10 6 23 21.5 ECPC-5; ECPC-6 PC-4 EC-4 TC-3ECN-5 to ECN-10EC-5 to EC-7EC-5Pg 21 28.3 25.3 24.7 23 23 70 25 16 10 29 27 ECPC-6 to ECPC-15 PC-5 ECPC-5 TC-4ECN-6 to ECN-10ECN-595 35 25 16 EC-6; EC-7 EC-6 TC-5Pg 29 37 33.6 33.5 31 31 120 50 35 25 38 35.5 ECPC-9; ECPC-15 PC-6 ECPC-6 TCP-5150 ECN-7; ECN-10 ECN-6185 35 EC-7 EC-7Pg 36 47 43 41.5 41 40.3 240 70 50 50 48 45.5 ECPC-9; ECPC-15 PC-7 ECN-7 TC-6300 ECN-1095 70 ECPC-9; ECPC-15Pg 42 54 50 48 48 47 - 120 95 70 55 52.5 ECN-10 - - -120 95 ECPC-9; ECPC-15Pg 48 60 56 54.2 52.5 51.4 - 150 150 120 61 58 ECN-10 - - -* Number and section in mm 2 of the conductors that may be housed inside each tube (orientative).For more information, consult the electrotechnical rules for low voltage (MI BT 019).Plain plugs3/56

POLYMELCurrent distribution accessoriesSigma safety terminalsBase of safety terminals made of black matte self-extinguishing polyamide-6;terminal of brass MS-58.(DIN17660); ring of tempered steel zinc dichromate; cap made of orangeself-extinguishing polypropylene.c Anti-cut. The connection is made using a tightening mechanism thatspreads the pressure out throughout the entire contact surface, avoidingthe occasional rubs and stresses that damage the conductors.c Loosening proof. The ring that surrounds the brass body ensures that thepressure exerted by the conductors cannot open the terminal and loosenthe connection.c Total insulation. All the SIGMA terminals are supplied with a terminal cap,avoiding any accidental contact with live parts.All the calibres may be coupled one to the other, allowing the formation ofstrips of any length. Service voltage: 500 V.ReferenceSectionm/m 2 A B C D ES.04 1 × 4 30 20 13 21 4S.06 1 × 6 33 25 16 24 7S.10 1 × 10 38 28 16 28 6S.16 1 × 16 42 32 19 32 9S.25/35 1 × 35 46 38 23 34 11S.50 1 × 50 52 45 27 40 15S.70 1 × 70 55 50 30 40 15S.95/100 1 × 100 58 54 33 40 20NOTE: each terminal accepts up to 2 conductors of the section indicated.Bypass terminal blocksEarth and neutral bypass terminal blocks with insulated plinth.Direct fixing by pressure on the profile supplied by the chassis itself.ReferenceNumber of terminals section in mm 2RBLZ/21656* 216 mm 2 + 56 mm 2RBLZ/21686 216 mm 2 + 86 mm 2RBLZ/216146 216 mm 2 + 146 mm 2RBLZ/216296 216 mm 2 + 296 mm 2* Included in standard supply.3/57

POLYMELCurrent distribution accessoriesBimetal BBH terminalsBBH-29BBH-29DTerminals especially designed for branching cables on plates; their mainapplication is busbar connection.BBH terminals are made of a tinned, hot cast copper alloy and are suitablefor connecting to a conductor of copper or aluminium indistinctly (bimetal).ReferenceMain section mm 2 Bypass section mm 2BBH-29PBBH-29DPBBH-29 6-50 -BBH-29C* 6-50 -BBH-30 10-95 -BBH-31 16-150 -BBH-32 50-240 -BBH-29D 6-50 6-50BBH-29DC* 6-50 6-50BBH-30D 10-95 10-95BBH-31D 25-150 16-150BBH-32D 95-240 5-240ReferenceMain section mm 2 Bypass section mm 2BBH-29P 6-50 -BBH-29PC* 6-50 -BBH-29DP 6-50 6-50BBH-29DPC* 6-50 6-50* Include terminal cover CBBH-29.Plate/cable terminalsPlate entry and bypass by cable.ReferenceCable bypass section(mm 2 )Plate thickness (mm)FigureBPCH 516 1.5 to 16 5 2BPCH 550 1.5 to 50 5 2BPCH 5120 16 to 120 5 2BPCH 1016 1.5 to 16 10 1BPCH 1050 1.5 to 50 10 1BPCH 10120 16 to 120 10 11 23/58

POLYMELLighting accessoriesCompact lamp355907066Compact fluorescent lamps, designed especially for use in electronicenclosures. May be fixed with a magnet.c Connection voltage 220 V/50 Hz.c Consumption 11 W.c Connection/disconnection switch.c 200 V/16 A socket with earthing.c Maximum ambient temperature 60 °C.c Lighting output = 75 W bulb.SpecificationsReferencePlugTensionLamp fixed with a magnet oron 35 mm symmetric LAM-75 220 V/16 A 220 V/50 HzDIN rail.Lamp fixed on a 35 mmsymmetric DIN rail.LAC-75 220 V/16 A 220 V/50 HzLamp fixed with a magnetor on 35 mm symmetric LAM-75/120 120 V/15 A 120 V/60 HzDIN rail.Lamp fixed on a 35 mmsymmetric DIN rail.LAC-75/120 120 V/15 A 120 V/60 HzSlimline lampMagnetic-fixing flat lamps equipped with energy efficient light bulbs, with orwithout a plug.c Electronic ballast.c Power: 11 W.c Luminosity: 900 lm.c Lifespan: 10000 h.c Plastic casing UL94 V0.c IP20.c Class I.Reference Plug Socket ApprovalLAMS75 AC 230 V/16 A SCHUKO VDELAMX75 AC 230 V/- - VDELAMU75 AC 120 V/15 A USA UL3/59

POLYMELLighting accessoriesIncandescent lampIncandescent lamp designed especially for use in electronic enclosures.c Connection voltage 220 V/50-60 Hz.500c Consumption 60 W.c Connection/disconnection switch.c Terminal connection entry.ReferenceLAI/OL 68Dual lamp1Light fixtures designed especially for use in electronic enclosures with variouspossibilities for fixing and operating.c Energy efficient electronic lamp E27, 20 W, 220-240 V/50-60 Hz or120 V/60 Hz.c Lighting output = 100 W bulb.2c Fixed models connection via 2.5 mm 2 terminal strip and the mobile modelvia cable.c Degree of protection IP20.c Insulation class II.c Conforming to EN 55014 and EN 50082-1.3Specifications Support fixing Figure Reference TensionMotion-activatedMagnetic, using screws LAMDP 220 V/56 Hz1and/or (1) 35 DIN railLAMDP 120 120 V/60 HzOn/off switch with the possibility Magnetic, using screws LAMIN 220 V/50 Hz2of connection of door switch and/or (1) 35 DIN railLAMIN 120 120 V/60 HMobile lamp, connectionLAMPO220 V/50 HzAdhesive or screws 3via cableLAMPO 120 120 V/60 HzSupport for LAMDP, LAMIN,LAMPO lampAdhesive or screws 4 SOLAM(1) DIN rail not provided.4671003963/60

POLYMELNatural ventilation accessoriesVentilation devicesTo connect the inside of the enclosure with the exterior atmosphere andprevent condensation. Can be fixed onto the outside, Ref.: VM-25and VM-27 or onto the internal sides connected with the rear self-ventilatingwindows of the POLYMEL enclosures, Ref.: VM-35.ReferenceVM-25VM-27VM-35SpecificationsFor coupling to the outside of all polyester enclosuresFor coupling to the interior of POLYMEL enclosuresVM-25VM-27VM-35Purging deviceTo remove condensation water.Mounted on the ∅ 9 mm housing on the inside of the bottom of the enclosure.Degree of protection IP55.ReferenceVEA-9SpecificationsFor attachment to all enclosuresRear blanking platesRear blanking plates in insulating material to protect against unwantedelements entering into the self-ventilating window of the enclosure.Not included in standard supply with the enclosure except for model 108which has it built in.For attachment to enclosuresPLM-32PLM-43 and 54PLM-64, 75 and 86ReferenceCE-PLM/ACE-PLM/BCE-PLM/C3/61

POLYMELComplementary accessoriesExpandable nutsDodge-type brass nuts designed to be incorporated into the bosses of PLMenclosures.SpecificationsFor attachment to enclosuresReferenceM5 PLM-43 and 54 TEX 5M6 PLM-64 and 108 TEX 6M8 For the back of the enclosure TEX 8TEX 8 TEX 6 TEX 5Document pocketPP-A models made of thermo-plastic in grey RAL-7035.c Fixed with adhesive tape or screws.For holding A4 or A5-sized plans.InsulatedPlan sizeA4A5ReferencePP-A4PP-A5174234188 22 278 40Ref.: PP-A5Ref.: PP-A43/62

POLYMELApplicationsDinimel DLA distribution chassisPLM-64/KT + DLA-48PDistribution chassis set for modularequipment, Ref.: DLA-... with a distancebetween the 35 mm symmetric profileand the cover, which is adjustable asneeded by the customer from 40 to85 mm.c Rigid structure made of galvanised steel.c Insulating cover and frame in self-extinguishing material in RAL-7035.Quick mounting, without the need for screws.c System for identifying circuits included in the standard supply.c Earth and neutral bypass terminal blocks. Ref.: RBLZ/21656 (included instandard supply).3/63

POLYMELApplicationsDimensions (mm)* Models DLA-48P, 66, 88, 84 and 112.DLA-24 DLA-48 DLA-48P DLA-66 DLA-88DLA-84 DLA-112 DLA-240To be coupledto enclosures*Distribution of rowsDimensionsReferenceAutomatic railPlain door Transparent door No. of rowsNo. of 18 mm No. of platesQuantitymodulesA B C D min. E min.PLM-3025 PLM-3025/KT DL/PLM18 2 2 18 - - - - - -PLM-43 PLM-43/KT DLA-24 2 2 24 - 216 115 137 38 88PLM-54 PLM-54/KT DLA-48 3 3 48 - 288 90 112 38 88PLM-64 PLM-64/KT DLA-48P 3 3 48 - 288 140 170 80 130PLM-75 PLM-75/KT DLA-66 4 3 66 1 395 115 145 129 179PLM-75 PLM-75/KT DLA-88 4 4 88 - 395 115 145 129 179PLM-86 PLM-86/KT DLA-84 4 3 84 1 504 165 195 129 179PLM-86 PLM-86/KT DLA-112 4 4 112 - 504 165 195 129 179PLM-108 PLM-108/KT DLA-240 6 6 234 - 704 115 146 170 220* For PLM.../CME enclosures with three-point locks, factory assembly3/64

POLYMELApplicationsPlain Dinimel DLA coverInsulating cover in self-extinguishing material in RAL-7035 to protect nonmodularequipment. Height: 150 mm (1 row).To be coupled to chassisReferenceReferenceDLA-24 CTL300/DLA 256DLA-48 and 48P CTL400/DLA 356DLA-66 and 88 CTL500/DLA 456DLA-84 and 112 CTL600/DLA 555DLA-240 CTL800/DLA 755Dinimel DLA mounting plateMounting plate in galvanised steel for fixing non-modular equipment. Height:150 mm (1 row).To be coupled to chassisReferenceWidthDLA-24 PMP300/DLA 215DLA-48 and 48P PMP400/DLA 315DLA-66 and 88 PMP500/DLA 415DLA-84 and 112 PMP600/DLA 514DLA-240 PMP800/DLA 714Blanking plateBlanking plate of self-extinguishing insulating material for total or partialcoverage of the windows for automatic switches. Easily cut to the desiredsize.ReferenceLength (mm)No. of modulesATP6/DTM 108 6ATP24/DTM 432 24ATP/UND 1100 Cut to size3/65

POLYMELApplicationsBypass terminal blocksEarth and neutral bypass terminal blocks with insulating plinth.Direct fixing by pressure on the profile supplied by the chassis itself.ReferenceNumber of terminals 3 section in mm 2RBLZ/21656* 216 mm 2 + 56 mm 2RBLZ/21686 216 mm 2 + 86 mm 2RBLZ/216146 216 mm 2 + 146 mm 2RBLZ/216296 216 mm 2 + 296 mm 2* Included in standard supply.Distribution barsFor the distribution in a single row of automatic switches with a total of 12modules.1 2No. of bars No. of poles per bar Reference Figure No.1 12 BDS 1/12 12 6 BDS 2/6 23 4 BDS 3/4 34 3 BDS 4/3 43 43/66

POLYMELApplicationsPOLYMEL enclosures in exterior industrial installationsDue to the quality of the plastic materials and their constructivecharacteristics, POLYMEL enclosures are suitable for panels in installationssubjected to contact with chemical agents and harsh environments, usually,for example, in the petrochemical, cement making, etc. industries.POLYMEL enclosures in interior industrial installationsTheir high degree of protection (IP66) and their high resistance to impactsand temperature make POLYMEL enclosures particularly ideal for industrialinstallations subjected to processes with frequent water projection, such asthe paper-making and agri-food industries or automobile washes.POLYMEL enclosures in leisure facilitiesTheir resistance to corrosion and UV rays permits POLYMEL enclosures tobe adapted to panels in exterior installations subjected to long exposures tothe sun: winter sport stations, installations close to the sea, etc.3/67

PLA polyester modular enclosures1 2 3 4 5 6 71 Wall fixing brackets.5 Detail of fixing theglass to the inside of thedoor.8 Detail of bosses on thedoors, back and lower partof the enclosure for fixing ofvarious materials.14 13 12 11 10 9812 Mounting plate fixingsupport, adjustable every25 mm.3/68

2 2-point locking system(up to 750 mm height) or4-point locking system(from 1,000 mm height).3 The enclosureswith canopies allowself-ventilation of theenclosure, preventingcondensation andmaintaining the IP54.4 Detail of 120º hingewith easily removablestainless steel safetypin. Seal that guaranteesIP65 watertightness.6 Ribbed door to makefixing of posters difficult.Likewise, this unevensurface makes thedoor thicker and alsoimproves the robustnessof the enclosure.7 The locking system is outside the sealed area,which guarantees the IP over time. Handle lock withdetail of the cover that hides the lock device.9 Anti-vandalismreinforcement.10 Door opening to180º, which improvesaccessibility to the interiorof the enclosure withplinth and canopy. Theplinth-type base allowsdirect floor fixing.11 Door retainer.13 PLAZ... enclosureswith open plinth-typebottom for easy cableentry.14 Metal, insulating oruniversal mounting platesto be fixed directly to theback of the enclosureor by using adjustablesupports.3/69

CONSTRUCTION SYSTEMSTable of formation referencesEnclosures with closed baseEnclosures with open plinth-type baseClosed topSelf-ventilated top withcanopyClosed topSelf-ventilated top withcanopyGeneral table with the construction systems on the horizontal axisand the various versions of doors on the vertical axis, offering apanoramic view of the formation of all the possibilities of references.PLA... PLA...T PLAZ... PLAZ...TDoor opening120° 120°120°180°Degree of protectionIP65IP54IP54IP54Plain doorPLA/PLAZ...PLA 1054 PLA 1054 T PLAZ 1054 PLAZ 1054 TTransparent doorPLA/PLAZ...KTPLA 1054 KT PLA 1054 TKT PLAZ 1054 KT PLAZ 1054 TKTRibbed doorPLA/PLAZ...RPLA 1054 R PLA 1054 TR PLAZ 1054 R PLAZ 1054 TRPlain front andback doorsPLA/PLAZ...PTransparent front door andplain back doorPLA/PLAZ...PKTPLA 1054 P PLA 1054 TP PLAZ 1054 P PLAZ 1054 TPPLA 1054 PKT PLA 1054 TPKT PLAZ 1054 PKT PLAZ 1054 TPKTRibbed front and back doorsPLA/PLAZ...PRPLA 1273 PR PLA 1273 TPR PLAZ 1273 PR PLAZ 1273 TPREXAMPLES OF FORMING REFERENCESConstruction systemsWith baseDimensions (mm)Examples of enclosuresHeight: 1,000 Width: 500 Depth: 420Top and bottom closed, with transparent door.Ref.: PLA 1054 KTHeight: 1,200 Width: 750 Depth: 320Self-ventilated top with canopy, open plinth-type bottom, ribbed frontand back doors.Ref.: PLA Z 1273 TPRClosed Open, plinth-type Height Width DepthPLA -XX XX X- PLAZPLA - 10 5 4- PLAZ 12 7 33/70

The table showing each of the dimensions (height, width and depth)determines the digits to use when forming the references.The tables in grey and blue have to do with to the examples of thereference formation table.Nominal dimensions (mm)Height Width Depth5 005 007 50 3 207 5010 0010 0012 50 4 2012 5015 00With topDoor versionClosedSelf-ventilatedwith canopyPlain Transparent Ribbed Plain front cover and back Ribbed front cover and back- T - KT R P PR- - - KT - - -- T - - - - PR3/71

PLA...Polyester enclosures completely closedIP65 (EN 60529)PLA 1253PLA 12123Hot-press moulded fibreglass-reinforcedpolyester enclosures, in grey RAL-7032(able to withstand weather conditions).Construction specificationsc Resistance to the main chemical agents and corrosive environments.c Stabilised against UV rays.c Door reversibility with opening to 120º, with max. admissible load of 30 kg/m 2 .c Lock outside of the sealed area, with a 2-point locking system up to750 mm height, 4-point locking system from 1000 mm height.c Interior of the enclosure equipped with bosses for M8 inserts. They allowdirect fixing of mounting plates and/or the desired installation system,accessories, etc.Technical specificationsc Conforms to general rules for empty enclosures established in IEC andEN 62208.c IP65 conforming to IEC 60529 (EN 60529).c High resistance to mechanical impacts IK10 (20J) conforming to IEC andEN 62262).c Self-extinguishing, conforming to IEC 60695-2-1 (960°).c Extreme operating temperatures from –50 to +150 ºC.c Suitable for double insulation profiles conforming to IEC 60439-1 (EN 60439-1).c Resistant to corrosion.3/72

PLA...Completely closed polyester enclosuresIP65 (EN 60529)Basic compositionc Enclosure with top and base completely closed.c Sealing gasket.c Plain, transparent or ribbed door.c KT model: transparent door of tempered glass with a high resistance tomechanical impacts IK08 (5J) conforming to EN 62262.c ..R model: ribbed door to make fixing of posters difficult and with “antilever”hinges.c Back panel or door.c Reversible door with 2 hinges up to 750 mm height, and 4 from 1000 mmheight.c Standard double bar lock, operated by key LDB5.c Two-door enclosures have a central profile.SELECTION TABLE FOR CLOSED POLYESTER ENCLOSURESNominal dimensions (mm)Height Width Depth No. of doors500 500 320 1 PLA 553 PLA 553 R PLA 553 KT PLA 553 P PLA 553 PR PLA 553 PKT420 1 PLA 554 PLA 554 R PLA 554 KT PLA 554 P PLA 554 PR PLA 554 PKT750 320 1 PLA 573 PLA 573 R PLA 573 KT PLA 573 P PLA 573 PR PLA 573 PKT420 1 PLA 574 PLA 574 R PLA 574 KT PLA 574 P PLA 574 PR PLA 574 PKT1000 320 2 PLA 5103 PLA 5103 R PLA 5103 KT PLA 5103 P PLA 5103 PR PLA 5103 PKT420 2 PLA 5104 PLA 5104 R PLA 5104 KT PLA 5104 P PLA 5104 PR PLA 5104 PKT1250 320 2 PLA 5123 PLA 5123 R PLA 5123 KT PLA 5123 P PLA 5123 PR PLA 5123 PKT420 2 PLA 5124 PLA 5124 R PLA 5124 KT PLA 5124 P PLA 5124 PR PLA 5124 PKT750 500 320 1 PLA 753 PLA 753 R PLA 753 KT PLA 753 P PLA 753 PR PLA 753 PKT420 1 PLA 754 PLA 754 R PLA 754 KT PLA 754 P PLA 754 PR PLA 754 PKT750 320 1 PLA 773 PLA 773 R PLA 773 KT PLA 773 P PLA 773 PR PLA 773 PKT420 1 PLA 774 PLA 774 R PLA 774 KT PLA 774 P PLA 774 PR PLA 774 PKT1000 320 2 PLA 7103 PLA 7103 R PLA 7103 KT PLA 7103 P PLA 7103 PR PLA 7103 PKT420 2 PLA 7104 PLA 7104 R PLA 7104 KT PLA 7104 P PLA 7104 PR PLA 7104 PKT1250 320 2 PLA 7123 PLA 7123 R PLA 7123 KT PLA 7123 P PLA 7123 PR PLA 7123 PKT420 2 PLA 7124 PLA 7124 R PLA 7124 KT PLA 7124 P PLA 7124 PR PLA 7124 PKT1000 500 320 1 PLA 1053 PLA 1053 R PLA 1053 KT PLA 1053 P PLA 1053 PR PLA 1053 PKT420 1 PLA 1054 PLA 1054 R PLA 1054 KT PLA 1054 P PLA 1054 PR PLA 1054 PKT750 320 1 PLA 1073 PLA 1073 R PLA 1073 KT PLA 1073 P PLA 1073 PR PLA 1073 PKT420 1 PLA 1074 PLA 1074 R PLA 1074 KT PLA 1074 P PLA 1074 PR PLA 1074 PKT1000 320 2 PLA 10103 PLA 10103 R PLA 10103 KT PLA 10103 P PLA 10103 PR PLA 10103 PKT420 2 PLA 10104 PLA 10104 R PLA 10104 KT PLA 10104 P PLA 10104 PR PLA 10104 PKT1250 320 2 PLA 10123 PLA 10123 R PLA 10123 KT PLA 10123 P PLA 10123 PR PLA 10123 PKT420 2 PLA 10124 PLA 10124 R PLA 10124 KT PLA 10124 P PLA 10124 PR PLA 10124 PKT1250 500 320 1 PLA 1253 PLA 1253 R PLA 1253 KT PLA 1253 P PLA 1253 PR PLA 1253 PKT420 1 PLA 1254 PLA 1254 R PLA 1254 KT PLA 1254 P PLA 1254 PR PLA 1254 PKT750 320 1 PLA 1273 PLA 1273 R PLA 1273 KT PLA 1273 P PLA 1273 PR PLA 1273 PKT420 1 PLA 1274 PLA 1274 R PLA 1274 KT PLA 1274 P PLA 1274 PR PLA 1274 PKT1000 320 2 PLA 12103 PLA 12103 R PLA 12103 KT PLA 12103 P PLA 12103 PR PLA 12103 PKT420 2 PLA 12104 PLA 12104 R PLA 12104 KT PLA 12104 P PLA 12104 PR PLA 12104 PKT1250 320 2 PLA 12123 PLA 12123 R PLA 12123 KT PLA 12123 P PLA 12123 PR PLA 12123 PKT420 2 PLA 12124 PLA 12124 R PLA 12124 KT PLA 12124 P PLA 12124 PR PLA 12124 PKT1500 500 320 1 PLA 1553 PLA 1553 R PLA 1553 KT PLA 1553 P PLA 1553 PR PLA 1553 PKT420 1 PLA 1554 PLA 1554 R PLA 1554 KT PLA 1554 P PLA 1554 PR PLA 1554 PKT750 320 1 PLA 1573 PLA 1573 R PLA 1573 KT PLA 1573 P PLA 1573 PR PLA 1573 PKT420 1 PLA 1574 PLA 1574 R PLA 1574 KT PLA 1574 P PLA 1574 PR PLA 1574 PKT1000 320 2 PLA 15103 PLA 15103 R PLA 15103 KT PLA 15103 P PLA 15103 PR PLA 15103 PKT420 2 PLA 15104 PLA 15104 R PLA 15104 KT PLA 15104 P PLA 15104 PR PLA 15104 PKT1250 320 2 PLA 15123 PLA 15123 R PLA 15123 KT PLA 15123 P PLA 15123 PR PLA 15123 PKT420 2 PLA 15124 PLA 15124 R PLA 15124 KT PLA 15124 P PLA 15124 PR PLA 15124 PKT3/73

PLA...TPolyester enclosures with self-ventilated topwith canopy and closed baseIP54 (EN 60529)PLA 1253THot-press moulded, fibreglass-reinforced,self-ventilated polyester enclosures,in grey RAL-7032 (able to withstandweather conditions).Construction specificationsc Resistance to the main chemical agents and corrosive environments.c Stabilised against UV rays.c Door reversibility with opening to 120º, with max. admissible load of 30 kg/m 2 .c Lock outside of the sealed area, with a 2-point locking system up to750 mm height, 4-point locking system from 1000 mm height.c Interior of the enclosure equipped with bosses for M8 inserts. They allowdirect fixing of mounting plates and/or the desired installation system,accessories, etc.Technical specificationsc Conforms to general rules for empty enclosures established in IEC andEN 62208.c IP54 conforming to IEC 60529 (EN 60529).c High resistance to mechanical impacts IK10 (20J) conforming to IEC andEN 62262.c Self-extinguishing, conforming to IEC 60695-2-1 (960°).c Extreme operating temperatures from –50 to +150 ºC.c Suitable for double insulation profiles conforming to IEC 60439-1 (EN 60439-1).c Resistant to corrosion.3/74

PLA...TPolyester enclosures with self-ventilated topwith canopy and closed baseIP54 (EN 60529)Basic compositionc Open top with canopy.c Base completely closed.c Sealing gasket.c Plain, transparent or ribbed door.c KT model: transparent door of tempered glass with a high resistance tomechanical impacts IK08 (5J) conforming to IEC and EN 62262.c ..R model: ribbed door to make fixing of posters difficult and with “antilever”hinges.c Back panel or door.c Reversible door with 2 hinges up to 750 mm height, and 4 from 1000 mmheight.c Standard double bar handle lock, operated by key LDB5.c Two-door enclosures have a central profile.SELECTION TABLE FOR CLOSED BASE, SELF-VENTILATED POLYESTER ENCLOSURESNominal dimensions (mm)Height Width Depth No. of doors500 500 320 1 PLA 553 T PLA 553 TR PLA 553 TKT PLA 553 TP PLA 553 TPR PLA 553 TPKT420 1 PLA 554 T PLA 554 TR PLA 554 TKT PLA 554 TP PLA 554 TPR PLA 554 TPKT750 320 1 PLA 573 T PLA 573 TR PLA 573 TKT PLA 573 TP PLA 573 TPR PLA 573 TPKT420 1 PLA 574 T PLA 574 TR PLA 574 TKT PLA 574 TP PLA 574 TPR PLA 574 TPKT1000 320 2 PLA 5103 T PLA 5103 TR PLA 5103 TKT PLA 5103 TP PLA 5103 TPR PLA 5103 TPKT420 2 PLA 5104 T PLA 5104 TR PLA 5104 TKT PLA 5104 TP PLA 5104 TPR PLA 5104 TPKT1250 320 2 PLA 5123 T PLA 5123 TR PLA 5123 TKT PLA 5123 TP PLA 5123 TPR PLA 5123 TPKT420 2 PLA 5124 T PLA 5124 TR PLA 5124 TKT PLA 5124 TP PLA 5124 TPR PLA 5124 TPKT750 500 320 1 PLA 753 T PLA 753 TR PLA 753 TKT PLA 753 TP PLA 753 TPR PLA 753 TPKT420 1 PLA 754 T PLA 754 TR PLA 754 TKT PLA 754 TP PLA 754 TPR PLA 754 TPKT750 320 1 PLA 773 T PLA 773 TR PLA 773 TKT PLA 773 TP PLA 773 TPR PLA 773 TPKT420 1 PLA 774 T PLA 774 TR PLA 774 TKT PLA 774 TP PLA 774 TPR PLA 774 TPKT1000 320 2 PLA 7103 T PLA 7103 TR PLA 7103 TKT PLA 7103 TP PLA 7103 TPR PLA 7103 TPKT420 2 PLA 7104 T PLA 7104 TR PLA 7104 TKT PLA 7104 TP PLA 7104 TPR PLA 7104 TPKT1250 320 2 PLA 7123 T PLA 7123 TR PLA 7123 TKT PLA 7123 TP PLA 7123 TPR PLA 7123 TPKT420 2 PLA 7124 T PLA 7124 TR PLA 7124 TKT PLA 7124 TP PLA 7124 TPR PLA 7124 TPKT1000 500 320 1 PLA 1053 T PLA 1053 TR PLA 1053 TKT PLA 1053 TP PLA 1053 TPR PLA 1053 TPKT420 1 PLA 1054 T PLA 1054 TR PLA 1054 TKT PLA 1054 TP PLA 1054 TPR PLA 1054 TPKT750 320 1 PLA 1073 T PLA 1073 TR PLA 1073 TKT PLA 1073 TP PLA 1073 TPR PLA 1073 TPKT420 1 PLA 1074 T PLA 1074 TR PLA 1074 TKT PLA 1074 TP PLA 1074 TPR PLA 1074 TPKT1000 320 2 PLA 10103 T PLA 10103 TR PLA 10103 TKT PLA 10103 TP PLA 10103 TPR PLA 10103 TPKT420 2 PLA 10104 T PLA 10104 TR PLA 10104 TKT PLA 10104 TP PLA 10104 TPR PLA 10104 TPKT1250 320 2 PLA 10123 T PLA 10123 TR PLA 10123 TKT PLA 10123 TP PLA 10123 TPR PLA 10123 TPKT420 2 PLA 10124 T PLA 10124 TR PLA 10124 TKT PLA 10124 TP PLA 10124 TPR PLA 10124 TPKT1250 500 320 1 PLA 1253 T PLA 1253 TR PLA 1253 TKT PLA 1253 TP PLA 1253 TPR PLA 1253 TPKT420 1 PLA 1254 T PLA 1254 TR PLA 1254 TKT PLA 1254 TP PLA 1254 TPR PLA 1254 TPKT750 320 1 PLA 1273 T PLA 1273 TR PLA 1273 TKT PLA 1273 TP PLA 1273 TPR PLA 1273 TPKT420 1 PLA 1274 T PLA 1274 TR PLA 1274 TKT PLA 1274 TP PLA 1274 TPR PLA 1274 TPKT1000 320 2 PLA 12103 T PLA 12103 TR PLA 12103 TKT PLA 12103 TP PLA 12103 TPR PLA 12103 TPKT420 2 PLA 12104 T PLA 12104 TR PLA 12104 TKT PLA 12104 TP PLA 12104 TPR PLA 12104 TPKT1250 320 2 PLA 12123 T PLA 12123 TR PLA 12123 TKT PLA 12123 TP PLA 12123 TPR PLA 12123 TPKT420 2 PLA 12124 T PLA 12124 TR PLA 12124 TKT PLA 12124 TP PLA 12124 TPR PLA 12124 TPKT1500 500 320 1 PLA 1553 T PLA 1553 TR PLA 1553 TKT PLA 1553 TP PLA 1553 TPR PLA 1553 TPKT420 1 PLA 1554 T PLA 1554 TR PLA 1554 TKT PLA 1554 TP PLA 1554 TPR PLA 1554 TPKT750 320 1 PLA 1573 T PLA 1573 TR PLA 1573 TKT PLA 1573 TP PLA 1573 TPR PLA 1573 TPKT420 1 PLA 1574 T PLA 1574 TR PLA 1574 TKT PLA 1574 TP PLA 1574 TPR PLA 1574 TPKT1000 320 2 PLA 15103 T PLA 15103 TR PLA 15103 TKT PLA 15103 TP PLA 15103 TPR PLA 15103 TPKT420 2 PLA 15104 T PLA 15104 TR PLA 15104 TKT PLA 15104 TP PLA 15104 TPR PLA 15104 TPKT1250 320 2 PLA 15123 T PLA 15123 TR PLA 15123 TKT PLA 15123 TP PLA 15123 TPR PLA 15123 TPKT420 2 PLA 15124 T PLA 15124 TR PLA 15124 TKT PLA 15124 TP PLA 15124 TPR PLA 15124 TPKT3/75

PLAZ...Polyester enclosures with closed top and openplinth-type baseIP54 (EN 60529)PLAZ 1253Hot-press moulded fibreglass-reinforcedpolyester enclosures, in grey RAL-7032(able to withstand weather conditions).Construction specificationsc Resistance to the main chemical agents and corrosive environments.c Stabilised against UV rays.c Door reversibility with opening to 120º, with max. admissible load of30 kg/m 2 .c Lock outside of the sealed area, with a 2-point locking system up to750 mm height, 4-point locking system from 1000 mm height.c Interior of the enclosure equipped with bosses for M8 inserts. They allowdirect fixing of mounting plates and/or the desired installation system,accessories, etc.Technical specificationsc Conforms to general rules for empty enclosures established in IEC andEN 62208.c IP54 conforming to IEC 60529 (EN 60529).c High resistance to mechanical impacts IK10 (20J) conforming to IEC andEN 62262.c Self-extinguishing, conforming to IEC 60695-2-1 (960°).c Extreme operating temperatures from –50 to +150 ºC.c Suitable for double insulation profiles conforming to IEC 60439-1 (EN 60439-1).c Resistant to corrosion.3/76

PLAZ...Polyester enclosures with closed top and openplinth-type baseIP54 (EN 60529)Basic compositionc Closed top.c Open plinth-type base.c Sealing gasket.c Plain, transparent or ribbed door.c KT model: transparent door of tempered glass with a high resistance tomechanical impacts IK08 (5J) conforming to IEC and EN 62262.c ..R model: ribbed door to make fixing of posters difficult and with “antilever”hinges.c Back panel or door.c Reversible door with 2 hinges up to 750 mm height, and 4 from 1000 mmheight.c Standard double bar handle lock, operated by key LDB5.c Two-door enclosures have a central profile.SELECTION TABLE FOR POLYESTER ENCLOSURES WITH CLOSED TOP AND OPEN PLINTH-TYPE BASENominal dimensions (mm)Height Width Depth No. of doors500 500 320 1 PLAZ 553 PLAZ 553 R PLAZ 553 KT PLAZ 553 P PLAZ 553 PR PLAZ 553 PKT420 1 PLAZ 554 PLAZ 554 R PLAZ 554 KT PLAZ 554 P PLAZ 554 PR PLAZ 554 PKT750 320 1 PLAZ 573 PLAZ 573 R PLAZ 573 KT PLAZ 573 P PLAZ 573 PR PLAZ 573 PKT420 1 PLAZ 574 PLAZ 574 R PLAZ 574 KT PLAZ 574 P PLAZ 574 PR PLAZ 574 PKT1000 320 2 PLAZ 5103 PLAZ 5103 R PLAZ 5103 KT PLAZ 5103 P PLAZ 5103 PR PLAZ 5103 PKT420 2 PLAZ 5104 PLAZ 5104 R PLAZ 5104 KT PLAZ 5104 P PLAZ 5104 PR PLAZ 5104 PKT1250 320 2 PLAZ 5123 PLAZ 5123 R PLAZ 5123 KT PLAZ 5123 P PLAZ 5123 PR PLAZ 5123 PKT420 2 PLAZ 5124 PLAZ 5124 R PLAZ 5124 KT PLAZ 5124 P PLAZ 5124 PR PLAZ 5124 PKT750 500 320 1 PLAZ 753 PLAZ 753 R PLAZ 753 KT PLAZ 753 P PLAZ 753 PR PLAZ 753 PKT420 1 PLAZ 754 PLAZ 754 R PLAZ 754 KT PLAZ 754 P PLAZ 754 PR PLAZ 754 PKT750 320 1 PLAZ 773 PLAZ 773 R PLAZ 773 KT PLAZ 773 P PLAZ 773 PR PLAZ 773 PKT420 1 PLAZ 774 PLAZ 774 R PLAZ 774 KT PLAZ 774 P PLAZ 774 PR PLAZ 774 PKT1000 320 2 PLAZ 7103 PLAZ 7103 R PLAZ 7103 KT PLAZ 7103 P PLAZ 7103 PR PLAZ 7103 PKT420 2 PLAZ 7104 PLAZ 7104 R PLAZ 7104 KT PLAZ 7104 P PLAZ 7104 PR PLAZ 7104 PKT1250 320 2 PLAZ 7123 PLAZ 7123 R PLAZ 7123 KT PLAZ 7123 P PLAZ 7123 PR PLAZ 7123 PKT420 2 PLAZ 7124 PLAZ 7124 R PLAZ 7124 KT PLAZ 7124 P PLAZ 7124 PR PLAZ 7124 PKT1000 500 320 1 PLAZ 1053 PLAZ 1053 R PLAZ 1053 KT PLAZ 1053 P PLAZ 1053 PR PLAZ 1053 PKT420 1 PLAZ 1054 PLAZ 1054 R PLAZ 1054 KT PLAZ 1054 P PLAZ 1054 PR PLAZ 1054 PKT750 320 1 PLAZ 1073 PLAZ 1073 R PLAZ 1073 KT PLAZ 1073 P PLAZ 1073 PR PLAZ 1073 PKT420 1 PLAZ 1074 PLAZ 1074 R PLAZ 1074 KT PLAZ 1074 P PLAZ 1074 PR PLAZ 1074 PKT1000 320 2 PLAZ 10103 PLAZ 10103 R PLAZ 10103 KT PLAZ 10103 P PLAZ 10103 PR PLAZ 10103 PKT420 2 PLAZ 10104 PLAZ 10104 R PLAZ 10104 KT PLAZ 10104 P PLAZ 10104 PR PLAZ 10104 PKT1250 320 2 PLAZ 10123 PLAZ 10123 R PLAZ 10123 KT PLAZ 10123 P PLAZ 10123 PR PLAZ 10123 PKT420 2 PLAZ 10124 PLAZ 10124 R PLAZ 10124 KT PLAZ 10124 P PLAZ 10124 PR PLAZ 10124 PKT1250 500 320 1 PLAZ 1253 PLAZ 1253 R PLAZ 1253 KT PLAZ 1253 P PLAZ 1253 PR PLAZ 1253 PKT420 1 PLAZ 1254 PLAZ 1254 R PLAZ 1254 KT PLAZ 1254 P PLAZ 1254 PR PLAZ 1254 PKT750 320 1 PLAZ 1273 PLAZ 1273 R PLAZ 1273 KT PLAZ 1273 P PLAZ 1273 PR PLAZ 1273 PKT420 1 PLAZ 1274 PLAZ 1274 R PLAZ 1274 KT PLAZ 1274 P PLAZ 1274 PR PLAZ 1274 PKT1000 320 2 PLAZ 12103 PLAZ 12103 R PLAZ 12103 KT PLAZ 12103 P PLAZ 12103 PR PLAZ 12103 PKT420 2 PLAZ 12104 PLAZ 12104 R PLAZ 12104 KT PLAZ 12104 P PLAZ 12104 PR PLAZ 12104 PKT1250 320 2 PLAZ 12123 PLAZ 12123 R PLAZ 12123 KT PLAZ 12123 P PLAZ 12123 PR PLAZ 12123 PKT420 2 PLAZ 12124 PLAZ 12124 R PLAZ 12124 KT PLAZ 12124 P PLAZ 12124 PR PLAZ 12124 PKT1500 500 320 1 PLAZ 1553 PLAZ 1553 R PLAZ 1553 KT PLAZ 1553 P PLAZ 1553 PR PLAZ 1553 PKT420 1 PLAZ 1554 PLAZ 1554 R PLAZ 1554 KT PLAZ 1554 P PLAZ 1554 PR PLAZ 1554 PKT750 320 1 PLAZ 1573 PLAZ 1573 R PLAZ 1573 KT PLAZ 1573 P PLAZ 1573 PR PLAZ 1573 PKT420 1 PLAZ 1574 PLAZ 1574 R PLAZ 1574 KT PLAZ 1574 P PLAZ 1574 PR PLAZ 1574 PKT1000 320 2 PLAZ 15103 PLAZ 15103 R PLAZ 15103 KT PLAZ 15103 P PLAZ 15103 PR PLAZ 15103 PKT420 2 PLAZ 15104 PLAZ 15104 R PLAZ 15104 KT PLAZ 15104 P PLAZ 15104 PR PLAZ 15104 PKT1250 320 2 PLAZ 15123 PLAZ 15123 R PLAZ 15123 KT PLAZ 15123 P PLAZ 15123 PR PLAZ 15123 PKT420 2 PLAZ 15124 PLAZ 15124 R PLAZ 15124 KT PLAZ 15124 P PLAZ 15124 PR PLAZ 15124 PKT3/77

PLAZ...TPolyester enclosures with self-ventilated topwith canopy and open plinth-type baseIP54 (EN 60529)PLAZ 7103THot-press moulded, fibreglass-reinforced,self-ventilated polyester enclosures,in grey RAL-7032 (able to withstandweather conditions).Construction specificationsc Resistance to the main chemical agents and corrosive environments.c Stabilised against UV rays.c Door reversibility with opening to 180º, with max. admissible load of 30 kg/m 2 .c Lock outside of the sealed area, with a 2-point locking system up to750 mm height, 4-point locking system from 1000 mm height.c Interior of the enclosure equipped with bosses for M8 inserts. They allowdirect fixing of mounting plates and/or the desired installation system,accessories, etc.Technical specificationsc Conforms to general rules for empty enclosures established in IEC andEN 62208.c IP54 conforming to IEC 60529 (EN 60529).c High resistance to mechanical impacts IK10 (20 J) conforming to IEC andEN 62262.c Self-extinguishing, conforming to IEC 60695-2-1 (960°).c Extreme operating temperatures from –50 to +150 ºC.c Suitable for double insulation profiles conforming to IEC 60439-1 (EN 60439-1).c Resistant to corrosion.3/78

PLAZ...TPolyester enclosures with self-ventilatedtop with canopy and open plinth-type baseIP54 (EN 60529)Basic compositionc Open top with canopies.c Open plinth-type base.c Sealing gasket.c Plain, transparent or ribbed door.c KT model: transparent door of tempered glass with a high resistance tomechanical impacts IK08 (5J) conforming to EN 50102.c ..R model: ribbed door to make fixing of posters difficult and with “antilever”hinges.c Back panel or door.c Reversible door with 2 hinges up to 750 mm height, and 4 from 1000 mmheight.c Standard double bar handle lock, operated by key LDB5.c Two-door enclosures have a central profile.SELECTION TABLE FOR POLYESTER ENCLOSURES WITH SELF-VENTILATED TOP WITH CANOPY AND OPEN PLINTH-TYPE BASENominal dimensions (mm)Height Width Depth No. of doors500 500 320 1 PLAZ 553 T PLAZ 553 TR PLAZ 553 TKT PLAZ 553 TP PLAZ 553 TPR PLAZ 553 TPKT420 1 PLAZ 554 T PLAZ 554 TR PLAZ 554 TKT PLAZ 554 TP PLAZ 554 TPR PLAZ 554 TPKT750 320 1 PLAZ 573 T PLAZ 573 TR PLAZ 573 TKT PLAZ 573 TP PLAZ 573 TPR PLAZ 573 TPKT420 1 PLAZ 574 T PLAZ 574 TR PLAZ 574 TKT PLAZ 574 TP PLAZ 574 TPR PLAZ 574 TPKT1000 320 2 PLAZ 5103 T PLAZ 5103 TR PLAZ 5103 TKT PLAZ 5103 TP PLAZ 5103 TPR PLAZ 5103 TPKT420 2 PLAZ 5104 T PLAZ 5104 TR PLAZ 5104 TKT PLAZ 5104 TP PLAZ 5104 TPR PLAZ 5104 TPKT1250 320 2 PLAZ 5123 T PLAZ 5123 TR PLAZ 5123 TKT PLAZ 5123 TP PLAZ 5123 TPR PLAZ 5123 TPKT420 2 PLAZ 5124 T PLAZ 5124 TR PLAZ 5124 TKT PLAZ 5124 TP PLAZ 5124 TPR PLAZ 5124 TPKT750 500 320 1 PLAZ 753 T PLAZ 753 TR PLAZ 753 TKT PLAZ 753 TP PLAZ 753 TPR PLAZ 753 TPKT420 1 PLAZ 754 T PLAZ 754 TR PLAZ 754 TKT PLAZ 754 TP PLAZ 754 TPR PLAZ 754 TPKT750 320 1 PLAZ 773 T PLAZ 773 TR PLAZ 773 TKT PLAZ 773 TP PLAZ 773 TPR PLAZ 773 TPKT420 1 PLAZ 774 T PLAZ 774 TR PLAZ 774 TKT PLAZ 774 TP PLAZ 774 TPR PLAZ 774 TPKT1000 320 2 PLAZ 7103 T PLAZ 7103 TR PLAZ 7103 TKT PLAZ 7103 TP PLAZ 7103 TPR PLAZ 7103 TPKT420 2 PLAZ 7104 T PLAZ 7104 TR PLAZ 7104 TKT PLAZ 7104 TP PLAZ 7104 TPR PLAZ 7104 TPKT1250 320 2 PLAZ 7123 T PLAZ 7123 TR PLAZ 7123 TKT PLAZ 7123 TP PLAZ 7123 TPR PLAZ 7123 TPKT420 2 PLAZ 7124 T PLAZ 7124 TR PLAZ 7124 TKT PLAZ 7124 TP PLAZ 7124 TPR PLAZ 7124 TPKT1000 500 320 1 PLAZ 1053 T PLAZ 1053 TR PLAZ 1053 TKT PLAZ 1053 TP PLAZ 1053 TPR PLAZ 1053 TPKT420 1 PLAZ 1054 T PLAZ 1054 TR PLAZ 1054 TKT PLAZ 1054 TP PLAZ 1054 TPR PLAZ 1054 TPKT750 320 1 PLAZ 1073 T PLAZ 1073 TR PLAZ 1073 TKT PLAZ 1073 TP PLAZ 1073 TPR PLAZ 1073 TPKT420 1 PLAZ 1074 T PLAZ 1074 TR PLAZ 1074 TKT PLAZ 1074 TP PLAZ 1074 TPR PLAZ 1074 TPKT1000 320 2 PLAZ 10103 T PLAZ 10103 TR PLAZ 10103 TKT PLAZ 10103 TP PLAZ 10103 TPR PLAZ 10103 TPKT420 2 PLAZ 10104 T PLAZ 10104 TR PLAZ 10104 TKT PLAZ 10104 TP PLAZ 10104 TPR PLAZ 10104 TPKT1250 320 2 PLAZ 10123 T PLAZ 10123 TR PLAZ 10123 TKT PLAZ 10123 TP PLAZ 10123 TPR PLAZ 10123 TPKT420 2 PLAZ 10124 T PLAZ 10124 TR PLAZ 10124 TKT PLAZ 10124 TP PLAZ 10124 TPR PLAZ 10124 TPKT1250 500 320 1 PLAZ 1253 T PLAZ 1253 TR PLAZ 1253 TKT PLAZ 1253 TP PLAZ 1253 TPR PLAZ 1253 TPKT420 1 PLAZ 1254 T PLAZ 1254 TR PLAZ 1254 TKT PLAZ 1254 TP PLAZ 1254 TPR PLAZ 1254 TPKT750 320 1 PLAZ 1273 T PLAZ 1273 TR PLAZ 1273 TKT PLAZ 1273 TP PLAZ 1273 TPR PLAZ 1273 TPKT420 1 PLAZ 1274 T PLAZ 1274 TR PLAZ 1274 TKT PLAZ 1274 TP PLAZ 1274 TPR PLAZ 1274 TPKT1000 320 2 PLAZ 12103 T PLAZ 12103 TR PLAZ 12103 TKT PLAZ 12103 TP PLAZ 12103 TPR PLAZ 12103 TPKT420 2 PLAZ 12104 T PLAZ 12104 TR PLAZ 12104 TKT PLAZ 12104 TP PLAZ 12104 TPR PLAZ 12104 TPKT1250 320 2 PLAZ 12123 T PLAZ 12123 TR PLAZ 12123 TKT PLAZ 12123 TP PLAZ 12123 TPR PLAZ 12123 TPKT420 2 PLAZ 12124 T PLAZ 12124 TR PLAZ 12124 TKT PLAZ 12124 TP PLAZ 12124 TPR PLAZ 12124 TPKT1500 500 320 1 PLAZ 1553 T PLAZ 1553 TR PLAZ 1553 TKT PLAZ 1553 TP PLAZ 1553 TPR PLAZ 1553 TPKT420 1 PLAZ 1554 T PLAZ 1554 TR PLAZ 1554 TKT PLAZ 1554 TP PLAZ 1554 TPR PLAZ 1554 TPKT750 320 1 PLAZ 1573 T PLAZ 1573 TR PLAZ 1573 TKT PLAZ 1573 TP PLAZ 1573 TPR PLAZ 1573 TPKT420 1 PLAZ 1574 T PLAZ 1574 TR PLAZ 1574 TKT PLAZ 1574 TP PLAZ 1574 TPR PLAZ 1574 TPKT1000 320 2 PLAZ 15103 T PLAZ 15103 TR PLAZ 15103 TKT PLAZ 15103 TP PLAZ 15103 TPR PLAZ 15103 TPKT420 2 PLAZ 15104 T PLAZ 15104 TR PLAZ 15104 TKT PLAZ 15104 TP PLAZ 15104 TPR PLAZ 15104 TPKT1250 320 2 PLAZ 15123 T PLAZ 15123 TR PLAZ 15123 TKT PLAZ 15123 TP PLAZ 15123 TPR PLAZ 15123 TPKT420 2 PLAZ 15124 T PLAZ 15124 TR PLAZ 15124 TKT PLAZ 15124 TP PLAZ 15124 TPR PLAZ 15124 TPKT3/79

PLA...Polyester enclosures completely closedIP65 (EN 60529)Dimensions (mm)FIG. 1PLA...4A-95B-9521A-954B-9521A-2001C-42C-1701 1A-150A-150C-8260AC-14037.5 752525A-25525B-150B-15028.5C28.521FIG. 2PLA...KTA-253A-954B-9521A-253A-954B-9521A-2001C-42C-170285/535285 285/53511A-150A-150C-13260AC-14037.5752525A-25525B-150B-15028.5C28.521B-120 317 / 28*3B-120371C-140B-205M83C-1251C-140B-205140M83C-1251B = 500 / 7501 14 4405 405/655500500/750B =1000/12503/80

PLA...TPolyester enclosures with closed top andopen plinth-type baseIP54 (EN 60529)Dimensions (mm)FIG. 1PLA...TA-95221 144B-95B-95A-95A-2001C-42C-1703811A-150A-150C-8260A+38C-14037.5752525A-25525B-150B-15028.5C28.5213B-12023 / 28*3B-120371C-140B-205M83C-1251C-140B-205240M83C-1251B = 500 / 75044054405/655500 500/750B =1000/1250* For mounting plates with reinforcement wing.1 Bosses on the back of enclosures starting with 1000 mm wide allowthe fixing of partial mounting plates (see plates section). Bosses at thetop and bottom are used for fixing depth adjustable supports, internaldoors, 19” racks, etc.In general, all bosses- including those on the sides and on the interiorof the door- are prepared for M8 inserts Ref.: TEX 8 for fixing variousmaterial.2 Bosses with M8 inserts equipped with studs for fixing the mountingplates.3 Centres for floor or plinth fixing.4 Dimensions of the door opening.NOTE: in 1250 mm width enclosures, the left door is 500 mm and the right is 750 mm.3/81

PLAZ...Polyester enclosures with self-ventilatedtop with canopy and closed baseIP54 (EN 60529)Dimensions (mm)FIG. 1PLAZ...A-954B-9521A-954B-9521A-2001C-42C-1701A-1501A-150C-8260A+5537.575C-14025A-2552555B-150B-15028.5C28.521FIG. 2PLAZ...R33221C-42A-954B-951A-954B-951A-200C-17011A-150A-150C-8260A+55C-14037.57525A-2552555B-150B-15028.5C28.5213B-6023 / 28*3B-6037B-81C-68M83C-160B-8140C-68M83C-1606.5 B = 500/7506.54405 405/655 4500 500/7506.5 B =1000/12506.53/82

PLAZ...TPolyester enclosures with self-ventilatedtop with canopy and open plinth-type baseIP54 (EN 60529)Dimensions (mm)FIG. 1PLAZ...TA-954B-9521A-95B-95214A-2001C-42C-1703811A-150A-150C-826037.575C-1402525A+93A-25555B-1503B-6023 / 28*B-1503B-603728.5C28.521B-81C-68M83C-160B-8140C-68M83C-1606.5 B = 500/7506.544054405/655500 500/7506.5 B =1000/12506.5* For mounting plates with reinforcement wing.1 Bosses on the back of enclosures starting with 1000 mm wide allowthe fixing of partial mounting plates (see plates section). Bosses at thetop and bottom are used for fixing depth adjustable supports, internaldoors, 19“ racks, etc.In general, all bosses- including those on the sides and on the interiorof the door- are prepared for M8 inserts Ref.: TEX 8 for fixing variousmaterial.2 Bosses with M8 inserts equipped with studs for fixing the mountingplates.3 Centres for floor or plinth fixing.4 Dimensions of the door opening.NOTE: in 1250 mm width enclosures, the left door is 500 mm and the right is 750 mm.3/83

PLAComposition accessoriesHorizontal coupling frame for PLA and PLA...T enclosuresPVC frame with sealing gasket that permits lateral coupling of enclosures PLAor PLA...T.Height (A)Enclosure dimensionsDepth (C)Reference500 320 MUPLA 53750 320 MUPLA 731000 320 MUPLA 1031250 320 MUPLA 1231500 320 MUPLA 153500 420 MUPLA 54750 420 MUPLA 741000 420 MUPLA 1041250 420 MUPLA 1241500 420 MUPLA 154SUPLA...MUPLA...SUPLA...MUPLA...Supplements for coupling PLA and PLA...T enclosuresThey complement the MUPLA coupling frame for lateral union of enclosures.2 versions: SUPLA for enclosures without canopy and SUPLAT for enclosureswith canopy.Enclosure dimensionsDepth (C)PLAPLA...T320 SUPLA 3 SUPLA 3T420 SUPLA 4 SUPLA 4T3/84

PLAComposition accessoriesVertical coupling of enclosuresCoupling enclosures using an adhesive gasket that guarantees watertightnessat the vertical joint of the enclosures PLA.Ref.: UVPLA.ApplicationAdhesive gasketReferenceUVPLACanopiesMade of reinforced pressed polyester, for exterior installation of closedenclosures.c Colour RAL-7032.c Self-extinguishable; high resistance to impacts and temperature.c Excellent resistance to outdoor conditions.c The nominal height of the enclosure is increased 38 mm.C = 320/420A + 38For attachment to enclosuresReferenceWidth (B) Depth (C) No. of doors500 320 1 TJPLA 53750 320 1 TJPLA 731000 320 2 TJPLA 1031250 320 2 TJPLA 123500 420 1 TJPLA 54750 420 1 TJPLA 741000 420 2 TJPLA 1041250 420 2 TJPLA 1243/85

653/86PLABasesPlinthsBC 300/420CBC-10B+35Composition accessoriesTo be coupled to enclosures with closed bases, Ref.: PLA…Made of fiberglass reinforced polyester.c Colour RAL-7032.c Self-extinguishable; high resistance to impacts and temperature.c Excellent resistance to outdoor conditions.For attachment to enclosuresReferenceWidth (B) Depth (C) No. of doors500 320 1 ZNPLA 53750 320 1 ZNPLA 731000 320 2 ZNPLA 1031250 320 2 ZNPLA 123500 420 1 ZNPLA 54750 420 1 ZNPLA 741000 420 2 ZNPLA 1041250 420 2 ZNPLA 124To be coupled to enclosures with open bases, Ref.: PLAZ…Made of fiberglass reinforced polyester.c Colour RAL-7032.c Self-extinguishable; high resistance to impacts and temperature.c Double insulation; excellent resistance to weather conditions.c 200 mm front cover accessible from the interior.c 305 mm height fixed front panel, allowing the enclosure to be completely orpartially flush built in.c Fixing profile for cable entry.c Sides with knock-out entry PG-36.20030539560B+20For attachment to enclosuresWidth (B) Depth (C) No. of doorsReference500 320 1 ZHPLA 53750 320 1 ZHPLA 731000 320 2 ZHPLA 1031250 320 2 ZHPLA 123500 420 1 ZHPLA 54750 420 1 ZHPLA 741000 420 2 ZHPLA 1041250 420 2 ZHPLA 124

PLAComposition accessoriesCable entry plateTo be coupled to the models of enclosures with open plinth-type bases,Ref.: PLAZ…Made of fiberglass reinforced polyester.c Colour RAL-7032.c Self-extinguishing; excellent resistance to outdoor conditions.c Easily machined.For attachment to enclosuresReferenceWidth (B) Depth (C) No. of doors500 320 1 ECPLAZ 53750 320 1 ECPLAZ 731000 320 2 ECPLAZ 1031250 320 2 ECPLAZ 123500 420 1 ECPLAZ 54750 420 1 ECPLAZ 741000 420 2 ECPLAZ 1041250 420 2 ECPLAZ 1241-door enclosures2-door enclosures11C-204C-7811C-204C-78636310B-40251043021100103125B-40Wall mounting kitSet of 6 metal pieces in passivated zinc-coated steel.c Fixing to the sides with 4 or 6 pieces in horizontal (1).c In all cases, the maximum admissible load is that which corresponds to150 kg/m 2 of plate surface. See the enclosure lifting table, page 3/111.Ref.: FMPLA.A-375 187,5(1)26B+523/87

PLAComposition accessoriesFloor-fixing frameFrame for fixing those enclosures with open plinth-type bases directly to thefloor, Ref.: PLAZ…Fixing enclosures with open bases to the floor, Ref.: PLA… is done directly,with the solution being a stud with a standard screw via the ZNPLA bottom.C-160B-60For attachment to enclosuresReferenceWidth (B) Depth (C) No. of doors500 320 1 MFPLAZ 53750 320 1 MFPLAZ 731000 320 2 MFPLAZ 1031250 320 2 MFPLAZ 123500 420 1 MFPLAZ 54750 420 1 MFPLAZ 741000 420 2 MFPLAZ 1041250 420 2 MFPLAZ 124Set of 4 studs for floor fixingRef.: FS/PLA2.Door retainerRET/PLAUDoor retainers to be directly incorporated into the indicated enclosures.c Opening of the retainer: 90º or 120º for all models. Ref. RET/PLAU.c Opening of the retainer: 110º for models PLA, PLA...T and PLAZ.Ref. RET/PLA.RET/PLA3/88

PLAComposition accessoriesInternal doorsInternal door manufactured in painted aluminium, grey RAL-7032.Double bar locks, allowing change for triangle, square, etc. inserts of CRNenclosures (see general catalogue).In enclosures with a closed bottom, Ref.: PLA, the internal PIPLA doors arecoupled directly.In models with open plinth-type base, Ref.: PLAZ..., the PTZ adapter platesmust be ordered separately (see footnote).D25C-4030*ECDepth of the positioning of the internal door is adjustable 25 mm.* In enclosures with a transparent KT door, subtract 5 mm.For attachment to enclosuresHeight (A)Width (B)No. of doorsTotal lower door reference*Individual internal doorsin 2-door enclosure reference*DDimensions500 500 1 PIPLA 55 - 398 398 1.6500 750 1 PIPLA 57 - 398 648 2.2500 1000 2 - PIPLA 55 + PIPLA 55 - - -500 1250 2 - PIPLA 55 + PIPLA 57 - - -750 500 1 PIPLA 75 - 648 398 2.2750 750 1 PIPLA 77 - 648 648 3.1750 1000 2 - PIPLA 75 + PIPLA 75 - - -750 1250 2 - PIPLA 75 + PIPLA 77 - - -1000 500 1 PIPLA 105 - 898 398 2.81000 750 1 PIPLA 107 - 898 648 4.11000 1000 2 - PIPLA 105 + PIPLA 105 - - -1000 1250 2 - PIPLA 105 + PIPLA 107 - - -1250 500 1 PIPLA 125 - 1148 398 3.41250 750 1 PIPLA 127 - 1148 648 51250 1000 2 - PIPLA 125 + PIPLA 125 - - -1250 1250 2 - PIPLA 125 + PIPLA 127 - - -1500 500 1 PIPLA 155 - 1398 398 41500 750 1 PIPLA 157 - 1398 648 61500 1000 2 - PIPLA 155 + PIPLA 155 - - -1500 1250 2 - PIPLA 155 + PIPLA 157 - - -* To be coupled to enclosures with open bottom, Ref.: PLAZ, adaptor plates must be ordered separately, Ref.: PTZ 320 or PTZ 420, for 320 or 420 mm depth one-door enclosures.PTZ 320/2P or PTZ 420/2P must be ordered for two-door enclosures.EWeight(kg)3/89

PLAComposition accessoriesStandard lock for completely closed enclosuresCHANGING INSERTS OF THE STANDARD LOCKSpecificationsType of lockType of operationReference6.5 mm trianglelock, operatedwith key LT6,5.TT6/CRN7 mm triangleock, operatedwith key LT8.TT7/CRNDirect-action 5 mm double bar lock, operated with keyLDB5. Included in standard supply.Accepts all the types of operation referenced in the followingtable by changing the inserts of the standard lock.8 mm trianglelock, operatedwith key LT8.6 mm squarelock, operatedwith key LC7.TT8/CRNTC6/CRN7 mm squarelock, operatedwith key LC7.TC7/CRN8 mm squarelock, operatedwith key LC8.TC8/CRNDouble barlock, operatedwith key LDB5.Included instandard supply.TDB/PLAPadlockBC/PLACHANGING TO HANDLE LOCKSpecificationsType of operationReferenceEmbellishing kit for direct-action key-operated lock (withouthandle): Ref.: EB/PLA.Embellishing kitwith handle lock.*EBM/PLA** To obtain the complete lock, in addition to the EBM/PLA trim, the T…/OLN or T…/PLA types of locks, indicatedon the following page, must be ordered separately.3/90

PLAComposition accessoriesStandard lock for enclosures with open top or open baseCHANGING INSERTS OF THE STANDARD LOCKSpecificationsType of lockType of operationReference7 mm trianglelock, operatedwith key LT8.TT7/OLN8 mm trianglelock, operatedwith key LT8.TT8/OLN6 mm squarelock, operatedwith key LC7.TC6/OLN7 mm squarelock, operatedwith key LC7.TC7/OLNDouble bar handle lock, operated by key LDB5. Included instandard supply.Accepts all the types of operation referenced in the followingtable by changing the inserts.8 mm squarelock, operatedwith key LC8.Lock with key type 405.TC8/OLNTL/OLNLock with key type JIS.Lock with reinforced-type keyLock with key type FAC.TJIS/OLNTLR/OLNTFAC/OLNDIN insertadapter.ABDIN/OLNPushbutton operated.TS/PLA5 mm doublebar lock includedin standard supply.TDBM/PLAHandle lock withpadlocking device.*CBCM/PLA*Protective cover (optional).TPBM/PLACHANGING TO LOCK WITHOUT HANDLESpecificationsType of lockType of operationReferenceEmbellishing kit with handle Ref.: EBM/PLA.Embellishing kit withouthandle lock.**EB/PLA*** To obtain the complete lock, in addition to the CBCM/PLA trim, the T…/OLN type of lock, indicated on thispage, must be ordered separately.** To obtain the complete lock, in addition to the EB/PLA trim, the T…/CRN or TDB/PLA types of locks, indicatedon the previous page, must be ordered separately.3/91

PLAComposition accessoriesTransparent protective screensA - 158Made of 4 mm transparent polycarbonate. Supplied without the SPTR 77support set, which must be purchased separately.C - 11627 11C - 17021 A - 20021Enclosure dimensionsReferenceHeightWidth500 500 PPTR 55500 750 PPTR 57750 500 PPTR 75750 750 PPTR 77Fixing supports for protective screensSupport set made of the fixing supports and all the necessary hardware, forfixing the PPTR transparent protective screens to the corresponding PLAenclosures.ReferenceApplicationSPTR 77 PPTR 55/57/75/773/92

PLAMounting accessoriesMetal mounting platesMade of galvanised steel sheet, with reinforcement fold on models startingwith a height of 1000 mm.Directly joined to the bottom of the enclosure itself or to the depth adjustablesupports.On two-door enclosures, a full plate or 2 partial plates may be fitted. See table.Enclosures starting with a height of 1000 mm are equipped with intermediatefixing bosses so the PMM plates of a height less than the nominal heightof the enclosure can be positioned (see note (1) below). In this case, insertsRef.: TEX 8 must be ordered separately.c Maximum load 150 kg/m 2 .10.5 25 2510.52525eØ6.5Ø8.525 25Ø6.5Ø8.5252525DØ 6.5Ø 8.5Ø 8.5 Ø 6.5F10010010.575752510.525 25GE350437.5150H-87.5H12.5150Emodels from PMM 1010FIG. 1 FIG. 2To couple to enclosures withdimensions (1)Height (A)Width (B)No. of doorsFull plateIndividual plates, two-doorenclosuresDimensions full plateReference Fig. No. Reference Fig. No. D E F G H e (kg)500 500 1 PMM 55 1 - - 390 375 350 350 - 2 2.5500 750 1 PMM 75 1 - - 640 375 600 350 - 2 3.8500 1000 2 PMM 510 2 PMM 55 + PMM 55 1 390 875 350 -0 437.5 2.5 6.3500 1250 2 - - PMM 55 + PMM 75 1 -0 -0 -0 -0 - - -750 500 1 PMM 75 1 - - 640 375 600 350 - 2 3.8750 750 1 PMM 77 1 - - 640 625 600 600 - 2.5 7.8750 1000 2 PMM 710 2 PMM 75 + PMM 75 1 640 875 600 -0 437.5 2.5 10.6750 1250 2 PMM 712 2 PMM 75 + PMM 77 1 640 1125 600 -0 687.5 2.5 17.61000 500 1 PMM 105 1 - - 890 375 850 350 - 2.5 6.51000 750 1 PMM 107 1 - - 890 625 850 600 - 2.5 10.81000 1000 2 PMM 1010 2 PMM 105 + PMM 105 1 875 875 850 -0 437.5 2.5 151000 1250 2 PMM 1012 2 PMM 105 + PMM 107 1 875 1125 850 -0 687.5 2.5 19.31250 500 1 PMM 125 1 - - 1125 375 1100 350 - 2.5 8.61250 750 1 PMM 127 1 - - 1125 625 1100 600 - 2.5 14.21250 1000 2 PMM 1210 2 PMM 125 + PMM 125 1 1125 875 1100 -0 437.5 2.5 19.41250 1250 2 PMM 1212 2 PMM 125 + PMM 127 1 1125 1125 1100 -0 687.5 2.5 24.91500 500 1 PMM 155 1 - - 1375 375 1350 350 - 2.5 10.61500 750 1 PMM 157 1 - - 1375 625 1350 600 - 2.5 17.31500 1000 2 PMM 1510 2 PMM 155 + PMM 155 1 1375 875 1350 -0 437.5 2.5 23.81500 1250 2 PMM 1512 2 PMM 155 + PMM 157 1 1375 1125 1350 -0 687.5 2.5 30.5(1) Enclosures of 1000, 1250 and 1500 mm height allow as partial plates: 2 PMM of 500; 1 of 500 + 1 of 750 or 2 of 750 mm height, respectively, fixed at the back of the enclosure3/93

PLAMounting accessoriesInsulating mounting platesBakelitePolyesterMade of bakelite in black RAL-9005 (Ref.: PMB..) or in polyester in greyRAL-7032 (Ref.: PMA..).Directly joined to the bottom of the enclosure itself or to the depth adjustablesupports.On two-door enclosures, a full plate or 2 partial plates may be fitted. See table.Enclosures starting with a height of 1000 mm are equipped with intermediatefixing bosses so the PMB plates of a height less than the nominal height ofthe enclosure can be positioned (see note (1) below). In this case, insertsRef.: TEX 8 must be ordered separately.c Maximum load 150 kg/m 2 .10.510.5e10.5DF10010010.57575150GE350437.5150H-87.5HEFIG. 1 FIG. 2To couple to enclosureswith dimensions (1)Height (A)Width (B)No. ofdoorsFull plateIndividual plates, two-doorenclosuresDimensions full plateReference (2) Fig. No. Reference (2) Fig. No. D E F G H e (kg)500 500 1 PM.. 55 1 - - 390 375 350 350 - 4 0.9500 750 1 PM.. 75 1 - - 640 375 600 350 - 4 1.3500 1000 2 PM.. 510 2 PM.. 55 + PM.. 55 1 390 875 350 -0 437.5 5 2.4500 1250 2 - - PM.. 55 + PM.. 75 1 -0 -0 -0 -0 - - -750 500 1 PM.. 75 1 - - 640 375 600 350 - 4 1.3750 750 1 PM.. 77 1 - - 640 625 600 600 - 5 2.8750 1000 2 PM.. 710 2 PM.. 75 + PM.. 75 1 640 875 600 -0 437.5 5 3.9750 1250 2 PM.. 712 2 PM.. 75 + PM.. 77 1 640 1125 600 -0 687.5 5 51000 500 1 PM.. 105 1 - - 890 375 850 350 - 5 2.31000 750 1 PM.. 107 1 - - 890 625 850 600 - 5 3.91000 1000 2 PM.. 1010 2 PM.. 105 + PM.. 105 1 890 875 850 -0 437.5 5 5.51000 1250 2 PM.. 1012 2 PM.. 105 + PM.. 107 1 890 1125 850 -0 687.5 5 7.11250 500 1 PM.. 125 1 - - 1140 375 1100 350 - 5 31250 750 1 PM.. 127 1 - - 1140 625 1100 600 - 5 51250 1000 2 PM.. 1210 2 PM.. 125 + PM.. 125 1 1140 875 1100 -0 437.5 5 71250 1250 2 PM.. 1212 2 PM.. 125 + PM.. 127 1 1140 1125 1100 -0 687.5 5 91500 500 1 PMB 155 1 - - 1390 375 1350 350 - 5 3.71500 750 1 PMB 157 1 - - 1390 625 1350 600 - 5 6.11500 1000 2 PMB 1510 2 PMB 155 + PMB 155 1 1390 875 1350 -0 437.5 5 8.61500 1250 2 PMB 1512 2 PMB 155 + PMB 157 1 1390 1125 1350 -0 687.5 5 11(1) Enclosures of 1000, 1250 and 1500 mm height allow as partial plates: 2 PM.. of 500; 1 of 500 + 1 of 750 or 2 of 750 mm height, respectively, fixed at the back of the enclosure.(2) PMA: polyester, PMB: bakelite.3/94

PLAMounting accessoriesUniversal perforated mounting platesPlates specially designed for quick mounting of equipment using the TFPlocking nuts. Made of zinc-coated steel.Directly joined to the bottom of the enclosure itself or to the depth adjustablesupports.Possibility of incorporating 2 individual plates on two-door enclosures. Seetable.DFEnclosures starting with a height of 1000 mm are equipped with intermediatefixing bosses so the PMR plates of a height less than the nominal height ofthe enclosure can be positioned (see note (1) below). In this case, insertsRef.: TEX 8 must be ordered separately.EGc Maximum load 150 kg/m 2 .15To join the enclosures (1) Full plate Individual plates, two-doorDimensions full plateenclosuresNo. of doorsHeight (A) Width (B)Reference Reference D E F GThickness(mm))500 500 1 PMR 55 - 370 376 350 350 2 1.1500 750 1 PMR 57 - 370 626 350 600 2 1.7500 1000 2 - PMR 55 + PMR 55 370 376/376 350 350/350 2 -500 1250 2 - PMR 55 + PMR 57 370 376/626 350 350/600 2 -750 500 1 PMR 75 - 620 376 600 350 2 1.7750 750 1 PMR 77 - 620 626 600 600 2 2.7750 1000 2 - PMR 75 + PMR 75 620 376/376 350 350/350 2 -750 1250 2 - PMR 75 + PMR 77 620 376/626 350 350/600 2 -1000 500 1 PMR 105 - 870 376 850 350 2 2.11000 750 1 PMR 107 - 870 626 850 600 2 4.11000 1000 2 - PMR 105 + PMR 105 870 376/376 850 350/350 2 -1000 1250 2 - PMR 105 + PMR 107 870 376/626 850 350/600 2 -1250 500 1 PMR 125 - 1120 376 1100 350 2 3.31250 750 1 PMR 127 - 1120 626 1100 600 2 4.81250 1000 2 - PMR 125 + PMR 125 1120 376/376 1100 350/350 2 -1250 1250 2 - PMR 125 + PMR 127 1120 376/626 1100 350/600 2 -1500 500 1 PMR 155 - 1370 376 1350 350 2 4.21500 750 1 PMR 157 - 1370 626 1350 600 2 6.31500 1000 2 - PMR 155 + PMR 155 1370 376/626 1350 350/350 2 -1500 1250 2 - PMR 155 + PMR 157 1370 376/626 1350 350/600 2 -(1) Enclosures of 1000, 1250 and 1500 mm height allow as partial plates: 2 PMM of 500; 1 of 500 + 1 of 750 or 2 of 750 mm height, respectively, fixed at the back of the enclosure.Weight (kg)3/95

PLAMounting accessoriesSet of adjustable mounting plate supportsc Allow for depth adjustment of PMM, PMB and PMR mounting plates, onany model of enclosure.c Set of 4 adjustable supports on the profile of the aluminium guide, able tobe fixed at any point along its entire length and with reference positioningevery 25 mm.DPLA 420c Models with a closed base. Ref.: PLA...The DPLA adjustable supports can be coupled directly without the needfor other accessories.C-703562*CDetail of DPLA plate supports in enclosure with closed base.c Models with open plinth-type base. Ref.: PLAZ...In addition to the DPLA adjustable supports, a set of PTZ adaptor platesmust be ordered.C-703562*PTZ 420C* For enclosures with a transparent KT door, subtract 5 mm.PTZ 420/2Pc Two-door modelsTwo sets of DPLA adjustable supports must be ordered, and for themodels open bottom, add one PTZ.../2P set.To be installed in enclosuresTo be installed in enclosures referenceDepth (C) No. of doors PLA... PLAZ...enclosure with open plinth-type base, referencePLAZ… , with two doors, with adjustable platefixed with DPLA supports and PTZ adaptorplates.Set of fixing supports for additional plate320 1 DPLA 320 DPLA 320 + PTZ 320420 1 DPLA 420 DPLA 420 + PTZ 420320 2 (2) DPLA 320* (2) DPLA 320* + PTZ 320/2P420 2 (2) DPLA 420* (2) DPLA 420* + PTZ 420/2P* In two-door enclosures, in order to mount a full plate or two individual plates, 2 DPLA plate fixing sets mustbe ordered, as indicated in the table.Set of 4 adjustable fixing supports for fixing an additional plate.Ref.: EDPLA.Detail of the DPLA plate supports with an additional set of fixing supports,Ref.: EDPLA, allowing the placement of two plates (back to back), forexample in enclosures with a rear door.3/96

PLAMounting accessoriesUniversal chassis systemUniversal chassis made up of a set of 2 MOL profiles prepared for partialmounting plates and DIN rails, for fixing any type of equipment.The chassis can be fixed directly to the back of the enclosure or on the setof adjustable mounting plate supports, in this case making depth adjustmentpossible.In two-door enclosures with 1000 and 1250 mm width, two 500 mmchassis, or 1 of 500 + 1 of 750 mm width, respectively, can be mounted.CDP double profile DIN rail for directfixing of equipment. Detail of the TDCsliding nut.Detail of the MOL profile and TDM nut.The notches in the profile permitadjustment every 2.5 mm.Set of profiles for universal chassisSet of two vertical profiles for direct fixing to the back of the enclosure.The notches in the profile every 2.5 mm and the marks every 25 mmfacilitate the positioning of plates, rails, etc.To make depth adjustment of the chassis possible, the MOL profiles mustbe fixed on a set of DPLA or DPLA + PTZ adjustable mounting platesupports, as in the following table.To be installed in enclosuresTo be installed in enclosures referenceDepth (C) No. of doors PLA... PLAZ...320 1 DPLA 320 DPLA 320 + PTZ 320420 1 DPLA 420 DPLA 420 + PTZ 420320 2 (2) DPLA 320 (2) DPLA 320 + PTZ 320/2P420 2 (2) DPLA 420 (2) DPLA 420 + PTZ 420/2PTo couple to enclosures with height (A)ReferenceDetail of the MOL profile fixed to the back of the enclosure.750 MOL 751000 MOL 1001250 MOL 1251500 MOL 150Detail of the MOL profile fixed to the set of DPLA adjustableplate support.3/97

PLAMounting accessoriesPartial mounting plates for universal chassisMade of galvanised steel. They are placed on the MOL profiles using TDM 8nuts and TOR 16/8A screws, which must be ordered separately.B-95HTo couple to enclosures withwidth (B)Plate height(H)Reference500 247 PMP 2550750 247 PMP 25751000* 247 PMP 25100500 397 PMP 4050750 397 PMP 40751000* 397 PMP 40100* The 1000 mm width enclosures allow for mounting 2 chassis with PMP...50 plates.Lateral mounting platesInsulating polyester mounting plates, to be installed on the side of PLAenclosures.The TEX8 inserts must be ordered separately.Enclosure dimensionsReferenceHeightDepth500 320 PMLA 53500 420 PMLA 54750 320 PMLA 73750 420 PMLA 741000 320 PMLA 1031045°40B - 10044,51000 420 PMLA 1041250 320 PMLA 1231250 420 PMLA 1247207A - 1007744,5403/98

PLAMounting accessoriesMetal rails and nutsRails of galvanised steel. They are placed on the MOL profiles using TDM 6nuts and TOR 12/6A screws, which must be ordered separately.To couple to enclosureswith width (B)Symmetric DINreference35 7.5Symmetric DINreference35 15Asymmetric DINreferenceDouble profilereference500 - CSPLA 50 CAPLA 50 -750 - CSPLA 75 CAPLA 75 -1000 - CSPLA 100 CAPLA 100 -In 2 metre strips CO 35 - CA 32 CDP 200In 2 metre strips COT 35 - CAT 32 -In 2 metre strips - CO 35/15 - -In 2 metre strips - COT 35/15 - -* The 1000 mm width enclosures allow for mounting 2 chassis with C...50 rails.MOUNTING ACCESSORIESNuts for fixing equipment Nuts for MOL profiles Fixing screw with washerThread type(1)Units perpackage(2)Units perpackageUnits per package Length (mm) Units per packageM4 TDE 4 100 - 100 - - TOR 10/4A 10 100M4 - - - - - - TOR 16/4A 16 100M5 TDE 5 100 - - - - TOR 12/5A 12 100M5 - - TDC 56 100 - - TOR 18/5A 18 100M6 TDE 6 100 TDC 56 100 TDM 6 10 TOR 12/6A 12 100M6 - - - - - - TOR 18/6A 18 100M8 - - - - TDM 8 10 TOR 16/8A 16 50M8 - - - - - - TOR 20/8A 20 10Sheet ∅ 4.8 mm TOR 16/5AT 16 100(1) For symmetrical rails, Ref.: CO, COT and CSPLA, and double profile CDP...(2) For double profile rails CDP...3/99

PLAMounting accessoriesSupport trayBANPLA tray to be placed horizontally to support various materials, or simplyas a separator. Designed to be installed in one-door enclosures.It is mounted directly on the bottom of the enclosure using the lateral bosses.If you want to place the tray, or various trays, at differing heights, 2 sets of 2SPLA vertical profiles (total of 4), must be ordered, as indicated in the table.Maximum load:Depth 320: 60 kgDepth 420: 50 kgTo couple to enclosures (1)ReferenceHeight (A) Width (B) Depth (C)TraySupports*500 500 320 BANPLA 53 -500 750 320 BANPLA 73 -750 500 320 BANPLA 53 2 SPLA 75750 750 320 BANPLA 73 2 SPLA 751000 500 320 BANPLA 53 2 SPLA 100C-1002511x13B-42122725012181000 750 320 BANPLA 73 2 SPLA 1001250 500 320 BANPLA 53 2 SPLA 1251250 750 320 BANPLA 73 2 SPLA 1251500 500 320 BANPLA 53 2 SPLA 1501500 750 320 BANPLA 73 2 SPLA 150500 500 420 BANPLA 54 -500 750 420 BANPLA 74 -750 500 420 BANPLA 54 2 SPLA 75750 750 420 BANPLA 74 2 SPLA 751000 500 420 BANPLA 54 2 SPLA 1001000 750 420 BANPLA 74 2 SPLA 1001250 500 420 BANPLA 54 2 SPLA 1251250 750 420 BANPLA 74 2 SPLA 1251500 500 420 BANPLA 54 2 SPLA 1501500 750 420 BANPLA 74 2 SPLA 150200* Are only necessary if you want to place the tray at differing heights.(1) For the 1250 mm enclosures, these trays may be placed using the SBPLA profiles, on the 500 and750 mm side.20020020019” rack support and trays for two-door enclosuresFor 19” RACK accessories, consult the VDI catalogue.Ref.: SB/PLA.3/100

PLACurrent distribution accessoriesGCR tiesClip in fasteners to be installed directly on 19” racks and on slotted MRmounting plates.Reference: GCR.Adjustable tiesMade of 6.6 nylon in natural colour or black for outdoor conditions.WhiteReferenceBlackLM∅minimumUse∅maximumLZ25100 LN25100 100 2.5 1.6 22LZ25200 LN25200 200 2.5 1.6 49LZ35150 LN35150 150 3.5 1.6 35LZ35200 LN35200 200 3.5 1.6 49LZ35300 LN35300 300 3.5 1.6 75LZ46150 LN46150 150 4.6 1.6 36LZ46200 LN46200 200 4.6 1.6 49LZ48270 LN48270 270 4.8 1.6 73LZ46390 LN46390 390 4.6 1.6 109LZ76390 LN76390 390 7.6 4.7 108Tightening toolsTo tighten and cut to size the adjustable ties. They facilitate wiring and savetime, preventing the packets of cables from loosening.Tool adjustable according to the thickness of the tie. Can be used with thefollowing models: LZ25100 up to LZ46390. Ref.: MARK3.A very light and ergonomic tool, the cut on the tie is done by twisting thetool. Can be used on the following models of ties: LZ25100 up to LZ46390.Ref.: MARK20, 21.ReferenceAdmissible widthtiesMARK3 2.5 ÷ 4.8ReferenceAdmissible widthtiesMARK20 2.5 ÷ 4.8MARK21 4.6 ÷ 7.63/101

PLACurrent distribution accessoriesLocking clipsAllows fixing ties from the series LZ25100 up to LZ46390 on panels up to3.2 mm thick. Material: 6.6 nylon.SFC2SFC1Reference∅ perforationmmMaximum widthpanel mmFigureSFC1 6 3.2 1SFC2 6 1 2Fig. 1 Fig. 2StudTo use with soft materials: 7 mm Ø hole, or hard materials: 8 mm Ø hole.Ties are attached up to 9 mm width. Material: 6.6 nylonRef.: LOK01.Tie fixing supportTo attach one or two ties, mounted with a single screw. Material: 6.6 nylon.Allows for attaching ties from the entire range.Reference A B C Fixing screwAdmissible widthtiesKR6 12 18 9 M4 2.5 ÷ 4.8KR8 14.5 25 12 M6 2.5 ÷ 7.63/102

PLACurrent distribution accessoriesSupport headsTo transform normal ties into ties with fixing heads, introduce a tie into thishead before closing it on the cable bundle. Material: 6.6 nylon.Reference A B C Fixing screwAdmissiblewidth tiesFH18 7.1 13.3 4 M4 2.5FH30 9.5 17.9 4.7 M5 3.5FH50 11.3 22.2 6.2 M6 4.7Self-adhesive support basePermits insertion of 1 tie from 4 points at a 90º angle. Attaches ties from theseries LZ25100 up to LZ46390. Material: 6.6 nylon.Reference A B C DEAdmissible widthtiesMB3A 19.1 19.1 4.8 3.2 13.2 2.5 ÷ 3.5MB4A 28.5 28.5 5.5 4 20.2 2.5 ÷ 4.8adhesive supportTie fixing supportTo attach ties from any series. Material: 6.6 nylon.ReferenceAdmissible widthties mmFixing screwLKC 2.5 7.6 M53/103

PLACurrent distribution accessoriesLateral tie fixing supportCovers the head of the tie in its end, thus obtaining neater cabling.Material: 6.6 nylon.ReferenceAdmissible widthties mmFixing screwLKM/HE 2.5 7.6 M5Fixing loop for tubes, hoses, etc.2 versions, fixed and graduated, ∅ from 5 to 25.4 mm. Material: black6.6 nylon.Reference∅ Amin. - max.B CD ENX1 5 3.5 1 6.2 13.7NX3 8 3.9 1 9.4 20.5NX5 12 3.9 1 9.4 24NX8* 14.3 ÷ 15.8 4 1.3 12.6 32NX11 17.4 ÷ 20 4 1.3 12.6 37NX14 22.2 ÷ 25.4 4.3 1.5 16 45*The NX8 model only has 3 adjustment holes.NX 1-3-5 NX 8-11-143/104

PLACurrent distribution accessoriesAdjustable membrane glandsInsulating membrane glands made of PVC with entry that can be adjustedfor cables.Fig. 1 Fig. 2Reference Fig. Ø A Ø B* Ø C Ø D E FØ cableCapacityTubeECPC-3 1 25 21.5 18 5 3.2 13 5 to 18 Pg 9 to 11ECPC-5 1 33 29.5 26 5 3.2 20 5 to 26 Pg 9 to 16ECPC-6 1 43 38.5 36 5 3.2 22 5 to 36 Pg 9 to 21ECPC-9 2 70 63 60 28 3 20 28 to 60 Pg 21 to 48ECPC-15 2 98 90 87 28 3 23 28 to 87 Pg 21 to 48* Mounting perforation.Protective sleevesSmall protective sleeves for cables coming out of tubes, as indicated in theinstructions for MI BT 019. Made of flexible and durable PVC, in light greycolour.Reference A Ø B TubePC-1 15.2 12.7 Pg 9PC-2 18.6 16 Pg 11PC-3 20.4 17.8 Pg 13.5PC-4 22.5 19.8 Pg 16PC-5 28.3 25.3 Pg 21PC-6 37 33.6 Pg 29PC-7 47 43 Pg 36Ø BØ A3/105

PLACurrent distribution accessoriesUseful information about Pg tubes and HIMEL accessories to be coupledMODELS, DIMENSIONS AND REFERENCESDesignationØexteriorSteelFlexiblesteelØ interiorTubesCables inserted*Ø perforations toFlexibleNo. of conductorsPVC steel withInsert ThreadPVC 1 2 3 4HIMEL accessories to be coupledTo the tubesAdjustablemembrane glandsProtectivesleevesTo the perforationsAdjustablemembraneglands4 EC-1 to EC-7Pg 9 15.2 12.7 12.4 12 11.1 6 2.5 - - 16 14 ECPC-3 to ECPC-6 PC-1 - -ECN-5 to ECN-1010 4 2.5 EC-2 to EC-7 EC-1Pg 11 18.6 16 15.5 14.5 14.2 16 6 4 2.5 19 17.5 ECPC-5; ECPC-6 PC-2 EC-2 TC-125 ECN-5 to ECN-10 ECN-1EC-3 to EC-7EC-3Pg 13.5 20.4 17.8 17.5 16.3 16 35 10 6 4 21 19.5 ECPC-5; ECPC-6 PC-3 ECPC-3 TC-2ECN-5 to ECN-10EC-4 to EC-7Pg 16 22.5 19.8 18.7 18.5 17.6 50 16 10 6 23 21.5 ECPC-5; ECPC-6 PC-4 EC-4 TC-3ECN-5 to ECN-10EC-5 to EC-7EC-5Pg 21 28.3 25.3 24.7 23 23 70 25 16 10 29 27 ECPC-6 to ECPC-15 PC-5 ECPC-5 TC-4ECN-6 to ECN-10ECN-595 35 25 16 EC-6; EC-7 EC-6 TC-5Pg 29 37 33.6 33.5 31 31 120 50 35 25 38 35.5 ECPC-9; ECPC-15 PC-6 ECPC-6 TCP-5150 ECN-7; ECN-10 ECN-6185 35 EC-7 EC-7Pg 36 47 43 41.5 41 40.3 240 70 50 50 48 45.5 ECPC-9; ECPC-15 PC-7 ECN-7 TC-6300 ECN-1095 70 ECPC-9; ECPC-15Pg 42 54 50 48 48 47 - 120 95 70 55 52.5 ECN-10 - - -120 95 ECPC-9; ECPC-15Pg 48 60 56 54.2 52.5 51.4 - 150 150 120 61 58 ECN-10 - - -* Number and section in mm 2 of the conductors that may be housed inside each tube (orientative).For more information, consult the electrotechnical rules for low voltage (MI BT 019).Plain plugsBimetal BBH terminalsBBH-29BBH-29DTerminals especially designed for branching cables on plates; their mainapplication is busbar connection.BBH terminals are made of a tinned, hot cast copper alloy and are suitablefor connecting to a conductor of copper or aluminium indistinctly (bimetal).ReferenceMain section(mm 2 )Bypass section(mm 2 )ReferenceMain section(mm 2 )Bypass section(mm 2 )BBH-29PBBH-29DPBBH-29 6-50 -BBH-29C* 6-50 -BBH-30 10-95 -BBH-31 16-150 -BBH-32 50-240 -BBH-29D 6-50 6-50BBH-29DC* 6-50 6-50BBH-30D 10-95 10-95BBH-31D 25-150 16-150BBH-32D 95-240 5-240BBH-29P 6-50 -BBH-29PC* 6-50 -BBH-29DP 6-50 6-50BBH-29DPC* 6-50 6-50* Include terminal cover CBBH-29.3/106

PLACurrent distribution accessoriesSigma safety terminalsBase of safety terminals made of black matte self-extinguishing polyamide-6;terminal of brass MS-58(DIN17660); ring of tempered steel zinc dichromate; cap made of orangeself-extinguishing polypropylene.c Anti-cut. The connection is made using a tightening mechanism thatspreads the pressure out throughout the entire contact surface, avoidingthe occasional rubs and stresses that damage the conductors.c Loosening proof. The ring that surrounds the brass body ensures that thepressure exerted by the conductors cannot open the terminal and loosenthe connection.c Total insulation. All the SIGMA terminals are supplied with a terminal cap,avoiding any accidental contact with live parts.All the calibres may be coupled one to the other, allowing the formation ofstrips of any length. Service voltage: 500 V.ReferenceSectionm/m 2 A B C D ES.04 1 × 4 30 20 13 21 4S.06 1 × 6 33 25 16 24 7S.10 1 × 10 38 28 16 28 6S.16 1 × 16 42 32 19 32 9S.25/35 1 × 35 46 38 23 34 11S.50 1 × 50 52 45 27 40 15S.70 1 × 70 55 50 30 40 15S.95/100 1 × 100 58 54 33 40 20NOTE: each terminal accepts up to 2 conductors of the section indicated.Plate/cable terminalsPlate entry and bypass by cable.ReferenceCable bypass section(mm 2 )Plate thickness (mm)FigureBPCH 516 1.5 to 16 5 2BPCH 550 1.5 to 50 5 2BPCH 5120 16 to 120 5 2BPCH 1016 1.5 to 16 10 1BPCH 1050 1.5 to 50 10 1BPCH 10120 16 to 120 10 11 23/107

PLALighting accessoriesCompact lampCompact fluorescent lamps, designed especially for use in electronicenclosures. May be fixed with a magnet.c Connection voltage 220 V/50 Hz.c Consumption 11 W.c Connection/disconnection switch.c 200 V/16 A socket with earthing.70c Maximum ambient temperature 60 °C.3559066c Lighting output = 75 W bulb.SpecificationsReferencePlugTensionLamp fixed with a magnetor on 35 mm symmetric LAM-75 220 V/16 A 220 V/50 HzDIN railLamp fixed on a 35 mmsymmetric DIN railLAC-75 220 V/16 A 220 V/50 HzLamp fixed with a magnetor on 35 mm symmetric LAM-75/120 120 V/15 A 120 V/60 HzDIN railLamp fixed on a 35 mmsymmetric DIN railLAC-75/120 120 V/15 A 120 V/60 HzSlimline lampMagnetic-fixing flat lamps equipped with energy efficient light bulbs, with orwithout a plug.c Electronic ballast.c Power: 11 W.c Luminosity: 900 lmc Lifespan: 10000 h.c Plastic casing UL94 V0.c IP20.c Class I.Reference Plug Socket ApprovalLAMS75 AC 230 V/16 A SCHUKO VDELAMX75 AC 230 V/- - VDELAMU75 AC 120 V/15 A USA UL3/108

PLALighting accessoriesIncandescent lampIncandescent lamp designed especially for use in electronic enclosures.c Connection voltage 220 V/50-60 Hz.500c Consumption 60 W.c Connection/disconnection switch.c Terminal connection entry.ReferenceLAI/OL 68Dual lamp1Light fixtures designed especially for use in electronic enclosures with variouspossibilities for fixing and operating.c Energy efficient electronic lamp E27, 20 W, 220-240 V/50-60 Hz or120 V/60 Hz.c Lighting output = 100 W bulb.2c Fixed models connection via 2.5 mm 2 terminal strip and the mobile modelvia cable.c Degree of protection IP20.c Insulation class II.c Conforming to EN 55014 and EN 50082-1.3Specifications Support fixing Figure Reference TensionMotion-activatedMagnetic, using screws LAMDP 220 V/56 Hz1and/or (1) 35 DIN railLAMDP 120 120 V/60 HzOn/off switch with the possibility Magnetic, via connection LAMIN 220 V/50 Hz2of door switch, screws and/or 35 DIN rail (1)LAMIN 120 120 V/60 HMobile lamp, connectionLAMPO220 V/50 HzAdhesive or screws 3via cableLAMPO 120 120 V/60 HzSupport for LAMDP,LAMIN, LAMPO lampAdhesive or screws 4 SOLAM(1) DIN rail not provided..4671003963/109

PLANatural ventilation accessoriesVentilation devicesTo connect the inside of the enclosure with the exterior atmosphere andprevent condensation. Can be fixed onto the outside.ReferenceVM-25VM-27SpecificationsFor coupling to the outside of all polyester enclosuresVM-25VM-273/110

PLAComplementary accessoriesExpandable nutsDodge-type brass nuts designed to be incorporated into the bosses of PLMenclosures.SpecificationsFor attachment to enclosuresReferenceM5 PLM-43 and 54 TEX 5M6 PLM-64 and 108 TEX 6M8 For the back of the enclosure TEX 8TEX 8 TEX 6 TEX 5Document pocketPP-A models made of thermoplastic in grey RAL-7035.c Fixed with adhesive tape or screws.For holding DIN A3-A4 or A5-sized plans.InsulatedPlan sizeA4A5ReferencePP-A4PP-A5174234188 22 278 40Ref.: PP-A5Ref.: PP-A4Lifting the enclosuresThere is a set of slings to cover the most common enclosure or suite liftingneeds.Ref: ELS 1520.c Table of dimensions indicating the maximum weight in kg anticipated foreach enclosure or suite. The fields highlighted indicate the dimensional rangeof use planned for the lifting equipment ELS 1520.Height (A)Width (B)500 750 1000 1250 1500 1750 20001500 113 169 225 281 338 394 4501200 94 141 188 234 281 328 3751000 75 113 150 188 225 263 300750 56 84 113 141 169 197 225500 38 56 75 94 113 131 150(A) and (B) correspond, respectively, to the nominal height and width in mm of the enclosuresor suites.3/111

PLAApplicationsDLP distribution system chassisDLP distribution chassis set for modular equipment, to be coupled to allmodels of PLA enclosures.c Distance of 40 to 85 mm, adjustable as needed by the customer, betweenthe symmetric profile for equipment fixing and the interior protective cover.c Rigid structure made of galvanised steel.c Cover and frame insulating in self-extinguishing material in RAL-7032.Quick mounting, without the need for screws.c System for identifying circuits included in the standard supply.c Earth and neutral bypass terminal block, Ref.: RBLZ/21656 (included instandard supply).c Possibility of installing plain mounting plates and covers to mount variousmaterial.In enclosures with a closed base, Ref.: PLA… the 1500 height DLP chassisare coupled directly.In models with open plinth-type bottom, Ref.: PLAZ should be orderedseparately from the PTZ adapter plates (see footnote).MODELS, DIMENSIONS AND REFERENCESFor attachment to enclosuresHeight (A)Width (B)No. of doorsTotal chassis reference*Individual chassis on twodoorenclosures reference*No. of rowsAutomatic switch rail* To be coupled to enclosures with open bottom, Ref.: PLAZ adaptor plates must be ordered separately, Ref.: PTZ 320 or PTZ 420, for 320 or 420 mm depth one-door enclosures.PTZ 320/2P or PTZ 420/2P must be ordered for two-door enclosures.QuantityDistribution of rowsNo. of 18 mm modules750 500 1 DLP 76 - 4 4 76 -750 500 1 DLP 57 - 4 3 57 1750 750 1 DLP 132 - 4 4 132 -750 750 1 DLP 99 - 4 3 99 1750 1000 2 - DLP 76 + DLP 76 4 + 4 4 + 4 152 -No. of platesDLP 57 + DLP 57 4 + 4 3 + 3 114 1 + 1750 1250 2 - DLP 76 + DLP 132 4 + 4 4 + 4 208 -DLP 57 + DLP 99 4 + 4 3 + 3 156 1 + 11000 500 1 DLP 114 - 6 6 114 -1000 500 1 DLP 95 - 6 5 95 1000 750 1 DLP 198 - 6 6 198 -1000 750 1 DLP 165 - 6 5 165 11000 1000 2 - DLP 114 + DLP 114 6 + 6 6 + 6 228 -DLP 95 + DLP 95 6 + 6 5 + 5 190 1 + 11000 1250 2 - DLP 114 + DLP 198 6 + 6 6 + 6 312 -DLP 95 + DLP 165 6 + 6 5 + 5 260 1 + 11250 500 1 DLP 133 - 7 7 133 -1250 500 1 DLP 114P - 7 6 114 11250 750 1 DLP 231 - 7 7 231 -1250 750 1 DLP 198P - 7 6 198 11250 1000 2 - DLP 133 + DLP 133 7 + 7 7 + 7 266 -DLP 114P + DLP 114P 7 + 7 6 + 6 228 1 + 11250 1250 2 - DLP 133 + DLP 231 7 + 7 7 + 7 364 -DLP 114P + DLP 198P 7 + 7 6 + 6 312 1 + 11500 500 1 DLP 171 - 9 9 171 -1500 500 1 DLP 152 - 9 8 152 11500 750 1 DLP 297 - 9 9 297 -1500 750 1 DLP 264 - 9 8 264 11500 1000 2 - DLP 171 + DLP 171 9 + 9 9 + 9 342 -1500 1000 2 - DLP 152 + DLP 152 9 + 9 8 + 8 304 -1500 1250 2 - DLP 171 + DLP 297 9 + 9 9 + 9 468 1 + 11500 1250 2 - DLP 152 + DLP 264 9 + 9 8 + 8 416 1 + 13/112

85854040PLAApplicationsFIG. 1C-178mín.4546Detail of the depth-adjustable rail using a graduated supportincluded in the standard supply.15085 8516404 408540Covers that are quick fixing by pressure and removable usingscrewdriver.C25* For enclosures with a transparent KT door, subtract 5 mm.Positioning the adjustablechassis at a depth of25 mm.Label for identifying circuits included in the standard supply.FIG. 2(500)(1500)(500)(1500)(500)(750)(500)(1000)(500)(1250)(500)(750)(500)(1000)(500)(1250)DLP 76DLP 114DLP 133DLP 171DLP 57DLP 95DLP 114PDLP 152(750)(1500)(750)(1500)(750)(750)(750)(1000)(750)(1250)(750)(750)(750)(1000)(750)(1250)DLP 132DLP 198DLP 231DLP 297DLP 99DLP 165DLP 198PDLP 2643/113

PLAApplicationsPlain coverSelf-extinguishing plain cover to protect non-modular material.c Colour RAL-7032.c Easily machined.c Quick mounting.c 150 mm nominal height for 1 row.25 25DMounting plate2 mm thick mounting plate for fixing non-modular equipment, made ofgalvanised steel.c Direct fixing to the adjustable support, which permits a depth adjustmentof between 40 and 85 mm with respect to the cover.c 150 mm nominal height for 1 row.Plate heightEnclosure width(B)Reference D E150 500 PMP500/DLP 361 149150 750 PMP750/DLP 611 149150 500 PMP500/2DLP 361 298300 750 PMP750/2DLP 611 29810×45°149 E14621 13To be coupled to nominal-widthenclosures (B)ReferenceD500 CTL500/DLP 402750 CTL750/DLP 652500 CTL500/2DLP 402750 CTL750/2DLP 652D3/114

PLAApplicationsBlanking plateBlanking plate of self-extinguishing insulating material for total or partialcoverage of the windows for automatic switches. Easily cut to the desired size.ReferenceLength (mm)No. of modulesATP6/DTM 108 6ATP24/DTM 432 24ATP/UND 1100 Cut to sizeBypass terminal blocksEarth or neutral bypass terminal blocks with insulating plinth.Fixed to the back of the enclosure using the metal profile.Reference Number of terminals 3 section in mm 2RBLZ/21656* 2 16 mm 2 + 5 6 mm 2RBLZ/21686 2 16 mm 2 + 8 6 mm 2RBLZ/216146 2 16 mm 2 + 14 6 mm 2RBLZ/216296 2 16 mm 2 + 29 6 mm 2* Included in standard supply.Distribution barsFor the distribution in a single row of automatic switches with a total of12 modules.1 2No. of bars No. of poles per bar Reference Figure No.1 12 BDS 1/12 12 6 BDS 2/6 23 4 BDS 3/4 34 3 BDS 4/3 43 43/115

PLAApplicationsSystem of 19” racksSystem of very robust 19” metal racks, to be coupled to all versions of PLAenclosures with dimensions indicated on the following page.c Fixed and pivoting racks, permitting direct installation (using standardisedperforations) of all types of 19” modular switchgear.c Fixing the racks on the upper part and the sides of the correspondingenclosure, using SPLA vertical profiles, which must be ordered separatelyfrom 750 mm height enclosures. See tables on the next page.c Both the fixed and the pivoting racks can be installed as partial racks inenclosures that are larger than the foreseen normal. See tables on thenext page.➀c Maximum load: 3 kg per unit, with a maximum of 40 kg for pivoting racks.c Finish: polyester-epoxy RAL-7032 paint.c Pivoting racks with opening to 120º, 5 mm key-operated double bar lock.➀ Fixed rack BRF 17PLA fixed using the set of two vertical profiles SPLA 100.➁ Pivoting rack BRP 16PLA fixed using the set of two vertical profiles SPLA 100.➁➂ Pivoting rack BRP 7PLA installed as a partial rack in enclosure. PLA 1074KT fixed usingthe set of two vertical profiles SPLA 100.➂19” rack support and trays for two-door enclosuresFor 19” accessories, consult the VDI catalogue.Ref.: SB/PLA.3/116

PLAApplications19” fixed rackBRF...SPLA...BRF racks prepared to be coupled to all 750 mm width PLA enclosuremodels.From the 750 mm height enclosures, the set of two vertical profiles SPLA,indicated in the table, must be ordered.For attachment to enclosuresHeight (A)Width (1) (B)No. of units Reference rack Set of two profiles500* 750 8 BRF 8PLA* -750* 750 12 BRF 12PLA* SPLA 751000* 750 17 BRF 17PLA* SPLA 1001250* 750 21 BRF 21PLA* SPLA 1251500* 750 26 BRF 26PLA SPLA 150* Can be installed in taller enclosures as a partial rack, using the vertical profiles that correspond to the heightof the enclosure. In all cases, the SPLA vertical profiles must be ordered separately.(1) It can also be installed in the 1250 mm enclosures, on the 750 mm side, using the SBPLA profiles.19” pivoting rackBRP...BRP racks prepared to be coupled to all 750 mm width and 420 mm depthPLA enclosure models.From the 750 mm height enclosures, the set of two vertical profiles SPLA,indicated in the table, must be ordered separately.SPLA...For attachment to enclosuresHeight (A)Width (B)No. of units Reference rack Set of two profiles500* 750 7 BRP 7PLA* -750* 750 11 BRP 11PLA* SPLA 751000* 750 16 BRP 16PLA* SPLA 1001250* 750 20 BRP 20PLA* SPLA 1251500* 750 25 BRP 25PLA SPLA 150* Can be installed in taller enclosures as a partial rack, using the vertical profiles that correspond to the heightof the enclosure. In all cases, the SPLA vertical profiles must be ordered separately.19” fixed rack 19” pivoting rack31.75485465450557507730042012.744.4544.4531.7512.744.4546545044.458.5 x 8.58.5 x 8.5750443254203/117

PLD and ZD polyester enclosures and plinthsfor LV electrical distribution1 2 3 45111210 98a-8b76Self-ventilating polyester enclosures, preparedto directly incorporate fuse blocks for electricaldistribution, conforming to DIN standards.3/118

1 Insulating bakelitemounting plates inblack RAL-9005. To becoupled directly to theback of the enclosure.2 Back with system ofbosses with inclusionsfor fixing variousmaterials.3 Expandable metalnuts to be included inthe prepared housings inthe enclosures for fixingof equipment, rails, etc.4 Self-ventilating IP43profile in standardsupply. Possibility ofIP54 by applying thesynthetic rubber seal.5 PLD enclosures aredesigned to be installeddirectly on the floor or onZD plinths.6 Folding upper frontcover, easily accessiblefrom the interior of theenclosure.7 Lower side view oncethe cable entry openinghas been accessed.8a Detail of the profilejoined directly to theenclosure and locks onthe left and right doors.8b Detail of theenclosure with centralprofile joined to the leftdoor and one single lock.9 Detail of the easilyremovable interior hingeand bosses located at theback and on the door forfixing various materials.10 Set of two metalsupports for fixing theenclosure directly to thefloor.11 View of the frontcrossbar dismounted,thus facilitating accessto the interior of theenclosure.12 Detail of the openingof the blanking plate ofthe auxiliar outlet.3/119

PLD-ZDPolyester enclosuresSelf-ventilated IP43IP54 watertight (EN 60529)PLD-86/0Hot-press moulded fibreglass-reinforcedpolyester enclosure in grey RAL-7032(able to withstand weather conditions).Applicationsc Self-ventilated polyester enclosures, prepared to directly incorporate fuseblocks for electrical distribution.c Extremely versatile for any type of assembly.c Self-extinguishing and easily machined material.c High resistance to mechanical impacts, temperature and corrosiveenvironments.Construction specificationsc Resistance to the main chemical agents and corrosive atmospheres.c Stabilised against UV rays.c Reversible door opening to more than 180º in every case.c Internal hinges easily removed.c Back of enclosure with a system of bosses equipped with M8 and M10inclusions allowing direct fixing of the mounting plates, bar supports and/orvarious materials that offers great versatility for carrying out any type ofassembly.c Removable front crossbar that enables better access to the interior of theenclosure.c Canopy and body of the enclosure of equal perimeter enabling enclosures tobe coupled both laterally and posteriorly.3/120

PLD-ZDPolyester enclosuresSelf-ventilated IP43IP54 watertight (EN 60529)Technical specificationsc Conforms to general rules for empty enclosures established in IEC andEN 62208.c Degree of protection IP43/IK10.c High resistance to mechanical impacts IK10 (20 J) conforming to IEC andEN 62262.c Self-extinguishing, conforming to IEC 60695-2-1 (960°).c Extreme operating temperatures from –50 a 150 ºC.c Suitable for double insulation mounting conforming to IEC 60439-1(EN 60439-1).Basic compositionc Open top with canopy.c Completely closed base.c Reversible door opening to more than 180º.c Three-point lock, handle operated without catch.c Front crossbar easily removable.Optional accessoriesc Designed to be directly fixed to the ground or on a plinth ZD.c Possibility of installing APLD mounting plates and BPLDN racks.c Equipped with a system of bosses in the interior for fixing light fixtures.c Possibility of IP54 when using a JED gasket.External dimensions (mm)EnclosuresMountingplates APLDPlinthZDMaximum No. of fuseblocksHeight(A)Width(B)Depth(C)ReferenceE: Screws that connect the entry to the connection.DIN sizeNo. ofdoors850 465 320 PLD-85/00 00 1 1 360 APLD-85 ZD-53/00 3 + E850 590 320 PLD-86/0 0 1 1 495 APLD-86 ZD-63/0 4 + E850 785 320 PLD-88/1 1 1 1 690 APLD-88 ZD-83/1 6 + E850 1115 320 PLD-812/2 2 2 1 - APLD-812 ZD-123/2 9 + E850 1115 320 PLD-812/2C 2 2 2 - APLD-812 ZD-123/2 9 + ENo. oflocksD3/121

PLD-ZDPolyester enclosuresSelf-ventilated IP43IP54 watertight (EN 60529)Dimensions (mm)FIG. 1DPLD-85/00; 86/0; 88/1 PLD-812/2; 812/2C1 M10 inserts for installing plates and fuse holder plinths or other material.2 M6 inserts for fixing mounting plates, rails in general and other material.3 Bosses prepared for M8 inserts for fixing adjustable plate supports, Ref.: TEX 8.4 Housings for installing floor fixing supports, Ref.: SPLD. Permit the insertion ofM8 nuts, Ref.: TE/PLD-M8 for fixing various material.5 Lock on right and left door on model PLD-812/2C.Interior canopy prepared for bosses for inserting nuts, Ref.: TEX 6 for fixing auxiliarymaterial, lighting, etc.3/122

PLD-ZDComposition accessoriesZD PlinthsHot-press moulded fibreglass-reinforced polyester plinths, in grey RAL-7032(able to withstand extreme weather conditions).c Self-extinguishing material; easily machined; high resistance to impacts,temperature and corrosive environments.c Partially ground embedded plinths prepared for direct fixing to the PLDenclosure.c Folding front cover, accessible from the interior.c Bosses on the rear panel prepared for inserting nuts, Ref.: TEX 6 for M6screws, allowing for fixing of the the neutral plate, rails and other material.c The sides have an auxiliary outlet with a passing diameter of Pg 36(48 mm), fitted with a plug.c Adjustable metal interior profiles in U and L for cable fixing.c Possibility to cut out the interior part of the side for cable passage.TABLE OF MODELS, DIMENSIONS AND REFERENCESHeight (A)External dimensions (mm)Width (B)Depth (C)ReferenceDIN sizeDTo couple to enclosures900 465 310 ZD-53/00 00 360 PLD-85/00900 590 310 ZD-63/0 0 495 PLD-86/0900 785 310 ZD-83/1 1 690 PLD-88/1900 1115 310 ZD-123/2 2 - PLD-812/2; PLD-812/2CDimensions (mm)ZD-53/00; 63/0; 83/1ZD-123/23/123

PLD-ZDComposition accessoriesFloor fixing supportsSet of two metal supports for fixing the enclosure directly to the floor.Ref.: SPLD.Enclosure referencenumberKLmax.Mmax.PLD-85/00 360 320 224PLD-86/0 495 455 224PLD-88/1 690 650 224PLD-812/2 and 2C 1020 980 224Sealing gasketTo be coupled directly to the door and the back of the enclosure, obtainingIP54.c Manufactured in black synthetic rubber.To couple to enclosuresPLD-85/00PLD-86/0PLD-88/1PLD-812/2 and 2CReferenceJED-85/00JED-86/0JED-88/1JED-812/2LocksDirect-action standard lock, operated by a retractable handle.CATCHES FOR LOCKSSpecificationsType of keyoperation, Ref.:ReferenceDouble bar lock LDB 5 TDB/PLDSide triangle lock ∆ 8 mm LT-8 TT7/PLDLock with key type 405TCL/PLDLock with reinforced key typeManual lockPadlockTLR/PLDTEM/PLDBCME/PL3/124

PLD-ZDMounting accessoriesMounting platesTo be coupled directly to the back of PLD enclosures.c Insulating bakelite plates in black RAL-9005.Possibility of depth adjustment. See notes on use of bosses 3 on page3/122.For attachment to enclosuresPlateThicknessDEreference(mm)No. of plates perReferenceenclosurePLD-85/00 1 APLD-85 356 304 5PLD-86/0 1 APLD-86 481 429 5PLD-88/1 1 APLD-88 676 624 5PLD-812/2 and 2C 2 APLD-812* 448 396 5* The reference includes the 2 plates.Rack for fixing equipmentInsulating rail in hot-pressed fibreglass-reinforced polyester, in grey RAL-7032.c Direct lateral fixing to PLD enclosures.c Possibility of directly fixing busbars.Ref.: BPLDN.3/125

PLD-ZDCurrent distribution accessoriesAdjustable tiesMade of 6.6 nylon in natural colour or black for outdoor conditions.WhiteReferenceBlackLM∅minimumUse∅maximumLZ25100 LN25100 100 2.5 1.6 22LZ25200 LN25200 200 2.5 1.6 49LZ35150 LN35150 150 3.5 1.6 35LZ35200 LN35200 200 3.5 1.6 49LZ35300 LN35300 300 3.5 1.6 75LZ46150 LN46150 150 4.6 1.6 36LZ46200 LN46200 200 4.6 1.6 49LZ48270 LN48270 270 4.8 1.6 73LZ46390 LN46390 390 4.6 1.6 109LZ76390 LN76390 390 7.6 4.7 108Tightening toolsTo tighten and cut the adjustable ties to size. They facilitate wiring and savetime, preventing the packets of cables from loosening.Tool adjustable according to the thickness of the tie. Can be used with thefollowing models: LZ25100 up to LZ46390. Ref.: MARK3.A very light and ergonomic tool, the cut on the tie is done by twisting thetool. Can be used on the following models of ties: LZ25100 up to LZ46390.Ref.: MARK20, 21.ReferenceAdmissible width tiesMARK3 2.5 ÷ 4.8ReferenceAdmissible width tiesMARK20 2.5 ÷ 4.8MARK21 4.6 ÷ 7.6Locking clipsAllows fixing ties from the series LZ25100 up to LZ46390 on panels up to3.2 mm thick. Material: 6.6 nylon.SFC2SFC1Reference∅ perforationmmMax. panelthickness mmFigureSFC1 6 3.2 1SFC2 6 1 2Fig. 1 Fig. 23/126

PLD-ZDCurrent distribution accessoriesStudTo use with soft materials: 7 mm Ø hole, or hard materials: 8 mm Ø hole.Ties up to 9 mm in width can be coupled. Material: black 6.6 nylon.Ref.: LOK01.Tie fixing supportTo attach one or two ties, mounted with a single screw. Material: 6.6 nylon.Allows for attaching ties from the entire range.Reference A B C Fixing screwAdmissiblewidth tiesKR6 12 18 9 M4 2.5 ÷ 4.8KR8 14.5 25 12 M6 2.5 ÷ 7.6Support headsTo transform normal ties into ties with fixing heads, introduce a tie into thishead before closing it on the cable bundle. Material: 6.6 nylon.Reference A B C Fixing screwAdmissiblewidth tiesFH18 7.1 13.3 4 M4 2.5FH30 9.5 17.9 4.7 M5 3.5FH50 11.3 22.2 6.2 M6 4.73/127

PLD-ZDCurrent distribution accessoriesSelf-adhesive support basePermits insertion of 1 tie from 4 points at a 90º angle. Attaches ties from theseries LZ25100 up to LZ46390. Material: 6.6 nylon.Reference A B C DEAdmissible widthtiesMB3A 19.1 19.1 4.8 3.2 13.2 2.5 ÷ 3.5MB4A 28.5 28.5 5.5 4 20.2 2.5 ÷ 4.8adhesive supportTie fixing supportTo attach ties from any series. Material: 6.6 nylon.ReferenceAdmissible widthties mmFixing screwLKC 2.5 7.6 M5Lateral tie fixing supportCovers the head of the tie in its end, thus obtaining neater cabling. Material: 6.6nylon.ReferenceAdmissible widthties mmFixing screwLKM/HE 2.5 7.6 M53/128

PLD-ZDCurrent distribution accessoriesFixing loop for tubes, hoses, etc.2 versions, fixed and adjustable, ∅ from 5 to 25.4 mm. Material: black 6.6nylon.Reference∅ Amin. - max.B CD ENX1 5 3.5 1 6.2 13.7NX3 8 3.9 1 9.4 20.5NX5 12 3.9 1 9.4 24NX8* 14.3 ÷ 15.8 4 1.3 12.6 32NX11 17.4 ÷ 20 4 1.3 12.6 37NX14 22.2 ÷ 25.4 4.3 1.5 16 45* The NX8 model only has 3 adjustment holes.NX 1-3-5 NX 8-11-14Adjustable membrane glandsInsulated membrane glands made of PVC with entry that can be adjusted forcables.Fig. 1 Fig. 2Reference Fig. Ø A Ø B* Ø C Ø D E FØ cableCapacityTubeECPC-3 1 25 21.5 18 5 3.2 13 5 a 18 Pg 9 a 11ECPC-5 1 33 29.5 26 5 3.2 20 5 a 26 Pg 9 a 16ECPC-6 1 43 38.5 36 5 3.2 22 5 a 36 Pg 9 a 21ECPC-9 2 70 63 60 28 3 20 28 a 60 Pg 21 a 48ECPC-15 2 98 90 87 28 3 23 28 a 87 Pg 21 a 48* Mounting perforation.3/129

PLD-ZDCurrent distribution accessoriesProtective sleevesSmall protective sleeves for cables coming out of tubes, as indicated in theinstructions for MI BT 019. Made of flexible and durable PVC, in light greycolour.Reference A Ø B TubePC-1 15.2 12.7 Pg 9PC-2 18.6 16 Pg 11PC-3 20.4 17.8 Pg 13.5PC-4 22.5 19.8 Pg 16PC-5 28.3 25.3 Pg 21PC-6 37 33.6 Pg 29PC-7 47 43 Pg 36Ø BØ AUseful information about Pg tubes and HIMEL accessories to be coupledMODELS, DIMENSIONS AND REFERENCESDesignationØexteriorSteelFlexiblesteelØ interiorTubesCables inserted*Ø perforations toFlexibleNo. of conductorsPVC steel withInsert ThreadPVC 1 2 3 4HIMEL accessories to be coupledTo the tubesAdjustable membraneglandsProtectivesleevesTo the perforationsAdjus. membraneglands4 EC-1 al EC-7Pg 9 15.2 12.7 12.4 12 11.1 6 2.5 - - 16 14 ECPC-3 al ECPC-6 PC-1 - -ECN-5 al ECN-1010 4 2.5 EC-2 al EC-7 EC-1Pg 11 18.6 16 15.5 14.5 14.2 16 6 4 2.5 19 17.5 ECPC-5; ECPC-6 PC-2 EC-2 TC-125 ECN-5 al ECN-10 ECN-1EC-3 al EC-7EC-3Pg 13.5 20.4 17.8 17.5 16.3 16 35 10 6 4 21 19.5 ECPC-5; ECPC-6 PC-3 ECPC-3 TC-2ECN-5 al ECN-10EC-4 al EC-7Pg 16 22.5 19.8 18.7 18.5 17.6 50 16 10 6 23 21.5 ECPC-5; ECPC-6 PC-4 EC-4 TC-3ECN-5 al ECN-10EC-5 al EC-7EC-5Pg 21 28.3 25.3 24.7 23 23 70 25 16 10 29 27 ECPC-6 al ECPC-15 PC-5 ECPC-5 TC-4ECN-6 al ECN-10ECN-595 35 25 16 EC-6; EC-7 EC-6 TC-5Pg 29 37 33.6 33.5 31 31 120 50 35 25 38 35.5 ECPC-9; ECPC-15 PC-6 ECPC-6 TCP-5150 ECN-7; ECN-10 ECN-6185 35 EC-7 EC-7Pg 36 47 43 41.5 41 40.3 240 70 50 50 48 45.5 ECPC-9; ECPC-15 PC-7 ECN-7 TC-6300 ECN-1095 70 ECPC-9; ECPC-15Pg 42 54 50 48 48 47 - 120 95 70 55 52.5 ECN-10 - - -120 95 ECPC-9; ECPC-15Pg 48 60 56 54.2 52.5 51.4 - 150 150 120 61 58 ECN-10 - - -* Number and section in mm 2 of the conductors that may be housed inside each tube (orientative).For more information consult the rulesPlain plugs3/130

PLD-ZDCurrent distribution accessoriesSigma safety terminalsBase of safety terminals made of black matte self-extinguishing polyamide-6;terminal of brass MS-58DIN17660); ring of tempered steel zinc dichromate; cap made of orange selfextinguishingpolypropylene.c Anti-cut. The connection is made using a tightening mechanism thatspreads the pressure out throughout the entire contact surface, avoidingthe occasional rubs and stresses that damage the conductors.c Loosening proof. The ring that surrounds the brass body ensures that thepressure exerted by the conductors cannot open the terminal and loosenthe connection.c Total insulation. All the SIGMA terminals are supplied with a terminal cap,avoiding any accidental contact with live parts.All the calibres may be coupled one to the other, allowing the formation ofstrips of any length. Service voltage: 500 V.ReferenceSectionm/m 2 A B C D ES.04 1 × 4 30 20 13 21 4S.06 1 × 6 33 25 16 24 7S.10 1 × 10 38 28 16 28 6S.16 1 × 16 42 32 19 32 9S.25/35 1 × 35 46 38 23 34 11S.50 1 × 50 52 45 27 40 15S.70 1 × 70 55 50 30 40 15S.95/100 1 × 100 58 54 33 40 20NOTE: each terminal accepts up to 2 conductors of the section indicated.3/131

PLD-ZDCurrent distribution accessoriesBimetal BBH terminalsBBH-29BBH-29DTerminals especially designed for branching cables on plates; their mainapplication is busbar connection.The BBH terminals are made of a tinned, hot cast copper alloy and aresuitable for connecting to a conductor of copper or aluminium indistinctly(bimetal).ReferenceMain section mm 2 Bypass section mm 2BBH-29PBBH-29DPBBH-29 6-50 -BBH-29C* 6-50 -BBH-30 10-95 -BBH-31 16-150 -BBH-32 50-240 -BBH-29D 6-50 6-50BBH-29DC* 6-50 6-50BBH-30D 10-95 10-95BBH-31D 25-150 16-150BBH-32D 95-240 5-240ReferenceMain section mm 2 Bypass section mm 2BBH-29P 6-50 -BBH-29PC* 6-50 -BBH-29DP 6-50 6-50BBH-29DPC* 6-50 6-50* Include terminal cover CBBH-29.Plate/cable terminalsPlate entry and bypass by cable.ReferenceSection Cablebypass (mm 2 )Plate thickness (mm)FigureBPCH 516 1.5 to 16 5 2BPCH 550 1.5 to 50 5 2BPCH 5120 16 to 120 5 2BPCH 1016 1.5 to 16 10 1BPCH 1050 1.5 to 50 10 1BPCH 10120 16 to 120 10 11 23/132

PLD-ZDLighting accessoriesCompact lamp355907066Compact fluorescent lamps, designed especially for use in electronicenclosures. May be fixed with a magnet.c Connection voltage 220 V/50 Hz.c Consumption 11 W.c Connection/disconnection switch.c 200 V/16 A socket with earthing.c Maximum ambient temperature 60 °C.c Lighting output = 75 W bulb.SpecificationsReferencePlugTensionLamp fixed with a magnet oron 35 mm symmetrical LAM-75 220 V/16 A 220 V/50 HzDIN rail.Lamp fixed on a 35 mmsymmetrical DIN rail.LAC-75 220 V/16 A 220 V/50 HzL amp fixed with a magnet oron 35 mm symmetrical LAM-75/120 120 V/15 A 120 V/60 HzDIN rail.Lamp fixed on a 35 mmsymmetrical DIN rail.LAC-75/120 120 V/15 A 120 V/60 HzSlimline lampMagnetic-fixing flat lamps equipped with energy efficient light bulbs, with orwithout a plug.c Electronic ballast.c Power: 11 W.c Luminosity: 900 lmc Lifespan: 10000 hc Carcasa de plástico UL94 V0.c Plastic casing UL94 V0.c IP20.c Class I.Reference Plug Socket ApprovalLAMS75 AC 230 V/16 A SCHUKO VDELAMX75 AC 230 V/- - VDELAMU75 AC 120 V/15 A USA UL3/133

PLD-ZDLighting accessoriesIncandescent lampIncandescent lamp designed especially for use in electronic enclosures.c Connection voltage 220 V/50-60 Hz.500c Consumption 60 W.c Connection/disconnection switch.c Terminal connection entry.ReferenceLAI/OL 68Dual lamp1Light fixtures designed especially for use in electronic enclosures with variouspossibilities for fixing and operating.c Energy efficient electronic lamp E27, 20 W, 220-240 V/50-60 Hz or 120V/60 Hz.c Lighting output = 100 W bulb.2c Fixed models connection via 2.5 mm 2 terminal strip and the mobile modelvia cable.c Degree of protection IP20.c Insulation class II.c Conforming to EN 55014 and EN 50082-1.3Specifications Support fixing Figure Reference TensionMotion-activatedMagnetic, using screws LAMDP 220 V/56 Hz1and/or (1) 35 DIN railLAMDP 120 120 V/60 HzOn/off switch with the possibility Magnetic, using screws LAMIN 220 V/50 Hz2of connecting door switchand/or (1) 35 DIN railLAMIN 120 120 V/60 HMobile lamp, connectionLAMPO220 V/50 HzAdhesive or screws 3via cableLAMPO 120 120 V/60 HzSupport for LAMDP, LAMIN,LAMPO lampAdhesive or screws 4 SOLAM(1) DIN rail not provided.4671003963/134

PLD-ZDNatural ventilation accessoriesVentilation devicesTo connect the inside of the enclosure with the exterior atmosphere and preventcondensation. Can be fixed onto the outside.ReferenceVM-25VM-27SpecificationsFor coupling to the outside of all polyester enclosuresVM-25VM-273/135

PLD-ZDComplementary accessoriesExpandable nutsExpandable metal nuts to be included in the prepared housings in theenclosures for fixing of equipment, rails, etc.SpecificationsReferenceTEX 8 TEX 6 TEX 5M5 TEX 5M6 TEX 6M8 TEX 8Document pocketPP-A models made of thermoplastic in grey RAL-7035.c Fixed with adhesive tape or screws.For holding DIN A3-A4 or A5-sized plans.InsulatedPlan sizeA4A5ReferencePP-A4PP-A5174234188 22 278 40Ref.: PP-A5Ref.: PP-A43/136

PLD-ZDApplicationsSPECIAL ARTICLES ON REQUESTDistribution enclosures in BTOne of the main applications is the LV distribution. For this reason, they areprepared for the incorporation of fuse blocks, insulators and busbars.(Bases not included)PLD-B enclosuresPLD enclosure equipped with:c 3F + N 50 × 10 copper busbar.c Floor fixing supports SPLD.c Prepared for installing fuse block (not included).c Triangle lock.Reference Dimensions (mm) Capacity, vertical s/c III*PLD-85/B 850 × 465 × 320 3+EPLD-86/B 850 × 590 × 320 4+EPLD-88/B 850 × 785 × 320 6+EPLD-812/B 850 × 1115 × 320 9+EPLD-812-C/B 850 × 1115 × 320 9+EE: screws that connect the entry to the connection.PLZD-B enclosuresPLD enclosure equipped with:c Plinth ZD.c 3F + N 50 × 10 copper busbar.c Prepared for installing fuse block (not included).c Triangle lock.Reference Dimensions (mm) Capacity, vertical s/c III*PLZD-85/B 1720 × 465 × 320 3+EPLZD-86/B 1720 × 590 × 320 4+EPLZD-88/B 1720 × 785 × 320 6+EPLZD-812/B 1720 × 1115 × 320 9+EPLZD-812-C/B 1720 × 1115 × 320 9+EE: screws that connect the entry to the connection.3/137
