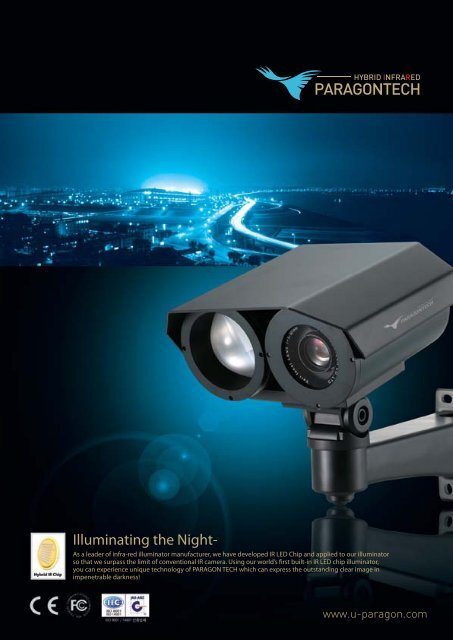

PARAGONTECHIlluminating the Night-As a leader of infra-red illuminator manufacturer, we have developed IR LED Chip and applied to our illuminatorso that we surpass the limit of conventional IR camera. Using our world’s first built-in IR LED chip illuminator,you can experience unique technology of PARAGON TECH which can express the outstanding clear image inimpenetrable darkness!www.u-paragon.com

NEW TECHNOLOGY OF HYBRID CHIPIN INFRA-RED ILLUMINATORSURPASS THE LIMIT OF CONVENTIONAL IR LED BY HYBRID IR LED CHIPMORE CLEARLY! MORE FAR DISTANCE!• Over 10 Years of LED Life span (Guarantee Period: 10 Years for Chip)• Illuminating Power: 200m with Definitely Clear Images at Total DarknessIlluminating sourceMethod of TransmissionLife SpanRadiant IntensityBeam AngleHeat-ResistanceAim of DevelopmentHybrid IR Camera & IlluminatorHybrid Chip developed by state-of-artsemiconductor own technologyConcentrate of light by using optical(spherical & aspherical) lensSemi-permanent lifetime of LED chip(10 years of guarantee period)Easy emission of heat from illuminatorand extension of camera’ s lifetime dueto separation of camera & illuminatorDue to high radiant density & intensity,IR rays from the chip is 20% more reachedto the target than conventional LED.(only 36 pieces of LED in Hybrid chip canilluminate up to 100m)Wide beam angle by optical lens whenilluminating long distanceStable operation due to high heat-resistingtemperature & enough radiation intensityHybrid LED chip is exclusively devised forilluminator so that the radiant intensity &density, energy level and heat-resistingpower is definitely different with conventionalIR LED.Conventional IR Camera& IlluminatorSimple arrangement of IR LED whichis using for remote controllerSimple arrangement of LEDlamp without optical scienceShort lifetime of LED (2year)Reduction of camera’s lifetime due todirect transmission of high temperatureof LED heat to the cameraDue to low radiant density & intensity,there are big loss of IR rays to the target.Narrow beam angle when illuminating longdistanceEasy breakdown due to excessiveheating & electric current to low priceLED made by plasticConventional LED lamp is devised forremote controller, telecommunication ofmobile phone or sensor for short distanceso that they have low radiant density,intensity and energy level.

PARAGONTECH Hybrid IR IlluminatorIt is a CCTV lighting instrument for night time surveillance which is made of Hybrid IR LEDChip and optical lens developed by PARAGONTECH own technology. Using together withthe installed CCTV camera, you can see more clear and bright image at nigh time.High Radiant Intensity - Exact Recognition of Night-time SurveillancePARAGON Hybrid IR Illuminator delivers distinguished performance in brightness,visible distance and clearance attributable to high radiant intensity of IR lights.TIP! SOLUTION- The case when cannot recognize the object clearly at night even though alreadyinstalled low light camera or IR CCTV camera, PARAGONTECH hybrid IR illuminators deliverabsolute performance in night vision surveillance by combining with conventional cameras.- The case when cannot recognize the number plate of vehicle clearly at nighteven though already installed ANPR camera, PARAGONTECH hybrid IR illuminators deliverabsolute performance in number plate capture by combining with conventional cameras.High Efficiency in Power Consumption- Cost reduction and extension of product lifetime attributed to 10W of low powerconsumption.conventional CCTV +Hybrid IR Illuminatorconventional ANPR Camera +Hybrid IR Illuminator(Military Area)(Building Entrance)200m Field Illumination100m Field Illumination( IR illuminator on/off )( IR illuminator on/off )

Product Matrix IlluminatorHI-200Self-Developed Hybrid IR LED Chip (IR560)Long range of visible distance up to 200m at 0 Lux darknessMax.60W power consumptionEasy Installation with existing IR and D/N cameraProduct MatrixIlluminatorHI-60Self-Developed HybridIR LED Chip (IR36)Visible distance up to60m at 0 Lux darknessCost reduction byMax.10W low powerconsumptionEasy Installation withexisting IR and D/NcameraHI-70Self-Developed HybridIR LED Chip (IR36)Visible distance up to70m at 0 Lux darknessCost reduction byMax.10W low powerconsumptionEasy Installation withexisting IR and D/NcameraMODELNIGHT VISION DISTANCEHI-200Infrared LED chip Illuminator200m / 467ftHI-70 Infrared LED chip Illuminator 70m / 234ftHI-60 Infrared LED chip Illuminator 60m / 200ftHI-30 Infrared LED chip Illuminator 30m / 100ftHI-30A Infrared LED chip Illuminator 30m / 100ftPIB-100A Infrared LED chip Illuminator 100m / 333ft

Illuminator Product MatrixHI-30Self-Developed Hybrid IR LED Chip (IR36)Visible distance up to 30m at 0 Lux darknessCost reduction by Max.10W low power consumptionEasy Installation with existing IR and D/N cameraProduct MatrixIlluminatorPIB-100ASelf-Developed HybridIR LED Chip (IR36)Various installation ways: Mounting bracket With/Without HandleVisible distance up to100m at 0 Lux darknessSmall size & EasyInstallation with existingIR and D/N cameraHI-30ASelf-Developed HybridIR LED Chip (IR36)Wide range of 90˚(30m)Beam Angle at 0 LuxdarknessCost reduction byMax.10W low powerconsumptionEasy Installation withexisting IR and D/NcameraLED CHIP LIFE BEAM PATTERN OPTIONS POWER CONSUMPTION WEIGHTover 10 years 20˚ Under 65W 3.7kgover 10 years 23˚ Under 12W 1.6kgover 10 years 25˚ Under 12W 1kgover 10 years 45˚ Under 10W 460gover 10 years 90˚ Under 12W 1.5kgover 10 years 25˚ Under 12W 1.62kg

PARAGONTECH#410-412, New T Castle, 429-1, Gasan-Dong,Geumcheon-Gu, Seoul. KoreaTel.+82(2)2626-9500 Fax.+82(2)2626-9508
