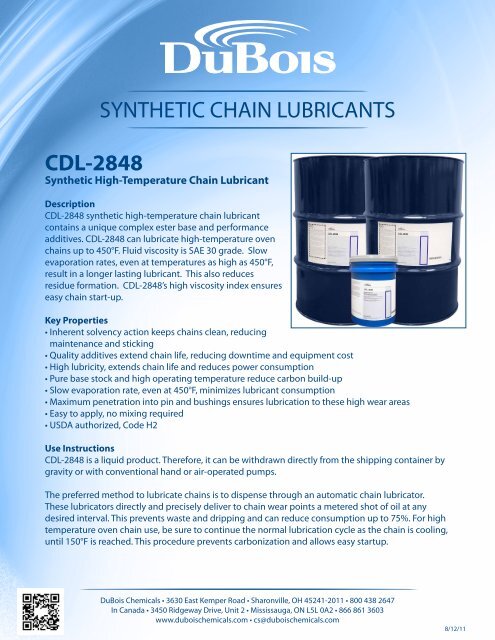

SYNTHETIC CHAIN LUBRICANTSCDL-2848Synthetic High-Temperature Chain LubricantDescriptionCDL-2848 synthetic high-temperature chain lubricantcontains a unique complex ester base and performanceadditives. CDL-2848 can lubricate high-temperature ovenchains up to 450°F. Fluid viscosity is SAE 30 grade. Slowevaporation rates, even at temperatures as high as 450°F,result in a longer lasting lubricant. This also reducesresidue formation. CDL-2848’s high viscosity index ensureseasy chain start-up.Key Properties• Inherent solvency action keeps chains clean, reducingmaintenance and sticking• Quality additives extend chain life, reducing downtime and equipment cost• High lubricity, extends chain life and reduces power consumption• Pure base stock and high operating temperature reduce carbon build-up• Slow evaporation rate, even at 450°F, minimizes lubricant consumption• Maximum penetration into pin and bushings ensures lubrication to these high wear areas• Easy to apply, no mixing required• USDA authorized, Code H2Use InstructionsCDL-2848 is a liquid product. Therefore, it can be withdrawn directly from the shipping container bygravity or with conventional hand or air-operated pumps.The preferred method to lubricate chains is to dispense through an automatic chain lubricator.These lubricators directly and precisely deliver to chain wear points a metered shot of oil at anydesired interval. This prevents waste and dripping and can reduce consumption up to 75%. For hightemperature oven chain use, be sure to continue the normal lubrication cycle as the chain is cooling,until 150°F is reached. This procedure prevents carbonization and allows easy startup.DuBois Chemicals • 3630 East Kemper Road • Sharonville, OH 45241-2011 • 800 438 2647In Canada • 3450 Ridgeway Drive, Unit 2 • Mississauga, ON L5L 0A2 • 866 861 3603www.duboischemicals.com • cs@duboischemicals.com8/12/11

CDL-2848Technical DataCharacteristics ASTM CDL-2848ColorClear OrangeSAE Viscosity Grade 30ISO Viscosity Grade 68AGMA Viscosity Grade 2Viscosity D-44540 °C cSt 58.2100 °C cSt 10.6100 °F SUS 315210 °F SUS 62.2Viscosity Index D-2270 162Pour Point D-97 15 °FFlash Point D-92 515 °FFire Point D-92 595 °FSpecific Gravity D-287 0.957Pounds per Gallon D-287 7.97API Gravity D-1298 16.3Product CompatibilitySafe for use on ferrous and nonferrous metals used in industrial equipment. CDL-2848 is compatiblewith the following seal materials: Viton, silicone, Teflon, High Nitrile Buna N, Nylon, and polypropylene.It is incompatible with neoprene and polycarbonate. Recommended paints include: two-part epoxy,urethane, and oil-resistant alkyd.Safe Handling and Storage InstructionsKeep container closed when not in use. Store drums on their side to prevent water contamination. Storepails upright and covered. Store inside above 32°F.PrecautionsKEEP OUT OF THE REACH OF CHILDREN. Please refer to the label and Material Safety Data information forall warnings, recommendations for safety equipment, and other regulatory information.DuBois Chemicals • 3630 East Kemper Road • Sharonville, OH 45241-2011 • 800 438 2647In Canada • 3450 Ridgeway Drive, Unit 2 • Mississauga, ON L5L 0A2 • 866 861 3603www.duboischemicals.com • cs@duboischemicals.com
