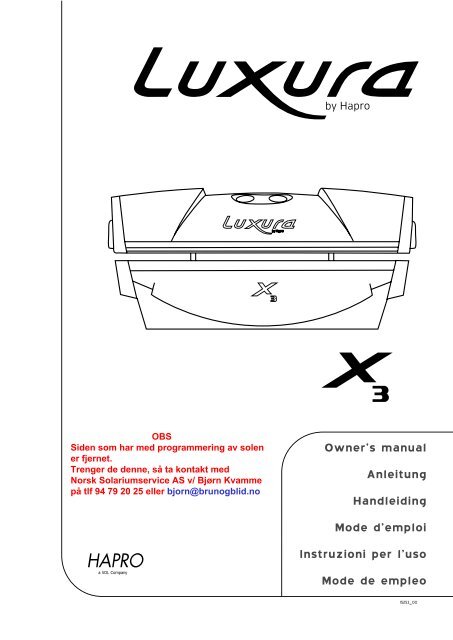

Owner's manual Anleitung Handleiding Mode d'emploi Instruzioni ...

a VDL Company

A VDL COMPANY

Owner’s manual

Anleitung

Handleiding

Mode d’emploi

Instruzioni per l’uso

Mode de empleo

15253_OO

Owner’s manual . . . . . . . 4

Anleitung . . . . . . . . . . . .10

Handleiding. . . . . . . . . . . 16

2

Warning!

Before obtaining access to terminals, all supply circuits must be disconnected.

4

Congratulations on the purchase

of your Hapro sun bed.

Your new sun bed has been

manufactured with the utmost

care and attention and consists

of high-quality parts.

All Hapro sun beds have been

developed to give you the best

possible tan, whilst complying

with the strictest applicable

European standards.

Warranty

Our tanning units are manufactured with the greatest attention

and are of excellent quality.

Every Luxura is manufactured to meet the international

IEC/EN standards and carries the Kema seal of approval. We

provide a manufacturer's warranty of 1 year.

Your new sun bed has a manufacturer’s guarantee of 1 year,

which commences on the date of installation. Within the

warranty period all faults that are the result of material or

manufacturing errors will be repaired without cost. Please

contact your dealer for any warranty enquiries.

In order to make a claim under the terms of this guarantee,

you must be able to produce the original invoice or receipt

bearing the date of purchase. The type and serial number of

the appliance should also be indicated.

The warranty is subordinate to the national regulations according

to the warranty determination of products.

Not covered under

this warranty:

Units which have the type, serial number and/or other identification

labels removed, damaged or altered.

Lamps, starters and acrylic sheets.

Damage due to purchaser abuse, neglect, transport, improper

use or improper maintenance.

Damage due to use of accessories not originally supplied by

Hapro or inferior accessories.

Damage due to installation, repair or assembly not done by

Hapro authorised personnel.

Damage due to fire, lightning, earth-quakes or other natural

disasters.

5

Note:

Please consult enclosed tanning schedule for advised

tanning times.

Repairs may only be carried out by qualified personnel.

Always disconnect the main power at the circuit breaker

before servicing or repairing the unit.

1 Contact your authorised Hapro dealer immediately if this

unit does not function as outlined in this manual.

2 Do not operate this unit in a moist or humid space.

3 Always make sure the fuses can carry the load. This unit

has to be protected by ground fault circuit interrupter

(GFCI) of 0.03A.

If the appliance is not connected by means of a plug, an

installation device or an all-pole working switch will need

to be fitted.

4 Always disconnect the power to the unit at the wall breaker

when servicing or cleaning the in-side construction of

the cabine. Maintenance for which the procedure is not

described in this manual should only be done by a qualified

electrician. Never clean the electrical components with

fluids.

5 When installing the equipment, keep in mind the prescribed

minimum distances as described in the "Dimensions /

Placement" chapter.

6 If the equipment is being placed in a cubicle, there should

be enough space between the walls and the equipment,

preferably the minimum amount as indicated in the

“Assembly of Tanning Equipment”. This has to do with the

air circulation surrounding the equipment.

7 Avoid having the acrylic sheets come into contact with

sharp objects.

8 This unit may not be operated if:

• the user is not wearing protective uv-goggles

• the blue or white facial glass is cracked or broken

• the canopy or bench acrylic sheet is not installed

• one or more of the fans in the unit are not functioning

properly

• the timing mechanism is not functioning properly

• the support of the bench is not completely closed

• the temperature inside the cabin is 30°C or higher

Read this first

9 Exchanging lamps and starters; remove the lamp by turning

this a quarter turn to the left. Remove the starters by turning

these a quarter turn to the left. Placement of lamps and

starters in opposite order.

10 To ensure maximum tanning effectiveness, change the

acrylic sheet after every 1200 hours of operation.

11 To ensure maximum tanning effectiveness, replace the

lamps and the facial tanning lamps like indicated by the

manufacturer. Only replace these with the same type of

lamp.

12 Check the environment regulations of your respective state

with regard to the proper manner in which the lamps are to

be disposed of.

13 Note: only a special acrylic cleaner may be used to clean

the acrylic sheet. Never use cleaners that contain alcohol,

as these can damage the acrylic sheet.

14 The UV-type of the tanning unit is indicated on the specificationsticker.

15 Ultraviolet radiation from the sun or UV appliances can

cause skin or eye damage. These biological effects depend

upon the quality and quantity of the radiation as well as the

skin and eye sensitivity of the individual.

16 The skin may develop sunburn after an excessive exposure.

Excessively repeated exposures to ultraviolet radiation from

the sun or UV appliances may lead to premature ageing of

het skin as well as increased risk of development of the

skin tumours.

17 The unprotected eye may develop surface inflammation

and in some cases, after a cataract operation for example,

damage may accur to the retina after eccessive exposure.

Cataracts may develop after many repeated exposures.

18 If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or a similarly qualified

person in order to avoid a hazard.

6

Note:

If your customers are using medication, ask them to consult

their doctor before embaking on a series of tanning

sessions.

10 Golden rules

for sensible tanning

These rules are in accordance with the European regulations concerning safe use of tanning equipment. We

advise you to inform your clients about these rules.

1 Before starting to tan first carefully read through the tanning

instructions set out in this booklet and follow all of the

recommendations.

2 Restrict sunbathing on a tanning unit to people older than

15 years with skin type 2 - 6. Children younger than 15

year and people with skin type 1 have skins that are highly

sensitive to ultraviolet light.

3 Make sure that upon commencing a series of tanning

sessions your customers have a rest day following their

first tanning session. If there is no sign of any undesirable

skin reaction they can then continue with the series of

sessions.

4 Make sure that your customers do not tan more than once a

day. This applies to tanning on the sunappliance and tanning

in natural sunlight. The skin does not make a distinction

between the two either. Taking exposure to natural sunlight

into account, keep the maximum number of sessions on the

sunappliance to approximately 50 sessions a year.

5 Some medicines and beauty products contain substances

which can cause certain undesirable reactions when combined

with exposure to UV radiation. Other substances may

also sometimes have a similar effect. Below you will find

a list of substances which can react when combined with

exposure to UV radiation:

• Sulphonamide - in various medicines including antibiotics

• Tetracyclines - in antibiotics, antiacne preparations

• Nalidexine acid - in medication for infection of the urinary

passages

• Chlorothiazide - in diuretics

• Sulphonylurea - in diabetic medication

• Phenothiazines - anti-stress medication

• Triacetyldiphenylisatine - in laxatives

• Psoralenes - in tanning accelerators

• Cyclamates - in sweeteners

• Para-aminobenzoic acid (PABA) - in sun protection

creams/oils

• Musk ambrette, musk oil - in perfumes

• Bleaching agents - in washing powders/liquids

• Eosine - in colourings

• Halogenated salicylamide - in antifungal substances

6 When combined with exposure to ultraviolet light, cosmetic

products - perfumes and make-up, can cause the skin to

react. So take care to ensure that your customers skin is

clean before tanning. Some products penetrate deep into

the skin. Advise your customers to ensure that their skin

is clean when tanning. Recommend that they clean their

skin thoroughly a few hours before each tanning session, or

better still, recommend that they wear no make-up at all

the day before. Also advise your customers to remove any

jewellery before tanning.

7 Make sure that your customers do not use cream or oil

that contains a sun block or self-tanning lotion when

using the tanning equipment. These products contain

substances which influence tanning times and thus make

the prescribed times unreliable. Also make sure that your

customers do not use tanning pills in combination with a

series of tanning sessions or exposure to natural sunlight.

The combination of tanning pills and UV light can increase

the possibility of skin irritation and sunburn.

8 If the skin is red and taut a short time after the tanning session

it is likely to be sunburnt. Wait for these symptoms to

disappear before tanning again, revise the tanning plan and

reduce the length of the individual tanning sessions for the

customer in question. If tanning gives rise to undesirable

reactions that you cannot explain, stop the series of tanning

sessions and advise your customer to see their doctor if the

symptoms do not disappear within a short space of time.

9 Make sure that your customers always wear protective

goggles to protect their eyes - even if you may have seen

pictures of people tanning without using these goggles. UV

light which directly enters the eyes can cause eye disorders

(snow blindness, actinic conjunctivitis or cataracts).

10 Reduce the tanning time by 20% during the first 50 hours

that the (new) sunappliance is in use. During these first 50

hours the tubes do not emit the normal 100% energy but

120% energy. After the first 50 hours the tubes will emit the

normal capacity of between 95% to 100%.

7

4x

B

1 2

B

3

4

A

1 2

A

1

2

3

4

Removing the

acrylic sheets

Remove the 4 round headed screws.

Click the cover profiles open.

Take the acrylic sheet out by first raising it at the front of

the tanning unit and then sliding it out from the rear cover

profile.

Also remove from the canopy the 4 round headed screws

and click the cover profiles open. Then turn the body blower

and/or headfan slightly outwards (see A). Now press the

acrylic sheet slightly inwards (see B) so that it has more

play. Remove the acrylic sheet first from the front side and

then slide it out from the rear cover profile.

Remove

face tanners.

(optional)

1 Remove the metal cover plate.

2

Loosen the cross-slotted screw (A) as indicated and snap

open the blue filter window (see B).

8

Skin types

Tanning effect

Sunburn

(sensitivity to sunlight)

All lamps are

UV-type 3

Important: Values only

apply to mentioned

lamps. See marking

on the backside of the

application

For replaceable emitters:

See also marking

on the backsite of the

application.

All lamps are

UV-type 4

Important: Values only

apply to mentioned

lamps. See marking

on the backside of the

application

For replaceable emitters:

See also marking

on the backsite of the

application.

Max. tanning

sessions a year

Tanning tables

fair-skinned (II) average (III) dark-skinned (IV)

normal tanning fast tanning fast tanning

mostly rarely ralely

1st session (min) 5 5 5

2nd session (min) 5 6 7

3rd session (min) 6 7 9

4th session (min) 7 8 11







1st session (min) 3 3 3

2nd session (min) 3 3 4

3rd session (min) 3 4 5








60 (15kJ/m2) 43 (15kJ/m2) 33 (15kJ/m2)

Warning!: allow at least 48 hours between the first two exposures.

Warning!: UV-type 4 may only be used following medical advice.

40

D i m e n s i o n s A b m e s s u n g e n A f m e t i n g e n

D i m e n s i o n s D i m e n s i o n i D i m e n s i o n e s

46

Note!

Note!

Luxura X3 26 SLi

Voltage (Fuse) Wattage

230V/1~N/PE/50Hz 1 x 16A 3.6Kw

For UK only!

240V1~NPE/50Hz 1x16A 3.7Kw

Numbered Wattage of lamps =

4 x 80W

22 x 100W

1 x 300W

Weight 150 kg



230V/1~N/PE/50Hz 1 x 20A 4,5kW

230V/3~PE/50Hz 3 x 16A 4,5kW

400V/1~N/PE/50Hz 3 x 16A 4,5kW

For UK only!

420V/3~N/PE/50Hz 3 x 16A 4,7kW


14 x 80W

14 x 100W

3 x 300W

Weight 170 kg

Note!

Note!

Technical data

Luxura X3 30 SPr


230V/1~N/PE/50Hz 1 x 20A 4,0kW

230V/3~PE/50Hz 3 x 16A 4,0kW

230V/1~N/PE/50Hz 3 x 16A 4,0kW

For UK only!

420V/3~N/PE/50Hz 3 x 16A 4,2kW

Numbered Wattage of lamps

14 x 100W

14 X 120W

9 x 25W

Weight 167 kg



230V/1~N/PE/50Hz 1 x 20A 5kW

230V/3~PE/50Hz 3 x 16A 5kW

400V/3~N/PE/50Hz 3 x 16A 5kW

For UK only!

420V/3~N/PE/50Hz 3 x 16A 5,2kW


30 x 100W

3 x 300W

Weight 180 kg

47

A s s e m b l y M o n t a g e A s s e m b l a g e

GB

D

NL

F

I

E

GB

D

NL

F

I

E

Secure the two support feet to the underside of

the sunbed with 16 round headed screws (4.2mm X

13mm). Keep the hinge arm on the rear away from the

sunbed (see drawing)

Befestigen Sie die beiden Stative mit Hilfe von 16

Halbrundschrauben (4,2mm x 13mm) an der Unterseite

der Bank. Der Scharnierarm muss sich auf der

Rückseite der Bank befinden (siehe Zeichnung).

Bevestig de de twee statiefpoten aan de onderkant

van de bank. met 16 bolkopschroeven (4.2mm X

13mm). De scharnierarm aan de achterzijde houden

van de bank (zie tek.)

Fixez les deux pieds sous le banc à l'aide de 16 vis à

tête ronde (4,2 mm X 13 mm). Maintenir le bras de

charnière à l'arrière du banc (voir tech.).

Fissare le due gambe del treppiede sotto il lato inferiore

del lettino abbronzante, utilizzando 16 viti a testa

tonda (4.2mm x 13mm). Sollevare il braccio articolato

della parte posteriore del pannello (vedere disegno).

Fije las dos patas de soporte en el lado inferior del

banco con 16 tornillos de rosca (4,2 mm x 13 mm).

Sostenga el brazo de articulación en el lado trasero

del banco (véase el dibujo).

Fit the connection panel to the support feet (see

drawing) with 4 round headed screws (m6 x 20mm).

Then turn the sunbed over. Caution: when turning the sunbed

over do not use the support feet!

Befestigen Sie die Verbindungsplatte mit 4

Halbrundschrauben (m6 x 20mm) an den Stativen

(siehe Zeichnung). Drehen Sie die Bank danach um.

Achtung: Beim Umdrehen der Bank nicht die Stative verwenden!

Monteer de verbindings-plaat op de statiefpoten (zie

tek.) met 4 bolkopschroeven (m6 x 20mm). Draai

hierna de bank om. Let op: bij het omdraaien van de bank niet de

statiefpoten gebruiken!

Montez la plaque de liaison sur les pieds (voir tech.) à

l'aide de 4 vis à tête ronde (m6 x 20mm). Retournez

ensuite le banc. Attention : n'utilisez pas les pieds pour retourner

le banc !

Montare la piastra di giunzione sulle gambe del treppiede

(vedere disegno), utilizzando 4 viti a testa tonda

(m6 x 20mm). Capovolgere quindi il pannello del

lettino abbronzante. Attenzione: nel capovolgere il pannello, non

utilizzare le gambe del treppiede!

Monte la placa de unión sobre las patas de soporte

(véase el dibujo) con 4 tornillos de rosca (m6 x

20mm). Después, de la vuelta al banco. Atención: no utilice

las patas de soporte para darle la vuelta al banco.

48

M o n t a g e M o n t a j e A s s e m l a g g i o

1

3

2

4

GB

D

NL

F

I

E

GB

D

NL

F

I

E

Place the sleeve bearings in the bearing bushes of

the canopy (1). Now place the canopy on the sunbed

(2), connect the hinge points using the bearing

bushes (3) and secure these with the hexagonal

bolts (M8) (4).

Legen Sie die Gleitlager in die Lagerbuchsen des

Himmels (1). Platzieren Sie jetzt den Himmel auf der

Bank (2); verbinden Sie die Scharnierpunkte mittels

der Lagerbuchsen (3) und sichern Sie diese mit den

Sechskantschrauben (M8) (4).

Plaats de glijlagers in de lagerbussen van de hemel

(1). Plaats nu de hemel op de bank (2), verbind de

scharnier punten d.m.v. de lagerbussen (3) en borg

deze met de zeskantbouten (M8) (4).

Placez les paliers libres dans les bagues de roulement

du ciel (1). Placez à présent, le ciel sur le

banc (2), attachez les points charnières à l'aide des

bagues de roulement (3) et fixez-les à l'aide de boulons

hexagonaux.

Inserire i cuscinetti di guida nelle gabbie dei cuscinetti

collocate nel cielo (1). Appoggiare ora il cielo sul

pannello inferiore (2), collegare le giunture del pannello

con le gabbie dei cuscinetti (3) e fissarle con le

viti a testa esagonale (M8) (4).

Coloque los cojinetes de deslizamiento en la guía de

la pieza superior (1). A continuación, coloque la pieza

superior sobre el banco (2), conecte los puntos de

articulación por medio de las guías de cojinetes (3) y

fíjelos con los tornillos de cabeza hexagonal (M8) (4).

Fit the two plugs of the sunbed to the rear of the

canopy as indicated.

Befestigen Sie die beiden Stecker der Bank

anweisungsgemäß auf der Rückseite des Himmels.

Monteer de twee stekkers van de bank aan de achterzijde

van de hemel zoals aangeven.

Montez les deux prises du banc à l'arrière du ciel,

comme indiqué.

Montare le due spine del pannello sul lato inferiore

del cielo, come indicato.

Monte los dos enchufes del banco en el lado trasero

de la pieza superior, como se indica.

49


1

2

2

3

GB

D

NL

F

I

E

Open the canopy and fit the gas springs as per drawing.

The gas spring casing on the canopy side (1). Place

the fork pins (2) and secure these with the securing

clips (3).

Öffnen Sie den Himmel und platzieren Sie die

Gasfedern wie auf der Zeichnung angegeben. Das

Gasfedergehäuse muss sich auf der Himmelseite

befinden (1). Platzieren Sie die Gabelstifte (2) und

sichern Sie sie mit den Sicherungsschellen (3).

Open de hemel en plaats de gasveren zoals op tekening.

Het gasveerhuis aan de hemelzijde (1). Plaats de

gaffelpennen (2) en borg deze met de borgclips (3).

Ouvrez le ciel et posez les vérins à gaz comme indiqué

sur le dessin. Le boîtier du vérin à gaz côté ciel

(1). Placez les broches de verrouillage (2) et fixez-les à

l'aide de clips de fixation (3).

Aprire il cielo e inserire gli ammortizzatori pneumatici

a gas, come illustrato nel disegno. Aprire quindi la gabbia

dell'ammortizzatore pneumatico a gas sul lato del

cielo (1). Inserire i perni delle forcelle (2) e fissarli con

dei perni di sicurezza (3).

Abra la pieza superior y coloque los resortes neumáticos

como se muestra en el dibujo. La carcasa de los

resortes en el lado de la pieza superior (1). Coloque

los pasadores de horquilla (2) y fíjelos con clips de

sujeción (3).

50

M o n t a g e M o n t a j e A s s e m l a g g i o

GB

D

NL

Slide the front panel (1) into the rebate (2) and secure it

with 2 round headed screws (m6 x 12mm) to the support

feet through the holes in the side panels.

Schieben Sie die Vorderplatte (1) in die Falz (2) und befestigen

Sie sie mit Hilfe von 2 Halbrundschrauben (m6

x 12mm) durch die Bohrungen in den Seitenplatten der

Bank an den Stativen.

Schuif de voorplaat (1) in de sponning (2) en borg deze

d.mv. 2 bolkopschroeven (m6 x 12mm), door de gaten in

de zijplaten van de bank aan de statiefpoten.

1

2

GB

D

NL

F

I

E

F

I

E

Place the side panels under the sunbed and ensure that

these fall into the recesses of the end covers (see 1).

NB.: the side panels at the rear will fall within the support feet.

Platzieren Sie die Seitenplatten unter der Bank und

achten Sie darauf, dass sie in die Aussparungen der

Endkappen fallen (siehe 1). Hinweis: Auf der Rückseite fallen die

Seitenplatten zwischen die Stative.

Plaats de zijplaten onder de bank en zorg dat deze in de

uitsparingen van de eindkappen vallen (zie 1).

Nb.: aan de achterzijde vallen de zijplaten binnen de statiefpoten.

Placez les plaques de côté sous le banc et veillez à

ce qu'elles entrent dans les logements des bouchons

d'extrémités (voir 1). NB : à l'arrière, les plaques latérales entrent dans les

pieds.

Appoggiare le piastre laterali sotto il lettino abbronzante

e assicurarsi che entrino nelle cavità dei tappi terminali.

(vedere fig. 1) N.B.: sul lato posteriore, le piastre laterali si incastrano tra le gambe

del treppiede.

Coloque las placas laterales por debajo del banco y procure

que entren en los huecos de las cubiertas de los

extremos (véase 1). N.B.: en el lado trasero, las placas laterales quedan por

dentro de las patas de soporte.

Glissez la plaque avant (1) dans la rainure (2) et fixez-la

aux pieds à l'aide de 2 vis à tête ronde (m6 X 12 mm),

par les trous des plaques latérales du banc.

nfilare la lastra frontale (1) nella scanalatura (2) e fissarla

con 2 viti a testa tonda (m 6 x 12 mm), facendo passare

le pareti laterali sul lato delle gambe del treppiede.

Deslice la placa delantera (1) en la ranura (2) y fíjela a

las patas de soporte por medio de 2 tornillos de rosca

(m6 x 12 mm), por los orificios de las placas laterales

del banco.

51

1


fig. 1

SWITCH

PE

N

L

2

1

GB

D

NL

F

I

E

GB

D

NL

F

I

E

Remove the foil from the adhesive film (1) and place

the cover panel (2) against the side panels and the

front panel. Press the whole assembly firmly.

Entfernen Sie die Schutzfolie von der Klebeschicht

(1) und platzieren Sie die Abdeckplatte (2) gegen die

Seitenplatten und die Vorderplatte. Drücken Sie alles

fest an.

Verwijder de folie van de plaklaag (1) en plaats de

afdekplaat (2) tegen de zijplaten en de voorplaat. Druk

dit alles stevig aan.

Enlevez le feuillet de la couche collante (1) et posez

la plaque de recouvrement (2) contre les plaques

latérale et la plaque avant. Exercez une forte pression

sur l'ensemble.

Rimuovere la lamina dal lato adesivo del pannello

(1) e appoggiare il pannello superiore (2) sulle pareti

laterali e sulla lastra frontale. Tenere il tutto ben

premuto.

Retire la lámina de la capa adhesiva (1) y coloque la

placa de cubierta (2) contra las placas laterales y la

delantera. Presione con fuerza el conjunto.

Check when connecting to the mains supply the

type of supply available to you. Various connections

according to fig. 2, 3 and 4 (factory connections).

Prüfen Sie die Ihnen zur Verfügung stehende

Netzart, bevor Sie das Gerät an den Netzstrom

anschließen. Es gibt verschiedene Anschlüsse

gemäß Abb. 2, 3, 4 (Anschluss ab Werk).

Controleer bij aansluiting op de netspanning, het

type net wat bij u beschikbaar is. Verschillende

aansluiting volgens fig. 2, 3, 4 (aansluiting af fabriek).

Lors de la connexion au réseau électrique, contrôlez

le type de réseau dont vous disposez. Il

existe différentes connexions d'après les schémas

2, 3, 4 (connexion d'usine).

Controllare il tipo di rete disponibile dalla presa

di corrente sulla tensione di rete. A seconda della

marca del lettino abbronzante, vi sono diverse

prese, come riportato nelle figure 2, 3 e 4.

Al conectar la corriente, compruebe el tipo de red

disponible. Diversas conexiones según las figuras 2,

3, 4 (conexión de fábrica).

52

Conversion tables Umschaltplan Omschakelplan

fig. 2

fig. 3

53

Gul/grønn

Norsk Solariumservice, Postboks 223, 5342 STRAUME

Gratis grønt nummer 800 34 033

PE

Brun

Kobling i myntboks

N 230v

L` og L 230v

Lu = Etterkjøling

Li = Start

Li Lu L L` N

Sort

Blå

Luxura X3 til bruk mot EMS 111 og 336

EMSBUS

A B

START

PMH 4x1,5 mellom

myntboks og plugg

Løs plugg for myntboks

L (phase)

N (neutral)

PE (ground)

Switch

Versjon 27.10.2009

Side: 17

GJELDER EMS 335 / 336

Her kobles kabelen fra EMS 1130

hvis det er en sånn på dette studio.

NB Vær nøye med A og B hele veien,

jordtilkoblingen brukes ikke.

GJELDER EMS 335 / 336

Her kobles startsignalet fra solen til

hvis hurtig start på solen benyttes.

Legg en lask mellom L og L`

Legg en lask mellom jord og PE

OBS:

Hvis solen ikke starter på signal fra myntboksen, er det pga den står

innstilt på ”stand-alone” i programmet!

For at den skal brukes mot myntboks, må ”stand-alone”

være stilt til 0

Dette er lett å teste, for starter solen når du trykker på ”start”

er den ikke satt opp for bruk mot myntboks.

Koden og programmet får dere av Bjørn, se side 1

O p t i o n a l O p t i o n e l l O p t i o n e e l

A l l s u p p l y c i r c u i t s m u s t b e d i s c o n n e c t e d !

D a s G e r ä t v o m N e t z t r e n n e n !

H e t t o e s t e l s p a n n i n g s v r i j m a k e n !

GB

D

NL

F

I

E

GB

D

NL

F

I

E

Assembly decoration shield

Fit the decoration shield to the two support feet

and secure with 2 round headed screws.

Montage Decorationshield

Montieren Sie das Decorationshield auf die

zwei Träger und sichern Sie diese mit zwei

Rundkopfschrauben.

Montage decorationshield

Monteer de decorationshield op de twee statiefpoten

en borg ze met 2 bolkopschroeven.

Montage de la plaque de

protection décorative

Montez la plaque de protection décorative sur les

deux pieds et bloquez-les avec 2 vis à tête ronde.

Montaggio del pannello decorativo

Montare il pannello decorativo sulle due gambe del

treppiede e fissarlo con 2 viti a testa tonda.

Montaje pantalla decorativa

Coloque la pantalla decorativa en los dos soportes

y asegúrela con 2 tornillos de rosca.

D é b r a n c h e z l ’ a p p a r e i l !

S c o l l e g a r e l ’ a p p a r e c c h i o d a l l a c o r r e n t e !

D e s c o n e c t e e l a p a r a t o d e l a c o r r i e n t e e l é c t r i c a !

Assembly facial blower

Remove the 3 screws from the rear of the cover panel.

Montage des Körpergebläses

Entfernen Sie die 3 Schrauben aus der Abdeckplatte an der Rückseite.

Montage hoofdblower

Verwijder de 3 schroeven uit de achterzijde dekplaat.

Montage du refroidisseur facial

Retirez les 3 vis de la plaque de revêtement arrière.

Montaggio della ventola

Rimuovere le 3 viti dal pannello di rivestimento posteriore.

Montaje secador de pelo

Retire los 3 tornillos de la placa de la cubierta de la parte trasera.

55

E n o p t i o n F a c o l t a t i v o O p c i o n a l

1

2

GB

D

NL

F

I

E

GB

D

NL

F

I

E

GB

D

NL

F

I

E

Remove the covers from the canopy.

Entfernen Sie die Abdeckung vom Sonnenhimmel.

Haal de dekplaat van de hemel.

Retirez les renforts de protection du ciel.

Rimuovere i cappucci dal soffitto.

Retire las cubiertas finales del techo.

Remove the 3 caps as indicated.

Entfernen Sie die drei Stopfen wie angezeigt.

Verwijder de 3 dopjes zoals aangegeven.

Enlevez les 3 bouchons comme indiqué.

Rimuovere le tre prese d'aria, come indicato.

Sustituya las 3 cápsulas según lo indicado.

Fit the blower to the end cover. Pull the power cable

through the second hole (see drawing)

Montieren Sie den Ventilator an die Endkappe.

Ziehen Sie das Stromkabel durch das zweite Loch

(siehe Zeichnung).

Monteer de blower aan de eindkap. De stroomkabel

door het tweede gat halen (zie tek.)

Montez le refroidisseur sur le renfort de protection.

Faire passer le câble électrique par le deuxième

trou (voir dessin)

Montare la ventola sulla presa d'aria. Far passare

il cavo di alimentazione nel secondo foro. (vedere

disegno)

Instale el soplador en la cubierta final. Introducir el

cable de corriente por el segundo agujero (ver dib.)

56

O p t i o n a l O p t i o n e l l O p t i o n e e l

Nr. 1

Nr. 1 = L

Nr. 2 = N

Nr. 2

GB

D

NL

F

I

E

GB

D

NL

F

I

E

Fit the plug to the blower cable.

Montieren Sie den Stecker an das Ventilatorkabel.

Monteer de stekker op de blowerkabel.

Montez la prise sur le câble du refroidisseur.

Montare la spina sul cavo della ventola.

Instale el enchufe en el cable del soplador.

Connect the plug.

Schließen Sie den Stecker an.

Sluit de stekker aan.

Branchez la prise.

Collegare la spina.

Conecte el enchufe.

57

Adjustments of the gas springs.

After placing the optional headfan or when the gas springs are not strong enough, the

canopy may come down too fast. This can be avoided by removing one or more ballast

plates.

1 Remove the middle cover canopy (1)

2 Remove the ballast plate (2)

3 Place the middle cover canopy (3)

4 Check this adjustment

If the canopy is still coming down to fast, another ballast plate can be removed.

*Checking the adjustment of the gas springs should always be performed after the tanning

unit has been turned on for at least 10 minutes. Gas springs tend to get stronger

as they get warmer.

*If an optional headfan is placed, 4 ballast plates should be removed.

*If the supplied gas springs are different in strenght. The strongest gas spring can be

used on either side of the tanning unit.

Einstellen der Gasdruckfedern.

Nach der Befestigung des optionellen Kopflüfters, oder wenn die Gasdruckfedern

nicht stark genug sein sollten, kann es vorkommen, dass der Himmel zu schnell

fällt. Dies kann durch Entfernen einer, oder mehrerer Gewichtsplatten verhindert

werden.

1 Entfernen Sie die mittlere Haube des Himmels (siehe Abb. 1)

2 Entfernen Sie eine Gewichtsplatte (siehe Abb 2).

3 Montieren Sie die mittlere Haube (siehe Abb. 3)

4 Kontrollieren Sie diese Einstellung.

Sollte das Ergebnis nicht zufrieden stellen, muss der Vorgang wiederholt werden.

*Kontollieren Sie die Einstellung der Gasdruckfedern immer erst nach 10 min. betrieb

des Bräunungsgeräte. Gasdruckfedern werden stärker wenn sie warm werden.

*Wenn ein optioneller Kopflüfter montiert ist, müssen 4 Gewichtsplatten entfernt

werden.

*Wenn die mitgelieferten Gasdruckfedern verschiedenen Stärken haben, kann die

stärkste Gasdruckfeder an jeder beliebigen Seite des Bräunungsgeräts verwendet

werden.

Afstellen van de gasveren.

Na het plaatsen van een optionele hoofdblower of doordat de gasveren niet sterk

genoeg zijn, kan de hemel te snel zakken. Dit kan worden voorkomen, door een of

meerdere ballastplaten te verwijderen.

1 Verwijder de middendekplaat (zie 1)

2 Verwijder een ballastplaat (zie 2)

3 Plaats de middendekplaat (zie 3)

4 Controleer deze afstelling.

Indien de hemel nog steeds te snel zakt, kan opnieuw een ballastplaat worden

verwijderd.

*Controle van de gasveerafstelling dient altijd te geschieden nadat het bruiningsapparaat

minimaal 10 minuten heeft aangestaan. Gasveren worden sterker naarmate zij

warmer worden.

*Indien een optionele hoofdblower wordt geplaats dienen er 4 ballastplaten te worden

verwijderd.

*Indien de meegeleverde gasveren van verschillende sterkten zijn, mag de zwaarste

gasveer zowel aan hoofd- als voetzijde worden gebruikt.

Réglage des verins

En cas de montage d’un ventilateur de tête, ou quand les verins ne sont pas assez

solide, le canopy peut baisser trop vite. Ceci peut être prévenu par l’ enlèvement d’un

ou quelque platine(s) ballast.

1 enlevez le couvercle du milieu (1)

2 enlevez une platine ballast (2)

3 Replacez le couvercle du milieu (3)

4 Controlez le réglage

Si le canopy se baisse encore trop vite, une platine ballast peut être enlevé de nouveau.

* Le controle de réglage des verins a toujours lieu après que l’appareil a fonctionné au

moins 10 minutes. Les verins renforcent selon qu’ils deviennent plus chauds.

* Si un ventilateur de tête est monté, il faut enlever 4 platines ballast.

* Si les verins qui viennent avec l’appareil sont de différentes forces, le verin le plus

fort peut être monté aussi bien au chevet qu’ au pied.

58

Spareparts canopy

Pos. Description Art. no.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

Topcover 14815

Grid for fan 11855

Topcover middle short 15012

Topcover middle long 14816

Endcover canopy 11258

Plastic sideprofile canopy short 11335

Plastic sideprofile canopy long 11257

Acrylic sheet canopy short 11342

Acrylic sheet canopy long 11259

Powerprint 11137

Fan 07561

Acrylic support short 11339

Acrylic support long 11338

Display print 11686

Displaycover top 11106

Displaycover bottom 11107

Body/headblower cover backside 11108

Fan for bodycooler 11191

Body/headblower cover front 11109

Datacable 12731

59

Spareparts bench

Pos. Description Art. no.

1

2

3

4

5

6

7

8

9

10

11

12

Decorationshield 11721

Acrylic bench short 11343

Acrylic bench long 11274

Endcover bench 11263

Plastic sideprofile bench short 11337

Plastic sideprofile bench long 11117

Sidecover bench 11262

Frontcover bench short 15013

Frontcover bench long 14818

Part frontcover short 11521

Part frontcover long 11520

Combi frame (Ral 9006) 11293

Connection bar 11290

Fan 07561

Fan housing 11329

Acrylic support short 11339

Acrylic support long 11338

60

Miscellaneous parts

61

Electrical diagrams

Schaltpläne

Elektrische schema’s

Schéma électrique

Diagramma elettrico

Diagrama eléctricas

62

Control 1 fase

11923_r01

63

Control 3 fase

11887_r01

64

Canopy 14/1

11927_r01

65

Canopy 14/3

11926_r01

66

Canopy 16 & 16/9

11929_r01

67

Canopy 16/2

11928_r01

68

11884_r01

Canopy 16/3

69

11885_r01

Facials

70

Bench 12

11881_r01

71

Bench 14

11882_r01

72

Probleem

Problem

Fehler

Mogelijke oplossing

Possible solution

Mogliche Losung

B1, …(nr) Spanning op apparaat , display geeft software versie weer van de display print

Power on unit, display shows software version of the display print

Spannung auf Gerat, bedienung gibt software version von die Anzeige-platine

S1, …(nr) Spanning op apparaat , display geeft software versie weer van de hoofd print

Power on unit, display shows software version of the main print

Spannung auf Gerat, bedienung gibt software version von die Hauptplatine

00 Apparaat is klaar voor gebruik

Unit is standby

Gerat is fertig fur Gebrauch

FAN Apparaat is in de verplichte nakoel tijd

Unit is in de programmed after-cooling

Gerat ist in die programmierte Lufter nachlauf

Geen display Filter-schakelaar(s) is/zijn niet gesloten (cassette niet goed gesloten, schakelaar defekt)

Temperatuur schakelaar in de hemel heeft een te hoge temperatuur gemeten

No display Glassfilter-switch(es) is/are not closed (cassette not closed, switch defect)

emperature switch in the canopy has measured a (too) high temperature

Kein Anzeige Glas-schalter(s) ist/sind nicht geschlossen (Kassette nicht geschlossen, schalter defekt

temperatur schalter ins Himmel hast eine zu hohe temperatur gemessen

PHS met pieptoon Voedings-spanning niet goed (fase ontbreekt) / schakelaar op print niet op juiste configuratie

PHS with biebsound Powersupply not good (phase missing) / switch on mainprint not on right position

PHS mit piep Spannungs versorgung nicht gut (Fase fehlt) / schalter auf Hauptplatine nicht richtig geschaltet

OVR met pieptoon Overbelasting (relais defekt op hoofdprint ) / schakelaar op print niet op juiste configuratie

OVR with biebsound Overrule (relay on mainprint defect) / switch on mainprint not on right position

OVR mit piep Uberbelastung (relais defekt) / schalter auf hauptplatine nicht richtig geschaltet

CON met pieptoon Communicatie probleem >> datacable defekt

CON with biebsound Communication problem >> datacable defect

CON mit piep Kommunikation fehler >> Datenkabel defekt

73

Owner's manual Anleitung Handleiding Mode d'emploi Instruzioni ...

Transform your PDFs into Flipbooks and boost your revenue!

Delete template?

Save as template ?
