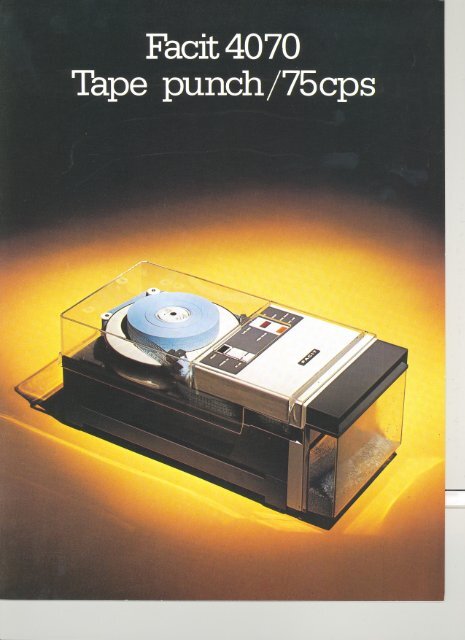

The world best seller in its classIt's no accident that the Facit 4070 punch has become the best seller in its dass. Have a look atthese advantages. It operates at a speed adaptable to most applications - 75 ch/s, incrementallywith perfectly punched holes with the right spacing. It's complete - vet compact.There's a Facit 4070 for every need: desktop or rack model - paper roll or fanfold tape. It is alsoavailable as a combination with the Facit 4030 reader. It's easily adaptable to most systems. Madefor heavy-duty operation- 24hours a day. 100 % reliability - always. Opt for a Facit 4070 - youwill feel satisfied and assured like tens of thousands of users the world over.Ideal for all types of data recordingThe Facit 4070 can be used in both mobile and stationaryfacilities - off or on line. Battery-powered operationand automatic tape checks make this punch ideal forunmanned applications.Automatic tape checksthe Facit 4070 sensEf,sand indicates:D Tape too tight (jammed)D Tape ruptureD Tape almost exhausted - adjustable up to 10000characters from trailing end of tapeCompact designSupply reel and take-up reel are built into punch andpositioned on same shaft. Also, winding direction canbe reversed and take-up can be disengaged. Giving'added flexibility.IncrementalfeedThe Facit 4070 punches at all speeds up to 75 char/swithout any starting delay. Unique incremental motorand solenoid-operated punch pins ensure low wear, lownoise level and minimal power consumption when thepunch is idling.Easy to handle, easy to loadThe Facit 4070 punches most tape materials, and isautomatically adjusted for different tape widths andthickness. It is easy to operate. Incremental backspacingenables corrections to be made.Manual tape-feed switchesprovide three feed-out options:D Virgin tape (withoutfeed holes)D Blank tape (with feed holes)D Tape punched repetitively with customer-selectedcode-hole combination.(Delete character as standard)Easy to service thanks toD Modular designD Long servicing intervals approx 500 tape reelsEasyadaptationThe Facit 4070 is easy to adapt to a wide variety ofsystems. This holds true for connection to all types ofcomputers and instruments having digital outputs.The Facit 4070 incorporates the required drive electronics.moreover, it is provided with a cable harness andspace for an extra printed circuit electronics board ­and the power supply is dimensioned to drive this extraboard. The punch is designed to accept a wide range ofinput signaileveis, including IC leveis, and there is abuilt-in buffer store that simplifies timing adaptation.InterfaceFacit 4070 Universal ParalIei and Current loop,RS-232-C/V.24 serial interfaces available as standard(Multi Interface). Several interface circuit boards arealso available like SP1, IEEE488 and Olivetti IPSO.

General dataOperation speed:Tape feed:Feed accuracy:Backspacing:Punch holeconfiguration :Tape widths:Thickness of tape:Type of tape:Hub:Other diameterof tape reel:Reel capacity :Store:Mark character:Noise level withcover on (distanceof 1 metre):Up to 75 characters per secondAsynchronous, externally controlledComplies with ISO standards.Adjacent rows, 3 %; 10 rows, 1 %; 50 rows, 0,5 %Up to 10 steps5-8 track ISO standard, 6 track typesetting5 track tape, 11/16 inch (17.5 mm ± 0.1 mm)and 8 track tape, 1 inch (25.4 mm ± 0.1 mm)Alternatively± 0.1 mm)6 and 7 track, 7/8 inch (22.2 mm0.08-0.11 mmISO-standardized paper tape. Paper/Mylar/Papertape50.8-52.4 mm cores (2") as standard.Other types on requestMax. 203 mm (8")Approx. 300 m which corresponds to about120.000 characters .Built in, stores one character (max. nine bits)Customer-selected.characterWeight Height Depth* Width DC ACUsually an all hole deleteIdlingnil5 ch/s punching one track 59 dB (B)5 ch/s punching in all tracks 61 dB (B)75 ch/s punching one track 75 dB (B)75 ch/s punching in all tracks 77 dB (B)SUPPLy VOLTAGEAC version: 100/115/220/24050 to 100 HzV ~\~?oMax. power consumption 200 WMin. power consumption 50 WDC versions:24 V .:':.~g~Max. power consumption 180 WMin. power consumption 2-5 WBoth the AC version and the 24 V DC version aredimensioned to provide extra DC outputs foradditional electronics of 1 A at +6 V (+5 V) and+24 V48/60 V48V+8 60V+10-4 -5DIMENSIONS AND WEIGHTMax. power consumption 220 WMin. power consumption 40 WExtra power output 500 mA from +6 V (+5 V)kg (7.8") (10.5") (21 (8.6")( (19") (30) (24) (33) 17") ) 432mm 9.5 220mm 13.5kg 198mm 15.1 483 266 198 11.1 4070 4070 racktable mounted topDesignation/version*Depth with chad box 482 mm (19"),248 mm (9.8")20 17 19 18 15 16 141Prod. 9412 13 no.11 10 653827No.VERSIONSMultiDC l/F Rack x48/60 100/-240TSx115xxVERSIONS 92801601 92801603 92801608 92801604 92801605 92801610 92801609 92801602 92801607 92801612 92801622 92801613 92801624 92801623 92801620 92801621 92801619 92801618 92801625 Namex x plate/ ECMA 11 xDCxxxAPPLlCATIONx xxxVoltagex x(V)All table-top models of the Facit 4070 can be equipped with anadapter, Facit 4017 for fan-folded tape handling. It is easily fittedwithout modifications by hanging it on the left side of the punch,where it is locked, using two handles. The adapter can accommodateup to 60 metres of fan-folded tape with an inter-fold distance of216 mm (81/2").:;;ro~cw· " MC UJJo'"Mo c"·c.togo""·C "c·" ~LAUSTRALIA EAI-Electonics AssociatesPty.Ltd., P.O.Box 170,Crows Nest 2065- AUSTRIA Facit Addo Verkaufsges.II1.b.H.,Maria Hilferstr. 51, Yienna ­BELGIUM Facit S.A., 30RueBoisdesIles, B-1080Brussels- BRAZIL FacitS.A., Caixapostal30114,01327SaoPaulo- CANADA FacitCanadaInc. 161NorfinchDr. Toronto - DENMARK Facit AlS, Lundtoftevej 160, 2800 Lyngby - FINLAND OY Electrolux AB-FACIT, P.B. 15, 00101 Helsinki - FRANCEFacit S.A., 308rue du Pres. S. Allende, 92700Colombes- GREAT BRITAIN Facit-Addo Ltd., Maidstone Road, Rochester- GREECE Computer ApplicationConsultantsLtd., Mesogion230,Cholargos,Athens- HOLLAND FACIT ADDO B.V., Postbus7971,Amsterdam-Buitenveldert- HONGKONG Gilman& Co Ltd.,P.O.Box 56, Hongkong - INDlA Forbes Forbes Campbell & Co. Ltd., P.O.Box 79, Bombay 400001 - IRELAND Memory lreland Computers Ltd.,Clonard House, Sandyford Road, Dublin 14- ITALY Facit Data ProductsS.p.A., Via Toffetti 2, 20139 Milano - JAPAN Facit Data Products,GadeliusBldg,7-8 Motoakasakal-chome, Minato-ku, Tokyo 107- KOREA K.D.C. Corporation, c.P.O. Box No 5956,Seoul- NEW ZEALAND W & K McLean Ltd., P.O.Box3097, Auckland - NORWAY Facit AlS, Postboks 1732, Vika, Oslo - SOUTH AFRICA Compmer and Retail Equipment (Pty) Ltd., P.O.Box 1057,Johannesburg- SPAIN Facit Data Products,Box 627,Madrid - SWEDEN Facit AB, 10545Stockholm - SWITZERLAND Facit-Addo AG, Seftigenstrasse57,3000Bern and Badenerstr. 587, Zlirich - TAIWAN Syscom, Computer Engineering Co., P.O.Box 48-130, Taipei - USA Facit Inc., 66 Field Point Road,Greenwich,Conn, 06830- WEST GERMANY Facit GmbH, Postfach 130260,4()()(] Dlisseldorf 13.
