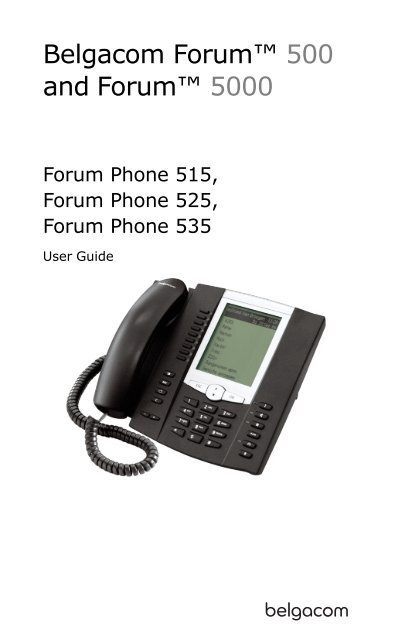

Belgacom Forum 500and Forum 5000Forum Phone 515,Forum Phone 525,Forum Phone 535User Guide

Welcome to BelgacomThank you very much for choosing this Belgacom product. Ourproduct meets the strictest requirements with regard to designand quality.Forum Phone 515, 525, 535This User Guide will show you how to use your Forum Phone 515,Forum Phone 525 or Forum Phone 535 and answer all your majorquestions. If you need further support or information, please consultyour system administrator or your Belgacom dealer.Internet:www.belgacom.be/pabxYou can contact our Support on the following telephone numbers:in Dutch: 0800 22 400in French: 0800 33 400in German: 0800 44 400in English: 0800 55 400Forum 5000 and Forum 500This user guide applies to the Forum 5000 and Forum 500product families. The Forum 500 product family comprises theForum 523/524, Forum 525/526 and Forum 550/560communications systems. The Forum 5050 communicationssystem belongs to the Forum 5000 product family.If individual features differ on the systems, a reference is made inthis user guide.We hope you enjoy using your Forum Phone.

1ContentsForum Phone 515/525/535System Telephones 7Using Your Telephone 9• Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9• Installation Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9• Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10• Attaching the Pedestals and Adjusting the Inclination . . . . . 10• Wall Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11Key Assignments 12• Dial Keypad with ABC Assignment . . . . . . . . . . . . . . . . . . 14• Trunk Key (Call Key 1) . . . . . . . . . . . . . . . . . . . . . . . . . . 15• Programmable Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15• Redial Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16• ABC Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17• MenuCard Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17• C-Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17• Info Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17• Hands-Free/Open-Listening Key. . . . . . . . . . . . . . . . . . . . 18• Muting Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19• Disconnect Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19• Headset Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19• Enquiry Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19• Plus/Minus Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19• ESC Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20• Arrow Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20• OK Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20• The Locking of Your Telephone Interface by theSystem Administrator . . . . . . . . . . . . . . . . . . . . . . . . . . . 20• Labelling the Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21Display and MenuCards 23• Changing the Language . . . . . . . . . . . . . . . . . . . . . . . . . 23• Info Line(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23• Key Lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25• MenuCard Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26• Invoking MenuCards and Selecting Items from the List . . . . 27• Setting Windows and their Characteristics, Toggling . . . . . . 28

2• Entering/Deleting Digits . . . . . . . . . . . . . . . . . . . . . . . . . 29• Deleting Lists. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29• Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30• Automatic Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31Key extensions 32• Operating the Key Extension Keys . . . . . . . . . . . . . . . . . . 33• Choosing a Key Level . . . . . . . . . . . . . . . . . . . . . . . . . . . 33• Labelling a Key on the Key Extension . . . . . . . . . . . . . . . . 34Using a Headset 34Telephoning 40In a hurry?: A Brief Explanation of Important Functions 40• Talking on the Phone: Via the Call Key or the Handset . . . . . 40• Telephoning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42• Redialling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43• Receiving Calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44• Who Called? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45• Querying/Toggling, Transferring . . . . . . . . . . . . . . . . . . . . 46• Audio: Muting, Open-Listening, Adjusting Telephone Volume 48General Functions 50• Assignment of Internal and External Call Numbers . . . . . . . 50• Signalling on the Call Keys. . . . . . . . . . . . . . . . . . . . . . . . 50• Calls in the Call Waiting Queue. . . . . . . . . . . . . . . . . . . . . 51• Accepting a Call During Automatic Dialling. . . . . . . . . . . . . 52• Block Dialling/Automatic Dialling . . . . . . . . . . . . . . . . . . . 53• Muting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54• Call-charge Display, Duration Display . . . . . . . . . . . . . . . . 54• Adjusting the Volume with the Plus/Minus Key . . . . . . . . . . 54• Redialling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55• Hands-free Mode, Open-listening Mode . . . . . . . . . . . . . . . 56• Blocked/Unblocked Call Numbers . . . . . . . . . . . . . . . . . . . 56• Telephone Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56• DTMF Postdial/VF Signalling. . . . . . . . . . . . . . . . . . . . . . . 57• Keypad Dialling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57• Least Cost Routing (LCR). . . . . . . . . . . . . . . . . . . . . . . . . 58• Transmission of Call Numbers . . . . . . . . . . . . . . . . . . . . . 58• MenuCards Before and During a Call . . . . . . . . . . . . . . . . 60• MenuCard “Selection” in the Idle State . . . . . . . . . . . . . . . 60

4Making Calls from the Telephone Book 88• The Telephone Book . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88• MenuCard “Phone book” . . . . . . . . . . . . . . . . . . . . . . . . . 89• Speed-Dialling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90• Add Phone Numbers to Telephone Book from Lists orduring a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90Hot Desking: Your Telephone Goes WhereverYour Desk Is 92VoIP Telephones 96IP System Telephone Ports 97Notes for the System Administrator 98Team Functions 99Managing Calls in a Team 100• Making External/Internal Calls . . . . . . . . . . . . . . . . . . . . 100• Accepting Calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101• Enquiry, Toggling and Transferring . . . . . . . . . . . . . . . . . 102Programming the Call Keys 103• MenuCard “Prog. call key” (Trunk Key) . . . . . . . . . . . . . . 104• MenuCard “Prog. team key” . . . . . . . . . . . . . . . . . . . . . . 106• Direct-call Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106Remote-Controlled Functions 107Remote-Controlled Dialling (Call Through) 107Remote-Programmable Call Forwarding 109Remote-Programmable Voicebox Configurationand Query 110Setting up an Internet Connection from Remote(ISP Trigger Call) 111

7Forum Phone 515/525/535System TelephonesThe Forum Phone 515, Forum Phone 525 and Forum Phone 535are corded system telephones that you can operate on yourForum 500 / Forum 5000 communications system. The MenuCarddisplay makes your telephone easy to operate and gives you fastaccess to your system’s wide range of different functions and features.The Forum Phone 525 and the Forum Phone 535 have the samefunctionality. The only difference between them is the size of thedisplay and the number of programmable keys available. TheForum Phone 515 offers the most functions of these two telephoneswith the following exceptions: the Forum Phone 515 hasjust one trunk key available (please refer to page 15) and the “HotDesking” feature is not supported (please refer to page 92). TheForum Phone 525 and Forum Phone 535 telephones can also beexpanded via additional key extensions which offer additional programmablekeys (please refer to page 32).The Forum Phone 525 and the Forum Phone 535 are also availableas IP telephones (Forum IPhone 525 and Forum IPhone 535).These telephones have the same functionality as the standardsystem telephones. All of the functions described in this guide arealso available for the IP telephones. The chapter VoIP Telephonesstarting on page 96 contains a short summary of the informationnecessary for the IP system telephone user.You can activate the features and programme functions on the telephonesthemselves, or equally conveniently, use the Configuratorof the communications system.Forum Phone 515/525/535 System Telephones

8About this User GuideThe description of the various functions of your system telephonecovers (unfortunately) many pages. Not every user has the timeand leisure to read the guide from start to finish before telephoningfor the first time. The following chapters are mandatory readingbefore using your telephone:• Safety Precautions starting on page 9: These tips are for yourown safety and help you to protect the telephone fromdamage!• Installation Site starting on page 9• Key Assignments starting on page 12 and Display andMenuCards starting on page 23: Here is an overview of thefeatures of your telephone.• In a hurry?: A Brief Explanation of Important Functionsstarting on page 40: Read this chapter for quick telephoningaccess.Take enough time to also read the rest of this user guide andfamiliarize yourself with the features of your telephone. You willbecome acquainted with many new functions which you can usefor the practical organisation of your communications. Use theindex for fast information access of individual functions.The GlossaryShould you need further information about any system featuresdescribed in this user guide, please read the “Glossary” whichcomes with your communications system.You Need AuthorisationMost of the features mentioned in this user guide are only availableto you if you have the appropriate authorisation. This will beset up by your system administrator when configuring the communicationssystem. If you are unable to use a particular featureor have any questions, consult your system administrator.Forum Phone 515/525/535 System Telephones

Using Your TelephoneUsing Your Telephone 9Safety PrecautionsWARNING! Do not open the telephone or the connectedaccessories, as this could lead to you touching live parts.Note: Repairs must only be carried out by authorised Belgacomservice personnel.• Keep fluids and chemicals away from the telephone and itsaccessories.• Use only the AC adapter plug included in the delivery (productcode 90035810) where necessary.• Do not use AC adapter plugs that show visible damage (e. g.cracks in the housing).• Connected headsets must conform with the standard DIN EN60 950-1, Point 6.2 (“Safety of information technologyequipment including electrical business equipment”).Please contact your customer consultant if you require furtherinformation about the connectable headsets, adapters andadapter cables.• Use a shielded CAT-5 Ethernet cable (STP cable, ShieldedTwisted Pair cable) to connect an IP telephone to a Local AreaNetwork (LAN).• Make sure that no one can trip over the telephone cables.Installation SiteDo not install the telephone or its accessories• near water, moisture or in damp locations;• near sources of heat or in direct sunlight;• in unventilated rooms;• near devices that generate strong magnetic fields, electricaldevices, fluorescent lamps, computers, radios or televisionsets;Forum Phone 515/525/535 System Telephones

10Using Your Telephone• in dusty places or places subjected to vibrations, shocks orextreme temperature fluctuations.Place the telephones on a non-slip surface. The surface finish ofyour furniture may affect the telephone’s pedestals, softeningthem and causing them to leave undesirable marks on your furniture.CleaningSimply wipe your telephone with an antistatic or slightly dampcloth. Never use a dry cloth or a cleaning agent.Attaching the Pedestals and Adjusting theInclinationbabaA B C DForum Phone 515 Forum Phone 525 / Forum Phone 535To pull the pedestals out, press them in slightly (a). To replacethem, press the pedestals in slightly (a) and push them back in(b). The pedestals lock into place in the notches.Forum Phone 515/525/535 System Telephones

Using Your Telephone 11There are four positions of inclination possible on theForum Phone 525 and on the Forum Phone 535 (see A, B, C andD), depending upon the direction in which the pedestals havebeen attached.Inclination position Degree of inclinationA 30°B 26,5°C 23°D 21°Wall MountingTo mount your telephone to the wall, remove the pedestals. Usinga screwdriver, pry the retention pin (1) for the handset out of itsreceptacle, turn it upside down (2) and insert it again.123To mount your telephone to the wall, drill two holes at 119 mmdistance apart. Insert 6 mm screws in the holes. Make sure theirheads protrude 2.5 to 3 mm from the wall and mount the telephoneonto the screws.Forum Phone 515/525/535 System Telephones

12Key AssignmentsKey AssignmentsSome of the keys have dual functionality (depending on whetheryou long or short press the key). The “MenuCards” describedbelow are windows that are displayed to enable you to set featuresand functions. For more details, refer to the section entitledDisplay and MenuCards starting on page 23.Trunk key (Call key 1)Programmable keysESC keyArrow keyOK keyESCOKiABC12 ABC 3 DEFC4 GHI 5 JKL 6 MNO– +0 #R7 PQRS 8 TUV 9 WXYZ*Plus/minus keyC-keyMenuCard keyABC keyRedial keyDial keypadKey assignment on the Forum Phone 515Enquiry keyHeadset keyDisconnect keyMuting KeyHands-free/open-listening keyInfo keyForum Phone 515/525/535 System Telephones

Key Assignments 13Trunk key (Call key 1)Programmable keysESC keyArrow keyOK keyESCOKiABC12 ABC 3 DEFC4 GHI 5 JKL 6 MNO– +0 #R7 PQRS 8 TUV 9 WXYZ*Plus/minus keyC-keyMenuCard keyABC keyRedial keyDial keypadKey assignment on the Forum Phone 525Enquiry keyHeadset keyDisconnect keyMuting KeyHands-free/open-listening keyInfo keyForum Phone 515/525/535 System Telephones

14Key AssignmentsProgrammable keysTrunk key (Call key 1)ESC keyArrow keyOK keyESCOKiABC12 ABC 3 DEFC4 GHI 5 JKL 6 MNO– +0 #R7 PQRS 8 TUV 9 WXYZ*Plus/minus keyC-keyMenuCard keyABC keyRedial keyDial keypadKey assignment on the Forum Phone 535Enquiry keyHeadset keyDisconnect keyMuting KeyHands-free/open-listening keyInfo keyDial Keypad with ABC Assignment2 This is for dialling call numbers or entering text. The keylabel does not show all the available letters and special characters.For more information, refer to the section entitled EnteringText on page 30.Forum Phone 515/525/535 System Telephones

Key Assignments 15Trunk Key (Call Key 1)g The trunk key of the telephone (also: call key 1) is occupiedby your internal call number (main number). The key islocated to the left of the display, and is labelled with your internalcall number (or optionally, with a text programmed by the systemadministrator). Refer to the respective illustration in the chapterKey Assignments starting on page 12 to determine the position ofthe key on your equipment. Your internal call number is assignedto an external call number where you can be reached when beingcalled from an external number. It is possible to assign severalexternal call numbers to the key. If you wish to make a call, liftingthe handset seizes the key (and the trunk line); you can immediatelydial an internal or external number (depending on the systemsetting). Long pressing the key displays a MenuCard whichallows you to programme the key’s settings (see the section entitledMenuCard “Prog. call key” starting on page 139).A system setting makes it possible to have your internal numberassigned to other telephones as well. Calls will then be signalledto other telephones simultaneously.The LED of the key indicates the current status, see also the chapterSignalling on the Call Keys starting on page 50.For the System Administrator: Setting the Trunk Keys ofthe System Telephones• The internal call number for a system telephone is configuredin the Configurator, Telephony: Ports: Upn menu or for IPphones respectively in the Configurator, Telephony:Devices: VoIP Phones menu. The assigned internal callnumber is automatically allocated to the trunk key (call key 1).• The assignment to external call numbers takes place in theConfigurator, Telephony: Call Distribution menu.Programmable Keysg The additional keys to the left of the display are free programmablekeys. The system administrator can assign otherinternal call numbers to these keys for you as additional trunkkeys (call keys). These keys have also been assigned to externalcall numbers at which you can be reached from an externalForum Phone 515/525/535 System Telephones

16Key Assignmentsnumber. In order to make a call with a trunk key, first press thekey and then dial the call number.Note: Only call key 1 can be configured as a trunk key on theForum Phone 515 system phone (please refer to page 15).The system administrator can also assign the programmable keysas call keys for team functions. Information on the use of teamfunctions can be found in the chapter Team Functions starting onpage 99.The LEDs of the programmed keys indicate different states, seealso the chapter Signalling on the Call Keys starting on page 50.You can programme features and destination call numbers yourselfdirectly on the programmable keys of the device that have notbeen set by the system administrator. See the chapters on ProgrammingFunctions (Features) starting on page 142 and ProgrammingCall Numbers (Destinations) starting on page 140 formore information. To use a configured programmable key, do thefollowing:• Short key press: The programmed destination call number isdialled or the programmed function (feature) is carried out.• Long key press: The key can be programmed with aMenuCard.For the System Administrator: Configuring the Keys of aSystem Telephone• The keys of the system telephones can be programmed in theConfigurator, Telephony: Devices: System phones menu.• In the Configurator, Telephony: Groups menu you can setup teams and programme team functions for the systemtelephones of the team members. In the “Team Functions”chapter of the “Mounting and Commissioning” (Forum 523/524, Forum 525/526, Forum 550/560) resp. “Commissioningand Maintenance” (Forum 5050) guide you will find examplesand explanations of various possible team configurations.Redial KeyW Opens a list of the last-dialled numbers.Forum Phone 515/525/535 System Telephones

Key Assignments 17ABC KeyA• Short key press: Opens the MenuCard for the telephone book.When entering texts (please refer to page 30 also) one canswitch between the alphanumeric and numeric modes.• Long key press: Opens the list of the available displaylanguages.Note: You need the appropriate authorisation to operate this keyon your system telephone. Consult your system administrator ifyour authorisation has to be changed.MenuCard KeyM Shows MenuCards in the display.• Short key press: A selection of features that can be used in thecurrent device status (e. g. during a call) is shown.• Long key press: The MenuCard for the Main menu with allavailable settings is shown.Note: You need the appropriate authorisation to operate this keyon your system telephone. Consult your system administrator ifyour authorisation has to be changed.C-KeyC (Clear key) to delete input, entries and lists.• Short key press: Input (for example the last digit of an enteredcall number) or list entries in the menu (for example, an entryin the call list) will be deleted.• Long key press: A complete entry or an entire list (forexample, the call list) will be deleted.Info Keyi Indicates incoming calls (LED flashes quickly, the bell isshown in the display), receiving incoming messages and currenttelephone settings.Forum Phone 515/525/535 System Telephones

18Key Assignments• Short key press: Displays a MenuCard with received messages(the LED of the key flashes slowly).• Long key press: Displays a MenuCard with a list of activefeatures, which restrict the reachability of the telephone (e. g.,call protection is on). The illuminated LED of the key indicatesthat the reachability of the telephone is restricted or that thetelephone lock is activated (see also Telephone Lock onpage 56).Hands-Free/Open-Listening KeyL To make calls using the microphone and/or loudspeaker.The illuminated LED of the key indicates that hands-free telephoningis activated. The LED flashes when open-listening is activated.Situation:You receive a call.You have dialled a call number(block dialling/automatic dialling).You have selected a callnumber from the telephonebook.You are making a call via thehandset and want to let a secondperson listen in on the call.You are making a call via thehandset and wish to switch tohands-free mode.By pressing the key:You accept the call withoutpicking up the handset (handsfreemode, the LED is illuminated).The call number is dialled.The call number is dialled.The loudspeaker is switched on(open-listening mode, the LEDflashes).Keep the key depressed andreplace the handset. Thenrelease the hands-free/openlisteningkey. You can continuethe call in hands-free mode.Forum Phone 515/525/535 System Telephones

Key Assignments 19Muting KeyS To deactivate the microphone during a call. The illuminatedLED of the key indicates that the microphone is turned off. TheLED of the key is illuminated when the microphone is deactivated.The ringer of your telephone can be switched off for incoming callsover the muting key.Disconnect KeyT Pressing this key ends the current call.Headset KeyK If a headset is connected and switched on (to switch on aheadset, see page 124), calls can be accepted and calls can beended by pressing this key. The LED of the key is illuminated whena call is made via the headset.It is also possible to enable a second person to listen in on a callover a connected headset while you are telephoning over thehandset. To enable, press the headset key during the call. Listening-inover the headset is now activated, the LED on the headsetkey flashes.Enquiry KeyR To initiate and end an enquiry call. After you have ended anenquiry call, switch back to the call being held with this key.Plus/Minus Key= This key offers various functions which depend on thedevice status:• It adjusts the volume during open-listening/hands-free mode.• It adjusts the volume when making a call via the handset.• It adjusts the volume of the headphones of a headset (thevolume of the microphone can be adjusted over the Phonesettings MenuCard, see page 124).Forum Phone 515/525/535 System Telephones

20Key Assignments• It adjusts the volume of the ringer tone during a call.• It sets the contrast of the display when the telephone is in theidle state.• It switches features on/off quickly.• It changes the volume of the ringer tone and the melody in thePhone settings MenuCard.• It moves the cursor when entering call numbers or text.Tip: If you have already used the plus/minus key to open a menuto set the display contrast or the volume, your current setting willautomatically be applied after three seconds, without your usingthe OK key O to confirm.ESC Keye (Escape key) navigates the menu.• Short key press: Exits an open input window without changingits contents and/or returns you to the menu branches.• Long key press: Exits the menu.Arrow KeyP This key is used to scroll through the MenuCards and lists.OK KeyO This key is used to confirm the selected menu items, functionsor settings.The Locking of Your Telephone Interfaceby the System AdministratorThe system administrator can lock your telephone’s interface via asetting for your user group. All keys of your telephone no longerfunction aside from a few exceptions (e. g. the number keys andthe call key 1).Forum Phone 515/525/535 System Telephones

Key Assignments 21• You can then make calls with your telephone but no systemfunctionality can be configured.• If the system administrator has authorised you to do so, youcan also set the time group of the communications system(see also MenuCard “Central Settings” starting on page 137).If your user group authorisation changes according to the timegroup, then it is possible that the interface lock of yourtelephone will be cancelled.Please consult your system administrator if you have any questionsabout your authorisations.For the System Administrator: Locking the Keys on theSystem TelephoneAdminister authorisation of which keys are functional on the systemtelephone and which keys are locked over the Configurator,User Manager: User groups menu.Labelling the KeysLabel StripThe five keys above the display on the Forum Phone 515 and onthe Forum Phone 525 can be assigned with destinations or functions(features) or programmed as call keys. (The programmingas call keys isn’t possible on the Forum Phone 515, see alsopage 15)The programming/assignment does not appear in thedisplay. The label strips provided are for labelling these keys. Alabel strip is also used for labelling keys on a key extensionForum 500 Keypad Paper FP 525/535.Proceed as follows to label the insert:• Press down slightly on the bottom part of the cover and slide itup to remove it. Remove the label strip.• Replace the printed strips.• Insert the cover in the slot and slide it down until it snaps intoplace.Forum Phone 515/525/535 System Telephones

22Key AssignmentsPrinting Label StripsUsing the Configurator of the Web console, you can print thelabels for a selected system telephone with the current keyassignment (Telephony: Devices: System phones menu).Key Labelling on the DisplayThe keys to the left of the display of the system telephones arealso freely programmable (one key on the Forum Phone 515,three keys on the Forum Phone 525, nine keys on theForum Phone 535). These keys are labelled with a default textthat you can change during or after programming. One of thesekeys is pre-programmed as a trunk key (see also Trunk Key (CallKey 1) starting on page 15), the text on this key can also bechanged. The key labelling also appears in the display on the keyextension Forum 500 Keypad Display FP 535.Labelling a KeygPOZOOPress the key (long key press), then …Select Modify text.Press the OK key.In the following MenuCard under Text: enterthe text (see also the chapter Entering Textstarting on page 30).Press the OK key twice.The keys can also be labelled in the Configurator of the Webconsole (in the Telephony: Devices: System phones menu). Ifthe key labelling is changed in the above mentioned manner or onthe key extension, the new text will also be displayed in the Configurator.Conversely, the modified texts will overwrite the displaytexts on the telephone or key extension.Information regarding the aforementioned key extensions can befound in the chapter Key extensions starting on page 32.Forum Phone 515/525/535 System Telephones

Display and MenuCardsDisplay and MenuCards 23Changing the LanguageUse the following procedure to set the display language:APOPress the ABC key (long key press).Using the arrow key scroll to the desired setting.Confirm the setting with the OK key.In the Main menu you can use the Phone settings MenuCard tochange the language (see page 124).Info Line(s)aPeters 11:4511bESCOKThe Forum Phone 525’s display in idle state, here:a Info line displaying the user’s name and the timeb The user’s internal call numberThe first (and on the Forum Phone 535 also the second) line of thedisplay shows additional current information. When the telephoneis idle, you can see the user’s name as assigned to the device inthe Configurator of the Web console by the system administratorand the time (the Forum Phone 535 also displays the day of theweek and the date). For the system telephones Forum Phone 515/Forum Phone 525, the system administrator can adjust the settingso that the date is shown instead of the user name.Forum Phone 515/525/535 System Telephones

24Display and MenuCardsFor the System Administrator: Configuring the Display ofthe User Name and the DateAssign the user name in the Configurator, User Manager: Usermenu. Configure the display of the date in the info line of theForum Phone 515/Forum Phone 525 system telephones in theConfigurator, Telephony: Settings menu.aIncom..int..call 11:45Mon.01.Jan.06OperatorESCOKThe Forum Phone 535’s display in call state:a Info linesDuring a call, the current charge counter (if configured) and annotationtexts are displayed. During an enquiry call you will see thenumber of the enquiry call you dialled. On the Forum Phone 535the second info line is used to display connection information also,you can, for example, view the capacity status of a call queue. Ifthere is an entry in the phone book for the called subscriber (seealso page 133), name and call number are displayed alternately inthe calling state.Forum Phone 515/525/535 System Telephones

Display and MenuCards 25Key LinesThe display next to the keys is assigned to them on a line-by-linebasis. Depending on the type of key, the following display textsare shown. On the Forum Phone 515the display always shows theactive line.Note: The call and seizure states are identified by additional symbolson the call keys. For details, refer to the section entitled Telephoningstarting on page 40.Peters 11:4511& 30Secretary123ESCOKKey lines on the Forum Phone 525:1 Call key in idle state: internal call number or a user-assignedtext.2 Call key during dial and connection state: dialled call number.3 Destination key with names programmed: programmed name.Peters 11:4511Follow MeSekretary456ESCOKKey lines on the Forum Phone 525:4 Call key during call state: call number (if transmitted) or thename of the caller (if listed in the telephone book).5 Feature key programmed: name of feature with status display.6 Destination key with name programmed. If no name wasprogrammed, the display shows the programmed call numberinstead of the name.Forum Phone 515/525/535 System Telephones

26Display and MenuCardsMenuCard DisplaySekretary11:45Mon.01.Jan.0630Main menuTelephonschloss 1 CallsPeters2 Call forwarding3 Messages4 Phone settings5 Protection6 Connections7 Phone book0 Central settingsESCOKMenuCard display on the Forum Phone 535All the features of your telephone and the system are controlledvia display windows like the ones on your PC. These display windowslook like index cards and are called MenuCards. On theForum Phone 515the display shows the active line of the Menu-Card.MenuCards are displayed using different keys. Please refer to theexplanations in the section entitled Key Assignments on page 12.The top line of a MenuCard contains the name of the menu or thatof the selected feature. The lines below it contain all the selectablefeatures or lists of names and call numbers.A MenuCard covers some of the key lines, but it is still possible toexecute all the functions (features) assigned to the keys (e. g.accepting a call on a call key).Forum Phone 515/525/535 System Telephones

28Display and MenuCardsSelecting Items from MenuCard ListsArrow keyPNumber keys2OK keyOEscape key,short presseEscape key,long presseThe arrow key is used to select items in and/orscroll through the MenuCard lists. If the list islonger than the display window, you will see anarrow at the bottom of the window indicatingthere are additional items. When the first entryin a menu is selected and you press the uparrow key you go to the last entry of thismenu. When the last entry in a menu is selectedand you press the down arrow key you go tothe last entry.In the Main menu, you can also make yourselection by entering the number to the left ofthe feature.Pressing this key confirms your selection orsetting. Depending on the feature, it is nowexecuted and you can exit the MenuCard, oradditional setting windows are displayed.This cancels your selection/entry withoutmaking any changes and takes you back to thenext highest branch of the menu tree.This closes the MenuCard without making anychanges.Setting Windows and theirCharacteristics, TogglingPeters 11:45Call div.111 - Immediately..2 - After delay..3 + busy ) 32ESCOKForum Phone 525’s displayTwo dots following a MenuCard item mean: After pressing the OKkey O a sub-menu is opened in which you can select optionsForum Phone 515/525/535 System Telephones

Display and MenuCards 29or make entries. The settings in the sub-menu are stored afterpressing the OK key O.A “+” sign to the left of the name of a feature indicates that it isactivated and a “-” sign that it is deactivated.The plus/minus key = lets you toggle between the on/off states, while the OK key moves you to the next item in the settingwindow.Entering/Deleting DigitsPeters 11:45Baby call11Dest.: 6284722OnOffESCOKForum Phone 525’s displayIn an input line (e. g. for a call number) you can make entries/changes straight away. The cursor indicates the position at whichthe input or deletion is made.If numerical inputs are longer than the display field, the digits disappearoff the display to the left.Using the plus/minus key = you can move the cursorand display the digits that were previously not visible. The digitson the right will then disappear from the display field. Inputs arealways made to the immediate left of the cursor position. A shortpress of the C-key C deletes individual digits, whereas a longpress deletes the complete entry.Deleting ListsIn displayed lists (e. g. the call list) you delete individual itemsfrom the list with a short press of the C-key C. Long pressingthe C-key C deletes the entire list, but only after the queryAre you sure?. Press O to delete the list.Forum Phone 515/525/535 System Telephones

30Display and MenuCardsEntering TextIn input lines for text, the numerical keypad automaticallyswitches to the entry of letters. You can enter the following charactersby repeatedly pressing the number keys:KeyCharacters1 1?!,.:;“’2 ABC2ÄÅÀÁÂÃÆÇ34 GHI4ÌÍÎÏ5 JKL5DEF3ÈÉÊË(Euro sign)6 MNO6ÑÖÒÓÔÕØ7 PQRS7ß8 TUV8ÜÙÚÛ9 WXYZ90 0¬(space)@$&* *-+=~^%# #(){}[]/\• Inputs are always made to the immediate left of the cursorposition.• The input position moves automatically if you pause brieflybetween your inputs or if you enter a new character.• When entering text, the first letter will automatically be uppercase, the remaining letters automatically lower case. After youenter a space, the next letter will be upper case once again.• While entering text, you may switch back and forth betweenupper and lower case by pressing a number key for a longerForum Phone 515/525/535 System Telephones

Display and MenuCards 31time. The upper-/lower-case remains activated until the nexttime you press a number key longer.• Press the ABC key A briefly to switch between thealphanumeric and numeric modes.• If the text passages are more than one line long, line breaksare made automatically at the end of each line. You can movethe cursor by using the plus/minus key =.• A short press of the C key C deletes individual digits/characters (in front of the cursor), whereas long pressing thekey deletes the complete entry.Automatic ExitMenuCards close automatically under the following conditions:• An open menu is automatically closed after 60 seconds if youdo not make any additional entries. Exception: playing back avoicebox message with a duration longer than a minute.Changes that have not been saved are lost.• In the idle or connection state, if you receive a call and acceptit by lifting the handset or pressing a key.• In the connection state, if you make inputs that require a newconnection-dependent MenuCard (e. g. you pressed the R-key R to make an enquiry call; see the section entitledTelephoning starting on page 40).• If you press a key that invokes a MenuCard other than the onedisplayed.All inputs that have been saved in the MenuCards remain intactwhen you exit the menu.Forum Phone 515/525/535 System Telephones

32Key extensionsKey extensionsWith a key extension, you can extend your system telephoneForum Phone 525/Forum IPhone 525 and Forum Phone 535/Forum IPhone 535 with additional free programmable keys. TheMain menu functions and destination call numbers can be storedon these keys. In addition, the system administrator can programmecall keys (trunk keys, team keys, busy keys or direct-callkeys) over the configuration software of the communications system.Up to three key extensions can be connected to system telephones:either three key extensions of the model Forum 500 KeypadPaper FP 525/53 or three key extensions of the modelForum 500 Keypad Display FP 535. A combination of these keyextensions is, however, not possible.The following equipment combinations are possible:keyextension …Forum 500Keypad PaperFP 525/535Forum 500KeypadDisplay FP 535… with the features–36keys with LEDindicator– Labelling on labelstrips–20keys with LEDindicator–3keys with LEDindicator to shift levels;enables programming of60 storage locations oneach key extension– Labelling of the keysover the display; eachkey is assigned to adisplay lineconnectable to asystem telephone– Forum Phone 525– Forum IPhone 525– Forum Phone 535– Forum IPhone 535– Forum Phone 535– Forum IPhone 535Forum Phone 515/525/535 System Telephones

Key extensions 33Level KeysFig. left: Key extension Forum 500 Keypad Paper FP 525/535; Fig.right: Key extension Forum 500 Keypad Display FP 535For the System Administrator:In the “Mounting and Commissioning” (Forum 523/524,Forum 525/526, Forum 550/560) resp. “Commissioning and Maintenance”(Forum 5050) guide you will find the correspondingassembly instructions in the chapter “Connecting the Key Extension”.Operating the Key Extension KeysThe keys of the key extension are used in the same way as programmedkeys, as described in this user guide (see the followingsections: Programming Call Numbers (Destinations) starting onpage 140, Programming Functions (Features) starting onpage 142, Programming the Call Keys starting on page 103).Choosing a Key LevelKeys can be programmed on three levels with a key extensionForum 500 Keypad Display FP 535. There are a total of 60 storagelocations available on 20 keys.Forum Phone 515/525/535 System Telephones

34Using a HeadsetTo toggle between the levels, use the level keys ; on thelower left. The illuminated LEDs next to the key indicates that thelevel is activated. In the display of the key extension, you will alsosee the text with which this storage location is labelled.A key extension Forum 500 Keypad Display FP 525/535 offersonly one level.Labelling a Key on the Key ExtensionPaper strips are used for labelling the key on the Forum 500 KeypadDisplay FP 525/535 key extension. The keys are eitherlabelled with the default text on the Forum 500 Keypad DisplayFP 535 (e. g. when programming a feature key) or by entering anindividual text when programming the key (see also the chapterLabelling the Keys starting on page 21).Using a HeadsetYou can telephone hands-free if you use a headset. A headsetconnected to a system telephone can be switched on and off atthe telephone (see also page 124 in the chapter entitled Menu-Card “Phone Settings”). If the headset is switched on, you canaccept or end a call by pressing the headset key K on the systemtelephone, which switches off the microphone and handset onthe telephone. If the headset is switched off, the headset keyoperating function on the system telephone is not operational.Note: If a cordless DHSG headset is used, the headset key Kon the system telephone is operated with the Talk key on theheadset.Read the instructions for the headset in the user guide.The headset can be used in combination with the handset and theother keys of your system telephone (e. g. hands-free/open-listeningkey L). The following table gives an overview of theForum Phone 515/525/535 System Telephones

Using a Headset 35different operating situations. The headset must be switched onfor these operations (see page 124).Situation: Operation: Result:You receive a call.You want to make acall.You have entered acall number (blockdialling/automaticdialling).K Press theheadset key.org Press thecall key.K Press theheadset key andZ enter the callnumber.org Press thecall key andZ enter the callnumberand whennecessaryL press thehands-free/openlisteningkey.K Press theheadset key.org Press thecall keyand when necessaryL press thehands-free/openlisteningkey.You telephone withthe headset (LED ofthe key K is illuminated).The call number isdialled (LED of thekey K is illuminated).Hands-free/open-listeningis switched on(LED of the key Lflashes).The call number isdialled (LED of thekey K is illuminated).Hands-free/open-listeningis switched on(LED of the key Lflashes).Forum Phone 515/525/535 System Telephones

36Using a HeadsetSituation: Operation: Result:You are telephoningover the handsetand want toswitch to the headset.You are telephoningin hands-free/open-listeningmode (the handsetis on-hook, LED ofthe key L isilluminated); youwant to switch tothe headset.You are telephoningover the handsetand want to leta second personlisten in on the callover the headset.You are telephoningover the headsetand want to leta second personlisten in on the call.K Press theheadset key, keepit pressed andh replace thehandset.K Press theheadset key.K Press theheadset key.H Pick up thehandset.You continue the callover the headset (LEDof the key K isilluminated).Hands-free/open-listeningis ended (LEDof the key L isoff); you continue thecall over the headset(LED of the key Kis illuminated).Listening-in over theheadset is now activated(LED of thekey K flashes).End listening-in:K Press the headsetkey (LED of thekey K is off).The second person listensin on the callover the handset (LEDof the key K isilluminated).End listening-in:h Replace the handset(LED of thekey K is illuminated).Forum Phone 515/525/535 System Telephones

Using a Headset 37Situation: Operation: Result:You are telephoningover the headset,a second personlistens in onthe call over thehandset. You wantto switch of theheadset.You are telephoningover the handset,open-listeningis switched on (LEDof the key Lflashes); you wantto let another personlisten in on thecall over the headset.orL Press thehands-free/openlisteningkey.K Press theheadset key (longkey press).K Press theheadset key.Open-listening isswitched on, personspresent can listen inon the call (LED of thekey L flashes).End open-listening:L Press thehands-free/open-listeningkey (LED of thekey L is off).The headset isswitched off (LED ofthe key K is off).Listening-in over theheadset is now activated(LED of thekey K flashes).End listening-in:K Press the headsetkey (LED of thekey K is off).End open-listening:L Press thehands-free/open-listeningkey (LED of thekey L is off).Forum Phone 515/525/535 System Telephones

38Using a HeadsetSituation: Operation: Result:K Press theheadset key (longkey press).You are telephoningover the headset,hands-free/open-listening isswitched on (LED ofthe key Lflashes). You wantto switch of theheadset.You are telephoningover the headsetand want to endthe call.You are telephoningover the headset,a second personlistens in onthe call over thehandset. You wantto end the call.You are telephoningover the headset,hands-free/open-listening isswitched on (LED ofthe key Lflashes). You wantto end the call.orL Press thehands-free/openlisteningkey (longkey press).K Press theheadset key.K Press theheadset key (shortkey press).K Press theheadset key (shortkey press).The headset isswitched off (LED ofthe key L flashes;LED of the key Kis off).The headset isswitched off (LED ofthe key K is off).Hands-free/open-listeningis switched on(LED of the key Lis illuminated).The connection isended (LED of thekey K is off).The connection isended (LED of thekey K is off).The connection isended (LED of thekey K is off; LEDof the key L isoff).Forum Phone 515/525/535 System Telephones

Using a Headset 39For the System Administrator:You will find more information on connecting a headset and suitabledevices in the “Mounting and Commissioning” (Forum 523/524, Forum 525/526, Forum 550/560) resp. “Commissioning andMaintenance” (Forum 5050) guide in the chapter “Extensions andAccessories”.Note: Connected headsets must conform with the standard DINEN 60 950-1, Point 6.2 (“Safety of information technology equipmentincluding electrical business equipment”). Please contactyour Belgacom customer consultant if you require further informationabout the connectable headsets, adapters and adaptercables.Forum Phone 515/525/535 System Telephones

40In a hurry?: A Brief Explanation of Important FunctionsTelephoningIn a hurry?: A BriefExplanation of ImportantFunctionsPlease read this chapter in order to familiarise yourself withimportant telephone functions. It will only take you a few minutes.Talking on the Phone: Via the Call Key orthe HandsetaPeters 11:4511bESCOKDisplay Forum Phone 525:a Call keyb internal call numberYour telephone has at least one call key via which you can call ormay be called. On the display, this key is labelled with the internalcall number under which internal callers can reach you. The internalcall number is allocated to an external call number underwhich you may be reached by external callers. Alternatively, thecall key may have a text label. The system administrator mayhave set this up when the system was configured.Telephoning

In a hurry?: A Brief Explanation of Important Functions 41When you receive a call or call someone yourself, you have thefollowing options for beginning to talk:HgYou pick up the handset.or:You press the call key.You conduct the following telephone call in thehands-free mode. The loudspeaker is turned on,you speak via the microphone in the handset whilethe handset remains placed in the telephone cradle.If you have connected a headset to your telephoneand activated it via the Phone settings MenuCard(see page 123), pressing the call key will turn onheadset operation. The subsequent telephone call isconducted via the headset.In the following explanations of this chapter, the H symbolmeans that you also have the option of pressing the callkey g instead of picking up the handset.Tip: You may have had more than one call key set up for you.The display shows each key labelled with the respective internalcall number or with text. Usually you can use the telephone viaeach of these keys as described above. If these keys have beenset up for you because you are a member of a team, you shouldread the chapter Managing Calls in a Team starting on page 100.It contains information on how to use the team functions set upfor you on your telephone.Telephoning

42In a hurry?: A Brief Explanation of Important FunctionsTelephoningDo I Need a Code?Depending on the system’s configuration, you may have to entera code (manual line seizure) or not (automatic line seizure) beforeentering an external call number. The system administrator willinform you what this code is (the default setting upon delivery isthe code digit 0). Internal call numbers are also entered differentlyfor automatic or manual line seizure.Calling with Manual Line Seizure (External with DiallingCode)Calling external parties:H Z Enter external line seizure code digit (e. g. 0)and dial external call number.H ZCalling internal parties:Dial internal call number.Calling with Automatic Line Seizure (External withoutDialling Code)H ZH**ZCalling external parties:Dial external call number.Calling internal parties:Press the star key twice.Dial internal call number.Note: Failure to obtain an external connection may be due to thesystem configuration. You either do not have the authorisation todial external numbers or the desired external number is blocked.Telephoning

In a hurry?: A Brief Explanation of Important Functions 43For the System Administrator: System Settings for DiallingExternal Call Numbers• External line seizure (automatic or manual) and authorisationfor dialling external numbers (ranked according to local,national or international calls) can be defined in theConfigurator, menu User Manager: User groups (Settings:External and Immediate External line seizure).• Blocked call numbers are managed in the Configurator, menuTelephony: Lists: Black lists.RediallingThe call numbers you have most recently dialled are stored in theredial list. To redial one of these call numbers, you have the followingoptions:WHWPHRedialling the last call number:Press redial key.Pick up handset.Redial a particular call number in the rediallist:Press redial key.Use arrow key to select number.Pick up handset.Telephoning

44In a hurry?: A Brief Explanation of Important FunctionsReceiving CallsWhen you receive a call, the LED next to the call key flashes. Thesymbol appears in the display. The number of the person callingis shown (if the number is transmitted). If the telephone bookof the Forum 500 / Forum 5000 has an entry for this call number,the name of the caller will be shown instead of their number.HGG gTgGAccepting a call:Pick up handset, conduct call.If you are already telephoning and receiveanother call:Press the call key.The first caller will be placed on hold. You may nowspeak with the second caller.To terminate the second call:Press the disconnect key.Press the call key where the first call is being held.Now you may speak with the first caller again.Telephoning

In a hurry?: A Brief Explanation of Important Functions 45Who Called?The calls you receive are saved in the call list. Depending on yoursystem configuration, external calls, internal calls, calls on busy,door calls or all calls are saved on this list. This list also shows youwhether you have missed calls while you were away. You canquery the call list and call the caller back.Missed CallsThe LED of the info key i is flashing. To return a call:iPOPHPress the info key.Use the arrow key to select the Missed calls menuentry.Press the OK key.Select the entry in the call list with the arrow key.Pick up handset.Calling a Caller BackTo call a caller on the call list:MOOOPOPHPress MenuCard key (long press).Press the OK key (Calls is selected).Press the OK key (1 Call lists is selected).Press the OK key (1 Missed calls is selected).or:Use the arrow key to select 2 Accepted calls andpress the OK key.Select the entry using the arrow key.Pick up handset.Telephoning

46In a hurry?: A Brief Explanation of Important FunctionsFor the System Administrator: System Settings for the CallListThe Configurator, User Manager: User groups menu is whereyou define which calls are stored in the call list (settings: manageextern call list, manage busy call list and manage door calllist). You can have calls where the call number was not transferred(e. g. because the caller suppressed the number) notincluded in the call list in the menu Telephony: Settings (Calllist: no entry if phone number missing setting)Querying/Toggling, TransferringQuerying and TogglingDuring one call you may make another call: e. g. to obtain information:GRZR GTRGTo initiate a query:Press the R-key.Dial internal or external call number.The first caller is placed on hold and you nowmay speak with the second caller.You may switch back and forth between calls,speaking alternatively with both callers. To alternatebetween callers (to toggle):Press the R-key (repeat to toggle).To end query:Press the disconnect key.Press the R-key.Now you may speak with the first caller again.Telephoning

In a hurry?: A Brief Explanation of Important Functions 47Transferring a Call to an Internal SubscriberYou may transfer a call to another internal subscriber with or withoutadvance notice. To do this, you begin by initiating a queryconnection:GRZG hhPress the R-key. The subscriber you were talkingto before is put on hold.Dial the internal call number.If the internal subscriber answers,Inform them that you are transferring a call andreplace the handset in the telephone cradle.If the internal subscriber does not answer,replace the handset in the telephone cradle.The internal subscriber will be called. If he/sheanswers, he/she will be able to speak with thecaller on hold. If he/she does not answer, youwill automatically be called back after a certainlength of time.If the line of the internal subscriber is busy, youmay end the query as described on page 46.Transferring a Call to an External Subscriber (Transfer Call)You may also transfer calls to an external subscriber. The systemadministrator must provide you with the corresponding authorisationto do this, otherwise you will not be able to transfer calls inthis way.GRZMPOPress the R-key. The subscriber you were talkingto before is put on hold.Dial the external call number.Press the MenuCard key (short press).Using the arrow key, select the Transfer menuentry.Press the OK key.Telephoning

48In a hurry?: A Brief Explanation of Important FunctionsNote: When you call an external party and then transfer this personto another external party, you will bear the costs for the callbetween the two external callers. You have no way of influencinghow long the transferred call will last. The connection is establishedvia the Forum 500 / Forum 5000 and occupies two callchannels (ISDN user channels).For the System Administrator: System Settings forTransferring Calls• You can define the length of time after which a user trying totransfer a call is called back in the Configurator, menuTelephony: Extended: Timer (Setting: Timeout ondiversion to operator).• External call transfer authorisation is set in the Configurator,menu User Manager: User groups (Setting: External toexternal).Audio: Muting, Open-Listening, AdjustingTelephone VolumeMutingWhile using the phone, you may switch off the microphone if youwish. The person you are speaking with will not be able to hearyou:SPress the muting key.Press it once again to switch the microphoneback on.Telephoning

In a hurry?: A Brief Explanation of Important Functions 49Enabling Others to Listen InLLhTo allow others present to hear the telephoneconversation, press the hands-free/open-listeningkey.By switching on the loudspeaker, you may continueyour call in hands-free mode.Keeping the hands-free/open-listening keydepressed, replace the handset in the telephonecradle. Then release the hands-free/open-listeningkey.Adjusting VolumeG= To adjust volume during a call, use the plus/minus key:• for handset volume• or – if you’re using a headset – for headsetvolume• or – if you have the loudspeaker switched on– for loudspeaker volume.This setting applies to the current call. To adjustvolume permanently, please refer to the chapterMenuCard “Phone Settings” starting onpage 123.Telephoning

50General FunctionsGeneral FunctionsAssignment of Internal and External CallNumbersYour telephone’s internal number is assigned when the systemadministrator configures the Forum 500 / Forum 5000 communicationssystem. The call number is linked to the call key g ofyour telephone, which means you receive calls on this key. Youcan have several internal call numbers on different call keys onyour system telephone. The external call number(s) at which youcan be reached is (are) assigned to the call key(s) (with the internalnumber).External telephonenumbersCall distribution schemeInternal telephone numberson the call keys4701 16784701 12344701 13454701 145647484950Telephone 1Telephone 2Communications system51Telephone 3Example of the assignment of internal and external call numbersThe above example shows that the system’s external call numbersare first stored in the Forum 500 / Forum 5000. The telephonescan be reached selectively by means of call distribution of thenumbers to the internal numbers (call keys). As you see,telephone 1 and telephone 2 both ring when a call is made to thenumber 4701 1234. At the same time, telephone 1 can also bereached on the number 4701 1678.Signalling on the Call Keys“Call key” is the general term for all keys of your telephone whichyou use to make calls and are called. These are feature keys(please refer to page 15 and page 15 also) or call keys with teamTelephoning

General Functions 51functions (team keys or direct call keys, please refer to the chapterManaging Calls in a Team starting on page 100).The LEDs and symbols on the call keys indicate the followingstates:First callFurther callKey seizedCall heldTeam member’s key isseizedLED flashes rapidlyBell is displayedLED flashes rapidlyBell is displayedLED onArrow is displayedLED flashes slowlyArrow is displayedLED onHandset and team key text aredisplayedCalls in the Call Waiting QueueThe system administrator can configure and activate a call waitingqueue especially for your telephone in the Forum 500 /Forum 5000 system. While you are making a call, new calls can bequeued. These callers first hear an announcement (if the systemadministrator has preset an announcement) and then the ringtone. The number of calls permitted in the call waiting queue isset by the system administrator during system configuration,5 calls for example. When this number is reached, further callershear the busy tone. The calls in the queue are put through inorder of priority (baby calls, door calls, VIP calls, other internaland external calls), irrespective of the order in which they camein.Calls that have been in the queue for too long are removed, andthe callers then hear the busy tone. The period of time until anexternal call is released is set by the network operator. In mostEuropean countries this is usually three minutes.Telephoning

52General FunctionsYour telephone can have a call waiting queue even if it belongs toa subscriber group, where it simultaneously affects call forwarding.If several call numbers are configured for your telephone (e. g. ontrunk or team keys), separate call waiting queues are used foreach number.On the Forum Phone 535) incoming calls are signalled by meansof a short tone (default setting); they are also indicated on thedisplay. The system administrator can switch off the notificationtone for a new call in the web configurator with the Beep forcalls in call queue option (menu: Telephony: Devices: Systemphones).If there are calls in the queue, the level indicator appears at thebeginning of the second line of the Forum Phone 535 display. Ifseveral call numbers with call waiting queues are configured foryour telephone, the total number of entries appears.For the System Administrator:The “Call Queue” chapter in the “Mounting and Commissioning”(Forum 523, Forum 525/526, Forum 550/560) resp. “Commissioningand Maintenance” (Forum 5050) guide explains how toconfigure call waiting queues and set up a enquiry station usingthis function.Accepting a Call During Automatic DiallingSample situation: You have entered a call number or selected acall number (in the call list, the re-dial list or the phone book). Thecall number is not yet dialled and you receive a call at thatmoment. When you pick up the handset the following operationsare possible:• The call number you entered is dialled.• You accept the call.The Prefer incoming connections option determines which ofthese operations is carried out. The system administrator configuresthis option in the web configurator, in the Telephony: Settingsmenu.Telephoning

General Functions 53Block Dialling/Automatic DiallingIf you activate the menu item 5 En-bloc dialling in the Menu-Card Phone settings, you can enter all call numbers (and corrector add digits to them, if necessary) without lifting the handset(see MenuCard “Phone Settings” starting on page 123). Thenumber is displayed in the info line. Entries from the redial list,the call list and the telephone book that are to be dialledusing O also appear in the info line first. The number youhave selected is not dialled until you lift the handset or press thehands-free/open-listening key L.If block dialling is switched off, the telephone switches to open-listeningmode as soon as you enter a call number and dial it.Note: An initiated automatic dialling is automatically terminatedafter 60 seconds if no further entries are made.Block Dialling and Headset OperationIt is useful to activate the “block dialling” feature when using aheadset (if you have activated this via the MenuCard Phone settings,see page 124). The call number entered will only be dialledonce you have pressed the headset key K.Once block dialling has been activated and the headset switchedon, the phone immediately switches over to headset operationand the call number is dialled when you enter a number on thephone.Dialling a Different User or a Different TerminalYou can also use your system telephone for dialout with a headset.To do so, save a destination call number on your system telephone(via the MenuCard Connections, the menu entry 2ƒDial:0ƒRemote dialling, please refer to page 130 also). The savedcall number will be dialled automatically when you press the headsetkey within 30 seconds. After 30 seconds, the dialout will bedeactivated automatically.This feature can be used on all devices for which the systemadministrator has configured a device ID. This means that you canalso save a dialout for another user who, e. g. also has a systemtelephone.Telephoning

54General FunctionsFor the System Administrator:Device IDs are set up in the Configurator, Telephony:Extended: Device ID menu. Authorisation for this feature isassigned in the User Manager: User groups menu with the Dialfor other phone setting.MutingPressing the muting key S deactivates the microphone duringa call, and the person at the other end of the line can no longerhear you. Press the key again to switch the microphone back on.Call-charge Display, Duration DisplayIf your network operator transmits call-charge information, and ifyou have dialled an external number yourself, you will see thecurrent amount of the charge in the info line during or at the endof a call. The menu item 6 Charge settings in the Phone settingsMenuCard lets you deactivate this or switch to the durationdisplay (see also MenuCard “Phone Settings” starting onpage 123).Adjusting the Volume with the Plus/Minus KeyUse the plus/minus key = to adjust• the volume of the loudspeaker in hands-free/open-listeningmode,• the volume of the handset during a call via the handset,• the volume of the headphone during a call via a headset,• or the volume of the ringer tone when you receive a call.When the telephone is in its idle state again, it reverts to thedefault menu setting. You can change the default setting using the1 Volume menu item in the Phone settings MenuCard (see alsoMenuCard “Phone Settings” starting on page 123).Telephoning

General Functions 55RediallingPressing the redial key W displays a MenuCard containing thelast numbers dialled (with the most recent entry at the top). If acall number is also stored in your system’s telephone book, youwill see the name as well.Dialling a Call NumberP HOSelect the entry (phone number or name) andlift the handset. The call number will now bedialled automatically.Alternative: If you do not pick up the handsetand then press the OK key, you can execute thefollowing functions:• Dial: Press the OK key or pick up thehandset. The phone number will be dialled.• Phone book: You can add the entry to atelephone book (1ƒNew entry) or to anexisting entry (2ƒAdd). Please see: AddPhone Numbers to Telephone Book from Listsor during a Call starting on page 90.• Info: You can obtain information on thecalled subscriber (e. g. his or her phonenumber if his or her name is displayed in theredial list). You can see when you last dialledthis number and how often you have tried toreach the subscriber. If there are multipletrunk keys configured on your telephone, thetrunk key with which the call was made isindicated.Note: If your internal call number (e. g. “30”) is configured onmore than one terminal, you can view and edit the redial list forthe call number 30 on each of these terminals. If, for instance,you delete the redial list on one terminal, it will be deleted on allothers as well.Telephoning

56General FunctionsHands-free Mode, Open-listening ModeIn hands-free mode, the handset stays on the hook. You hear thecaller over the loudspeaker and speak through the microphone ofthe handset (although it is on the hook). Open-listening involvesboth, hearing the caller via handset as well as over the loudspeaker,so that other people present can listen in.Calling via the HandsetTo switch open-listening on/off, press the hands-free/open-listeningkey L. To switch to hands-free mode, long press thehands-free/open-listening key and replace the handset. Thenrelease the hands-free/open-listening key.Initiating a Hands-Free CallInstead of lifting the handset, press the hands-free key/openlisteningL. End the call by pressing the hands-free/open-listeningkey again.Blocked/Unblocked Call NumbersYour telephone can be blocked from dialling all or selected externalnumbers. Emergency numbers can be entered in a special list,irrespective of your trunk line access rights, and so always bedialled. Consult your system administrator for details.For the System Administrator:Blocked and unblocked call numbers are managed in the Configurator,menu Telephony: Lists.Telephone LockIf you wish to permit another person to temporarily use your telephone,you can activate the telephone lock via the 5ƒProtection:3ƒTelephone lock menu entry (see page 126). Independentof the system configuration, when the telephone lock isactivated, the functionality range is restricted on the telephone,incl. possibly restricted dialling rights.When the telephone lock is activated, the LED of the infokey i is illuminated while the info key is without functionTelephoning

General Functions 57then. To deactivate the telephone lock, press the MenuCardkey M and enter your user PIN thereafter.DTMF Postdial/VF SignallingDepending on the system’s configuration, your telephone is automaticallyset to VF (voice frequency) signalling in the connectionstate. You can use this, for example, to query an answeringmachine or a voice mailbox. Consult your system administrator ifyou have questions concerning this function.Keypad DiallingA number of European network operators need the keypad protocolto set features. Depending on your system configuration yourtelephone could be set to keypad dialling during the connectionstate. If this is not the case, you must switch your telephone overto the keypad protocol – before dialling – and enter the code digitsspecified by the network operator. These are transmitteddirectly to the exchange and evaluated there. You usually get anannouncement as an acknowledgement. Consult your systemadministrator if you have questions concerning this function.Switching to Keypad DiallingH*12 This switches your telephone over tothe keypad protocol. You can nowenter the code digits for the appropriatekeypad.Note: In the call state, keypad dialling is automatically active.Once the called subscriber answers the call, which could be anexternal answering machine for example, you can execute therequired functions by pressing the number keys.For the System Administrator:Authorisation for keypad dialling is set in the Configurator, menuUser Manager: User groups (Setting: Keypad dialling).Telephoning

58General FunctionsLeast Cost Routing (LCR)Whenever you make an external call, your system automaticallyuses LCR to set up a connection to a network operator that hasbeen selected by the system administrator. If you do not wish touse this preferred connection and want to select a network operatoryourself for each call (i.e. on a call-by-call basis), then beforemaking the call, select the LCR off entry from the menudescribed in the section entitled MenuCard “Selection” in the IdleState.This is only necessary if LCR has been configured for you in theForum 500 / Forum 5000. Consult your system administratorabout this.Note: Baby call and external call forwarding are not automaticallyswitched via preferred connections. In this case, if the networkoperator you wish to use is not the default operator, you can keyin the appropriate operator’s code digits before entering the callnumber.Transmission of Call NumbersWith ISDN there are different features which allow or prevent thetransmission of (external) call numbers between subscribers.“CLIP” Feature“CLIP” is an abbreviation for “Calling Line Identification Presentation”.The caller’s call number (if transmitted) is displayed bymeans of the corresponding call key. If this number is also storedin your telephone book, the caller’s name is displayed.“CLIP no screening” FeatureUsing “CLIP no screening” outgoing connections instead of sendingthe real call number of the caller, send another call number.Thus, instead of being shown your number, the subscriber youhave called is shown, for example, a service call number. The feature“CLIP no screening” must be enabled by the network providerand activated in the system configuration by the system administrator.When you receive an external call where the caller indicatesa different number than the one actually being transmitted,your display will show a “?” next to the call number. If the indi-Telephoning

General Functions 59cated call number is saved as a phone book entry, as usual, thename will be shown along with a question mark.Note: Display of the question mark “?” is the system default. Thesystem administrator can switch off this default setting in the webconfigurator with the Mark unchecked phone number with ?option (Telephony: Settings menu).“CNIP” Feature“CNIP” is an abbreviation for “Calling Name ^Identification Presentation”.In addition to the call number, the name configured bythe caller is also transmitted and displayed on the correspondingcall key. If the caller's number is listed in the Forum 500 /Forum 5000 telephone book, this local entry is displayed in preference.“CLIR” Feature“CLIR” is an abbreviation for “Calling Line Identification Restriction”.Before dialling a call number, you can decide from case tocase if you wish to prevent your call number from being displayedto the called subscriber. To do this, select Suppress number fromone of the MenuCards described in the next section. If this featureis not provided, your call number will always or never be displayed,depending on the system setting. Consult your systemadministrator for more information.Telephoning

60General FunctionsMenuCards Before and During a CallMWhen your telephone is in the idle or the connectionstate, a short press of the MenuCard keyprovides you with state-dependent MenuCardsdisplaying frequently used features you can activate.ExampleHMP OAnother telephone in your pick-up grouprings and you want to answer the call. Liftthe handset, press the MenuCard key,select Pick-up and confirm this with theOK key.Alternatively, let us assume the line youcall is busy and you want the person withthis number to call you back. When youhear the busy signal, press the MenuCardkey and confirm Callback with theOK key.The state-dependent MenuCards are illustrated at the end of eachof the following sections.Note: As a rule, the features are only available to you if they canactually be executed.MenuCard “Selection” in the Idle StateM Briefly press the MenuCard key (this also works if youhave already lifted the handset), then select the following fromthe Selection MenuCard …Unpark call: Consecutively unparks one or more connectionswhich you have previously parked, for instance to make enquiriesor forward calls (see MenuCard “Conversation” starting onpage 67). Select the parked call desired from the list offered. Confirmwith the key O.Telephoning

General Functions 61Pick-up: Accepts a call for another telephone in your pick-upgroup.Pick-up select…: Accepts a call for any other telephone. To dothis, enter the call number of the other telephone. If the other telephoneis already in the call state (e. g. an answering machine isin announcement mode), you pick up the call. The subscriber forwhom you picked up the call must belong to a user group forwhich “Call removal” authorisation is activated, otherwise you willnot be able to use the “Pick-up selective” function.Note: If the called subscriber is a member of a user group forwhich pick-up protection is active, “Pick-up” and “Pick-up selective”are not possible.Take: You accept a current call from a different terminal at yourtelephone and continue your call on your telephone. The prerequisiteis that your telephone and the other terminal have the sameinternal call number. You can also programme the function “Take”to a feature key (see also Programming Functions (Features)starting on page 142).Announcement…: After entering the call number, you can initiatean announcement to another system telephone, or on a group ofsystem telephones.Intercom: After entering the device ID, you can initiate anannouncement to a single system terminal. The microphone isactivated on the terminal called and the person you are calling canimmediately answer your announcement. The “intercom” functioncannot be used for announcements to a group of terminals.Charges: For each trunk key, you can view the charges for thelast call as well as the total charges.Door opener: This activates the door opener.Notes: Note a call number and a name or dial a noted callnumber.Suppress number: For the following (external or internal) call,your call number will not be shown to the subscriber. This menuitem is dependent on the system settings.Telephoning

62Making External/Internal CallsTransmit number: For the following call, your call number will bepresented to the called subscriber. This menu item is dependenton the system settings.LCRƒoff: This switches off the LCR function.VIP call: Your next internal call is made as a VIP call.Main menu: This opens the Main menu; see the section entitledMain Menu starting on page 113. You can also open this menu bylong pressing the MenuCard key.Making External/InternalCallsManual or Automatic Line SeizureIf your telephone is set to manual line seizure, all call keys onyour telephone first seize an internal line, and you can dial aninternal number straight away. When making external calls, youmust first press the line seizure code digit (presetting: 0).Note: This also applies to all enquiry calls and call forwarding toexternal destinations, but not to call forwarding “MSN”.Your system administrator configures this code digit for all subscriberson the Forum 500 / Forum 5000 system and will tell youwhat value is currently valid.If your telephone is set to automatic line seizure, all call keys onyour telephone seize an external line, and you can dial externalnumbers straight away. In order to reach internal subscribers,press the star key twice ** before dialling the internalnumber.For the System Administrator:The code digit is defined in the Configurator, menu Telephony:Trunks: Route (Setting for the External trunk route).Telephoning

Making External/Internal Calls 63Making an External CallWith Automatic Line SeizureHgKZLift the handset (your call key is seized).and/orPress the particular call key (hands-free mode).and/orPress the headset key (headset operationrequires that the headset is switched on, seepage 124).Dial the external call number.With Manual Line SeizureHgKZLift the handset (your call key is seized).and/orPress the particular call key (hands-free mode).and/orPress the headset key (headset operationrequires that the headset is switched on, seepage 124).Dial the line seizure code digit (presetting:0) and then the external call number.Telephoning

64Making External/Internal CallsMaking an Internal CallWith Automatic Line SeizureHgKLift the handset (your call key is seized).and/orPress the particular call key (hands-free mode).and/orPress the headset key (headset operationrequires that the headset is switched on, seepage 124).** Press the star key twice.ZDial the internal call number.With Manual Line SeizureHgKZLift the handset (your call key is seized).and/orPress the particular call key (hands-free mode).and/orPress the headset key (headset operationrequires that the headset is switched on, seepage 124).Dial the internal call number.Using Destination Keys to Make CallsgH / g /L / KYou can save call numbers to programmablekeys. To dial, simply press the destination key.Then you pick up the handset or press thedesired call key, hands-free/open-listening keyor headset key. Your call key is seized.Telephoning

Making External/Internal Calls 65Call Waiting with an Internal SubscriberWhen you call an internal subscriber whose number is busy, yourcall will appear on their display and signalled with the call waitingtone. You hear the ringing tone yourself. The system administratorcan determine that a special ringing tone is used for call-waitingcalls. Based on this special ringing tone, you can decidewhether you wish to end the connection or not.If the subscriber called has activated call-waiting protection (seepage 126) you will hear the busy signal. You can penetrate a subscriber'scall-waiting protection via a VIP call (see page 70).Using Routes to Make CallsHZGRZEnter the routing code and dial the call number.For enquiry calls:Enter the routing code and dial the call number.The Forum 500 / Forum 5000 sets up calls to the desired subscriberseither automatically or via specific routes. Your systemadministrator configures these routes in the Forum 500 /Forum 5000 and specifies how each route is seized. To manuallyseize a specific route for a call, you dial the routing code beforedialling the (internal or external) call number. Making calls viaspecific routes enables you to contact subscribers in the branchesof a large company network, for example. You can also use amanually-entered routing code to record your call-charge data forprivate and business external calls separately.The default route “External line” is always present and cannot bedeleted. Automatic line seizure uses the Forum 500 / Forum 5000line seizure code digit for the default route.For information on the current routes and their codes, please contactyour system administrator.Telephoning

66Making External/Internal CallsBusy Display for Bundles and Routes onthe System TelephoneThe system telephones can display whether all lines (trunks) of abundle or a route are busy.To do this, you must programme a feature key (function key) forthe system telephone in the Configurator (in the Telephony:Devices: System phones menu, function “Bundle state” or“Route state”). This function cannot be programmed on the systemtelephone itself. Contact your system administrator if necessaryso that this feature key can be configured for you.The name of the bundle or route and the number of busy channelsappear in the display. This display is constantly refreshed.If the “Route state” function is programmed and you press thisprogrammed key briefly, the routing code will be dialled accordingly(e. g. “0”).If all lines in the bundle or the route are busy, the LED on the programmedfeature key is illuminated.Ending CallsTo end a callhTLKreplace the handset orpress the disconnect key.In hands-free mode, by pressing the hands-free/open-listening key.During headset operation, by pressing the headsetkey.If the person you are speaking to ends the call while you are inhands-free mode, the busy tone for your telephone is switched offafter a few seconds and you can be reached again. This alsoapplies if you were connected to the other subscriber via yourheadset. The period of time after which the busy tone is switchedoff is configured by the system administrator. All other calls willbe ended after 20 seconds if the handset is off the hook.Telephoning

Making External/Internal Calls 67MenuCard “Conversation”M Briefly press the MenuCard key, then select the followingfrom the Conversation MenuCard …Phone Book: You can add the other party’s phone number to atelephone book as a new entry (1ƒNew entry) or you can add it toan existing entry (2ƒAdd). Please see: Add Phone Numbers to TelephoneBook from Lists or during a Call starting on page 90.Booking Number: You can use a booking number to record the calldata of connections to external subscribers and save it in theForum 500 / Forum 5000 for further analysis. Booking numbersare useful, for example, for calculating costs per client (fees andtimes) in an office. Select the menu item. Under No. enter thebooking number (8 digits maximum) and confirm your entry withthe O key. For further details please refer to the section entitledHints on Booking Numbers starting on page 68.Park call: Users can “park” one or more callers to make othercalls or put down the handset and engage in other activities. (Thisis fundamentally different from the “Hold Connection” function;with this function the connection to the caller is terminated whenthe called subscriber puts down the handset). Parked calls arerecorded in a list on the system terminal. The system offers thenext available parking spot (0-9, * or #). Users can accept thecalls from the list in whichever order they wish, enabling them to“unpark” specific calls as required. Until his call is “unparked”, thecaller will hear music on hold, provided music on hold has beenconfigured. If the user does not “unpark” the caller after a certainamount of time, he will receive an automatic recall if the handsethas been replaced (the display shows information on the recall).This automatically “unparks” the caller. If, however, the user isstill making another call and has not hung up, the caller will hearthe busy tone and will be “unparked”.Authorisation for parking connections and the period of time afterwhich there is a recall is defined by the administrator during theconfiguration of the system.Pick-up*: Accepts a call for another telephone in your pick-upgroup. Your first call is put on hold.(*: Not possible if there are already two active calls.)Telephoning

68Making External/Internal CallsNote: If a called subscriber is a member of a user group for whichpick-up protection is active, then you cannot pick up calls to thatsubscriber’s number.Pick-up select…*: You accept a call for any other telephone. Todo this, enter the number of that telephone. If the other terminalis already in the call state (e. g. an answering machine is inannouncement mode), you pick up the call. The subscriber forwhom you picked up the call must belong to a user group forwhich “Call removal” authorisation is activated, otherwise “Pick-upselective” is not possible.(*: Not possible if there are already two active calls.)Note: If a called subscriber is a member of a user group for whichpick-up protection is active, then you cannot selectively pick upcalls to that subscriber’s number.Take: You accept a current call from a different terminal at yourtelephone and continue your call on your telephone. The prerequisiteis that your telephone and the other terminal have the sameinternal call number. Your first call is put on hold. You can alsoprogramme the function “Take” to a feature key (see also ProgrammingFunctions (Features) starting on page 142).Hold: Holding is a team function. When you place a call on hold,this call may be picked up by another member of your team (seealso the section Holding and Transferring Calls with a Feature Keystarting on page 103).Door opener: This activates the door opener.Notes: You can note a call number during a call. Under Dest.,enter the number and a Text, if required, and Save the number.Later, you can then call the number with Dial.Intercept: The call numbers of “malicious callers” can be savedin your network operator’s exchange (if this service is enabled).The function is also possible if the caller has already hung up!Hints on Booking Numbers• Entering a booking number during a call is possible only if thesystem administrator has activated this function for your usergroup. Only then will the Booking number menu item bedisplayed.Telephoning

Making External/Internal Calls 69• For external connections established by you it is important howthe route that you are using for the connection has beenconfigured by the system administrator. Among other things,the system administrator specifies whether a booking numberis entered through the system terminal menu (and thereforeduring a call). He can, however, also specify that bookingnumbers must be entered with a code procedure. In that casethe booking number must be entered before the call is initiatedand the connection is made. It is entered after the routingcode and before the actual destination number. In this case itis not possible to enter the booking number during the call.• You can also programme the function “Enter booking number”to a feature key (see also Programming Functions (Features)starting on page 142). Via this feature key you can then enterthe booking number during the conversion. To programme,select the Connections: 2ƒDial: 9ƒBooking number entryfrom the Main menu. You can define a booking number that willbe saved to the feature key. If you do not define a bookingnumber, then you can – after pressing the feature key – enter“any” booking number. Ask your system administrator howlong a booking number can be (this depends on the systemconfiguration) and which booking numbers already exist, ifany.• Calls made with booking numbers can be analysed with theForum 500 / Forum 5000’s Forum Count web application.Telephoning

70Accepting CallsMenuCard “Busy”M Briefly press the MenuCard key, then select the followingfrom the Busy MenuCard …Callback: You leave your call-back request with a busy internalsubscriber (not possible for hunt group numbers).Pick-up select…*: You accept a call for any other telephone. Todo this, enter the number of that telephone. If the other telephoneis already in the call state (e. g. an answering machine is inannouncement mode), you pick up the call. The subscriber forwhom you picked up the call must belong to a user group forwhich “Call removal” authorisation is activated, otherwise “Pick-upselective” is not possible.(*: Not possible if there are already two active calls.)Note: If a called subscriber is a member of a user group for whichpick-up protection is active, then you cannot selectively pick upcalls to this subscriber’s number.VIP call*: Your call is acoustically signalled to called internalbusy subscribers, even if they have activated their call waitingprotection, call protection or call forwarding (only possible on systemterminals).(*: Not possible if there are already two active calls.)Accepting CallsBy Lifting the Handset or Pressing a KeyNormal CallHgLift the handset.orPress the call key to which the call is being signalled(hands-free mode).Telephoning

Accepting Calls 71Lifting the handset always accepts the caller who has been waitingthe longest (note the bell symbol in the display, see alsopage 50).VIP CallCalls of this type from authorised subscribers are signalled to youeven if you have activated your call waiting protection, call protectionor call forwarding. You hear the ringing tone:HgLift the handset.orPress the appropriate call key (hands-freemode).Call for a Virtual Number (Tele Secretary)In the Forum 500 / Forum 5000, numbers can be configured towhich no telephone and no subscriber are assigned (virtual numbers).The system administrator can forward a virtual number toanother internal number, the number of your telephone for example.A forwarded call is signalled on the corresponding call key of yourtelephone. For informational purposes the virtual number to whichthe call was originally made is shown. The system administratorcan also assign the virtual number a name. If this has been done,the name is shown on the display of your telephone.HgLift the handset.orPress the call key to which the call is being signalled(hands-free mode).Telephoning

72Accepting CallsExternal Calls with Unknown Call NumberWhen you receive an external call where the caller indicates a differentnumber than the one actually being transmitted (CLIP noscreening), your display will show a “?” next to the call number. Ifthe indicated call number is saved as a phone book entry, asusual, the name will be shown along with a question mark. Note:Display of the “?” can be deactivated by the system administrator.Automatic Call ConnectionIn certain operational modes (e. g. in hands-free operation orwhen making calls with a headset), it can be useful to be able toaccept subsequent calls automatically. On your system telephone,you set the delay after which calls are automatically connected inthe 5 Auto call Answer. sub-menu of the Calls MenuCard.Calls During a ConversationOn the Same Call KeyGgTgGYou are speaking on the telephone, hear the callwaiting tone and see the call on your display.Press the call key assigned to the line on whichyou are speaking. This puts your first call onhold and connects you to the new caller.Press the disconnect key to end the current call.Press the call key again.You are now reconnected to the subscriber youput on hold.Telephoning

Accepting Calls 73On a Different Call KeyGgTgGYou are conducting a call, hear a notificationtone (default) and see the call on the display.Press the flashing call key. This puts your firstcall on hold and connects you to the new caller.Press the disconnect key to end the current call.Then press the call key of the held subscriber.(The LED of the call key flashes and the arrowsymbol is displayed.)You are now reconnected to the first subscriber.Note: The system administrator can switch off the notificationtone for a call on another call key in the web configurator with theBeep for calls in call queue option (menu: Telephony:Devices: System phones).VIP CallgYou hear the call waiting tone. During a call,press the call key that signals the call.MenuCard “Call Waiting”M You hear the call waiting tone. Briefly press the MenuCardkey, then select the following from the Call Waiting MenuCard …Accept: You accept the waiting call. The person you were talkingto before is put on hold.Reject: The caller hears a busy tone.Deflect: You do not accept the waiting call, but deflect it toanother subscriber after entering this subscriber’s call number asthe destination (Dest.). You can only use the “Deflect call” functionif your user group is authorised to forward calls to internaland/or external destinations.Telephoning

74Accepting CallsMenuCard “Call”M Briefly press the MenuCard key, then select the followingfrom the Call MenuCard …Reject call: You reject the call. The caller hears a busy signal.Deflect call: You do not accept the call yourself, but deflect itto another subscriber after entering this subscriber’s call numberas the destination (Dest.). You can only use the “Deflect call”function if your user group is authorised to forward calls to internaland/ or external destinations.Door opener: This activates the door opener.Voicebox QueriesThere are various ways of listening to the messages in your voicebox:• via Forum Voicemail (from a telephone whose number is notassigned to your voicebox)• by calling the voicebox directly (from a telephone whosenumber is assigned to your voicebox)• by means of the additional menu 9 Applications in the Mainmenu (see the section entitled MenuCard “Applications” onpage 136).Note: For detailed information on the operation ofForum Voicemail, please refer to the user guide of the add-oncomponent “Forum Voicemail”.Telephoning

Enquiry, Toggling, Transfer and Conference 75Enquiry, Toggling, Transferand ConferenceEnquiry/Toggling by means of the R-Keyor Another Call KeyRZggh/Tg/RGDuring a call, press the R-key (display in the infoline) and:Dial the internal or external call number (formanually-seized trunk calls with the line seizurecode digit, e. g. 0, see page 62).or:Press another call key to place an enquiry callwith a team member.The original call is put on hold while you are consultingwith the third person.To toggle (i.e. switch backwards and forwardsbetween the two calls), press the key of the heldsubscriber (the LED of this call key flashes andthe arrow symbol is displayed).End enquiry/toggling by replacing the handset orpressing the disconnect key.Then press the key of the call on hold.You are now reconnected to the caller who wason hold.Telephoning

76Enquiry, Toggling, Transfer and ConferenceTransferring an Internal/External Call toan Internal SubscriberYou have dialled an internal enquiry call (see the section entitledEnquiry/Toggling by means of the R-Key or Another Call Key onpage 75).GhhWhen the subscriber answers, inform them ofthe call transfer and hang up.If the other subscriber does not answer or isbusy, replace the handset, the other subscriberis called.If the called internal subscriber answers, they are connected tothe waiting call. If this call is not accepted within a certain periodof time (by default 45 seconds), you are called back and, after liftingyour handset or pressing the call key, are reconnected to theoriginal subscriber and the display shows information on therecall.The period of time after which a recall is made can be changed onthe Forum 500 / Forum 5000 by your system administrator. Askyour administrator what the current time is.While a call is being transferred to another internal subscriber, thecaller hears music on hold. The setting Music on hold upontransfer on calling in the Configurator of the Web consolespecifies whether callers continue to hear music on hold on recall,or whether they hear the ring tone again.Use the following procedure to disconnect an enquiry connection(e. g. when the subscriber called is busy):TR/gPress the disconnect key and then pressthe enquiry key or the call key on which thesubscriber with whom you originally spoke iswaiting.Telephoning

Enquiry, Toggling, Transfer and Conference 77Transferring an External Call to anExternal SubscriberAn external call can only be transferred to an external subscriberby means of the MenuCard Subscr on hold.MPOTo do this, briefly press the MenuCard key.Select the Transfer menu item.Confirm with the OK key.Note: When you call an external number and then transfer thisperson to another external party, you will bear the costs for thecall between these two external callers. You have no way of influencinghow long the transferred call will last. The connection isestablished via the Forum 500 / Forum 5000 and occupies two callchannels (ISDN user channels).MenuCard “Subscr (Subscriber) on hold”R You are making an internal or external enquiry call …M Briefly press the MenuCard key, then select the followingfrom the Subscr on hold MenuCard …Transfer: You connect the subscriber on hold to the subscriberwith whom you are currently speaking.Conference: This initiates a three-party conference.Toggle: This function enables you to switch between the subscriberwith whom you are currently speaking, and the one withwhom you last spoke.Park call: You can “park” one or more calls and make otherphone calls in the meantime (see MenuCard “Conversation” startingon page 67). The system offers the next available parking spot(0-9, * or #). Confirm with the key O.Door opener: This activates the door opener.Telephoning

78Enquiry, Toggling, Transfer and ConferenceInternal/External Three-Party ConferenceYou have dialled an internal or external enquiry call (see the sectionentitled Enquiry/Toggling by means of the R-Key or AnotherCall Key starting on page 75).GPh/TIf the subscriber answers, inform them of theconference andSelect the Conference menu item from the MenuCardSubscr on hold. The conference isstarted.End the conference by hanging up or pressingthe disconnect key.Note: Interconnecting the two conference subscribers or removingone of them from the conference is only possible using theappropriate menu item in the MenuCard. 3-party conference connectionsare not available.If you wish to speak to one of the conference subscribers separatelyagain or remove one of them,gTgPress this subscriber’s call key. You are nowspeaking with this subscriber, while the othersubscriber is on hold. Now you can toggle again.End your conversation with this subscriber bypressing the disconnect key andThen press the call key of the subscriber onhold.MenuCard “Conference”M Briefly press the MenuCard key, then select the followingfrom the Conference MenuCard …Disconnect:ƒ34565483: This removes an external subscriberfrom the conference.Disconnect:ƒ1234: This removes an internal subscriber from theconference.Telephoning

Special Calls/Functions 79Transfer: This removes you from the conference, while the twoother subscribers remain connected.End conference: This ends the conference.Toggle: This breaks up the conference and you can now switchbetween the subscribers.Door opener: This activates the door opener.Special Calls/FunctionsAccepting an Appointment CallYou can save appointments with the menu item 3ƒAppointmentsin the MenuCard Messages.At the appropriate time, the appointment message appears on thedisplay and your telephone rings for one minute with the ringervolume steadily increasing. Press the OK key O once toswitch the ringer signal off. Press O again to acknowledge thedisplay signal. If you lift the handset during an appointment call, aspecial tone indicates that the ringer signal was an appointmentcall.You can also end the appointment call with the e key or bylifting the handset. Elapsed and active appointment calls are displayedin the Info MenuCard.Telephoning

80Special Calls/FunctionsBaby CallYou can save an internal or external call number in the menu item4ƒBaby call of the MenuCard Protection. If the menu item hasbeen activated, this programmed call number is dialled when aspecified period has expired (default setting is five seconds afteryou have lifted the handset). If you begin dialling a call numberwithin the specified period, the baby call is cancelled. The babycall can also be triggered by pressing the hands-free/open-listeningkey L, a call key g or the headset key K(requirement: the headset has to be turned on, see page 124).Your system administrator configures the baby call period from 0to 20 seconds for all subscribers on the Forum 500 / Forum 5000.Ask your administrator what the current value is.Announcements (with and withoutIntercom)Announcements can only be made to system terminals. For you tobe able to use this function, the system administrator must set upthe corresponding authorisation for you. Announcements can beset up on single or multiple system terminals. The “Announcement”function is available in two versions.• Announcement with intercom: the microphone of theterminal called is switched on and the person you are callingcan immediately answer your announcement (hands-freemode). An announcement with intercom can only beconducted to a single system terminal (not a group ofterminals).• Announcement without intercom: The called subscriberhears a special information tone followed by yourannouncement. In order to answer your announcement, thesubscriber has to take the call just like a normal call (pleaserefer to the section Responding to an Announcement onpage 82 also).If you make an announcement to a group of systemtelephones (e. g. to a hunt group number on which calls aresignalled simultaneously), all subscribers called hear theannouncement at the same time. You hear a signal tone viayour telephone when the (announcement) connection hasTelephoning

Special Calls/Functions 81been made to all called subscribers. If one of these subscribersreplies to the announcement (by accepting the call), theannouncement call to the other system terminals isterminated.If a subscriber being called has activated announcement protectionor intercom protection, announcements to that subscriber’scall number will not be carried out.Making an Announcement without IntercomMPZBriefly press the MenuCard key andSelect Announcement.Under Dest.: you enter the call number (of asingle terminal or of a group of terminals).Make your announcement.Making an Announcement with IntercomMPZBriefly press the MenuCard key andSelect Intercom.Under Device-ID: you enter the device-ID ofthe terminal. Your system administrator canprovide you with the device ID.Make your announcement.Telephoning

82Special Calls/FunctionsResponding to an AnnouncementIf you receive an announcement yourself, you will hear a specialinformation tone.… for an announcement without intercomH/LKMPThat function requires that your user group hasto have “Announcement accept” authorisationgranted by your system administrator.To respond, lift the handset or press the handsfree/open-listeningkey.or:Press the headset key (requirement for headsetoperation: headset must be activated, seepage 124).or:Briefly press the MenuCard key.Select Accept in the MenuCard Announcement.… for an announcement with intercomYour telephone switches to the hands-free modewhen it receives the announcement. You canspeak with the caller immediately.Note: When you have activated announcement protection (seepage 126) and/or intercom protection (see page 127) on yoursystem telephone, announcements to your call number will not becarried out.Telephoning

Special Calls/Functions 83Rejecting an AnnouncementPIn the MenuCard Announcement, select Reject ifyou want to reject the announcement call. Thesubscriber making the announcement thenhears the busy tone.or:T /gL / KYou can also reject the announcement by pressingthe disconnect key or a feature key on whichyou have programmed the Reject function.or:You can also reject an announcement call withAnnouncement with intercom by pressingthe hands-free/open-listening key or – if you areusing a headset – press the headset key(requirement for headset operation: headsetmust be activated, see page 124).Answering a Call-backA call-back request is carried out when the other subscriber is freeagain.HWhen you hear the signal on your telephone, liftthe handset.The other subscriber will be called.Telephoning

84Special Calls/FunctionsForwarding CallsTypes of forwardingYou can forward internal or external calls intended for yourself toanother internal call number or, provided that you have the necessaryuser group authorisation, to another external call number.Calls can be forwarded either immediately, after a specified periodof time (delay) or if the line is busy. You can configure more thanone call forwarding mode at the same time (Immediately, Afterdelay or Busy). You can, for example, configure call forwardingImmediately for external calls to one call number, and call forwardingAfter delay for internal calls to a different call number.During configuration, the system administrator defines an intervalin seconds for After delay call forwarding. You can replace thisdefault with your own individual value when programming Afterdelay call forwarding. If more than one forwarding mode hasbeen activated, Immediately is given priority.Call forwarding to a voiceboxIf Forum Voicemail, the integrated voicemail system, is installedin the communications system, you can also forward your calls toa voicebox configured for you.Selective Call ForwardingFurther, the system administrator can programme call forwardingwhere the call number of the caller is analysed (“SCF: SelectiveCall Forwarding”). Potentially this could be the reason why specificcalls do not reach you. If you have any questions concerning thisfunctionality, please consult your system administrator.Least Cost RoutingLeast Cost Routing (LCR) can be evaluated with call forwarding toexternal numbers, provided your system administrator has configuredLCR and its application in the Forum 500 / Forum 5000 correspondingly.Ask your administrator for the configuration applicableto you.Hunt group call numbersDuring system configuration, the system administrator can configurecall forwarding destinations for hunt group call numbers.Telephoning

Special Calls/Functions 85These destinations are called when all users of a hunt group arebusy and/or when a call is not accepted by any member of thehunt group within a certain time interval. You cannot view orchange this call forwarding on your device.In addition, the system administrator can determine whether youcan forward incoming calls to the hunt group call number or not. Ifthe system administrator does not permit call forwarding for yourhunt group call number, any call forwarding that you have programmedon your device is not carried out upon a hunt group call.Call forwarding chainsThe system administrator can configure the system so multiplecall forwarding instances can be linked one to another to form achain. A simple example: user A forwards to user B, who then forwardsto user C. A call for user A is then directly signalled touser C.A setting in your user group regulates which call number appearson your device when a call which has been forwarded multipletimes is signalled on your device: you will see either the callnumber of the last user who programmed the last call forwardingin the chain, or the call number of the first user in the chain. Thenumber displayed is also saved to the caller list for missed calls.The system prevents call forwarding chains from forming a loop,e. g. when the call forwarding destination refers back to the callforwarding source. When the system detects a call forwardingloop, no further call forwarding is carried out. This can mean that– despite call forwarding being programmed – calls are nonethelesssignalled on your device.A loop is also detected during call deflection. If you receive a callvia a call forwarding chain and wish to deflect it to a destinationcall number which is already in the call forwarding chain, a negativeacknowledgement tone is heard and the call signalling onyour device will continue.Contact your system administrator if call forwarding is not functioningas expected on your device. The system administrator isable to analyse call forwarding chains and eliminate any possibleconflicts.Telephoning

86Special Calls/FunctionsDoorbell, Door OpenerA doorbell is signalled to your call key and appears in the display.If there is an entry in the phone book for the call number, thedoorbell name appears.Opening the Door While the Handset is on HookHMPLift the handset.Press the MenuCard key.To open the door, select the Door opener menuitem in the MenuCard displayed.Opening the Door During a CallGgMPgGIf the doorbell signal is triggered during a call,you will hear the call waiting tone.Press the call key to which the door call is beingsignalled. This puts your first call on hold andconnects you to the visitor at the door.Press the MenuCard key.To open the door, select the Door opener menuitem in the MenuCard displayed.Press the call key again.You are now reconnected to the subscriber youput on hold.Telephoning

Special Calls/Functions 87Entrance Intercom CallsCalling the Entrance IntercomIf an entrance intercom (e. g. of the “Doorphone” type) is connectedto your system, you can use this procedure to speak with avisitor.H * 1 0 2In an enquiry call:G R * 1 0 2Signal When the Handset Is on Hook …H Lift the handset.• If your system is connected to an entrance intercom, you canspeak to your visitor.• Otherwise you will hear a special door tone when you lift thehandset.Signal During a CallG If the doorbell signal is triggered during a call, you hear a callwaiting tone. Proceed as described in the chapter Doorbell, DoorOpener, section Opening the Door During a Call starting onpage 86.Door Call ForwardingYou can forward calls signalled from the doorbell to another(internal or external) call number, a so-called “pharmacy line”.This is done through the Call forwarding menu (see the sectionentitled MenuCard “Call Forwarding” starting on page 118).Call DurationAll door calls are automatically terminated after a specific periodhas expired. This ensures that forwarded door calls do not unintentionallylead to continuous calls (e. g. to a mailbox).Your system administrator can configure the period in theForum 500 / Forum 5000 from 30 to 300 seconds. Ask him whatthe current time value is.Telephoning

88Making Calls from the Telephone BookMaking Calls from theTelephone BookThe Telephone BookApproximately 2,000 entries can be saved in your communicationssystem’s telephone book.This number includes the centrally administered telephone book,the personal entries of all subscribers, and, provided you areusing the multi-company version of the Forum 500 / Forum 5000,the entries in the companies’ telephone books.How many entries you can save in your personal telephone bookis determined by your system administrator when configuring theForum 500 / Forum 5000. The personal entries are automaticallysorted into the comprehensive register, but can only be viewed onyour telephone. (However, the system administrator or a personwith the relevant authorisation can delete your telephone bookcompletely.)For instructions on managing the telephone book, refer to the sectionentitled MenuCard “Phone Book” starting on page 133.Telephoning

Making Calls from the Telephone Book 89MenuCard “Phone book”The entries in the phone books of the communication system canbe saved within the system itself or in an external address directory(LDAP server, configured by the system administrator). Acombination of these storage locations is also possible. The storagelocations of phone book entries do affect phone book searching(see following description).AZOPHOPOBriefly press the ABC key. You see the Name:input field in the upper line of the display.If you now press the O key, the completelist of phone book entries saved on the communicationssystem is displayed. The list is sortedalphabetically and you can page to the desiredentry.Alternatively: Enter the first few letters of thedesired entry and press the O key.The list of phone book entries located is displayed.All suitable search results are listed, nomatter where they are saved.Use the arrow key to scroll through the list.When you pick up the handset, the entry will bedialled. If the entry has multiple numbers, thepreferred number will be dialled.If an entry has multiple call numbers, you mayalso directly select one of them. Press theOK key and select Office, Mobile or Private.Confirm your selection with the OK key and Dial(or pick up the handset). Select Info to displaythe call numbers of the entry.Telephoning

90Making Calls from the Telephone BookSpeed-DiallingAll central telephone book entries can also be selected by twodigitor three-digit speed-dialling numbers once they have beenconfigured. The two-digit speed-dialling numbers are in the range00…99, the three-digit are in the range 000…999. Ask your systemadministrator how many digits are valid.Selecting a Speed-Dialling DestinationH*7Z(SD no.)alternatively:H*7*Z(SD no.) #Note: If you have the telephone book open, instead of keying inthe name, you can also press the star key * and enter thespeed-dialling destination to find the name entry.Add Phone Numbers to Telephone Bookfrom Lists or during a CallYou can add phone numbers saved in your call list or your rediallist to a telephone book (see MenuCard “Calls” starting onpage 114 and Redialling starting on page 55). You can also addthe other party’s phone number to the telephone book during thecall (see MenuCard “Conversation” starting on page 67).Select the Phone Book menu item.• 1ƒNew entry: You can add the phone number to a telephonebook.• 2ƒAdd: You can add the phone number to an existingtelephone book entry.Telephoning

Making Calls from the Telephone Book 91Add Phone Number as New Telephone Book EntryPO Select 1ƒNew Entry and press the OK key.PO Personal, Central, Company: You can add theentry to your personal telephone book. If your systemadministrator has given you (or the user groupyou are part of) the relevant authorisation, you canalso edit the central telephone book and your company’stelephone book. Select the desired telephonebook and press the OK key.PO Office, Mobile, Private: Define the kind of phonenumber the list entry should be saved as. Confirmyour selection with the OK key.ZOEnter Name and First Name. Confirm each entrywith the OK key.You can add to the telephone book entry by enteringfurther phone numbers.PO If you add the entry to the central telephone book,you can assign a speed-dialling number. SelectAbbrev. no. and press the OK key. The systemwill offer a speed-dialling number. You can acceptthis number or enter another one which is not inuse.PO If the newly entered phone number is to be dialledautomatically whenever you call the subscriber (byusing the telephone book) you can save thisnumber as a default number. To do this, select thelist item Default and press the OK key.PO You can (automatically) suppress your own phonenumber if you dial the newly entered phonenumber from the telephone book. To do this, selectthe list item Suppress number and press theOK key.PO To save the telephone book entry, select the Savemenu item and press the OK key.Telephoning

92Hot Desking: Your Telephone Goes Wherever Your Desk IsAdd Phone Number to a Telephone Book EntryPOPOPOPOZOPOSelect 2ƒAdd and press the OK key.Personal, Central, Company: You can add theentry to your personal telephone book. If yoursystem administrator has authorised you (or theuser group you are part of) accordingly, you canalso edit the central telephone book and yourcompany’s telephone book. Select the desiredtelephone book and press the OK key.In the relevant telephone book, select the entryyou would like to add to (please also refer to theexplanations under “Look up name” in the sectionMenuCard “Phone book” starting onpage 89).Office, Mobile, Private: Define the kind ofphone number the list entry should be saved as.Confirm your selection with the OK key.Add more information to the entry as describedin Add Phone Number as New Telephone BookEntry on page 91.To save the telephone book entry, select theSave menu item and press the OK key.Hot Desking: YourTelephone Goes WhereverYour Desk Is“Hot Desking” means that you log in to the telephone at your deskand your call number and your telephone settings are available toyou on that phone. This function is particularly interesting forcompanies whose staff travels quite a bit. When a “Hot Desking”user is working in the office, he/she simply logs in to any availabletelephone. This telephone will then have the corresponding propertiesand profile of the logged in user. When he/she makes a callTelephoning

Hot Desking: Your Telephone Goes Wherever Your Desk Is 93from this phone, his/her name and call number are what the callersees. And vice versa - the user can be reached via his/her usualcall number.Note: The “Hot Desking” function can only be used on theForum Phone 525 and Forum Phone 535 system phones, but noton the Forum Phone 515.To be able to use this function, the system administrator has toconfigure a user interface for you for a system telephone. Thisinvolves saving your internal call number along with a certain terminaltype in the database of the communications system. Whenyou load this user interface to a system telephone, you can programmekeys, add telephone book entries, edit lists, etc. as youusually do. All these settings are always saved along with youruser interface and placed in the communications system database.Which System Telephones Can I Use?This function is supported on the standard system telephonesForum Phone 525 and Forum Phone 535, as well as the IP systemtelephones Forum IPhone 525 und Forum IPhone 535 (pleaserefer to the chapter VoIP Telephones starting on page 96 also).The user interfaces are compatible with standard system telephonesand IP telephones. When the system administrator hasconfigured a user interface for you for the Forum Phone 535, youcan load it for the same type of IP telephone, theForum IPhone 535 and vice versa. The same applies to theForum Phone 525 and Forum IPhone 525 telephones.The system administrator can set up multiple user interfaces foryour internal call number, e. g. for a Forum Phone 525 and aForum Phone 535, so that you have a wider selection to choosefrom. If you have multiple internal call numbers, the systemadministrator can set up user interfaces for each of these.Which System Telephone Is “Available”?The “available” system telephones display Logged out in theirinfo line. To log in to one of these telephones, please go throughthe following steps.Telephoning

94Hot Desking: Your Telephone Goes Wherever Your Desk IsLogging in to a System TelephoneMZPPOPress the MenuCard key.The MenuCard Login will open.Under No:, enter your internal call number andunder PIN: enter your user PIN. If necessary,the system administrator will have given you auser PIN to ensure that no other user can log into your user interface (and use or alter your telephonesettings). If you have not yet received auser PIN, skip this entry with the arrow key. Ifmultiple user interfaces are saved to your callnumber or if you have multiple internal callnumbers, a pick-list will appear. Use the arrowkey to select the desired entry.Select the Login menu entry and press theOK key.Tip: A feature key (labelled Login) enables you to easily log in tosystem telephones that are logged out. Press this feature key andthe MenuCard for logging in will appear.Logging Yourself or Another User OutUse the following steps to log out yourself or another user (if theother user has forgotten to log out).MPOPOOLong press the MenuCard key, then …Select MenuCard Protection, press the OK key.Select the Logout menu item, press the OK key.Confirm the security prompt by pressing theOK key once more.Tip: Programming a feature key enables you to log yourself out atthe press of a key (see the chapter Programming Functions (Features)starting on page 142).Telephoning

Hot Desking: Your Telephone Goes Wherever Your Desk Is 95What Happens if Someone Calls Me and I am Not Loggedin to a System Telephone?When you are logged out, system telephones offer functions comparableto the “Call protection” feature. When a person calls you,he/she hears the ring tone. This call will be saved in your call list.The next time you log in to your system telephone, you can querythe call list and call the person back.Can I Make a Call from a System Telephone that is LoggedOut?No, system telephones that are logged out cannot be used tomake calls, with one exception: Emergency numbers can bedialled.Logging In and Out with the Forum CTIIf you use the Forum CTI programme package at your desk, youcan log in to any available system telephone via this programme.You can configure the Forum CTI so that when you launch theprogramme you are automatically logged in to a system telephone.This programme also offers logging out of a system telephone.For more details, please refer to the online help of theForum CTI.For the System Administrator:• The “Hot Desking” function is activated in the menuTelephony: Devices: Hot Desking. This is also where youcan configure user interfaces, i. e. assign selected internal callnumbers to terminals. Users with these call numbers are thenable to use this function at the telephones so defined.• Select the telephones to which user interfaces may be loadedin the menus Telephony: Devices: VoIP Phones andTelephony: Ports: UPN.• Assigning a user PIN provides log-on protection for systemtelephones. This PIN is entered in the menu User Manager:User.• The call numbers that can be dialled from a logged outtelephone (e. g. emergency numbers) are managed in Speciallist 1 (menu Telephony: Lists: Special lists).Telephoning

96VoIP TelephonesVoIP stands for “Voice over IP” and refers to telephony wherevoice data is transmitted via Internet Protocol (IP). VoIP enablescompanies to use existing company data lines without having tolay new telephone lines. To be able to use this technology, however,suitable devices which support it are necessary.The following IP system telephones are suitable, e. g.Forum IPhone 525 and Forum IPhone 535. These telephones offerthe same range of functions that the Forum Phone 525 andForum Phone 535 standard system telephones offer and are operatedin exactly the same way. The number of keys and their functionsand the displays are the same for both the standard and theIP system telephones. Key extensions can also be connected to IPsystem telephones (see also the chapter Key extensions startingon page 32).If your system administrator has configured an IP system telephonefor you, the following information will be of interest to you:• During some connections you may experience short breaks orhear an echo. This depends on the transmission quality of theline and is not due to your telephone functioning improperly.• If your telephone is being connected to the line or theconnection is interrupted (e. g. if the company network breaksdown), the required terminal software will be loaded (thetelephone “reboots”). This happens automatically and maytake some minutes. The telephone is ready for operation whenthe display shows the time and the internal call number. Thenyou may use the telephone as per usual.• When telephoning via connected headset, it is advisable towait a second after accepting an incoming call before youbegin to speak. This brief time interval is necessary to allowthe VoIP connection to be established between yourself andthe caller.VoIP Telephones

IP System Telephone Ports 97IP System Telephone PortsIP system telephones have additional ports not included with thestandard system telephones. Above the display on the back of thedevice there are two RJ45 jacks for connecting the data line(s).These ports are labelled LAN and PC. Depending on how yourworkstation is equipped technically, there are two options for connectingthe IP system telephone. Your system administrator willconnect the telephone for you. If for whatever reason the lines getdisconnected at some point, follow the steps below to reconnectthe telephone yourself.Option 1: Your Workplace Computer has a Network PortAvailable.Insert the network cable into the telephone’s LAN port and theother end of the cable into the available network port.Option 2: Your Workplace Computer has just One NetworkPort Available which is Used by Both Telephone and PC.The telephone can be looped into the existing network connectionvia its LAN and PC jacks. To connect the telephone, use a networkcable to connect the telephone to the PC, one end of which isinserted into the PC port of the telephone. A second networkcable is inserted into the LAN port of the telephone, the other endof which goes into the network port.The power supply of the telephone and the connected key extensionsis provided by the network feed (“Power over Ethernet”). Ifyour company network does not supply Power over Ethernet, thetelephone will require a separate power supply via an additionalAC adapter plug (product code 90035810; product name“Forum 500 power for keypad & FIP 525/535”). The AC adapterplug is plugged into the port on the base of the telephone. Thissymbol identifies this port. If there are one or more keyextensions connected to this telephone, the AC adapter plug is notplugged into the port on the base of the telephone but into theoutside key extension (insert it into the port with the symbol)and provides power to the entire device.Please note: Never operate an IP system telephone with PoEand AC adapter plug simultaneously!VoIP Telephones

98Notes for the System AdministratorIf you have any questions on this topic, would like some moreinformation or need help with anything in this regard, please contactyour system administrator.Notes for the SystemAdministratorThe “Mounting and Commissioning” (Forum 523, Forum 525/526,Forum 550/560) resp. “Commissioning and Maintenance”(Forum 5050) guide contains detailed information on VoIP andhow to commission and configure IP system telephones.Please note: For feeds to IP system telephones, Power-over-Ethernetfunction in accordance with IEEE 802.3af - class 3 standardis required!Note: Use a shielded CAT-5 Ethernet cable (STP cable, ShieldedTwisted Pair cable) to connect an IP system telephone to a LocalArea Network (LAN).VoIP Telephones

99Team FunctionsThe system administrator can form a team with two or more telephonesand programme team functions for these telephones byassigning internal call numbers to the telephone’s call keys. Foreach programmed call key, the administrator can determinewhether you can receive and make calls or whether you can onlycall the other members in the team.As a member of a team, you can see on your display which of theother team members are currently busy. Team members cananswer one another’s calls and transfer them. They can also substitutefor one another.For an overview of team functions and some examples of howthey are used, please refer to the chapter entitled “Team Functions”in the “Mounting and Commissioning” (Forum 523,Forum 525/526, Forum 550/560) resp. “Commissioning and Maintenance”(Forum 5050) guide.For information on the display texts, please refer to the chapterentitled Display and MenuCards starting on page 23; for informationon the call keys, refer to the chapter entitled Key Assignmentsstarting on page 12.Team Functions

100Managing Calls in a TeamManaging Calls in a TeamIn a team configuration, the operation of call keys is very similarto the operation described in the previous chapters of this userguide.This chapter gives a brief explanation of how to operate the telephonesin a team configuration and refers you to other chapterswhere appropriate.Making External/Internal CallsFor information on how to operate these functions, please alsorefer to the chapter entitled Making External/Internal Calls startingon page 62.Using Trunk KeysH / L /KgTrunk key 1 is automatically seized when you liftthe handset, press the hands-free/open-listeningkey or the headset key (prerequisite: theheadset is switched on, see page 124). You canmake internal and external calls.If you have programmed several trunk keys onyour system telephone, you can seize them separately.Using Team KeysgTo call another team member, simply press theirteam key.Using Direct-call KeysgVia direct-call keys you can call team memberseven if they have programmed a substitute.Team Functions

Managing Calls in a Team 101Accepting CallsFor information on how to use this function, please also refer tothe chapter entitled Accepting Calls starting on page 70.Using Trunk KeysCalls are indicated on the appropriate trunk key by a visual signaland (if configured) acoustically as well.HgLKYou can accept the call by picking up the handset,orpressing the trunk key, orpressing the hands-free/open-listening key, orpressing the headset key (prerequisite: theheadset is switched on, see page 124).With the trunk keys you can set your telephone to idle either byprogramming call protection, call forwarding or a substitute. Youcan also change the call signalling mode via the trunk keys (seethe section entitled MenuCard “Prog. call key” (Trunk Key) onpage 104).Using Team Keysg For calls for another team member, the call number of thecaller (or the name if there is a corresponding entry in the telephonebook) and the user name of the team member are shownalternately in the display. You can accept a call for another teammember by pressing the appropriate team key on your telephone.You can put the accepted call through to the team member usingthe team key.You can change the call signalling mode via the trunk keys (seethe section entitled MenuCard “Prog. team key” starting onpage 106).Using Direct-call Keysg Via direct-call keys you can only make calls to team andtrunk keys programmed with the same call number. No calls aresignalled to direct-call keys.Team Functions

102Managing Calls in a TeamEnquiry, Toggling and TransferringFor information on how to use these functions, please also refer tothe chapter entitled Enquiry, Toggling, Transfer and Conferencestarting on page 75.Within a team you can put a call on hold for enquiries or transfers.Calls on hold are indicated by the LED flashing slowly on your telephone.While the call is on hold you can make an enquiry call to anothermember in the team and transfer the call.The following is a brief description of all call keys (trunk key, teamkey, busy key and direct-call key).Enquiry CallsgPress the call key of the team member withwhom you want to consult. The original call isput on hold.TogglinggTo toggle (i.e. switch back and forth betweenthe two subscribers in the call), press the key ofthe held subscriber.TransferringGhAnnounce the call transfer to the other teammember and put the handset on the hook. Thecall on hold is now transferred to the other teammember.Team Functions

Programming the Call Keys 103Holding and Transferring Calls with a Feature KeyUsing the “Hold” function, team members can accept a call thathas been parked by another team member. To use the “Hold”function, it must be programmed to an unused feature key on theteam members’ telephones.GghggYou are speaking via a call key, e. g. the trunkkey with the call number 11.Press the “Hold” feature key to put the call onhold. Put the handset on the hook.On the team telephones with the call number 11programmed on a trunk key or a team key, theLED for the programmed key flashes. The displayindicates that a call for the call number 11is put on hold (is parked).Accepting Calls with a Team Key: Anotherteam member presses the team key to whichthe call number 11 has been assigned.Accepting Calls with a Trunk Key: Anotherteam member presses the trunk key to whichthe call number 11 has been assigned.For information on how to programme the feature keys, pleaserefer to the chapter entitled Programming Functions (Features)starting on page 142.Programming the Call KeysThe call keys are configured in the Configurator on theForum 500 / Forum 5000 Web console. For system telephones,you can configure the following:• the type of key (trunk key, team key, busy key or direct-callkey),• the call number and the text currently assigned to the key,• the call signalling mode for this key.Team Functions

104Programming the Call KeysYou can change the pre-settings for the text and the call signallingmode on the appropriate key’s MenuCard (see the following sections:MenuCard “Prog. call key” (Trunk Key) on page 104 andMenuCard “Prog. team key” on page 106) as well as most of thesettings for supported features.If the configuration of a call key is changed in the Configurator,the telephone will load the new settings and not be operational fora few moments. For more information on the configuration, referto the online help of the Forum 500 / Forum 5000.MenuCard “Prog. call key” (Trunk Key)g Long press the trunk key, then select …1 Modify text: You will see the text currently assigned to thekey. This text is displayed on the display of your telephone. Tochange the text, press O. Delete the existing text with theC key and enter new text, if required. Press O and confirmthis with Save. If you delete the text, only the key’s callnumber will be displayed.2 Call diversion: You can configure one or more types ofcall forwarding for the trunk key (Immediately, After delay,Busy), see the section entitled MenuCard “Call Forwarding” startingon page 118. The call forwarding mode configured for a trunkkey only applies to that key, not the telephone.3 Substitution: You can forward calls for this trunk key toanother member of the team. Select Substitute and choose oneof the team members from the list. Press O. Select On / Offto switch the substitution function on or off.Note: The 3 Substitution menu entry is only displayed if theallocated call number has been configured on another team member’strunk or team key.Calls for this trunk key are now only indicated on your telephoneby a visual signal. On the substitute’s telephone, the calls are indicatedby a visual signal and acoustically, even if the key there hasbeen configured with a different type of call signalling. On thesubstitute’s telephone, the call is signalled acoustically with thevolume set for that telephone (see the section entitled MenuCard“Phone Settings” on page 123).Team Functions

Programming the Call Keys 105Calls from direct-call keys to your telephone are signalled acousticallyeven if you have programmed a substitute (unless you haveprogrammed call protection for this trunk key).4 Call signalling: Determine whether call signalling to this keyis to be Opticalƒ&ƒacoustic, Optical only or Acoustic afterdelay. If you select Acoustic after delay, specify the numberof seconds after which your telephone is to ring.5 Call protect: Switch call protection On or Off for all calls, forinternal calls only, or for external calls only. If call protection hasbeen activated, this trunk key will only indicate calls by means ofa visual signal, even if they are made from a direct-call key.6 Ring tone: You can set the Volume and Melody for differenttypes of incoming calls (1ƒExternal calls, 2ƒInternal calls,3ƒVIP call, 4ƒDoor call) for each trunk key. Proceed asdescribed in the section “2 Ring Tone” on page 123.7 Charges: For each trunk key, you can view the charges for thelast call as well as the total charges.8ƒCall wait. prot.: While you are making a call, other calls forthe call number of this trunk key are not signalled by a call waitingtone. The caller hears the busy tone.Note: If the internal call number of this trunk key is configuredon several telephones, call waiting protection is also activated onthese telephones.9ƒAnnouncement pro... (Announcement protection): Switchingon (On) or switching off (Off) announcement protection for thistrunk key. When announcement protection is activated, noannouncements can be made to your telephone (see alsopage 80).0ƒLists: Define if for the call number of this trunk key the callerlists (missed calls and accepted calls) and the redial list arerecorded. Use On / Off to activate/deactivate the lists for thistrunk key.Team Functions

106Programming the Call KeysMenuCard “Prog. team key”g Long press the team key, then select …1 Modify text: The text currently assigned to the key is shownon the display of your telephone. To change the text, pressO. Delete the existing text with the C key and enter newtext, if required. Press O and confirm this with Save. If youdelete the text, only the key’s call number will be displayed.2 Call signalling: Specify whether call signalling to this key isto be Opticalƒ&ƒacoustic, Optical only or Acoustic afterdelay. If you select Acoustic after delay, specify the numberof seconds after which your telephone is to ring.3 Call protect: Switch call protection On or Off for all calls, forinternal calls only, or for external calls only. If call protection hasbeen activated, this team key will only indicate calls by means of avisual signal, even if they are made from a direct-call key.4 Ring tone: You can set the Volume and Melody for differenttypes of incoming calls (1ƒExternal calls, 2ƒInternal calls,3ƒVIP call, 4ƒDoor call) for each team key. Proceed asdescribed in the section “2 Ring Tone” on page 123.5ƒCall wait. prot.: While you are making a call, other calls forthe call number of this team key are not signalled by a call waitingtone (but at the team keys of other terminals unless call waitingprotection was programmed there). Use the On / Off options toswitch the call waiting protection function on or off.6ƒLists: Define if for the call number of this team key the callerlists (missed calls and accepted calls) and the redial list arerecorded. Use On/Off to activate/deactivate the lists for this teamkey.Direct-call KeyWhen a direct-call key is long pressed, no MenuCard is displayed.A direct-call key is configured exclusively via the Configurator ofthe Forum 500 / Forum 5000 Web console.Team Functions

Remote-Controlled Dialling (Call Through) 107Remote-ControlledFunctionsThe Forum 500 / Forum 5000 enables remote-controlled calls andremote-programmable call forwardings. These features are set upby the administrator when configuring the system. The systemPIN is required to carry out these features.The system PIN is issued by the system administrator, and it mustbe changed from the factory setting (“0000”) to another value forthe features described below to function.All the owners of voiceboxes can also call their voiceboxes fromexternal telephones if they are authorised to do so. They canremotely access and edit their messages as well as modify thecentral settings of their voiceboxes.Remote-Controlled Dialling(Call Through)Without Internal Number AssignmentZEnter the reserved call number.ZEnter the system PIN.* Press the star key.Z Enter the trunk line seizure code, e. g. 0.ZEnter the external call number.# Press the hash key.Remote-Controlled Functions

108Remote-Controlled Dialling (Call Through)With Internal Number AssignmentZEnter the reserved call number.ZEnter the system PIN.* Press the star key.Z Enter the trunk line seizure code, e. g. 0.ZEnter the external call number.* Press the star key.ZEnter the internal call number.# Press the hash key.You can call the Forum 500 / Forum 5000 from an external telephone,from your home for example, and then dial an external callnumber. The cost of the call is then billed to the Forum 500 /Forum 5000 line. This way you can take advantage of differenttariff zones, for example.For this feature, the system administrator must have set up a callnumber (for remote control) in the Forum 500 / Forum 5000. Inaddition, the number reserved in the Forum 500 / Forum 5000can also be assigned an internal call number via which the diallingis to be performed. In the case of remote-controlled dialling, thereis no check on authorisation.Least Cost Routing (LCR) is used with remote dialling, providedthe system administrator has correspondingly configured LCR andits application in the Forum 500 / Forum 5000. Ask your administratorfor the configuration applicable to you.Remote-Controlled Functions

Remote-Programmable Call Forwarding 109Remote-Programmable CallForwardingConfiguring the FunctionZZEnter the reserved call number.Enter the system PIN.* Press the star key.ZEnter your internal call number.* Press the star key.Z Enter the trunk line seizure code, e. g. 0.ZEnter the destination call number.# Press the hash key.Deleting the FunctionZZEnter the reserved call number.Enter the system PIN.* Press the star key.ZEnter your internal call number.# Press the hash key.Using the call number reserved in the Forum 500 / Forum 5000for remote control, you can configure or delete call forwarding“Immediate” for your own call number from a remote location.This remotely-programmed forwarding overwrites any other existingcall forwarding. Call forwarding “On Busy” and “After Delay”are not affected. Incorrect or non-existent call numbers arerejected. Your authorisation is checked in the same way as for callforwarding within the Forum 500 / Forum 5000.A correct entry is confirmed with a positive acknowledgement signal,provided the system administrator has not deactivated thisRemote-Controlled Functions

110Remote-Programmable Voicebox Configuration and Queryfunction (in the Configurator, Telephony: Settings menu). Theexternal call is subsequently ended.Note: The procedure is aborted if there is a pause of longer than60 seconds between the entry of two digits. With this duration,remote-controlled functions using GSM cell phones can also berealised.Remote-ProgrammableVoicebox Configuration andQueryIf the system administrator has configured remote query authorisationfor your voicebox, you can query and configure your voiceboxfrom an external telephone:• Using the call number of Forum Voicemail (this number isincluded in the incoming call distribution) …you dial the MSN or the system number assigned by thesystem administrator to the internal number ofForum Voicemail.• Using your own call number (this number is included in theincoming call distribution, and you have activated callforwarding for this telephone to the voicebox) …you dial the MSN or the direct-dialling in number under whichyou can be reached by external callers.Note: For detailed information on the utilisation and operation ofForum Voicemail, please refer to the add-on guide“Forum Voicemail”.Remote-Controlled Functions

Setting up an Internet Connection from Remote (ISP Trigger Call) 111Setting up an InternetConnection from Remote(ISP Trigger Call)If the communications system is connected to the Internet via adialup connection, a user can initiate from external that the systemestablishes an Internet connection (ISP Trigger call). The systemis then reachable via the Internet and enables to set up aconnection for a VPN connection via RAS.ZZ* Press the star key.# Press the hash key.Enter the reserved call number.Enter the system PIN.Note: The “ISP Trigger call” function is only available with aForum 523 communications system.Remote-Controlled Functions

112How to Set FeaturesFeaturesand MenuCardsHow to Set FeaturesYou can set the features of your telephone and system in severaldifferent ways:Using MenuCardsInvoke the MenuCards using the appropriate key as describedunder Display and MenuCards starting on page 23 and define yoursettings. Use the arrow keys and the O key to select your settingsand the = keys to switch between settings. In theprimary groups of MenuCards you can also select features directlyby entering a number. To do this, simply key in the number to theleft of the feature.Using Feature KeysAlmost all features can be assigned to your telephone’s featurekeys then called up by pressing the key or by switching the functionon or off (see Programming Functions (Features) starting onpage 142.)Using the Star and Hash KeysMany features can be set by entering code digits. Code digits areentered using the * or #keys in combination a specificstring of code digits.Code digit input is intended primarily for analogue telephones inyour system. The code digits can also be used on your system telephones.These are described in the “Forum 500 / Forum 5000 –Standard Terminals” user guide (supplied with the system). Youcan also view a current online overview of codes under the Codesitem in the Systeminfo menu of your communications system’sWeb console.Features and MenuCards

Main Menu 113Main MenuMenuCard “Main Menu”This MenuCard contains all available features. Some of the menuitems can be found in other MenuCards as well. Incoming e-mails,for example, are under 3ƒMessages in the Main menu and canalso be called up by using the info key i (where the systemhas been so configured). Features affecting your telephone’savailability (e. g. active call protection) are in the Main menu andin the MenuCard Active features, which you can call up by longpressing the info key i.You can also use the Main menu to programme features on a key.M Long press the MenuCard key, or if the telephone is idle,short press the MenuCard key and select the menu item Mainmenu. This displays the primary groups of menus …1ƒ Calls: This contains the most important features relevant to acall.2 ƒCall forwarding: This menu group contains all the types ofcall forwarding you can programme on your telephone. Pleasekeep in mind the explanations in the chapter Forwarding Callsstarting on page 84.3 ƒMessages: This menu group provides information on shortmessages and e-mails that you have received or sent. You canalso schedule appointments and activate pre-defined messages(“Presence” function).4 ƒPhone settings: In this menu group you can adjust the telephone’ssettings to suit your personal requirements, e. g. volume,ring tone settings, and display contrast.5 ƒProtection: Here you can activate call protection or the telephonelock, among other things.6 ƒConnections: This menu group provides you with all the featuresthat can affect a call. Depending on the particular state,these features are also displayed in the MenuCards that you cancall up during a connection.Features and MenuCards

114Main Menu7 ƒPhone book: You can edit the system telephone books in thismenu group.9ƒApplications: This menu group contains all functions offeredby your system telephone in conjunction with additional programmepackages of your communications system. If your systemadministrator has set up, e. g. a voicebox with theForum Voicemail additional programme for you, a menu will beoffered to you here for querying and configuring your voicebox.0 Central settings: You can change your system settings here.MenuCard “Calls”MPSelect1ƒCalls, then …select Call lists, followed by …• 1 Missed calls: Here you can see the call numbers of callerswho have tried to reach you. This also applies to callstransferred or forwarded to you from other internalsubscribers. The entry will automatically be deleted after youhave called back the caller. Specific feature for missed huntgroup calls: If a hunt group member has called back the caller,the missed call entry will be deleted in the caller lists of allhunt group members.– Which calls are recorded in your call lists is determined bythe authorisations of your user group. Your systemadministrator can specify that internal calls, external calls,calls when busy, and calls from the door all be included in yourcall list. If a caller is listed in the system’s telephone book, thecaller’s name is displayed instead of the call number.– A call when busy is indicated by the handset symbol .– The symbol indicates calls which were forwarded to you.Features and MenuCards

Main Menu 115– When you receive an external call where the caller indicatesa different number than the one actually being transmitted,your display will show a “?” next to the call number. If theindicated call number is saved as a phone book entry, asusual, the name will be shown along with a question mark.Note: Display of the “?” can be deactivated by the systemadministrator.– Door calls are shown either with the call number, or with thename of the doorbell, depending on the type of door intercomin use.– If a caller has suppressed the display of his or her callnumber using CLIR, the call will still be shown in the call list.Where several calls from unknown numbers have been made,they are grouped together into a single entry. The systemadministrator can, however, during system configuration,determine that any calls with unknown call numbers will not beincluded on your call list.Note: If your internal call number (e. g. “30”) is assigned to severaltelephones, you can view and edit the call list for the callnumber 30 on any of these phones. If, for example, you delete acall list on one telephone, it is deleted on all telephones.Features and MenuCards

116Main MenuCall-backPOAOSelect an entry (call number or name) and pressthe OK key.You can open the telephone book by pressingthe ABC key while the handset is on the hook(see below for further explanation).If you press the OK key while the handset is onthe hook, you can then perform the followingactions:• Dial: Call the caller back. Press the OK keyor pick up the handset.• Phone book: To add an entry to thetelephone book (1ƒNew Entry) or add to anexisting entry (2ƒAdd). See also: Add PhoneNumbers to Telephone Book from Lists orduring a Call starting on page 90.• Info: Provides you with information on callers(e. g. call number, if the caller’s name isdisplayed in the call list), time of the call andnumber of calls. When you have multipletrunk keys configured on your telephone, thetrunk key on which the call was received isindicated.• 2ƒAccepted calls: Here you can see the call numbers of thecallers you last spoke to. You can also edit this list in the sameway as the list for missed calls (see page 114).Note: Calls which have been signalled on your telephone’s Teamkeys are not entered into your call list.• 3 Voicebox mess.: Here you can see and edit the list ofmessages received.– Play: To listen to the message the caller recorded. You canalso use the number keys 4 (to rewind), 5 (to pause) and6 (to fast forward).– Delete: The message will be deleted after you press O.Features and MenuCards

Main Menu 117– Dial: To call a caller back. Press O or pick up thehandset.– Phone book: You can add an entry to the telephone book(1ƒNew Entry) or add to an existing entry (2ƒAdd). See also:Add Phone Numbers to Telephone Book from Lists or during aCall starting on page 90.– Forward: You can forward the message to another voicebox,with or without a comment. Enter the call number of the othervoicebox under Dest: and confirm a recorded comment bypressing *.– Mark as new: If the message is addressed to another personand you accidentally have listened to it, you can use this menuoption to reset the messages to the status “new”.– Info: Here you can see a caller’s call number (or name, if itis entered in the telephone book) and the date, time andlength of the selected message. When you have multiple trunkkeys configured on your telephone, the trunk key on which themessage was received is indicated.2ƒCharges: For each trunk key, you can view the charges for thelast call as well as the total charges.3 Remote chargesƒ…: You can view the charges of otherForum 500 / Forum 5000 users by entering the other user’s internalnumber or by selecting a number from the telephone book.Note: This function requires that the system administrator hasassigned “Costs” authorisation to your user group.4 Hunt group: If hunt group numbers are configured for your telephone,you can switch hunt group calls to your telephone on oroff using On / Off (for individual hunt group numbers or All if youare a member of several hunt groups).If several trunk keys or team keys on your terminal have beenassigned to a hunt group number, you will first be offered a list ofthese keys (or more precisely their internal call numbers) whenyou access this menu item. Select the key for which you want toactivate or deactivate the hunt group. If this key is assigned toseveral hunt group numbers, select a specific hunt group number,or select the option All if the setting is to be activated for all huntgroup numbers assigned to this key.Features and MenuCards

118Main MenuNote: If you are the last reachable member of the hunt groupand you log out then any further callers will hear a busy signal.Depending on the system configuration, additional callers can alsobe forwarded to the exchange.Tip: If you assign a hunt group number to a feature key, you canlog out from and log onto the hunt group by pressing single key.The display will show you which hunt group number is assigned tothe feature key, which is useful if you are a member of severalhunt groups (see also Programming Functions (Features) startingon page 142).5 Auto call Answer.: You can specify a period of time afterwhich calls to your telephone are answered automatically. Enterthe period of time in seconds under Duration: (a value between0 and 99 seconds). Then select whether the automatic callanswering should be activated for Internal calls, Externalcalls or for Int.ƒ&ƒExt. calls. You can activate this functionwith On or deactivate automatic call answering with Off.6 Device busy: If there are multiple trunk keys configured onyour telephone, you can configure that as soon as one of thetrunk keys is occupied your device is considered busy. Any furthercallers hear the busy signal. You can activate this function with Onor deactivate it with Off. A “+” appears to designate the functionis activated.MenuCard “Call Forwarding”MPSelect2ƒCall forwarding, followed by …1ƒCall diversion: When you have multiple trunk keys configuredon your telephone, you can programme call forwarding foreach of these keys individually. To do so, select the desired keyfrom the displayed list and press O. If the call forwardingshould apply to all configured trunk keys, select the Device menuentry and press O.Select Immediately, After delay or Busy to specify the type offorwarding and press O. Then key in the Dest. of the call forwarding(please refer to the chapter entitled Manual or AutomaticLine Seizure starting on page 62). Duration: When programmingcall forwarding after time, enter the time in seconds after which aFeatures and MenuCards

Main Menu 119call is to be forwarded (10 … 120 seconds). If you do not enter avalue, the default time interval provided by the system administratorat system configuration is used (default: 20 seconds).Then select whether Internal calls, External calls or Int./ext. calls are to be forwarded to the destination (Dest.). If youassign the “Call diversion” function to a feature key (see also ProgrammingFunctions (Features) starting on page 142), you canalso enter a Text for a label for the key. The label is displayed inthe Forum 500 / Forum 5000’s Configurator for informationalpurposes. Activate call forwarding with On. Activated call forwarding(Immediately, After delay, Busy) is indicated by a “+” signfollowed by the call forwarding destination. You can switch callforwarding on or off using the plus/minus key =.Note: Note: All calls to your telephone’s numbers are forwarded.If a number is stored on more than one telephone, calls made toany of the other telephones will also be forwarded.3ƒDivertƒMSN: “Divert MSN” is available for ISDN multi-terminalaccesses. You can use this type of call forwarding to forwardincoming external calls to external destinations for each MSN.Select the MSN (one of the call numbers supplied for the multiterminalaccess) that you want to forward. Several MSNs can begrouped together (this is configured by your system administrator)and forwarded to a common destination number. Selectingthe All menu item lets you forward all configured MSNs to thesame destination number.You need the relevant authorisation to forward MSN groups andall MSNs. Only then will the corresponding items appear in themenu. Contact your system administrator if you have any questionsabout your authorisation and the current configuration ofMSN groups.After you have selected an MSN, an MSN group or all MSNs, selectthe type of call forwarding (Immediately, After delay or Busy)then enter the external destination (Dest.).Note: For this type of call forwarding, the (external) destinationnumber is always entered without the line seizure code.If you assign “Divert MSN” to a feature key (see also ProgrammingFunctions (Features) starting on page 142), you can alsoenter a Text to label the key with. The label is displayed in theFeatures and MenuCards

120Main MenuForum 500 / Forum 5000’s Configurator for informational purposes.Activate the function using On. Activated call forwarding (Immediately,After delay, Busy) is indicated in the MSNs selection listby a “+” before the call number. A “?” before the entry (e. g.?ƒMSN Groupƒ1) means that different call forwarding types areactivated in this group. Using the plus/minus key =, youcan switch off an activated call forwarding.Note: If “Divert MSN” is activated in the exchange (= externalcall forwarding, configured by the system administrator), it cantake a few seconds after configuring for call forwarding to be activatedin the exchange.4ƒDivert door: “Divert door” is available for door calls. Providingyou have the relevant authorisation, you can forward door calls toyour telephone to another (internal or external) telephone (a socalled“pharmacy line”). If several door bells are configured onyour communications system, select first the door bell whose callsare to be diverted. Then key in the Dest. of the call forwarding(please refer to the chapter entitled Manual or Automatic Line Seizurestarting on page 62). You can activate the forwarding functionwith On, and deactivate it with Off. How many door bells areavailable and which names they are listed under in the menu,depends on the type of entrance intercom you have. Consult yoursystem administrator if you have questions about the configurationof the door bells.5ƒRemote divert: This function allows you to configure call forwardingfor other users’ call numbers. Programming call forwardingfor a virtual call number is also possible (please refer to Callfor a Virtual Number (Tele Secretary) starting on page 71 also).You must have “Call forwarding for other user” authorisation to beable to do this, otherwise this menu item will not be displayed onyour terminal. You can also only configure call forwarding forusers whose terminal has not been blocked for this type of access(users themselves have authorisation to “Prevent call forwardingby other user”). Please consult your system administrator if youhave any questions about these authorisations.Enter the internal number that you want to forward or select anumber from the telephone book. The rest of the procedure is thesame as configuring the “Call diversion” function (see page 118).Features and MenuCards

Main Menu 1216ƒFollowƒme: This type of call forwarding is configured onanother than your own terminal. The user’s PIN number for thesource telephone is required for this function (see page 126). Onthe other terminal, select the 6ƒFollowƒme item from the Callforwarding MenuCard. As Source, enter the internal call numberfor which calls are to be forwarded to this telephone. Then enterthe PIN: of the source telephone. You can switch off the “FollowMe” function with On / Off.You can switch off the “Follow Me” function on the other (source)telephone by switching off the “Call diversion” function.If the “Follow Me” function is active, all the call numbers of theother telephone are forwarded immediately.MenuCard “Messages”MPSelect3ƒMessages, followed by …1ƒShort messages: Short messages can be exchanged betweenusers with system terminals. When a message arrives, an extrawindow containing details on the sender is shown for four seconds(on the system terminal’s display).• 1ƒReceived mail: A list of senders of messages is displayed.– Show: Select an entry and press O. You will see themessage’s “Subject” text, sender and date.– Forward: Select an entry. You can now edit the text of themessage. Press O. Enter the internal number of the useryou want to forward the message to or select a number fromthe telephone book. Press O to confirm the entry/selectionof the number.• 2ƒOutgoing mail: A list of the messages you have sent isdisplayed. You can also forward or display these messages asdescribed in the previous section.3ƒNew message: You can send a new message to another user.Enter the text (max. 160 characters) and press O. Enterthe internal number of the user you want to send the messageto or select a number from the telephone book. Press O toconfirm the entry/selection of the number.Features and MenuCards

122Main MenuMessages can also be sent to system terminals via the Webapplication Forum CTI. Please see the Forum 500 /Forum 5000’s online help for more information.2ƒE-Mail: Here you can see a list of incoming e-mails (sender).Select an entry. You will see the e-mail’s “Subject” text.The Forum 500 / Forum 5000 can be configured to notify youwhen you receive an e-mail. When you receive an e-mail, an additionalwindow shows details on the sender for four seconds (onsystem telephone displays).3 Appointments: Select Appointmentƒ1 or Appointmentƒ2. Enterthe time in Time. You can enter a short text (up to 32 characters)under Reason. Specify how often you want to be reminded of theappointment: for a Single Date, enter the date in Date, selectingMoƒ-ƒFr, Saƒ-ƒSu or select Every day. Activate the appointmentwith On.When you receive an appointment call, your telephone will ring forone minute with a steadily increasing volume.The appointmentnumber will also appear on the display. Press O, to query thereason for the appointment.4 Presence: You can inform other communications system usersregarding your presence status, e. g. you are currently not in theoffice or on holiday. The text appears on the display of the callerof an internal call provided that the caller’s telephone is a systemterminal. There are pre-defined message texts available for this.Select the desired text and press O.If no message is to be displayed, select the Available text.You can also write your own message text (maximum length 23characters). Select the menu item Text:, enter your text andpress O. The text is now saved and selected in the list. Youcan overwrite this text at any time.You can also enter and select a text using the Forum CTI Webapplication.Note: The settings of the Presence menu entry are saved in thecommunications entry and remain available following a re-start.Features and MenuCards

Main Menu 123MenuCard “Phone Settings”MPSelect 4ƒPhone settings, followed by …1ƒVolume: Select 1ƒLoudspeaker, 2ƒHandset or 3ƒHeadset. Youcan change the default volume by using the = keys orby entering a number from 0…5. To change the headset’svolume, use the procedure described here for changing theheadset volume (receiver volume). You can change the microphonevolume under Menu 7ƒHeadset in the Phone settingsMenuCard (see page 124).2ƒRing tone: You can configure the ring tones for incoming callson your telephone collectively or individually. You can specifywhether a ring tone is to apply to the entire telephone or whethercalls to particular call keys are to be signalled in different ways.When you have multiple call keys configured on your telephone,select Device or – for individual settings – select a key from thelist of currently configured call keys.You can use different volumes and melodies to distinguishbetween four different types of incoming call: 1ƒExternal calls,2ƒInternal calls, 3ƒVIP call, 4ƒDoor call. You can use the1ƒVolume and 2ƒMelody individually for each type of call. Select asetting using the = keys.Note: In the Configurator of the Web console, the Diallingtones as cadences setting can be used to specify whether melodiesare to be played in full or whether all melodies are to beplayed at the same speed (played as cadences). The setting in theConfigurator also affects melodies on system telephones ifselected, so that you may only hear parts of some melodies.4ƒMessage ring tone: You can set different ringer signals to signalmessages on your system telephone or calls for members ofyour pick-up group. These can then be distinguished from oneanother.Select 1ƒShort messages, 2ƒE-Mail, 3ƒPick-up or 4ƒVoicebox.For each type of message you can specify 1ƒVolume and 2ƒMelodyor a short beeping tone instead of a melody. The short beepingtone is the default setting for all messages. Use the =keys to select a different setting.Features and MenuCards

124Main MenuNote: When configuring the pick-up groups in your Forum 500 /Forum 5000’s Configurator, your system administrator can alsospecify that calls for members of your pick-up group be displayedon your system telephone as well.5ƒEn-bloc dialling: This switches your telephone to automaticdialling (On) or direct dialling (Off).6ƒCharge settings: You can view call-charge data if your networkoperator transmits them. Switch on this function by selectingCharge, switch to Duration to show the length of calls, or toOff to switch off this function.7 Headset: If you use a headset with your system telephone, youcan switch this function on and off here. When the headset isswitched on you can make and accept calls by pressing the headsetkey K. To switch this function on and off select 1ƒHeadsetand then the option On or Off. If Option 1ƒHeadset is switchedoff, the headset key on your system telephone will not function.You can adjust the volume of the headset and the microphone tosix different levels using the menu items 2 Receiver vol. and3ƒSender vol.. Use the plus/minus key = to adjust thevolume, or enter a number between 0…5.8ƒDisplay: Select 1ƒContrast or 2ƒLanguage. Contrast lets youadjust the contrast levels of the display using the =keys (or by entering a number from 0… 9). Languageenables you to directly select the display language from the list ofavailable languages.If your Forum Phone 535 has had one or more key extensionsadded to it, the contrast levels of the display can be set separatelyfor each key extension. Select 1ƒContrast and select the relevantExpansion from the menu that appears. Adjust the display’s contrastlevels incrementally using the = keys or enter anumber between 0 … 9.Features and MenuCards

Main Menu 125MenuCard “Protection”MPSelect5ƒProtection, followed by …1ƒCall prot. phone: (call protection phone) This switches callsignalling on your telephone for all calls or for internal only/forexternal calls only On / Off (with the exception of VIP and huntgroup calls). When there are multiple trunk keys configured onyour telephone, you can switch call protection for each of thesekeys on or off. To do so, select the desired key from the displayedlist and press O. If call protection should apply to all configuredtrunk keys, select the Device menu entry and press O.The most recently activated call protection appears in the firstline. To change this setting, select O, then the type of protection(Int./ext. calls, Internal calls or External calls) youwant to use. Press O to confirm your choice and activate thefunction with On. You can switch call protection on or off using theplus/minus key =.When call protection is activated, the caller hears either the ringtone or the busy tone (this is configured by the system administratoras part of the user groups configuration).You can also configure call protection for a trunk key by longpressing the corresponding trunk key and selecting the 5ƒCallprotect menu item.When call protection is activated, the caller hears either the ringtone or the busy tone (this is configured by the system administratoras part of the user groups configuration). Calls from directcall keys are only signalled visually on this trunk key.Note: This type of call protection is only activated on the telephoneon which it was set. If your internal call number is configuredon the trunk or team keys of other telephones, call protectionis not automatically activated on those telephones.Features and MenuCards

126Main Menu2ƒAnnouncement pro...: (Announcement protection) Switchingon (On) or switching off (Off) announcement protection for yourdevice. When announcement protection is activated, noannouncements can be made to your telephone (see alsopage 80). When there are multiple trunk keys configured on yourtelephone, you can switch announcement protection for each ofthese keys on/off. To do so, select the desired key andpress O.3ƒTelephone lock: If you wish to temporarily allow another personto use your telephone, you can activate the telephone lock.Then your telephone is given the authorisations for the “Guests”user group. This user group is configured by the system administratorand prevents unauthorised persons from accessing, readingor making changes in the telephone’s menus and lists. Diallingrights may also be restricted. Emergency numbers can be storedin a special list assigned to your user group which can always bedialled, regardless of the external authorisation. Please contactyour system administrator for information on the altered range offunctions when the telephone lock is on. Telephone lock access isuser-PIN protected. After entering the PIN (PIN:), activate thefunction with the On option.When the telephone lock is activated, the LED of the infokey i is illuminated while the info key is without functionthen.4ƒBaby call: Enter the destination (Dest.:). Activate the babycall with On.5ƒChange PIN: Enter your old user PIN then enter your new PINtwice. Contact your system administrator if you have forgottenyour user PIN. Your user PIN can have up to six characters.6ƒDelete keys: After entering you user PIN (PIN:) all functionsand numbers that you have assigned to the keys are deleted.7ƒAvailability: All active features that hinder your availability(call protection, call forwarding, call waiting protection), arecleared.8ƒCall wait. prot.: (call waiting protection) During a telephoneconversation, no further calls are signalled by the call waitingtone. The new caller hears the busy tone. Activate the functionwith On. When there are multiple trunk keys configured on yourFeatures and MenuCards

Main Menu 127telephone, you can switch call waiting protection for each of thesekeys on or off. To do so, select the desired key from the displayedlist and press O. If call waiting protection should apply to allconfigured trunk keys, select the Device menu entry andpress O. You can switch call waiting protection on or off usingthe plus/minus key =.Note: Call waiting protection is only activated on the telephoneon which it was set. If your internal call number is also stored onthe trunk or team keys of other telephones, call waiting protectionis not automatically activated on these telephones.9ƒIntercom prot.: (Intercom protection) Switching on (On) orswitching off (Off) intercom protection. When intercom protectionis activated, no intercom announcements can be made to your telephone(see also page 80).0ƒLogout: If the “Hot Desking” function is configured by the systemadministrator and you are logged in as user on the systemtelephone you can use this menu item to log out. For more informationon this function please refer to the chapter entitled HotDesking: Your Telephone Goes Wherever Your Desk Is starting onpage 92).Note: The “Hot Desking” function can only be used on theForum Phone 525 and Forum Phone 535 system telephones, butnot on the Forum Phone 515.Features and MenuCards

128Main MenuMenuCard “Connections”Note: The following features are carried out if this is permitted bythe current call state of your telephone. These features are also inthe call-dependent MenuCards. Some entries in the ConnectionsMenuCard are only shown when you programme the function ontoa function key (please refer also to the chapter ProgrammingFunctions (Features) starting on page 142).MPSelect6ƒConnections, then …select 1ƒCall pick-up, followed by …• 1ƒPick-up: This accepts a call for another telephone in yourpick-up group.If the person called is a member of a user group for whichpick-up protection is active, you can not pick up calls to theirnumber.• 2ƒPick-up select…: You can answer a call for any othertelephone. To do this, enter the call number of the othertelephone. If the other terminal is already in the call state(e. g. an answering machine is in announcement mode), youpick up the call. The person for whom you pick up the call mustbelong to a user group for which “Call seizure” authorisation isactivated, otherwise the “Pick-up selective” function can not beused.If the person called is a member of a user group for whichpick-up protection is active, you can not pick up calls to theirnumber.• 3ƒTake: You accept a current call from a different terminal atyour system telephone and continue your call on your systemtelephone. The prerequisite is that your system telephone andthe other terminal have the same internal call number.• 4ƒUnpark call: “Unparks” a previously “parked” caller (seealso MenuCard “Conversation” starting on page 67).Select 2ƒDial, followed by …Features and MenuCards

Main Menu 129• 1ƒAnnouncement: You initiate an announcement to othersystem terminals. Under To: enter the call number.Announcements can also be directed to call numbers at whichseveral callers can be reached (e. g. a hunt group callnumber).Note: If a called user has activated the announcement protection(see page 126), this feature is not carried out.• 2ƒIntercom: Use this function to initiate an announcement toa single system terminal, The microphone of the systemterminal will be switched on (see also page 80). The personyou are calling can immediately answer your announcementwithout having to press a key. Enter the device ID of theterminal for Device-ID:. For information on the existingdevice IDs, speak with your system administrator.Note: If the called user has activated the intercom protection(see page 127), this feature is not carried out.• 3ƒDoor opener: This activates the door opener.• 4ƒPhone book: Opens the telephone book (see page 90).• 5ƒNote: Note a call number and a name or dial a previouslynoted call number.• 6ƒSuppress number: Your call number is not transmitted tothe caller for the subsequent conversation. This menu itemfunctions independently of the system settings.• 7ƒTransmit number: Your call number is transmitted to thecaller for the subsequent (external or internal) conversation.This menu item functions independently of the systemsettings.• 8ƒLCR off: Switches off LCR.• 9ƒBooking number: You can use a booking number to recordthe call data from a telephone call with an external subscriberand save this data for further analysis in the Forum 500 /Forum 5000. Booking numbers can be useful for an officewanting to, for example, calculate the costs (fees accruing andtime spent) of conversations with clients. Select this functionfrom the menu. Enter the booking number under No. (max. 8characters) and press O to confirm.Features and MenuCards

130Main Menu• 0ƒRemote dialling …: You can also conduct a dialout foranother terminal. Enter the Device-ID: of the terminal fromwhich the dialling is to be conducted. Enter the call number tobe called under Dest.:. You may also select the desired callnumber under the Phone book menu entry. Select the Onoption to save the dialout. The next time the subscriber whosedevice ID you entered picks up the handset, (or when using aheadset, presses the headset key), the saved destination callnumber will be dialled automatically. This programmednumber remains saved for 30 seconds. After 30 seconds, thedialout will be deactivated automatically. To manuallydeactivate the dialout beforehand, use the Off option.Tip: The destination call number you select for the dialout canalso be a call number saved in the phone book or is entered on acall list (re-dial list, missed calls list, call list of accepted calls andvoicebox messages). To do so, save the Remote dialling… featureto a function key (please refer to Programming Functions(Features) starting on page 142 also). When programming, enterthe device ID of the other terminal but not the destination callnumber. You can now initiate a respective dial-out for this terminalby first selecting a call number from one of the lists or fromthe phone book and then press the function key. You can, ofcourse, enter other destination call numbers. To do so, first pressthe function key and then enter the desired call number underDest.:.Select 3ƒNot available, followed by …• 1ƒCallback: This leaves a call-back request with anothersubscriber whose line is busy to call you back (not possiblewith hunt group numbers).• 2ƒVIP call…: Your call is acoustically signalled, even if theperson whose internal number you are calling has switched oncall waiting protection, call protection or call forwarding.Select 4ƒCall, followed by …• 1ƒToggle: This toggles between current and previous callers.• 2ƒTransfer: This connects the caller on hold with the currentcaller.• 3ƒConference: This initiates a three-way conference.Features and MenuCards

Main Menu 131• 4ƒMute: This switches the microphone in the handset or in thetelephone On / Off.• 5ƒHold: Hold is a team function. The caller is put on hold andcan now be transferred to another member of the team (seealso the section on Holding and Transferring Calls with aFeature Key starting on page 103).• 6ƒIntercept: The numbers of malicious callers can be savedin the network operator’s exchange (if they offer this service).The function can also be used also if the caller has alreadyhung up!• 7ƒReject: This rejects the call (this can also be anannouncement), and the caller hears the busy tone.• 8ƒDeflect call: You do not accept the call. You specify thecall number of another subscriber with Destination, andforward the call there after pressing O. You can only usethe “Deflect call” function if your user group is authorised toforward calls to internal and/or external destinations.• 9ƒPark call: You can “park” one or more callers while youmake other calls (see MenuCard “Conversation” starting onpage 67).5ƒISP connection: You can, with the requisite user groupauthorisation, configure your system telephone to display and editconnections to the Internet established via the Forum 500 /Forum 5000. To do this, first assign the ISP connection functionto a feature key. The key’s LED will light up and remain illuminatedfor the duration of the Internet connection.• 1ƒDisconnect: This disconnects the Forum 500 /Forum 5000’s current connection to the Internet,disconnecting all active users from the Internetsimultaneously.• 2ƒAllowed: This allows Internet connections to be made usingForum 500 / Forum 5000. Activate this function bypressing O.• 3ƒProhibited: This prohibits Internet connections from beingmade using Forum 500 / Forum 5000. Activate this function bypressing O.Features and MenuCards

132Main Menu6ƒSwitch. auth. (Switch authorisation): You switch another terminalto a user group defined by the system administrator.Switching the user group means different authorisations, e. g.international dialling authorisation. The switch only applies to thenext call made from this terminal. Please contact your systemadministrator for information on altered authorisations whenswitching the user group.No. (call number): Enter the internal call number of the terminalwhose authorisation is to be switched. Use On / Off to activate/deactivate the switch.Phone book: You can find and select the desired call number inthe communications system phone book (see page 88). Use On /Off to activate/deactivate the switch.Note: When the terminal to be switched is currently in the callstate, the authorisation switch is carried out after the call is completed.If the next call is not begun within 60 seconds, the authorisationswitch expires automatically. At the end of the call, youreceive – if configured this way – a brief message on your telephoneregarding call duration and relevant charges incurred.7ƒPIN dialling: For the next call, you are switching your telephoneinto one of the user groups defined by the system administrator.Switching the user group means different authorisations(e. g. international dialling authorisation) and other features arepossibly available (e. g. for charging and recording connectiondata of private calls). Please contact your system administratorfor information on the designated application area for PIN dialling.First you enter your internal call number under No. and then youruser PIN under PIN. Then you can dial the desired call number.Note: PIN dialling can be done from any terminal which belongsto a user group with this authorisation activated. The call numbersdialled using PIN dialling are not saved in any redial list, neitheron the terminal used, nor on one’s own terminal.Features and MenuCards

Main Menu 133MenuCard “Phone Book”In this menu card you can add, edit and delete entries in your personaltelephone book. If your system administrator has assignedyou (or the user group you belong to) the necessary authorisation,you can also edit the central telephone book and your companytelephone book.You will find more information about company telephone books inthe “Mounting and Commissioning” (Forum 523, Forum 525/526,Forum 550/560) resp. “Commissioning and Maintenance”(Forum 5050) guide in the chapter entitled “Multi-Company Variant”and in Forum 500 / Forum 5000’s online help.For each of your personal entries (i.e. Name) you can enter severalcall numbers (Office, Mobile and Private) and set one of themas the default number. This number will always be called automaticallyif no other number is selected before making a call.An entry in your company telephone book is created in exactly thesame way as an entry in your personal telephone book. It canthen be used by all employees in your company.You can also assign speed dialling numbers to each call number inthe central telephone book (Abbrev. no.). The system offers youthe next free speed-dialling number.Features and MenuCards

134Main MenuCreating a New Telephone Book EntryPOPOZ OPOPOPOIn the MenuCard Phone book select 1ƒNewEntry and press the OK key.In the MenuCard NewƒEntry select the requiredtelephone book: Personal, Central or Company.Press the OK key to confirm.Enter Name and First name. Press the OK key toconfirm each entry.You can enter several call numbers for eachentry (Office, Mobile and Private). Confirmeach call number entry by pressing the OK key.In the central telephone book you can assign aspeed-dialling number (Abbrev. no.) to one ormore call numbers of the telephone book entry.Select Abbrev. no. and press the OK key toconfirm. In the MenuCard Abbrev. no., selectthe Office, Mobile or Private call number andpress the OK key to confirm. The system offersyou the next free speed-dialling number. Youcan either accept this or specify another speeddiallingnumber which is still free. Repeat thesesteps to assign a speed-dialling number foranother call number of the telephone bookentry. You can exit entering speed-dialling numbersby selecting the Ok menu item in theAbbrev. no. MenuCard.Afterwards select Default and press the OK keyto confirm. In the MenuCard Default, select theOffice, Mobile or Private call number as thedefault number and press the OK key to confirm.Features and MenuCards

Main Menu 135POPOFor each call number of a telephone book entry,you can specify whether your call number shouldbe automatically suppressed whenever you dialthese number (from the telephone book). SelectSuppress number and press the OK key to confirm.In the Suppress number MenuCard, selectthe call number (Office, Mobile, Private) andactivate the function with On. Repeat these stepswhere necessary to suppress the display of yournumber for another call number of the telephonebook entry. Exit the setting by selecting the Okmenu item in the Suppress number MenuCard.You can switch the suppress number function onand off using the plus/minus key =.To save the telephone book entry, select theSave menu item and press the OK key.Note: If you do not activate the “Suppress number” function for acall number saved in the telephone book, you can still suppressthe display of your call number from call to call, i.e. before youdial the destination call number.Features and MenuCards

136Main MenuEditing a Telephone Book EntryPOPOZOPIn the Phone book MenuCard, select menu item2ƒEdit and press the OK key.In the Edit MenuCard, select the desired telephonebook: Personal, Central or Company.Press the OK key to confirm your selection.Enter the name next to Name or (for Central)the speed-dialling number next to Abbrev. no.If there is no entry matching your search, thelist of entries will be displayed. Select thedesired entry. Press the OK key to confirm yourselection.Select Delete or Edit. To edit the telephonebook entry, simply overwrite the current details.Proceed exactly as described above in the sectionCreating a New Telephone Book Entry startingon page 134.MenuCard “Applications”This MenuCard is only shown if the system administrator has setup additional programme packages for your communications systemand you have the user authorisation to use these programmes.1ƒVoicebox: This menu is only available to you if theForum Voicemail programme package has been installed in yourcommunications system and if the system administrator has configureda voicebox for you. See the “Forum Voicemail” user guidefor further information.2ƒHotel: This menu is only available to you if the Forum Hotelprogramme package has been installed in your communicationssystem and if your telephone is the receptions telephone. See the“Forum Hotel” user guide for further information.3ƒServer menu: Your communications system can also beextended via third-party programmes. It is possible to use individualfunctions of these programmes with your system telephone.Features and MenuCards

Main Menu 137The 3ƒServer menu menu entry will be offered to you in this case.For further information, please consult the respective programmedocumentation.MenuCard “Central Settings”In this MenuCard you can define rules and settings for your system’stime management. You can only invoke this MenuCard ifyour system administrator has configured the “Time control” or“Configurator - active” authorisation for your user group.MPSelect0ƒCentral settings, followed by …1ƒTime control: Several time groups can be configured in theForum 500 / Forum 5000. Incoming calls are then signalled ondifferent telephones depending on the activated time group.Switching between these time groups can be done automaticallyaccording to a timetable drawn up by the system administrator, orit can be done manually.You can only programme these functions if the system administratorhas activated the “Time control” authorisation for your usergroup.Select the Automatic item to activate automatic time control. Theconfigured time groups then change automatically according tothe timetable configured by the system administrator. This settingremains active until one of the available time groups is set manually.The system administrator can configure up to ten time groups.The time groups are either numbered (default setting) or namedby the system administrator. You can select a specific time groupmanually, which deactivates the automatic time control.Note: “MSN” forwarding always remains in effect, regardless ofthe currently active time group.2ƒDate/Time: The date and time are taken from the exchangewith the first external outgoing call. If your network operator doesnot transmit this information, you can set the date and time hereyourself.Features and MenuCards

138Shortcut MenusYou can only programme these functions if the system administratorhas activated the “Configurator - active” authorisation for youruser group.Select the required entry (time with hh:mm, date with dd.mm.yy)and press O. Overwrite the current setting, confirm the newsetting with O and Save your settings.Shortcut MenusMenuCard “Info”This MenuCard is used to quickly locate messages that havearrived or been saved. The same menu items are also in the Mainmenu. The LED flashes slowly to indicate that there are entries inthe info list.Briefly press the info key i to display one or more of the followingitems …1ƒShort messages: See Main menu, menu group Messages.2ƒE-Mail: See Main menu, menu group Messages.3ƒMissed calls: See Main menu, menu group Calls.4ƒVoicebox: See Main menu, menu group Applications.5ƒAppointments: See Main menu, menu group Messages.7ƒCharges: See Main menu, menu group Phone settings.8ƒActiveƒfeatures: See the following MenuCard.MenuCard “Active Features”This MenuCard gives you an overview of the active features thatrestrict your availability. The same menu items are also in theMain menu. You can deactivate features directly, thereby removingthem from this MenuCard. The LED on the info key lights up toidentify active features.Features and MenuCards

Shortcut Menus 139Long press the info key i to display one or more of the followingitems …Call prot. all: See Main menu, menu group Protection.Divert all calls: See Main menu, menu group Call forwarding.Restricted dial: Your telephone lock is activated. To unlockyour telephone, press O, enter your user PIN andpress O to confirm. See also Main menu, menu group Protection.Hunt group: Hunt group numbers are configured for your telephone.You can activate or deactivate the signalling of hunt groupcalls. See the MenuCard Calls.Time control: You might not receive any external calls if the system’smode of call forwarding has been changed. Contact yoursystem administrator for further information. See the MenuCardCentral settings.MenuCard “Prog. call key”This MenuCard can be used to quickly configure the features on acall key which has been programmed as a trunk key. For furtherinformation, please refer to the section on MenuCard “Prog. callkey” (Trunk Key) starting on page 104.MenuCard “Prog. team key”This MenuCard can be used to quickly configure the features of acall key which has been programmed as a team key. For furtherinformation, please refer to the section on MenuCard “Prog. teamkey” starting on page 106.Features and MenuCards

140Programming KeysProgramming KeysYour system telephone features several keys which you can individuallyconfigure with call numbers (destinations) or functions.You will find an overview of which keys on your telephone theseare in the section on Programmable Keys starting on page 15. Youcan also connect up to three extra key extensions to your systemtelephone (exception: not to Forum Phone 515), which providesyou with additional freely-programmable keys (see the chapter onKey extensions starting on page 32).Note: You can only programme programmable keys if your systemadministrator has provided you with the authorisation to doso. Consult your system administrator if your authorisation has tobe changed.You can also use the Configurator of the Web console (in theTelephony: Phones: System Phones menu) to assign destinationsor functions to programmable keys. It doesn’t matterwhether the keys are programmed on the system telephone or inthe Configurator. Settings are immediately valid and overwriteany previous settings in both cases.Programming Call Numbers(Destinations)You can dial call numbers assigned to keys by simply pressing therelevant key.Features and MenuCards

Programming Keys 141Programming a DestinationgPOZOZOLong press the programmable key, then …select Dest. and press the OK key.Text: Enter a name, then press the OK key.Dest.: Enter the call number, then press the OKkey.• External call number: Enter the call numberdirectly if external line seizure is automatic.If external line seizure is manual, you mustfirst key in the external line seizure code digit(the default setting is 0).• Internal call number: Enter the call numberdirectly if external line seizure is manual. Ifexternal line seizure is automatic, first pressthe star key twice **.Please see the section on Manual or AutomaticLine Seizure starting on page 62 for a moredetailed explanation of automatic and manualline seizure.POPOP OYou can also save a call number, that has beensaved in the phone book, to a destination key.The first and last name of the phone book entrywill automatically be included and the callnumber of the entry saved as destination callnumber.Select the Phone book menu entry and then thedesired entry. Then press the OK key.If there are multiple call numbers saved to thisentry, select the call number you would like tosave to the destination key. Then press the OKkey.To end programming, select the Save menuitem. Then press the OK key. The programmingis saved.Features and MenuCards

142Programming KeysChanging Destination KeygZ OP OTo change or delete a destination key, longpress the key, then …Text: / Dest.: Overwrite the programmedname / call number. Confirm each entry bypressing the OK key.Select the Save menu item. Then press the OKkey. The programming is saved.Deleting a Programmed KeygPOLong press the programmable key, then …select Delete key.Press the OK key.Programming Functions (Features)You can also store Main menu functions on programmable keys(see MenuCard “Main Menu” starting on page 113). Long pressthe key and you will see the feature key’s MenuCard with thename of the function in the first line (e. g. call forwarding). Youcan change the function as required (e. g. change the destinationof the call forwarding).Switching Functions On/OffThe functions assigned to a key can be activated by a short presson the key or switched on and off by pressing the key (e. g. callforwarding). The function assigned to a key is active (switched on)when the key’s LED lights up. If the programmed function conflictswith your terminal’s current settings, a menu will open whenyou press the relevant feature key. You can use this menu to activateor deactivate the function again.The following examples will help to explain this.Features and MenuCards

Programming Keys 143Example 1 “Forwarding MSN Groups”If you have assigned an MSN group to a feature key, the LEDlights up if all MSNs in the group are forwarded to the destinationnumber specified. If a single MSN is forwarded to a differentnumber or not forwarded, the LED does not light up.If you now press the feature key, a menu opens in which youcan activate or deactivate the function again. The destinationnumbers for the individual MSNs of the group are overwrittenand will have to be reprogrammed if required. Selecting On willforward all MSNs in the group to the originally programmeddestination number, or you can specify a new destinationnumber. Selecting Off will deactivate all forwarding for allMSNs in the group.Example 2 “Call Waiting Protection”If you have assigned “Call waiting protection ” to a feature key,the LED lights up if call waiting protection is activated for all thecall keys on your telephone. If you deactivate call waiting protectionfor a single call key (“Call waiting protection”), the LEDgoes out.If you now press the feature key, a menu opens in which youcan activate or deactivate the function. The call waiting protectionfor the single key is then deleted and will have to be reprogrammedif required.With the On menu item you turn on call-waiting protection forall call keys. With the Off menu item you turn off call-waitingprotection for all keys.Features and MenuCards

144Programming KeysProgramming a Function onto a KeygPOLong press the programmable key, then …select Features and press the OK key.PZO Select the desired function from the Menu-Cards, specify the variable part (e. g. callnumber) if required, then press the OK key.ZOOSelect Text: to label the key. If you do notenter a text, the key will be labelled with adefault text. Press the OK key.The Save menu item is now selected. Pressthe OK key. The programming is saved.You can also combine multiple functions on a single key. For moreinformation on this please see the section on Stacking or LinkingFunctions starting on page 145.Changing a Programmed Feature KeygZ / POOLong press the programmed key, then …change the programmed function (e. g. the callnumber of a call forwarding) or select anotherfunction.Confirm by pressing the OK key.The Save menu item is now selected. Press theOK key. The programming is saved.Deleting a Programmed Feature KeygPOLong press the programmed key, then …select Delete key.Press the OK key.Features and MenuCards

Programming Keys 145Stacking or Linking FunctionsYou can also save multiple functions to a single feature key (stackor link functions).• Stack: The functions stored in a stack are displayed in aMenuCard which is assigned to a key. You can save destinationnumbers as well as functions in a stack and select the desireddestination number or function from this MenuCard.• Link: Linked functions are executed consecutively after therelevant key is pressed. This makes it possible to combinecomplex system telephone settings on a single feature key.You can programme more functions in a link than you can on asingle feature key. A concrete setting for a function can besaved in a link (e.g on/off for “call protection” or a concretedisplay language). This means that a function in a link has anexactly defined switching function in comparison with thefunctioning of a single feature key. Destination numbers cannot be saved in a link.A stack and a link have five free memory locations each.Features and MenuCards

146Programming KeysProgramming Multiple Functions and/or Call Numbers ona KeygPOZOPOLong press the programmable key, then …select Stack or Link features and press theOK key.Select Text: to label the key. If you do not entera text, the key will be labelled with the defaulttext (either “Stack” or “Link”). Press the OK key.Select Add and make a selection from the Menu-Card shown …• Features to programme a feature key (seeProgramming Functions (Features) startingon page 142),• Dest. to programme a destination key (seeProgramming Call Numbers (Destinations)starting on page 140); only possible whenprogramming a stack.Then press the OK key.OThe MenuCard “Stack” or “Link” is shown withthe new entry in the list. You can now addanother entry. When all memory locations areoccupied you will hear a negative acknowledgementtone.To end programming, select the Save menuitem. Then press the OK key. The programmingis saved.Using a Feature Key (Stack / Link)The LED of a key programmed as a stack has no function. You canuse a key programmed as a Stack as follows:• Short key press: The programmed entries are displayed in aselection menu. Select the desired entry and press the OKkey O. The programmed call number will be dialled or theprogrammed function executed.Features and MenuCards

Programming Keys 147• Long key press: The MenuCard for the key will be opened.You can now edit the stack’s entries.The illuminated LED of a key programmed as a link indicates thatall functions of the link are active (switched on). You can use akey programmed as a Link as follows:• Short key press: The programmed functions are executedconsecutively. When all functions have been executedcorrectly, you will hear a positive acknowledgement tone.• Long key press: The key’s MenuCard will open. You can nowedit the link’s functions.Changing Entries in a Stack / LinkYou can change or delete individual entries in a stack or a linkwithout deleting all the programming on the key.gPOPZOLong press the programmed key, then …select the desired entry. To change the entry,press the OK key.Select another function or change the programmedcall number (for a destination key). Todelete the entry, press the C key.Press the OK key to save your programming.Deleting a Programmed Feature Key (Stack / Link)gPOLong press the programmed key, then …select Delete key.Press the OK key.Features and MenuCards

148Programming KeysStatus KeyIf your communications system has been extended via a thirdpartyprogramme, you can operate individual functions of thisprogramme via what are referred to as the status keys of yoursystem telephone. A status key is thus a kind of special functionkey. It is programmed similarly to a function key.Programming a Status KeygPOLong press the programmable key, then …select Status key and press the OK key.PZO Select the Key-ID: item from the Statuskey MenuCard. Enter the number (0 … 9) tobe used for operating the programme function.For information in this regard, pleaserefer to the respective programme documentation.Then press the OK key.Z OOSelect Text: to label the key. If you do notenter a text, the key will be labelled with adefault text. Press the OK key.The Save menu item is now selected. Pressthe OK key. The programming is saved.Deleting a Programmed Status KeygPOLong press the programmed key, then …select Delete key.Press the OK key.Features and MenuCards

Busy Keys 149Busy KeysThe system administrator can configure busy keys for your telephone.A busy key shows you the busy state of another internalsubscriber. There are two kinds of busy keys:• Busy Key “Call Number”: This busy key shows the busy statusof a single internal call number.• Busy Key “Device”: This busy key monitors all trunk keysconfigured on a terminal. If one of these trunk keys is busy,the busy key signals that the terminal is busy.Notes for the System Administrator• Busy keys can only be configured and labelled in theForum 500 / Forum 5000 communications systemConfigurator (in the Telephony: Devices: System phonesmenu).• For further information on busy keys, please refer to the onlinehelp and in the “Mounting and Commissioning” guide(Forum 523/524, Forum 525/526, Forum 550/560) or“Commissioning and Maintenance” guide (Forum 5050).Busy Key “Call Number”Busy DisplayThe busy status of a monitored call number is signalled as follows:• LED blinks: The call number is called.• LED lights up: The call number is busy.Calling Subscribers via the Busy Keyg(LED off)Press – when the call number is not busy, theLED is off – the busy key. The internal subscriberwhose call number is assigned to thebusy key, is called.Features and MenuCards

150Busy KeysCallPickup via the Busy Key (Pickup)The busy key LED blinks when there is an incoming call. Toaccept the call:gH(LED off)Press the busy key and pick up the handset. Thismeans the call number called remains available.Transferring Accepted CallThe accepted call can be transferred to the originally called subscribervia the busy key.g Press the busy key. The caller is held.(LED blinks)Gh(LED lights up)If the subscriber answers, announce transfer ofthe call, and replace the handset. The call hasnow been transferred.alternatively:h(LED blinks)If you wish to transfer the call withoutannouncement, replace the handset. The subscriberis called.If the subscriber called does not accept the transferred call withina certain time interval (45 seconds are the default), you will becalled back (the display shows callback information).Busy Key “Device”Busy DisplayThe busy key LED lights up on your telephone if one of the trunkkeys on the monitored device is busy. If the monitored device isidle, this is not signalled by the busy key.Features and MenuCards

Busy Keys 151Calling Subscribers via the Busy Keyg(LED off)Press – when the terminal is not busy, the LED isoff – the busy key. The internal subscriber iscalled on one of the available trunk keys.Note: A “Device” busy key cannot be used to pick up or transferaccepted calls.Features and MenuCards

152Environmental InformationAppendixEnvironmental Information• The equipment that you bought has required the extractionand use of natural resources for its production. It may contenthazardous substances for the health and the environment.• In order to avoid the dissemination of those substances in ourenvironment and to diminish the pressure on the naturalresources, we encourage you to use the appropriate take-backsystems. Those systems will reuse or recycle most of thematerials of your end life equipment in a sound way.• The crossed-bin symbol invites you to use thosesystems.• If you need more information on the collection, reuseand recycling systems, please contact your local or regionalwaste administration.• You can also contact us for more information on the environmentalperformances of our products.Appendix

Tones and Ringer Signals 153Tones and Ringer SignalsTime axis in secondsAudio SignalsRing toneInternal busy toneInternal dialling tone/continuous toneExternal dialling tone/continuous tonePositive acknowledgementtoneNegative acknowledgementtoneSpecial internal dialling toneSpecial external dialling toneCall-waiting toneSpecial sensor tone0 1 2 3 4 5 6CallsExternal callInternal callVIP callCallbackSensor callThe tones and ringer signals mentioned above are valid for Belgium; in other countries theymay differ.Appendix

154IndexAABC key 17AC adapter plug 9Announcement 61, 80, 129Announcement protection 105,126Applications 114Appointments 122Accepting an appointmentcall 79Arrow key 20Automatic diallingUsing 53Automatic Exit 31Availability 126BBaby call 80, 126Busy keycall number 149device 150Busy keys 149CCall 130accepting via busy key 150Connectingautomatically 72Pick up 128Call distribution 50Call diversion (see callforwarding) 104Call forwardingDoor 120Door call 87For other users 120For your telephone 118MSN 119to voicebox 84Call keySignalling 50Call key of the telephone 15Call lists 114Call numberRestricting display of 61Suppress 129Transmitting display of 62Call numbersBlocked 56Unblocked 56Call protection 18, 105, 106,139Device (phone) 125Call signalling 105Call waitingAccepting 72, 73Deflecting 73Rejecting 73Call waiting protection 126Call-back 70, 76, 130Answering 83Callback 150Callingvia busy key 149, 151CallsAccepting 70Deflecting 74Ending 66Rejecting 74Transferring to externalparty 77Transferring to internalparty 76Index

155Call-waiting protection 105,106Charges 61, 105, 117Display 54Settings 124C-key 17Cleaning 10CLIP 58CLIP no screening 58, 72CLIR 59CNIP 59Conference 75, 77, 130Ending 79ConnectionsLists 105PIN dialling 132Switch authorisation 132Contrast 124DDestinationProgramming 140Device busy 118Dial 128For another terminal 130Dialling a different user 53DigitsDeleting 29Entering 29Direct call key 106Disconnect 78Disconnect key 19Display 124Door call forwarding 87Door opener 61, 68, 74, 77,79, 86, 129Doorbell 86, 87Doorphone 87DTMF 57Duration display 54EE-Mail 122En-bloc diallingSwitching on/off 124Enquiry 75Enquiry key 19Entrance intercom 87Entrance Intercom Calls 87ESC Key 20FFeature keys 142Linking 145Stacking 145Follow me 121HHands-free mode 56Hands-free/open-listeningkey 18Headset 34, 96, 124Block Dialling and HeadsetOperation 53Calling an externalsubscriber 63Calling an internalsubscriber 64Ending calls 66Listen in 19Headset key 19Hold 68Hold call 131Hot Desking 92Hotel 136Hunt group 117Index

156IInclinationAdjusting 10Info key 17Info Line(s) 23Installation site 9Intercept 68, 131Intercom 61, 129to a system terminal 61Intercom protection 127Internet connection (ISP) 131IP system telephones 96ISP Trigger call 111KKey assignments 12Key extensions 32Key lines 25Keypad dialling 57Keypad protocol 57Keypad with ABCassignment 14KeysDelete 126Labelling 21Programming 140LLanguage 124Least Cost Routing (LCR) 58Switching off 62, 129Line seizureAutomatic 62Manual 62Link (feature keys) 145List itemsSelecting 27Listen in (see headset) 19ListsDeleting 29Logout (Hot Desking) 127MMain menu 62Making callsExternal calls 63Internal calls 64Using destination keys 64MenuCardActive features 138Applications 136Busy 70Call 74Call forwarding 118Call waiting 73Calls 114Central settings 137Conference 78Connections 127, 128Conversation 67Info 138Main menu 113Messages 121Phone book 89Phone settings 123Prog. call key 104Prog. team key 106Protection 125Selection (in idle state) 60Subscriber on hold 77MenuCard display 26MenuCard key 17MenuCardsCalling up 27Message 121Mute 131Muting 54Muting key 19Index

157NNot available 130Note 61, 68, 129OOK key 20Open listening 56PParking calls 67, 77, 131Pharmacy line 87Phone book 88, 129Edit entry 136New entry 134Pick-up 61, 67, 128Message 123Selective 61, 68, 70, 128Pickupon busy key 150PIN (see user PIN) 126PIN dialling 132Plus/minus key 19Presence 122Programmable keys 15Destination 140Features 142RRedial key 16Redialling 55Remote charges 117Remote dialling 130Remote-controlled dialling 107Remote-programmable callforwarding 109Remote-programmable VoiceboxConfiguration andQuery 110Restricted dialling 139Ring tone 105, 106, 123Key 123SSafety precautions 9Server menu 136Speed-dialling 90Stack (feature keys) 145Status key 148Substitution 104Switch authorisation 132TTake 61, 68, 128Team keylists 106Tele secretary 71Telephone book (see Phonebook)Telephone lock 56, 126Telephone numberForum Voicemail 110Telephone numbersExternal 50TextEntering 30Modifying 104, 106Three-party conference 78Time control 137, 139Toggling 28, 75, 77, 79, 130Transfer 75, 77, 79, 130Transferring 150Transmission of CallNumbers 58Trunk keylists 105Index

158UUnparking calls 60, 128User PINChange 126VVF signalling 57VIP call 70Accepting 71, 73Starting 62Voice over IP 96Voicebox 74, 136Querying 74Voicemail system 84Volume 54, 123WWall mounting 11Index
