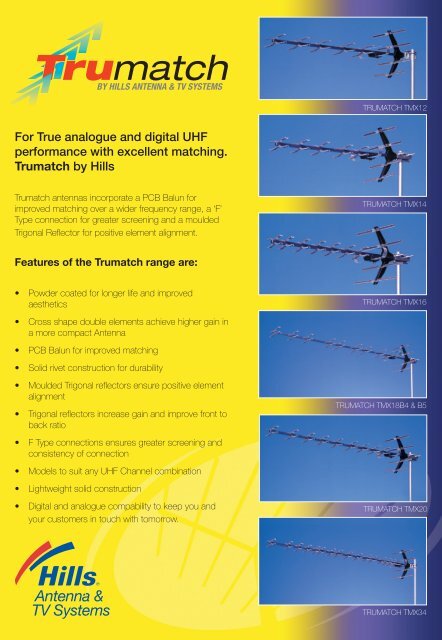

TRUMATCH TMX12For True analogue and digital UHFperformance with excellent matching.Trumatch by <strong>Hills</strong>Trumatch antennas incorporate a PCB Balun forimproved matching over a wider frequency range, a ‘F’Type connection for greater screening and a mouldedTrigonal Reflector for positive element alignment.TRUMATCH TMX14Features of the Trumatch range are:• Powder coated for longer life and improvedaestheticsTRUMATCH TMX16• Cross shape double elements achieve higher gain ina more compact <strong>Antenna</strong>• PCB Balun for improved matching• Solid rivet construction for durability• Moulded Trigonal reflectors ensure positive elementalignment• Trigonal reflectors increase gain and improve front toback ratioTRUMATCH TMX18B4 & B5• F Type connections ensures greater screening andconsistency of connection• Models to suit any UHF Channel combination• Lightweight solid construction• Digital and analogue compability to keep you andyour customers in touch with tomorrow.TRUMATCH TMX20TRUMATCH TMX34
Trumatch <strong>Antenna</strong> Electrical PerformanceCHANNELSGAINFWD/BACKRATIOVSWR(Typical)DesignedUseTRUMATCH TMX12 28-37 9-13 15-22 1.6:1 Prime Reception LocationsTRUMATCH TMX14 28-50 8-13 15-24 1.6:1 Prime Reception LocationsTRUMATCH TMX16 28-69 8-13 17-20 1.6:1 Prime Reception LocationsTRUMATCH TMX18B4 28-38 12.5-15 15-24 1.6:1 Fringe Reception LocationsTRUMATCH TMX18B5 38-69 11-16.5 12-25 1.6:1 Fringe Reception LocationsTRUMATCH TMX20 28-50 8.5-15 15-25 1.6:1 Fringe Reception LocationsTRUMATCH TMX34 28-69 10-17 15-22 1.6:1 Fringe Reception LocationsNew South Wales12 Wiggs RoadRiverwood NSW 2210Ph: (02) 9717 5290Fax: (02) 9717 5226nsw@hillsantenna.com.auVictoria / TasmaniaCnr Cambria & Bridge Rd.Keysborough,Vic 3175Ph: (03) 9238 2533Fax: (03) 9238 2535vic@hillsantenna.com.auQueensland69 Activity St,Acacia Ridge,Brisbane QLD 4110Ph: (07) 3344 3855Fax: (07) 3344 4866qld@hillsantenna.com.auSth.Aust. / Northern Territory20 Raglan AvenueEdwardstown 5039Ph: (08) 8371 0277Fax: (08) 8371 1519sa@hillsantenna.com.auWestern Australia5 Katanning StreetBayswater WA 6053Ph: (08) 9442 5633Fax: (08) 9442 5644wa@hillsantenna.com.auFor Tru Performanceand MatchingExport Sales20 Raglan AvenueEdwardstown 5039Ph: + 618 8371 3663Fax: + 618 8371 1519msr@hills.com.au<strong>Antenna</strong> &<strong>TV</strong> <strong>Systems</strong>Keeping you in touch with tomorrowISO 9002 LIC6534Standards Australia
