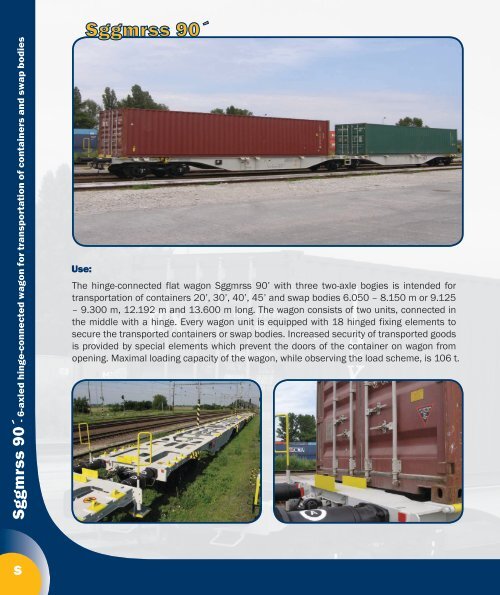

<strong>Sggmrss</strong> 90´- 6-axled hinge-connected wagon for transportation of containers and swap bodiesUse:<strong>Sggmrss</strong> 90´The hinge-connected flat wagon <strong>Sggmrss</strong> 90’ with three two-axle bogies is intended fortransportation of containers 20’, 30’, 40’, 45’ and swap bodies 6.050 – 8.150 m or 9.125– 9.300 m, 12.192 m and 13.600 m long. The wagon consists of two units, connected inthe middle with a hinge. Every wagon unit is equipped with 18 hinged fixing elements tosecure the transported containers or swap bodies. Increased security of transported goodsis provided by special elements which prevent the doors of the container on wagon fromopening. Maximal loading capacity of the wagon, while observing the load scheme, is 106 t.S
Wagon technical parametersWagon series <strong>Sggmrss</strong> 90´Digit interval 4962Construction group 56Interoperability 31Number of axles 6Bogie type Y 25Wagon length over the buffers29,590 mWagon tare29,000 tLoading capacity(speed 120 km/h)ABCD67,00 t79,00 t94,00 (91,00) t106,00 (91,00) tLoading length2 x 13,800 mLoading width2,600 mNegotiation of track curve with a radius 75 mDistance between floor and USR1,155 mAxle base / pivot pins distance12,025 mWagon complies with regulationsTSI/RIV, COTIF (AVV)NoteHinge-connected wagon with three two-axle bogies,the wagon is equipped with hinged fixing pins fortransportation of containerswagon for transportation of 20´, 30´, 40´, 45´ ISOcontainers, swap bodies 6,050 – 8,150 m, 9,125 –9,300 m, 12,192 m and 13,6 m long<strong>Sggmrss</strong> 90´- 6-axled hinge-connected wagon for transportation of containers and swap bodiesS
