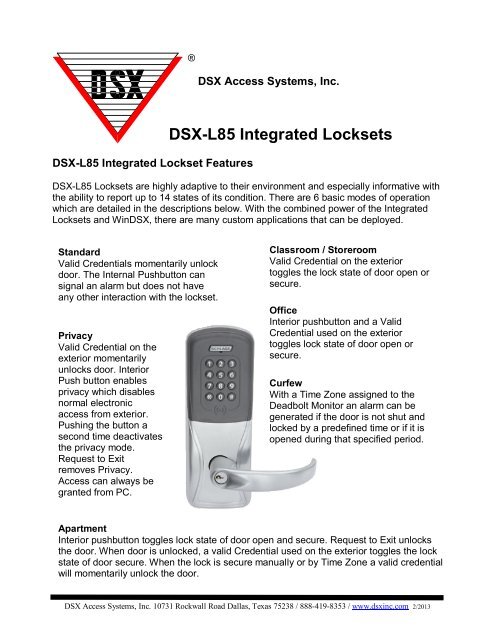

®DSX Access Systems, Inc.DSX-L85 Integrated Lockset FeaturesDSX-L85 Integrated LocksetsDSX-L85 Locksets are highly adaptive to their environment and especially informative withthe ability to report up to 14 states of its condition. There are 6 basic modes of operationwhich are detailed in the descriptions below. With the combined power of the IntegratedLocksets and WinDSX, there are many custom applications that can be deployed.StandardValid Credentials momentarily unlockdoor. The Internal Pushbutton cansignal an alarm but does not haveany other interaction with the lockset.PrivacyValid Credential on theexterior momentarilyunlocks door. InteriorPush button enablesprivacy which disablesnormal electronicaccess from exterior.Pushing the button asecond time deactivatesthe privacy mode.Request to Exitremoves Privacy.Access can always begranted from PC.Classroom / StoreroomValid Credential on the exteriortoggles the lock state of door open orsecure.OfficeInterior pushbutton and a ValidCredential used on the exteriortoggles lock state of door open orsecure.CurfewWith a Time Zone assigned to theDeadbolt Monitor an alarm can begenerated if the door is not shut andlocked by a predefined time or if it isopened during that specified period.ApartmentInterior pushbutton toggles lock state of door open and secure. Request to Exit unlocksthe door. When door is unlocked, a valid Credential used on the exterior toggles the lockstate of door secure. When the lock is secure manually or by Time Zone a valid credentialwill momentarily unlock the door.DSX Access Systems, Inc. 10731 Rockwall Road Dallas, Texas 75238 / 888-419-8353 / www.dsxinc.com 2/2013

Operational Notes ///1. Inside Lever always allows free egress.2. Deadbolt always disables keyless entry.3. Grant Access from Workstation overrides deadbolt and Internal push button.4. The Curfew feature can be implemented in any mode by placing a controlledtime zone on the deadbolt monitor input.5. In Case of Emergency - Manual Action from Workstation overrides all Modes.6. Communications Loss to Lockset can result in Fail Open, Fail Secure, or Fail tocurrent state. This is configurable by Lockset7. Keypads can be configured for Card + PIN or Card or PIN8. Priority is in this order: Operator Commands, Deadbolt, Time Zone, User Actions(Reader / Internal Push Button )Lockset Conditions Monitored by L85All of the conditions below are monitored and reported to WinDSX as inputs. These inputscan be controlled by Time Zones and can be assigned custom icons, WAV files, graphicalarm maps and can be programmed to send text messages and emails.Inside Pushbutton – can be used as a panic alarm in mode 0 & 1Key Override – armed with time zone for keyed entry alarmRequest to Enter – used with abort delay can render – “desperate to open” alarmDeadbolt Position – can be used for Curfew alarmTamper Cover – monitored for unauthorized accessClutch Status – provides an alarm when lock is not in correct stateDoor Position – provides alarm on unauthorized entry or if left openExit Request – should not be assigned a time zoneRF Communications Link – can provide out of service alarmMain Battery Low – can report battery statusMain Battery Critical – can report battery criticalLithium Battery Low – can report lithium battery statusLithium Battery Critical – can report lithium battery criticalCommunication Loss – reports comm loss to locksetDSX_L85 Concept DrawingL85ConceptDrawingWinDSXComm ServerTCP/IP126 ReadersMaximumPC Master &L85 Software*TCP/IPTCP/IPRS-485RS-485DSX-LANDSX-LANDSX Location 1RS-485RS-485AD-300PIM400-485DSX-1035RS-485RS-485RS-485AD-400PIM400-485= DSX-USB or* DSX-MCIAD-400AD-400AD-300RS-485WRI400AD-300PIM400-485RS-485AD-300AD-400AD-400RS-485PIM400-485AD-400AD-400AD-400WPR400WIRELESSREADERSPIM400-485CONVENTIONALREADERAD-400WinDSX Comm Server, PC Master, and L85 software can all run on the same PC depending on size of application.DSX Access Systems, Inc. 10731 Rockwall Road Dallas, Texas 75238 / 888-419-8353 / www.dsxinc.com 2/2013
