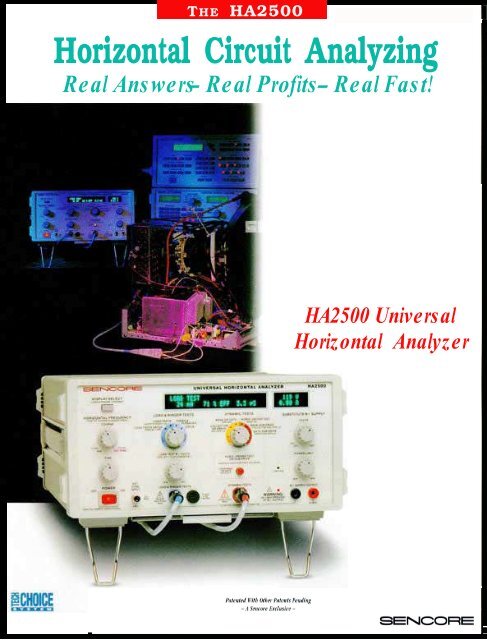

HA2500Now Everything You Need To Estimate Repair Costs AndLocalize Horizontal Stage Defects In Computer MonitorsLess Time And More Profitably Than Ever Before!Unique frequency lock and variablehorizontal frequency allows you toquickly service all horizontal circuits -no matter the frequencyExclusive “ Horizontal Output LoadTest” makes setup and testingasnapevenwithout applying AC power formore accurate estimates, fewer damagedreplacement parts, and fasterdiagnosis and repairPatented “Ringer Test” proves thecondition of flybacks and yokes inseconds - even a single shorted turnExclusive “Dynamic Tests” help youanalyze the horizontal circuit in apowered-up condition to catch evensubtle defects in the power supplyand drive signalVariable-current limited & protectedB+ substitute power supply permitstesting of horizontal stages even whenthe power supply is deadPortable and field rugged to go onlocation when bringing the defectiveproduct to your bench isn’t feasibleCall 1-800-SENCORE Today!,(736-2673)SENCORE 3

Material Safety Data SheetPennzoil Platinum SAE 5W-20 Full Synthetic Motor OilMSDS# 11841Version 1.0Effective Date 08/05/2010According to OSHA Hazard Communication Standard, 29 CFR1910.1200coefficient (log Pow)Kinematic viscosity : > 30 cSt at 40 °C / 104 °FVapour density (air=1) : > 1 (estimated value(s))Evaporation rate (nBuAc=1) : Data not available10. STABILITY AND REACTIVITYStabilityConditions to AvoidMaterials to AvoidHazardous DecompositionProducts: Stable.: Extremes of temperature and direct sunlight.: Strong oxidising agents.: Hazardous decomposition products are not expected to formduring normal storage.11. TOXICOLOGICAL INFORMATIONBasis for Assessment : Information given is based on data on the components and thetoxicology of similar products.Acute Oral Toxicity : Expected to be of low toxicity: LD50 > 5000 mg/kg , RatAcute Dermal Toxicity : Expected to be of low toxicity: LD50 > 5000 mg/kg , RabbitAcute Inhalation Toxicity : Not considered to be an inhalation hazard under normalconditions of use.Skin Irritation : Expected to be slightly irritating. Prolonged or repeated skincontact without proper cleaning can clog the pores of the skinresulting in disorders such as oil acne/folliculitis.Eye Irritation : Expected to be slightly irritating.Respiratory Irritation : Inhalation of vapours or mists may cause irritation.Sensitisation : Not expected to be a skin sensitiser.Repeated Dose Toxicity : Not expected to be a hazard.Mutagenicity : Not considered a mutagenic hazard.Carcinogenicity : Components are not known to be associated with carcinogeniceffects.Reproductive and: Not expected to be a hazard.Developmental ToxicityAdditional Information : Used oils may contain harmful impurities that haveaccumulated during use. The concentration of such impuritieswill depend on use and they may present risks to health andthe environment on disposal. ALL used oil should be handledwith caution and skin contact avoided as far as possible.Continuous contact with used engine oils has caused skincancer in animal tests.12. ECOLOGICAL INFORMATIONEcotoxicological data have not been determined specifically for this product. Information given isbased on a knowledge of the components and the ecotoxicology of similar products.Acute Toxicity : Poorly soluble mixture. May cause physical fouling of aquaticorganisms. Expected to be practically non toxic: LL/EL/IL50 >100 mg/l (to aquatic organisms) (LL/EL50 expressed as thenominal amount of product required to prepare aqueous testextract).Print Date 08/13/20105/8MSDS_US

HA2500Patented “Ringer” Proves TheCondition Of Flybacks, Yokes,And Coils In SecondsThe Ringer Test is used to isolate a shorted turnwithin flybacks, yokes, or coils when the Load Testindicates a horizontal output stage defect. A shortedturn or turns greatly alters the component’s functionand circuit’s operation, but does not changethe winding’s resistance or its inductance when youmeasure it.The HA2500 RingerTest quickly confirmsa shorted turn defectsaving you fromreplacing a goodflyback, yoke,or horizontal coil; orworst yet, mistakenlyconcluding it’s defective and losing the repairand revenue opportunity.The Ringer Test may be used effectively to isolateshorted turns among other coils and transformersabundant in today’s multi-frequency CRT displays.Coils in the B+ voltage path commonly developshorted turns when a horizontal output stage defectproduces high current through them. The RingerTest quickly identifies when these coils have beendamaged and need to be replaced.Call 1-800-SENCORE, Today!(736-2673)6 SENCORE

Dynamic Tests Analyze TheHorizontal Output Stage WithAutomatic MeasurementsThe HA2500's Dynamic Tests “METER” providesautomatic measurementsof voltages and waveformsto quickly analyze the horizontal output stage withoutcomplicated setup, probing multiple circuitpoints, selecting multiple test functions, or worry oftest equipment damage.Measurements confirm normal or abnormalhorizontal output stage operation and guide youto suspect stages or defects in either bipolar orMOSFET type horizontal output transistor stages.The Collector Or Drain Meter provides threeautomatic “chassis on” measurements of voltagesand waveforms produced by the horizontal outputstage at the collector or drain of the horizontaloutput transistor. These measurements include theDC voltage, the flyback pulse peak-to-peak voltage,and the flyback pulse duration or time in microseconds.The BASE OR GATE Meter provides two automaticmeasurements of the drive waveform at the base orgate of the horizontal output transistor.SENCORE 7

HA2500UNIVERSAL HORIZONTAL ANALYZERNew Fluorescent Display: Now youcan clearly view all measurements -even in low light conditionsSimplified Display Select: Allowsyou to switch easily between Loadand Dynamic TestsExclusive Substitute B+Supply: Variable 30-180volts, so now you cantake control andsubstitute for theB+ power supplyUniversal Horizontal Frequency: Twomodes of operation (internal generator orexternally synched to a generator) allowthe HA2500 to analyze all circuits from15 kHz to 125 kHz.Power Limit: Providespower limiting forsubstitute B+ supplyto protect the circuitand componentsPatent Pending Load And Ringer Tests:These tests will help localize horizontalcircuit defects - with the chassis turned “off”Patented With Other Patents Pending-A Sencore Exclusive -Call 1-8OO-SENCORE, Today!8 SENCORE (736-2673)Dynamic Tests “METER”: Performs automatic "chassis Dynamic Tests “DRIVE”: Substituteson” measurements through 3 lead hook-up to the hori-horizontal drive to base or gate ofzontal output transistor to analyze the horizontal outputhorizontal output transistor to teststages for defective horizontal drive and B+ voltagesHoriz. output and isolate drive defectsHorizontal Driver Test: Measurescurrent output of horizontal driverstage to detect weak or intermittenthorizontal driveSENCORE 9

HA2500Exclusive Horiz. Driver TestDetects Weak Or IntermittentHorizontal Base DriveHorizontal output stage symptoms and componentfailures are often caused by defects in the horizontaldrive stage. Yet, the driver stage is seldomsuspected and often when it does have a defect,scope waveforms and peak-to-peak measurementsat the base of the horizontal output transistorappear normal.Horizontal driver stage defects and symptoms aredifficult to diagnose for several reasons.1. The symptoms are the same as horizontaloutput stage defects.2. Horizontal output transistors may burn-outquickly leaving no time for measurements.3. Horizontal output transistors may run hotterthan normal and burn-out after several minutes,hours, or days while waveforms and horizontaloutput stage functions appear normal.The HA2500'sHoriz. Driver Testis an exclusiveanalyzing testdesigned to identifyhorizontaldriver stagedefects. TheHoriz. Driver Testanalyzes horizontaldriver stagesthat produce basedrive for bipolarhorizontal output transistors. The test identifies horizontaldriver stages which are not producing anadequate current drive for proper operation of abipolar type horizontal output transistor.By isolating horizontal driver stage defects with theHA2500, you prevent wasted time troubleshootingthe horizontal output stage, save money replacingrepeat horizontal output transistor failures andmake revenue from monitors with inexpensive drivestage problems you may have missed before.10Call l-800-SENCORE, Today !(736-2673)S E N C O R E

HA2500H.O.T. Base Or Gate SubDrive Enables HorizontalOutput Stage AnalyzingHorizontal drive defects can cause the horizontaloutput stage to be dead or appear defective.Symptoms include missing or reduced highvoltage and/or deflection, audible noises, pictureinterference, and reduced HV or deflection. Theonly way to determine if the problem is caused by ahorizontal drive signal defect or more expensivedefects in the horizontal output stage is to accuratelysubstitute the horizontal drive at the base or gateof the horizontal output transistor.The Base Sub Drive outputs the proper horizontaldrive for the base of any bipolar type horizontaloutput transistor.The drive currentis dynamicallyadjusted toproduce theneeded horizontaloutput transistor collector current and besttransistor switching efficiency. This enables theBase Sub Drive to drive any horizontal outputbipolar transistor without excessive heatingand/or transistor damage. The Gate Sub Driveoutputs the proper horizontal drive for the gateof any MOSFET type horizontal output transistor.When "Drive" is selected, the fluorescent displayshows the HA2500's horizontal test frequency andthe DCV at the chassis horizontal output transistorcollector or drain. Pressing the Horiz. Driver TestOr Sub Drive push-button outputs drive to the chassishorizontal output transistor and is accompaniedby Collector Or Drain measurements to analyze theoperation of the horizontal output stage.By substituting for missing or suspected badhorizontal drive, the HA2500 enables testing ofexpensive horizontal output stage components andpower supply stages. It further helps isolate weak,intermittent, erratic, or noisy horizontal drive signalproblems which cause improper horizontal outputstage operation and/or results in output transistorfailure.S E N C O R E11

Substitute B+ Power SupplyIsolates HV Breakdown,Shutdown, & HV/DeflectionDefectsThe HA2500's Substitute B+ Supply substitutes forthe chassis B+ power supply voltage. It enablesyou to power the horizontal output stage to fullpotential when the B+ supply or high voltage deflectionregulator has damaged components.It lets you slowly increase the B+ voltage andlimit the current to isolate horizontal componentbreakdown failures and X-ray shutdown symptoms.It provides an effective method of isolatingB+ voltage defects to the B+ supply, HV/deflectionregulator; or horizontal output stage.The Substitute B+ Supply is variable from 30 - 180volts to match a wide range of B+ voltages found infull sized CRT video displays. The voltage is switchedoff or adjusted through its range with the VOLTScontrol. The maximum outputpower of the Substitute B+Supply is adjustable from

HA2500Where Would You Use Service Area: Where To Use The HA2500:Multi-Scan Horizontal Circuits l Computer Monitors (15 kHz - 125 kHz)Medical EquipmentThe HA2500 Universall CRT Video Display DevicesIndustrial Equipment l CRT Video Display DevicesVideo Gaming IndustryHorizontal Analyzer?l CRT Video Display DevicesNTSC 1575 kHz l Big ScreensToday's video display monitors supportcomputer, medical, security, design, andindustrial applications, to name a few. Theyoperate at many different horizontal scan-ning frequencies and picture resolutions.This is where the HA2500 helps the servicer.Because of the universal design of the HA2500, itAnd Many OthersllIn-home ServicingConventional TV(The Sencore TVA92 TV Video Analyzer is,however, a more complete solution.)can be used in many different service areas. Theuniversal features, such as variable horizontalfrequency, direct display of test results, and variableB+ supply allow the HA2500 to service a widearray of products in an efficient and direct manner.Cost Justify Your InvestmentHA2500The HA2500 provides many exclusive tests thatisolate defects which previously required manyhours of expensive troubleshooting or componentswapping. Use the section below to see exactly howthe HA2500 can pay for itself.Methods of Cost JustificationAdd up yearly savings or increases in productivity.TopicsTime SavingsParts SavingsHow it Cost Justifies• Isolate defects up to 2X faster - more service orrefurbish jobs completed• Prevent damage to replacement parts• Reduce number of replacement parts• Replace only bad parts - not entire kit$ Amount$ ____________________$ ____________________$ ____________________$ ____________________Added Business • Retain work with accurate estimates $ ____________________• Repair displays that the parts kit didn't fix$ ____________________• More displays repaired$ ____________________Reduced Callbacks• Test for marginal performance and findsubtle stage degradation• Increase repair quality and longevity$ ____________________$ ____________________Total Savings & Added Revenue$ ____________________SENCORE 13

Team-Up The HA2500 With A SencoreComputer Monitor Generator ForComplete Monitor AnalyzingRegardless of whether you're using an existinggenerator or are looking at a New Sencoregenerator, the HA2500 will add to its functionsto build an analyzing system. The HA2500 allowsyou to input a sync signal and sync-lock all theHA2500's tests to that signal.The CM 125 Computer Monitor Generator, forexample, provides an accessory output jack thatconnects directly to the HA2500. And by connectingthe CM125 to the monitor's input cable, you'll beviewing the CRT for normal picture when performingmany of the HA2500's tests - especially the basedrive and dynamic tests.CM2125 ComputerMonitor AnalyzerCM125 “Pix Pak" ComputerMonitor Signal Generator1 4 SENCORE

"Q"determinedApproximate coilHA2500 SPECIFICATIONSHORIZONTAL FREQUENCY HORIZONTAL OUTPUT TIME µS RANGE: 0 - 50 µS SUBSTITUTE B+ SUPPLYGENERATOR LOAD TEST SETUP TIME µS TRIGGER LEVEL: VOLTAGE RANGE:FUNCTION: EXCITATION DRIVE: Squarewave 5% ± 1% of pulse VPP >20 VPP < 30 volts to > 180 voltsSquarewave generator for Load 50% duty cycle ± 2% POWER OUTPUT:Tests and Sub Driv e functions. B+VOLTS RANGE: 0 - 19.9 volts DYNAMIC TESTS 2 amps ± 10% to 40 volts 80FRE QUENCY RANGE: VPP RANGE: autoranged 0 - 400 (BASE OR GATE METER) watts ± 10% over 40 volts125 kHz VPP VPP RANGE: 0 VPP to 50 VPP POWER LIMIT RANGE:< 3 watt (min) to > 80 wattEXTERNAL SYNC INPUT:HORIZONTAL OUTPUTDYNAMIC TESTSINPUT SIGNALS: Horizontal Sync.Composite Sync, CompositeAnalog Video (± Polarity)FREQUENCY RANGE:15 kHz 125 kHzSENSITIVITY:Composite Analog Video > .5 VPPHoriz. or Composite Sync > 2 VPPHORIZONTAL OUTPUT LOADTEST B+ POWER SUPPLYVOLTAGE RANGE:0 - 18 VDC ± 0.5 volts.CURRENT LIMIT: 250 mA ± 10%LOAD TESTSB+ mA RANGE: 0-250 mATIME µS RANGE: 0.1 µS - 50 µSTIME µS TRIGGER LEVEL:5% ± 1% of pos. pulses withVPP > 10 VPPRINGER TESTFUNCTION:Approximate coil "Q" determinedby exciting the coil and countingringing cycles to a damped level.DYNAMIC TESTS(COLLECTOR OR DRAIN METER)VOC RANGE: Autoranged.0 - 400 voltsVPP RANGE: Autoranged.0 VPP to 1500 VPP(HORIZONTAL DRIVER TEST)FUNCTION:Measures the horizontalstage output current capability bysimulating a low impedancebase/emitter transistor junction.BASE mA RANGE: 0-2000GENERALFLOATING GROUND ISOLATION:600 volts (DC + peak AC) from"-" terminal to chassis groundwith < 500 µADIGITAL DISPLAY: Vacuum fluorescentmatrix 40 x 2AC POWER: 105 to 125 VAC 50/60DYNAMIC TESTS (SUB DRIVE )Hz. May be factory converted toFUNCTION:220 VAC.Substitute drive optimized to SIZE: 6" X 11.5” X 15.5”properly drive the base or gate of(15.2 X 29.1 X 39.3 cm) HWDany horizontal output transistor. WEIGHT: 14 lbs. (6.4 kg.)BASE SUB OUTPUT: Squarewave50%, -2/+6% duty cycle All specifications allow forGATE SUB OUTPUT: Squarewave, 20 minutes of warm-up and are50% duty cycle ±2% guaranteed at 15 to 35 degrees C.AccessoriesSupplied:1. 39G470 Load & Ringer Test Lead2. 39G469 Dynamic Test Lead3. 39G481 B+ Supply LeadOptional:4. 39B296:A Video Test Cable5. 39G508 Composite Sync Cable6. 39G348 Drive Sync Cable7. 39G494 Dynamic DVM Test Lead8. HP200 50 kV High Voltage Probe9. TP212 10 kV Transient Protector Probe10. PC263 Protective CoverS E N C O R E 15

HA2500All Sencore Instruments Are Backed ByOur Exclusive 30 Day Money BackGuarantee"If you are not completely satisfied with anySencore instrument. you may return it during thefirst 30 days, and we'll give you a full refund,including freight, no questions asked.”Toll Free Access To the Entire FactorySencore does not stop providing assistance afteryou purchase one of our instruments. We providefree technical assistance on any instrument usequestions, future purchase assistance, industrytrend information, instrument service, or anyquestion you may have or test instruments. Justcall Sencore at our toll free 1-800-SENCOREnumber. Your Area Sales Engineer, an ApplicationEngineer. or a Service Technician will be happy toassist you.Sencore’s Exclusive After-The-Sale SupportMade Right GuaranteeIn addition to the 1 year warranty on parts andlabor (less than 2% are returned for warrantyservice). Sencore offers you a 100% Lifetime MadeRight Guarantee. We guarantee your instrumentwas engineered right the first time. If there’s aproblem, we'll make it right, for the lifetimeof the instrument.Extended Service Agreement Programs(ESA)Sencore announces our new Extended ServiceAgreement Programs for your HA2500. Theseprograms can be an extension of your warrantycoverage or simply a method for you to haveannual calibrations at a reduced rate. For furtherinformation regarding these programs, pleasecontact your Area Sales Engineer or theService Department.Sencore One Year WarrantyEvery Sencore instrument is warranted for one year against defects of any cause except acts of God and abusive use.During this warranty period, Sencore will correct any covered defect without charge for parts, labor, or recalibration.Sencore Value Added ServicesThe HA2500 is certain to play an important role in helpingyou achieve maximum efficiency and profits in your videodisplay refurbishing, repair. or maintenance operation.To help you realize the maximum benefits offered by theHA2500, Sencore provides a full range of after-the-saleproduct support services. These services include:1. Sencore News magazine publications featuring technical articleson the HA2500.2. Technical Training Courses on horizontal & related stages.3. Video Training Tapes4. Application Engineers to answer HA2500 application questions.5. Sencore Website for HA2500 service and support information.6. Field Trainers holding technical training classes on computer monitors,horizontal stages and applying the HA2500.7. A full factory service department for timely repairs and instrument updates.Call 1-800-SENCORE(736-2673)SENCORE3200 Sencore Drive, Sioux Falls, SD 57107Direct: (605)339-0100 Fax: (605)339-0317www.sencore.com #6711
