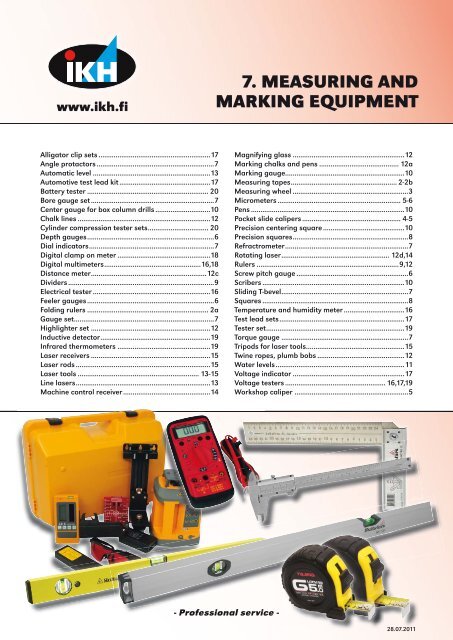

7. MEASURING AND MARKING EQUIPMENT

7. MEASURING ANDMARKING EQUIPMENTAlligator clip sets ...........................................................17Angle protactors ..............................................................7Automatic level ..............................................................13Automotive test lead kit ................................................17Battery tester ................................................................ 20Bore gauge set .................................................................7Center gauge for box column drills .............................10Chalk lines ......................................................................12Cylinder compression tester sets ................................ 20Depth gauges ...................................................................6Dial indicators ..................................................................7Digital clamp on meter .................................................18Digital multimeters ...................................................16,18Distance meter .............................................................12cDividers .............................................................................9Electrical tester ..............................................................16Feeler gauges ...................................................................6Folding rulers ................................................................ 2aGauge set ..........................................................................7Highlighter set ...............................................................12Inductive detector ..........................................................19Infrared thermometers .................................................19Laser receivers ...............................................................15Laser rods .......................................................................15Laser tools ................................................................ 13-15Line lasers .......................................................................13Machine control receiver ..............................................14Magnifying glass ...........................................................12Marking chalks and pens .......................................... 12aMarking gauge...............................................................10Measuring tapes ........................................................ 2-2bMeasuring wheel .............................................................3Micrometers ................................................................. 5-6Pens .................................................................................10Pocket slide calipers .................................................... 4-5Precision centering square ...........................................10Precision squares .............................................................8Refractrometer .................................................................7Rotating laser ......................................................... 12d,14Rulers ...........................................................................9,12Screw pitch gauge ...........................................................6Scribers ...........................................................................10Sliding T-bevel ...................................................................7Squares .............................................................................8Temperature and humidity meter ................................16Test lead sets ..................................................................17Tester set .........................................................................19Torque gauge ...................................................................7Tripods for laser tools ....................................................15Twine ropes, plumb bobs ..............................................12Water levels ....................................................................11Voltage indicator ...........................................................17Voltage testers ..................................................... 16,17,19Workshop caliper ............................................................5- Professional service-28.07.20112011

MEASURING TAPESMEASURINGTAPESZ-lock• recoil brake for the adjustment of the rewinding speed• non-slip elastomer grip prevents slipping and protects measurefrom damage, also will not scratch most surfaces if dropped• protective nylon coating “solid tape” lasts 3 times longer thanconventional tapes• EC-class IIOrder no. Width LengthPack.size EANTAJ001 25 mm 5 m 6/60 4975364026569TAJ002 25 mm 8 m 4/40 4975364026576MEASURINGTAPESG-lock• non-slip elastomer grip prevents slipping and protects measurefrom damage, also will not scratch most surfaces if dropped• EC-class IIOrder no. Width LengthPack.size EANTAJ003 19 mm 5 m 6/60 4975364024800TAJ004 25 mm 7 m 6/60 4975364024718MEASURING TAPESHi Lock• strong and compactABS round case• EC-class IIMEASURINGTAPESG-lock Magnet• non-slip elastomer grip prevents slipping and protectsmeasure from damage, also will not scratch mostsurfaces if dropped• magnetic tip• EC-class IIPack.Order no. Width Length size EANTAJ048 25 mm 5 m 1/6 4975364028426Order no. Width LengthPack.size EANTAJ005 13 mm 2 m 6/120 4975364010568TAJ006 16 mm 3 m 6/60 4975364010742TAJ007 19 mm 5 m 6/60 4975364011077TAJ008 25 mm 5 m 12/48 4975364011350TAJ009 25 mm 7 m 12/48 4975364011398TAJ010 25 mm 10 m 6/30 4975364024220MEASURING TAPES• sliding hook allows true zero point• special slot in hook allows use ofnail as pivot to draw circles and arcs• heavy-duty spring and blade system• thicker blade enables longer and stiffer standout• case of lightweight but durable ABS-plastic• EEC-approvedOrder no. Width LengthPack.size EANFI200 16 mm 3 m 1/12/120 6418914747951FI201 25 mm 5 m 1/12/72 6418914747968FI202 25 mm 7,5 m 1/12/48 6418914747975FI203 25 mm 10 m 1/12/48 6418914747982MEASURING TAPES• sliding hook allows true zero point• special slot in hook allows use ofnail as pivot to draw circles and arcs• heavy-duty spring and blade system• thicker blade enables longer and stiffer standout• case of lightweight but durable ABS-plastic with rubber coating• EEC-approvedOrder no. Width LengthPack.size EANFI204 19 mm 3 m 1/12/120 6418914747999FI205 25 mm 5 m 1/17/72 6418914748002FI206 25 mm 7,5 m 1/12/48 64189147480197/2

MEASURING TAPE 5 mwith magnetFI207• sliding hook allows true zero point• special slot in hook allows use ofnail as pivot to draw circles and arcs• heavy-duty spring and blade system• thicker blade enables longer and stiffer standout• case of lightweight but durable ABS-plastic with rubber coating• with magnet• EEC-approved• length 5 m• width 25 mm• packing size: 1/12/72/864EAN 6418914748026MEASURING TAPE 5 mwith LED and metal bodyFI208• sliding hook allows true zero point• special slot in hook allows use of nailas pivot to draw circles and arcs• heavy-duty spring and blade system• thicker blade enables longer andstiffer standout• metal case with rubber coating• built-in LED-light• EEC-approved• length 5 m• width 19 mm• packing size: 1/12/72/864EAN 6418914748033BUTTON CELL BATTERYGPBR1225MEASURING TAPE 3 mTalmeter TM3HU079• tape width 16 mm• white steel tape with antireflection mat finish• when measuring circumference of roundobject scale indicates the diameter of it• combined marking and measuring tips forinner and outer dimensions• ABS-plastic case• packing size: 1/10EAN 7392339000039MEASURING TAPES• ergonomically designed• the material of case is impactand wear-resistant satinfinished ABS-plastic• lockable to desired length• reinforced measure tip holder– longer life• ”pause” -button: when pulling out the tape it’s not neededto touch the tape by hands; it stays in desired length bypushing a ”pause” button which makes measuring easier• the absorber in case absorbs the impact when inreeling• the middle axis of measure tape is zink coated metal (notplastic)Order no. Width Length Packing size EANIKH3019 19 mm 3 m 1/12/72 6418914624214IKH5025 25 mm 5 m 1/12/72 6418914624221IKH8025 25 mm 8 m 1/12/48 6418914624238IKH1025 25 mm 10 m 1/12/48 64189146242457/2aFOLDING RULERS, WOOD• length 2 m• 10 parts• width 17 mm• EC class III• deviation ±1,4 mm,across a joint ±0,5 mm• made of high-quality wood, oiledjoints made of heat-treated andepoxy lacquered steel• graduations on both sides• packing size: 1/10Orderno. Scales EANHU001 mm-scale 7317841000018HU002 mm- and inchscale731784100501309.12.2011

MEASURING TAPESIN NEON COLOURSPack.Order no. Width Length size EANXKDS5025 25 mm 5 m 1/6/48 6418914608092MEASURING TAPE 20 mEngineer PocketTAJ011• width of tape 10 mm• the core of tape high grade tool steel,acrylic resin coating• accurate, strong scale• packing size: 4/40EAN 4975364012579MEASURINGTAPES, STEEL• white steel tape with antireflection mat finish• ABS-plastic housing• class 2Order no. Width LengthPack.size EANHU007 10 mm 20 m 1/5 7317843529012HU008 10 mm 30 m 1/5 7317843530018MEASURING TAPESEngineer Ten• good for long distance measurement• strong ABS case,rubber coated handle• painted steel tape• EC-class IIOrder no. Width LengthPack.size EANTAJ012 13 mm 30 m 1/10 4975364042057TAJ013 13 mm 50 m 1/10 4975364042064MEASURING TAPESSymron-R• strong plastic case• fiberglass reinforced, PVC-coated tape• EC-class IIIOPEN REEL MEASURING TAPES, STEELOrder no. Width LengthPack.size EANTAJ015 13 mm 30 m 1/10 4975364034915TAJ016 13 mm 50 m 1/10 4975364034922Order no. Width Length Packing size EANXK51936 10 mm 30 m 1/20 6418914607088XK51937 10 mm 50 m 1/10 64189146070957/2b09.12.2011

MEASURING WHEELFIX013• suitable for land road precision measurement• measuring wheel Ø 318 mm• counter adds when moving forwardand substracts in reverse• folding handle• includes stand support and carrying bag• packing size: 1/4/16EAN 64189147621077/319.04.2011

POCKET SLIDECALIPER120 mmX004146C• made of steel• millimeter and inchgraduation• measuring length120 mm• packing size: 1EAN 4011619206833POCKET SLIDECALIPER150 mmX004146A• made of steel• millimeter scale• measuring length150 mm• packing size: 1/50EAN 6418914149236POCKET SLIDECALIPER150 mmSC001• DIN862• for inner, outer anddepth measuring• material stainless steelchrome• with quick level• millimeter and inch scale• measuring length150 mm, jaws 40 mm• vernier0,05 mm / 1/128”• leather pocket• weight 160 g• packing size: 1EAN 4011619251611POCKET SLIDECALIPER150 mmSC033• DIN 862• for inner, outer anddepth measuring• material stainlesssteel-chrome• with fixing screw• millimeter and inchscale• measuring length150 mm, jaws 40 mm• vernier0,05 mm / 1/128”• storing pocket• weight 160 g• packing size: 1EAN 4011619252632DigitalPOCKET SLIDE CALIPER150 mmX004146B• measuring length 150 mm/6”• reading 0,01 mm/0,00005”• measuring speed 1,5 m/sec.• mm/inch screen by pushing a button• suitable battery GPLR44 1,5 V “buttonbattery”• softened box• packing size: 1/50EAN 6418914149243DigitalPOCKET SLIDECALIPER 150 mmSC082• DIN 862• for inner, outer and depthmeasuring• stainless steel• with fixing screw• millimeter and inch scale• ALSO INDICATES INCHFRACTIONS (1/2” e.g.)• measuring length 150 mm,jaws 40 mm• reading 0,01 mm/0,001”• accuracy 0,07 mm• spare battery included• suitable battery GPLR441,5 V ”button battery”• plastic box• packing size: 1EAN 4011619230104DigitalPOCKET SLIDE CALIPER150 mmSC035• DIN 862• for inner, outer and depth measuring• material stainless steel• with fixing screw• millimeter or inch scale• measuring length 150 mm, jaws 40 mm• reading 0,01 mm / 0,001”• accuracy 0,07 mm• suitable spare battery GPLR441,5 V button battery• storing pocket• packing size: 1EAN 4011619230470PRECISIONDIAL CALIPER 150 mmSC070• DIN 862• with cross-points and depth gauge• stainless steel, hardened• with fixing screw• adjustable dial face• mm-scale• measuring length 150 mm,jaws 40 mm• impact resistant watch dial shows mm centis• weight 330 g• packing size: 1EAN 40116192172667/4

POCKET SLIDECALIPER150 mmSC042• DIN 862• for inner, outer and depth measuring• for quick marking in steel, wood orplastic• material stainless steel-chrome• jaw quick locking• millimeter and inch scale• measuring length 150 mm,jaws 40 mm• vernier 0,05 mm / 1/128”• weight 160 g• packing size: 1EAN 4011619258610LEATHER POCKETfor 150 mm caliperSC034• for 140–160 mm calipers• durable imitation leather• weight 35 g• packing size: 1EAN 4011619291921WORKSHOP CALIPERS• DIN 862• for inner and outer measuring• material stainless steel-chrome• with fixing screw• millimeter and inch scale• definition 0,05 mm / 0,0078”• packing size: 1Orderno.Measuringlength Jaw Weight EANSC002 300 mm 100 mm 630 g 4011619320331SC003 500 mm 150 mm 1000 g 4011619320355DigitalWORKSHOP CALIPER 200 mmSC075• DIN 862• material stainless steel, hardened• for inner, outer and depth measuring• millimeter and inch scale• measuring lenght 200 mm, jaw 50 mm• reading 0,01 mm / 0,001”• automatic switch-off• weight 450 g• packing size: 1EAN 4011619230234MICROMETER +DIGITAL CALIPER SETSC059• digital caliper:(order no. separately SC035)- DIN 862- inner, outer and depth measuring- stainless steel- jaw screw-locking- mm and inch scale- measuring length 150 mm,jaws 40 mm- reading 0,01 mm / 0,001”- suitable spare batteryGPLR44 1,5 V button battery• micrometer:(order no. separately SC025)- DIN863- measuring scale 0-25 mm- made of matt chromed steel- locking of stick by turning the knob- accuracy 0,01 mm• packing size: 1EAN 4011619275211WELDINGCALIBER60 - 90°SC083• analog• ready corners: 60°, 70°, 80°, 90°• stainless steel• weight 70 g• packing size: 1/50EAN7/515.03.2010

DEPTH GAUGES• DIN862• made of tool steel,hardened surface• with fixing screw• millimeter scale• accuracy 0,05 mm• SC005 includes leather pocket• packing size: 1Order no. Measuring Bridge Weight EANlengthSC004 200 mm 100 mm 160 g 4011619350611SC005 300 mm 150 mm 250 g 4011619350130MICROMETERS• DIN863• made of mat chromed steel• accuracy 0,01 mm• locking of stick by turning the knob• packing size: 1Order no. Measuring range EANSC025 0 - 25 mm 4011619533519SC026 25 - 50 mm 4011619533526SC027 50 - 75 mm 4011619533533SC036 75 - 100 mm 4011619533540MICROMETER SET0–100 mmSC037• DIN 863• made of mat chromed steel• accuracy 0,05 mm• locking of stick by turning the knob• includes: micrometers 0-25, 25-50, 50-75,75-100 mm + check pieces 25, 50, 75 mm• wooden case• packing size: 1EAN 4011619533711PRECISIONMICROMETER0–150 mmSC031• DIN 863• accuracy 0,01 mm• reading parts chrome plated• painted body• check pieces25, 50, 75, 100 and 125 mm• packing size: 1EAN 4011619535520SCREWPITCH GAUGESC013• DIN5480• for inner and outermeasuring• made of steel• threads 0,25–6 mm• 52 blades• exact machinedblades• weight 80 g• packing size: 1EAN 4011619464615SCREW PITCHGAUGEXTDG324• screw pitch mm:0,5 / 0,6 / 0,7 / 0,75 / 0,8 / 0,9 / 1,0 /1,25 / 1,5 / 1,75• pitches / inch:SAE 12 / 13 / 14 / 16 / 18 / 20 / 24 /27 / 28 / 32 / 36 / 40• packing size: 1/240EAN 64189146154657/6FEELERGAUGESC014• made of spring steel• 0,05–1,0 mm• blades numbered,20 pcs, 100 mm, width 13 mm• packing size: 1EAN 401161947063009.12.2011

DIAL INDICATOR10 mmSC030• DIN 878• graduation 0-100• accuracy 0,01• zero-setting possiblein any position• diameter 40 mm• packing size: 1EAN 4011619621209MAGNETICBASE STANDSC011• total height 300 mm• strong rods of tool steel,thickness 16 mm• thread M8• prismatic base60 x 55 x 50 mm• cling power 60 kg• packing size: 1EAN 4011619438302DIAL-INDICATORWITH MAGNETIC BASESC060• DIN 878• graduation 0-100• accuracy 0,01• zero-setting possiblein any postition• diameter 40 mm• MAGNETIC BASE:- height 300 mm- rods made of tool steel,thickness 16 mm- thread M8- prismatic magnetic base,size 60 x 55 x 50 mm- cling power 60 kg• packing size: 1EAN 4011619275235TELESCOPICGAUGE SET6-pcs.SC012• for inner measuring• gauge A 8 - 12,7 mmB 12,7 - 19 mmC 19 - 32 mmD 32 - 54 mmE 54 - 90 mmF 90 - 150 mm• packing size: 1EAN 4011619439507BORE GAUGE SETSC080• measuring-tool for testing cylindrical bores• points carbide tipped• range Ø 50-178 mm, depth 250 mm• packing size: 1EAN 4011619439231ANGLE PROTRACTORXTB6116• adjustable angle 0-180°• size: 230 x 500 mm• aluminium• packing size: 1/15/60EAN 6418914158665TORQUE GAUGE360°IKH7002• for tightening boltsaccording tograduation angle• set the 0-point by rotatingindicator plate• drivers 1/2”• graduation 0-360°• lock lever• height 55 mm• packing size: 1/12/48EAN 6418914695788REFRACTROMETERSC028• measuring gauge forglycol and battery acids• packing size: 1EAN 6418914703308STEEL PROTRACTORS• made of steel• scale 0-180°• tightening screw• packing size: 1Order no. Length EANSC057 120 mm 4011619486617SC021 150 mm 4011619486624SC058 200 mm 4011619486631SC050 300 mm 4011619486648SLIDING T-BEVELXCL917• moulded handle• wing plate coated with steel, quicklyadjustable by means of wing nut• easies making bevels and corners• specifies bevelled and skew angles• packing size: 1/12/72EAN 64189146029847/7

SQUARES• aluminium, mat finished• mm-graduation• packing size: 1SQUARES• stainless steel blade with deep etchedmm-graduations• zinc stock with milled working surfaces• tolerance ±0,03°• packing size: 1/5Order no. Size mm Weight EANSC063 300 x 200 470 g 6418914707900SC065 1000 x 400 1400 g 6418914707924Order no. Length EANHU018 200 mm 7317842500012HU019 250 mm 7317842501019HU020 300 mm 7317842502016SQUAREQuatro 250 mmHU017• anoised aluminium stock• stainless steel blade• deep etched mm-graduations• stock and blade can be folded together• tolerance ±0,06°• packing size: 1/5EAN 7317842531016SQUAREXTB6501• size: 400 x 600 mm• painted black• packing size: /12/24EAN 6418914158672PRECISIONSQUARES• DIN875/3• made of tool steel• with flat support• packing size: 1Order no. SizeMaterialthicknessWidth Weight EANSC006 150 x 100 mm 5 mm 25 mm 300 g 4011619403546SC007 250 x 160 mm 7 mm 35 mm 700 g 4011619403560SC008 400 x 200 mm 7 mm 35 mm 1400 g 4011619403584SQUARETK1448• length 300 mm• yellow• packing size: /6/120EAN 6418914125162PRECISION SQUARES• with flat support• chrome-plated tool steelOrder no. SizeMaterialthickness Width WeightPackingsize EANSC052 150 x 100 mm 5 mm 20 mm 260 g 1/50 6418914703742SC053 200 x 130 mm 5 mm 20 mm 340 g 1/50 6418914703759SC054 250 x 160 mm 5 mm 25 mm 500 g 1/50 6418914703766SC055 300 x 180 mm 5 mm 25 mm 580 g 1/25 64189147037737/8

ALUMINIUM RULERSOrder no. Length EAN• made of aluminium-profile,satin finished• width 50 mm,thickness 5 mm• packing size: 1SC046 600 mm 4011619418328SC047 1000 mm 4011619418458HARDENED RULERS• polished, hardenedspring steel• scale on both sides• width 30 mm,thickness 1 mm• packing size: 1Order no. Length EANSC022 300 mm 4011619498627SC023 500 mm 4011619498634SC024 1000 mm 4011619498658SC040 2000 mm 4011619498320CUTTING AND MARKING RULERSC010• material aluminiumprofile, satin finished• stainless• length 1000 mm, width 50 mm, thickness 5 mm• with strong grip handle• weight 620 g• packing size: 1EAN 6418914703292KNIFE-EDGE RULER100 mmSC038• DIN 874/0• made of tool steel• knife-edge, ground, lapped• heat-insulated handle• length 100 mm, profile 25 x 6 mm• weight 90 g• packing size: 1EAN 4011619423131STEEL RULERSSymron-R• stainless steel, hardened• EC-class IOrder no. Width Thickness size EANPackingTAJ018 30 mm 1,2 mm /50 4975364041227TAJ019 35 mm 1,5 mm /10 4975364041258STEEL RULERSOrder no. Scale Packing size EANXK004142 0-300 mm 10/300 6418914615823XK004142A 0-1000 mm 10/20/150 6418914615830DIVIDERS• made of forged steel• riveted connections• with fixing screw• hardened• packing size: 1Order no. Length EANSC015 150 mm 4011619478612SC016 200 mm 4011619478629SC017 250 mm 4011619478636SC018 300 mm 4011619478643SPRING DIVIDERSXTB6107• Blister-package• with spreading spring• max. stoke radius 220 mm• length of shaft 200 mm• hardened bits• packing size: 1/10/100EAN 6418914158658SPRING DIVIDERS• made of forged steel• hardened, bent tips• with quick nut• packing size: 1Orderno. Length EANSC019 150 mm 4011619480622SC020 250 mm 40116194806467/9

MARKINGCHALKS250 g• packing size: 1/6/60Order no. Colour EANIKH7301 blue 6418914522657IKH7302 red 6418914522664IKH7303 white 6418914522671IKH7304 yellow 6418914522688MARKING CHALKS• packing size: 1/12Order no. Colour EANMR076 red 4084900550878MR077 yellow 4007535411475MARKING PENS• waterproof, for all surfaces• packing size: 1/10/60Order no.PointshapeTracewidth Colour EANHER001 flat 1 - 5 mm black 4008110326139HER002 flat 1 - 5 mm blue 4008110326122HER003 flat 1 - 5 mm green 4008110326146HER004 flat 1 - 5 mm red 4008110326153HER005 sharp 1 - 4 mm black 4008118060103HER006 sharp 1 - 4 mm blue 4008118060110HER007 sharp 1 - 4 mm green 4008118060165HER008 sharp 1 - 4 mm red 4008118060127HER009 sharp 1 - 1,5 mm black 4008110343426HER010 sharp 1 - 1,5 mm blue 4008110343433HER011 sharp 1 - 1,5 mm green 4008110343495HER012 sharp 1 - 1,5 mm red 4008110343464INDUSTRY MARKERSfor professional use• quality paint marker for professionaland industrial use• for highly opaque marking of almostany materials, also dark surfaces• waterproof• quick drying• packing size: 1/10/100Order no.PointshapeTracewidth Colour EANBP525 round 4 mm yellow 4260036580525BP549 round 4 mm white 4260036580556MARKERfor drill holesBP587• marker for marking drill holesand hard-to-reach areas• 25 mm stainless steel tip• waterproof on almost any surfaces• packing size: 1/100EAN 426003658058725 mmUNIVERSAL PENCIL 7B240 mm, 9 pcsBP396• universal pencil, soft lead 7B, 240 mm• 9 pcs / package• triangular• suitable for marking on smooth surfaces,dry and wet wood, carton, paper, metal,brickt and tiles• wiping proof and weather resistant• packing size: 1/36EAN 4260036580396MASONRY PENCIL 6H240 mm, 12 pcsBP334• masonry pencil, hard lead 6H, 240 mm• 12 pcs / package• flat-oval• suitable for marking on rough, hardsurfaces stone, concrete and bricks• wiping proof and weather resistant• packing size: 1/36EAN 4260036580334OIL MARKER 8 mlfor exact lubricationBP471• multipurposal oil for hobby and industry use• applications: lubricating bike chains, removingadhesive price tags, lubricatign hinges etc.• silicone-free• packing size: 1/50/100EAN 42600365804717/12a13.12.2010

MARKING SET PROFI for universal useBP99• set includes two bodies and 3 x 5 pcs refill lead boxes(red, yellow and graphite)• lead size 5,6 x 120 mm• made of durable brass material• easy lead adjustment by pressing a button• red and yellow allwriter lead are suitablefor any surface no matter if it is dry or wet• graphite lead is suitable for wood,paper and carton• marker has an useful clip and lead sharpenerinside the push button• packing size: 1/12/48EAN 4260036580099MARKING SET PROFI for weldersBP440• set includes two bodies and 3 x 5 pcs refill lead boxes• lead size 5,6 x 120 mm• made of durable brass material• easy lead adjustment by pressing a button• red allwriter lead for marking on cold metal,steel and almost any materials• soapstone lead for marking on metal andsteel, welding and cutting up to 2000 °C• long lasting, white, fireproof line, clearlyvisible even through welding goggles• marker has an useful clip and lead sharpenerinside the push button• packing size: 1/50EAN 4260036580440PROFI SPARE LEAD5 pcs, 5,6 x 120 mm, graphiteBP105• graphite• 5 pcs / package• suitable for wood,paper and carton• refill for the the universal marking set Profi BP99• packing size: 1/120EAN 4260036580105PROFI SPARE LEAD5 pcs, 5,6 x 120 mm, red allwriterBP112• red allwriter• 5 pcs / package• suitable for almost any surface nomatter if it is dry or wet• refill for the the universal marking set Profi BP99• packing size: 1/120EAN 4260036580112PROFI SPARE LEAD5 pcs, 5,6 x 120 mm, yellow allwriterBP129• yellow allwriter• 5 pcs / package• suitable for almost any surfaceno matter if it is dry or wet• refill for the the universal marking set Profi BP99• packing size: 1/120EAN 4260036580129PROFI SPARE LEAD for welders5 pcs, 5,6 x 120 mm, soapstoneBP464• soapstone, white• 5 pcs / package• length 120 mm• soapstone lead for marking on metal andsteel, welding and cutting up to 2000 °C• long lasting, white, fireproof line, clearlyvisible even through welding goggles• refill for the the welder’s marking set Profi BP440• packing size: 1/120EAN 4260036580464LUMBER CRAYONS12 pcs, 12 x 120 mm• 12 pcs / package• size 12 x 120 mm• suitable for marking on dry and wet wood,paper, carton, metal, stone, concrete, tiles, plastic etc.• wiping proof and water resistantOrder no. ColourPack.sizeEANBP198 red 1/36 4260036580198BP204 blue 1/36 4260036580204BP211 yellow 1/36 4260036580211LUMBER CRAYONS, graphite12 pcs, 12 x 120 mmBP266• lumber crayon graphite 2B• 12 pcs / package• hexagonal model• size 12 x 120 mm• especially good for timber• suitable for marking on dry andwet wood, paper, carton, stone and metal• wiping proof and water resistant• packing size: 1/36EAN 4260036580266CRAYON HOLDER,metalBP2017• suitable for 10-12 mm crayons• durable and strong holder• fits into any pocket, useful clip• easy crayon adjustment bypressing a button• packing size: 1/10/200EAN 6418914745582BELT HOLSTERfor crayon holderBP2029• leather holster for crayonholder BP2017• belt loop width 40 mm• packing size: 1/12EAN 64189147455997/12bLUMBER CRAYONS for tires12 pcs, 12 x 120 mmBP303• lumber crayon for tires, white• 12 pcs / package• size 12 x 120 mm• suitable for marking almost any surface, escpeciallyon tires. Also good for dry and wet wood, glass, rubber,stone, concrete, tiles, etc.• wiping proof and water resistant• packing size: 1/36EAN 426003658030323.06.2010

411DDISTANCE METERFLU411D• small-size, handy distance meterfor indoor use• accuracy ± 3,0 mm• measuring distance: 0,1 – 30 m (0.33 - 100 ft)• functions: surfacearea, volume, Pythagoras,addition/subtraction, continuous measuring• automatic switch-off after 180 s• measuring units millimeters and inches• operation temperature 0 - +40 °C (32 - +104 °F)• battery durability (2 x AAA) up to3000 measurements• dimensions 118 x 50 x 26 mm (4.65 x 1.97 x 1.02 in)• weight 100 g• packing size: 1/24EAN 0095969467384F03DISTANCE METERTAJ049• measuring accuracy ± 2,0mm* (± 0,12 in*)• measuring distance 0,1 - 30 m (0,33 - 100 ft)• smallest unit display 1 mm (1/16 in)• functions: surface area, volume, pythagoras,addition/Subtraction, continuous measuring• automatic switch-off after 180 s• measuring units millimeters and inches• operation temperature 0 - +40 °C (32 - +104 °F)• storage temperature -25 dgr - +70 dgr (77 - +158 °F)• battery durability (2 x AAA) up to 3000 measurements• dimension (L x W x H) 118 x 50 x 26 mm (4,65 x 1,97 x 1,02 in)• weight 100 g• packing size: 1/4EAN 4975364047816Utilization:• indoor distance metering• surface area of walls, floors and roofs• volume of the rooms• equally spaced marking for example supportingrails, panelsUtilization:• indoor distance metering• surface area of walls, floors and roofs• volume of the rooms• equally spaced marking for example supportingrails, panels* under favorable conditions (good target surface,room temperature) up to 10 m (33 ft). Under unfavorableconditions such as bright sunlight, a veryweakly reflecting target surface or large temperaturefluctuations, the deviation can rise by ± 0.25mm/m (± 0.01 in) for distances over 10 m (33 ft).Leica Disto D5DISTANCE METERLE001• first laser distance meter with digitalPointfinder (4x zoom), large 2.4” colordisplay and ± 45°tilt sensor• measuring accuracy ± 1,0 mm• measuring distance: 0,05 – 200 m (0,16 - 650 ft)• smallest unit display 0,1 mm• functions: surface area, volume, Pythagoras,Trapezium, addition/subtraction, continuousmeasuring, tilt measurement• built-in tilt sensor, inclination measurement up to ± 45°• automatic switch-off (laser after 3 min / instrument after 6 min)• operation temperature -10 - +50 °C (14 - +122 °F)• storage temperature -25 - +70 °C (-13 - +158 °F)• battery durability (2 x AA) up to 5000 measurements• dimension (L x W x H) 143,5 x 55 x 30 mm• weight 195 g• packing size: 1EAN 7640110690888Digital Pointfinder• The integrated digital Pointfinder with a 4xzoom and 2.4“ color display makes findingthe target at long distances much easier.Its high resolution capability provides asharp, crystal-clear image, which allowsmeasurements to be taken even in glaringsunshine.Tilt sensor• Thanks to the in-built tilt sensor, you canquickly and simply measure tilts up to ±45°. The tilt sensor also allows you to measureabsolutely horizontally or measurepast obstructions (horizontal distance).Power Range Technology• The integrated Power Range Technologyallows you to measure long distances verysimply. Measure up to 100 m without atarget plate, and even up to 200 m using atarget plate, without having to take a singlestep.Spot-on measurement• The laser makes it possible! The laser dot isclearly visible, therefore you always knowexactly where you are measuring, whichis especially useful in difficult to accessplaces. So you can take absolutely precisemeasurements, even over long distances.Details displayed• Additional information about the measurements,e.g. room dimensions or angles, isavailable at the touch of a button.Utilization:• indoor distance metering, surface areaof walls, floors and roofs, volume of therooms, equally spaced marking for examplesupporting rails, panels7/12c28.07.2011

Leica Rugby 50ROTATING LASERLE002• laser class 1• laser diode 780 nm (infrared)• self leveling range ± 5°• accuracy ± 2,6 mm / 30 m• working range 300 m• rotating speeds 10 rps (600 rpm)• simple, one-button operation• high impact composite housing• fully sealed with enclosed head• watertight for all conditions• H.I alert protection• alkaline batteries• long battery life• low battery indicator• operating temperature -20 - +50°C• includes:- laser- Rod-Eye receiver- carrying case• packing size: 1EAN 6418914776197Always automatic - Always self-leveling• The Leica Rugby 50 is designed to always turn on in automatic selflevelingmode. No concerns for setting up the laser incorrectly. Setup the Leica Rugby 50 within its wide leveling range, the instrumentwill automatically self-level and work can begin.H.I. (Elevation) Alert• The H.I. or Elevation Alert function monitors the leveling of theLeica Rugby 50. Any significant disturbance or movement of thetripod will cause the alert function to activate. The Leica Rugby 50will stop operation and will sound an alarm to prevent possibleerrors.Out of level indication• During normal operation, the Leica Rugby 50 continuously selflevels.Small vibrations and disturbances may cause an out of levelcondition. The head will stop momentarily and the emission LEDwill blink until the unit re-levels and work can resume.Leica Rugby 100ROTATING LASERLE003• laser class II• laser diode 635 nm (bright, visible beam)• self leveling range ± 5°• accuracy ± 1,5 mm / 30 m• working range 300 m• rotating speeds5 rps (300 rpm) / 10 rps (600 rpm)• manual Grade up to 10 %• automatic self-leveling rotatinglaser for general construction• simple four-switch keypad thatcontrols all the functions• has been engineered to withstandthe toughest jobsite conditions• can also be set in manual operationup to 10% in one axis for thoseapplications that require a slope• co-molded rubber and high-impactplastic housing• fully sealed with enclosed head• watertight for all conditions• H.I alert protection• low battery indicator• long battery life• alkaline batteries• operating temperature -20 - +50°C• includes:- laser- Rod-Eye receiver- carrying case• packing size: 1EAN 64189147762037/12d28.07.2011

LASER TOOLSCROSS LINE LASERSL006• accuracy 3 mm/10 m• laser class II• laser diode 635 nm• vertical, horizontal and latticed beams can be swtiched ontogether of one at the time at the press of button• working range 25 m• auto leveling range 5°• batteries 3 x AA 1,5 V, battery life appr. 25 h• flashing beam when out of auto-leveling range• pulse operation for receiver use (SL013 additional equipment)• packing size: 1/24EAN 6418914535480AUTOMATIC LEVEL 24 XSL003• accuracy 2 mm /1 km• 24X enlargement• objective aperture 36 mm• the shortest distance 0,5 m• circle graduation 360°• metal body• sealed, dust-protected design for working in all weather conditions• packing size: 1/4EAN 6418914535459RECEIVERSL013• additional equipmentCROSSLINE LASERSL001• accuracy 3 mm/9 m• laser class II• laser diode 635 nm• three lines - two vertical and one horizontal• working distance max. 10 m• beam height/width 14 m, when the laser is in 10 m awayfrom the target• self leveling range +/- 5°, self leveling speed 3 seconds• automatic shut off when out of self leveling range• equipped with pendulum locking system to protect theinstrument during transportation• batteries 3 x AA, 1,5 V, battery life appr. 15 h• weight 0,9 kg• includes laser device, protecting glasses, target plate andpadded kit box• packing size: 1/10EAN 6418914535435MULTILINE LASERSL002A• accuracy 1 mm / 5 m• laser class II• laser diode 635 nm• working range 10 m, with receiver 25 m• self levelling range +/- 3°• audio and light signal when out of self leveling range• 4 vertical beam to the side 180°• 1 vertical beam forward 90°• 2 spot beams: up and down• each beam can be switched on/off together or one at the timewith remote control• automatic pendulum locking system for transportation when thecurrent is switched off• waterproof grade IPX4• operating temperature -10 - +50°C• batteries:- laser device 3 x AA, 1,5 V, battery life appr. 10 h- receiver 1 x 9 V, battery life appr. 30 h• weight 2,2 kg• includes: laser device, protecting glasses, receiver, remote controland carrying case• packing size: 1EAN 6418914557451SPARE RECEIVERSL0107/1312.12.2011

LASER TOOLSROTATING LASERSL004A• laser class II• laser diode 635 nm• self levelling range +/- 5°• working distance with receiver 150 m• rotating speed 120 - 500 rpm• really fast self horizontal and vertical levelling• rolling X- and Y-axis• plumbline upwards• waterproof• rechargeable NiMh battery• battery operating time appr. 20 h• operating temperature -20 - + 50° C• remote control for controlling most of the operations• range of the remote control 30 m• includes: rotating laser, receiver, remote control, target plate,charger, mounting plate (wall bracket)• packing size: 1EAN 6418914557468SL014SPARE RECEIVERSL014CHARGERSLV004A-LBATTERY (NiMh)SLV004A-AROTATING LASERProffSL005• laser class II• laser diode 635 nm• self leveling range +/- 5°• working distance with receiver 200 m• adjustable rotating speed 0 / 5 / 200 / 420 rpm• slope (Y-axis) 5°• extremely fast automatic self-leveling for horizontal and verticalworking• when vertical working, the laser line can be moved forward andbackward• with 90° plumb laser beam• waterproof grade IPX6• rechargeable NiMh battery, operating time appr. 15 h, chargingtime 5 h• operating temperature –20 - +50°C• remote control for most of the functions• remote control range appr. 30 m• includes rotating laser, receiver, remote control, target plate,two batteries and charger• packing size: 1EAN 6418914535476SL014SPARE RECEIVERSL014CHARGERSLV005-LBATTERY (NiMh)SLV005-AREMOTE CONTROLSLV005-KMACHINE CONTROL RECEIVERSL007• receiver for fastening to boom and display unit for driver’s cabin• magnetic mounting• two accuracy ranges:- 1: +/- 2mm - +/- 10 mm- 2: +/- 5mm - +/- 23 mm• receives signal 360°• waterproof and dustproof metal case• operating temperature –20…+50°C• works with nearly all brands• built-in rechargeable NiMh battery 7,2 V / 2500 mAh• operating time appr. 40 h• charging time 15 h• weight 3,1 kg• includes receiver, display unit for cabin, battery cable 12/24 V,intermediate cable, charger and carrying case• packing size: 1EAN 64189145354977/1413.12.2010

ACCESSORIES FOR LASER TOOLSLASER RECEIVERfor cross line laserSL013• additional accessory for cross line laserSL006• includes 9 V battery• packing size: 1EAN 6418914543065LASER RECEIVERmulti line laserSL010• for multi line laser SL002• includes 9 V battery• packing size: 1EAN 6418914535527LASER RECEIVERfor rotating laserSL014• for rotating lasers SL004 ja SL005• includes 9 V battery• packing size: 1EAN 6418914543072ALUMINIUMTRIPODSL008• adjustable legs• height 98 - 165 cm• flat mounting plate• packing size: 1EAN 6418914535503ALUMINIUMTRIPOD with elevatorSL009• adjustable legs• height 135 - 200 cm• flat mounting plate• packing size: 1EAN 6418914535510LASER RODSSL011For lasers 2,4 mSL011• mm scale, quick-release• max. length 2,4 m• packing size: 1/10EAN 6418914535534SL012For automatic level 5 mSL012• mm sclae• max. length 5 m• packing size: 1/10EAN 64189145355417/15

DIGITAL METERSVOLTAGE TESTERT100FLUT100• LED-display with 12 LED-lights• voltage checking 12 V - 690 V• continuity testing,indication with sound and light• phase sequence testing• single-polar phase detector• polarity indicator• spotlight• probe protective cover• voltage testing operates without battery• frequency 0 - 400 Hz• protection class IP65• weight 180 g• dimensions: 240 mm x 56 mm x 24 mm• packing size: 1EAN 0095969283175DIGITALMULTIMETERFLU114• true RMS measurements• ideal for troubleshootingin electric systems and forsimple test at home andcommercial use• special function to preventincorrect reading caused byphantom voltage• analogic column dispay• automatic AC-/DC selection• low input impedance preventsphantom voltages• min/max-/average recording mode• resistance, audiable continuity test• display hold• manual and automatic ranging• low battery voltage indicator• compact case with separate holster• safety rating: CAT III 600 V• standard equipment: test leads with 4 mm lantern tips, protectivecasing and 9 V alkaline battery• dimensions: H167, W84, D46 mm• weight 550 g• packing size: 1EAN 0095969095754Accuracy:DC current 600 V, max. discrimination 1 mV +/- (0,5 % +2)AC current 600 V, max. discrimination 1 mV +/- (1,0 % +3)Resistance 40 MΩ, max. discrimination 0,1 Ω +/- (0,9 % +1)INDUSTRIAL KITFluke 179 ComboFLU179KIT• content:- digital multimeter- slim reach test probe (FLUTP4)- silicone test lead set (FLUTL224)- Super Grip -alligator clip set (FLUAC220)- integrated DMM probe- Maglite -flashlight- hard carrying case•packing size: 1EAN 0095969228640ELECTRICAL TESTERwith accessory kitT5-1000FLUT5-1000KIT• tester lets you check voltage, continuityand current with one compact tool• measures up to 1000 volts• Open Jaw -current lets you check currentup to 100 A - without breaking the circuit• LCD-display• automatically measuresvolts AC and volts DC• continuity beeper• DC-polarity indicator• holster attaches to a belt and neatly stowstest leads• standard equipment: tester,4 mm detachable probes (FLUTP4),belt holster and IAC-voltage tester• tester dimensions H203, W51, D30,5 mm,weight 0,38 kg• packing size: 1EAN 00959692426607/1612.12.2011

ACCESSORIES:VOLTAGE INDICATORwith dual detectorFLULVD1• senses voltages 40 V – 300 V AC• blue light: indicator is near tension• red light: indicator is nearly on tension• versatile clip enclosed for clampingindicator to pocket or to control cabinetdoor• packing size: 1EAN 0095969257459VOLTAGE TESTERFLU1AC• easy to use – detects voltage withoutmetal contact: for example if terminalstrip, socket-outlet or conductor hasvoltage in it, the tip glows red andringing tone gives notice of voltage• range 200 – 1000 V AC• the best security classification:CAT IV 1000 V• informs continuous testing of batterieswith double-flash• length 148 mm• incl. alkaline batteries 2 x AAA• packing size: 1/6/12EAN 0095969290821TEST PROBEFLUTP4• one pair (red, black) of slender probebodies for probing closely spaced orrecessed terminals• probe tips 4 mm, designed to fit securelyinto IEC-electrical wall outlets• CAT IV 600 V, CATIII 1000 V,10 A -rating, UL-listed• packing size: 1EAN 0095969057714ALLIGATORCLIP SETSure GripFLUAC285• one pair (red, black) of nickel-plated steeljaws• multipurpose, toothed jaws to be usedfrom thin yarn to 20 mm bolt• it is recommended to be used withsilicone test lead set FLUTL224• CAT IV 600 V, CAT III 1000 V,10 A –rating, UL-listed• packing size: 1EAN 0095969103428ALLIGATOR CLIP SETSure GripFLUAC220• one pair (red, black) of insulated jaws• blunt tip grabs round screw heads up to9,5 mm• recommended for use with test leadsFLUTL224• CAT IV 600 V, CATIII 1000 V, 10 A rating,UL-listed• packing size: 1EAN 0095969103398ALLIGATOR CLIPMEASURING HEADFLUAC72• jaw pair (red, black) for test lead setFLUTL71• jaw opening 8 mm• CAT IV 600 V, CATIII 1000 V,10 A rating, UL-listed• packing size: 1EAN 0095969133210TESTLEAD SETFLUTL71• one pair (red, black), comfort grip probeswith silicone insulated, right-angle testleads• recommended for μV-measurements• CAT IV 600 V, CATIII 1000 V, rating 10 A,UL-listed• packing size: 1EAN 0095969077293SILICONETEST LEAD SETFLUTL224• DMM test leads (red, black) with safetyshrouded, standard diameter bananaplugs• right angle connector on one end andstraight connector on the other• reinforced strain relief• 1,5 m silicone-insulated wire resists heatand cold• CAT IV 600 V, CATIII 1000 V, 10 A -rating,UL-listed• packing size: 1EAN 0095969103442ALL-IN-ONETEST LEAD SETFLUTL76• one pair (red, black), 1,5 m long siliconetest leads with right angle shroudedbanana plug• 4 mm removable lantern tip for use withEuropean wall sockets• lantern tip can be removed for easyaccess to terminal blocks (2 mm)• removable, insulated IC-caps allowprobing on closely spaced leads,compliance with GS38• CAT IV 600 V, CATIII 1000 V,10 A -rating, UL-listed• packing size: 1EAN 0095969207607AUTOMOTIVE TEST LEAD KITFLUTLK282• test lead set for Fluke and Ambrobe digital multimeters• contains the most common automotive test leads- TP81 insulation piercing clip set- TL224 silicone test lead set- TP220 test probe set- AC220 alligator clip set, AC285 alligator clip set• soft case• packing size: 1EAN 00959692615177/17

POCKET SIZEMULTIMETERMEPM51• efficient, pocket size(thickness under 1 cm, weight 85 g)• fully autoranging• large, clear 4000 count display• measures:VDC, VAC, capacitance, resistance,frequency, diode test and continuity• safety rating CAT III 300 V• standard equipment: test leads and battery• packing size: 1EAN 0095969261203DIGITALMULTIMETERME30XR• non-contact voltage detector(expressed by voice and visually)• 30 functions / 9 ranges• voltage rating AC/DC 600 V• current rating 10 A• resistance 20 MΩ• manual ranging• diode test, display hold -function• battery load test with 1,5 V and 9 V capabilities• low battery voltage indicator• magnetic hanging strap frees both hand for work• safety rated to CAT II 600 V and CATIII 300 V• standard equipment: test leads, 9 V battery,holster with magnetic strap• packing size 1EAN 0095969014168DIGITALMULTIMETERME5XP• 3½ -count LCD-display,max. count 1999• equipped with uniqueVolTect contact-freevoltage indigator, Magne-Grip -holster and low battery voltageindication• DC voltage: 200 mV, 2 V, 20 V, 200 V, 1000 V, (± 1,0 % + 1)• AC voltage (45 Hz ... 500 Hz): 200 mV, 2 V, 20 V, 200 V,750 V (± 1,5 % + 5)• DC current: 200 μA, 2 mA, 20 mA, 200 mA, (± 1,5 % + 1)• AC current: 200 μA, 2 mA, 20 mA, 200 mA, (± 2,0 % + 5)• resistance: 200 ohm, 2 kohm, 20 kohm, 200 kohm• continuity test: < 70 ohm• diode test• battery test: 1,5 V and 9 V, (± 3,5 % + 2)• display hold -function• min/max -recording mode• warning for wrong test lead connection• CAT I 1000 V / CAT II 600 V / CAT III 300 V• dimensions: 155 x 72 x 32 mm, weight 210 g• standard equipment: test leads, 9 V battery,Magne-Grip TM -holster with magnetic strap• packing size: 1EAN 0095969241458DIGITAL CLAMP ON METERAMPACDC100• large 3 3 / 4number display, max. count 4000• first-class AC/DC measuring and ergonomic design• AC current: 400 / 800 A• DC current: 400 / 1000 A• AC / DC voltage: 600 V• resistance:400 ohm, 4 kohm, 40 kohm, 400 kohm, 4 Mohm, 40 Mohm• capacitance: 500.0nF, 5 μF, 50 μF, 50 μF, 3000 μF• automatic and manual select of measuring range• relative null• automatic powersave• maximum value display for switching current measuring(response time 30 ms)• display hold -function• continuity• clamp opening 50 mm• safety rated to: EN61010, CATIII 600 V• dimensions: 227 x 78 x 40 mm• weight 290 g• standard equipment: protective casing, test leads, 9 V battery• packing size: 1EAN 0095969370004DIGITALAUTOMOTIVE MULTIMETERAMPAU92• multimeter with important measurements for car servicein addition to standard measurements• built-in temperature meter for measuring air, top heat and immersionheat• DC voltage: 400 mV, 4 V, 40 V, 400 V, 600 V, (± 1,0 % + 2)• AC voltage: 400 mV, 4 V, 40 V, 400 V, 600 V, (± 2,0 % + 5)• DC current: 400 μA, 4000 μA, 40 mA, 400 mA, 10 A• AC current (50-500 Hz): 400 uA, 4000 uA, 40 mA, 400 mA, 10 A• resistance: 400 ohm, 4 kohm, 40 kohm, 400 kohm, 4 Mohm,40 Mohm• frequency: 4 kHz, 40 kHz, 400 kHz (± 0,1 % + 3)• temperature: -20°C ... 1000°C, -4°F ... 1832°F• engine speed measurement: 600 ... 4000 RPM, x10 RPM 4000 ...12000 RPM (± 2 % + 4)• impulse ratio: 1 % ... 90 %• dwell angle measurement:4 CYL 0 ~ 90.0°/5 CYL 0 ~72.0°/6 CYL 0~ 60.0°/8 CYL 0~ 45.0°• continuity: < 25 ohm• diode test• packing size: 1EAN 00959693941477/18

INFRAREDTHERMOMETERMEIR608• ergonomic ”pistol grip design”• small enough to fit in your pocket• measuring range -18°– +400° C• laser sighting (laser class II)• display hold- function ( 7 seconds)• distance to spot size ratio 8:1• accuracy to 2 %• backlight display• with 9 V battery• packing size: 1EAN 0095969293679MOISTURE/MULTI-USE DETECTORXK6250• multi-use detector detect and locates metal, wood, voltageand moisture from different kind of wooden surfaces• sliding switch to change functions• plastic cap covers moisture sensing pins• uses 9 V battery• packing size: 1/20EAN 6418914762114INDUCTIVE DETECTORmetal/electricity/woodSL015• for metal, wood, electric cables• detects metal, electric cables in walls,studdings e.g.• the number of red lights andthe density of signal indicatehow near object is• user friendly• operating temperature -5°C … 38°C• protect detector from impacts,shaking, moisture and sunlight• works with 9 V battery• packing size: 1/60EAN 6418914553910VOLTAGE TESTER12 - 600 V ACIKH6014• measuring range 12 - 600 V AC• frequency 50/60 Hz• detects voltage without any contact• indicators: LED-light and sound signal• equipped with pocket clip• double insulation• includes 2 x 1,5 V LR44 button batteries• operating temperature 0 - +40°C• packing size: 1/10/100EAN 6418914760592UT33DMULTIMETER, digitalIKH6067• small and handy multimeter• DC Voltage 200mV / 2000mV / 20V / 200V / 500V (0.5%+2)• AC Voltage 200V / 500V (1.2%+10)• DC Current 2000μA / 20mA / 200mA / 10A (1%+2)• resistance 200Ω / 2000Ω / 20kΩ / 200kΩ / 20MΩ / 200MΩ(0.8%+2)• diode measuring• continuity buzzer• square wave output 50 Hz, resistance 47 kΩ• data hold and display backlight• integrated protective holster• input impedance for DC-V 10 Mohm• EN 61010 CAT I 600 V, CAT II 300 V• operating temperature 0°C - +40°C• includes battery 1 x 6LR61/9 V• dimensions L 73,5 x W 35 x H 130 mm• weight 156 g• packing size: 1/10/40EAN 6935750533048VOLTAGE TESTER6–24 VX009216• 6/12/24 V• packing size: 1/24/288EAN 6418914150485VOLTAGE TESTER6–24 VIKH7064• steel body, steel peg• alligator clamp• cable 80 cm• packing size: 1/200EAN 6418914706026VOLTAGE TESTER3–48 VIKH7065• two steel pegs, the otherone is spring-loaded• alligator clamp• cable 90 cm• packing size: 1/12/144EAN 64189147060337/1912.12.2011

TESTER SETIKH7104• works on all 12 volt ignition systems• low pressure and fuel pump tester• compression tester• multi-functional analyzer• inductive xenon-timing light• remote starter switch• packing size: 1/6EAN 6418914709584GAS CYLINDER COMPRESSIONTESTER SET for petrol engineIKH7228• content:- air gauge with quick coupling and release valve- high-pressure connecting pipe with safety lock coupling- straight test pipe with rubber plug- bent test pipe with rubber plug- adapters M10 x 1,0 • M12 x 1,25 • M14 x 1,25 • M18 x 1,5• plastic case• packing size: 1/10EAN 6418914649224CYLINDER COMPRESSIONTESTER SET for diesel engineIKH7105• comprehensive and easy to use test kit for diesel-cars• for use on both direct and indirect injection engines• checks engine compression under cranking conditions• quick coupling adapters for fast working• built-in pressure relief valve enables repeat testswithout dismantling• flexible hose gives access to restricted plug and injector ports• gauge with dual scale between 0–70 bar and 0-1000 lb/in2• content:- gauge, overall length 560 mm, Ø 83 mm, scale 0–70 bar- glow plug adapters (overall length, thread):73,5 mm, M10x1,25114,5 mm, M10x1,2519 mm, M10x1,054 mm, M12x1,2572 mm, M14x1,25- dummy injectors78 mm, M20x1,5 (overall length, thread)64 mm, M24x2,0 (overall length, thread)114 mm, 21 mm (overall length, outer Ø )- Stanadyne nozzle112 mm, outer Ø 19 mm- clamp plate 63,5 mm, width 25 mm, hole Ø 17 mm- elbow 90°- replacement seal• packing size: 1/6EAN 6418914709591BATTERY TESTERwith printerBAT121• easy to use, battery saving test in 10 seconds• very handy• practical, 8-number LCD-display with background light• numerous language alternatives• automatic test running• unambigous test result• no need for mains current• operating voltage is taken from the battery to be tested,protected agains polarity reversal and overvoltage• operating voltage range 8,5 V - 16 V• battery test results:accumulator voltage/starting power/charge level• generator test results: adjusting voltage/condition of diodes• packing size: 1EAN 31651433345467/2013.12.2010

T40OBD SCANNER,OBDII/EOBD + CANCRX40• display: LCD, 2 lines, 8 characters, backlit• operating temperature: 0 to 50°C• storage temperature: -20 to 70°C• power - provided via detachable heavy duty OBD II cable• features:- works with all 1996 and newer cars & trucks that are OBD IIcompliant (including the CAN, VPW, PWM, ISO and KWP 2000)- reads and clears generic and manufacturer specific DiagnosticTrouble Codes (DTCs) and turns off ”check engine” light- supports multiple trouble code requests, generic codes, pendingcodes and manufacturer’s specific codes- reviews the emission readiness status of OBD monitors- retrieves VIN (Vehicle Identification No.) on 2002 and newervehicles that support Mode 9- determines the malfunction indicator lamp (MIL) status- easy-to-use with one plug-in; Highly reliable and accurate- easy-to-read crystal-clear backlit 2-line LCD display- stand-alone unit with no need for an additional laptop computerto operate- small in size and conveniently fits in your palm- safely communicates with the on-board computer- no batteries needed - powered via detachable OBD II cable• dimensions L 126 x W 78 x H 28 mm• weight 200 g• packing size: 1/30EAN 6418914775596T79OBD SCANNEROBDII/EOBD + CANCRX79• display: LCD, 128 x 64 pixel (with contrast adjustment), backlit• operating temperature: 0 to 60°C• storage temperature: -20 to 70°C• external power: 8,0 to 18,0 V power provided via vehicle battery• internal power: 9 V battery (optional, not included)• features:- works with all 1996 and newer cars & trucks that are OBD IIcompliant (including the CAN, VPW, PWM, ISO and KWP 2000)- reads and clears generic and manufacturer specific DiagnosticTrouble Codes (DTCs) and turns off ”check engine” light- supports multiple trouble code requests, generic codes, pendingcodes and manufacturer’s specific codes- reviews the emission readiness status of OBD monitors- retrieves VIN (Vehicle Identification No.) on 2002 and newervehicles that support Mode 9- determines the malfunction indicator lamp (MIL) status- easy-to-use with one plug-in; Highly reliable and accurate- easy-to-read informative LCD display- stand-alone unit with no need for an additional laptop computerto operate- USB cable used to upgrade the scan tool, and to print/transferretrieved data to computer- safely communicates with the on-board computer- no batteries needed - powered via detachable OBD II cable- 9V battery (optional, not included) supplies power to the scantool when disconnected from vehicle DLC• standard accessories: user’s manual, CD, OBD2-cable, USB-cable,carry case• dimensions L 209 x W 107 x H 37• weight (without battery) 760 g• packing size: 1/16EAN 64189147756027/2112.12.2011

RADIATOR TESTER SET 18-pcsIKH6058• includes:- 1 pc thermometer- 1 pc pressure gauge / hand pump- 2 pcs connectors: R123/R124, R123/R125- 1 pc holder- 13 pcs caps (Acura, Alfa Romeo, Audi, BMW, Buick, Cadillac,Chevrolet, Chrysler, Citroën, Daewood, Dodge, Eagle, Fiat, Ford,Geo, GM, Honda, Hyundai, Infiniti, Isuzu, Jaguar, Jeep, Kia,Land, Rover, Lexus, Mazda, Mercedes Benz, Mercury, MiniCooper, Mitsubishi, Nissan, Oldsmobile, Opel, Peugeot, Pontiac,Porsche, Renault, Saab, Saturn, Ssangyong motor, Sterling,Subaru, Suzuki, Toyota, Volkswagen, Volvo, Universal cap)• packing size: 1/4/32EAN 64189147725957/2205.03.2012
