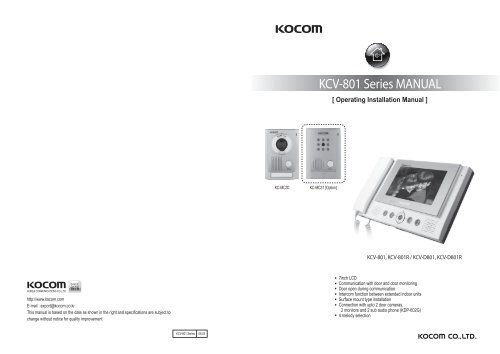

Kocom KCV-801 Series Manual - Central Vacuum Stores

Contents■ Cautions for safety■ Installation precautions■ Monitor Installation■ Door Camera Installation■ Components■ Key Features■ Cautions for use■ Cautions for Installation■ Name of Each Part■ Specifications■ System Diagram■ Wiring Diagram■ Functional Description■ Warranty Card48899101010111213142026

Key FeaturesName of Each Part● 7inch Color Lcd (NTSC/PAL Auto Switching)●LED Indication in Conditions●4 melody selection●OSD (On Screen Display) menu control●PIR sensor camera & CCTV camera connection●CCTV monitoring Mode●Built 128 cut images memory (KCV-801R, KCV-D801R)●Auto record in absent mode (KCV-801R, KCV-D801R)●Upto 2 monitor & 2 audio sub phone with 2 cameras connection●Internal call & conversation between extended indoor units●AC Type : KCV-801, KCV-801R / DC Type : KCV-D801, KCV-D801R1KCV-801Front ViewKCV-801RCautions for UseREC● Do not place the product near humidifier, heater, etc. High temperature and humidity may cause troubles.● Do not drop, or give a strong impact on, main body and gate camera.● Do not place the main body near the things emitting strong magnetism (e.g. TV, speaker, etc)because it may cause the drift or distortion of screen, resulting in troubles.● Do not clean the product with wet hands, or use volatile liquids such as benzene or thinner.● Clean up camera and window part of main body from time to time to keep fine and clear image quality.● This product is designed as a precision electronic device, so do not disassemble it at user's discretion.Abovementioned cases may cause troubles in the product.Please be careful to the cautions in use of the productCautions for Installation● This product is designed as a precision electronic device, so do not disassemble it at user's discretion.● Comply with the specifications provided by KOCOM in installation of the product.● Do not touch the product with foreign things (e.g. sticker, magnet, bottle opener, iron chopsticks, etc.)and do not bring them in the product.(It may not only shorten the durability of the product but also bring danger to users.)● During the rainy season, rainwater may flow in the product along its wiring and affect the system.So, the end of wiring is required to finish with letter 'U' type.● Do not install the door camera in the place under direct sunlight shines, it may make faint image or white stripe or roundform line on the image. If this phenomenon appears on the monitor's image, it is not mechanical trouble, so pleasereplace the door camera to keep away direct sunlight or change the direction of the door camera.No2 31234562 3Name Brief DescriptionHandset used in communication between camera and extended indoor units.Cam 1 turns on/off communication and monitoring functions of Camera 1◁ LeftButton△ UpButton▷ RightButton▽ DownButtonMenu/OK ButtonCam 2 turns on/off communication and monitoring functions of Camera 2/orExtension/AbsenceDoorOpen Button45 6(A) if pressed in standby mode, a stored image is played. (used as Rewind key)[KCV-801R, KCV-D801R only](B) used as Left button in setting OSD menu.(A) saves (RECORD) images from Camera 1 & 2 [KCV-801R, KCV-D801R only](B) used as Up button in setting OSD menu(C) sets or cancels the interlocking with PIR camera, if pressed for three seconds45 6(A) plays images saved in standby mode - used as Forward key [KCV-801R, KCV-D801R only](B) used as Right button in setting OSD menu(A) used as Delete key in playing images [KCV-801R, KCV-D801R only](B) used as Down button in setting OSD menu(C) sets or cancels the long-played CCTV images, if pressed for three seconds(A) displays LCD adjustment menu (contrast, brightness and color),if pressed in standby mode for more than one seconds(B) displays Memory adjustment menu (date and format), if three seconds pressed in Standby mode[KCV-801R, KCV-D801R only](C) inputs adjusted setups(A) calls extension line when a user picks up handset and presses extension line Button(B) sets or cancels Absence mode when a user press Extension/Absence buttonwith handset hung up (displayed by LED) [KCV-801R only]works door open function of camera when a user press this buttonwith communicating with door cameraPLAYDELPLAY/10 11

Name of Each PartName of Each PartBottom ViewNoSpecificationsNameMelody volume knobModular JackWall-mountingPower SwitchDoor Release terminalPower terminalName of ConnectionportA BC DBrief DescriptionRear Viewadjusts volume of melody (low to loud)a jack for handset connection corda hole for a screw used in fixation of main body in its wall-Fixationon/off switch for main power supply for monitorDoor Relese switchfor DC input (adaptor) - Non-polarityA: Camera 1 portB: Camera 2 portC: Monitor extension portD: Sub audio phone (KDP-602G) extension portModel No.Power SupplyWarranted OperationKCV-801AC 100 - 240V0 - 40℃KCV-D801DC 15V 1.2AKCV-801RAC 100 - 240VKCV-D801RDC 15V 1.2ATemperatureWiring Type4 wire type camera wiringMount TypeSurface mountwith color memoryDimension (mm)295(W)x171(H)x48(D) mmup to 128 imagesWeight (approx.) 1,500gLCD7-inch LCDCamera Connection KC-C60, KC-MC35, KC-MC20, KC-MC12, KC-MC14, KC-MC30, KC-MC31Communication Type Duplex handset conversationPower Consumption 2W(unload), 16W(inload)4W(unload), 18W(inload)Color MemoryunavailableavailableDistanceTIV 0.85mm2 cable:100mModel No.Power SupplyKC-MC30DC 12V ± 1V(power from monitor)Power Consumption 3W(In Load)Operation Temperature -10 - +50℃Min. Illumination0.1Lux (LED ON)Dimension (mm)110(W)x158(H)x39(D)mmAngle of LensDiagonal 81°(angle adjustable)1 4 1 41 8 1 4KC-MC31110(W)x158(H)x34(D)mmDiagonal 81°Door OpenerKC-MC30 KC-MC31 KC-MC30 KC-MC311. C-Mic : To communicate with Monitor2. Camera Lens3. LED4. Speaker : When visitor calls, the voice from monitor comes out of the speaker.5. Call Button : By pressing the button, the related house will be called.6. Name plate7. Screw capSystem DiagramComponents and Peripheral Devices2DCPowerDVR [KRS-SD4500]Main MonitorCAM1[KC-MC30]/478■ Door Opener operates withan interlocked camera.■ Specification for DC power[DC Opener should be used.]BNC Cable123456FG(FRAME GROUND)8123456FG(FRAME GROUND)812345 678Sub Monitor ※Option6/KDP-602G※Option■ Power supplyfrom monitor12 13

Wiring DiagramWiring Diagram [AC/DC Power]Wiring DiagramWiring Diagram [Sub monitor]CAMERA Extension4pin port12345 6CAM1KC-C601 2 3 4CAM2KC-MC30/31123456DCPowerDooropenerMonitor extension8pin portCAM1KC-C601 2 3 4CAM2KC-MC30/31123456DCPowerDooropenerMain monitorFor ACNonpolarityDCAdaptorFor DC561 4 11 8 144KDP-602G Extension4pin port1234KDP-602G123456Main monitor565611 81 84 11※ TIV 0.65 - 2wireUTP 4P - 2wire1 4 1 41444Sub monitorKDP-602G123456AC 100~240V※ In case of using KC-C60 door camera, door release wire should be connected to the door releaseterminal on the monitor※ Using 2 cable connection beween monitors as shown the diagram you can connect up to 50m.TIV 0.65mm2 cable x 2EA or CAT5 cable x 2EA1415

Wiring DiagramWiring Diagram [CCTV Camera A type]Wiring DiagramWiring Diagram [CCTV Camera B type]A typeCCTVB typeCCTVADAPTORDooropenerDCPowerCAM1KC-MC30/3112345DCJackVideoBNCDooropenerDCPowerCAM1KC-MC30/3112345VideoBNC6614 1414 141 8141 8145566Main monitorMain monitorA. In case the power consumtion of CCTV camera is below 200mA (DC12V) and in distancebelow 50M, you can use monitor power to CCTV camera.B. In case the power consumption of CCTV camera is over 200mA (DC 12V) and distancebetween CCTV camera and monitor is over 50M, the addional power supply shoud be usedfor CCTV camera.1617

Wiring DiagramWiring Diagram [DVR connection]Wiring DiagramWiring Diagram [Cable requirement]CCTV Camera[Monitor to monitor 8pin port wiring]■ Upto 10m : CAT5 cable■ Upto 50mDooropenerDCPowerCAM1KC-MC30/31123456DVRVideoBNC1. Orange2. Green3. W/Green4. W/Orange5. Blue6. W/Blue7. Brown8. W/ Brown[Camera to monitor 4pin port wiring]■ Upto 20m : CAT5 cableUsing 2 cable connection beween monitors as shownthe diagram you can connect up to 50m.TIV 0.65mm2 cable x 2EA or CAT5 cable x 2EA■ Upto 50m : TIV 0.65mm2 cable1 4 11 8 144OrangeBrownGreenW/GreenBlueW/BlueW/BrownW/Orange123456Main monitor■ Upto 100m : TIV 0.8mm2 cable■ Upto 150m : TIV 0.8mm2 cable+RG-59/URG-59/U (coaxial cable) for video signal(connect coreto Video & shield to GND)1819

Functional DescriptionFunctional Description1. Call from door camera4. Monitoring of Outside Situation (Camera Monitoring)A visitor presses CALL buttonon door camera.Melody sounds at monitor and screen is turned on,with the LED of camera button flickering.When a user presses Cam 1 or 2, image ofthe Camera is displayed in the screen.Press the button once more to end camera monitoring.This function is automatically turned off after a minute.///2. Communication with door camera5. Internal CallTo receive a call from door camera, pick up the handset forcommunication.Without a call from gate, if a user presses Cam 1 or 2 button and picksup the handset, he/she can communicated with selected door camera.Press Extension Call button on monitor.Melody sounds from other extended monitor (or interphone) andLED of Extension Call button flickers./////3. Door Open6. Indoor CommunicationIf a use presses Door Open button during the communicationwith door camera, gate door is opened.Hang up the handset to finish communication.(* An optional device KDP-602G provides the same function as this.)User can use indoor communicationfunction by picking up the handset. After three minute,indoor communication ends automatically.If an extension call is received when a userscommunicate with door camera.he/she can communicate by pressing extension call button.//////* If you cancel the internal call during connection,LED of the other extended monitor flickers for two minutes.20 21

Functional DescriptionFunctional Description7. CCTV Monitoring (3min.)9. Absence mode and Automatic Image MemorizingTo change setups from default to long-time mode,press ▽ button for three secondsA beep sounds and long-time mode is set. To cancel this mode,press ▽ button for three seconds once more.To set Absence mode function, press Extension/Absence button instandby mode. To cancel the function, press the button once more.If a call is received from door camera when Absence modefunction is set, the device saves as many images asthe number of calls from door camera.Beep~///8. Image Memorizing (* KCV-801R, KCV-D801R only) by ManualPress △ button with watching images from Cam 1 or 2 to saveas many images as the number of user's pressing the button.Press any of ◁ or ▷button to view saved images.(Saved images can be enlarged using Menu button.)10. Interlocking with PIR Sensor (Infrared Motion Detector) CameraAt the request of a user, PIR sensor camera can be connected tocamera port 2If a user presses △ button for three seconds, a setting signalsounds and set of this function is completed.Beep~or//PIR SensorCamera//Press Extension Button to end playing the saved images.Please note that Cam 1 port should be used as door camera, andCCTV camera or PIR sensor camera should be connected toCAM 2 port.To cancel PIR sensor camera operation mode,press △ button for 3 seconds./Beep~/or/2223

10-1. Interlocking with PIR Sensor (Infrared Motion Detector) cameraWhen the PIR Sensor Carmera mode is set,PIR Sensor camera detects motions.>> CONTRAST : 50BRIGHTNESS : 50COLOR : 50AUTO ADJUSTMELODY > CAM : 1> CAM : 2I/P : 3Exit : I/PIf a user moves >> bar up and down to select a menu he/she wantsto adjust and presses MENU/OK button, the menu number is selected.Then, if a user adjusts the number using UP or DOWN button,the value is adjusted.Locate cursor bar to AUTO ADJUST and pressmenu/OK button to initialize or go to default value of LCDRefer to the image memorizing function (KCV-801R / KCV-D801R only).Melody can be selected between 4 melodies per function.CAM : 1~4CAM : 1~4I/P : 1~4EXIT: Extension (I/P) or button to finishall setups or go to stand by (cancel) mode./▶ Time : 01:00:55 AM 01/10/2007Format : YES, NOSystem : NTSC/PALI/P KEY : Exit■ TIME : sets time and date01:00:55 AM - sets [hour/minute/second AM/PM]01/10/2007 - sets [day/month/year]■ Format : Select [Format: Yes] and press Menu/OK to delete allthe saved images.■ System : display color encoding type NTSC or PAL■ EXIT : Extension (I/P) or button to finish all setups or go tostand by (cancel) mode.※KCV-801R/KCV-D801R Only./2425

WarrantyTo receive after-Sale service, have the following ready when youcontact our branches.1. Name of the product.2. Model number of the product.3. The area of problem.4. Phone number and address at which you can be contacted.Warranty CardPRODUCTMODELDATE PURCHASEDWARRANTY PERIODAGENCY ADDRESSKOCOM Warranties the original purchaser of this product as follows.1) This product is produced under strict quality control and inspection procedures.2) If this product breaks down during proper use as a result of product defect, KOCOMwill repair it within one year from date of purchase free of charge.3) The following cases will be subject to charge, even during warranty period:a. Breakdown during transport, or through careless treatment, by consumer.b. Breakdown cause by unauthorized repair, or system modification.c. Breakdown caused by natural disaster or power disorder.2627
