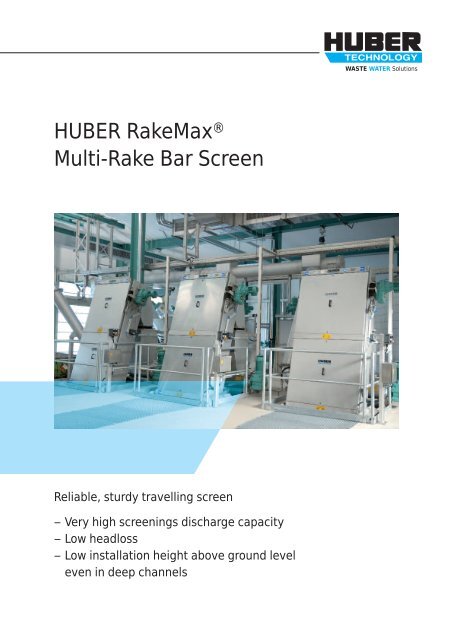

WASTE WATER Solutions<strong>HUBER</strong> <strong>Rake</strong>Max®<strong>Multi</strong>-<strong>Rake</strong> <strong>Bar</strong> <strong>Screen</strong>Reliable, sturdy travelling screen– Very high screenings discharge capacity– Low headloss– Low installation height above ground leveleven in deep channels
➤ Design and functionThe <strong>HUBER</strong> <strong>Rake</strong>Max® <strong>Multi</strong>-<strong>Rake</strong> <strong>Bar</strong> <strong>Screen</strong> is perfectlysuited to both municipal and industrial wastewater, andprocess water screening. The cleaning elements, attachedto the chain system, can easily be adjusted to differentrequirements. These elements can be conventional rakes,or brushes, or plastic wipers.As the cleaning elements are changeable, the screeningsdischarge capacity is then adjustable. This is especiallyfavourable for high solids loads.The installation height of the <strong>Rake</strong>Max® above groundlevel is very small and only dependent, even in case ofdeep channels, on the installation height of screeningstransport or washing units.Both ends of the cleaning elements are connected todrive chains. Each chain is driven by a sprocket on acommon shaft and a flange mounted gear motor.Furthermore, defined meshing of the cleaning rakeswith the bar rack ensures a high operating reliability.If the screen operation is blocked, a mechanical overloadprotection interrupts the operation.Schematic drawing of the <strong>HUBER</strong> <strong>Rake</strong>Max® <strong>Multi</strong>-<strong>Rake</strong> <strong>Bar</strong> <strong>Screen</strong>
WASTE WATER Solutions➤ Installation examples:Universally applicable <strong>HUBER</strong> <strong>Rake</strong>Max® screen for bigchannel widths ...… and big discharge heights➤ <strong>Screen</strong> sizes:Channel width:up to 4000 mmDischarge height abovechannel floor:up to 20 m<strong>Bar</strong> spacing:≥ 1 mmInstallation angle: 70° – 85°Rear view of a <strong>HUBER</strong> <strong>Rake</strong>Max® <strong>Screen</strong> with subsequentWash Press WAP/SL<strong>HUBER</strong> SEIndustriepark Erasbach A1 · D-92334 BerchingPhone: + 49 - 84 62 - 201 - 0 · Fax: + 49 - 84 62 - 201 - 810info@huber.de · Internet: www.huber.deSubject to technical modification0,15 / 8 – 4.2012 – 8.2004<strong>HUBER</strong> <strong>Rake</strong>Max® <strong>Screen</strong>
