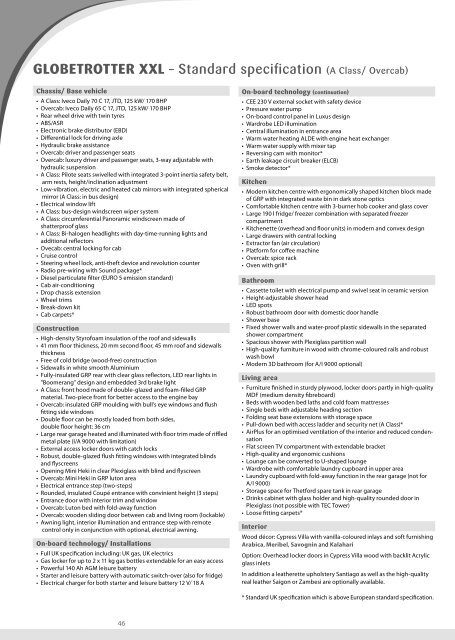

Globetrotter xXl – Standard specification (A Class/ Overcab)Chassis/ Base vehicle• A Class: Iveco Daily 70 C 17, JTD, 125 kW/ 170 BHP• Overcab: Iveco Daily 65 C 17, JTD, 125 kW/ 170 BHP• Rear wheel drive with twin tyres• ABS/ASR• Electronic brake distributor (EBD)• Differential lock for driving axle• Hydraulic brake assistance• Overcab: driver and passenger seats• Overcab: luxury driver and passenger seats, 3-way adjustable withhydraulic suspension• A Class: Pilote seats swivelled with integrated 3-point inertia safety belt,arm rests, height/inclination adjustment• Low-vibration, electric and heated cab mirrors with integrated sphericalmirror (A Class: in bus design)• Electrical window lift• A Class: bus-design windscreen wiper system• A Class: circumferential Panoramic windscreen made ofshatterproof glass• A Class: Bi-halogen headlights with day-time-running lights andadditional reflectors• Ovecab: central locking for cab• Cruise control• Steering wheel lock, anti-theft device and revolution counter• Radio pre-wiring with Sound package*• Diesel particulate filter (EURO 5 emission standard)• Cab air-conditioning• Drop chassis extension• Wheel trims• Break-down kit• Cab carpets*Construction• High-density Styrofoam insulation of the roof and sidewalls• 41 mm floor thickness, 20 mm second floor, 45 mm roof and sidewallsthickness• Free of cold bridge (wood-free) construction• Sidewalls in white smooth Aluminium• Fully-insulated GRP rear with clear glass reflectors, LED rear lights in"Boomerang" design and embedded 3rd brake light• A Class: front hood made of double-glazed and foam-filled GRPmaterial. Two-piece front for better access to the engine bay• Overcab: insulated GRP moulding with bull's eye windows and flushfitting side windows• Double floor can be mostly loaded from both sides,double floor height: 36 cm• Large rear garage heated and illuminated with floor trim made of riffledmetal plate (I/A 9000 with limitation)• External access locker doors with catch locks• Robust, double-glazed flush fitting windows with integrated blindsand flyscreens• Opening Mini Heki in clear Plexiglass with blind and flyscreen• Overcab: Mini Heki in GRP luton area• Electrical entrance step (two-steps)• Rounded, insulated Coupé entrance with convinient height (3 steps)• Entrance door with interior trim and window• Overcab: Luton bed with fold-away function• Overcab: wooden sliding door between cab and living room (lockable)• Awning light, interior illumination and entrance step with remotecontrol only in conjunction with optional, electrical awning.On-board technology/ Installations• Full UK specification including: UK gas, UK electrics• Gas locker for up to 2 x 11 kg gas bottles extendable for an easy access• Powerful 140 Ah AGM leisure battery• Starter and leisure battery with automatic switch-over (also for fridge)• Electrical charger for both starter and leisure battery 12 V/ 18 AOn-board technology (continuation)• CEE 230 V external socket with safety device• Pressure water pump• On-board control panel in Luxus design• Wardrobe LED illumination• Central illumination in entrance area• Warm water heating ALDE with engine heat exchanger• Warm water supply with mixer tap• Reversing cam with monitor*• Earth leakage circuit breaker (ELCB)• Smoke detector*Kitchen• Modern kitchen centre with ergonomically shaped kitchen block madeof GRP with integrated waste bin in dark stone optics• Comfortable kitchen centre with 3-burner hob cooker and glass cover• Large 190 l fridge/ freezer combination with separated freezercompartment• Kitchenette (overhead and floor units) in modern and convex design• Large drawers with central locking• Extractor fan (air circulation)• Platform for coffee machine• Overcab: spice rack• Oven with grill*Bathroom• Cassette toilet with electrical pump and swivel seat in ceramic version• Height-adjustable shower head• LED spots• Robust bathroom door with domestic door handle• Shower base• Fixed shower walls and water-proof plastic sidewalls in the separatedshower compartment• Spacious shower with Plexiglass partition wall• High-quality furniture in wood with chrome-coloured rails and robustwash bowl• Modern 3D bathroom (for A/I 9000 optional)Living area• Furniture finished in sturdy plywood, locker doors partly in high-qualityMDF (medium density fibreboard)• Beds with wooden bed laths and cold foam mattresses• Single beds with adjustable heading section• Folding seat base extensions with storage space• Pull-down bed with access ladder and security net (A Class)*• AirPlus for an optimised ventilation of the interior and reduced condensation• Flat screen TV compartment with extendable bracket• High-quality and ergonomic cushions• Lounge can be converted to U-shaped lounge• Wardrobe with comfortable laundry cupboard in upper area• Laundry cupboard with fold-away function in the rear garage (not forA/I 9000)• Storage space for Thetford spare tank in rear garage• Drinks cabinet with glass holder and high-quality rounded door inPlexiglass (not possible with TEC Tower)• Loose fitting carpets*InteriorWood décor: Cypress Villa with vanilla-coloured inlays and soft furnishingArabica, Meribel, Savognin and KalahariOption: Overhead locker doors in Cypress Villa wood with backlit Acrylicglass inletsIn addition a leatherette upholstery Santiago as well as the high-qualityreal leather Saigon or Zambesi are optionally available.* Standard UK specification which is above European standard specification.46

GLOBEtrotter xxlA ClassType / Model I 9000-2 I 9800-2Technical DataLength/width/height cm 908/232/345 908/232/345Length/width/height cm 211 211Towing weight 12% braked/unbraked kg 2800/750 2800/750Tyres 225/75R 16C 225/75R 16CWheel base cm 475 475Beds Front cm 191/185x136 191/185x136Mid cm 191x130 191x130Lengthwise cm - -Alternative cm 191/132x211 191/132x211Rear cm 2x195x80** 200x150Basic engine 3.0 JTD 3.0 JTDkW (BHP) 125 (170) 125 (170)Chassis ladder frame ladder frameWeight net kg 4935 4935Mass in running order (MIRO) (approx.) kg 5305 5305Payload (approx.) kg 1696 1696Maximum authorised weight (approx.) kg 7000 7000Globetrotter Class XX XX Globetrotter XXLSeats at standard weight 4(6*) 4(6*)Seats at maximum weight upgrade 6* 6*Heating ALDE ALDEFridge/ thereof freezer compartment l 190 / 35 190 / 35Water tank incl. boiler (red. volume)/lwaste water tank capacities230 / 222 230 / 222Storage space D 2 D 2Standard swivel seat for driver and passenger - / - - / -Battery / charger Ah / A 140 / 18 140 / 18Power outlets 230 V / 12 V 4 / 2 4 / 2* depending on lounge version** I 9000 alternative bed for the rear: 195/145/195x200Please note all weights and information refer to the standard UK specification.47

GLOBEtrotter xxlOvercabType / Model A 9000-2 A 9800-2Technical dataLength/width/height cm 892/235/345 892/235/345Internal height cm 211 211Towing weight 12% braked/unbraked kg 2850/750 2850/750Tyres 225/75R 16C 225/75R 16CWheel base cm 475 475Beds Front cm 200x155 200x155Mid cm 191x130 191x130Lengthwise cm - -Alternative cm 191/132x211 191/132x211Rear cm 2x195x80** 200x150Basic engine 3.0 JTD 3.0 JTDkW (BHP) 125 (170) 125 (170)Chassis ladder frame ladder frameWeight net kg 4840 4840Mass in running order (MIRO) (approx.) kg 5210 5210Payload (approx.) kg 1491 1491Maximum authorised weight (approx.) kg 6700 6700Seats at standard weight 4(6*) 4(6*)Seats at maximum weight upgrade 6* 6*Heating ALDE ALDEFridge/ thereof freezer compartment l 190 / 35 190 / 35Water tank incl. boiler (red. volume)/lwaste water tank capacities230 / 222 230 / 222Storage space D 2 C 2Standard swivel seat for driver and passenger - / - - / -Battery/ charger Ah / A 140 / 18 140 / 18Power outlets 230 V / 12 V 4 / 2 4 / 2* depending on lounge version** A 9000 alternative bed for the rear: 195/145/195x200Please note all weights and information refer to the standard UK specification.48

A/ I 9000 available with the optional connectable bathroomGlobetrotter XXL Travel package (75 kg)(75 kg)Package components: A Class OvercabRear corner steadies ✔ ✔Loose fitting carpets ✔ ✔Wooden cab dash ✔ ✔2nd leisure battery ✔ ✔DVD Moniceiver Pioneer AVH-3200 BT ✔ ✔Reversing cam CARATEC ✔ ✔Air conditioning Saphir Comfort ✔ ✔✔ componentGLOBETROTTER Class XX XX Globetrotter XXLI 9000A 9000Optional Lounge VERSIONSL-shaped loungeCouch versionDetailed viewDetailed viewI 9000I 9800A/I 9000A/I 9800Only two homologated seats are availablefor this version.49

Globetrotter xXl – Optional ExtrasWeight (kg)CodeI 9000I 9800A 9000A 9800Chassis / Base vehicleIveco Daily 205 BHP 65 C 21 - wheel base 4750 mm – 1273 – – ○ ○Iveco Daily 205 BHP 70 C 21 - wheel base 4750 mm – 1275 ○ ○ – –Automated gearbox "Agile" 5 105 ○ ○ ○ ○Alloy wheels (alloy wheels for front axle/ wheel trims for rear) – 1790 ○ ○ – –Tow bar 26 273 ○ ○ ○ ○Bus-design integral headlights(only in conj. with air suspension for the rear axle or full air suspension)– 1710 ○ ○ – –Chromed wheel trims 2 536 ○ ○ – –Air suspension driving axle XXL A 30 041 – – ○ ○Air suspension driving axle XXL I 35 1658 ○ ○ – –Air suspension front and rear axle XXL I 85 1796 ○ ○ – –Air swinging driver and passenger seat (with seat heating) 34 1794 ○ ○ – –Exterior2nd access locker door rear N/S (1040x1238 mm) 7 331 ○ ○ ○ ○Roof in GRPuponrequest242 ○ ○ ○ ○Roof rack with ladder 17 852 – – ○ ○Omnistor 6 m ( electr. ) 75 1645 ○ ○ ○ ○Cab insulating mats for the Overcab 1 934 – – ○ ○Rear corner steadies (2 pieces) 10 390 ○ ○ ○ ○Electr. steadies and leveling system "Level Tronic" – 1827 – – ○ ○Electr. steadies and leveling system E&P 60 1742 ○ ○ – –Fridge vent cover 1 282 ○ ○ ○ ○InteriorWooden cab dash – 806 – – ○ ○Aluline rear shelving system 5 1979 ○ ○ ○ ○Bicycle bracket for Aluline rear shelving system 5 1930 ○ ○ ○ ○Electr. windscreen blind 8 1782 ○ ○ – –Heki III in the rear 15 442 ○ ○ ○ ○LED illumination package for the interior – 1661 ○ ○ ○ ○Blind for driver and passenger (manual) 3 1708 ○ ○ – –Furniture/ LayoutsOverhead locker door alternative (Cypress Villa with backlit Acrylic glass inlays) – 1969 ○ ○ ○ ○L-shaped lounge instead of dinette – 683 ○ ○ – –Couch version (Please note: only 2 passenger seats are available) – 289 ○ ○ ○ ○Connectable bathroom (XXL A/I 9000) – 1699 ○ – ○ –Soft furnishingMattress 7 zones with 3D membrane and visco-elastic surface for single beds – 1947/48 ○ – ○ –Mattress 7 zones with 3D membrane and visco-elastic surface for double bed(not available for Overcab/ pull-down bed)– 1949 – ○ – ○Fabric Calgary – 1676 ○ ○ ○ ○Fabric Macao – 1675 ○ ○ ○ ○Real leather Zambesi – 1758 ○ ○ ○ ○Real leather Saigon – 1757 ○ ○ ○ ○50

Globetrotter xXl – Optional ExtrasWieght (kg)CodeI 9000I 9800A 9000A 9800InstallationsBattery "Gel" 220 Ah 25 521 ○ ○ ○ ○Solar system (2 Siemens M 50 modules, 1 controler SR 13, 2x 60 W) 15 922 ○ ○ ○ ○Gas/ InstallationsCrash sensor – 1902 ○ ○ ○ ○BBQ socket 30 mbar 1 878 ○ ○ ○ ○Switch over system Duo Control (Please note: weight without gas bottle) 5 1903 ○ ○ ○ ○Water supply/ InstallationsExterior shower (cold water) 1 793 ○ ○ ○ ○Switch for water pump 1 397 ○ ○ ○ ○Heating/ Air conditioningAir conditioning " Saphir Comfort " 24 1791 ○ ○ ○ ○Webasto additional heating – 517 ○ ○ ○ ○Additional pump 230 V for Alde heating 1 314 ○ ○ ○ ○KitchenOven (TEC Tower version: fridge with sep. freezer and integr. oven with grill) 20 290 ○ ○ ○ ○BathroomThetford: 2nd cassette for Thetford toilet 2 502 ○ ○ ○ ○Multimedia systemsFlat screen 19" 5 1896 ○ ○ ○ ○DVD radio Moniceiver Pioneer AVH-3200 BT 2 1644 ○ ○ ○ ○SAT system Teleco Flatsat Digital 65 11 1814 ○ ○ ○ ○SAT system Teleco Flatsat Digital 65 Twin 15 1813 ○ ○ ○ ○SAT system Teleco Flatsat Easy 65 (without receiver) 13 1812 ○ ○ ○ ○SAT system Teleco Flatsat Digital 85 Twin 15 1637 ○ ○ ○ ○Navigation module Pioneer AVIC F220 (only in conj. with Moniceiver) 2 1643 ○ ○ ○ ○Misc"Cuddle" package (decoration pillows, table cloth, cuddle blanket, bedspread) 1 1590 ○ ○ ○ ○Registration documents – – ◆ ◆ ◆ ◆GLOBETROTTER Class XX XX Globetrotter xxl◉ Standard○ Option̶ Not possible◆ ObligatoryPlease read notes with regards to the optional extras on page 3!* value was not available at printing period51
