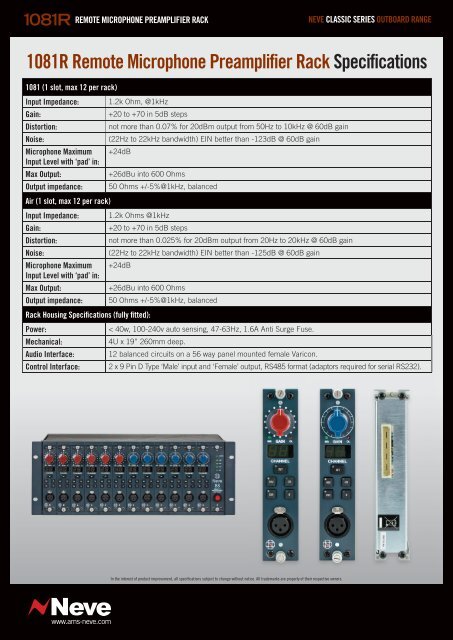

1081RREMOTE MICROPHONE PREAMPLIFIER RACKNEVE CLASSIC SERIES OUTBOARD RANGE1081R Remote Microphone Preamplifier Rack Specifications1081 (1 slot, max 12 per rack)Input Impedance:Gain:Distortion:Noise:Microphone MaximumInput Level with ‘pad’ in:Max Output:Output impedance:Air (1 slot, max 12 per rack)Input Impedance:Gain:Distortion:Noise:Microphone MaximumInput Level with ‘pad’ in:Max Output:Output impedance:1.2k Ohm, @1kHz+20 to +70 in 5dB stepsRack Housing Specifications (fully fitted):Power:Mechanical:Audio Interface:Control Interface:not more than 0.07% for 20dBm output from 50Hz to 10kHz @ 60dB gain(22Hz to 22kHz bandwidth) EIN better than -123dB @ 60dB gain+24dB+26dBu into 600 Ohms50 Ohms +/-5%@1kHz, balanced1.2k Ohms @1kHz+20 to +70 in 5dB stepsnot more than 0.025% for 20dBm output from 20Hz to 20kHz @ 60dB gain(22Hz to 22kHz bandwidth) EIN better than -125dB @ 60dB gain+24dB+26dBu into 600 Ohms50 Ohms +/-5%@1kHz, balanced< 40w, 100-240v auto sensing, 47-63Hz, 1.6A Anti Surge Fuse.4U x 19” 260mm deep.12 balanced circuits on a 56 way panel mounted female Varicon.2 x 9 Pin D Type ‘Male’ input and ‘Female’ output, RS485 format (adaptors required for serial RS232).In the interest of product improvement, all specifi cations subject to change without notice. All trademarks are property of their respective owners.www.ams-neve.com
