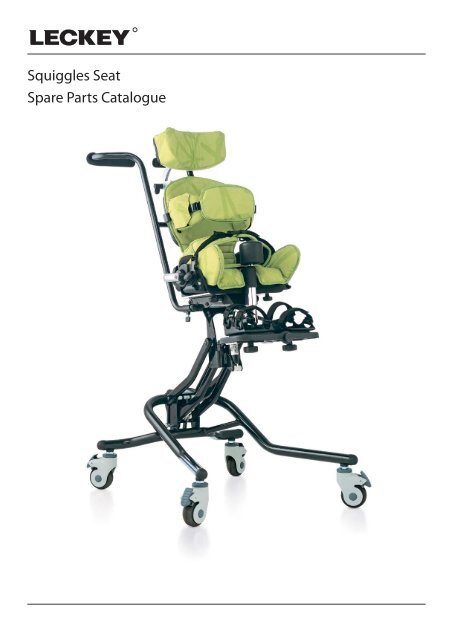

Squiggles SeatSpare Parts Catalogue

Contents03 Squiggles Seat - Product Overview04 Squiggles Seat - Sliding Seatbase Assembly05 Squiggles Seat - Static Seatbase Assembly06 Squiggles Seat - Footrest Assembly07 Squiggles Seat - Backrest Assembly08 Squiggles Seat - Lateral Assembly09 Squiggles Seat - Tray Assembly10 Squiggles Seat - Hi-Low Base Assembly11 Squiggles Seat - Easy Chassis2

Squiggles Seat - Product Overview6894852173Pos. Leckey Code Description Qty1 120-635 Static Seat Base Assembly 12 120-634 Sliding Seat Base Assembly 13 120-637 Footrest Assembly 14 120-640 Backrest Assembly 15 120-195 LHS Hip Guide 16 120-672 Tray Assembly 17 117-720 Interface Assembly 18 120-656 Rigid Lateral Assembly 19 120-201 RHS Hip Guide 13

Squiggles Seat -Sliding Seatbase Assembly21Pos. Leckey Code Description Qty1 120-634 Sliding Seat Base Assembly 12 120-641 Pommel 14

Squiggles Seat -Static Seatbase Assembly31332322Pos. Leckey Code Description Qty1 120-635 Static Seat Base Assembly 12 SP-1027 Squiggles Seatbase Depth Adjustment Kit 13 SP-1028 Tray Assembly Adjustment Kit 15

Squiggles Seat -Footrest Assembly42123Pos. Leckey Code Description Qty1 120-637 Footrest Assembly 12 SP-1029 Footrest Locking Kit 13 117-115 Extrusion Locking Plate 14 120-214 Footplate Pad Kit 16

Squiggles Seat - Backrest Assembly45463217Pos. Leckey Code Description Qty1 120-640 Backrest Assembly 12 SF01 Elesa Knurled Knob Kit 13 118-716 Orb Knob 14 120-1020 Head Support Ratchet Assembly 15 118-166 Head Support Collar 16 120-9029 Trunk Harness Attachment Kit 17 120-665 Backrest Angle Clamp Assembly 17

Squiggles Seat -Lateral Assembly4 521 3Pos. Leckey Code Description Qty1 118-049 Lateral 12 SL19 Csk Socket Screw M6 X 16 13 117-700 Harness Buckle Attachment 14 120-175 Lateral Bracket 15 117-139 Angle Lock Assembly 18

Squiggles Seat -Tray Assembly1322422Pos. Leckey Code Description Qty1 120-672 Tray Assembly 12 120-9032 Tray Adjustment Kit 23 120-671 Tray Height Adjustment Assembly 24 120-638 Tray Depth Adjustment Assembly 29

Squiggles Seat -Hi-Low Base7526143Pos. Leckey Code Description Qty1 120-800 Squiggles Chassis Assembly 12 120-371 Chassis Rear Moulding 13 IA32 Castor 44 118-160 Castor Tube Insert 45 120-802 Chassis Arm Assembly 16 120-812 Bansback Tilt Spring Assembly 17 SF19 Locking Key (M8 X 16) 210

Squiggles Seat -Easy Chassis4155A2623Pos. Leckey Code Description Qty1 122-717 Easy Chassis 12 120-9031 Easy Chassis Castor Kit 43 118-160 Castor Tube Insert 44 SF19 Locking Key (M8 X 16) 25 SP-1030 Easy Chassis Ratchet Kit 16 120-812 Gas Strut Activation 111
