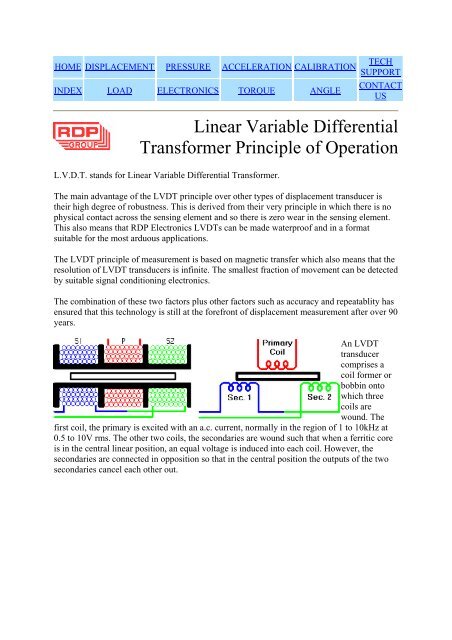

HOME DISPLACEMENT PRESSURE ACCELERATION CALIBRATION TECHSUPPORTINDEX LOAD ELECTRONICS TORQUE ANGLECONTACTUSLinear Variable DifferentialTransformer Principle of OperationL.V.D.T. stands for Linear Variable Differential Transformer.The main advantage of <strong>the</strong> <strong>LVDT</strong> principle over o<strong>the</strong>r types of displacement transducer is<strong>the</strong>ir high degree of robustness. This is derived from <strong>the</strong>ir very principle in which <strong>the</strong>re is nophysical contact across <strong>the</strong> sensing element and so <strong>the</strong>re is zero wear in <strong>the</strong> sensing element.This also means that RDP Electronics <strong>LVDT</strong>s can be made waterproof and in a formatsuitable for <strong>the</strong> most arduous applications.The <strong>LVDT</strong> principle of measurement is based on magnetic transfer which also means that <strong>the</strong>resolution of <strong>LVDT</strong> transducers is infinite. The smallest fraction of movement can be detectedby suitable signal conditioning electronics.The combination of <strong>the</strong>se two factors plus o<strong>the</strong>r factors such as accuracy and repeatablity hasensured that this technology is still at <strong>the</strong> forefront of displacement measurement after over 90years.An <strong>LVDT</strong>transducercomprises acoil former orbobbin ontowhich threecoils arewound. Thefirst coil, <strong>the</strong> primary is excited with an a.c. current, normally in <strong>the</strong> region of 1 to 10kHz at0.5 to 10V rms. The o<strong>the</strong>r two coils, <strong>the</strong> secondaries are wound such that when a ferritic coreis in <strong>the</strong> central linear position, an equal voltage is induced into each coil. However, <strong>the</strong>secondaries are connected in opposition so that in <strong>the</strong> central position <strong>the</strong> outputs of <strong>the</strong> twosecondaries cancel each o<strong>the</strong>r out.


The excitation is applied to<strong>the</strong> primary winding of <strong>the</strong>position sensor by <strong>the</strong>oscillator circuit. Theoscillator is an externalitem, not shown in thisanimation. The excitation isnormally a sinusoidalvoltage signal, of 0.5V to5V amplitude and 1kHz to30kHz frequency.The armature (<strong>the</strong> movingpart or slider of <strong>the</strong>displacement transducer)assists <strong>the</strong> induction ofcurrent into <strong>the</strong> secondarycoils Sec. 1 and Sec. 2. Thearmature is made of aspecial magnetic materialand is often connected to apush rod that is notmagnetic. The push rodconnects <strong>the</strong> armature to<strong>the</strong> outside world.When <strong>the</strong> armature is in <strong>the</strong>central position <strong>the</strong>re is anequal voltage induced intoboth Sec.1 and Sec. 2.However, as <strong>the</strong>y are wiredin opposition, <strong>the</strong> sum of<strong>the</strong> position sensorsecondary outputs canceleach o<strong>the</strong>r out resulting in azero output.As <strong>the</strong> armature moves intoSec.1 (and out of Sec. 2)<strong>the</strong> result is that <strong>the</strong> sum ofSec.1 and Sec. 2 favoursSec.1 which in thisillustration is in-phase with<strong>the</strong> excitation voltage.Conversely, as <strong>the</strong> armaturemoves into Sec. 2 (and outof Sec.1) <strong>the</strong> sum favoursSec. 2 (<strong>the</strong> out-of-phasevoltage).


The output of an is an a.c. waveform and so it does not actually have a polarityas such. The magnitude of <strong>the</strong> output of <strong>the</strong> transducer rises regardless of <strong>the</strong>direction of movement from <strong>the</strong> electrical zero position.In order to know in which half of <strong>the</strong> displacement transducer coil <strong>the</strong> centre of <strong>the</strong> armatureis located, one must consider <strong>the</strong> phase of <strong>the</strong> output as well as <strong>the</strong> magnitude. The outputphase of <strong>the</strong> position sensor is compared with <strong>the</strong> excitation phase and it can be ei<strong>the</strong>r in orout of phase with <strong>the</strong> excitation, depending upon which half of <strong>the</strong> coil <strong>the</strong> centre of <strong>the</strong>armature is in.The electronics <strong>the</strong>refore, must combine information on <strong>the</strong> phase of <strong>the</strong> output withinformation on <strong>the</strong> magnitude of <strong>the</strong> output . This will <strong>the</strong>n allow <strong>the</strong> user to know exactlywhere <strong>the</strong> armature is ra<strong>the</strong>r than how far from <strong>the</strong> electrical zero position it is.RDP Electronics manufacture both <strong>LVDT</strong> transducer units and signal conditioning systemsfor measurement in a wide range of environments.Back to main <strong>LVDT</strong> page.Due to <strong>the</strong> RDP Electronics policy of on-going development, specifications may changewithout notice.Any modification may affect <strong>the</strong> specification of our equipment.Document Reference:- www.rdpe.com/displacement/lvdt/lvdt-principles.htm, updated20020419©RDP Electronics Ltd, Grove Street, Heath Town, Wolverhampton, WV10 0PY, UnitedKingdom.Tel +44 (0)1902 457512, Fax +44 (0)1902 452000, URL www.rdpe.com, e-mail (sales only)sales@rdpe.com, o<strong>the</strong>r departments mail@rdpe.com.
