CI/SfB

April 2011

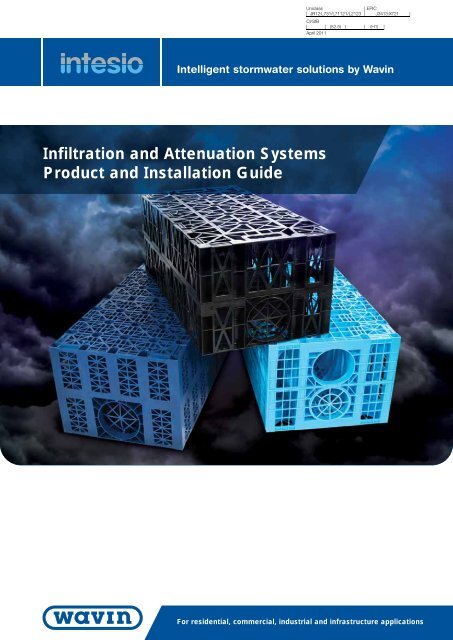

Infiltration and Attenuation Systems

Product and Installation Guide

Uniclass EPIC

JR12:L731/L71121/L2123 J3413:X721

(52.5) (H1)

For residential, commercial, industrial and infrastructure applications

2 Orders: 0844 8565152 Technical Advice: 0844 8565161

Contents

Infiltration and Attenuation

Introduction 4-5

Intesio - For Optimum Stormwater Management 4

AquaCell Systems 4

Garastor System 5

Overview 6-8

Overview of AquaCell Systems 6-7

Principal Components 8

Ancillary Components 8

Applications 9-13

AquaCell Eco for Domestic soakaways

AquaCell Eco for Landscaped

9

and Non-trafficked Sites 10

AquaCell Core for Trafficked installations 11

AquaCell Plus for Deeper installations 12-13

AquaCell System Selector 14

Design and Installation 15-20

Design and Installation Guidance 15-17

Typical Soakaway Installation Method 18

Typical Storage Tank Installation Method 19

Silt Trap 20

Air Vent Design 20

Typical Connections 21-23

Typical Connections to AquaCell Units 21

Typical Air Vent Connections 22

Typical Connection Configurations 23

Typical Details 24-33

Soakaway - Non-Traffic Loading 24

Soakaway - Highway 25

On-Line Storage - Box Feed 26

On-Line Storage - Manifold Feed 27

On-Line Storage - Central Pipe Feed 28

On-Line Storage - Manifold Feed with Bypass 29

Off-Line Storage - Box Feed 30

Off-Line Storage - Manifold Feed 31

Off-Line Storage - Central Pipe Feed 32

Soakaway or Storage Tank - With Silt Trap 33

Garastor System 34-37

Introduction 34

Overview 35

Principal Components 36

Typical Installation Methods 37

Intesio stormwater management 38-39

Other Intesio systems 38

Intesio service 39

Wavin operates a programme of continual product development, and therefore reserves the

right to modify or amend the specifi cation of their products without notice. All information in this

publication is given in good faith, and believed to be correct at the time of going to press. However,

no responsibility can be accepted for any errors, omissions or incorrect assumptions. Users should

satisfy themselves that products are suitable for the purpose and application intended.

Email: technical.design@wavin.co.uk www.intesio.co.uk 3

Infi ltration & Attenuation Systems – Introduction

Intesio – for optimum

stormwater management

Continuing urban development, a changing climate and

the consequences of intensifi ed rainfall: all are increasingly

prominent issues on the political and environmental agenda.

In combination, they represent a complex need for the most

intelligent, effective solution.

Intesio is Wavin’s specialist approach to responsible management

of stormwater, including its effi cient capture, transportation,

cleansing, infi ltration, attenuation and re-use. We’re ready to

contribute at any stage in a project, with one central goal: to help

achieve the optimum project outcome. Our in-depth expertise,

design insight and proven system technology is applied wherever

required to ensure each installed scheme achieves maximum

effi ciency of cost and integrated function, and full compliance with

the latest regulatory criteria.

Intesio AquaCell ® systems:

The AquaCell systems are a fully tried and tested modular

technique for managing excessive rainfall by creating an

underground structure as either a temporary storage tank

or a soakaway:

l AquaCell Eco (black unit) for domestic applications,

and for other landscaped and non-traffi cked sites.

l AquaCell Core (blue unit) for traffi cked locations.

l AquaCell Plus (light blue unit) inspectable, for use

in deep traffi cked locations.

Box systems – select with care

Rising rainfall levels, and increased focus on SUDS compliance,

have led to a sharp increase in the use of modular box systems to

create underground structures for infi ltration or temporary storage

of stormwater.

However, not all currently available systems have the proven

performance characteristics necessary for the wide range of

complex underground geocellular applications (see pages 9-13).

With Intesio AquaCell systems, however, the required strength and

hydraulic capabilities have been verifi ed by independent testing.

AquaCell Eco

AquaCell Core

AquaCell Plus


Infi ltration & Attenuation Systems – Introduction

Garastor ® System*

A polypropylene fl ow control chamber connected to a water

storage reservoir EITHER made up of AquaCell units or located in

a void beneath the garage of individual houses.

* Depending on the application, Garastor may be used with any

version of AquaCell units (Eco, Core or Plus). Eco may only be

used in landscaped situations.

For further details, contact Wavin Technical Design.

NOTE: Garastor can be used as a fl ow control device for any

AquaCell storage system, no greater than one unit deep with a

discharge of up to 1.4 l/s via the 30mm release fl ow orifi ce.

* Garastor is manufactured under licence (Patent Number

GB2357093).

Garastor System

Garastor domestic storage using AquaCell Core tank

Garastor domestic storage using garage void

The AquaCell Stormwater

Management System

Comprises individual infi ltration modules assembled together

to form underground structures which can either be used for

stormwater storage or as an alternative to domestic soakaways.

Heavy storms and major cloudbursts are becoming more frequent,

resulting in ever increasing volumes of stormwater fl owing into

conventional drainage systems and water courses. When the

capacities of these systems are exceeded the consequences can

be dramatic and damaging.

Stormwater must be controlled; either by limiting the outfl ow

and providing temporary storage or where the ground conditions

are suitable, providing soakaways for the stormwater to infi ltrate

back into the surrounding ground. This has the added benefi t of

recharging the local groundwater.

Both options can be achieved using either the AquaCell Eco,

Core or Plus systems, depending on the application.

AquaCell Eco soakaway

Large scale AquaCell Core storage tank

AquaCell Core domestic soakaway


Overview of AquaCell ® Systems

AquaCell systems are a fully tried and tested modular technique

for managing excessive rainfall. Units are assembled to create

an underground structure as either temporary storage tank or

soakaway.

There are 3 types of unit:

AquaCell Eco

for domestic applications, and for other landscaped

and non-traffi cked sites (pages 9-10)

AquaCell Core

for traffi cked locations (page 11), and

AquaCell Plus

for extra deep installations and/or inspectability (pages 12-13)

For quick, versatile assembly

The lightweight polypropylene, high void units are securely

linked together using special clips and shear connectors.

They can be assembled quickly on site into whatever

confi guration suits each specifi c location.

AquaCell geocellular systems also allow ‘brick-bonding’,

which can give extra stability, without the need for additional

connector pieces. See Installation Guidance page 16.

Wrapped for infiltration or storage

The complete assembly is wrapped in either geotextile

sheet or a geomembrane:

For pervious soils, the geotextile option allows infi ltration

of stormwater into the surrounding ground.

For impervious ground (e.g. clay) or where infi ltration

is not desirable, the geomembrane holds stormwater

in temporary storage until local drainage fl ows can

accept it for normal disposal.

Benefiting community and environment

AquaCell systems contribute the following benefi ts:

l Signifi cantly reduced fl ooding risk

l Controlled, reduced-volume release of stormwater

into existing sewer systems or watercourses

l Recharging of local groundwater

(if infi ltration/soakaway application)

l Aerobic purifi cation to improve water run-off quality

l Sustainable, cost effective management

of the water environment

Helping SUDS and planning approval

The proven qualities and performance of AquaCell systems

not only support the achievement of SUDS, they can also

help reinforce and enhance planning applications, and enable

development to proceed.

Types of Connections

There are a number of ways to provide a controlled feed into the

AquaCell units to suit the required fl ow capacity.

These being:

1. Manifold Confi guration – this confi guration utilizes standard

pipe and fi ttings (see page 23)

2. Box Confi guration – this confi guration utilizes the AquaCell Core

units (see page 23)

3. Central Pipe Confi guration – this confi guration utilizes standard

perferated TwinWall pipe and fi ttings (see page 23)


Overview of AquaCell ® Systems

Acceptance – British Board of Agrément

The Intesio Infi ltration and Attenuation systems, AquaCell Core

and AquaCell Plus have been awarded British Board of Agrément

approval under BBA Agrément Certifi cate No. 03/4018.

The certifi cate covers the design data, technical specifi cation,

installation and maintenance aspects for each unit as follows:

AquaCell Eco

BBA Agrément Certifi cate pending

AquaCell Core

Approved under BBA Agrément

Certifi cate No.03/4018, Detail Sheet 1

AquaCell Plus

Approved under BBA Agrément

Certifi cate No.03/4018, Detail Sheet 3

Construction Industry Research and Information

Association (CIRIA)

CIRIA publishes structural design information

for modular geocellular drainage tanks

CIRIA has produced Guidance Document C680 “Structural design

of modular geocellular drainage tanks”...

This document has been produced to ensure that engineers

have the required information to establish that a proposed

underground structure is capable of remaining structurally sound

and operational in traffi cked situations over the lifetime of the

construction.

C680 asserts that engineers should satisfy themselves of

the suitability of the proposed construction, and not rely on

manufacturer’s recommendations. Intesio AquaCell has been fully

tested in accordance with the requirements of C680 and we can, if

required, provide structural calculations for our system within our

designs from an independent consultant.


AquaCell Systems – Principal Components

Principal Components

AquaCell Eco Unit

6LB025

6UR141

UltraRib S/S Adaptor

(Fits into pre-formed socket to

connect to 150mm UltraRib)

4D916

160mm OsmaDrain

P/E Adaptor

(Fits into pre-formed socket as

an extension connection piece)

6LB104*

150mm Flange Adaptor

(Adaptor to be used at points

other than pre-formed socket

to connect to 150mm UltraRib)

6LB106**

225mm Flange Adaptor

(To connect to 225mm UltraRib)

6TW141

TwinWall S/S Adaptor

(Fits into pre-formed socket to

connect to 150mm TwinWall)

6D129

OsmaDrain S/S Adaptor –

Thinwall Clay Spigot

(For use with 6D916 when

connecting to a BS EN 295

Thinwall Clay Spigot)

6SC205

Extension Kit

AquaCell Core Unit

6LB100

NOTE: All AquaCell units (Eco, Core and Plus) have identical dimensions: 1m (L) x 0.4m (H) x 0.5 (W)

Ancillary Components

*6LB104 – Can only be used when

constructing an air vent, on the top

surface of the unit, when installed with

AquaCell Eco (6LB025).

**6LB106 – Not suitable for use with

AquaCell Eco (6LB025).

6D099

OsmaDrain S/S Reducer

160mm x 110mm (fits into

pre-formed socket to connect

to 110mm OsmaDrain)

6LB300

Domestic Silt Trap

(Bucket and extension piece available)

AquaCell Plus Unit

6LB200

6LB105

Clip

(Used to hold units

together horizontally)

6LB102

Shear Connector

(Used to hold units

together vertically)

6LB600

Silt Trap

(Use extension kit if required)

All ancillary components can be used with any AquaCell unit,

except the 225mm Flange Adaptor (6LB106) which must only

be used with AquaCell Core or AquaCell Plus.

The 150mm Flange Adaptor (6LB104) should only be used

when constructing an air vent on the top surface of an

AquaCell Eco unit. The adaptor should not be used to connect

inlet pipes to the side of the AquaCell Eco unit.

NOTE: All components on this page are not shown to scale


AquaCell Eco for Domestic Soakaways

AquaCell Eco has been designed for limited-depth

installations in non-traffi cked areas of domestic

gardens and similar landscaped sites.

AquaCell Eco is suitable for installations to a maximum

depth of 1.5 metres.

See overleaf, page 10, for other landscaped

and non-traffi cked applications.

In addition to features and benefi ts applicable to ALL

AquaCell systems, those specifi cally applicable to

AquaCell Eco (black unit) include:

l Manufactured from recycled plastic

l Suitable for soakaways or attenuation applications

l Proven vertical loading capacity: 17.5 tonnes/m 2

l Proven lateral loading capacity: 4 tonnes/m 2

l For installation depth (to base of units) of up

1.5 metres maximum

l Integral ‘hand holds’ for easy carrying/handling

l BLACK colour – easy to distinguish from other

AquaCell systems

l Specifi cally designed for shallow depth, low-loaded,

landscaped sites

l Ideal for smaller projects

NOTE: AquaCell Eco is NOT suitable for locations subject

to a high water table.

AquaCell Eco

6LB025

Typical application

Domestic back gardens


AquaCell Eco for other Landscaped/Non-traffi cked Sites

AquaCell Eco is also designed for other landscaped

and traffi c-free applications where heavy loading

capability is not required.

AquaCell Eco is suitable for installations to a maximum depth

of 1.5 metres. Minimum cover depth is 0.3m, but recommended

cover depth is 0.5m.

Any installation using AquaCell Eco must NOT be subjected to

additional loading at any time. Traffi cking by construction plant on

site, including mechanical backfi lling equipment, must be avoided.

If traffi cking of the buried tank by construction plant or other

vehicles is unavoidable, the installation should use AquaCell Core

units (see page 11).

The width of an AquaCell Eco installation should not exceed

12 metres to allow for mechanical backfi lling without loading.

There is no limit to installation length.

See previous page 9, for small domestic soakaway applications

and for AquaCell Eco (black unit) specifi c features and benefi ts.

NOTE: AquaCell Eco is NOT suitable for locations subject

to a high water table.

AquaCell Eco

6LB025

Typical applications

Grassed and leisure areas

Roundabouts


AquaCell Core for Traffi cked Sites

AquaCell Core is ideal for areas subject to

regular and heavy traffi c loading, and particularly

for larger projects.

Specifi ers, developers and contractors can now choose the right

product to suit each situation. The original AquaCell Core (blue

unit) has already proved its versatility and functional performance

advantages in large projects designed to satisfy demanding

criteria for sustainable drainage. Examples of projects utilising

AquaCell include:

l Large scale 7,000 unit soakaway under airport car park

l 2,000 unit storage tank in contaminated land, a former power

station site

l 1,400 unit storage tank to store run-off from expanding retail park

In locations where traffi c loading is NOT anticipated, AquaCell Eco

(black unit) should be selected (see pages 9-10).

Features and benefi ts specifi cally applicable to traffi ckable

AquaCell Core (blue unit) include:

l BBA approved and can meet technical requirements of NHBC

l Proven vertical loading capacity: 56 tonnes/m 2

l Proven lateral loading capacity: 7.75 tonnes/m 2

l For installation depth of up to 4.1 metres to base of units

(4.25 metres if non-traffi cked)

l Distinctive BLUE colour – easy to identify

l Designed for all confi gurations and applications, including both

shallow and deeper installations – ideal for all sizes of project

including major attenuation schemes

AquaCell Core

6LB100

Typical applications

Industrial/commercial areas

Email: technical.design@wavin.co.uk www.intesio.co.uk 11

Roads

AquaCell Plus for Deeper Installations and/or for Inspectability

For any installation where extra depth and/or

inspectability is required.

AquaCell Plus has been developed and engineered to add extra

design scope for AquaCell installations. The units can be used in

combination with AquaCell Core (and with Eco if there is at least

one layer of AquaCell Core in between the Plus and Eco layer).

Extra lateral loading capacity allows installation at greater depths.

Integral inspection channels in each unit can combine to create

viewing channels for the full length of the installed structure.

Proven loading capacity

l Vertical: 65 tonnes/m 2

l Lateral: 8.55 tonnes/m 2

Installation depth

l Maximum to base of units*: 5.08 metres

*in best soil conditions

Other features

Specifi c to AquaCell Plus:

l Distinctive LIGHT BLUE colour – for ease of inspectability

l Integral inspection tunnel

l Approvals: BBA No.03/4018 Detail Sheet 3

AquaCell Plus: solus – or in combination

AquaCell Plus may be used on its own – or in combination with

AquaCell Eco* and/or AquaCell Core.

*NOTE: AquaCell Eco can only be used in conjunction with

AquaCell Plus if there is at least one layer of AquaCell Core in

between the Plus and Eco layer.

Extra deep installations

Non-trafficked areas

Trafficked areas

AquaCell Plus

6LB200

End cap for when an

inspection channel

is not required


AquaCell Plus for Deeper Installations and/or for Inspectability

AquaCell Plus: for extra depth

and/or inspectability

The extra lateral loading capacity of AquaCell Plus means it can

be used at a greater depth (maximum 5.08m). This may be on

its own – or in combination with AquaCell Core, which has a

maximum permitted depth of 4.25m (4.1m if traffi cked).

AquaCell Plus: for inspectability

By aligning AquaCell Plus units end-to-end, full length viewing

channels can be created – allowing for CCTV inspection if

required. These are created in the bottom layer of an AquaCell

tank installation.

AquaCell Plus units may be installed alongside other AquaCell

units, as in the examples shown.

Wavin recommends that a minimum of three inspection tunnels

are created – at the inlet point (at or near the tank centre line) and

at the two outer edges of the structure. An inspection chamber

should be installed for each tunnel.

NOTE: For any AquaCell Plus units on the perimeter of a structure

that are NOT required for inspection access, the open ends of

the integral inspection tunnels should be fi tted with the end caps

provided.

Inspection chambers

An inspection chamber should precede the inlet pipework

for the AquaCell structure:

For on-line installations:

– (down to 3m) Intesio Non-Entry Inspection Chamber [NIC] or

– (down to 5m) Intesio Tegra 600 Inspection Chamber or

– Traditional manhole*

*where inlet pipework is replaced by AquaCell units acting as fl ow

conduit).

A silt trap prior to the inspection chamber is also recommended.

For off-line installations:

– Traditional manhole with in-built fl ow control

For non-inlet inspection points, use Intesio Non-Entry Inspection

Chamber [NIC] or Intesio Tegra 600 Inspection Chamber only.

RECOMMENDATION: If installing Intesio Non-Entry Inspection

Chamber [NIC] or Intesio Tegra 600 Inspection Chamber,

regardless of depth, ensure the cover and frame includes a

350mm restrictor to prevent man entry.

Inspectability scenarios

AquaCell Core and AquaCell Plus

Trafficked tank installation with inspection channels

Inspection and maintenance

CCTV inspection at every inspection point is recommended:

– after every major storm

– at regular intervals according to the specifi c maintenance

plan for the site

Silt traps prior to inlet pipework should be routinely inspected and

cleaned out to minimise debris reaching the tank. It is important to

prevent construction silt from entering the AquaCell structure.


AquaCell Systems – System Selector

The following selector will help you to determine which

AquaCell system, or combination of systems, is the

correct choice for a particular project.

Will the site be subject to traffic loading?

NO YES

Does the site have a high water table?

NO YES

Will both tank length and width be

more than 12m?

NO YES

Will the tank be more than 1.5m deep?

NO YES

Use:

Eco to 1.5m deep

Eco AquaCell Eco (6LB025)

Will the tank be more than 4.25m deep?

Will the tank need to be installed

extra deep (ie deeper than 4.1m

in ideal soil conditions)?

NO YES NO YES

Use:

Core to 4.25m deep

OR a combination of:

Eco to 1.5m deep and


See pages 9-10

Core AquaCell Core (6LB100) See page 11

Plus AquaCell Plus (6LB200)

Notes:

See pages 12-13

AquaCell Eco cannot be used directly

with AquaCell Plus.

If the tanks need to be inspectable, contact

Wavin Technical Design on 0844 8565161.

Use a combination of:

Eco to 1.5m deep with*

Core to 4.25m deep and

Plus to 5.08m deep

*NOTE: AquaCell Eco units cannot be directly connected to AquaCell Plus

Use:


Use a combination of:

Core to 4.1m deep and

Plus to 4.78m deep


Design and Installation Guidance

Hydraulic and

Structural Design

All AquaCell system units have

identical dimensions: 1m x

0.4m x 0.5m, with a nominal

void ratio of 95%. Hydraulic

calculations are accordingly

the same for AquaCell Eco,

Core and Plus.

Structural design, however,

requires careful consideration

of loading factors specific to

each location.

Installation and

Cover Depths

After deciding which AquaCell

system is correct for the project

location (using the System

Selector on page 14), see

Table for the recommended

maximum installation depths

and minimum cover depths.

The Mixing the units together

diagram also shows the depth

parameters for each system,

and so gives guidance on

combining two or more of the

AquaCell systems.

0.3-0.5m

minimum

cover depth

Max. depth

to 1.5m

Max. depth

to 4.25m

Max. depth

to 5.08m

Minimum cover depth

AquaCell AquaCell AquaCell

Location type Eco Core Plus

Landscaped/non-trafficked areas 0.3m b 0.5m 0.5m

Car parks, vehicle up to 2500 kg a

gross mass , with AquaCell system

– up to 3 AquaCell units wide in trench n/a 0.6m 0.6m

– more than 3 AquaCell units wide n/a 0.75m 0.75m

Maximum depth to base of unit 1.5m 4.25m c 5.08m

a For specific advice on cover depths for heavier loadings/HGV applications, contact Wavin

Technical Design on 01249 766655.

b 0.3 is minimum depth for AquaCell Eco, although 0.5m cover is recommended to prevent accidental damage.

If construction plant is to be used on site, extra protection may be needed.

c Allowable maximum depth to base of bottom layer of units is dependent on soil type, angle of shearing resistance,

loadings, and groundwater level. In poor ground conditions a shallower depth may apply.

AquaCell Systems:

Installation Depths

Each AquaCell system has

been designed to have specific

loading capacities (see pages

9-13) that define the depth

parameters for which they

are suitable.

Minimum depth of cover varies

according to whether or not the

installation will be subject to

trafficking by motor vehicles/

HGVs. In each case, the cover

depths shown in the diagram

include both absolute minimum

and recommended minimum

cover depths.

In some situations, installations

have to be located at much

deeper levels with significantly

greater cover depths. Reasons

may include:

Landscaped installation Trafficked installation

Eco Core Plus

Mixing AquaCell units together

l Deep-running drainage

network

l Other buried services running

above tank location

l Installation into banked/

sloping ground

l Upper layer of clay

preventing infiltration

0.6-0.75m

minimum

cover depth

Max. depth

to 4.1m

Max. depth

to 4.78m



Geocellular Structures

Important design considerations

To guarantee the structural integrity of an engineered drainage

system, any underground structure must be strong enough

to support the loads to which it will be subjected without any

unacceptable deflection.

The correct choice of geocellular box must have appropriate

proven top (vertical) and side (lateral) load bearing capacity and

deflection characteristics to suit site conditions.

The five key site considerations to be noted when designing

a geocellular box system are:

1 Depth of cover (See page 14)

2 Soil type

3 Surface finishing

4 Presence of groundwater

5 Type of traffic/loading

Non-trafficked Trafficked

3

2

4

The combination of these 5 factors effectively means that the

required characteristics of a geocellular system to be installed

under a trafficked location (for example) will be very different

from that under a landscaped/low-loaded location. Two typical

examples are given below.

EXAMPLE A:

Car park with occasional

lorry traffic and 0.6m cover

depth. Typically requires

minimum vertical strength

of 40 tonnes/m2 EXAMPLE B: Landscaped/

non-trafficked location

and 0.3m cover depth.

Typically requires minimum

vertical strength of 17.5

tonnes/m 2

These factors have already been taken into consideration

within the System Selector on page 14 for the three AquaCell

systems, and in the cover depth and installation depth guidance

on page 15.

5

1 1

Suitable box

system = ?

Suitable box

system = ?

3

2

4

‘Brick-bonding’ unit assembly

Recommended for extra stability

When assembling a geocellular structure that comprises two or

more layers, it is recommended that AquaCell units are placed

in a ‘brick-bonded’ configuration.

This helps minimise

continuous vertical joints

in the assembly, and gives

the structure extra stability.

No extra connectors required with AquaCell

A significant advantage of AquaCell unit design is that

brick-bonding placement does not require extra connectors.

All three AquaCell systems may be placed in this way, unless

inspection channels and cleaning access are required using

AquaCell Plus (see NOTE).

NOTE: AquaCell Plus units incorporate integral inspection

channels. These are designed for combined alignment to create

viewing tunnels at the base of an assembled structure.



Soakaway or tank?

Checking site suitability

Infi ltration criteria

A site is suitable for infiltration (soakaway) provided that BOTH

of the following are confirmed:

l The underlying soil surrounding the proposed installation

is sufficiently permeable

l The seasonally high water table is a minimum of 1 metre

below the base of the proposed installation

If either of these criteria is not the case, or cannot be confirmed

for any reason, a soakaway system may not be suitable for the

application.

Storage tank

If infiltration is not possible, the system may be wrapped in an

impermeable geomembrane to create a storage tank which would

discharge at a fixed flow rate via a flow restriction device to a

permissible outflow point.

This may be designed to be online or offline (see pages 26-32

for typical details).

However, if the site is subject to groundwater or a high water

table, it is important to ensure that the tank is not vulnerable to

flotation. Sufficient weight from soil, or other covering placed over

the AquaCell units, must be sufficient to counter any buoyancy

uplift force of that water.

Site assessment

Ground conditions may be established as part of a geotechnical

assessment. This may include tests for infiltration and ground

water level.

If there is no confirmation that such assessments have been

conducted, or resulting conclusions are unavailable, a trial pit

will be required in accordance with BRE 365.

For information and guidance, please contact the Intesio

Technical Support Team.

AquaCell Eco:

Additional Installation Guidance

As AquaCell Eco is designed for landscaped and non-loaded

applications, certain precautions are recommended on site to

prevent damage to the units through excess loading.

Manual assembly

Whilst assembling the tank, it may be necessary to walk on top of

previously laid AquaCell units. Therefore care should be taken not

to damage the edges of the units.

Construction traffi c on site

If construction plant (e.g. excavators or loaders) are likely to run

over the installation:

l MINIMUM protective cover should be 500mm well-compacted

granular material

l Only tracked excavators can be used and MUST NOT weigh

more than 14 tonnes. Compaction plant must not exceed

2300kg per metre width

l HGVs MUST NOT run over installed AquaCell Eco units

Backfi lling

When backfilling AquaCell Eco installations:

l Machines placing the material must be located OFF the units

l Only light compaction should be applied to the material

If Type 1 sub-base (or similar) material over AquaCell Eco units

requires compaction:

l First layer should be 300mm thick before any compaction

l NO vibratory mechanism should be used for compacting

this first layer

l MAXIMUM roller size: 2300 kg per metre width

Ancillaries and Adaptors

All ancillaries and adaptors (see page 8) can be used with

either the AquaCell Eco, Core or Plus units, except the

225mm Flange Adaptor (6LB106) which must only be used

with AquaCell Core or Plus.

The 150mm Flange Adaptor (6LB104) should only be used when

constructing an air vent on the top surface of an AquaCell Eco

unit. The adaptor should not be used to connect inlet pipes to the

side of an Eco unit.


Typical Soakaway Installation Method

AquaCell Units

Coarse sand or non angular granular material base and surround

Example shows the use of

AquaCell Eco. However, a

soakaway can also be installed

as shown using either of the

other versions of Aquacell units

(Core or Plus) as appropriate.

* The geotextile should be selected

according to specific site conditions.

Typically, however, a 300g material

will be suitable. Specialist advice

should be sought if surrounding soil

characteristics exhibit a high degree

of fines/low infiltration capacity and/

or there is a high risk of damage

from ground contaminants.

Typical Installation Procedure

100mm

100mm

Permeable geotextile*

Pre-formed socket

100mm

1. Excavate the trench to the required depth ensuring that the plan area is slightly greater than

that of the AquaCell units.

2. Lay 100mm bed of coarse sand or non angular granular material, level and compact.

3. Lay the geotextile* over the base and up the sides of the trench.

4. Lay the AquaCell units parallel with each other. In multiple layer applications, wherever

possible, continuous vertical joints should be avoided. AquaCell units can be laid in

a ‘brick bonded’ formation (i.e. to overlap the joints below) – see page 16. For single layer

applications use the AquaCell Clips and for multi layers use the AquaCell Clips and the

AquaCell Shear Connectors.

5. Fix the Adaptors to the AquaCell units as required and connect pipework.

6. In order to prevent silt from entering the tank, clogging inlet pipework and reducing storage

capacity, it is recommended that the Domestic Silt Trap (6LB300) or the standard Silt Trap

(6LB600) is installed prior to the inlet pipework – see page 20 for installation guidelines.

7. Wrap and overlap the geotextile covering the entire AquaCell structure.

8. Lay 100mm of coarse sand or non angular granular material between the trench walls and

the AquaCell structure and compact.

9. Lay 100mm of coarse sand or non angular granular material over the geotextile and

compact. Backfill with stone free as-dug material.

10. Rainwater from roof areas may discharge directly into the soakaway but rainwater from

carparks must discharge through a catchpit manhole or a petrol interceptor.


Typical Storage Tank Installation Method


Coarse sand or non angular granular material base and surround

Example shows the use of

AquaCell Core. However,

a storage tank can also be

installed as shown using any

of the other versions of

AquaCell units (Eco or Plus)

as appropriate.

* For large scale, deep installations

a 1mm thick geomembrane is

recommended and joints should be

sealed using proprietary welding

techniques. However, for shallow,

domestic installations it may be

suitable to use a geomembrane

with taped joints. For further details

contact Wavin Technical Design.

Typical Installation Procedure

100mm

100mm

Suitable impermeable

geomembrane

Suitable protective

geotextile layer

Pre-formed socket

100mm

1. Excavate the trench to the required depth ensuring that the plan area is slightly greater

than that of the AquaCell units.

2. Lay 100mm bed of coarse sand, level and compact.

3. Lay the geotextile over the base and up the sides of the trench.

4. Lay the geomembrane on top of the geotextile over the base and up the sides of the trench.

5. Lay the AquaCell units parallel with each other. In multiple layer applications, wherever

possible, continuous vertical joints should be avoided. AquaCell units can be laid in

a ‘brick bonded’ formation (i.e. to overlap the joints below) – see page 16. For single layer

applications use the AquaCell Clips and for multi layers use the AquaCell Clips and the

AquaCell Shear Connectors (vertical rods).

6. Wrap the geomembrane around the AquaCell structure and seal to manufacturers

recommendations.*

7. If side connections into the AquaCell units is required, (other than the preformed socket),

use the appropriate Flange Adaptor (6LB104 or 6LB105). Fix the flange adaptor to the unit

using self-tapping screws. Drill a hole through the Flange Adaptor and connect the

pipework.

8. In order to prevent silt from entering the tank, clogging inlet pipework and reducing storage

capacity, it is recommended that the Domestic Silt Trap (6LB300) or the standard Silt Trap

(6LB600) is installed prior to the inlet pipework – see page 20 for installation guidelines.

9. Wrap and overlap the geotextile covering the entire AquaCell structure, to protect the

geomembrane.

10. Lay 100mm of coarse sand between the trench walls and the AquaCell units and compact.

11. Lay 100mm bed of coarse sand over the geotextile and compact. Backfill with stone free

as-dug material.

NB: A storage tank must be vented, and it is recommended that one vent pipe, 110mm in

diameter is provided per 7,500 square metres of impermeable catchment area on a site,

see page 18 for design.


Typical Installation: Silt Trap and Air Vent Termination

Silt Trap

150mm side

fill of suitable

‘as dug’ material

or granular

material

250mm Dia Silt Trap

110mm Dia

OsmaDrain Pipe

100mm bed of

suitable ‘as dug’

material or granular

material

Typical Air Vent Design

Balloon Grafting

Flange

Connector

(6LB104)

Cover and Frame (4D961)


Ventilation Box

110mm OsmaDrain Pipe

Geomembrane sealed to

Flange

Typical Installation

Procedure

1. Place the Domestic Silt Trap (6LB300)

on a minimum of 100mm bed as per

pipe bedding specification. Ensure that

the unit is as close to the AquaCell

system as possible and in a suitable

position to allow pipework connection.

2. Connect the relevant pipework in

accordance with standard pipe

installation guidelines.

3. Surround the sides of the Silt Trap

with 150mm of ‘as dug’ material, with

no particle sizes larger than 40mm.

4. Fit relevant cover and frame.

NOTE: When surrounded by a concrete plinth

(150mm x 150mm) the 4D961 Cover and Frame

can be used in situations with a loading of up to

10kN (1 tonne).

150mm x 110mm Reducer

(6UR099)

NOTE: It is recommended that one vent pipe,

110mm in diameter, is provided per 7,500

square meters of impermeable catchment area

on a site. Please contact Wavin Technical Design

for further details.


Typical Connections to AquaCell Units

NOTE: It is recommended that all connections and air

vent installations in storage applications (using

geomembrane) are made using a Flange Adaptor.

Adhesive or double sided tape should be used

between the geomembrane and the fl ange plate to

ensure a watertight seal.

Connection for soakaway application using either

the pre-formed socket (as shown below) or standard

adaptors into pre-formed socket*


Permeable

Geotextile Wrap

Coarse Sand or Non-Angular Granular

Material Base and Surround

Connection for storage application using Flange

Adaptor at points other than pre-formed socket,

(for AquaCell Plus/Core only).

AquaCell Plus/

Core Only

Geomembrane Wrap

Coarse Sand or Non-Angular Granular

Material Base and Surround

Jubilee clip

150mm

pipework to suit

Flange Adaptor

(6LB104/6LB16)

150mm

pipework to suit

*NOTE: For pipework other than 160mm

OsmaDrain, these adaptors can be used to

connect to the following:

l 6TW141: TwinWall S/S Adaptor connects

to 150mm TwinWall

l 6D099: OsmaDrain Adaptor connects

to 110mm OsmaDrain

l 4D916: OsmaDrain PE Adaptor connects

to 160mm OsmaDrain

l 6UR141: UltraRib S/S Adaptor connects

to 150mm UltraRib

l 6D128: OsmaDrain S/S Adaptor connects

to 150mm thinwall clay. (needs to be used

in association with 4D916 Adaptor)

Installation Procedure

1. Fix Flange Adaptor to the AquaCell unit

with self tapping screws.

2. Drill or cut through the geomembrane

and AquaCell unit using either a

Crown Drill Bit Cutter or similar.

3. Insert pipework into Flange Adaptor.

*NOTE: AquaCell Eco is not suitable for side

connection using a Flange Adaptor.


Typical Air Vent Connections

Top Connection for Air Vent

Connect into the top of the AquaCell unit,

using Flange Adaptor.

Connect suitable pipework to form air vent

Flange Adaptor (6LB104)

Geomembrane wrap


Coarse sand or non angular

granular material base and

surround

Side Connection for Air Vent

Connect into the side of the AquaCell tank unit using

standard OsmaDrain Reducer (6D099).

Geomembrane wrap


Coarse sand or non angular


surround

Jubilee clip

OsmaDrain S/S reducer (6D099)


Procedure

1. Fix Flange Adaptor to the AquaCell tank

with self-tapping screws.

2. Drill through geomembrane and AquaCell

unit with a long 150mm Crown Drill Bit

Cutter.

3. Insert pipework into Flange Adaptor to

form air vent.

Suitable bend and

pipework to form air vent


Procedure

1. Fix OsmaDrain Reducer to the AquaCell

tank with self-tapping screws.

2. Drill through geomembrane and AquaCell

unit with a long 150mm Crown Drill Bit

Cutter.

3. Insert pipework into OsmaDrain Reducer

to form air vent.


Typical Connection Configurations

Introduction

The connections shown here in schematic form, are the 3 options used to connect

AquaCell box unit assemblies to control chambers. They provide a controlled feed

into and out of the AquaCell box unit assemblies, and are used for either infiltration

or attenuation schemes.

Manifold Connection

Using standard pipes and fi ttings

150mm/225mm UltraRib

Pipe

Precast concrete chamber

sections and cover slab

150mm concrete surround

NOTE: The configuration of pipes in a manifold arrangement will vary to suit site conditions and aniticip[ated stormwater intensity.

See pages 27, 29 and 31 for this option in context.

Box Connection

Using AquaCell Core units

for fast water transfer

Pipe




NOTE: See pages 26 and 30 for this option in context.

Central Pipe Connection

Using standard perforated

TwinWall pipe and fi ttings

Pipe



Cover and frame

Sump

Sump


14mm - 20mm single

size granular bedding /

backfill material

150mm concrete surround Perforated

TwinWall pipe

NOTE: See pages 28 and 32 for this option in context.


Sump

AquaCell box

unit assembly

AquaCell box unit assembly




Typical Details: Soakaway – Non-Traffic Loading

Deep Soakaway

Non-traffi c load area

110mm

OsmaDrain


Domestic

Silt Trap

Trench Soakaway

Non-traffi c load area

S

T

Min depth*


Min depth*

Ground level

T

S

Installation

depth*

Key

Ground level

S = AquaCell units soakaway

(See note 2)

T = 250mm Dia Silt Trap

Notes

1. Soakaways should

be sited at least 5m

away from the building

(Ref BS EN 752-4)

2. The exact size

and shape of the

soakaways are to

be determined once

all the necessary

calculations have

been produced.

* For information

regarding cover depths

and installation depths,

see page 15.

Installation

depth*


Typical Details: Soakaway – Highway

For minimum depth of

cover contact Wavin

AquaCell Plus and AquaCell Core only

Footpath Finished road level

225mm UltraRib

150mm UltraRib

Silt trap

To road gully

150mm

Concrete surround


Typical Details: On-Line Storage – Box Feed

Water

flow

Water

flow


Precast

concrete

chamber

sections and

cover slab

Long Section

Typical vent detail

Open grating

Ventilation box


A


Precast

concrete

chamber


cover slab

Flow control

Sump Sump

A

Upstream control chamber

Plan

Cross Section A-A

Sump

Geomembrane wrap with outer

protective geotextile wrap AquaCell Core units

AquaCell unit assembly Coarse sand or non angular


surround

AquaCell Plus units

used as the lower

layer

AquaCell unit assembly


Downstream control chamber

Cover and frame Flow control

What happens to the water?

1. The water level in the upstream control chamber rises.

2. Then, during a storm event, the AquaCell box unit

storage assembly quickly fills with water via the box feed

connection.

3. After storm event, water flows back out of the AquaCell

box unit storage assembly, finding its own level, and into

the downstream control chamber.

Water

flow

4. The water then flows through the vortex flow control valve.

26 Orders: 0844 8565152 Technical Advice: 0844 8565161

Water

flow

Typical Details: On-Line Storage – Manifold Feed

Water

flow

Water

flow


Precast

concrete

chamber


cover slab

Long Section


Open grating



A


Precast

concrete

chamber


cover slab

Flow control

Sump Sump

A

Upstream control chamber

Plan

Sump

3-pipe manifold



2. During a storm event, the AquaCell box unit storage

assembly fills with water via the manifold feed connection.


box unit storage assembly, finding its own level, and into

the downstream control chamber.


AquaCell unit assembly Coarse sand or non angular


surround




Downstream control chamber

Cover and frame Flow control

Water

flow


protective geotextile wrap AquaCell Core units

AquaCell Plus units used

as inspection access

Email: technical.design@wavin.co.uk www.intesio.co.uk 27

Water

flow

Typical Details: On-Line Storage – Central Pipe Feed

Water

flow

Water

flow


Precast

concrete

chamber


cover slab

Long Section

Coarse sand or non angular granular

material base and surround



Open grating




Wavin TwinWall half-perforated pipe

14mm - 20mm single size granular

bedding/backfill material


Geomembrane to perimeter of constructon

2. AquaCell box unit storage assemblies fill with water via the central pipe connection and

percolation through the granular bedding material.

Wrap the entire

AquaCell unit

assemblies

with a geotextile

wrapping as

appropriate

3. After storm event, water flows back out of the AquaCell box unit storage assemblies, finding

its own level, and into the downstream control chamber.


A


Precast

concrete

chamber


cover slab

Flow control

A

Sump Sump



Upstream control chamber Downstream control chamber

Plan

Sump


Water flow during storm event Water flow after storm event


Flow control

28 Orders: 0844 8565152 Technical Advice: 0844 8565161

Water

flow

Water

flow

Typical Details: On-Line Storage – Manifold Feed with Bypass

Water

flow

Water

flow


Precast

concrete

chamber


cover slab

Long Section

Plan

Upstream control

chamber




Bypass pipe

1. When storm conditions are high, the water level in the

upstream control chamber rises.

2. The AquaCell tank unit assembly also fills with water to its

designated capacity.

3. The excess water is taken up by the bypass pipe and

guided to the downstream control chamber, to prevent

overloading of the AquaCell tank unit aasembly.

4. As the storm event subsides, the water in the AquaCell tank

unit assembly flows back out, finding its own level, and also

discharges into the downstream control chamber.

5.The water then flows through the vortex flow control valve.


Open grating


150mm concrete

surround


Precast

concrete

chamber


cover slab

Flow control

Sump

A

Sump


Sump

Manifold pipe arrangement

Bypass pipe

AquaCell unit

assembly

A


protective geotextile wrap




Geomembrane wrap with outer protective geotextile wrap

Downstream control

chamber

Flow control

Water

flow

Water

flow


protective geotextile wrap Bypass pipe


Typical Details: Off-Line Storage – Box Feed



Long Section


Plan






Open grating





A

A


Precast

concrete

chamber


cover slab

Weir

wall

Precast concrete

chamber sections

Flow

control

Sump

Non-return flap valve


Weir

wall

Water

flow


Flow control

1. Control chamber fills with water, up to the top of the

weir wall.

2. The water overflows the weir wall and enters the AquaCell

box unit storage assembly via the box connection.

3. AquaCell box unit storage assembly fills with water.

Water

flow

Water

flow


surround


box unit storage assembly, finding its own level, and

through the non-return flap valve at the bottom of the

weir wall.



Typical Details: Off-Line Storage – Manifold Feed



Long Section


Plan



1. Control chamber fills with water, up to the top of the

weir wall.

2. The water overflows the weir wall and enters the AquaCell

box unit storage assembly via the manifold connection.



box unit storage assembly, finding its own level, and

through the non-return flap valve at the bottom of the

weir wall.



Open grating





A

A



Precast

concrete

chamber


cover slab

Weir

wall

Precast concrete

chamber sections



Flow

control

Sump



Weir

wall

Water

flow

Flow control

Water

flow

Water

flow


surround


Typical Details: Off-Line Storage – Central Pipe Feed



Long Section

A

A



Open grating



Wavin TwinWall half-perforated pipe

Wavin TwinWall half-perforated pipe 14mm - 20mm single size granular

bedding/backfill material

Plan

Water flow during storm event Water flow after storm event

14mm - 20mm single size granular bedding/backfill material



1. Control chamber fills with water, up to the top of the weir wall.


Precast

concrete

chamber


cover slab

Weir

wall

Flow

control

Sump


Water

flow

2. The water overflows the weir wall and enters the AquaCell box unit storage assemblies via the

central pipe connection and percolation through the granular bedding material.


4. After storm event, water flows back out of the AquaCell box unit storage assemblies, finding

its own level, and through the non-return flap valve at the bottom of the weir wall.

5. The water then flows through the vortex flow control valve

Flow control

Water

flow

Geomembrane to perimeter of constructon

Water

flow

Wrap the entire

AquaCell unit

assemblies

with a geotextile

wrapping as

appropriate


Typical Details: Soakaway or Storage Tank – With Silt Trap

Notes

AquaCell Eco

AquaCell Core

AquaCell Plus

For minimum depth of

cover contact Wavin

(Choice depends on application and site conditions)

Ground level

For bedding specification information refer to page 18 or 19.

The silt trap can be used in conjunction with a soakaway (as

shown) or a storage tank.

110mm

OsmaDrain

110mm

OsmaDrain

Domestic

Silt Trap

110mm

OsmaDrain


Garastor ® System – Introduction

Introduction to Garastor*

The development of sites results in a large proportion of area

being covered by impermeable surfaces such as roofs, car parks

and roads. Surface water run-off therefore increases up to 80%.

Building Regulations and guidance now requires a sustainable

approach to development, which minimises the effects of run-off

to that of a greenfi eld site (20%).

Developed in collaboration with Bryant Homes, Garastor

(polypropylene control chamber) represents a house by house,

rather than a development wide approach, to stormwater

management. Garastor controls the fl ow of water at source by

temporarily storing water under a soft landscaped area using the

AquaCell system or in the void space under the fl oor slab of a

residential garage. It eliminates the need for costly, spacehungry,

on-site communal water-storage structures or ponds which

enables better use of developable land.

During high intensity rainfall, water from the roof or hardstanding

areas is diverted via the Garastor control unit into the storage

void. As the storm subsides the rainwater can be slowly released

back into the main drainage system.

NOTE: Garastor can be used as a fl ow control device for any

AquaCell storage system, no greater than one unit deep with a

discharge of up to 1.4 l/s via the 30mm release fl ow orifi ce.

*Garastor is manufactured under licence

(Patent Number GB2357093).

Garastor – polypropylene control chamber

Internal view of Garastor


Garastor ® System – Overview

Garastor System

The Garastor unit is a polypropylene chamber that connects to

a water storage reservoir. There are two versions of the Garastor

available both of which are 500mm in diameter, the 6SC500

version is 1m deep for garage installations (with a 300mm storage

depth capacity) and the 6SC501 is 1.25m deep for use with

AquaCell* (with a 400mm storage depth capacity). When Garastor

is used in conjunction with an AquaCell tank the confi guration of

units must be no deeper than 1 AquaCell unit.

If site conditions are such that a deeper Garastor unit is required

then the 500mm Extension Kit (6SC205 – consisting of a coupler

and two ring seals) can be used in conjunction with a shaft of

500mm Twinwall cut to suit, to extend the Garastor unit.

*Depending on the application, Garastor may be used with any

version of AquaCell units (Eco, Core or Plus). For further details,

contact Wavin Technical Design.

NOTE: Eco may only be used in non-loaded situations.

How it works

Storm or surface water fl ows through two 110mm diameter

incoming pipes. If the fl ow is light to moderate, the water is simply

stored in the chamber before being slowly released through a

30mm orifi ce. However, if the infl ow is heavy, excess water in

the chamber discharges through a 150mm diameter pipe into

the water storage area (either the undercroft of a garage or an

AquaCell tank). The water is temporarily stored until the water

level inside the chamber has dropped suffi ciently, and the water

can fl ow out to the drainage system via the 110mm outfl ow pipe.

Inside the Garastor chamber there are specially designed weir

walls that ensure that the hydraulics of the unit work to the

optimum levels.

Key benefi ts

l No use of valuable, developable land

l Safer than open/above ground storage structures

l Caters for 1 in 150 year storm

l Spreads cost of water storage over the development period

l Maintenance free, with no moving parts or fi lters

l Run-off reverts to that of a greenfi eld site

AquaCell Eco, Core or

Plus units


Garastor ® System – Principal Components

1m (6SC500)

1.25m (6SC501)

500mm diameter

Garastor

6SC500 (for use with garage undercroft)

6SC501 (for use with AquaCell systems)

+

6SC205

Extension Kit

Coupler and sealing rings

to joint a shaft of 500mm

TwinWall pipe

150mm TwinWall

Socket

(for connection to other

pipe materials, a small

section of 150mm

TwinWall is required,

alternatively use the

150mm Garastor

Connection Kit (6SC200

– consisting of a short

section of 150mm

TwinWall pipe and two

ring seals)

S/S TwinWall Adaptor

(150mm TwinWall socket x 150mm

UltraRib spigot for connection of 150mm

TwinWall pipe directly to 150mm

UltraRib socket)

D/S TwinWall Adaptor


BSEN 1401 socket for connection of

150mm TwinWall pipe to 160mm BSEN

1401 pipe)

D/S TwinWall Adaptor


UltraRib socket for connection of

150mm TwinWall pipe to 150mm

UltraRib pipe)

4D920

Cover and Frame

S/S TwinWall Adaptor


BSEN 1401 spigot for connection of

150mm TwinWall pipe directly into the

AquaCell pre-formed socket)

NOTE: All components on this page are not shown to scale


Garastor ® System – Typical Installation Methods

1. Place the Garastor Unit

(6SC500 or 6SC501) on a

minimum of 100mm “as-dug”

or granular material. Ensure

that the unit is as close to the

garage undercroft or AquaCell

structure as possible and in

a suitable position to allow

pipework connection.

NOTE: It is important to ensure

that the chamber is placed in a

level position and that the invert

of the 150mm pipe connection

is level with the base of the

concrete undercroft or the base

of the AquaCell units.

2. Connect pipework in

accordance with standard pipe

installation guidelines.

3. Surround the Garastor unit

with 150mm of similar material

to that used for the bedding.

4. Fit relevant cover and frame

according to depth of unit: Up

to and including 1.2m deep

4D920, deeper than 1.2m

6D931.

NOTE: When surrounded by

a concrete plinth (150mm x

150mm) the cover can be used

in situations with a loading

of upto 30Kn (3 tonnes) i.e.

domestic driveways.

4. Adequate ventilation must be

provided:

- to the garage undercroft using

either air bricks or rainwater

downpipes connected directly

into the storage area.

- to the AquaCell structure

using an air vent (NB. One

air vent is required per 7,500

square metres of impermeable

area to be drained).

Garastor installation using garage void

Bitumastic paint

applied to walls

of void area and

underside of the

garage floor


110mm outflow

pipework to

drainage system

Wall to retain

storage area

Garastor (6SC500)

150mm outflow

pipework to

undercroft/void

110mm

inflow

pipework

to chamber

Garastor installation using AquaCell*

Stored water

50mm

sand

layer

Cover and frame AquaCell Eco, Core or Plus units

Garastor

(6SC501)

NOTE: When using Garastor

with the undercroft/void of a

garage, it is the responsibility

of the designer to ensure

that the enhancement to the

garage undercroft/void and

drainage works comply with

current prevailing Building

Regulations.

Rainwater

pipe (or air

brick) for

ventilation

1200g polythene

damp proof

membrane

75mm thickness

of smooth finished

concrete

Suitable impermeable

geomembrane

Note: The depth of foundations for

standard block and beam garage

floors will need to be lowered by

approx. 300mm to accommodate

the storage capacity required.

NOTE: Depending on the

application, Garastor may be used

with any version of AquaCell units

(Eco, Core or Plus). Eco may only

be used in low-loaded situations.

For further details, contact Wavin

Technical Design.

Also to prevent softening of the soils below the foundations or

loss of fines leading to settlement, the void beneath the garage

should be lined as follows:

Underneath the concrete base of the void area there should be a

1200g polythene damp proof membrane.

Bitumastic paint should be applied to the walls of the void area

and to the underside of the reinforced garage floor beams.


Intesio: balancing cost, function and compliance

To achieve optimum

stormwater management

Intesio represents a combination of specialist expertise and

technology from Wavin. This is specifi cally focused on achieving

the optimum solution for each project requiring effective and

sustainable management of stormwater.

Such a solution may be entirely based on a tailored combination

of our engineered systems.

In other cases, Intesio technology can be integrated with ‘soft’

SUDS techniques, such as ponds and swales, to help achieve

required water management criteria for site concerned.

Other Intesio systems

Channel drainage

Environmentally-friendly polyester concrete systems

to cover all EN 1433 load classes. With outstanding

chemical resistance and low water absorption:

l PolyChannel SK range: general purpose channel

for applications up to E600

l PolyChannel SKS range: heavy duty channel

for applications up to F900

Also from Wavin: AquaGrid pervious paving.

Flow control valves

The Vortex valve range that can be custom-built to suit

site conditions:

l Fluidic-Amp and Fluidic Cone stainless steel units with no

moving parts or power needs

Also from Wavin: Anti-Flood Valves that comply with EN 13546-1,

and Part H1- Sections 2.8-2.12 of Building Regulations.

Oil separators

A range of chambers, tested to BS EN 858-1

Class 1, and included on the Environment Agency

recommended list. To fulfi l PPG3 requirements for

cleansing of surface run-off.

Below ground water transportation

Intesio installations can draw from an extensive choice

of plastic and clay water conveyance systems from

Wavin, including:

l OsmaDrain solid wall PVC-U pipe system

l Structured wall plastic UltraRib and TwinWall pipe systems

l SuperSleve and HepSeal clay pipe systems

Other options include perforated pipe for land drainage:

WavinCoil plastic and HepLine clay – and a full range of

non-entry inspection chambers.

Rainwater re-use

Intesio sustainable schemes can also exploit stored

rainwater. These reduce use of potable mains water for

non-potable purposes.

Below ground domestic rainwater re-use systems are available.


Intesio service

Precision and performance

The Intesio Team is ready to contribute to any stormwater

management project.

This may be at the very earliest stage – or when initial plans have

already been developed. There are no pre-conditions for your

asking us to become involved.

We are ready to:

l Originate project design

l Comment on an existing design

l Help validate a specifi cation – or, where we see an opportunity

to do so, to suggest how it may be enhanced

l Check, clarify and confi rm maximum cost-effi ciency,

performance capability and regulatory compliance

This involvement is a core part of the Intesio principle. It extends

beyond the systems and components.

Intesio is a total, specialist approach and service. It is designed for

working partnership with professional specifi ers and contractors

to achieve the most sustainable outcome for each project.

To discuss your stormwater management project, call

01249 766 655

or email

info@intesio.co.uk


Intesio – working to ensure

optimum stormwater management

The combination of urban development and intensified rainfall from climate

change can create serious problems. Stormwater situations are challenges

that may be unavoidable, but they can be very effectively overcome

when the right expertise is applied.

Intesio is Wavin’s specialist focus for the most efficient capture,

transportation, cleansing, infiltration, attenuation and re-use of stormwater

at source.

The Intesio Team has the essential experience and design insight

to help engineer the best possible solution, in its widest sense,

every time.

Our well-proven system technology is intelligently applied to

the individual needs of each location and situation. We make

thorough checks to ensure efficient performance and full

adherence to the latest statutory regulations.

By making Intesio part of your project approach, the

outcome is assured: the optimum balance of cost,

function and compliance.

Wavin Limited

Hazlehead

Crow Edge

Sheffield

S36 4HG

www.intesio.co.uk

Wavin operates a programme of continuous product development, and therefore reserves the right to modify or

amend the specification of their products without notice. All information in this publication is given in good faith, and

believed to be correct at the time of going to press. However, no responsibility can be accepted for any errors,

omissions or incorrect assumptions. Users should satisfy themselves that products are suitable for the purpose and

application intended.

WM424 – April 2011

Intesio Infiltration and Attenuation Systems Product and ... - i4info.biz

Transform your PDFs into Flipbooks and boost your revenue!

Intesio Infiltration and Attenuation Systems Product and ... - i4info.biz

Transform your PDFs into Flipbooks and boost your revenue!

Delete template?

Save as template ?
