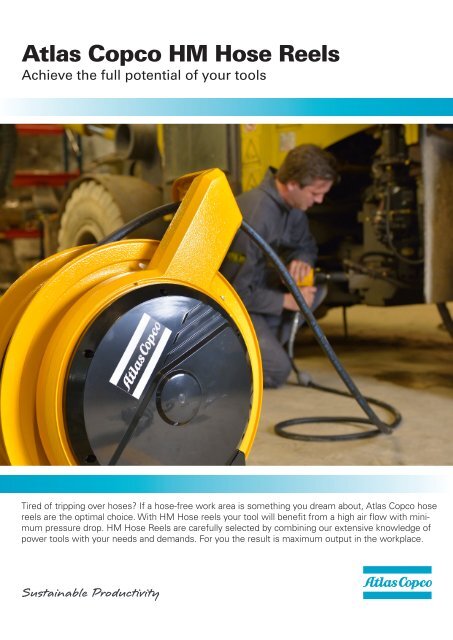

Atlas Copco HM Hose Reels
Achieve the full potential of your tools
Tired of tripping over hoses? If a hose-free work area is something you dream about, Atlas Copco hose
reels are the optimal choice. With HM Hose reels your tool will benefit from a high air flow with minimum
pressure drop. HM Hose Reels are carefully selected by combining our extensive knowledge of
power tools with your needs and demands. For you the result is maximum output in the workplace.

Selection Guide
HM LIGHT
Start here:
1. Choose your application
2. Look for the tick for your application
√ Recommended by Atlas Copco for your application
Hose length
8 m 12 m 10 m
Hose inside diameter
8 mm 8 mm 10 mm
Connection distribution hose
1/4 1/4 3/8
Air flow capacity
0-10 l/s
Ordering No.
8202 1183 30 8202 1183 31 8202 1183 32
Bolt size
Air flow requirements
Screwdrivers M2-M6 2-8 l/s √ √ √
Bolt size
Impact wrenches 1/4" HEX and 3/8" 2-9 l/s √ √ √
3/8" and 1/2" 10-20 l/s
1" and 1 1/2" 28-37 l/s
YOUR APPLICATION
Bolt size
Pulse tools M4-M5 9 l/s √ √ √
M6-M12
15-25 l/s
M14-M20
32-49 l/s
Power
Drills

HM OPEN HM FLEX L HM OPEN XL
Hose length Hose length Hose length
15 m 20 m 10 m 15 m 10 m 20 m 30 m 15 m 10 m
Hose inside diameter Hose inside diameter Hose inside diameter
10 mm 10 mm 12.5 mm 12.5 mm 12.5 mm 12.5 mm 12.5 mm 19 mm 25 mm
Connection distribution hose
Connection
distribution hose
Connection distribution hose
3/8 3/8 1/2 1/2 1/2 1/2 1/2 3/4 1
Air flow capacity Air flow capacity Air flow capacity
0-22 l/s 0-22 l/s 0-95 l/s
Ordering No. Ordering No. Ordering No.
8202 1183 33 8202 1183 34 8202 1183 35 8203 1183 36 8202 1181 56 8202 1183 37 8202 1183 38 8202 1183 39 8203 1183 40
√ √ √ √ √
√ √ √ √
√ √ √ √
√ √ √ √
√ √ √ √ √
√ √ √ √ √
√ √ √ √ √
√ √ √ √
√ √ √ √ √
√ √ √ √
√ √ √ √

Atlas Copco HM Hose Reels
To ensure that you requirements are met, our wide range consists of 12 different models with hose
sizes ranging from 8 mm to 25 mm. Choose models in composite material, steel or die-cast
alumnium, in open or closed versions, according to your needs.
HM Hose Reels are available with both BSP and NPT threads.
HM Hose Reels with BSP threads
Connection Connection Economical Max flow
distribution Hose Inlet hose Hose air flow capacity
hose BSP male Weight Inside dia Inside dia length (0.2 bar ∆P) (0.5 bar ∆P)
Hose type Hose type in kg mm mm m l/s l/s Ordering No.
HM LIGHT 8-8 PVC/PUR 1/4 3 8 10 8 4 7 8202 1183 30
HM LIGHT 8-12 PVC/PUR 1/4 5 8 10 12 3 5 8202 1183 31
HM LIGHT 10-10 PVC/PUR 3/8 5 10 10 10 6 10 8202 1183 32
HM OPEN 10-15 Rubber 3/8 11 10 12.5 15 5 9 8202 1183 33
HM OPEN 10-20 Rubber 3/8 14 10 12.5 20 5 7 8202 1183 34
HM OPEN 12-10 Rubber 1/2 12 12.5 12.5 10 13 22 8202 1183 35
HM OPEN 12-15 Rubber 1/2 13 12.5 12.5 15 11 17 8202 1183 36
HM OPEN XL 12-20 Rubber 1/2 27 12.5 12.5 20 8 14 8202 1183 37
HM OPEN XL 12-30 Rubber 1/2 28 12.5 12.5 30 8 12 8202 1183 38
HM OPEN XL 19-15 Rubber 3/4 28 19 19 15 27 44 8202 1183 39
HM OPEN XL 25-10 Rubber 1 30 25 25 10 60 95 8202 1183 40
HM FLEX L Rubber 1/2 16 12.5 12.5 10 12 19 8202 1181 56
HM Hose Reels with NPT threads
Economical Max flow
Connection Connection air flow capacity
distribution Hose Inlet hose Hose (3 psi ∆P, (7 psi ∆P,
hose NPT male Weight Inside dia Inside dia length extended) extended)
Hose type Hose type in lb in in ft cfm cfm Ordering No.
HM LIGHT 8-8 NPT PVC/PUR 1/4 7 5/16 3/8 26 8 15 8202 1183 41
HM LIGHT 8-12 NPT PVC/PUR 1/4 11 5/16 3/8 39 6 11 8202 1183 42
HM LIGHT 10-10 NPT PVC/PUR 3/8 10 3/8 3/8 33 13 21 8202 1183 43
HM OPEN 10-15 NPT Rubber 3/8 25 3/8 1/2 49 11 19 8202 1183 44
HM OPEN 10-20 NPT Rubber 3/8 30 3/8 1/2 66 11 15 8202 1183 45
HM OPEN 12-10 NPT Rubber 1/2 26 1/2 1/2 33 28 47 8202 1183 46
HM OPEN 12-15 NPT Rubber 1/2 29 1/2 1/2 49 23 36 8202 1183 47
HM OPEN XL 12-20 NPT Rubber 1/2 60 1/2 1/2 66 17 30 8202 1183 48
HM OPEN XL 12-30 NPT Rubber 1/2 61 1/2 1/2 98 17 25 8202 1183 49
HM OPEN XL 19-15 NPT Rubber 3/4 62 3/4 3/4 49 57 93 8202 1183 50
HM OPEN XL 25-10 NPT Rubber 1 66 1 1 33 127 201 8202 1183 51
HM FLEX NPT Rubber 1/2 35 1/2 1/2 30 25 40 8202 1181 59
www.atlascopco.com
9833 2000 01 InHouse, Sweden 2013:1
