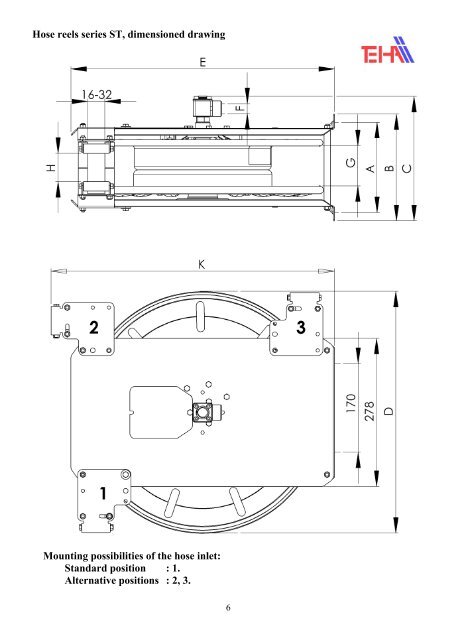

Hose reels series ST, dimensioned drawing<br />
Mounting possibilities of the hose inlet:<br />
Standard position : 1.<br />
Alternative positions : 2, 3.<br />
6
Hose reels ST Series<br />
Data specification<br />
Type <strong>Product</strong><br />
Code<br />
Enrollable hose<br />
length in m<br />
depending on<br />
outer hose<br />
diameter<br />
Nominal<br />
width /<br />
thread<br />
F<br />
Max. Pressure<br />
7<br />
Weight<br />
Dimensions in mm Surface<br />
Ø15 Ø20 Ø25 Ø30 mm Zoll bar kg A B C D E G H K<br />
ST14/10 V10710002 14 12 10 3/8" 300 14 176 206 239 400 440 75 48 470 Powder coated<br />
ST14/10e V10710011 14 12 10 3/8" 300 14 176 206 239 400 440 75 48 470 Stainless steel<br />
ST14/10ep V10710007 14 12 10 3/8" 300 14 176 206 239 400 440 75 48 470 Electro polished<br />
ST14/12 V10710002-1 12 12 1/2" 200 14 176 206 239 400 440 75 48 470 Powder coated<br />
ST14/12e V1071001101 12 12 1/2" 200 14 176 206 239 400 440 75 48 470 Stainless steel<br />
ST14/12ep V1071001102 12 12 1/2" 200 14 176 206 239 400 440 75 48 470 Electro polished<br />
ST20/10 V10710005 20 17 10 3/8" 300 16 176 206 239 460 500 75 48 530 Powder coated<br />
ST20/10e V10710012 20 17 10 3/8" 300 16 176 206 239 460 500 75 48 530 Stainless steel<br />
ST20/10ep V10710010 20 17 10 3/8" 300 16 176 206 239 460 500 75 48 530 Electro polished<br />
ST20/12 V1071000501 17 12 1/2" 200 16 176 206 239 460 500 75 48 530 Powder coated<br />
ST20/12e V1071001201 17 12 1/2" 200 16 176 206 239 460 500 75 48 530 Stainless steel<br />
ST20/12ep V1071001202 17 12 1/2" 200 16 176 206 239 460 500 75 48 530 Electro polished<br />
ST20/19 V10710019 17 10 7 19 3/4" 200 17 176 206 254 460 500 75 48 530 Powder coated<br />
ST20/19e V10710020 17 10 7 19 3/4" 200 17 176 206 254 460 500 75 48 530 Stainless steel<br />
ST20/19ep V10710021 17 10 7 19 3/4" 200 17 176 206 254 460 500 75 48 Electro polished<br />
ST30/10 V10710003 28 10 3/8” 300 18 226 256 304 460 500 125 106 530 Powder coated<br />
ST30/10e V1071000301 28 10 3/8” 300 18 226 256 304 460 500 125 106 530 Stainless steel<br />
ST30/10ep V1071000302 28 10 3/8” 300 18 226 256 304 460 500 125 106 530 Electro polished<br />
ST30/12 V10710004 25 12 ½” 200 18 226 256 304 460 500 125 106 530 Powder coated<br />
ST30/12e V1071000401 25 12 ½” 200 18 226 256 304 460 500 125 106 530 Stainless steel<br />
ST30/12ep V1071000402 25 12 ½” 200 18 226 256 304 460 500 125 106 530 Electro polished<br />
ST40/10/2 V10710013 40 37 10 3/8" 300 25 276 306 339 460 500 182 152 530 Powder coated<br />
ST40/10/2e V10710014 40 37 10 3/8" 300 25 276 306 339 460 500 182 152 530 Stainless steel<br />
ST40/10/2ep V10710015 40 37 10 3/8" 300 25 276 306 339 460 500 182 152 530 Electro polished<br />
ST40/12/2 V1071001302 37 12 1/2" 200 25 276 306 339 460 500 182 152 530 Powder coated<br />
ST40/12/2e V1071001402 37 12 1/2" 200 25 276 306 339 460 500 182 152 530 Stainless steel<br />
ST40/19/1 V10710025 20 20 18 19 3/4" 200 20 276 306 354 460 500 182 152 530 Powder coated<br />
ST40/19/1e V10710026 20 20 18 19 3/4" 200 20 276 306 354 460 500 182 152 530 Stainless steel<br />
ST40/19/1ep V10710027 20 20 18 19 3/4" 200 20 276 306 354 460 500 182 152 530 Electro polished<br />
ST40/19/2 V10710022 40 36 30 19 3/4" 200 26,5 376 406 454 460 500 282 252 530 Powder coated<br />
ST40/19/2e V10710023 40 36 30 19 3/4" 200 26,5 376 406 454 460 500 282 252 530 Stainless steel<br />
ST40/19/2ep V10710024 40 36 30 19 3/4" 200 26,5 376 406 454 460 500 282 252 530 Electro polished<br />
ST60/10/3e V10710028 57 10 3/8" 300 32,5 376 406 454 460 500 282 252 530 Stainless steel
