Fan-Powered Low-Height Parallel

Fan-Powered

Low-Height

Parallel

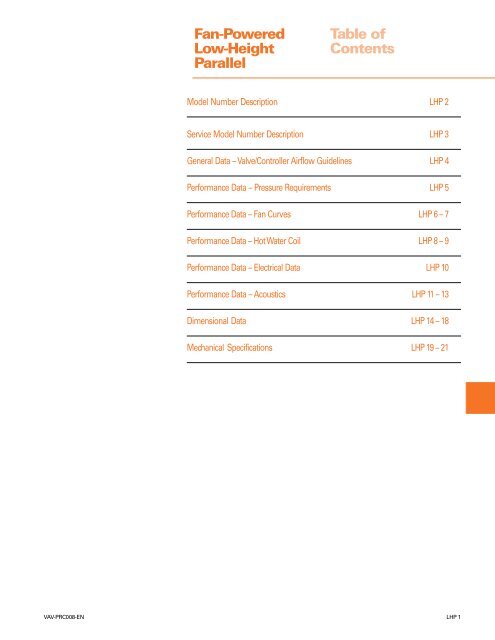

Table of

Contents

Model Number Description LHP 2

Service Model Number Description LHP 3

General Data – Valve/Controller Airflow Guidelines LHP 4

Performance Data – Pressure Requirements LHP 5

Performance Data – Fan Curves LHP 6 – 7

Performance Data – Hot Water Coil LHP 8 – 9

Performance Data – Electrical Data LHP 10

Performance Data – Acoustics LHP 11 – 13

Dimensional Data LHP 14 – 18

Mechanical Specifications LHP 19 – 21

VAV-PRC008-EN LHP 1

Low-Height Parallel Fan-

Powered Terminal Units

The features of the low-height parallel

fan-powered terminal units are

described by the product categories

shown in bold. Within each category

the options available are listed.

LPCF

LPWF

LPEF




MODL Unit Model

LPCF Parallel, cooling-only

LPWF Parallel, with hot water heat

LPEF Parallel, with electric heat

DSEQ Design Sequence

* Design sequence

INLT Primary Inlet

06 6" inlet size

08 8" inlet size

14RT 18" x 14" rectangular inlet size

FAN Fan Size

08 700 maximum cfm

10 1400 maximum cfm

INSL Unit Insulation

MT.5 ½" matte-faced

MT1 1" matte-faced

FF.5 ½" foil-faced

FF1 1" foil-faced

DW1 Double-wall w/ 1" matte-faced

FBRF 3/8" closed-cell

OUTL Outlet Connection

FL Flanged connection

SD Slip and drive connection

MTVT Motor voltage

115 115-volt fan motor




CONTROLS Trane-Supplied Controls

DD00 Shaft w/ Trane actuator

DD01 DDC w/o remote heat

DD02 N.C. on/off hot water valve

control

DD03 Proportional hot water valve

control

DD04 On/off electric heat control

DD05 Pulse-width modulation control

DD07 N.O. on/off hot water valve

control

EI05 Basic operation with reheat

capability

PN00 Pneumatic actuator only

PN05 Pneumatic N.O. actuator w/

3011 PVR

EI05 Basic operation w/ reheat

capability

CONN Controls & Heat Connection Side

LEFT Left side

HWCL Hot Water Coil

1ROW 1-row hot water coil

2ROW 2-row hot water coil

FUSE Power Fuse

WITH Power fuse

Model

Number

Description

VOLT Electric Heater voltage

2081 208-volt, 1-phase

2083 208-volt, 3-phase

2401 240-volt, 1-phase

2771 277-volt, 1-phase

3471 347-volt, 1-phase

4801 480-volt, 1-phase

4803 480-volt, 3-phase

5753 575-volt, 3-phase

3803 380-volt, 3-phase

STGE Electric Heater Stage

1 1 stage of heat

2 2 stages of heat – equal

HTKW Electric Heater Kilowatts

0.5 0.5 kW

1.0 1.0 kW

1.5 1.5 kW

2.0 2.0 kW

2.5 2.5 kW

3.0 3.0 kW

3.5 3.5 kW

4.0 4.0 kW

4.5 4.5 kW

5.0 5.0 kW

5.5 5.5 kW

6.0 6.0 kW

6.5 6.5 kW

7.0 7.0 kW

7.5 7.5 kW

8.0 8.0 kW

9.0 9.0 kW

10.0 10.0 kW

11.0 11.0 kW

12.0 12.0 kW

13.0 13.0 kW

14.0 14.0 kW

CNTR Electric Heater Control

MAGN 24-volt magnetic contactors

MERC 24-volt mercury contactors

PEMA P.E. w/ magnetic contactors

PEME P.E. w/ mercury contactors

DISW Power Disconnect Switch

WITH Power disconnect switch

AFSW Electric Heater Airflow Switch

WITH Electric heater airflow switch

LHP 2 VAV-PRC008-EN

Digit 1, 2—Unit Type

LP VariTrane fan-powered

low-height parallel

Digit 3—Reheat

C Cooling Only

E Electric Heat

W Hot Water Heat

Digit 4—Development Sequence

F Sixth

Digit 5, 6—Primary Air Valve

06 6" inlet (500 maximum cfm)

08 8" inlet (900 maximum cfm)

RT 8" x 14" inlet

(1800 maximum cfm)

Digit 7, 8—Secondary Air Valve

00 N/A

Digit 9—Fan

H 08 fan 750 maximum cfm

K 10 fan 1400 maximum cfm

Digit 10, 11—Design Sequence

E0 Fifth (factory assigned)

Digit 12, 13, 14, 15—Controls

ENON No controls, field-installed

DDC/electric

PNON No controls, field-installed

pneumatic

DD00 Trane elec actuator only

DD01 DDC – cooling only

DD02 DDC – N.C. on/off water valve

DD03 DDC – prop hot water valve

DD04 DDC – on/off electric heat

control

DD05 DDC – pulse-width modulation

DD07 DDC – N.O. on/off water valve

FM00 FM customer actuator &

control

FM01 FM Trane actuator w/ customer

actuator & control

VMA2 FM Johnson Controls

VMA-1420

PWR1 FM Seimens 540-100 w/

GDE131.1P actuator


Trane actuator


GDE131.1U actuator

AT01 FM Automated Logic U341V+

AT02 FM Automated Logic U141V+

EI05 Analog – fan-powered

parallel on/off reheat

PN00 PN – N.O. Trane pneumatic

actuator, R.A. stat

PN05 PN – N.O. PVR, R.A. stat




Notes:

N.C. = Normally-closed

N.O. = Normally-opened

DA Stat = Direct-acting pneumatic t-stat

(by others)

RA Stat = Reverse-acting pneumatic

t-stat (by others)

PN = Pneumatic

FM = Factory installation of customersupplied

controller

Digit 16—Insulation

A 1/2" Matte-faced

B 1" Matte-faced

C 1/2" Foil-faced

D 1" Foil-faced

F 1" Double-wall

G 3/8" Closed-cell

Digit 17—Motor Type

D PSC Motor

Digit 18—Motor Voltage

1 115/60/1

2 277/60/1

3 347/60/1

5 230/50/1

Digit 19—Outlet Connection

1 Flanged

2 Slip & Drive

Digit 20—Not Used

0 N/A

Digit 21—Water Coil

0 None

1 1-Row

2 2-Row

Digit 22—Electrical Connections

L Left (airflow hitting you in

the face)

Digit 23—Transformer

0 N/A (provided as standard)

Digit 24—Power Disconnect

0 None

W With

Digit 25—Power Fuse

0 None

W With

Digit 26—Electric Heat Voltage

0 None

A 208/60/1

B 208/60/3

C 240/60/1

D 277/60/1

E 480/60/1

F 480/60/3

G 347/60/1

H 575/60/3

J 380/50/3

Service

Model Number

Description

Digit 27, 28, 29—Electric Heat Voltage

000 None

005 0.5 kW

010 1.0 kW

015 1.5 kW

020 2.0 kW

025 2.5 kW

030 3.0 kW

035 3.5 kW

040 4.0 kW

045 4.5 kW

050 5.0 kW

055 5.5 kW

060 6.0 kW

065 6.5 kW

070 7.0 kW

075 7.5 kW

080 8.0 kW

090 9.0 kW

100 10.0 kW

110 11.0 kW

120 12.0 kW

130 13.0 kW

140 14.0 kW

Digit 30—Electric Heat Stages

0 None

1 1 Stage

2 2 Stages Equal

Digit 31—Contactors

0 None

1 24-volt magnetic

2 24-volt mercury

3 PE with magnetic

4 PE with mercury

Digit 32—Airflow Switch

0 None

W With

VAV-PRC008-EN LHP 3




General Data—

Valve/Controller

Airflow Guidelines

Primary Airflow Control Factory Settings – I-P

Control Air Valve Maximum Valve Maximum Controller Minimum Controller Constant Volume

Type Size (in.) Cfm Cfm Cfm Cfm

Direct Digital Control/ 6 500 60–500 0,60–500 60–500

UCM 8 900 105–900 0,105–900 105–900

8x14 2200 200–2200 0,220–2200 220–2200

Pneumatic with 6 500 73–500 0,73–500 73–500

Volume Regulator 8 900 134–900 0,134–900 134–900

8x14 2100 297–2100 0,297–2100 297–2100

6 500 120–500 0,120–500 120–500

Analog Electronic 8 900 210–900 0,210–900 210–900

8x14 2200 440–2200 0,440–2200 440–2200

Primary Airflow Control Factory Settings – SI

Control Air Valve Maximum Valve Maximum Controller Minimum Controller Constant Volume

Type Size (in.) L/s L/s L/s L/s

Direct Digital Control/ 6 236 28–236 0,28–236 28–236

UCM 8 425 50–425 0,50–425 50–425

8x14 1038 104–1038 0,104–1038 104–1038

Pneumatic with 6 236 35–236 0,35–236 35–236

Volume Regulator 8 425 63–425 0,63–425 63–425

8x14 991 140–991 0,140–991 140–991

6 236 57–236 0,57–236 57–236

Analog Electronic 8 425 100–425 0,100–425 100–425

8x14 1038 208–1038 0,208–1038 208–1038

Note: Maximum airflow must be greater than or equal to minimum airflow.

LHP 4 VAV-PRC008-EN




Air Pressure Drop – in. wg (I-P)

Size Airflow Cooling Only Unit

Inlet-Fan Cfm (in. wg)

06–08 425 0.22

450 0.25

475 0.28

500 0.32

08–08 425 0.04

550 0.07

675 0.12

850 0.20

08–10 725 0.14

775 0.16

850 0.20

900 0.22

8x14–10 725 0.18

1000 0.36

1200 0.53

1450 0.78

Fan Airflow 1-Row HW Coil Only

Size Cfm (in. wg)

08 425 0.04

500 0.05

575 0.06

650 0.07

725 0.09

10 725 0.09

800 0.11

900 0.13

1000 0.16

1100 0.19

1225 0.22


Size Cfm (in. wg)

08 425 0.07

475 0.08

550 0.11

625 0.13

700 0.16

10 725 0.17

800 0.20

900 0.24

1000 0.29

1100 0.33

Notes:

1150 0.35

1. Units with Electric Coils per fan size add 0.01" (3 Pa) to cooling only value

2. HW Coil only pressure drops are just for the heating coil.

Performance

Data—Pressure

Requirements

Air Pressure Drop – Pa (SI)

Size Airflow Cooling Only Unit

Inlet-Fan L/s (Pa)

06–08 200 55

215 65

225 71

235 78

08–08 200 10

260 18

320 29

400 48

08–10 345 35

365 39

400 48

425 56

8x14–10 345 47

475 91

565 131

685 195


Size L/s (Pa)

08 200 9

235 11

275 15

310 19

340 22

10 340 22

375 26

425 33

475 40

520 46

575 54


Size L/s (Pa)

08 200 17

225 21

260 27

295 33

330 40

10 345 43

375 49

425 60

475 72

520 82

540 86

VAV-PRC008-EN LHP 5

Discharge Static Pressure


Pa In. wg

199.3

174.4

149.5

124.6

99.7

74.7

49.8

24.9

0.80

0.70

0.60

0.50

0.40

0.30

0.20

0.10

Low-Height Parallel Fan Size 08

0.0 0.00

200 300 400 500 600

Pa In. wg

199.3 0.80

174.4 0.70

149.5 0.60

124.6 0.50

99.7 0.40

74.7 0.30

49.8 0.20

24.9 0.10

94.4 141.6 188.8 236.0 283.2

Airflow




700

330.4

Low-Height Parallel Fan Size 10

0.0 0.00

300 500 700 900 1100

141.6 236.0 330.4 424.8 519.1

Airflow

1300

613.5

Performance

Data—

Fan Curves (60 Hz)

LPCF and LPEF maximum

Minimum

1 row coil maximum


LHP 6 VAV-PRC008-EN

800

377.6

1500

707.9

900 Cfm

424.8 L/s

Cfm

L/s

LPCF and LPEF maximum

Minimum








Pa In. wg

99.7

74.7

49.8

24.9

0.0

0.40

0.30

0.20

0.10

0.00

Pa In. wg

124.6

99.7

74.7

49.8

24.9

0.50

0.40

0.30

0.20

0.10

Performance

Data—

Fan Curves (50 Hz)

Low-Height Parallel Fan Size 08—230/50

400 500 600

188.8 236.0 283.2

0.0 0.00

500 600

236.0 283.2

VAV-PRC008-EN LHP 7

Airflow

Low-Height Parallel Fan Size 10—230/50

700

330.4

800

377.6

Airflow

900

424.8

1000

472.0

1100

519.1

700 Cfm

330.4 L/s

1200 Cfm

566.3

L/s

50 hz




Fan Size 08 (I-P)

Water

Pressure Airflow (Cfm)

Rows Gpm Drop (ft) 450 500 550 600 650 700 725

1-Row 0.5 0.82 13.54 14.00 14.42 14.80 — — —

Capacity 1.0 2.71 16.51 17.26 17.97 18.64 19.26 19.85 20.13

MBH 1.5 5.50 17.88 18.74 19.55 20.32 21.05 21.75 22.10

2.0 9.12 18.65 19.59 20.48 21.33 22.14 22.92 23.30

2.5 13.52 19.14 20.14 21.08 21.98 22.85 23.68 24.08

2-Row 1.0 0.91 24.68 25.78 26.76 27.63 28.41 29.11 —

Capacity 2.0 3.07 29.14 30.83 32.37 33.77 35.06 36.26 —

MBH 3.0 6.32 30.85 32.80 34.59 36.25 37.79 39.22 —

4.0 10.57 31.75 33.85 35.78 37.59 39.26 40.83 —

5.0 15.79 32.31 34.50 36.53 38.42 40.19 41.85 —

Fan Size 10 (I-P) Water

Pressure Airflow (Cfm)

Rows Gpm Drop (ft) 700 800 900 1000 1100 1200 1240

1-Row 0.7 1.52 17.64 18.47 19.20 19.86 20.46 — —

Capacity 1.0 2.82 19.71 20.79 21.77 22.66 23.49 24.25 24.53

MBH 1.5 5.72 21.59 22.94 24.17 25.32 26.39 27.39 27.77

2.0 9.48 22.74 24.20 25.55 26.85 28.07 29.22 29.67

2.5 14.08 23.49 25.05 26.51 27.89 29.18 30.43 30.91

2-Row 1.5 1.06 33.60 35.36 36.86 38.16 39.30 — —

Capacity 2.0 3.09 36.26 38.38 40.22 41.84 43.27 — —

MBH 3.0 6.34 39.22 41.80 44.08 46.10 47.91 — —

4.0 10.60 40.83 43.69 46.22 48.49 50.54 — —

5.0 15.84 41.85 44.88 47.59 50.02 52.22 — —

Notes:

1. Fouling Factor = 0.00025

2. The following equations may be used in calculating Leaving Air Temperature (LAT) and Water Temperature

Difference (WTD).

3. Capacity based on 70°F entering air temperature and 180°F entering water temperature. Refer to correction

factors for different entering conditions.

LAT = EAT +

MBH x 921.7 ( Cfm ) WTD = EWT - LWT =

Temperature Correction Factors for Water Pressure Drop (WPD)

Average Water Temperature 200 190 180 170 160 150 140 130 120 110

Correction Factor 0.970 0.985 1.000 1.020 1.030 1.050 1.080 1.100 1.130 1.150

Temperature Correction Factors for Coil Capacity (MBH)

( )

2 x MBH

Gpm

Entering Water Minus Entering Air 40 50 60 70 80 90 100 110 120 130


Coils–Water Weights

Internal Internal Operating

Unit Fan Coil Volume Volume Weight

Type Size Type (in. 3 ) (gal.) (lbs)

LPWF 08 1-Row 16.78 0.073 9.7

LPWF 08 2-Row 39.05 0.169 13.7

LPWF 10 1-Row 16.78 0.073 9.7

LPWF 10 2-Row 39.05 0.169 13.7

Performance

Data—Hot Water

Coil (I-P)

LHP 8 VAV-PRC008-EN




Performance

Data—Hot Water

Coil (SI)

Fan Size 08 (SI) Water

Pressure Airflow (L/s)

Rows L/s Drop (kPa) 212 236 260 283 307 330 342

1-Row 0.04 3.70 3.97 4.10 4.23 4.34 — — —

Capacity 0.07 9.72 4.84 5.06 5.27 5.46 5.65 5.82 5.90

kW 0.09 16.45 5.24 5.49 5.73 5.96 6.17 6.37 6.48

0.13 27.28 5.47 5.74 6.00 6.25 6.49 6.72 6.83

0.16 40.43 5.61 5.90 6.18 6.44 6.70 6.94 7.06

2-Row 0.06 2.72 7.23 7.56 7.84 8.10 8.33 8.53 —

Capacity 0.13 9.17 8.54 9.04 9.49 9.90 10.28 10.63 —

kW 0.19 18.86 9.04 9.61 10.14 10.62 11.08 11.50 —

0.25 31.56 9.31 9.92 10.49 11.02 11.51 11.97 —

0.32 47.19 9.47 10.11 10.71 11.26 11.78 12.27 —

Fan Size 10 (SI) Water

Pressure Airflow (L/s)

Rows L/s Drop (kPa) 330 378 425 472 519 566 585

1-Row 0.04 4.53 5.17 5.41 5.63 5.82 6.00 — —

Capacity 0.07 10.07 5.78 6.09 6.38 6.64 6.88 7.11 7.19

kW 0.09 17.06 6.33 6.72 7.08 7.42 7.73 8.03 8.14

0.13 28.36 6.67 7.09 7.49 7.87 8.23 8.56 8.70

0.16 42.05 6.88 7.34 7.77 8.17 8.55 8.92 9.06

2-Row 0.09 7.35 9.85 10.36 10.80 11.18 11.52 — —

Capacity 0.13 9.23 10.63 11.25 11.79 12.26 12.68 — —

kW 0.19 18.95 11.50 12.25 12.92 13.51 14.04 — —

0.22 31.70 11.97 12.81 13.55 14.21 14.81 — —

0.32 47.32 12.27 13.15 13.95 14.66 15.31 — —

Notes:

1. Fouling Factor = 0.00025

2. The off-coil temperature of the hot water coil on parallel fan-powered units must not exceed 60°C.

3. The following equations may be used in calculating Leaving Air Temperature (LAT) and Water

Temperature Difference (WTD).

4. Capacity based on 21°C entering air temperature and 82°C entering water temperature. Refer to

correction factors for different entering conditions.

kW x 0.83

LAT = EAT + ( L/s )

kW

WTD = EWT - LWT = ( (4.19)L/s)

Temperature Correction Factors for Water Pressure Drop (WPD)

Average Water Temperature 93 88 82 77 71 66 60 54 49 43


Temperature Correction Factors for Coil Capacity (MBH)

Entering Water Minus Entering Air 22 27 33 38 44 50 55 61 67 72


Coils - Water Weights

Internal Internal Operating

Unit Fan Coil Volume Volume Weight

Type Size Type (m3 ) (L) (kg)

LPWF 08 1-Row 0.000275 0.275 4.4

LPWF 08 2-Row 0.000640 0.640 6.2

LPWF 10 1-Row 0.000275 0.275 4.4

LPWF 10 2-Row 0.000640 0.640 6.2

VAV-PRC008-EN LHP 9




Performance

Data—

Electrical Data

LPEF Electric Coil kW Guidelines – Minimum to Maximum (PSC Motor Units)

Fan Single-Phase Voltage Three-Phase Voltage

Size Stages 208 V 240 V 277 V 347 V 480 V 208 V 480 V 575 V

8 1 0.5–7.0 0.5–7.0 0.5–7.0 0.5–7.0 0.5–7.0 1.0–7.0 1.0–7.0 1.5–7.0

2 0.5–7.0 0.5–7.0 1.0–7.0 1.0–7.0 1.0–7.0 1.0–7.0 2.0–7.0 3.0–7.0

10 1 0.5–8.0 0.5–9.0 0.5–12.0 0.5–14.0 0.5–14.0 1.0–14.0 1.0–14.0 1.5–14.0

Notes:

2 0.5–8.0 0.5–9.0 1.0–12.0 1.0–14.0 1.0–14.0 1.0–14.0 2.0–14.0 3.0–14.0

1. Coils available with 24 VAC magnetic or mercury contactors, load carrying P.E. switches, and P.E. switch with magnetic or mercury contractors.

2. Available kW increments are by 0.5 from 0.5 kW to 8.0 kW and by 1.0 kW from 9.0 to 14.0 kW.

3. Each stage will be equal in kW output.

4. All heaters contain an auto thermal cutout and a manual reset cutout.

5. The current amp draw for the heater elements is calculated by the formula below.

6. Only two stages of electric reheat available with Trane controls.

Minimum Unit Electric Heat

Cfm Guidelines

Fan Minimum Unit

Size Heating Cfm*

08 320

10 720

*Note: (fan cfm) + (minimum primary air) =

minimum unit electric heat cfm

Fan Electrical Performance (PSC Motor)

Maximum Fan Motor Amperage (FLA)

Fan Size HP 115 VAC 277 VAC 347 VAC 250/50 Hz

08 1/8 4.7 1.76 1.52 1.04

10

Notes:

2 x 1/8 4.7 ea. 1.76 ea. 1.52 ea. 1.04 ea.

1. Electric Heat Units - Units with Primary Voltage of 208/60/1, 208/

60/3 or 240/60/1 use 115 VAC fan motors.

2. Electric Heat Units - Units with Primary Voltage of 277/60/1,

480/60/1 or 480/60/3 use 277 VAC fan motors.

3. Electric Heat Units - Units with Primary Voltage of 347/60/1 or

575/60/3 use 347 VAC fan motors.

4. Values are for standard, single-speed, permanent split capacitor

type motors. Consult factory for non-standard motor

performance.

Minimum Circuit Ampacity (MCA) Equation

— MCA = (motor amps + heater amps) x 1.25

Maximum Overcurrent Protection (MOP) Equation

— MOP = (2.25 x motor amps) + heater amps

General Sizing Rules:

— If MOP = 15, then fuse size = 15

— If MOP = 19, then fuse size = 15 with one exception. If heater

amps x 1.25 > 15, then fuse size = 20.

— If MOP � MCA, then choose next fuse size greater than MCA.

— Control fusing not applicable.

— Standard Fuse Sizes: 15, 20, 25, 30, 35, 40, 45, 50, and 60.

Useful formulas:

Cfm x ATD

kW =

3145

kW x 1000

3�amps =

Primary Voltage x � �

kW x 3145

ATD =

Cfm

kW = 1214 x L/s x ATD

1�amps =

ATD =

kW

1214 x L/s

kW x 1000

Primary Voltage

LHP 10 VAV-PRC008-EN

Discharge Sound Power (dB)




Performance

Data—

Acoustics


0.5" Inlet 1.0" Inlet 2.0" Inlet 3.0" Inlet

Fan Inlet Pressure (127 Pa) Pressure (254 Pa) Pressure (508 Pa) Pressure (762 Pa)

Size Size Cfm L/s 2 3 4 5 6 7 2 3 4 5 6 7 2 3 4 5 6 7 2 3 4 5 6 7

08 6 200 94 49 48 44 43 39 31 53 52 48 48 44 39 56 55 53 53 49 48 57 57 56 56 54 53

300 142 55 52 49 50 47 38 58 56 52 53 50 43 60 60 58 57 55 50 62 61 60 60 57 55

400 189 58 57 54 55 53 44 61 60 56 57 56 48 65 63 61 61 59 53 66 66 64 64 61 56

500 236 61 59 55 56 54 45 64 64 60 62 60 52 68 67 64 65 63 56 69 68 66 67 64 58

08 8 350 165 55 51 46 46 43 34 58 55 50 50 47 41 61 60 56 54 52 48 62 62 60 57 54 53

520 245 60 56 51 52 50 40 63 60 56 56 54 47 66 64 60 60 58 52 68 66 63 62 60 56

700 330 64 60 56 57 55 46 67 64 60 60 59 51 70 68 64 65 62 55 71 70 67 67 65 58

900 425 66 65 61 62 60 52 70 68 64 65 63 55 74 72 68 69 67 60 75 74 71 71 69 62

10 8 350 165 50 47 43 41 33 27 53 52 46 44 38 39 56 55 52 48 43 45 56 57 57 52 47 50

520 245 54 51 45 45 38 28 57 55 49 47 40 39 60 60 55 52 45 46 61 61 59 54 49 51

700 330 57 54 48 49 41 33 60 59 54 51 44 41 64 63 59 55 48 47 66 65 62 58 51 51

900 425 61 58 53 54 50 41 64 62 57 55 50 44 68 66 63 59 53 48 70 67 65 61 55 52

10 8x14 780 368 60 58 51 48 41 34 63 64 59 57 45 42 65 66 65 65 51 50 67 67 68 69 56 54

1170 552 — — — — — — 67 67 61 58 51 46 70 72 69 68 56 52 71 74 74 73 59 56

1560 736 — — — — — — — — — — — — 73 74 71 68 60 55 74 77 75 74 63 59

2000 944 — — — — — — — — — — — — 75 76 77 71 65 59 77 78 77 74 67 61

Notes:

1. All data are measured in accordance with current Industry Standard ARI 880, version 1998.

2. All sound power levels, dB re: 10-12 Watts.

Radiated Sound Power (dB)


0.5" Inlet 1.0" Inlet 2.0" Inlet 3.0" Inlet

Fan Inlet Pressure (127 Pa) Pressure (254 Pa) Pressure (508 Pa) Pressure (762 Pa)

Size Size Cfm L/s 2 3 4 5 6 7 2 3 4 5 6 7 2 3 4 5 6 7 2 3 4 5 6 7

08 6 200 94 49 44 37 32 29 22 53 47 41 35 31 25 55 48 46 39 36 31 57 50 48 43 41 37

300 142 54 46 41 35 30 23 55 50 45 38 33 26 60 54 49 42 38 32 61 56 54 46 43 38

400 189 56 50 45 39 33 25 59 54 48 41 35 28 63 57 53 45 39 34 65 59 56 48 43 38

500 236 58 54 48 42 35 28 62 57 51 45 39 31 66 60 56 48 42 36 69 62 59 51 45 39

08 8 350 165 57 48 41 35 30 25 60 51 43 37 32 27 63 55 48 42 38 34 64 57 52 45 42 38

520 245 64 54 45 37 31 25 66 57 48 40 34 28 68 60 52 45 39 35 69 62 56 48 43 39

700 330 66 57 49 41 36 28 70 61 53 45 38 31 73 65 57 49 42 37 74 66 59 51 45 40

900 425 67 60 52 45 39 31 71 63 55 48 41 34 75 67 59 52 45 38 77 69 62 55 48 41

10 8 350 165 52 47 39 35 29 24 55 49 41 36 33 28 58 52 47 41 38 34 60 56 50 44 42 39

520 245 56 50 41 39 33 24 58 53 45 39 34 29 63 56 49 43 40 35 64 59 53 47 44 40

700 330 59 54 44 42 34 27 61 57 48 42 36 30 67 60 53 46 41 35 69 63 56 49 45 40

900 425 61 57 48 45 39 33 65 61 52 47 40 34 70 63 56 50 43 37 73 65 58 52 45 41

10 8x14 780 368 60 55 47 41 32 28 63 61 55 48 38 34 66 63 60 55 45 41 69 66 64 59 50 45

1170 552 — — — — — — 68 65 57 50 41 39 71 69 66 59 48 45 74 74 69 64 53 48

1560 736 — — — — — — — — — — — — 73 71 64 56 47 46 74 72 66 59 49 47

2000 944 — — — — — — — — — — — — 76 75 70 62 52 50 78 77 72 65 55 52

Notes:



Fan Only Sound Power Discharge Sound Power (dB) Radiated Sound Power (dB)

Fan Outlet Fan Octave Bands Octave Bands

Size Static Cfm L/s 2 3 4 5 6 7 2 3 4 5 6 7

08 450 212 61 54 54 52 45 41 65 57 57 53 49 45

0.25 525 248 63 56 56 54 48 44 66 59 59 55 51 48

(63 Pa) 600 283 65 59 59 57 51 48 68 61 61 57 54 51

675 319 67 61 61 60 54 50 70 63 63 60 56 54

750 354 69 63 63 62 57 54 73 66 65 62 58 57

10 700 330 67 61 57 54 49 44 62 57 55 51 45 40

0.25 840 396 68 63 58 55 50 46 64 58 57 53 48 43

(63 Pa) 980 463 70 65 60 57 53 50 65 61 58 56 51 47

1200 566 73 69 64 61 57 55 69 65 63 61 56 54

1400 661 76 72 67 64 60 58 72 69 66 65 60 57

Notes:


2. All sound power levels, dB re: 10 -12 Watts.

VAV-PRC008-EN LHP 11




Sound Noise Criteria (NC)

Valve Only

Discharge Radiated

NC Level NC Level

Fan Inlet 0.5" 1.0" 2.0" 3.0" 0.5" 1.0" 2.0" 3.0"

Size Size Cfm L/s (127 Pa) (254 Pa) (508 Pa) (763 Pa) (127 Pa) (254 Pa) (508 Pa) (763 Pa)

08 6" 200 94 — — — 16 — — 20 22

300 142 — — 19 20 15 19 23 29

400 189 15 19 22 26 19 22 27 31

500 236 17 24 27 29 22 26 31 34

08 8" 350 165 — — 17 20 19 22 26 27

520 245 — 17 22 25 27 30 32 34

700 330 17 22 27 30 30 35 39 40

900 425 24 27 32 35 31 36 41 44

10 8" 350 165 — — — — — 16 21 25

520 245 — — 17 19 17 21 26 29

700 330 — 16 21 24 22 26 31 34

900 425 15 20 25 26 26 31 35 39

10 8"x14" 780 368 — 21 24 25 24 31 35 39

1170 552 25 31 34 36 41 46

1560 736 34 37 42 44

2000 944 36 38 47 50

Sound Noise Criteria (NC)

Fan Only

Fan Fan Outlet Discharge Radiated

Size Cfm L/s Static NC Level NC Level

08 450 212 — 32

525 248 0.25 — 34

600 283 (63 Pa) 15 36

675 319 17 38

750 354 20 40

10 700 330 17 30

840 396 0.25 20 32

980 463 (63 Pa) 22 33

1200 566 27 38

1400 661 31 41

Notes:

1. “–“ represents NC levels below NC 15.

2. NC Values are calculated using current Industry Standard ARI

885, 2002 addendum to revision 1998. Radiated Transfer Function

obtained from Appendix E, Type 2Mineral Fiber Insulation.

ARI 885-98 DISCHARGE TRANSFER FUNCTION ASSUMPTIONS:

Octave Band

2 3 4 5 6 7

Small Box (< 300 cfm) -24 -28 -39 -53 -59 -40

Medium Box (300-700 cfm) -27 -29 -40 -51 -53 -39

Large Box (> 700 cfm) -29 -30 -41 -51 -52 -39

Note: Add to terminal unit sound power to determine discharge sound

pressure in the space.

ARI 885-98 RADIATED TRANSFER FUNCTION ASSUMPTIONS:

Octave Band

2 3 4 5 6 7

Type 1 – Glass Fiber -19 -19 -21 -25 -29 -35

Type 2 – Mineral Fiber Insulation -18 -19 -20 -26 -31 -36

Type 3 – Solid Gypsum Board -23 -26 -25 -27 -27 -28

Note: Select the ceiling type which most closely represents the

application. Next, add to terminal unit sound power to determine radiated

sound pressure in the space.

Performance

Data—

Acoustics






Valve Only

ARI Conditions

Fan Inlet 1.5" Inlet Pressure (381 Pa)

Size Size Cfm L/s 2 3 4 5 6 7

08 6 400 189 63 62 59 59 57 50

8 700 330 69 66 62 63 61 54

10 8 700 330 62 62 57 53 46 44

8x14 1560 736 71 72 69 65 59 53

Performance

Data—

Acoustics


Valve Only


Fan Inlet 1.5" Inlet Pressure (381 Pa)


08 6 400 189 61 56 50 43 37 31

8 700 330 71 62 55 46 40 33

10 8 700 330 64 59 51 44 38 33

8x14 1560 736 73 71 64 56 47 46







Fan Inlet

Fan Inlet



08 6,8 750 354 69 63 63 62 57 54

08 6,8 750 354 73 66 65 62 58 57

10 8, 8x14 1400 661 72 69 66 65 60 57

10 8, 8x14 1400 661 76 72 67 64 60 58

Notes:

1. All data are measured in accordance with currrent Industry Standard ARI

880, version 1998.



TOP VIEW

BACK VIEW

AIRFLOW

AIR

VALVE

AIRFLOW

DISCHARGE OUTLET




PARALLEL LOW-HEIGHT COOLING (LPCF)

SIZE

INLET/FAN

0608

0808

0810

14RT10

B

INLET SIZE

(NOMINAL Ø)

6" (152 mm)

8" (203 mm)

8" (203 mm)

CFM (L/s)

FAN INLET

800 (378)

800 (378)

1800 (850)

A

500 (236)

900 (425)

900 (425)

8" x 14" 1800 (850)

(203 mm X 356 mm)

2000 (944)

FLOW RING

TUBING

6.50"

(165 mm)

ACTUATOR

6.50"

(165 mm)

5.50"

(140 mm)

4.00"

(102 mm)

8.25"

(210 mm)

20.00"

(508 mm)

4.00"

(102 mm)

W

H

11.50" (292 mm)

W L

40.00" (1016 mm)

Dimensional

Data

CUSTOMER NOTES:

1. Allow 6" (152 mm) clearance for plenum inlet.

2. Flanged discharge outlet accepts up to a 1"

(25 mm) duct flange.


L

H

30.00" (762 mm)

30.00" (762 mm)

48.00" (1219 mm)

48.00" (1219 mm)

DISCHARGE DIMENSIONS

A

19.25" (489 mm)

FILTER SIZE

10" x 20" x 1"

(254 mm x 508 mm x 25 mm)

CONTROL BOX

ELECTRIC OR DDC/UCM

FAN CONTROL BOX

B

10.00" (254 mm)

3. Fan and motor access is through plenum inlet.

Wt

LBS

(KGS)

63 (29)

65 (29)

90 (41)

92 (42)

TOP VIEW

BACK VIEW

AIRFLOW

AIR

VALVE

AIRFLOW





PARALLEL LOW-HEIGHT HOT WATER (LPWF)

SIZE

INLET/FAN

0608

0808

0810

14RT10

6.50"

(165 mm)

ACTUATOR

6.50"

(165 mm)

5.50"

(140 mm)

INLET SIZE

(NOMINAL Ø)

6" (152 mm)

8" (203 mm)

8" (203 mm)

8" x 14"

(203 mmX356 mm)

4.00"

(102 mm)

FLOW RING

TUBING

8.25"

(210 mm)

FAN

CFM/LPS

INLET

800 (378) 500 (236)

800 (378) 900 (425)

1800 (850) 900 (425)

1800 (850) 2000 (944)

20.00"

(508 mm)

A

4.00"

(102 mm)

W

H

11.50" (292 mm)

20.00"

(508 mm)

WATER

COIL

40.00" (1016 mm)

FAN ACCESS

THROUGH PLENUM

6.30"

(160 mm)

Dimensional

Data


2. Allow 6" (152 mm) clearance for inlet.

3. Filter mounts in water coil with filter clips.


L

W L

B

H

30.00" (762 mm)

30.00" (762 mm)

40.00" (1016 mm)

40.00" (1016 mm)


A

19.25" (489 mm)

FILTER SIZE

10" x 20" x 1"

(254 mm x 508 mm x 25 mm)

CONTROL BOX

ANALOG OR DDC/UCM

B

10.25" (260 mm)


1. Coil furnished with female sweat connections.




WT

LBS

(KGS)

72 (33)

74 (34)

99 (45)

101 (46)

INLET/FAN

0608

0808

0810

14RT10




AIRFLOW

Dimensional

Data

COIL INFORMATION FOR LOW-HEIGHT PARALLEL 1-ROW COIL

SIZE

OUTLET

INLET

.375"

COIL

CONNECTION

A

B L

H

(10 mm) O.D. 9.00" (229 mm)

1.75" (44 mm)

20.00" (508 mm) 10.00" (254 mm)

B

A

.875"

(22 mm)

H


1. Location of coil connections is determined by facing air

stream. R.H. Coil connections shown, L.H. not available.

2. Coil furnished with stub sweat connections.

Coil height and width is dependent upon unit height and width.


3.

L

.85"

(22 mm)

INLET/FAN

0608

0808

0810

14RT10




AIRFLOW

Dimensional

Data

COIL INFORMATION FOR LOW-HEIGHT PARALLEL 2-ROW COIL

SIZE

INLET

OUTLET

.875"

7.40"

(188 mm)

COIL

CONNECTION

A

B L

H

(22 mm) O.D. 6.20" (157 mm)

2.18" (55 mm)

20.00" (508 mm) 10.00" (254 mm)

B

A

2.00"

(51 mm)

H


1. Location of coil connections is determined by facing air

stream. R.H. Coil connections shown, L.H. not available.

2. Coil furnished with stub sweat connections.

Coil height and width is dependent upon unit height and width.


3.

ACTUATOR

TOP VIEW

BACK VIEW




PARALLEL LOW-HEIGHT ELECTRIC (LPEF)

SIZE INLET SIZE

CFM/LPS

INLET/FAN (NOMINAL Ø)

FAN INLET

H

0608 6" (152 mm) 800 (378) 500 (236) 11.50" (292 mm)

0808 8" (203 mm) 800 (378) 900 (425)

0810 8" (203 mm) 1800 (850) 900 (425)

14RT10

8" x 14"

1800 (850)

(203 mm X 356 mm)

2000 (944)

6.50"

(165 mm)

6.50"

(165 mm)

5.50"

(140 mm)

4.00"

(102 mm)

FLOW RING

TUBING

8.25"

B

(210 mm)

20.00"

(508 mm)

AIRFLOW

AIR

VALVE

HEATER

A

4.00"

(102 mm)

AIRFLOW


W

TERMINAL BOX

W L

40.00" (1016 mm)

30.00" (762 mm)

30.00" (762 mm)

48.00" (1219 mm)

48.00" (1219 mm)

Dimensional

Data



A

20.00" (508 mm)

1. Allow 6" (152 mm) clearance for inlet.

2. Inside duct dimensions equal outlet size (A x B).

Allow 48" (1219 mm) of straight duct downstream

of unit before first runout.

3. Terminal box access door is side hinged. Allow

for clearance. (22" (559 mm) long x 11.50"

(292 mm) high).

4. Filter mounts in filter frame.

B

10.00" (254 mm)

5. Knockouts for power supply provided in top and

bottom of terminal box.




L

6.00"

(152 mm)

H

FILTER SIZE

10" x 20" x 1"

(254 mm x 508 mm x 25 mm)

CONTROL BOX

ANALOG OR DDC/UCM



8. Coils are provided without internal insulation.

If the unit is to be installed in a location with

high humidity, external insulation around the

heating coil should be installed as required.

WT

LBS

(KGS)

78 (35)

80 (36)

105 (48)

107 (49)

MODELS LPCF, LPWF,

and LPEF

Low-height parallel fan-powered

terminal units.

LPCF – Cooling Only

LPWF – With Hot Water Coil

LPEF – With Electric Coil

CASING

22-gage galvanized steel. Hanger

brackets, plenum access, and filter

which is on the plenum inlet are

provided as standard.

AGENCY LISTING

The unit is UL and Canadian UL

Listed as a room air terminal unit.

Control # 9N65.

ARI 880 Certified.

INSULATION

1/2" (12.7 mm) Ma te-faced

Insulation—The interior surface of

the unit casing is acoustically and

thermally lined with ½-inch, 1.75 lb/ft 3

(12.7 mm, 28.03 kg/m3 ) composite

density glass fiber with a high-density

facing of 4.0 lb/ft3 (64 kg/m3 ). The

insulation R-Value is 1.9. The insulation

is UL listed and meets NFPA-90A and

UL 181 standards. There are no

exposed edges of insulation (complete

metal encapsulation).

1" (25.4 mm) Ma te-faced



thermally lined with 1-inch, 1.55 lb/ft 3

(25.4 mm, 24.8 kg/m3 ) composite

density glass fiber with a high-density

facing of 4.0 lb/ft3 (64 kg/m3 ). The

insulation R-Value is 3.85. The

insulation is UL listed and meets

NFPA-90A and UL 181 standards. There

are no exposed edges of insulation

(complete metal encapsulation).

1/2" (12.7 mm) Foil-faced



thermally lined with ½-inch, 2.0 lb/ft3 (12.7 mm, 32.04 kg/m3 ) density glass

fiber with foil facing. The insulation

R-Value is 2.2. The insulation is UL

listed and meets NFPA-90A and UL 181

standards as well as bacteriological

standard ASTM C 665. There are no






1" (25.4 mm) Foil-faced



thermally lined with 1-inch, 2.0 lb/ft3 (25.4 mm, 32.04 kg/m3 ) density glass

fiber with foil facing. The insulation

R-Value is 4.3. The insulation is UL

listed and meets NFPA-90A and UL 181

standards as well as bacteriological

standard ASTM C 665. There are no



1" (25.4 mm) Double-wall



thermally lined with a 1-inch, 2.1 lb./ft3 (25.4 mm, 33.6 kg/m3 ) composite

density glass fiber with high-density

facing. The insulation R-value is 3.0.

The insulation is UL listed and meets

NFPA-90A and UL 181 standards. The

insulation is covered by an interior

liner made of 26-gage galvanized

steel. All wire penetrations are covered

by grommets. There are no exposed

edges of insulation (complete metal

encapsulation).

3/8" (9.5 mm) Closed-cell



thermally lined with 3/8-inch, 4.4 lb/ft3 (9.5 mm, 40.0 kg/m3 ) closed-cell

insulation. The insulation is UL listed

and meets NFPA-90A and UL 181

standards. The insulation has an

R-Value of 1.4. There are no exposed

edges of insulation (complete metal

encapsulation).

PRIMARY AIR VALVE

Air Valve Round—The primary air

inlet connection is an 18-gage

galvanized steel cylinder sized to fit

standard round duct. A multiple-point,

averaging flow sensing ring is

provided with balancing taps for

measuring +/-5% of unit cataloged

airflow. An airflow-versus-pressure

differential calibration chart is provided.

The damper blade is constructed of a

closed-cell foam seal that is

mechanically locked between two

22-gage galvanized steel disks. The

damper blade assembly is connected

to a cast zinc shaft supported by selflubricating

bearings. The shaft is cast

with a damper position indicator. The

valve assembly includes a mechanical

stop to prevent over-stroking. At 4 in.

wg, air valve leakage does not exceed

1% of cataloged airflow.

Mechanical

Specifications

Air Valve Rectangular—Inlet collar is

constructed of 22-gage galvanized steel

sized to fit standard rectangular duct.

An integral multiple-point, averaging

flow-sensing ring provides primary

airflow measurement within +/-5% of

unit cataloged airflow. Damper is

22-gage galvanized steel. The damper

blade assembly is connected to a cast

zinc shaft supported by self-lubricating

bearings. The shaft is cast with a

damper position indicator. The valve

assembly includes a mechanical stop

to prevent over-stroking. At 3.0 in. wg,

air valve leakage does not exceed

44 cfm (21 L/s).

Air Valve/Fan Combinations Available (I-P):

Air Valve Fan

Size Airflow Flow

(in.) (Cfm) Size (Cfm)

06 500 08 750

08 900 08 750

08 900 10 1425

8x14 1800 10 1425

Air Valve/Fan Combinations Available (SI):

Air Valve Fan

Size Airflow Flow

(mm) (L/s) Size (L/s)

06 (152) 236 08 354

08 (203) 425 08 354

08 (203) 425 10 673

8x14 (203x356) 850 10 673

FAN MOTOR

Single-speed, direct-drive, permanent

split capacitor type. Thermal overload

protection provided. Motors will be

designed specifically for use with an

open SCR. Motors will be single-speed

with standard SCR for speed control.

Motors will accommodate antibackward

rotation at start up. Motor

and fan assembly is isolated from

terminal unit.

FAN SPEED CONTROL

Variable Speed Control Switch

(SCR)—The SCR speed control device

is provided as standard and allows the

operator infinite fan speed adjustment

so the fan output may be modified to

achieve exact cfm requirements.

TRANSFORMER

The 50-VA transformer is factoryinstalled

in the fan control box to

provide 24 VAC for controls.


POWER DISCONNECT

The power disconnect is provided as

standard and allows the operator to

turn the unit on or off by toggling to

the appropriate setting. This switch

breaks both legs of power to the fan

and the electronic controls (if

applicable). Not provided on LPEF

pneumatic controls.

OUTLET CONNECTION

Flanged Connection—A

rectangular opening on the unit

discharge to accept a 90° flanged

ductwork connection.

FILTER

A 1" (25 mm) filter is provided on the

plenum inlet and attaches to the unit

with a filter frame.

ACCESS PANEL

Internal access to unit is achieved

through the plenum inlet.

HOT WATER COIL

Series Water Coils—factory-installed

on the plenum inlet.

The coil has 1-row with 144 aluminumplated

fins per foot (.305 m) and, if

needed, 2-row with 144 aluminumplated

fins per foot (.305 m). Full fin

collars provided for accurate fin

spacing and maximum fin-tube

contact. The 3/8" (9.5 mm) OD

seamless copper tubes are

mechanically expanded into the fin

collars. Coils are proof tested at

450 psig (3102 kPa) and leak tested at

300 psig (2068 kPa) air pressure under

water. Coil connections are brazed

with right-hand configuration.

ELECTRIC HEAT COIL

The electric heater is factory-provided

and -installed, UL recognized

resistance open-type heater. It also

contains a disc-type automatic pilot

duty thermal primary cutout, and

manual reset load carrying thermal

secondary device. Heater element

material is nickel-chromium. The heater

terminal box is provided with 7/8"

(22 mm) knockouts for customer

power supply. Terminal connections

are plated steel with ceramic

insulators. Heater control access is

on the discharge side of the unit. All

fan-powered units with electric reheat

are single-point power connections.




ELECTRIC HEAT OPTIONS

Magnetic Contactor—An optional

electric heater 24-volt contactor for use

with direct digital control (DDC) or

analog electronic controls.

Mercury Contactor—An optional

electric heater 24-volt contactor for use

with direct digital control (DDC) or

analog electronic controls.

P.E. Switch with Magnetic

Contactor—This optional switch and

magnetic contactor is for use with


P.E. Switch with Mercury

Contactor—This optional switch and

mercury contactor is for use with


Airflow Switch—An optional air

pressure device designed to disable

the heater when the system fan is off.

Power Fuse—If power fuse is chosen

with a unit with electric heat, then a

safety fuse located in the line of power

of the electric heater to prevent power

surge damage to the electric heater.

Any electric heat unit with a calculated

MCA greater than or equal to 30 will

have a fuse provided.

Disconnect Switch—An optional

factory-provided door interlocking

disconnect switch on the heater

control panel disengages primary

voltage to the terminal.

UNIT CONTROLS SEQUENCE OF

OPERATION

The controller continuously monitors

the zone temperature against its

setpoint and varies the primary airflow

as required to meet zone setpoints.

Airflow is limited by minimum and

maximum setpoints. For a low-height

parallel unit, the controller will

intermittently start the fan upon a call

for heat. Upon a further call for heat,

any hot water or electric heat

associated with the unit is enabled.

1. Primary Airflow—The fan energizes

when primary airflow drops below

the fan setpoint airflow. The fan

automatically starts when the zone

temperature drops to the heating

temperature setpoint.

2. Zone Temperature—The fan

energizes when the zone temperature

drops to a selectable number of

degrees above the heating

temperature setpoint.

Mechanical


DIRECT DIGITAL CONTROLS

DDC Actuator—Trane 3-wire,

24-VAC, floating-point control actuator

with linkage release button. Torque is

35 in-lb minimum and is non-spring

return with a 90-second drive time.

Travel is terminated by end stops at

fully-opened and -closed positions. An

integral magnetic clutch eliminates

motor stall.

Direct Digital Controller—The

microprocessor based terminal unit

controller provides accurate, pressureindependent

control through the use

of a proportional integral control

algorithm and direct digital control

technology. The controller, named the

Unit Control Module (UCM), monitors

zone temperature setpoints, zone

temperature and its rate of change,

and valve airflow using a differential

pressure signal from the pressure

transducer. Additionally, the controller

can monitor either supply duct air

temperature or CO concentration via

2

appropriate sensors. The controller is

provided in an enclosure with 7/8"

(22 mm) knockouts for remote control

wiring. A Trane UCM zone sensor

is required.

DDC Zone Sensor—The UCM

controller senses zone temperature

through a sensing element located in

the zone sensor. In addition to the

sensing element, zone sensor options

may include an externally-adjustable

setpoint, communications jack for use

with a portable edit device, and an

override button to change the

individual controller from unoccupied

to occupied mode. The override button

has a cancel feature that will return the

system to unoccupied. Wired zone

sensors utilize a thermistor to vary the

voltage output in response to changes

in the zone temperature. Wiring to the

UCM controller must be 18- to 22-awg.

twisted pair wiring. The setpoint

adjustment range is 50–88ºF (10–31°C).

Depending upon the features available

in the model of sensor selected, the

zone sensor may require from a 2-wire

to a 5-wire connection. Wireless zone

sensors report the same zone

information as wired zone sensors,

but do so using radio transmitter

technology. Therefore with wireless,

wiring from the zone sensor to the

UCM is unnecessary.


Digital Display Zone Sensor with

Liquid Crystal Display (LCD)—

The digital display zone sensor contains

a sensing element, which sends a signal

to the UCM. A Liquid Crystal Display

(LCD) displays setpoint or space

temperature. Sensor buttons allow the

user to adjust setpoints, and allow

space temperature readings to be

turned on or off. The digital display zone

sensor also includes a communication

jack for use with a portable edit device,

and an override button to change the

UCM from unoccupied to occupied. The

override button has a cancel feature,

which returns the system to

unoccupied mode.

System Communications—The

Controller is designed to send and

receive data from a Tracer Summit or

other Trane controllers. Current unit

status conditions and setpoints may

be monitored and/or edited via this

data communication feature. The

network type is a twisted wire pair

shielded serial communication.

ANALOG ELECTRONIC CONTROLS

Analog Actuator—A Trane 3- wire,

24-VAC, floating-point control actuator

with linkage release button. Torque is

35 in-lb minimum and is non-spring

return with a 90-second drive time.

Travel is terminated by end stops at

fully-opened and -closed positions. An

integral magnetic clutch eliminates

motor stall.

Analog Electronic Controller—The

controller consists of a circuit board

that offers basic VAV unit operation

and additional override functions and

operates using 24 VAC power. The

controller uses a capacitive type

pressure transducer to maintain

consistent air delivery regardless of

system pressure changes. The

enclosure with 7/8" (22 mm) knockouts

for remote control wiring. A Trane

electronic zone sensor is required.




Analog-Electronic Thermostat—

This single-temperature, wall-mounted

electronic device utilizes a thermistor to

vary the voltage output in response to

changes in the zone temperature.

Connections to the VAV unit circuit

board are made using standard threeconductor

thermostat wire. The

setpoint adjustment range is 63–85ºF

(17–29°C). The sensor is available in

two models. One model has a

concealed, internally-adjustable

setpoint. The other model has an

externally-adjustable setpoint.

PNEUMATIC CONTROLS

Normally Open Actuator—

Pneumatic 3 to 8 psig (20 to 55 kPa)

spring-range pneumatic actuator.

3011 Pneumatic Volume Regulator

(PVR)—The regulator is a thermostat

reset velocity controller, which

provides consistent air delivery within

5% of cataloged flow down to 18% of

unit cataloged cfm, independent of

changes in system static pressure.

Factory-calibrated, field-adjustable set

points for minimum and maximum

flows. Average total unit bleed rate,

excluding thermostat, is 28.8 scim at

20 psig (7.87 ml/min at 138 kPa) supply.

UNIT OPTIONS

Power Fuse (LPCF, LPWF)—

Optional fuse is factory-installed in the

primary voltage hot leg.

HOT WATER VALVES

Two-Position Valve—The valve is a

field-adaptable, 2-way or 3-way

configuration and ships with a cap to

be field-installed when configured as a

2-way valve. All connections are

National Pipe Thread (NPT). The valve

body is forged brass with a stainless

steel stem and spring. Upon demand,

the motor strokes the valve. When the

actuator drive stops, a spring returns

the valve to its fail-safe position.

Flow Capacity – 1.17 Cv

Overall Diameter – ½" NPT

Close-o f Pressure – 30 psi (207 kPa)


Overall Diameter – 3/4" NPT

Mechanical


Close-o f Pressure – 14.5 psi (100 kPa)


Overall Diameter – 1" NPT

Close-o f Pressure – 9 psi (62 kPa)

Maximum Operating Fluid

Temperature – 203ºF (95ºC)

Maximum system pressure – 300 psi

(2067 kPa). Maximum static pressure –

300 psi (2067 kPa)

Electrical Rating – 7 VA at 24 VAC,

6.5 Watts, 50/60 Hz

8 feet (2.44 m) of plenum rated wire lead

is provided with each valve.

Proportional Water Valve—The valve

is a field-adaptable, 2-way or 3-way

configuration and ships with a cap over

the bottom port. This configures the

valve for 2-way operation. For 3-way

operation, remove the cap. The valve is

designed with an equal percentage plug.

The intended fluid is water or water and

glycol (50% maximum glycol). The

actuator is a synchronous motor drive.

The valve is driven to a predetermined

position by the UCM controller using a

proportional plus integral control

algorithm. If power is removed, the

valve stays in its last position. The

actuator is rated for plenum applications

under UL 94-5V and UL 873 standards.

Pressure and Temperature Ratings –

The valve is designed and tested in full

compliance with ANSI B16.15 Class 250

pressure/temperature ratings, ANSI

B16.104 Class IV control shutoff

leakage, and ISA S75.11 flow

characteristic standards.

Flow Capacity – 7.30 Cv, 4.60 Cv, 1.80 Cv,

and 0.79 Cv

Overall Diameter – ½" NPT, ¾" NPT

(7.30 Cv)

Maximum Allowable Pressure – 345 psi

(2415 kPa)

Maximum Operating Fluid

Temperature – 281ºF (138°C)

Maximum Close-o f Pressure – 55 psi

Electrical Rating – 4 VA at 24 VAC.

10 feet (3.05 m) of plenum rated

22-gage wire for connection.

Terminations are #6 stabs.

Fan-Powered Low-Height Parallel - Trane

Transform your PDFs into Flipbooks and boost your revenue!

Fan-Powered Low-Height Parallel - Trane

Transform your PDFs into Flipbooks and boost your revenue!

Delete template?

Save as template ?
