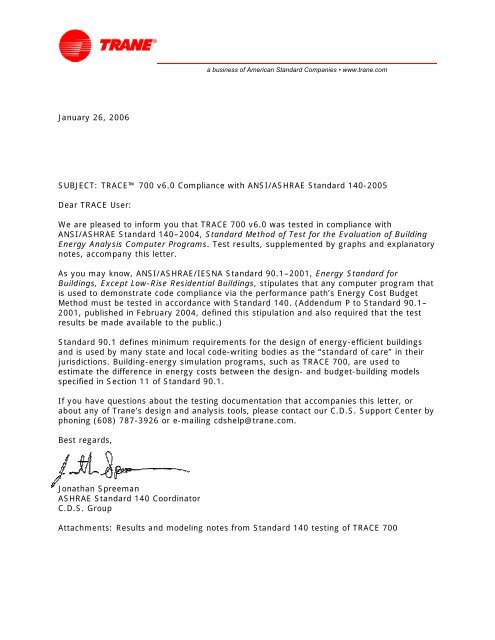

January 26, 2006
a business of American Standard Companies • www.trane.com
SUBJECT: TRACE 700 v6.0 Compliance with ANSI/ASHRAE Standard 140-2005
Dear TRACE User:
We are pleased to inform you that TRACE 700 v6.0 was tested in compliance with
ANSI/ASHRAE Standard 140–2004, Standard Method of Test for the Evaluation of Building
Energy Analysis Computer Programs. Test results, supplemented by graphs and explanatory
notes, accompany this letter.
As you may know, ANSI/ASHRAE/IESNA Standard 90.1–2001, Energy Standard for
Buildings, Except Low-Rise Residential Buildings, stipulates that any computer program that
is used to demonstrate code compliance via the performance path’s Energy Cost Budget
Method must be tested in accordance with Standard 140. (Addendum P to Standard 90.1–
2001, published in February 2004, defined this stipulation and also required that the test
results be made available to the public.)
Standard 90.1 defines minimum requirements for the design of energy-efficient buildings
and is used by many state and local code-writing bodies as the “standard of care” in their
jurisdictions. Building-energy simulation programs, such as TRACE 700, are used to
estimate the difference in energy costs between the design- and budget-building models
specified in Section 11 of Standard 90.1.
If you have questions about the testing documentation that accompanies this letter, or
about any of Trane’s design and analysis tools, please contact our C.D.S. Support Center by
phoning (608) 787-3926 or e-mailing cdshelp@trane.com.
Best regards,
Jonathan Spreeman
ASHRAE Standard 140 Coordinator
C.D.S. Group
Attachments: Results and modeling notes from Standard 140 testing of TRACE 700

STANDARD 140 OUTPUT FORM - MODELING NOTES TRACE 700 v6.0
SOFTWARE: TRACE
VERSION: v6.0
DOCUMENT BELOW THE MODELING METHODS USED IF ALTERNATIVE MODELING
METHODS OR ALGORITHMS ARE AVAILABLE IN THE SOFTWARE BEING TESTED.
(See Annex A2 for examples.)
Simulated Effect (1):
Loads modeling
Optional Settings or Modeling Capabilities:
Cooling Load Methodology Options:
TETD-TA1 -- Response factor TETD/Time-Averaging method
CLTD-CLF (ASHRAE TFM) -- Exact Transfer Function Method
TETD-TA2 -- Approximate TETD/Time-Averaging method
TETD-PO -- Approximate TETD with Post Office Weighting
CEC-DOE2 -- Exact TFM method with CEC\DOE 2.1c constraints
RP359 -- ASHRAE Research Project 359 Method
RTS (ASHRAE Tables) -- Radiant Time Series coefficients based on 2001 Hof table lookup
RTS (Heat Balance) -- Radiant Time Series coefficients based on Heat Balance
Setting or Capability Used:
RTS (Heat Balance) -- Radiant Time Series coefficients based on Heat Balance
Physical Meaning of Option Used:
Each room’s solar and non-solar Radiant Time Series values are calculated based on the rigorous Heat
Balance method described in the 2001 ASHRAE Handbook of Fundamentals using algorithms found in
the ASHRAE Toolkit for Building Load Calculations. This TRACE load methodology also calculates the
amount of solar gain lost through retransmission back out the window. These heat balance-derived RTS
values are implemented in a manner similar to custom weighting factors used by the DOE 2.1 energy
analysis program.
Simulated Effect (2):
External heat transfer
Optional Settings or Modeling Capabilities:
Outside Film Methodology Options:
Constant (as defined in construction library)
Vary with wind speed: per the 1985 ASHRAE Handbook, P. 28.5
Vary with wind speed & direction, and deltaT: per the MoWiTT model
Vary with wind speed & direction, deltaT, and surface roughness: per the TARP model
Setting or Capability Used:
Constant (as defined in construction library)
Physical Meaning of Option Used:
The internal and external surface coefficients were set equal to the values provided in the standard.

STANDARD 140 OUTPUT FORM - MODELING NOTES TRACE 700 v6.0 Continued
Simulated Effect (3):
Thermal/optical behavior of windows
Optional Settings or Modeling Capabilities:
Glass Optical Properties based on either:
Standard DS Glass
Spectral data
Setting or Capability Used:
Spectral data
Custom window developed per DOE 2 format and imported into the Lib7.db. See bottom of this file.
Physical Meaning of Option Used:
Windows modeled using the thermal and optical properties developed with Windows 4.0

STANDARD 140 OUTPUT FORM - MODELING NOTES TRACE 700 v6.0 Continued
Unit System: SI
Name : DOE2 WINDOW LIB
Desc : STD 140 Test
Window ID : 4652
Tilt : 90.0
Glazings : 2
Frame : 0 None, 0.0000
Spacer : 0 None 0.000 0.000 0.000
Total Height: 2000.00 mm
Total Width : 3000.00 mm
Glass Height: 2000.00 mm
Glass Width : 3000.00 mm
Mullion : None
Gap Thick Cond dCond Vis dVis Dens dDens Pr dPr
1 Air 12.7 0.02410 7.600 1.730 10.000 1.290 -0.0044 0.720 .00180
2 Air 0. 0. 0. 0. 0. 0. 0. 0. 0.
3 Air 0. 0. 0. 0. 0. 0. 0. 0. 0.
4 Air 0. 0. 0. 0. 0. 0. 0. 0. 0.
5 Air 0. 0. 0. 0. 0. 0. 0. 0. 0.
Angle 0. 10. 20. 30. 40. 50. 60. 70. 80. 90. Hemis
Tsol 0.748 0.747 0.745 0.739 0.725 0.693 0.622 0.475 0.229 0.000 0.644
Abs1 0.064 0.064 0.066 0.068 0.071 0.075 0.081 0.088 0.095 0.000 0.074
Abs2 0.052 0.052 0.053 0.055 0.056 0.058 0.057 0.053 0.041 0.000 0.054
Abs3 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0.
Abs4 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0.
Abs5 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0.
Abs6 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0.
Rfsol 0.136 0.136 0.137 0.139 0.148 0.175 0.240 0.384 0.635 1.000 0.217
Rbsol 0.136 0.136 0.137 0.139 0.148 0.175 0.240 0.384 0.635 1.000 0.217
Tvis 0.817 0.817 0.816 0.811 0.800 0.769 0.695 0.538 0.273 0.000 0.714
Rfvis 0.147 0.147 0.148 0.151 0.161 0.190 0.262 0.417 0.682 1.000 0.236
Rbvis 0.147 0.147 0.148 0.151 0.161 0.190 0.262 0.417 0.682 1.000 0.236
SHGC 0.787 0.786 0.785 0.780 0.767 0.737 0.666 0.518 0.266 0.000 0.686
SC: 0.92
Layer ID# 2 2 0 0 0 0
Tir 0.000 0.000 0. 0. 0. 0.
Emis F 0.900 0.900 0. 0. 0. 0.
Emis B 0.900 0.900 0. 0. 0. 0.
Thickness(mm) 3.175 3.175 0. 0. 0. 0.
Cond(W/m2-C) 333.0 333.0 0. 0. 0. 0.
Spectral File None None None None None None
Overall and Center of Glass Window U-values (W/m2-C)
Outdoor Temperature -17.8 C 15.6 C 26.7 C 37.8 C
Solar WdSpd hcout hrout hin
(W/m2) (m/s) (W/m2-C)
0 0.00 00.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
0 6.71 21.00 0.00 8.29 3.00 3.00 0.00 0.00 0.00 0.00 0.00 0.00
0 0.00 00.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
0 0.00 00.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00

Action taken to update code:
Standard 140-2001 Extended Comments BESTEST
1. TRACE has long used a "cloud cover modifier" as the sole basis for determining
the effect of non-clear sky conditions for incident solar radiation --even when
measured solar data exists on the 8760 weather tapes. TRACE, starting with
v4.1.6, now uses measured solar exclusively when it is available on 8760 weather
locations.
2. TRACE used the standard ASHRAE algorithm for ratio of sky diffuse radiation
on a vertical surface to sky diffuse radiation on a horizontal surface, i.e., (p. eq.
21, p.30.16, 2001 Handbook of Fundamentals). Starting with v4.1.6, the
referenced algorithm was replaced by the Perez diffuse irradiation model.
3. The transmitted solar algorithm in TRACE uses the glazing characteristics
of ASHRAE single-pane, double-strength glass which are then modified by a
user-defined shading coefficient. In v6.0.1, this solar transmission calculation
augmented with an algorithm that can evaluate the properties of glazing defined
by the Window 4 program.
Additional Notes:
1. N/A

Action taken to update code:
1. N/A
Standard 140-2004 Extended Comments BESTEST
Additional Notes:
1. The deviation from benchmark of the high mass peak results is very likely a
result of TRACE's linear temperature drift model. All the other models used by
the Bestest benchmark programs have some type of cubic or biquadratic
temperature drift model (that is, the temperature drift each hour is a
cubic or bi-quadratic function of several past hours' room temperature history).
TRACE, on the other hand, predicts the temperature drift each hour purely as a
function of the room mass and the previous hour's end temperature.
2. Case 960 models a passive solar sun room using a modified Trombe wall. In order
to model this configuration the associated algorithm would need to compute:
a) The hourly proportion of solar radiation absorbed by the individual sunlit
surfaces within the sunlit portion of the Trombe wall
b) The affect of introducing infiltration in the Trombe wall section
c) Adjacent space heat transfer between the Trombe wall and the interior
room.
The required inputs to model this type of configuration are not available in
TRACE.

Action taken to update code:
Standard 140-2004 Extended Comments E-Series
1. The routine for room humidity ratios was modified to test for a dry coil condition
by estimating the hourly coil apparatus dew point, ADP.
2. The routine for condenser fan energy was modified to adjust for the cycle on ratio
when calculating that the max condenser fan demand for OADB > 95F.
Additional Notes:
1. The agreement between the Envelope latent and sensible values match very
closely for all E-cases. This means that the envelope and internal load values
defined in the TRC's were correctly input.
2. After the SADBC Min/Max values were specifically input for each of the E-
Cases in Alt 1, the results for the Evaporator, Supply and Condenser fans
match the benchmark programs very closely.

Annual Results for TRACE 700 v6.0.1: HEATING AND COOLING ENERGY
Annual Heating Energy (megawatt-hours) Annual Cooling Energy (megawatt-hours)
Summary of Results Summary of Results
Min. 1
Max. 1
Std. Deviation 2
TRACE v6.0.1 Min. 1
Max. 1
Std. Deviation 2
CASE# Description MWh MWh MWh MWh MWh MWh MWh MWh
600 Base Case 4.296 5.709 0.462 5.131 6.137 7.964 0.550 7.637
610 South Shading 4.355 5.786 0.460 5.261 3.915 5.778 0.560 5.202
620 East/West Window Orientation 4.613 5.944 0.463 5.497 3.417 5.004 0.450 4.873
630 East/West Shading 5.050 6.469 0.502 6.141 2.129 3.701 0.557 2.872
640 Thermostat Setback 2.751 3.803 0.324 3.664 5.952 7.811 0.562 7.596
650 Night Ventilation 0.000 0.000 0.000 0.000 4.816 6.545 0.542 5.509
900 High Mass Base Building 1.170 2.041 0.292 1.380 2.132 3.415 0.395 2.760
910 High Mass South Shading 1.575 2.282 0.266 1.758 0.821 1.872 0.378 1.141
920 High Mass East/West Window 3.313 4.300 0.376 3.951 1.840 3.092 0.354 3.094
930 High Mass East/West Shading 4.051 5.335 0.458 5.099 1.039 2.238 0.434 1.732
940 High Mass Thermal Setback 0.793 1.411 0.199 1.289 2.079 3.241 0.363 2.759
950 High Mass Night Ventilation 0.000 0.000 0.000 0.000 0.387 0.921 0.159 0.086
960 Sunspace (SEE NOTE 3 BELOW) 2.311 3.373 0.282 N/A 0.411 0.803 0.146 N/A
195 Solid Conduction Test 4.167 4.215 0.000 5.698 0.414 0.488 0.052 0.442
200 Infrared Radiation 5.252 5.252 0.000 7.424 0.570 0.570 0.000 0.630
210 Interior Infrared 6.456 6.967 0.227 7.507 0.162 0.668 0.240 0.619
215 Exterior Infrared Radiation 5.547 5.547 0.000 8.749 0.639 0.639 0.000 0.777
220 In-Depth Series Base Case 6.944 8.787 0.613 8.907 0.186 0.835 0.227 0.765
230 Infiltration 10.376 12.243 0.607 12.498 0.454 1.139 0.237 1.073
240 Internal Gains 5.649 7.448 0.570 7.539 0.415 1.246 0.294 1.146
250 Exterior Shortwave Absorptance 4.751 7.024 0.716 7.065 2.177 3.380 0.397 2.955
TRACE v6.0.1
270 South Solar Gains 4.510 5.920 0.489 5.681 7.528 10.350 0.992 10.277
280 Cavity Albedo 4.675 6.148 0.565 5.882 4.873 7.114 0.759 8.189
290 South Shading 4.577 5.942 0.474 5.822 5.204 8.089 1.042 7.604
300 East/West Window Orientation 4.761 5.964 0.467 5.896 4.302 7.100 0.962 7.019
310 East/West Shading 5.221 6.165 0.385 6.444 2.732 5.471 1.130 4.465
320 Thermostat 3.859 5.141 0.461 4.607 5.061 7.304 0.796 6.804
395 Solid Conduction Test 4.799 5.835 0.340 5.941 0.000 0.016 0.006 0.004
400 Opaque Windows with Dead Band 6.900 8.770 0.627 8.714 0.000 0.061 0.023 0.020
410 Infiltration 8.596 10.506 0.628 10.503 0.000 0.084 0.032 0.035
420 Internal Gains 7.298 9.151 0.586 9.122 0.011 0.189 0.064 0.115
430 Exterior Shortwave Absorptance 5.429 7.827 0.704 7.636 0.422 0.875 0.133 0.552
440 Cavity Albedo 4.449 5.811 0.522 5.291 3.967 5.204 0.492 5.839
800 High Mass without Solar Gains 4.868 7.228 0.696 7.063 0.055 0.325 0.085 0.157
810 High Mass Cavity Albedo 1.839 3.004 0.436 1.971 1.052 1.711 0.280 1.942
NOTES:
1. Minimum and maximum values based on benchmark cases provided with ASHRAE Standard 140-2004 Results5-2.xls file.
2. Standard deviation calculated based on benchmark cases provided with ASHRAE Standard 140-2004 Results5-2.xls file.
3. TRACE 700 V

Peak Results for TRACE 700 v6.0.1: PEAK HEATING AND COOLING LOADS
Peak Heating Load (kilowatts)
Peak Cooling Load (kilowatts)
Summary of Results Summary of Results
Min. 1
Max. 1
Std. Deviation 2
TRACE v6.0.1 Min. 1
Max. 1
Std. Deviation 2
CASE# Description kW kW kW kW kW kW kW kW
600 Base Case 3.437 4.354 0.279 4.237 5.965 6.827 0.312 6.559
610 South Shading 3.437 4.354 0.280 4.237 5.669 6.371 0.278 5.987
620 East/West Window Orientation 3.591 4.379 0.266 4.243 3.634 5.096 0.417 4.655
630 East/West Shading 3.592 4.280 0.247 4.244 3.072 4.116 0.311 4.000
640 Thermostat Setback 5.232 7.339 0.731 4.552 5.892 6.776 0.316 6.559
650 Night Ventilation 0.000 0.000 0.000 0.000 5.831 6.679 0.316 6.559
900 High Mass Base Building 2.850 3.797 0.306 3.605 2.888 3.871 0.289 4.118
910 High Mass South Shading 2.858 3.801 0.307 3.605 1.896 3.277 0.441 3.560
920 High Mass East/West Window 3.308 4.061 0.261 3.895 2.385 3.505 0.351 3.657
930 High Mass East/West Shading 3.355 4.064 0.250 3.963 1.873 3.080 0.352 3.058
940 High Mass Thermal Setback 3.980 6.428 0.795 4.545 2.888 3.871 0.297 4.118
950 High Mass Night Ventilation 0.000 0.000 0.000 0.000 2.033 3.170 0.320 3.877
960 Sunspace (SEE NOTE 3 BELOW) 2.410 2.863 0.158 N/A 0.953 1.403 0.164 N/A
195 Solid Conduction Test 2.004 2.055 0.036 2.417 0.651 0.797 0.104 0.833
200 Infrared Radiation 2.651 2.651 0.000 3.239 0.863 0.863 0.000 1.112
210 Interior Infrared 2.701 3.325 0.256 3.261 0.476 1.142 0.304 1.119
215 Exterior Infrared Radiation 2.787 2.787 0.000 3.830 1.007 1.007 0.000 1.359
220 In-Depth Series Base Case 2.867 3.695 0.258 3.879 0.560 1.340 0.262 1.338
230 Infiltration 4.386 5.279 0.288 5.000 1.059 1.875 0.269 1.873
240 Internal Gains 2.685 3.495 0.253 3.679 0.739 1.540 0.266 1.538
250 Exterior Shortwave Absorptance 2.866 3.695 0.259 3.879 2.258 4.912 0.873 2.535
270 South Solar Gains 2.863 3.738 0.349 3.658 6.356 7.234 0.321 6.873
280 Cavity Albedo 2.864 3.759 0.359 3.659 4.444 5.236 0.354 5.294
290 South Shading 2.863 3.738 0.349 3.658 6.203 6.976 0.309 6.503
300 East/West Window Orientation 3.014 3.770 0.310 3.661 3.404 4.929 0.584 4.719
310 East/West Shading 3.015 3.669 0.269 3.661 2.848 4.164 0.549 4.055
320 Thermostat 2.861 3.735 0.347 3.654 5.701 6.553 0.315 6.285
395 Solid Conduction Test 2.062 2.385 0.102 2.604 0.000 0.394 0.178 0.407
400 Opaque Windows with Dead Band 2.867 3.695 0.259 3.879 0.000 0.666 0.247 0.712
410 Infiltration 3.625 4.487 0.268 4.670 0.035 0.814 0.276 0.852
420 Internal Gains 3.443 4.287 0.263 4.470 0.258 1.047 0.274 1.052
430 Exterior Shortwave Absorptance 3.442 4.287 0.265 4.471 1.427 2.578 0.384 1.736
440 Cavity Albedo 3.439 4.376 0.368 4.239 4.424 5.278 0.358 5.115
800 High Mass without Solar Gains 3.227 4.138 0.284 4.239 0.585 1.358 0.286 1.167
810 High Mass Cavity Albedo 2.979 3.963 0.393 3.649 1.852 2.991 0.457 3.271
NOTES:
1. Minimum and maximum values based on benchmark cases provided with ASHRAE Standard 140-2004 Results5-2.xls file.
2. Standard deviation calculated based on benchmark cases provided with ASHRAE Standard 140-2004 Results5-2.xls file.
3. TRACE 700 V6.0 does not model CASE 960. See “Additional Modeling Notes” for more information.
TRACE v6.0.1

MWh
7.0
6.0
5.0
4.0
3.0
2.0
1.0
0.0
600
Base Case
610
South Shading
620
East/West
Window Orientation
Annual Heating
Low Mass Building
Case No. & Title
TRACE 700 v6.0.1
630
East/West
Shading
640
Thermostat
Setback
650
Night
Ventilation
ESP UK-DMU
BLAST US/IT
DOE2 USA
SRES/SUN USA
SERIRES UK-BRE
S3PAS SPAIN
TRNSYS BEL/UK
TASE FINLAND
TRACE 700 v6.0.1
Note:
Case 650 Heating is always off

MWh
9.0
8.0
7.0
6.0
5.0
4.0
3.0
2.0
1.0
0.0
600
Base Case
610
South Shading
620
East/West
Window Orientation
Case No. & Title
Annual Cooling
Low Mass Building
TRACE 700 v6.0.1
630
East/West
Shading
640
Thermostat
Setback
650
Night
Ventilation
ESP UK-DMU
BLAST US/IT
DOE2 USA
SRES/SUN USA
SERIRES UK-BRE
S3PAS SPAIN
TRNSYS BEL/UK
TASE FINLAND
TRACE 700 v6.0.1

kW
8.0
7.0
6.0
5.0
4.0
3.0
2.0
1.0
0.0
600
Base Case
610
South Shading
620
East/West
Window Orientation
Peak Heating
Low Mass Building
TRACE 700 v6.0.1
Case No. & Title
630
East/West
Shading
640
Thermostat
Setback
650
Night
Ventilation
ESP UK-DMU
BLAST US/IT
DOE2 USA
SRES/SUN USA
SERIRES UK-BRE
S3PAS SPAIN
TRNSYS BEL/UK
TASE FINLAND
TRACE 700 v6.0.1
Note:
Case 650 Heating is always off

kW
8.0
7.0
6.0
5.0
4.0
3.0
2.0
1.0
0.0
600
Base Case
610
South Shading
620
East/West
Window Orientation
Peak Cooling
Low Mass Building
TRACE 700 v6.0.1
Case No. & Title
630
East/West
Shading
640
Thermostat
Setback
650
Night
Ventilation
ESP UK-DMU
BLAST US/IT
DOE2 USA
SRES/SUN USA
SERIRES UK-BRE
S3PAS SPAIN
TRNSYS BEL/UK
TASE FINLAND
TRACE 700 v6.0.1

MWh
6.0
5.0
4.0
3.0
2.0
1.0
0.0
900
High Mass
Base Building
910
High Mass
South Shading
920
High Mass
East/West Window
Annual Heating
High Mass Building
930
High MassEast/
West Shading
Case No. & Title
TRACE 700 v6.0.1
940
High Mass
Thermal Setback
950
High Mass
Night Ventilation
960
Sunspace
ESP UK-DMU
BLAST US/IT
DOE2 USA
SRES/SUN USA
SERIRES UK-BRE
S3PAS SPAIN
TRNSYS BEL/UK
TASE FINLAND
TRACE 700 v6.0.1
Notes:
Case 950 Heating is always off
Case 960 TRACE 700 does not model

MWh
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
900
High Mass
Base Building
910
High Mass
South Shading
920
High Mass
East/West Window
Annual Cooling
High Mass Building
930
High MassEast/
West Shading
Case No. & Title
TRACE 700 v6.0.1
940
High Mass
Thermal Setback
950
High Mass
Night Ventilation
960
Sunspace
ESP UK-DMU
BLAST US/IT
DOE2 USA
SRES/SUN USA
SERIRES UK-BRE
S3PAS SPAIN
TRNSYS BEL/UK
TASE FINLAND
TRACE 700 v6.0.1
Note:
Case 960 TRACE 700 does not model

kW
7.0
6.0
5.0
4.0
3.0
2.0
1.0
0.0
900
High Mass
Base Building
910
High Mass
South Shading
920
High Mass
East/West Window
Peak Heating
High Mass Building
TRACE 700 v6.0.1
930
High MassEast/
West Shading
Case No. & Title
940
High Mass
Thermal Setback
950
High Mass
Night Ventilation
960
Sunspace
ESP UK-DMU
BLAST US/IT
DOE2 USA
SRES/SUN USA
SERIRES UK-BRE
S3PAS SPAIN
TRNSYS BEL/UK
TASE FINLAND
TRACE 700 v6.0.1
Notes:
Case 950 Heating is always Off
Case 960 TRACE 700 does not model

kW
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
900
High Mass
Base Building
910
High Mass
South Shading
920
High Mass
East/West Window
Peak Cooling
High Mass Building
TRACE 700 v6.0.1
930
High MassEast/
West Shading
Case No. & Title
940
High Mass
Thermal Setback
950
High Mass
Night Ventilation
960
Sunspace
ESP UK-DMU
BLAST US/IT
DOE2 USA
SRES/SUN USA
SERIRES UK-BRE
S3PAS SPAIN
TRNSYS BEL/UK
TASE FINLAND
TRACE 700 v6.0.1
Note:
Case 960 TRACE 700 does not model

E-Series Results for TRACE 700 v6.0.1: ENERGY CONSUMPTION
Min. 1
Max. 1
Std Deviation 2
TRACE v6.0.1 Min. 1
Max. 1
Std. Deviation 2
TRACE v6.0.1 Min. 1
Max. 1
Std. Deviation 2
TRACE v6.0.1 Min. 1
Max. 1
Std. Deviation 2
CASE# Description kWh kWh kWh kWh kWh kWh kWh kWh kWh kWh kWh kWh kWh kWh kWh kWh
E100 Base Case Building and Mechanical System 1512 1531 6.6 1291 1303 1319 6.2 1086 141 145 1.3 141 67 68 0.6 64
E110 Reduced Outdoor Dry-Bulb Temperature 1061 1089 9.9 1039 866 899 11.4 1086 122 133 3.2 141 59 62 1.1 50
E120 Increased Thermostat Setpoint 1002 1012 4.3 991 832 850 6.1 1086 110 117 3.3 101 51 55 1.4 49
E130 Low Part-Load Ratio 105 110 1.8 85 93 95 0.8 1086 8 10 1.0 8 4 5 0.4 4
E140
Reduced Outdoor Dry-Bulb Temperature
Low Part-Load Ratio
65 69 1.4 63 55 57 0.8 1086 6 8 0.8 7 3 4 0.3 3
E150 Latent Load at High Sensible Heat Ratio 1183 1208 8.8 1180 982 1007 9.3 1086 133 141 3.1 141 62 66 1.4 59
E160
E165
Increased Thermostat Setpoint at High
Sensible Heat Ratio
Variation of Thermostat Setpoint & Outdoor
Dry-Bulb Temperature at High Sensible
Heat Ratio
1107 1140 11.5 1133 926 963 11.9 1086 119 129 4.3 101 56 61 1.9 58
1470 1502 11.4 1348 1256 1291 12.1 1086 142 150 3.0 129 67 70 1.4 61
E170 Reduced Sensible Load 620 638 6.5 620 523 539 5.2 1086 61 73 5.3 55 29 34 2.2 30
E180 Increased Latent Load 1077 1083 1.9 1048 906 914 3.0 1086 111 119 3.4 55 52 56 1.6 56
E185
E190
E195
Increased Outdoor Dry-Bulb Temperature at
Low Sensible Heat Ratio
Low Part-Load Ratio at Low Sensible Heat
Ratio
Increased Outdoor Dry-Bulb Temperature at
Low Sensible Heat Ratio & Low Part-Load
Ratio
Energy Consumption, Total Energy Consumption, Compressor Energy Consumption, Supply Fan
Energy Consumption, Condenser Fan
Summary of Results Summary of Results Summary of Results Summary of Results
1538 1547 2.8 1323 1334 1344 3.6 1086 135 139 1.6 56 63 66 0.9 59
160 165 2.1 164 138 139 0.7 1086 14 18 1.9 7 7 9 0.8 8
245 252 2.5 214 216 219 0.9 1086 18 23 2.4 8 8 11 1.1 8
E200 Full-Load Test at ARI Conditions 1440 1480 14.0 1428 1218 1253 13.6 1086 149 155 2.0 115 70 73 1.1 73
NOTES:
1. Minimum and maximum values based on benchmark cases provided with ASHRAE Standard 140-2004 Results5-3.xls file.
2. Standard deviation calculated based on benchmark cases provided with ASHRAE Standard 140-2004 Results5-3.xls file.
TRACE v6.0.1

E-Series Results for TRACE 700 v6.0.1: COIL LOADS
Min. 1
Max. 1
Std. Deviation 2
TRACE v6.0.1 Min. 1
Max. 1
Std. Deviation 2
TRACE v6.0.1 Min. 1
Max. 1
Std. Deviation 2
CASE# Description kWh kWh kWh kWh kWh kWh kWh kWh kWh kWh kWh kWh
E100 Base Case Building and Mechanical System 3794 3841 14.3 3797 3794 3841 14.3 3794 0 0 0.0 0
E110 Reduced Outdoor Dry-Bulb Temperature 3756 3804 13.7 3760 3756 3804 13.7 3757 0 0 0.0 0
E120 Increased Thermostat Set-point 3739 3763 6.2 3741 3739 3763 6.2 3738 0 0 0.0 0
E130 Low Part-Load Ratio 215 220 1.7 216 215 220 1.7 216 0 0 0.0 0
E140
Reduced Outdoor Dry-Bulb Temperature
Low Part-Load Ratio
195 199 1.3 196 195 199 1.3 195 0 0 0.0 0
E150 Latent Load at High Sensible Heat Ratio 4515 4543 8.9 4503 3776 3804 8.7 3770 739 742 0.8 729
E160
E165
Increased Thermostat Set-point at High
Sensible Heat Ratio
Variation of Thermostat Set-point & Outdoor
Dry-Bulb Temperature at High Sensible
Heat Ratio
4499 4516 5.8 4495 3760 3777 5.8 3752 739 740 0.3 739
4535 4567 10.4 4531 3796 3828 10.4 3792 739 740 0.4 735
E170 Reduced Sensible Load 2226 2237 2.7 2228 1487 1498 2.7 1487 739 740 0.3 739
E180 Increased Latent Load 4494 4535 13.7 4539 1537 1607 22.9 1578 2928 2958 9.7 2958
E185
E190
E195
Increased Outdoor Dry-Bulb Temperature at
Low Sensible Heat Ratio
Low Part-Load Ratio at Low Sensible Heat
Ratio
Increased Outdoor Dry-Bulb Temperature at
Low Sensible Heat Ratio & Low Part-Load
Ratio
Coil Load, Total (kWh,thermal) Coil Load, Sensible (kWh,thermal) Coil Load, Latent (kWh,thermal)
Summary of Results Summary of Results
Summary of Results
TRACE v6.0.1
4507 4583 21.5 4582 1548 1653 29.1 1621 2930 2959 9.1 2958
573 579 1.7 579 203 212 2.3 209 366 370 1.1 370
595 602 2.1 603 226 235 2.4 232 367 370 1.0 370
E200 Full-Load Test at ARI Conditions 5436 5534 26.8 5471 4215 4313 27.0 4271 1219 1222 0.7 1196
NOTES:
1. Minimum and maximum values based on benchmark cases provided with ASHRAE Standard 140-2004 Results5-3.xls file.
2. Standard deviation calculated based on benchmark cases provided with ASHRAE Standard 140-2004 Results5-3.xls file.

E-Series Results for TRACE 700 v6.0.1: ENVELOPE LOADS
Min. 1
Max. 1
Std. Deviation 2
TRACE v6.0.1 Min. 1
Max. 1
Std. Deviation 2
TRACE v6.0.1 Min. 1
Max. 1
Std. Deviation 2
CASE# Description kWh kWh kWh kWh kWh kWh kWh kWh kWh kWh kWh kWh
E100 Base Case Building and Mechanical System 3654 3656 0.6 3657 3654 3656 0.6 3657 0 0 0.0 0
E110 Reduced Outdoor Dry-Bulb Temperature 3636 3637 0.5 3638 3636 3637 0.5 3638 0 0 0.0 0
E120 Increased Thermostat Set-point 3630 3632 0.5 3633 3630 3632 0.5 3633 0 0 0.0 0
E130 Low Part-Load Ratio 207 209 0.7 208 207 209 0.7 208 0 0 0.0 0
E140
Reduced Outdoor Dry-Bulb Temperature
Low Part-Load Ratio
188 190 0.7 189 188 190 0.7 189 0 0 0.0 0
E150 Latent Load at High Sensible Heat Ratio 4375 4376 0.5 4377 3636 3637 0.5 3638 739 739 0.1 739
E160
E165
Increased Thermostat Set-point at High
Sensible Heat Ratio
Variation of Thermostat Set-point & Outdoor
Dry-Bulb Temperature at High Sensible
Heat Ratio
4370 4371 0.5 4372 3630 3632 0.5 3633 739 739 0.1 739
4386 4388 0.6 4389 3647 3649 0.7 3649 739 739 0.1 739
E170 Reduced Sensible Load 2157 2159 0.5 2159 1418 1420 0.6 1419 739 739 0.1 739
E180 Increased Latent Load 4375 4376 0.4 4377 1418 1420 0.6 1419 2957 2958 0.2 2958
E185
E190
E195
Increased Outdoor Dry-Bulb Temperature at
Low Sensible Heat Ratio
Low Part-Load Ratio at Low Sensible Heat
Ratio
Increased Outdoor Dry-Bulb Temperature at
Low Sensible Heat Ratio & Low Part-Load
Ratio
Envelope Load, Total (kWh,thermal) Envelope Load, Sensible (kWh,thermal)
Envelope Load, Latent (kWh,thermal)
Summary of Results Summary of Results Summary of Results
TRACE v6.0.1
4394 4396 0.7 4397 1437 1439 0.8 1439 2957 2958 0.2 2958
557 559 0.8 559 188 190 0.6 189 367 370 0.9 370
576 579 1.0 578 207 209 0.7 208 367 370 0.9 370
E200 Full-Load Test at ARI Conditions 5283 5343 20.0 5345 4062 4122 20.0 4123 1221 1221 0.1 1221
NOTES:
1. Minimum and maximum values based on benchmark cases provided with ASHRAE Standard 140-2004 Results5-3.xls file.
2. Standard deviation calculated based on benchmark cases provided with ASHRAE Standard 140-2004 Results5-3.xls file.

E-Series Results for TRACE 700 v6.0.1: MEANS
Min. 1
Max. 1
Std. Deviation 2
TRACE v6.0.1 Min. 1
Max. 1
Std. Deviation 2
TRACE v6.0.1 Min. 1
Max. 1
Std. Deviation 2
CASE# Description kWh kWh kWh kWh kWh kWh kWh kWh kWh kWh kWh kWh
E100 Base Case Building and Mechanical System 2.39 2.43 0.02 2.83 22.20 22.63 0.14 22.20 0.0069 0.0076 0.0002 0.0061
E110 Reduced Outdoor Dry-Bulb Temperature 3.34 3.46 0.03 3.57 22.20 22.52 0.11 22.20 0.0064 0.0070 0.0002 0.0050
E120 Increased Thermostat Set-point 3.59 3.63 0.02 3.63 26.70 27.08 0.12 26.70 0.0070 0.0080 0.0003 0.0067
E130 Low Part-Load Ratio 1.89 1.98 0.03 2.44 21.64 22.20 0.18 22.20 0.0069 0.0076 0.0002 0.0070
E140
Reduced Outdoor Dry-Bulb Temperature
Low Part-Load Ratio
TRACE v6.0.1
2.73 2.92 0.06 3.08 21.51 22.20 0.23 22.20 0.0064 0.0071 0.0002 0.0062
E150 Latent Load at High Sensible Heat Ratio 3.62 3.70 0.03 3.71 22.20 22.68 0.16 22.20 0.0082 0.0085 0.0001 0.0077
E160
E165
Increased Thermostat Set-point at High
Sensible Heat Ratio
Variation of Thermostat Set-point & Outdoor
Dry-Bulb Temperature at High Sensible
Heat Ratio
3.83 3.95 0.04 3.77 26.70 26.99 0.10 26.70 0.0097 0.0102 0.0002 0.0093
2.92 2.99 0.02 3.18 23.30 23.78 0.16 23.30 0.0090 0.0099 0.0002 0.0085
E170 Reduced Sensible Load 3.37 3.48 0.03 3.43 22.12 22.22 0.03 22.20 0.0104 0.0107 0.0001 0.0100
E180 Increased Latent Load 4.03 4.08 0.02 3.83 22.20 22.33 0.05 22.20 0.0162 0.0166 0.0001 0.0162
E185
E190
E195
Increased Outdoor Dry-Bulb Temperature at
Low Sensible Heat Ratio
Low Part-Load Ratio at Low Sensible Heat
Ratio
Increased Outdoor Dry-Bulb Temperature at
Low Sensible Heat Ratio & Low Part-Load
Ratio
Mean COP
Summary of Results
2.82 2.87 0.01 3.04 22.20 22.37 0.07 22.20 0.0161 0.0171 0.0003 0.0161
3.39 3.49 0.03 3.25 21.95 22.20 0.09 22.20 0.0157 0.0163 0.0002 0.0159
2.29 2.36 0.02 2.57 22.01 22.20 0.07 22.20 0.0153 0.0164 0.0003 0.0155
E200 Full-Load Test at ARI Conditions 3.61 3.71 0.03 3.63 26.70 26.80 0.04 26.70 0.0109 0.0115 0.0002 0.0104
NOTES:
1. Minimum and maximum values based on benchmark cases provided with ASHRAE Standard 140-2004 Results5-3.xls file.
2. Standard deviation calculated based on benchmark cases provided with ASHRAE Standard 140-2004 Results5-3.xls file.
Mean IDB (°C) Mean Humidity Ratio
Summary of Results Summary of Results

E-Series Results for TRACE 700 v6.0.1: MAXIMUMS
Min. 1
Max. 1
Std. Deviation 2
TRACE v6.0.1 Min. 1
Max. 1
Std. Deviation 2
TRACE v6.0.1 Min. 1
Max. 1
Std. Deviation 2
CASE# Description kWh kWh kWh kWh kWh kWh kWh kWh kWh kWh kWh kWh
E100 Base Case Building and Mechanical System 2.39 2.43 0.76 2.83 22.20 23.21 0.33 22.20 0.0070 0.0076 0.0002 0.0062
E110 Reduced Outdoor Dry-Bulb Temperature 3.36 3.46 1.08 3.50 22.20 23.06 0.28 22.20 0.0064 0.0071 0.0002 0.0058
E120 Increased Thermostat Set-point 3.59 3.65 1.14 3.67 26.70 28.26 0.51 26.70 0.0070 0.0080 0.0003 0.0064
E130 Low Part-Load Ratio 1.89 2.00 0.61 2.44 22.10 22.25 0.05 22.20 0.0069 0.0076 0.0002 0.0070
E140
Reduced Outdoor Dry-Bulb Temperature
Low Part-Load Ratio
TRACE v6.0.1
2.75 2.93 0.89 3.02 22.10 22.25 0.05 22.20 0.0064 0.0071 0.0002 0.0062
E150 Latent Load at High Sensible Heat Ratio 3.63 3.71 1.16 3.70 22.20 23.28 0.35 22.20 0.0082 0.0086 0.0001 0.0079
E160
E165
Increased Thermostat Set-point at High
Sensible Heat Ratio
Variation of Thermostat Set-point & Outdoor
Dry-Bulb Temperature at High Sensible
Heat Ratio
3.83 3.96 1.22 3.85 26.70 27.61 0.30 26.70 0.0098 0.0103 0.0002 0.0084
2.93 2.99 0.93 3.25 22.20 24.48 0.57 23.30 0.0091 0.0099 0.0002 0.0080
E170 Reduced Sensible Load 3.37 3.49 1.08 3.49 22.20 22.67 0.16 22.20 0.0104 0.1060 0.0318 0.0097
E180 Increased Latent Load 4.04 4.11 1.28 4.02 22.20 22.79 0.19 22.20 0.0162 0.0168 0.0002 0.0168
E185
E190
E195
Increased Outdoor Dry-Bulb Temperature at
Low Sensible Heat Ratio
Low Part-Load Ratio at Low Sensible Heat
Ratio
Increased Outdoor Dry-Bulb Temperature at
Low Sensible Heat Ratio & Low Part-Load
Ratio
Summary of Results
Maximum COP Maximum IDB (°C)
Summary of Results
2.84 2.90 0.90 3.22 22.20 22.61 0.14 22.20 0.0161 0.0171 0.0003 0.0168
3.39 3.51 1.09 3.42 22.10 22.25 0.05 22.20 0.0158 0.0164 0.0002 0.0168
2.29 2.46 0.74 2.72 22.10 22.26 0.05 22.20 0.0154 0.0165 0.0004 0.0161
E200 Full-Load Test at ARI Conditions 3.61 3.72 1.15 3.74 26.70 26.80 0.04 26.70 0.0110 0.0115 0.0002 0.0092
NOTES:
1. Minimum and maximum values based on benchmark cases provided with ASHRAE Standard 140-2004 Results5-3.xls file.
2. Standard deviation calculated based on benchmark cases provided with ASHRAE Standard 140-2004 Results5-3.xls file.
Maximum Humidity Ratio
Summary of Results

E-Series Results for TRACE 700 v6.0.1: MINIMUMS
Min. 1
Max. 1
Std. Deviation 2
TRACE v6.0.1 Min. 1
Max. 1
Std. Deviation 2
TRACE v6.0.1 Min. 1
Max. 1
Std. Deviation 2
CASE# Description kWh kWh kWh kWh kWh kWh kWh kWh kWh kWh kWh kWh
E100 Base Case Building and Mechanical System 2.39 2.43 0.01 2.83 22.1 22.3 0.1 22.2 0.0068 0.0076 0.0002 0.0062
E110 Reduced Outdoor Dry-Bulb Temperature 3.32 3.46 0.04 3.50 22.0 22.3 0.1 22.2 0.0064 0.0070 0.0002 0.0058
E120 Increased Thermostat Set-point 3.58 3.62 0.01 3.67 26.2 26.8 0.2 26.7 0.0070 0.0080 0.0003 0.0064
E130 Low Part-Load Ratio 1.67 1.96 0.08 2.44 21.0 22.2 0.4 22.2 0.0068 0.0076 0.0002 0.0070
E140
Reduced Outdoor Dry-Bulb Temperature
Low Part-Load Ratio
TRACE v6.0.1
2.31 2.90 0.17 3.02 20.8 22.2 0.5 22.2 0.0064 0.0070 0.0002 0.0062
E150 Latent Load at High Sensible Heat Ratio 3.62 3.69 0.02 3.70 22.1 22.3 0.1 22.2 0.0082 0.0085 0.0001 0.0078
E160
E165
Increased Thermostat Set-point at High
Sensible Heat Ratio
Variation of Thermostat Set-point & Outdoor
Dry-Bulb Temperature at High Sensible
Heat Ratio
3.82 3.94 0.04 3.85 26.4 26.8 0.1 26.7 0.0097 0.0102 0.0002 0.0083
2.91 2.98 0.02 3.25 22.2 23.4 0.4 23.3 0.0090 0.0098 0.0002 0.0079
E170 Reduced Sensible Load 3.32 3.47 0.04 3.49 21.6 22.2 0.2 22.2 0.0104 0.1060 0.0318 0.0096
E180 Increased Latent Load 3.99 4.08 0.03 4.01 22.0 22.3 0.1 22.2 0.0161 0.0165 0.0001 0.0168
E185
E190
E195
Increased Outdoor Dry-Bulb Temperature at
Low Sensible Heat Ratio
Low Part-Load Ratio at Low Sensible Heat
Ratio
Increased Outdoor Dry-Bulb Temperature at
Low Sensible Heat Ratio & Low Part-Load
Ratio
Minimum COP
Minimum IDB (°C) Minimum Humidity Ratio
Summary of Results Summary of Results Summary of Results
2.80 2.87 0.02 3.22 22.1 22.3 0.1 22.2 0.0159 0.0170 0.0003 0.0168
3.17 3.48 0.09 3.42 21.6 22.2 0.2 22.2 0.0155 0.0161 0.0002 0.0168
2.25 2.35 0.03 2.72 21.8 22.2 0.1 22.2 0.0151 0.0164 0.0004 0.0160
E200 Full-Load Test at ARI Conditions 3.61 3.70 0.03 3.74 26.7 26.8 0.0 26.7 0.0109 0.0115 0.0002 0.0090
NOTES:
1. Minimum and maximum values based on benchmark cases provided with ASHRAE Standard 140-2004 Results5-3.xls file.
2. Standard deviation calculated based on benchmark cases provided with ASHRAE Standard 140-2004 Results5-3.xls file.

COP
4.5
4
3.5
3
2.5
2
1.5
1
0.5
0
E100 dry lo IDB hi ODB
E110 as100 lo ODB
E120 as100 hiIDB
E130 as100 lo PLR
E140 as130 lo ODB
HVAC BESTEST: Mean COP
E150 as110 hiSHR
E160 as150 hiIDB
E165 as150 mIDB mODB
E170 as150 mSHR mPLR
E180 as150 loSHR
E185 loSHR hiODB
E190 as180 loPLR
E195 as185 loPLR
E200 ARI PLR=1 hiSHR
CASIS/EDF
CLIM2000/EDF
DOE-2.1E/CIEMAT
DOE-2.1E/NREL
ENERGY+/GARD
TRNSYS-ideal/TUD
TRNSYS-real/TUD
Analytical/TUD
Analytical/HTAL1
Analytical/HTAL2
TRACE 700 v6.0.1

Fractional Variation
0.25
0.2
0.15
0.1
0.05
0
E100 dry lo IDB hi ODB
E110 as100 lo ODB
HVAC BESTEST: (Maximum - Minimum)/Mean COP
E120 as100 hiIDB
E130 as100 lo PLR
E140 as130 lo ODB
E150 as110 hiSHR
E160 as150 hiIDB
E165 as150 mIDB mODB
E170 as150 mSHR mPLR
E180 as150 loSHR
E185 loSHR hiODB
E190 as180 loPLR
E195 as185 loPLR
E200 ARI PLR=1 hiSHR
CASIS/EDF CLIM2000/EDF DOE-2.1E/CIEMAT DOE-2.1E/NREL ENERGY+/GARD TRNSYS-ideal/TUD
TRNSYS-real/TUD Analytical/TUD Analytical/HTAL1 Analytical/HTAL2 TRACE 700 v6.0.1

delta COP
1.5
1
0.5
0
-0.5
-1
-1.5
E110-100 ODB
E120-110 IDB
E120-100 IDB+ODB
E130-100 PLR
E140-130 ODB @loPLR
HVAC BESTEST: Mean COP Sensitivities
E150-110 hiSHR v. dry
E140-110 PLR @loODB
E160-150 IDB @hiSHR
E170-150 sens x 0.39
E165-160 IDB+ODB @hiSH
E180-150 SHR
E180-170 lat x 4
E190-180 PLR @loSHR
E185-180 ODB @loSHR
E190-140 lat @loPLR
E195-185 PLR @loSHR
E195-190 ODB @loPLloSH
E200-100 ARI v dry
E195-130 lat @loPLR
CASIS/EDF CLIM2000/EDF DOE-2.1E/CIEMAT DOE-2.1E/NREL ENERGY+/GARD TRNSYS-ideal/TUD
TRNSYS-real/TUD Analytical/TUD Analytical/HTAL1 Analytical/HTAL2 TRACE 700 v6.0.1

Electricity Consumption (kWh)
1600
1400
1200
1000
800
600
400
200
0
E100 dry lo IDB hi ODB
HVAC BESTEST: Total Space Cooling Electricity Consumption
E110 as100 lo ODB
E120 as100 hiIDB
E130 as100 lo PLR
E140 as130 lo ODB
E150 as110 hiSHR
E160 as150 hiIDB
E165 as150 mIDB mODB
E170 as150 mSHR mPLR
E180 as150 loSHR
E185 loSHR hiODB
E190 as180 loPLR
E195 as185 loPLR
E200 ARI PLR=1 hiSHR
CASIS/EDF CLIM2000/EDF DOE-2.1E/CIEMAT DOE-2.1E/NREL ENERGY+/GARD TRNSYS-ideal/TUD
TRNSYS-real/TUD Analytical/TUD Analytical/HTAL1 Analytical/HTAL2 TRACE 700 v6.0.1

delta Electricity Consumption (kWh)
500
300
100
-100
-300
-500
-700
-900
-1100
-1300
-1500
E110-100 ODB
E120-110 IDB
HVAC BESTEST: Total Space Cooling Electricity Sensitivities
E120-100 IDB+ODB
E130-100 PLR
E140-130 ODB @loPLR
E150-110 hiSHR v. dry
E140-110 PLR @loODB
E160-150 IDB @hiSHR
E170-150 sens x 0.39
E165-160 IDB+ODB @hiSH
E180-150 SHR
E180-170 lat x 4
E190-180 PLR @loSHR
E185-180 ODB @loSHR
E190-140 lat @loPLR
E195-185 PLR @loSHR
E195-190 ODB @loPLloSH
E200-100 ARI v dry
E195-130 lat @loPLR
CASIS/EDF CLIM2000/EDF DOE-2.1E/CIEMAT DOE-2.1E/NREL ENERGY+/GARD TRNSYS-ideal/TUD
TRNSYS-real/TUD Analytical/TUD Analytical/HTAL1 Analytical/HTAL2 TRACE 700 v6.0.1

Electricity Consumption (kWh)
1400
1200
1000
800
600
400
200
0
E100 dry lo IDB hi ODB
E110 as100 lo ODB
HVAC BESTEST: Compressor Electricity Consumption
E120 as100 hiIDB
E130 as100 lo PLR
E140 as130 lo ODB
E150 as110 hiSHR
E160 as150 hiIDB
E165 as150 mIDB mODB
E170 as150 mSHR mPLR
E180 as150 loSHR
E185 loSHR hiODB
E190 as180 loPLR
E195 as185 loPLR
E200 ARI PLR=1 hiSHR
CASIS/EDF CLIM2000/EDF DOE-2.1E/CIEMAT DOE-2.1E/NREL ENERGY+/GARD TRNSYS-ideal/TUD
TRNSYS-real/TUD Analytical/TUD Analytical/HTAL1 Analytical/HTAL2 TRACE 700 v6.0.1

delta Electricity Consumption (kWh)
500
300
100
-100
-300
-500
-700
-900
-1100
-1300
-1500
E110-100 ODB
E120-110 IDB
HVAC BESTEST: Total Compressor Electricity Sensitivities
E120-100 IDB+ODB
E130-100 PLR
E140-130 ODB @loPLR
E150-110 hiSHR v. dry
E140-110 PLR @loODB
E160-150 IDB @hiSHR
E170-150 sens x 0.39
E165-160 IDB+ODB @hiSH
E180-150 SHR
E180-170 lat x 4
E190-180 PLR @loSHR
E185-180 ODB @loSHR
E190-140 lat @loPLR
E195-185 PLR @loSHR
E195-190 ODB @loPLloSH
E200-100 ARI v dry
E195-130 lat @loPLR
CASIS/EDF CLIM2000/EDF DOE-2.1E/CIEMAT DOE-2.1E/NREL ENERGY+/GARD TRNSYS-ideal/TUD
TRNSYS-real/TUD Analytical/TUD Analytical/HTAL1 Analytical/HTAL2 TRACE 700 v6.0.1

Electricity Consumption (kWh)
HVAC BESTEST: Total Indoor (Supply) Fan Electricity Consumption
160
140
120
100
80
60
40
20
0
E100 dry lo IDB hi ODB
E110 as100 lo ODB
E120 as100 hiIDB
E130 as100 lo PLR
E140 as130 lo ODB
E150 as110 hiSHR
E160 as150 hiIDB
E165 as150 mIDB mODB
E170 as150 mSHR mPLR
E180 as150 loSHR
E185 loSHR hiODB
E190 as180 loPLR
E195 as185 loPLR
E200 ARI PLR=1 hiSHR
CASIS/EDF CLIM2000/EDF DOE-2.1E/CIEMAT DOE-2.1E/NREL ENERGY+/GARD TRNSYS-ideal/TUD
TRNSYS-real/TUD Analytical/TUD Analytical/HTAL1 Analytical/HTAL2 TRACE 700 v6.0.1

delta Electricity Consumption (kWh)
50
0
-50
-100
-150
E110-100 ODB
E120-110 IDB
HVAC BESTEST: Indoor (Supply) Fan Electricity Sensitivities
E120-100 IDB+ODB
E130-100 PLR
E140-130 ODB @loPLR
E150-110 hiSHR v. dry
E140-110 PLR @loODB
E160-150 IDB @hiSHR
E170-150 sens x 0.39
E165-160 IDB+ODB @hiSH
E180-150 SHR
E180-170 lat x 4
E190-180 PLR @loSHR
E185-180 ODB @loSHR
E190-140 lat @loPLR
E195-185 PLR @loSHR
E195-190 ODB @loPLloSH
E200-100 ARI v dry
E195-130 lat @loPLR
CASIS/EDF CLIM2000/EDF DOE-2.1E/CIEMAT DOE-2.1E/NREL ENERGY+/GARD TRNSYS-ideal/TUD
TRNSYS-real/TUD Analytical/TUD Analytical/HTAL1 Analytical/HTAL2 TRACE 700 v6.0.1

Electricity Consumption (kWh)
HVAC BESTEST: Outdoor (Condenser) Fan Electricity Consumption
80
70
60
50
40
30
20
10
0
E100 dry lo IDB hi ODB
E110 as100 lo ODB
E120 as100 hiIDB
E130 as100 lo PLR
E140 as130 lo ODB
E150 as110 hiSHR
E160 as150 hiIDB
E165 as150 mIDB mODB
E170 as150 mSHR mPLR
E180 as150 loSHR
E185 loSHR hiODB
E190 as180 loPLR
E195 as185 loPLR
E200 ARI PLR=1 hiSHR
CASIS/EDF CLIM2000/EDF DOE-2.1E/CIEMAT DOE-2.1E/NREL ENERGY+/GARD TRNSYS-ideal/TUD
TRNSYS-real/TUD Analytical/TUD Analytical/HTAL1 Analytical/HTAL2 TRACE 700 v6.0.1

delta Electricity Consumption (kWh)
40
20
0
-20
-40
-60
-80
E110-100 ODB
HVAC BESTEST: Outdoor (Condenser) Fan Electricity Sensitivities
E120-110 IDB
E120-100 IDB+ODB
E130-100 PLR
E140-130 ODB @loPLR
E150-110 hiSHR v. dry
E140-110 PLR @loODB
E160-150 IDB @hiSHR
E170-150 sens x 0.39
E165-160 IDB+ODB @hiSH
E180-150 SHR
E180-170 lat x 4
E190-180 PLR @loSHR
E185-180 ODB @loSHR
E190-140 lat @loPLR
E195-185 PLR @loSHR
E195-190 ODB @loPLloSH
E200-100 ARI v dry
E195-130 lat @loPLR
CASIS/EDF CLIM2000/EDF DOE-2.1E/CIEMAT DOE-2.1E/NREL ENERGY+/GARD TRNSYS-ideal/TUD
TRNSYS-real/TUD Analytical/TUD Analytical/HTAL1 Analytical/HTAL2 TRACE 700 v6.0.1

Load (kWh thermal)
6000
5000
4000
3000
2000
1000
0
E100 dry lo IDB hi ODB
E110 as100 lo ODB
E120 as100 hiIDB
E130 as100 lo PLR
HVAC BESTEST: Total Coil Load
E140 as130 lo ODB
E150 as110 hiSHR
E160 as150 hiIDB
E165 as150 mIDB mODB
E170 as150 mSHR mPLR
E180 as150 loSHR
E185 loSHR hiODB
E190 as180 loPLR
E195 as185 loPLR
E200 ARI PLR=1 hiSHR
CASIS/EDF CLIM2000/EDF DOE-2.1E/CIEMAT DOE-2.1E/NREL ENERGY+/GARD TRNSYS-ideal/TUD
TRNSYS-real/TUD Analytical/TUD Analytical/HTAL1 Analytical/HTAL2 TRACE 700 v6.0.1

delta Load (kWh thermal)
3000
2000
1000
0
-1000
-2000
-3000
-4000
-5000
E110-100 ODB
E120-110 IDB
E120-100 IDB+ODB
HVAC BESTEST: Total Coil Load Sensitivities
E130-100 PLR
E140-130 ODB @loPLR
E150-110 hiSHR v. dry
E140-110 PLR @loODB
E160-150 IDB @hiSHR
E170-150 sens x 0.39
E165-160 IDB+ODB @hiSH
E180-150 SHR
E180-170 lat x 4
E190-180 PLR @loSHR
E185-180 ODB @loSHR
E190-140 lat @loPLR
E195-185 PLR @loSHR
E195-190 ODB @loPLloSH
E200-100 ARI v dry
E195-130 lat @loPLR
CASIS/EDF CLIM2000/EDF DOE-2.1E/CIEMAT DOE-2.1E/NREL ENERGY+/GARD TRNSYS-ideal/TUD
TRNSYS-real/TUD Analytical/TUD Analytical/HTAL1 Analytical/HTAL2 TRACE 700 v6.0.1

Load (kWh thermal)
5000
4500
4000
3500
3000
2500
2000
1500
1000
500
0
E100 dry lo IDB hi ODB
E110 as100 lo ODB
E120 as100 hiIDB
HVAC BESTEST: Sensible Coil Load
E130 as100 lo PLR
E140 as130 lo ODB
E150 as110 hiSHR
E160 as150 hiIDB
E165 as150 mIDB mODB
E170 as150 mSHR mPLR
E180 as150 loSHR
E185 loSHR hiODB
E190 as180 loPLR
E195 as185 loPLR
E200 ARI PLR=1 hiSHR
CASIS/EDF CLIM2000/EDF DOE-2.1E/CIEMAT DOE-2.1E/NREL ENERGY+/GARD TRNSYS-ideal/TUD
TRNSYS-real/TUD Analytical/TUD Analytical/HTAL1 Analytical/HTAL2 TRACE 700 v6.0.1

delta Load (kWh thermal)
1000
500
0
-500
-1000
-1500
-2000
-2500
-3000
-3500
-4000
E110-100 ODB
E120-110 IDB
E120-100 IDB+ODB
HVAC BESTEST: Sensible Coil Load Sensitivities
E130-100 PLR
E140-130 ODB @loPLR
E150-110 hiSHR v. dry
E140-110 PLR @loODB
E160-150 IDB @hiSHR
E170-150 sens x 0.39
E165-160 IDB+ODB @hiSH
E180-150 SHR
E180-170 lat x 4
E190-180 PLR @loSHR
E185-180 ODB @loSHR
E190-140 lat @loPLR
E195-185 PLR @loSHR
E195-190 ODB @loPLloSH
E200-100 ARI v dry
E195-130 lat @loPLR
CASIS/EDF CLIM2000/EDF DOE-2.1E/CIEMAT DOE-2.1E/NREL ENERGY+/GARD TRNSYS-ideal/TUD
TRNSYS-real/TUD Analytical/TUD Analytical/HTAL1 Analytical/HTAL2 TRACE 700 v6.0.1

Load (kWh thermal)
3500
3000
2500
2000
1500
1000
500
0
E100 dry lo IDB hi ODB
E110 as100 lo ODB
E120 as100 hiIDB
HVAC BESTEST: Latent Coil Load
E130 as100 lo PLR
E140 as130 lo ODB
E150 as110 hiSHR
E160 as150 hiIDB
E165 as150 mIDB mODB
E170 as150 mSHR mPLR
E180 as150 loSHR
E185 loSHR hiODB
E190 as180 loPLR
E195 as185 loPLR
CASIS/EDF CLIM2000/EDF DOE-2.1E/CIEMAT DOE-2.1E/NREL
ENERGY+/GARD TRNSYS-ideal/TUD TRNSYS-real/TUD Analytical/TUD
Analytical/HTAL1 Analytical/HTAL2 TRACE 700 v6.0.1
E200 ARI PLR=1 hiSHR

delta Load (kWh thermal)
3000
2000
1000
0
-1000
-2000
-3000
E110-100 ODB
E120-110 IDB
E120-100 IDB+ODB
HVAC BESTEST: Latent Coil Load Sensitivities
E130-100 PLR
E140-130 ODB @loPLR
E150-110 hiSHR v. dry
E140-110 PLR @loODB
E160-150 IDB @hiSHR
E170-150 sens x 0.39
E165-160 IDB+ODB @hiSH
E180-150 SHR
E180-170 lat x 4
E190-180 PLR @loSHR
E185-180 ODB @loSHR
E190-140 lat @loPLR
E195-185 PLR @loSHR
E195-190 ODB @loPLloSH
E200-100 ARI v dry
E195-130 lat @loPLR
CASIS/EDF CLIM2000/EDF DOE-2.1E/CIEMAT DOE-2.1E/NREL ENERGY+/GARD TRNSYS-ideal/TUD
TRNSYS-real/TUD Analytical/TUD Analytical/HTAL1 Analytical/HTAL2 TRACE 700 v6.0.1

Temperature (°C)
30
25
20
15
10
5
0
E100 dry lo IDB hi ODB
E110 as100 lo ODB
HVAC BESTEST: Mean Indoor Drybulb Temperature
E120 as100 hiIDB
E130 as100 lo PLR
E140 as130 lo ODB
E150 as110 hiSHR
E160 as150 hiIDB
E165 as150 mIDB mODB
E170 as150 mSHR mPLR
E180 as150 loSHR
E185 loSHR hiODB
E190 as180 loPLR
E195 as185 loPLR
E200 ARI PLR=1 hiSHR
CASIS/EDF CLIM2000/EDF DOE-2.1E/CIEMAT DOE-2.1E/NREL ENERGY+/GARD TRNSYS-ideal/TUD
TRNSYS-real/TUD Analytical/TUD Analytical/HTAL1 Analytical/HTAL2 TRACE 700 v6.0.1

Fractional Variation
0.09
0.08
0.07
0.06
0.05
0.04
0.03
0.02
0.01
0
E100 dry lo IDB hi ODB
HVAC BESTEST: (Maximum - Minimum)/Mean Indoor Drybulb Temperature
E110 as100 lo ODB
E120 as100 hiIDB
E130 as100 lo PLR
E140 as130 lo ODB
E150 as110 hiSHR
E160 as150 hiIDB
E165 as150 mIDB mODB
E170 as150 mSHR mPLR
E180 as150 loSHR
E185 loSHR hiODB
E190 as180 loPLR
E195 as185 loPLR
E200 ARI PLR=1 hiSHR
CASIS/EDF CLIM2000/EDF DOE-2.1E/CIEMAT DOE-2.1E/NREL ENERGY+/GARD TRNSYS-ideal/TUD
TRNSYS-real/TUD Analytical/TUD Analytical/HTAL1 Analytical/HTAL2 TRACE 700 v6.0.1

Humidity Ratio (kg/kg)
0.018
0.016
0.014
0.012
0.01
0.008
0.006
0.004
0.002
0
E100 dry lo IDB hi ODB
E110 as100 lo ODB
E120 as100 hiIDB
HVAC BESTEST: Mean Indoor Humidity Ratio
E130 as100 lo PLR
E140 as130 lo ODB
E150 as110 hiSHR
E160 as150 hiIDB
E165 as150 mIDB mODB
E170 as150 mSHR mPLR
E180 as150 loSHR
E185 loSHR hiODB
E190 as180 loPLR
E195 as185 loPLR
E200 ARI PLR=1 hiSHR
CASIS/EDF CLIM2000/EDF DOE-2.1E/CIEMAT DOE-2.1E/NREL ENERGY+/GARD TRNSYS-ideal/TUD
TRNSYS-real/TUD Analytical/TUD Analytical/HTAL1 Analytical/HTAL2 TRACE 700 v6.0.1

Fractional Variation
HVAC BESTEST: (Maximum - Minimum)/Mean Indoor Humidity Ratio
0.1
0.09
0.08
0.07
0.06
0.05
0.04
0.03
0.02
0.01
0
E100 dry lo IDB hi ODB
E110 as100 lo ODB
E120 as100 hiIDB
E130 as100 lo PLR
E140 as130 lo ODB
E150 as110 hiSHR
E160 as150 hiIDB
E165 as150 mIDB mODB
E170 as150 mSHR mPLR
E180 as150 loSHR
E185 loSHR hiODB
E190 as180 loPLR
E195 as185 loPLR
E200 ARI PLR=1 hiSHR
CASIS/EDF CLIM2000/EDF DOE-2.1E/CIEMAT DOE-2.1E/NREL ENERGY+/GARD TRNSYS-ideal/TUD
TRNSYS-real/TUD Analytical/TUD Analytical/HTAL1 Analytical/HTAL2 TRACE 700 v6.0.1

Load (Wh thermal)
6000
5000
4000
3000
2000
1000
0
E100 dry lo IDB hi ODB
E110 as100 lo ODB
E120 as100 hiIDB
E130 as100 lo PLR
HVAC BESTEST: Total Zone Load
E140 as130 lo ODB
E150 as110 hiSHR
E160 as150 hiIDB
E165 as150 mIDB mODB
E170 as150 mSHR mPLR
E180 as150 loSHR
E185 loSHR hiODB
E190 as180 loPLR
E195 as185 loPLR
E200 ARI PLR=1 hiSHR
CASIS/EDF CLIM2000/EDF DOE-2.1E/CIEMAT DOE-2.1E/NREL ENERGY+/GARD TRNSYS-ideal/TUD
TRNSYS-real/TUD Analytical/TUD Analytical/HTAL1 Analytical/HTAL2 TRACE 700 v6.0.1

Load (Wh thermal)
4500
4000
3500
3000
2500
2000
1500
1000
500
0
E100 dry lo IDB hi ODB
E110 as100 lo ODB
E120 as100 hiIDB
HVAC BESTEST: Sensible Zone Load
E130 as100 lo PLR
E140 as130 lo ODB
E150 as110 hiSHR
E160 as150 hiIDB
E165 as150 mIDB mODB
E170 as150 mSHR mPLR
E180 as150 loSHR
E185 loSHR hiODB
E190 as180 loPLR
E195 as185 loPLR
E200 ARI PLR=1 hiSHR
CASIS/EDF CLIM2000/EDF DOE-2.1E/CIEMAT DOE-2.1E/NREL ENERGY+/GARD TRNSYS-ideal/TUD
TRNSYS-real/TUD Analytical/TUD Analytical/HTAL1 Analytical/HTAL2 TRACE 700 v6.0.1

Load (Wh thermal)
3000
2500
2000
1500
1000
500
0
E100 dry lo IDB hi ODB
E110 as100 lo ODB
E120 as100 hiIDB
E130 as100 lo PLR
HVAC BESTEST: Latent Zone Load
E140 as130 lo ODB
E150 as110 hiSHR
E160 as150 hiIDB
E165 as150 mIDB mODB
E170 as150 mSHR mPLR
E180 as150 loSHR
E185 loSHR hiODB
E190 as180 loPLR
E195 as185 loPLR
E200 ARI PLR=1 hiSHR
CASIS/EDF CLIM2000/EDF DOE-2.1E/CIEMAT DOE-2.1E/NREL ENERGY+/GARD TRNSYS-ideal/TUD
TRNSYS-real/TUD Analytical/TUD Analytical/HTAL1 Analytical/HTAL2 TRACE 700 v6.0.1

Load (kWh thermal)
HVAC BESTEST: Sensible Coil Load - Zone Load (Fan Heat)
250
200
150
100
50
0
E100 dry lo IDB hi ODB
E110 as100 lo ODB
E120 as100 hiIDB
E130 as100 lo PLR
E140 as130 lo ODB
E150 as110 hiSHR
E160 as150 hiIDB
E165 as150 mIDB mODB
E170 as150 mSHR mPLR
E180 as150 loSHR
E185 loSHR hiODB
E190 as180 loPLR
E195 as185 loPLR
CASIS/EDF CLIM2000/EDF DOE-2.1E/CIEMAT DOE-2.1E/NREL
ENERGY+/GARD TRNSYS-ideal/TUD TRNSYS-real/TUD Analytical/TUD
Analytical/HTAL1 Analytical/HTAL2 TRACE 700 v6.0.1
E200 ARI PLR=1 hiSHR

HVAC BESTEST: Latent Coil Load - Latent Zone Load (Should = 0)
Load (kWh thermal)
20
0
-20
-40
-60
-80
-100
-120
-140
-160
-180
E100 dry lo IDB hi ODB
E110 as100 lo ODB
E120 as100 hiIDB
E130 as100 lo PLR
E140 as130 lo ODB
E150 as110 hiSHR
E160 as150 hiIDB
E165 as150 mIDB mODB
E170 as150 mSHR mPLR
E180 as150 loSHR
E185 loSHR hiODB
E190 as180 loPLR
E195 as185 loPLR
E200 ARI PLR=1 hiSHR
CASIS/EDF CLIM2000/EDF DOE-2.1E/CIEMAT DOE-2.1E/NREL
ENERGY+/GARD TRNSYS-ideal/TUD TRNSYS-real/TUD Analytical/TUD
Analytical/HTAL1 Analytical/HTAL2 TRACE 700 v6.0.1
