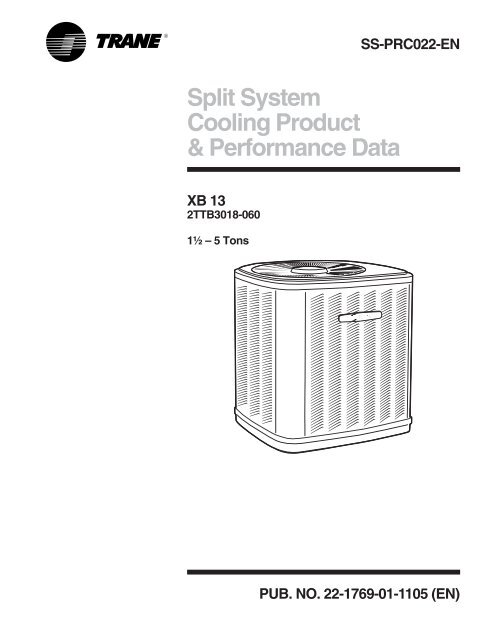

Split System Cooling Product & Performance Data

Split System

Cooling Product

& Performance Data

XB 13

2TTB3018-060

1½ – 5 Tons

SS-PRC022-EN

PUB. NO. 22-1769-01-1105 (EN)

Features and

Benefits

• Climatuff ® compressor

Efficiency up to 13.25 SEER

All aluminum Spine Fin coil

DuraTuff base, fast complete drain,

weather proof

WeatherGuard fasteners

Polyslate gray cabinet with

anthracite gray badge and cap

Quick-Sess cabinet, easy service

access and refrigerant connections

with full coil protection

Glossy corrosion resistant finish

Internal high/low pressure &

temperature protection

018, 024, 030, 042, 048 & 060 ship

with start kit

Liquid line filter-drier

Easy top & fan removal

Full length control cover

R-22 refrigerant

5 year limited warranty on

compressor, coil, 5 years internal

functional parts (Residential use)

Extended warranties available

100% line run test

Low ambient cooling to 55°F as

shipped

Low ambient cooling to 40°F with

EDC accessory AY28X079

Low ambient cooling to 30°F with

EDC accessory AY28X079 and TXV

© 2005 American Standard Inc. All Rights Reserved 2 22-1769-01-1105 (EN)

Contents

22-1769-01-1105 (EN) 3

Features and Benefits 2

General Data 4

Product Specifications 4

A-weighted Sound Power Level [dB(A)] 4

Accessory Description and Usage 5

ARI Standard Capacity Rating Conditions 5

Model Nomenclature 6

System Ratings 7

2TTB3018A1 7

2TTB3024A1 8

2TTB3030A1 10

2TTB3036A1 12

2TTB3042A1 15

2TTB3048A1 17

2TTB3060A1 19

Performance Data Cooling 20

2TTB3018A1 20

2TTB3024A1 22

2TTB3030A1 27

2TTB3036A1 34

2TTB3042A1 40

2TTB3048A1 45

2TTB3060A1 49

Electrical Data 51

Dimensions 54

Mechanical Specification Options 55

General

Data

Product Specifications

Model No. 1 2TTB3018A1 2TTB3024A1 2TTB3030A1 2TTB3036A1

Electrical Data V/Ph/Hz 2 200/230/1/60 200/230/1/60 200/230/1/60 208/230/1/60

Min Cir Ampacity 8 12 13 18

Max Fuse Size (Amps) 15 20 20 30

Compressor CLIMATUFF ® CLIMATUFF ® CLIMATUFF ® CLIMATUFF ® - SCROLL

RL Amps - LR Amps 5.8 - 38.6 8.7 - 57.8 9.5 - 63 13.5 - 73

Outdoor Fan FL Amps 0.6 0.9 0.7 1.4

Fan HP 1/15 1/8 1/8 1/6

Fan Dia (inches) 19.0 19.0 23.0 23.0

Coil Spine Fin Spine Fin Spine Fin Spine Fin

Refrigerant R-22 4/00-LB/OZ 5/02-LB/OZ 5/08-LB/OZ 6/05-LB/OZ

Line Size - (in.) O.D. Gas 3 5/8 3/4 3/4 7/8

Line Size - (in.) O.D. Liquid 3 1/4 5/16 5/16 3/8

Dimensions H x W x D (Crated) 30.1 x 26.7 x 30 37.2 x 26.7 x 30 38 x 30.1 x 33 38 x 30.1 x 33

Weight - Shipping 182 195 225 220

Weight - Net 163 175 197 193

Start Components YES YES YES NO

Sound Enclosure NO NO NO NO

Compressor Sump Heat NO NO NO NO

Optional Accessories: 4

Anti-short Cycle Timer TAYASCT501A TAYASCT501A TAYASCT501A TAYASCT501A

Evaporator Defrost Control A/C AY28X079 AY28X079 AY28X079 AY28X079

Rubber Isolator Kit BAYISLT101 BAYISLT101 BAYISLT101 BAYISLT101

Crank Case Heater Kit BAYCCHT300 BAYCCHT300 BAYCCHT300 BAYCCHT301

Hard Start Kit Scroll BAYKSKT260

Extreme Condition Mounting Kit BAYECMT001 BAYECMT001 BAYECMT001 BAYECMT001

Refrigerant Lineset 5 TAYREFLN1* TAYREFLN2* TAYREFLN2* TAYREFLN3*

1 Certified in accordance with the Unitary Air-Conditioner equipment certification program which is based on ARI Standard 210/240.

2 Calculated in accordance with N.E.C. Use only HACR circuit breakes or fuses.

3 Standard line lengths - 60'. Standard lift - 60' Suction and Liquid line.

For Greater lengths and lifts refer to refrigerant piping software Pub# 32-3312-0 † . ( † denotes latest revision)

4 For accessory description and usage, see page 5.

5 * = 15, 20, 25, 30, 40 and 50 foot lineset available.

A-weighted Sound Power Level [dB(A)]

SOUND POWER A-WEIGHTED FULL OCTAVE SOUND POWER LEVEL dB - [dB(A)]

MODEL LEVEL [dB(A)] 63 125 250 500 1000 2000 4000 8000

2TTB3018A1 76 43.8 52.8 56.7 65.3 67.4 69.6 64.6 57.2

2TTB3024A1 78 50.9 55.9 63.2 71.2 72.0 70.5 64.3 56.8

2TTB3030A1 78 45.8 56.9 61.7 68.5 71.4 70.3 61.2 54.2

2TTB3036A1 76 44.8 60.5 61.4 69.2 72.1 65.2 57.3 51.3

2TTB3042A1 79 46.0 60.6 70.4 72.9 72.4 69.5 60.9 51.2

2TTB3048A1 79 49.3 57.7 71.0 72.2 72.7 70.5 63.7 53.7

2TTB3060A1 79 53.6 57.5 63.6 73.3 73.1 71.3 63.1 55.9

Note: Tested in accordance with ARI Standard 270.95. (Not listed with ARI)

4 22-1769-01-1105 (EN)

General


Product Specifications

Model No. 1 2TTB3042A1 2TTB3048A1 2TTB3060A1

Electrical Data V/Ph/Hz 2 200/230/1/60 200/230/1/60 200/230/1/60

Min Cir Ampacity 21 25 32

Max Fuse Size (Amps) 35 40 50

Compressor CLIMATUFF ® CLIMATUFF ® CLIMATUFF ® - SCROLL

RL Amps - LR Amps 15.4 - 93.5 18.6 - 93.4 25.0 - 148

Outdoor Fan FL Amps 1.4 1.4 1.2

Fan HP 1/6 1/6 1/5

Fan Dia (inches) 27.6 27.6 27.6

Coil Spine Fin Spine Fin Spine Fin

Refrigerant R-22 6/13-LB/OZ 8/14-LB/OZ 8/11-LB/OZ

Line Size - (in.) O.D. Gas 3 7/8 1-1/8 1-1/8

Line Size - (in.) O.D. Liquid 3 3/8 3/8 3/8

Dimensions H x W x D (Crated) 38.4 x 35.1 x 38.7 46.4 x 35.1 x 38.7 46.4 x 35.1 x 38.7

Weight - Shipping 283 307 303

Weight - Net 249 271 267

Start Components YES YES YES

Sound Enclosure YES YES NO

Compressor Sump Heat NO NO YES

Optional Accessories: 4

Anti-short Cycle Timer TAYASCT501A TAYASCT501A TAYASCT501A

Evaporator Defrost Control A/C AY28X079 AY28X079 AY28X079

Rubber Isolator Kit BAYISLT101 BAYISLT101 BAYISLT101

Crank Case Heater Kit BAYCCHT300 BAYCCHT300

Hard Start Kit Scroll

Extreme Condition Mounting Kit BAYECMT001 BAYECMT001 BAYECMT001

Refrigerant Lineset 5 TAYREFLN3* TAYREFLN4* TAYREFLN4*

Accessory Description and Usage

Anti-Short Cycle Timer — Solid state timing device that

prevents compressor recycling until 5 minutes have elapsed

after satisfying call or power interruptions. Use in area with

questionable power delivery, commercial applications, long

lineset, etc.

Evaporator Defrost Control — SPST Temperature actuated

switch that cycles the condenser off as indoor coil

reaches freeze-up conditions. Used for low ambient cooling

to 30°F with TXV.

Rubber Isolators — 5 large rubber donuts to isolate

condensing unit from transmitting energy into mounting

frame or pad. Use on any application where sound transmission

needs to be minimized.

Hard Start kit — Start capacitor and relay to assist compressor

motor startup. Use in areas with marginal power supply, on

long linesets, low ambient conditions, etc.

Extreme Condition Mount Kit — Bracket kits to securely

mount condensing unit to a frame or pad without removing any

panels. Use in areas with high winds, or on commercial roof

tops, etc.

22-1769-01-1105 (EN) 5

ARI Standard Capacity Rating Conditions

ARI STANDARD 210/240 RATING CONDITIONS —

(A) Cooling 80°F DB, 67°F WB air entering indoor coil,

95°F DB air entering outdoor coil.

(B) High Temperature Heating 47°F DB, 43°F WB air entering

outdoor coil, 70°F DB air entering indoor coil.

(C) Low Temperature Heating 17°F DB, 15°F WB air entering

outdoor coil, 70°F DB air entering indoor coil.

(D) Rated indoor airflow for heating is the same as for cooling.

ARI STANDARD 270 RATING CONDITIONS — (Noise rating

numbers are determined with the unit in cooling operation.)

Standard Noise Rating number is at 95°F outdoor air.

SPLIT SYSTEM

Outdoor Units 2 T T B 3 0 3 6 A 1 0 0 0 A A

Refrigerant Type

2 = R-22

4 = R-410A

TRANE

Product Type

W = Split Heat Pump

T = Split Cooling

Product Family

Z = Leadership – Two Stage

X = Leadership

R = Replacement/Retail

B = Basic

A = Light Commercial

Family SEER

0 = 10 3 = 13 6 = 16

1 = 11 4 = 14 8 = 18

2 = 12 5 = 15 9 = 19

Split System Connections 1-6 Tons

0 = Brazed

Nominal Capacity in 000s of BTUs

Major Design Modifications

Power Supply

1 = 200-230/1/60 or 208-230/1/60

3 = 200-230/3/60

4 = 460/3/60

Secondary Function

Minor Design Modifications

Unit Parts Identifier

Air Handlers –

Residential


4 = R-410A

2 = R-22

Application

TE = Fully Convertible

TG = Semi Convertible

TF = Front Return

TV = Vertical


E = Leadership – Variable Speed

P = Leadership

C = Replacement/Retail

B = Basic

Flow Control

3 = Nonbleed TXV

4 = FCCV*

Feature Identifier

0 = Standard Unit

F = Air-Tite


Major Design Modifications

Power Supply

1 = Single Phase

Electrical Connection

0 = Pig Tails

B = Circuit Breaker

D = Pull Disconnect

Future Option – Factory Installed Heater Nominal KW Value

Minor Design Modifications


NOTE: There will be a phase-in of new model numbers for new

air handlers over next 2 years.

*Shipped with R-22 FCCV

Model

Nomenclature

4 T E E 3 F 3 6 A 1 0 0 0 A A

High Efficiency

Furnaces

Furnace Configuration

TU = Upflow / Horizontal

TD = Downflow / Horizontal

Type

D = 80% Premium

X = 90% Premium

Number of Heating Stages

1 = Single Stage

2 = Two Stage

3 = Three Stage

Cabinet Width

A = 14.5" Cabinet Width

B = 17.5" Cabinet Width

C = 21.0" Cabinet Width

D = 24.5" Cabinet Width

Heating Input

080 = 80,000 BTUH

Major Design Change

Power Supply / Fuel

9 = 115 Volts / Natural Gas

F = 115 Volts / Natural Gas with Integrated ifD Filter

Airflow Capacity for Cooling

36 = 3 Ton Standard PSC Motor

H3 = 3 Ton High Efficiency Motor

V3 = 3 Ton Variable Speed Motor

Draft Inducer Speeds

1 = Single Speed

2 = Two Speed

V = Variable Speed

Minor Design Change

Service Digit – Not Orderable

Heat Pump /

Cooling Coils


2 = R-22 4 = R-410A


T = Premium (Heat Pump or Convertible Coil)

C = Standard (Cooling Only)

Coil Design

X = Direct Expansion Evaporator Coil


C = Cased A Coil

A = Uncased A Coil

F = Cased Horizontal Flat Coil

Coil Width (Cased / Uncased)

A = 14.5" / 13.3" C = 21.0" / 19.8" H = 10.5"

B = 17.5" / 16.3" D = 24.5" / 23.3"

Refrigerant Line Coupling

0 = Brazed


Major Design Change

Efficiency

C = Standard S = Hi Efficiency

Refrigerant Control

3 = TXV – Non-Bleed

Coil Circuitry

H = Heat Pump

C = Cooling Only

Airflow Configuration

A = Upflow Only

U = Upflow / Downflow

H = Horizontal Only

C = Convertible – Upflow, Downflow, Left Airflow

M = Convertible – Upflow, Downflow, Left or Right Airflow

Minor Design Change


T U D 1 B 0 8 0 A 9 H 3 1 A A

2 T X C B 0 3 6 A C 3 H C A A

6 22-1769-01-1105 (EN)

CONDENSING UNIT WITH COOLING COILS

TOTAL SENSIBLE

COIL CFM CAPACITY CAPACITY KW SEER EER

2CXAA018AC3 600 16300 12200 1.48 13.00 11.0

2CXAA024AC3 600 16900 12800 1.54 13.00 11.0

2CXAB025AC3 600 17100 12900 1.55 13.00 11.0

2CXCA018AC3 600 16300 12200 1.48 13.00 11.0

2CXCA024AC3 600 16900 12800 1.54 13.00 11.0

2CXCB025AC3 600 17100 12900 1.55 13.00 11.0

2TXCA018AC3[T] 600 16300 12100 1.48 13.00 11.0

2TXCA024AC3 600 16900 12800 1.54 13.00 11.0

2TXCB025AC3 600 17100 12900 1.55 13.00 11.0

2TXCB025AS3 600 16300 12100 1.48 13.00 11.0

2TXCB031AS3 600 17300 13100 1.57 13.00 11.0

2TXFH018AS3 600 16300 12100 1.48 13.00 11.0

TXA025C4+TAYTXV-3 600 16600 12400 1.51 13.00 11.0

TXA030C4+TAYTXV-3 600 16700 12400 1.52 13.00 11.0

TXA031C4+TAYTXV-3 600 17000 12800 1.55 13.00 11.0

TXC025C4+TAYTXV-3 600 16600 12400 1.51 13.00 11.0

TXC025D4+TAYTXV-3 600 16600 12400 1.51 13.00 11.0

TXC030C4+TAYTXV-3 600 16700 12400 1.52 13.00 11.0

TXC030D4+TAYTXV-3 600 16700 12400 1.52 13.00 11.0

TXC031C4+TAYTXV-3 600 17000 12800 1.55 13.00 11.0

TXC031D4+TAYTXV-3 600 16900 12700 1.54 13.00 11.0

TXC031S3 600 17300 13100 1.57 13.00 11.0

TXH033A4+TAYTXV-3 600 17100 13000 1.55 13.00 11.0

CONDENSING UNIT WITH AIR HANDLERS



2TEC3F18A1 600 17300 13300 1.57 13.00 11.0

2TEC3F24A1 600 17400 13400 1.58 13.00 11.0

2TFB3F18B1 600 17200 13300 1.56 13.00 11.0

2TFE3025A1 600 17300 13100 1.54 13.25 11.2

2TFE3F25B1 500 17300 12500 1.54 13.25 11.2

2TGB3F18A1 600 17100 13400 1.55 13.00 11.0

2TGB3F25A1 600 17100 13400 1.55 13.00 11.0

TWE018P13 600 17300 13300 1.57 13.00 11.0

TWE024P13 600 17500 13400 1.59 13.00 11.0

TWE031E13 650 17800 13900 1.59 13.25 11.2

22-1769-01-1105 (EN) 7

System

Ratings 2TTB3018A1

CONDENSING UNIT WITH FURNACE AND COILS



2CXAB025AC3+*DD060R9V3 620 17700 13500 1.58 13.25 11.2

2CXAB025AC3+*DD080R9V3 670 17900 14100 1.60 13.25 11.2

2CXAB025AC3+*DY060R9V3 530 17300 12500 1.54 13.25 11.2

2CXAB025AC3+*UD060R9V3 640 17800 13800 1.59 13.25 11.2

2CXAB025AC3+*UD100R9V3 600 17600 13300 1.57 13.25 11.2

2CXAB025AC3+*UY060R9V3 580 17500 13100 1.56 13.25 11.2

2CXCB025AC3+*DD060R9V3 620 17700 13500 1.58 13.25 11.2

2CXCB025AC3+*DD080R9V3 670 17900 14100 1.60 13.25 11.2

2CXCB025AC3+*DY060R9V3 530 17300 12500 1.54 13.25 11.2

2CXCB025AC3+*UD060R9V3 640 17800 13800 1.59 13.25 11.2

2CXCB025AC3+*UD100R9V3 600 17600 13300 1.57 13.25 11.2

2CXCB025AC3+*UY060R9V3 580 17500 13100 1.56 13.25 11.2

2TXCB025AC3+*DD060R9V3 620 17700 13500 1.58 13.25 11.2

2TXCB025AC3+*DD080R9V3 670 17900 14100 1.60 13.25 11.2

2TXCB025AC3+*DY060R9V3 530 17300 12500 1.54 13.25 11.2

2TXCB025AC3+*UD060R9V3 640 17800 13800 1.59 13.25 11.2

2TXCB025AC3+*UD100R9V3 600 17600 13300 1.57 13.25 11.2

2TXCB025AC3+*UY060R9V3 580 17500 13100 1.56 13.25 11.2

2TXCB025AS3+*DD060R9V3 620 16700 12500 1.49 13.25 11.2

2TXCB025AS3+*DD080R9V3 630 16900 12900 1.51 13.25 11.2

2TXCB025AS3+*DY060R9V3 530 16300 11600 1.46 13.25 11.2

2TXCB025AS3+*UD060R9V3 625 16700 12700 1.49 13.25 11.2

2TXCB025AS3+*UD100R9V3 610 16700 12500 1.49 13.25 11.2

2TXCB025AS3+*UY060R9V3 580 16500 12100 1.47 13.25 11.2

2TXCB031AS3+*DD060R9V3 620 17900 13800 1.60 13.25 11.2

2TXCB031AS3+*DD080R9V3 670 18100 14300 1.62 13.25 11.2

2TXCB031AS3+*DY060R9V3 530 17500 12700 1.56 13.25 11.2

2TXCB031AS3+*UD060R9V3 640 18000 14000 1.61 13.25 11.2

2TXCB031AS3+*UD100R9V3 600 17800 13500 1.59 13.25 11.2

2TXCB031AS3+*UY060R9V3 580 17700 13300 1.58 13.25 11.2

2TXFH018AS3+*DD060R9V3 620 16900 12700 1.51 13.25 11.2

2TXFH018AS3+*DY060R9V3 530 16500 11800 1.47 13.25 11.2

2TXFH018AS3+*UD060R9V3 630 16900 12800 1.51 13.25 11.2

2TXFH018AS3+*UD100R9V3 600 16800 12500 1.50 13.25 11.2

2TXFH018AS3+*UY060R9V3 580 16700 12300 1.49 13.25 11.2

TXC031S3+*DD060R9V3 620 17900 13800 1.60 13.25 11.2

TXC031S3+*DD080R9V3 670 18100 14300 1.62 13.25 11.2

TXC031S3+*DY060R9V3 530 17500 12700 1.56 13.25 11.2

TXC031S3+*UD060R9V3 640 18000 14000 1.61 13.25 11.2

TXC031S3+*UD100R9V3 600 17800 13500 1.59 13.25 11.2

TXC031S3+*UY060R9V3 580 17700 13300 1.58 13.25 11.2

TXH033A4+TAYTXV-3+*UD100R9V3 590 17700 13400 1.58 13.25 11.2


Ratings




2CXAA024AC3 800 21800 16700 1.98 13.00 11.0

2CXAB025AC3 800 22000 16800 2.00 13.00 11.0

2CXAB031AC3 800 22000 16800 2.00 13.00 11.0

2CXAB036AC3 800 22000 16300 2.00 13.00 11.0

2CXCA024AC3 800 21800 16700 1.98 13.00 11.0

2CXCB025AC3 800 22000 16800 2.00 13.00 11.0

2CXCB031AC3 800 22000 16800 2.00 13.00 11.0

2CXCB036AC3 800 22000 16300 2.00 13.00 11.0

2TXCA024AC3[T] 800 22000 15800 2.00 13.00 11.0

2TXCB025AC3 800 22000 16800 2.00 13.00 11.0

2TXCB025AS3 780 20800 15500 1.93 12.25 10.8

2TXCB031AC3 800 22000 16800 2.00 13.00 11.0

2TXCB031AS3 800 22400 17100 2.04 13.00 11.0

2TXCB036AC3 800 22000 16300 2.00 13.00 11.0

2TXCB036AS3 800 22800 17400 2.07 13.00 11.0

2TXCC037AS3 800 23000 17700 2.09 13.00 11.0

2TXFH033AS3 800 22000 16900 2.00 13.00 11.0

TXA025C4+TAYTXV-3 790 21200 15900 1.93 12.50 11.0

TXA030C4+TAYTXV-3 800 21600 16200 1.96 12.75 11.0

TXA031C4+TAYTXV-3 800 22000 16700 2.00 13.00 11.0

TXA035C4+TAYTXV-3 800 21600 16200 1.96 12.75 11.0

TXC025C4+TAYTXV-3 790 21200 15900 1.93 12.50 11.0

TXC025D4+TAYTXV-3 790 21200 15900 1.93 12.50 11.0

TXC030C4+TAYTXV-3 800 21600 16200 1.96 12.75 11.0

TXC030D4+TAYTXV-3 800 21600 16200 1.96 12.75 11.0

TXC031C4+TAYTXV-3 800 22000 16700 2.00 13.00 11.0

TXC031D4+TAYTXV-3 800 21800 16400 1.98 13.00 11.0

TXC031S3 800 22400 17100 2.04 13.00 11.0

TXC035C4+TAYTXV-3 800 21600 16200 1.96 12.75 11.0

TXC035D4+TAYTXV-3 800 21600 16200 1.96 12.75 11.0

TXC036S3 800 22800 17400 2.07 13.00 11.0

TXC037S3 800 23000 17700 2.09 13.00 11.0

TXH033A4+TAYTXV-3 800 22000 17000 2.00 13.00 11.0




2TEC3F24A1 800 22400 17400 2.04 13.00 11.0

2TEC3F30A1 800 22400 17300 2.04 13.00 11.0

2TFB3F24B1 800 22200 17200 2.02 13.00 11.0

2TFB3F30B1 800 22200 17200 2.02 13.00 11.0

2TFE3F25B1 640 22000 15800 1.96 13.25 11.2

2TGB3F25A1 800 22000 17400 2.00 13.00 11.0

2TGB3F30A1 800 22400 17400 2.04 13.00 11.0

TWE018P13 800 22200 17200 2.02 13.00 11.0

TWE024P13 800 22400 17300 2.04 13.00 11.0

TWE030C14+TAYTXV-3 800 21400 16100 1.95 12.75 11.0

TWE030P13 800 21800 16500 1.98 13.00 11.0

TWE031E13 840 22600 17600 2.02 13.25 11.2

TWE037E13 800 22800 17400 2.04 13.25 11.2

TWE040E13 830 24000 18700 2.14 13.25 11.2

2TTB3024A1




2CXAB025AC3+*DD060R9V3 800 22600 17200 2.02 13.25 11.2

2CXAB025AC3+*DD080R9V3 770 22400 16800 2.00 13.25 11.2

2CXAB025AC3+*DY060R9V3 710 22200 16300 1.98 13.25 11.2

2CXAB025AC3+*DY080R9V3 710 22200 16300 1.98 13.25 11.2

2CXAB025AC3+*UD060R9V3 830 22600 17500 2.02 13.25 11.2

2CXAB025AC3+*UD080R9V3 820 22600 17400 2.02 13.25 11.2

2CXAB025AC3+*UD100R9V3 810 22600 17300 2.02 13.25 11.2

2CXAB025AC3+*UY060R9V3 720 22200 16300 1.98 13.25 11.2

2CXAB025AC3+*UY080R9V3 700 22200 16200 1.98 13.25 11.2

2CXAB031AC3+*DD060R9V3 800 22600 17200 2.02 13.25 11.2

2CXAB031AC3+*DD080R9V3 770 22400 16800 2.00 13.25 11.2

2CXAB031AC3+*DY060R9V3 710 22200 16300 1.98 13.25 11.2

2CXAB031AC3+*DY080R9V3 710 22200 16300 1.98 13.25 11.2

2CXAB031AC3+*UD060R9V3 830 22600 17400 2.02 13.25 11.2

2CXAB031AC3+*UD080R9V3 820 22600 17400 2.02 13.25 11.2

2CXAB031AC3+*UD100R9V3 810 22600 17300 2.02 13.25 11.2

2CXAB031AC3+*UY060R9V3 720 22200 16300 1.98 13.25 11.2

2CXAB031AC3+*UY080R9V3 700 22200 16200 1.98 13.25 11.2

2CXAB036AC3+*DD060R9V3 800 22600 16800 2.02 13.25 11.2

2CXAB036AC3+*DD080R9V3 770 22600 16600 2.02 13.25 11.2

2CXAB036AC3+*DY060R9V3 710 22200 15900 1.98 13.25 11.2

2CXAB036AC3+*DY080R9V3 710 22200 15900 1.98 13.25 11.2

2CXAB036AC3+*UD060R9V3 830 22600 17000 2.02 13.25 11.2

2CXAB036AC3+*UD080R9V3 820 22600 16900 2.02 13.25 11.2

2CXAB036AC3+*UD100R9V3 800 22600 16800 2.02 13.25 11.2

2CXAB036AC3+*UY060R9V3 720 22200 15900 1.98 13.25 11.2

2CXAB036AC3+*UY080R9V3 710 22200 15900 1.98 13.25 11.2

2CXCB025AC3+*DD060R9V3 800 22600 17200 2.02 13.25 11.2

2CXCB025AC3+*DD080R9V3 770 22400 16800 2.00 13.25 11.2

2CXCB025AC3+*DY060R9V3 710 22200 16300 1.98 13.25 11.2

2CXCB025AC3+*DY080R9V3 710 22200 16300 1.98 13.25 11.2

2CXCB025AC3+*UD060R9V3 830 22600 17500 2.02 13.25 11.2

2CXCB025AC3+*UD080R9V3 820 22600 17400 2.02 13.25 11.2

2CXCB025AC3+*UD100R9V3 810 22600 17300 2.02 13.25 11.2

2CXCB025AC3+*UY060R9V3 720 22200 16300 1.98 13.25 11.2

2CXCB025AC3+*UY080R9V3 700 22200 16200 1.98 13.25 11.2

2CXCB031AC3+*DD060R9V3 800 22600 17200 2.02 13.25 11.2

2CXCB031AC3+*DD080R9V3 770 22400 16800 2.00 13.25 11.2

2CXCB031AC3+*DY060R9V3 710 22200 16300 1.98 13.25 11.2

2CXCB031AC3+*DY080R9V3 710 22200 16300 1.98 13.25 11.2

2CXCB031AC3+*UD060R9V3 830 22600 17400 2.02 13.25 11.2

2CXCB031AC3+*UD080R9V3 820 22600 17400 2.02 13.25 11.2

2CXCB031AC3+*UD100R9V3 810 22600 17300 2.02 13.25 11.2

2CXCB031AC3+*UY060R9V3 720 22200 16300 1.98 13.25 11.2

2CXCB031AC3+*UY080R9V3 700 22200 16200 1.98 13.25 11.2

2CXCB036AC3+*DD060R9V3 800 22600 16800 2.02 13.25 11.2

2CXCB036AC3+*DD080R9V3 770 22600 16600 2.02 13.25 11.2

2CXCB036AC3+*DY060R9V3 710 22200 15900 1.98 13.25 11.2

2CXCB036AC3+*DY080R9V3 710 22200 15900 1.98 13.25 11.2

2CXCB036AC3+*UD060R9V3 830 22600 17000 2.02 13.25 11.2

8 22-1769-01-1105 (EN)


Ratings




2CXCB036AC3+*UD080R9V3 820 22600 16900 2.02 13.25 11.2

2CXCB036AC3+*UD100R9V3 800 22600 16800 2.02 13.25 11.2

2CXCB036AC3+*UY060R9V3 720 22200 15900 1.98 13.25 11.2

2CXCB036AC3+*UY080R9V3 710 22200 15900 1.98 13.25 11.2

2TXCB025AC3+*DD060R9V3 800 22600 17200 2.02 13.25 11.2

2TXCB025AC3+*DD080R9V3 770 22400 16800 2.00 13.25 11.2

2TXCB025AC3+*DY060R9V3 710 22200 16300 1.98 13.25 11.2

2TXCB025AC3+*DY080R9V3 710 22200 16300 1.98 13.25 11.2

2TXCB025AC3+*UD060R9V3 830 22600 17500 2.02 13.25 11.2

2TXCB025AC3+*UD080R9V3 820 22600 17400 2.02 13.25 11.2

2TXCB025AC3+*UD100R9V3 810 22600 17300 2.02 13.25 11.2

2TXCB025AC3+*UY060R9V3 720 22200 16300 1.98 13.25 11.2

2TXCB025AC3+*UY080R9V3 700 22200 16200 1.98 13.25 11.2

2TXCB025AS3+*DD060R9V3 790 21200 15800 1.89 13.25 11.2

2TXCB025AS3+*DD080R9V3 760 21000 15400 1.88 13.25 11.2

2TXCB025AS3+*DY060R9V3 710 20800 14900 1.86 13.25 11.2

2TXCB025AS3+*DY080R9V3 710 20800 14900 1.86 13.25 11.2

2TXCB025AS3+*UD060R9V3 800 21400 16200 1.91 13.25 11.2

2TXCB025AS3+*UD080R9V3 790 21200 15800 1.89 13.25 11.2

2TXCB025AS3+*UD100R9V3 800 21400 16100 1.91 13.25 11.2

2TXCB025AS3+*UY060R9V3 720 20800 15000 1.86 13.25 11.2

2TXCB025AS3+*UY080R9V3 690 20800 14900 1.86 13.25 11.2

2TXCB031AC3+*DD060R9V3 800 22600 17200 2.02 13.25 11.2

2TXCB031AC3+*DD080R9V3 770 22400 16800 2.00 13.25 11.2

2TXCB031AC3+*DY060R9V3 710 22200 16300 1.98 13.25 11.2

2TXCB031AC3+*DY080R9V3 710 22200 16300 1.98 13.25 11.2

2TXCB031AC3+*UD060R9V3 830 22600 17400 2.02 13.25 11.2

2TXCB031AC3+*UD080R9V3 820 22600 17400 2.02 13.25 11.2

2TXCB031AC3+*UD100R9V3 810 22600 17300 2.02 13.25 11.2

2TXCB031AC3+*UY060R9V3 720 22200 16300 1.98 13.25 11.2

2TXCB031AC3+*UY080R9V3 700 22200 16200 1.98 13.25 11.2

2TXCB031AS3+*DD060R9V3 810 23000 17700 2.05 13.25 11.2

2TXCB031AS3+*DD080R9V3 770 22800 17200 2.04 13.25 11.2

2TXCB031AS3+*DY060R9V3 710 22600 16600 2.02 13.25 11.2

2TXCB031AS3+*DY080R9V3 710 22600 16600 2.02 13.25 11.2

2TXCB031AS3+*UD060R9V3 830 23000 17800 2.05 13.25 11.2

2TXCB031AS3+*UD080R9V3 820 23000 17800 2.05 13.25 11.2

2TXCB031AS3+*UD100R9V3 810 23000 17700 2.05 13.25 11.2

2TXCB031AS3+*UY060R9V3 720 22600 16700 2.02 13.25 11.2

2TXCB031AS3+*UY080R9V3 700 22400 16400 2.00 13.25 11.2

2TXCB036AC3+*DD060R9V3 800 22600 16800 2.02 13.25 11.2

2TXCB036AC3+*DD080R9V3 770 22600 16600 2.02 13.25 11.2

2TXCB036AC3+*DY060R9V3 710 22200 15900 1.98 13.25 11.2

2TXCB036AC3+*DY080R9V3 710 22200 15900 1.98 13.25 11.2

2TXCB036AC3+*UD060R9V3 830 22600 17000 2.02 13.25 11.2

2TXCB036AC3+*UD080R9V3 820 22600 16900 2.02 13.25 11.2

2TXCB036AC3+*UD100R9V3 800 22600 16800 2.02 13.25 11.2

2TXCB036AC3+*UY060R9V3 720 22200 15900 1.98 13.25 11.2

2TXCB036AC3+*UY080R9V3 710 22200 15900 1.98 13.25 11.2

2TXCB036AS3+*DD060R9V3 800 23400 17800 2.09 13.25 11.2

2TXCB036AS3+*DD080R9V3 770 23200 17400 2.07 13.25 11.2

22-1769-01-1105 (EN) 9

2TTB3024A1




2TXCB036AS3+*DY060R9V3 700 22800 16600 2.04 13.25 11.2

2TXCB036AS3+*DY080R9V3 710 23000 16800 2.05 13.25 11.2

2TXCB036AS3+*UD060R9V3 830 23400 18100 2.09 13.25 11.2

2TXCB036AS3+*UD080R9V3 820 23400 18000 2.09 13.25 11.2

2TXCB036AS3+*UD100R9V3 800 23200 17700 2.07 13.25 11.2

2TXCB036AS3+*UY060R9V3 720 23000 16900 2.05 13.25 11.2

2TXCB036AS3+*UY080R9V3 710 23000 16800 2.05 13.25 11.2

2TXFH018AS3+*DD060R9V3 800 21400 15900 1.91 13.25 11.2

2TXFH018AS3+*DD080R9V3 770 21400 15700 1.91 13.25 11.2

2TXFH018AS3+*DY060R9V3 710 21200 15300 1.89 13.25 11.2

2TXFH018AS3+*DY080R9V3 710 21200 15300 1.89 13.25 11.2

2TXFH018AS3+*UD080R9V3 810 21600 16200 1.93 13.25 11.2

2TXFH018AS3+*UD100R9V3 800 21400 15900 1.91 13.25 11.2

2TXFH018AS3+*UY060R9V3 720 21000 15100 1.88 13.25 11.2

2TXFH018AS3+*UY080R9V3 700 21000 15000 1.88 13.25 11.2

2TXFH033AS3+*DD060R9V3 800 22600 17400 2.02 13.25 11.2

2TXFH033AS3+*DD080R9V3 780 22400 17100 2.00 13.25 11.2

2TXFH033AS3+*DY060R9V3 700 22000 16200 1.96 13.25 11.2

2TXFH033AS3+*DY080R9V3 710 22200 16400 1.98 13.25 11.2

2TXFH033AS3+*UD060R9V3 820 22600 17600 2.02 13.25 11.2

2TXFH033AS3+*UD080R9V3 820 22600 17600 2.02 13.25 11.2

2TXFH033AS3+*UD100R9V3 790 22400 17200 2.00 13.25 11.2

2TXFH033AS3+*UY060R9V3 710 22000 16300 1.96 13.25 11.2

2TXFH033AS3+*UY080R9V3 710 22200 16400 1.98 13.25 11.2

TXC031S3+*DD060R9V3 810 23000 17700 2.05 13.25 11.2

TXC031S3+*DD080R9V3 770 22800 17200 2.04 13.25 11.2

TXC031S3+*DY060R9V3 710 22600 16600 2.02 13.25 11.2

TXC031S3+*DY080R9V3 710 22600 16600 2.02 13.25 11.2

TXC031S3+*UD060R9V3 830 23000 17800 2.05 13.25 11.2

TXC031S3+*UD080R9V3 820 23000 17800 2.05 13.25 11.2

TXC031S3+*UD100R9V3 810 23000 17700 2.05 13.25 11.2

TXC031S3+*UY060R9V3 720 22600 16700 2.02 13.25 11.2

TXC031S3+*UY080R9V3 700 22400 16400 2.00 13.25 11.2

TXC036S3+*DD060R9V3 800 23400 17800 2.09 13.25 11.2

TXC036S3+*DD080R9V3 770 23200 17400 2.07 13.25 11.2

TXC036S3+*DY060R9V3 700 22800 16600 2.04 13.25 11.2

TXC036S3+*DY080R9V3 710 23000 16800 2.05 13.25 11.2

TXC036S3+*UD060R9V3 830 23400 18100 2.09 13.25 11.2

TXC036S3+*UD080R9V3 820 23400 18000 2.09 13.25 11.2

TXC036S3+*UD100R9V3 800 23200 17700 2.07 13.25 11.2

TXC036S3+*UY060R9V3 720 23000 16900 2.05 13.25 11.2

TXC036S3+*UY080R9V3 710 23000 16800 2.05 13.25 11.2

TXH033A4+TAYTXV-3+*DD060R9V3 800 22600 17400 2.02 13.25 11.2


TXH033A4+TAYTXV-3+*DY060R9V3 700 22000 16200 1.96 13.25 11.2


TXH033A4+TAYTXV-3+*UD060R9V3 820 22600 17600 2.02 13.25 11.2



TXH033A4+TAYTXV-3+*UY060R9V3 710 22000 16300 1.96 13.25 11.2

TXH033A4+TAYTXV-3+*UY080R9V3 710 22200 16400 1.98 13.25 11.2


Ratings




2CXAB031AC3 1000 26800 20600 2.44 13.00 11.0

2CXAB036AC3 975 26800 19900 2.44 13.00 11.0

2CXAB042AC3 1000 27400 20800 2.49 13.00 11.0

2CXAC037AC3 1000 27400 20800 2.49 13.00 11.0

2CXCB031AC3 975 26400 20200 2.40 13.00 11.0

2CXCB036AC3 1000 26800 19900 2.44 13.00 11.0

2CXCB042AC3 1000 27400 20800 2.49 13.00 11.0

2CXCC037AC3 1000 27400 20800 2.49 13.00 11.0

2TXCB025AS3 900 24800 17900 2.30 12.50 10.8

2TXCB031AC3[T] 950 26400 19300 2.40 13.00 11.0

2TXCB031AS3 1000 27400 21000 2.49 13.00 11.0

2TXCB036AC3 1000 26800 19900 2.44 13.00 11.0

2TXCB036AS3 1000 27800 21200 2.53 13.00 11.0

2TXCB042AC3 1000 27400 20800 2.49 13.00 11.0

2TXCC037AC3 1000 27400 20800 2.49 13.00 11.0

2TXCC037AS3 1000 28200 21800 2.56 13.00 11.0

2TXFH033AS3 975 26400 20600 2.40 13.00 11.0

2TXFH041AS3 1000 27400 20800 2.49 13.00 11.0

TXA030C4+TAYTXV-3 980 26200 19700 2.38 12.75 11.0

TXA031C4+TAYTXV-3 975 26600 20400 2.42 13.00 11.0

TXA035C4+TAYTXV-3 980 26200 19700 2.38 12.75 11.0

TXA036C4+TAYTXV-3 1000 27200 20800 2.47 13.00 11.0

TXC030C4+TAYTXV-3 980 26200 19700 2.38 12.75 11.0

TXC030D4+TAYTXV-3 980 26200 19700 2.38 12.75 11.0

TXC031C4+TAYTXV-3 975 26600 20400 2.42 13.00 11.0

TXC031D4+TAYTXV-3 975 26400 20000 2.40 13.00 11.0

TXC031S3 1000 27400 21000 2.49 13.00 11.0

TXC035C4+TAYTXV-3 980 26200 19700 2.38 12.75 11.0

TXC035D4+TAYTXV-3 980 26200 19700 2.38 12.75 11.0

TXC036C4+TAYTXV-3 1000 27200 20800 2.47 13.00 11.0

TXC036D4+TAYTXV-3 1000 26800 20200 2.44 13.00 11.0

TXC036S3 1000 27800 21200 2.53 13.00 11.0

TXC037S3 1000 28200 21800 2.56 13.00 11.0

TXH033A4+TAYTXV-3 975 26400 20600 2.40 13.00 11.0

TXH041A4+TAYTXV-3 1000 27400 20800 2.49 13.00 11.0




2TEC3F30A1 1000 27000 21000 2.45 13.00 11.0

2TEC3F36A1 1000 27400 21400 2.49 13.00 11.0

2TEC3F42A1 1050 28200 22800 2.56 13.00 11.0

2TFB3F30B1 1000 27000 21000 2.45 13.00 11.0

2TFE3F25B1 820 26800 19500 2.39 13.25 11.2

2TGB3F30A1 1000 27200 21400 2.47 13.00 11.0

2TGB3F36A1 1000 27200 21400 2.47 13.00 11.0

TWE024P13 1000 27000 21000 2.45 13.00 11.0

TWE030C14+TAYTXV-3 970 26000 19700 2.36 12.50 11.0

TWE030P13 990 26400 20200 2.40 12.75 11.0

TWE031E13 1020 27200 21000 2.43 13.25 11.2

TWE036C14+TAYTXV-3 1000 27000 21200 2.45 13.00 11.0

2TTB3030A1




TWE036P13 1000 26800 20400 2.44 13.00 11.0

TWE037E13 990 27800 21200 2.48 13.25 11.2

TWE040E13 1000 29000 22400 2.59 13.25 11.2

TWE042C14+TAYTXV-3 1025 27600 21800 2.51 13.00 11.0

TWG036A14+TAYTXV-3 975 26400 20200 2.40 13.00 11.0

TWG037A14+TAYTXV-3 880 25800 18900 2.35 13.00 11.0




2CXAB031AC3+*DD060R9V3 1000 27200 20800 2.43 13.25 11.2

2CXAB031AC3+*DD080R9V3 950 27000 20400 2.41 13.25 11.2

2CXAB031AC3+*DY060R9V3 870 26800 19600 2.39 13.25 11.2

2CXAB031AC3+*DY080R9V3 890 26800 19800 2.39 13.25 11.2

2CXAB031AC3+*UD060R9V3 1020 27200 21200 2.43 13.25 11.2

2CXAB031AC3+*UD080R9V3 1000 27200 20800 2.43 13.25 11.2

2CXAB031AC3+*UD080R9V4 1000 27400 21000 2.45 13.25 11.2

2CXAB031AC3+*UD100R9V3 1020 27200 21200 2.43 13.25 11.2

2CXAB031AC3+*UY060R9V3 880 26800 19700 2.39 13.25 11.2

2CXAB031AC3+*UY080R9V3 860 26800 19500 2.39 13.25 11.2

2CXAB036AC3+*DD060R9V3 1000 27400 20400 2.45 13.25 11.2

2CXAB036AC3+*DD080R9V3 950 27200 19900 2.43 13.25 11.2

2CXAB036AC3+*DY060R9V3 870 27000 19200 2.41 13.25 11.2

2CXAB036AC3+*DY080R9V3 890 27000 19400 2.41 13.25 11.2

2CXAB036AC3+*UD060R9V3 1020 27400 20600 2.45 13.25 11.2

2CXAB036AC3+*UD080R9V3 1000 27400 20400 2.45 13.25 11.2

2CXAB036AC3+*UD080R9V4 1000 27600 20600 2.46 13.25 11.2

2CXAB036AC3+*UD100R9V3 1020 27400 20600 2.45 13.25 11.2

2CXAB036AC3+*UY060R9V3 880 27000 19300 2.41 13.25 11.2

2CXAB036AC3+*UY080R9V3 860 27000 19100 2.41 13.25 11.2

2CXAB042AC3+*DD060R9V3 1000 27800 21200 2.48 13.25 11.2

2CXAB042AC3+*DD080R9V3 950 27600 20600 2.46 13.25 11.2

2CXAB042AC3+*DY060R9V3 870 27400 19800 2.45 13.25 11.2

2CXAB042AC3+*DY080R9V3 890 27400 20000 2.45 13.25 11.2

2CXAB042AC3+*UD060R9V3 1040 27800 21400 2.48 13.25 11.2

2CXAB042AC3+*UD080R9V3 1000 27800 21200 2.48 13.25 11.2

2CXAB042AC3+*UD080R9V4 1000 28000 21200 2.50 13.25 11.2

2CXAB042AC3+*UD100R9V3 1040 27800 21400 2.48 13.25 11.2

2CXAB042AC3+*UY060R9V3 880 27400 19900 2.45 13.25 11.2

2CXAB042AC3+*UY080R9V3 860 27400 19800 2.45 13.25 11.2

2CXAC037AC3+*DY100R9V4 1050 28200 22000 2.52 13.25 11.2

2CXAC037AC3+*UY100R9V4 1050 28200 21800 2.52 13.25 11.2

2CXCB031AC3+*DD060R9V3 1000 27200 20800 2.43 13.25 11.2

2CXCB031AC3+*DD080R9V3 950 27000 20400 2.41 13.25 11.2

2CXCB031AC3+*DY060R9V3 870 26800 19600 2.39 13.25 11.2

2CXCB031AC3+*DY080R9V3 890 26800 19800 2.39 13.25 11.2

2CXCB031AC3+*UD060R9V3 1020 27200 21200 2.43 13.25 11.2

2CXCB031AC3+*UD080R9V3 1000 27200 20800 2.43 13.25 11.2

2CXCB031AC3+*UD080R9V4 1000 27400 21000 2.45 13.25 11.2

2CXCB031AC3+*UD100R9V3 1020 27200 21200 2.43 13.25 11.2

2CXCB031AC3+*UY060R9V3 880 26800 19700 2.39 13.25 11.2

10 22-1769-01-1105 (EN)


Ratings




2CXCB031AC3+*UY080R9V3 860 26800 19500 2.39 13.25 11.2

2CXCB036AC3+*DD060R9V3 1000 27400 20400 2.45 13.25 11.2

2CXCB036AC3+*DD080R9V3 950 27200 19900 2.43 13.25 11.2

2CXCB036AC3+*DY060R9V3 870 27000 19200 2.41 13.25 11.2

2CXCB036AC3+*DY080R9V3 890 27000 19400 2.41 13.25 11.2

2CXCB036AC3+*UD060R9V3 1025 27400 20600 2.45 13.25 11.2

2CXCB036AC3+*UD080R9V3 1000 27400 20400 2.45 13.25 11.2

2CXCB036AC3+*UD080R9V4 1000 27600 20600 2.46 13.25 11.2

2CXCB036AC3+*UD100R9V3 1025 27400 20600 2.45 13.25 11.2

2CXCB036AC3+*UY060R9V3 880 27000 19300 2.41 13.25 11.2

2CXCB036AC3+*UY080R9V3 860 27000 19100 2.41 13.25 11.2

2CXCB042AC3+*DD060R9V3 1000 27800 21200 2.48 13.25 11.2

2CXCB042AC3+*DD080R9V3 950 27600 20600 2.46 13.25 11.2

2CXCB042AC3+*DY060R9V3 870 27400 19800 2.45 13.25 11.2

2CXCB042AC3+*DY080R9V3 890 27400 20000 2.45 13.25 11.2

2CXCB042AC3+*UD060R9V3 1040 27800 21400 2.48 13.25 11.2

2CXCB042AC3+*UD080R9V3 1000 27800 21200 2.48 13.25 11.2

2CXCB042AC3+*UD080R9V4 1000 28000 21200 2.50 13.25 11.2

2CXCB042AC3+*UD100R9V3 1040 27800 21400 2.48 13.25 11.2

2CXCB042AC3+*UY060R9V3 880 27400 19900 2.45 13.25 11.2

2CXCB042AC3+*UY080R9V3 860 27400 19800 2.45 13.25 11.2

2CXCC037AC3+*DY100R9V4 1050 28200 22000 2.52 13.25 11.2

2CXCC037AC3+*UY100R9V4 1050 28200 21800 2.52 13.25 11.2

2TXCB025AS3+*DD060R9V3 960 25600 19200 2.29 13.25 11.2

2TXCB025AS3+*DD080R9V3 940 25600 18700 2.29 13.25 11.2

2TXCB025AS3+*DY060R9V3 880 25200 18100 2.25 13.25 11.2

2TXCB025AS3+*DY080R9V3 890 25200 18100 2.25 13.00 11.2

2TXCB025AS3+*UD060R9V3 960 25600 19300 2.29 13.00 11.2

2TXCB025AS3+*UD080R9V3 960 25600 19000 2.29 13.25 11.2

2TXCB025AS3+*UD080R9V4 960 25600 19000 2.29 13.25 11.2

2TXCB025AS3+*UY060R9V3 890 25200 18100 2.25 13.25 11.2

2TXCB025AS3+*UY080R9V3 860 25200 18000 2.25 13.25 11.2

2TXCB031AC3+*DD060R9V3 1000 27200 20800 2.43 13.25 11.2

2TXCB031AC3+*DD080R9V3 950 27000 20400 2.41 13.25 11.2

2TXCB031AC3+*DY060R9V3 870 26800 19600 2.39 13.25 11.2

2TXCB031AC3+*DY080R9V3 890 26800 19800 2.39 13.25 11.2

2TXCB031AC3+*UD060R9V3 1020 27200 21200 2.43 13.25 11.2

2TXCB031AC3+*UD080R9V3 1000 27200 20800 2.43 13.25 11.2

2TXCB031AC3+*UD080R9V4 1000 27400 21000 2.45 13.25 11.2

2TXCB031AC3+*UD100R9V3 1020 27200 21200 2.43 13.25 11.2

2TXCB031AC3+*UY060R9V3 880 26800 19700 2.39 13.25 11.2

2TXCB031AC3+*UY080R9V3 860 26800 19500 2.39 13.25 11.2

2TXCB031AS3+*DD060R9V3 1000 27800 21400 2.48 13.25 11.2

2TXCB031AS3+*DD080R9V3 950 27800 21000 2.48 13.25 11.2

2TXCB031AS3+*DY060R9V3 870 27400 20000 2.45 13.25 11.2

2TXCB031AS3+*DY080R9V3 890 27400 20200 2.45 13.25 11.2

2TXCB031AS3+*UD060R9V3 1040 27800 21800 2.48 13.25 11.2

2TXCB031AS3+*UD080R9V3 1000 27800 21400 2.48 13.25 11.2

2TXCB031AS3+*UD080R9V4 1000 28000 21600 2.50 13.25 11.2

2TXCB031AS3+*UD100R9V3 1050 28000 22000 2.50 13.25 11.2

22-1769-01-1105 (EN) 11

2TTB3030A1




2TXCB031AS3+*UY060R9V3 880 27400 20200 2.45 13.25 11.2

2TXCB031AS3+*UY080R9V3 860 27400 20000 2.45 13.25 11.2

2TXCB036AC3+*DD060R9V3 1000 27400 20400 2.45 13.25 11.2

2TXCB036AC3+*DD080R9V3 950 27200 19900 2.43 13.25 11.2

2TXCB036AC3+*DY060R9V3 870 27000 19200 2.41 13.25 11.2

2TXCB036AC3+*DY080R9V3 890 27000 19400 2.41 13.25 11.2

2TXCB036AC3+*UD060R9V3 1020 27400 20600 2.45 13.25 11.2

2TXCB036AC3+*UD080R9V3 1000 27400 20400 2.45 13.25 11.2

2TXCB036AC3+*UD080R9V4 1000 27600 20600 2.46 13.25 11.2

2TXCB036AC3+*UD100R9V3 1020 27400 20600 2.45 13.25 11.2

2TXCB036AC3+*UY060R9V3 880 27000 19300 2.41 13.25 11.2

2TXCB036AC3+*UY080R9V3 860 27000 19100 2.41 13.25 11.2

2TXCB036AS3+*DD060R9V3 1000 28400 21600 2.54 13.25 11.2

2TXCB036AS3+*DD080R9V3 950 28200 21200 2.52 13.25 11.2

2TXCB036AS3+*DY060R9V3 870 27800 20200 2.48 13.25 11.2

2TXCB036AS3+*DY080R9V3 890 27800 20400 2.48 13.25 11.2

2TXCB036AS3+*UD060R9V3 1030 28400 22000 2.54 13.25 11.2

2TXCB036AS3+*UD080R9V3 1000 28400 21600 2.54 13.25 11.2

2TXCB036AS3+*UD080R9V4 1000 28400 21600 2.54 13.25 11.2

2TXCB036AS3+*UD100R9V3 1030 28400 22000 2.54 13.25 11.2

2TXCB036AS3+*UY060R9V3 880 27800 20400 2.48 13.25 11.2

2TXCB036AS3+*UY080R9V3 860 27800 20200 2.48 13.25 11.2

2TXCB042AC3+*DD060R9V3 1000 27800 21200 2.48 13.25 11.2

2TXCB042AC3+*DD080R9V3 950 27600 20600 2.46 13.25 11.2

2TXCB042AC3+*DY060R9V3 870 27400 19800 2.45 13.25 11.2

2TXCB042AC3+*DY080R9V3 890 27400 20000 2.45 13.25 11.2

2TXCB042AC3+*UD060R9V3 1040 27800 21400 2.48 13.25 11.2

2TXCB042AC3+*UD080R9V3 1000 27800 21200 2.48 13.25 11.2

2TXCB042AC3+*UD080R9V4 1000 28000 21200 2.50 13.25 11.2

2TXCB042AC3+*UD100R9V3 1040 27800 21400 2.48 13.25 11.2

2TXCB042AC3+*UY060R9V3 880 27400 19900 2.45 13.25 11.2

2TXCB042AC3+*UY080R9V3 860 27400 19800 2.45 13.25 11.2

2TXCC037AC3+*DY100R9V4 1050 28200 22000 2.52 13.25 11.2

2TXCC037AC3+*UY100R9V4 1050 28200 21800 2.52 13.25 11.2

2TXCC037AS3+*DY100R9V4 1060 28800 22800 2.57 13.25 11.2

2TXCC037AS3+*UY100R9V4 1050 28800 22800 2.57 13.25 11.2

2TXFH033AS3+*DD060R9V3 990 27000 21000 2.41 13.25 11.2

2TXFH033AS3+*DD080R9V3 960 27000 20800 2.41 13.25 11.2

2TXFH033AS3+*DY060R9V3 860 26600 19700 2.38 13.25 11.2

2TXFH033AS3+*DY080R9V3 880 26600 19800 2.38 13.25 11.2

2TXFH033AS3+*UD060R9V3 1010 27000 21200 2.41 13.25 11.2

2TXFH033AS3+*UD080R9V3 1010 27000 21000 2.41 13.25 11.2

2TXFH033AS3+*UD080R9V4 1000 27200 21200 2.43 13.25 11.2

2TXFH033AS3+*UD100R9V3 1010 27000 21200 2.41 13.25 11.2

2TXFH033AS3+*UY060R9V3 870 26600 19700 2.38 13.25 11.2

2TXFH033AS3+*UY080R9V3 850 26600 19600 2.38 13.25 11.2

2TXFH041AS3+*DD060R9V3 990 28000 21200 2.50 13.25 11.2

2TXFH041AS3+*DD080R9V3 960 28000 21000 2.50 13.25 11.2

2TXFH041AS3+*DY060R9V3 870 27600 20000 2.46 13.25 11.2

2TXFH041AS3+*DY080R9V3 890 27600 20200 2.46 13.25 11.2




2TXFH041AS3+*DY100R9V4 1050 28200 22000 2.52 13.25 11.2

2TXFH041AS3+*UD060R9V3 1020 28000 21400 2.50 13.25 11.2

2TXFH041AS3+*UD080R9V3 1010 28000 21400 2.50 13.25 11.2

2TXFH041AS3+*UD080R9V4 1000 28200 21400 2.52 13.25 11.2

2TXFH041AS3+*UD100R9V3 1020 28000 21400 2.50 13.25 11.2

2TXFH041AS3+*UY060R9V3 870 27400 19900 2.45 13.25 11.2

2TXFH041AS3+*UY080R9V3 850 27400 19800 2.45 13.25 11.2

2TXFH041AS3+*UY100R9V4 1050 28200 21800 2.52 13.25 11.2

TXC031S3+*DD060R9V3 1000 27800 21400 2.48 13.25 11.2

TXC031S3+*DD080R9V3 950 27800 21000 2.48 13.25 11.2

TXC031S3+*DY060R9V3 870 27400 20000 2.45 13.25 11.2

TXC031S3+*DY080R9V3 890 27400 20200 2.45 13.25 11.2

TXC031S3+*UD060R9V3 1040 27800 21800 2.48 13.25 11.2

TXC031S3+*UD080R9V3 1000 27800 21400 2.48 13.25 11.2

TXC031S3+*UD080R9V4 1000 28000 21600 2.50 13.25 11.2

TXC031S3+*UD100R9V3 1050 28000 22000 2.50 13.25 11.2

TXC031S3+*UY060R9V3 880 27400 20200 2.45 13.25 11.2

TXC031S3+*UY080R9V3 860 27400 20000 2.45 13.25 11.2

TXC036S3+*DD060R9V3 1000 28400 21600 2.54 13.25 11.2

TXC036S3+*DD080R9V3 950 28200 21200 2.52 13.25 11.2

TXC036S3+*DY060R9V3 870 27800 20200 2.48 13.25 11.2

TXC036S3+*DY080R9V3 890 27800 20400 2.48 13.25 11.2

TXC036S3+*UD060R9V3 1030 28400 22000 2.54 13.25 11.2

TXC036S3+*UD080R9V3 1000 28400 21600 2.54 13.25 11.2




2CXAB036AC3 1200 33200 24400 3.02 13.00 11.0

2CXAB042AC3 1200 33800 25400 3.07 13.00 11.0

2CXAB048AC3 1200 34200 25800 3.11 13.00 11.0

2CXAC037AC3 1200 33800 25400 3.07 13.00 11.0

2CXAC043AC3 1200 33800 25400 3.07 13.00 11.0

2CXCB036AC3 1200 33200 24400 3.02 13.00 11.0

2CXCB042AC3 1200 33800 25400 3.07 13.00 11.0

2CXCB048AC3 1200 34200 25800 3.11 13.00 11.0

2CXCC037AC3 1200 33800 25400 3.07 13.00 11.0

2CXCC043AC3 1200 33800 25400 3.07 13.00 11.0

2TXCB036AC3[T] 1200 33400 23800 3.04 13.00 11.0

2TXCB036AS3 1200 34200 25800 3.11 13.00 11.0

2TXCB042AC3 1200 33800 25400 3.07 13.00 11.0

2TXCB048AC3 1200 34200 25800 3.11 13.00 11.0

2TXCC037AC3 1200 33800 25400 3.07 13.00 11.0

2TXCC037AS3 1200 34600 26600 3.15 13.00 11.0

2TXCC043AC3 1200 33800 25400 3.07 13.00 11.0

2TXCC054AS3 1200 34000 25400 3.09 13.00 11.0






TXC036S3+*UD080R9V4 1000 28400 21600 2.54 13.25 11.2

TXC036S3+*UD100R9V3 1030 28400 22000 2.54 13.25 11.2

TXC036S3+*UY060R9V3 880 27800 20400 2.48 13.25 11.2

TXC036S3+*UY080R9V3 860 27800 20200 2.48 13.25 11.2

TXC037S3+*DY100R9V4 1060 28800 22800 2.57 13.25 11.2

TXC037S3+*UY100R9V4 1050 28800 22800 2.57 13.25 11.2



















2TTB3036A1




2TXFH033AS3 1200 32000 24800 2.91 12.75 11.0

2TXFH041AS3 1200 33800 25400 3.07 13.00 11.0

TXA036C4+TAYTXV-3 1200 33400 25200 3.04 13.00 11.0

TXA037C4+TAYTXV-3 1200 33000 24400 3.00 13.00 11.0

TXA042C4+TAYTXV-3 1200 33400 24800 3.04 13.00 11.0

TXA043C4+TAYTXV-3 1200 33200 24600 3.02 13.00 11.0

TXC031C4+TAYTXV-3 1100 32200 23600 2.93 13.00 11.0

TXC031D4+TAYTXV-3 1100 32000 23200 2.91 13.00 11.0

TXC036C4+TAYTXV-3 1200 33400 25200 3.04 13.00 11.0

TXC036D4+TAYTXV-3 1200 33000 24400 3.00 13.00 11.0

TXC036S3 1200 34200 25800 3.11 13.00 11.0

TXC037C4+TAYTXV-3 1200 33000 24400 3.00 13.00 11.0

TXC037S3 1200 34600 26600 3.15 13.00 11.0

TXC042C4+TAYTXV-3 1200 33400 24800 3.04 13.00 11.0

TXC043C4+TAYTXV-3 1200 33200 24600 3.02 13.00 11.0

TXC054S3 1200 34000 25400 3.09 13.00 11.0

TXH033A4+TAYTXV-3 1200 32000 24800 2.91 12.75 11.0

TXH041A4+TAYTXV-3 1200 33800 25400 3.07 13.00 11.0

12 22-1769-01-1105 (EN)



Ratings



2TEC3F36A1 1200 33600 25800 3.05 13.00 11.0

2TEC3F42A1 1200 34600 26800 3.15 13.00 11.0

2TEC3F48A1 1280 35200 27600 3.20 13.00 11.0

2TFE3F25B1 1030 32800 24000 2.93 13.25 11.2

2TGB3F36A1 1200 33400 26200 3.04 13.00 11.0

2TGB3F42A1 1200 34600 27000 3.15 13.00 11.0

2TGB3F48A1 1200 34600 26600 3.15 13.00 11.0

TWE030P13 1050 32000 23200 2.91 12.75 11.0

TWE031E13 1220 33000 25200 2.95 13.25 11.2

TWE036C14+TAYTXV-3 1200 33200 25600 3.02 13.00 11.0

TWE036P13 1200 33000 24800 3.00 13.00 11.0

TWE037E13 1160 33800 25200 3.02 13.25 11.2

TWE040E13 1200 35600 27400 3.18 13.25 11.2

TWE042C14+TAYTXV-3 1150 33600 25400 3.05 13.00 11.0

TWE042P13 1200 33600 25000 3.05 13.00 11.0

TWE049E13 1200 35600 26400 3.18 13.25 11.2

TWG042A14+TAYTXV-3 1200 32000 23600 2.91 12.75 11.0




2CXAB036AC3+*DD060R9V3 1220 33600 24800 3.00 13.25 11.2

2CXAB036AC3+*DD080R9V3 1130 33200 24000 2.96 13.25 11.2

2CXAB036AC3+*DY060R9V3 1090 33200 23800 2.96 13.25 11.2

2CXAB036AC3+*DY080R9V3 1100 33000 23600 2.95 13.25 11.2

2CXAB036AC3+*UD060R9V3 1200 33400 24600 2.98 13.25 11.2

2CXAB036AC3+*UD080R9V3 1200 33400 24600 2.98 13.25 11.2

2CXAB036AC3+*UD080R9V4 1180 33600 24600 3.00 13.25 11.2

2CXAB036AC3+*UD100R9V3 1250 33400 25000 2.98 13.25 11.2

2CXAB036AC3+*UY060R9V3 1080 33000 23400 2.95 13.25 11.2

2CXAB036AC3+*UY080R9V3 1030 33000 23200 2.95 13.25 11.2

2CXAB042AC3+*DD060R9V3 1220 34000 25800 3.04 13.25 11.2

2CXAB042AC3+*DD080R9V3 1130 33800 24800 3.02 13.25 11.2

2CXAB042AC3+*DY060R9V3 1090 33600 24400 3.00 13.25 11.2

2CXAB042AC3+*DY080R9V3 1100 33600 24600 3.00 13.25 11.2

2CXAB042AC3+*UD060R9V3 1200 34000 25600 3.04 13.25 11.2

2CXAB042AC3+*UD080R9V3 1200 34000 25600 3.04 13.25 11.2

2CXAB042AC3+*UD080R9V4 1180 34200 25600 3.05 13.25 11.2

2CXAB042AC3+*UD100R9V3 1250 34000 26000 3.04 13.25 11.2

2CXAB042AC3+*UY060R9V3 1080 33600 24400 3.00 13.25 11.2

2CXAB042AC3+*UY080R9V3 1030 33400 23800 2.98 13.25 11.2

2CXAB048AC3+*DD060R9V3 1220 34600 26200 3.09 13.25 11.2

2CXAB048AC3+*DD080R9V3 1130 34400 25400 3.07 13.25 11.2

2CXAB048AC3+*DY060R9V3 1090 34200 25000 3.05 13.25 11.2

2CXAB048AC3+*DY080R9V3 1100 34000 25000 3.04 13.25 11.2

2CXAB048AC3+*UD060R9V3 1200 34400 26000 3.07 13.25 11.2

2CXAB048AC3+*UD080R9V3 1200 34400 26000 3.07 13.25 11.2

2CXAB048AC3+*UD080R9V4 1180 34600 26000 3.09 13.25 11.2

2CXAB048AC3+*UD100R9V3 1250 34400 26400 3.07 13.25 11.2

2CXAB048AC3+*UY060R9V3 1080 34000 24800 3.04 13.25 11.2

2CXAB048AC3+*UY080R9V3 1030 34000 24400 3.04 13.25 11.2

22-1769-01-1105 (EN) 13

2TTB3036A1




2CXAC037AC3+*DY100R9V4 1050 33800 24400 3.02 13.25 11.2

2CXAC037AC3+*UY100R9V4 1050 33800 24400 3.02 13.25 11.2

2CXAC043AC3+*DY100R9V4 1050 33600 24200 3.00 13.25 11.2

2CXAC043AC3+*UY100R9V4 1050 33800 24400 3.02 13.25 11.2

2CXCB036AC3+*DD060R9V3 1220 33600 24800 3.00 13.25 11.2

2CXCB036AC3+*DD080R9V3 1130 33200 24000 2.96 13.25 11.2

2CXCB036AC3+*DY060R9V3 1090 33200 23800 2.96 13.25 11.2

2CXCB036AC3+*DY080R9V3 1100 33000 23600 2.95 13.25 11.2

2CXCB036AC3+*UD060R9V3 1200 33400 24600 2.98 13.25 11.2

2CXCB036AC3+*UD080R9V3 1200 33400 24600 2.98 13.25 11.2

2CXCB036AC3+*UD080R9V4 1180 33600 24600 3.00 13.25 11.2

2CXCB036AC3+*UD100R9V3 1250 33400 25000 2.98 13.25 11.2

2CXCB036AC3+*UY060R9V3 1080 33000 23400 2.95 13.25 11.2

2CXCB036AC3+*UY080R9V3 1030 33000 23200 2.95 13.25 11.2

2CXCB042AC3+*DD060R9V3 1220 34000 25800 3.04 13.25 11.2

2CXCB042AC3+*DD080R9V3 1130 33800 24800 3.02 13.25 11.2

2CXCB042AC3+*DY060R9V3 1090 33600 24400 3.00 13.25 11.2

2CXCB042AC3+*DY080R9V3 1100 33600 24600 3.00 13.25 11.2

2CXCB042AC3+*UD060R9V3 1200 34000 25600 3.04 13.25 11.2

2CXCB042AC3+*UD080R9V3 1200 34000 25600 3.04 13.25 11.2

2CXCB042AC3+*UD080R9V4 1180 34200 25600 3.05 13.25 11.2

2CXCB042AC3+*UD100R9V3 1250 34000 26000 3.04 13.25 11.2

2CXCB042AC3+*UY060R9V3 1080 33600 24400 3.00 13.25 11.2

2CXCB042AC3+*UY080R9V3 1030 33400 23800 2.98 13.25 11.2

2CXCB048AC3+*DD060R9V3 1220 34600 26200 3.09 13.25 11.2

2CXCB048AC3+*DD080R9V3 1130 34400 25400 3.07 13.25 11.2

2CXCB048AC3+*DY060R9V3 1090 34200 25000 3.05 13.25 11.2

2CXCB048AC3+*DY080R9V3 1100 34000 25000 3.04 13.25 11.2

2CXCB048AC3+*UD060R9V3 1200 34400 26000 3.07 13.25 11.2

2CXCB048AC3+*UD080R9V3 1200 34400 26000 3.07 13.25 11.2

2CXCB048AC3+*UD080R9V4 1180 34600 26000 3.09 13.25 11.2

2CXCB048AC3+*UD100R9V3 1250 34400 26400 3.07 13.25 11.2

2CXCB048AC3+*UY060R9V3 1080 34000 24800 3.04 13.25 11.2

2CXCB048AC3+*UY080R9V3 1030 34000 24400 3.04 13.25 11.2

2CXCC037AC3+*DY100R9V4 1050 33800 24400 3.02 13.25 11.2

2CXCC037AC3+*UY100R9V4 1050 33800 24400 3.02 13.25 11.2

2CXCC043AC3+*DY100R9V4 1050 33600 24200 3.00 13.25 11.2

2CXCC043AC3+*UY100R9V4 1050 33800 24400 3.02 13.25 11.2

2TXCB036AC3+*DD060R9V3 1220 33600 24800 3.00 13.25 11.2

2TXCB036AC3+*DD080R9V3 1130 33200 24000 2.96 13.25 11.2

2TXCB036AC3+*DY060R9V3 1090 33200 23800 2.96 13.25 11.2

2TXCB036AC3+*DY080R9V3 1100 33000 23600 2.95 13.25 11.2

2TXCB036AC3+*UD060R9V3 1200 33400 24600 2.98 13.25 11.2

2TXCB036AC3+*UD080R9V3 1200 33400 24600 2.98 13.25 11.2

2TXCB036AC3+*UD080R9V4 1180 33600 24600 3.00 13.25 11.2

2TXCB036AC3+*UD100R9V3 1250 33400 25000 2.98 13.25 11.2

2TXCB036AC3+*UY060R9V3 1080 33000 23400 2.95 13.25 11.2

2TXCB036AC3+*UY080R9V3 1030 33000 23200 2.95 13.25 11.2

2TXCB036AS3+*DD060R9V3 1220 34600 26200 3.09 13.25 11.2

2TXCB036AS3+*DD080R9V3 1130 34400 25400 3.07 13.25 11.2




2TXCB036AS3+*DY060R9V3 1090 34200 25000 3.05 13.25 11.2

2TXCB036AS3+*DY080R9V3 1100 34000 25000 3.04 13.25 11.2

2TXCB036AS3+*UD060R9V3 1200 34400 26000 3.07 13.25 11.2

2TXCB036AS3+*UD080R9V3 1200 34600 26200 3.09 13.25 11.2

2TXCB036AS3+*UD080R9V4 1180 34800 26200 3.11 13.25 11.2

2TXCB036AS3+*UD100R9V3 1250 34400 26400 3.07 13.25 11.2

2TXCB036AS3+*UY060R9V3 1080 34200 25000 3.05 13.25 11.2

2TXCB036AS3+*UY080R9V3 1030 34000 24400 3.04 13.25 11.2

2TXCB042AC3+*DD060R9V3 1220 34000 25800 3.04 13.25 11.2

2TXCB042AC3+*DD080R9V3 1130 33800 24800 3.02 13.25 11.2

2TXCB042AC3+*DY060R9V3 1090 33600 24400 3.00 13.25 11.2

2TXCB042AC3+*DY080R9V3 1100 33600 24600 3.00 13.25 11.2

2TXCB042AC3+*UD060R9V3 1200 34000 25600 3.04 13.25 11.2

2TXCB042AC3+*UD080R9V3 1200 34000 25600 3.04 13.25 11.2

2TXCB042AC3+*UD080R9V4 1180 34200 25600 3.05 13.25 11.2

2TXCB042AC3+*UD100R9V3 1250 34000 26000 3.04 13.25 11.2

2TXCB042AC3+*UY060R9V3 1080 33600 24400 3.00 13.25 11.2

2TXCB042AC3+*UY080R9V3 1030 33400 23800 2.98 13.25 11.2

2TXCB048AC3+*DD060R9V3 1220 34600 26200 3.09 13.25 11.2

2TXCB048AC3+*DD080R9V3 1130 34400 25400 3.07 13.25 11.2

2TXCB048AC3+*DY060R9V3 1090 34200 25000 3.05 13.25 11.2

2TXCB048AC3+*DY080R9V3 1100 34000 25000 3.04 13.25 11.2

2TXCB048AC3+*UD060R9V3 1200 34400 26000 3.07 13.25 11.2

2TXCB048AC3+*UD080R9V3 1200 34400 26000 3.07 13.25 11.2

2TXCB048AC3+*UD080R9V4 1180 34600 26000 3.09 13.25 11.2

2TXCB048AC3+*UD100R9V3 1250 34400 26400 3.07 13.25 11.2

2TXCB048AC3+*UY060R9V3 1080 34000 24800 3.04 13.25 11.2

2TXCB048AC3+*UY080R9V3 1030 34000 24400 3.04 13.25 11.2

2TXCC037AC3+*DY100R9V4 1050 33800 24400 3.02 13.25 11.2

2TXCC037AC3+*UY100R9V4 1050 33800 24400 3.02 13.25 11.2

2TXCC037AS3+*DY100R9V4 1050 34400 25200 3.07 13.25 11.2

2TXCC043AC3+*DY100R9V4 1050 33600 24200 3.00 13.25 11.2

2TXCC054AS3+*DY100R9V4 1050 33800 24200 3.02 13.25 11.2

2TXFH033AS3+*DD060R9V3 1210 32600 25200 2.91 13.25 11.2

2TXFH033AS3+*DD080R9V3 1130 32400 24600 2.89 13.25 11.2

2TXFH033AS3+*DY060R9V3 1070 32200 24000 2.88 13.25 11.2

2TXFH033AS3+*DY080R9V3 1110 32200 24200 2.88 13.25 11.2

2TXFH033AS3+*DY100R9V4 1050 32200 23800 2.88 13.25 11.2

2TXFH033AS3+*UD060R9V3 1210 32400 25200 2.89 13.25 11.2

2TXFH033AS3+*UD080R9V3 1200 32400 25000 2.89 13.25 11.2

2TXFH033AS3+*UD080R9V4 1180 32800 25200 2.93 13.25 11.2

2TXFH033AS3+*UY060R9V3 1070 32200 24000 2.88 13.25 11.2

2TXFH033AS3+*UY080R9V3 1030 32000 23400 2.86 13.25 11.2

2TXFH041AS3+*DD060R9V3 1210 34400 26000 3.07 13.25 11.2

2TXFH041AS3+*DD080R9V3 1140 34200 25200 3.05 13.25 11.2

2TXFH041AS3+*DY060R9V3 1070 33800 24400 3.02 13.25 11.2






2TXFH041AS3+*DY080R9V3 1110 33800 24800 3.02 13.25 11.2

2TXFH041AS3+*DY100R9V4 1060 33800 24400 3.02 13.25 11.2

2TXFH041AS3+*UD060R9V3 1210 34200 25800 3.05 13.25 11.2

2TXFH041AS3+*UD080R9V3 1200 34200 25800 3.05 13.25 11.2

2TXFH041AS3+*UD080R9V4 1180 34400 25800 3.07 13.25 11.2

2TXFH041AS3+*UD100R9V3 1230 34200 26000 3.05 13.25 11.2

2TXFH041AS3+*UY060R9V3 1060 33800 24400 3.02 13.25 11.2

2TXFH041AS3+*UY080R9V3 1030 33800 24200 3.02 13.25 11.2

TXC036S3+*DD060R9V3 1220 34600 26200 3.09 13.25 11.2

TXC036S3+*DD080R9V3 1130 34400 25400 3.07 13.25 11.2

TXC036S3+*DY060R9V3 1090 34200 25000 3.05 13.25 11.2

TXC036S3+*DY080R9V3 1100 34000 25000 3.04 13.25 11.2

TXC036S3+*UD060R9V3 1200 34400 26000 3.07 13.25 11.2

TXC036S3+*UD080R9V3 1200 34600 26200 3.09 13.25 11.2

TXC036S3+*UD080R9V4 1180 34800 26200 3.11 13.25 11.2

TXC036S3+*UD100R9V3 1250 34400 26400 3.07 13.25 11.2

TXC036S3+*UY060R9V3 1080 34200 25000 3.05 13.25 11.2

TXC036S3+*UY080R9V3 1030 34000 24400 3.04 13.25 11.2

TXC037S3+*DY100R9V4 1050 34400 25200 3.07 13.25 11.2

TXC054S3+*DY100R9V4 1050 33800 24200 3.02 13.25 11.2


























14 22-1769-01-1105 (EN)




2CXAB042AC3 1250 38500 27800 3.50 13.00 11.0

2CXAB048AC3 1220 39000 28200 3.55 13.00 11.0

2CXAC043AC3 1400 39500 29800 3.59 13.00 11.0

2CXAC049AC3 1400 40000 30000 3.64 13.00 11.0

2CXAD050AC3 1400 40000 30200 3.64 13.00 11.0

2CXCB042AC3 1250 38500 27800 3.50 13.00 11.0

2CXCB048AC3 1220 39000 28200 3.55 13.00 11.0

2CXCC043AC3 1400 39500 29800 3.59 13.00 11.0

2CXCC049AC3 1400 40000 30000 3.64 13.00 11.0

2CXCD050AC3 1400 40000 30200 3.64 13.00 11.0

2TXCB036AS3 1280 39500 29000 3.59 13.00 11.0

2TXCB042AC3[T] 1200 40000 27200 3.64 13.00 11.0

2TXCB048AC3 1220 39000 28200 3.55 13.00 11.0

2TXCC037AS3 1400 40500 31000 3.68 13.00 11.0

2TXCC043AC3 1400 39500 29800 3.59 13.00 11.0

2TXCC049AC3 1400 40000 30000 3.64 13.00 11.0

2TXCC054AS3 1400 39500 29400 3.59 13.00 11.0

2TXCC060AC3 1400 40500 30200 3.68 13.00 11.0

2TXCD050AC3 1400 40000 30200 3.64 13.00 11.0

2TXCD065AS3 1400 40000 29600 3.64 13.00 11.0

2TXFH041AS3 1400 39500 29600 3.59 13.00 11.0

2TXFH054AS3 1400 41000 31200 3.73 13.00 11.0

2TXFH063AS3 1400 42000 32000 3.82 13.00 11.0

TXA042C4+TAYTXV-3 1260 38500 27600 3.50 13.00 11.0

TXA048C4+TAYTXV-3 1350 39000 28800 3.55 13.00 11.0

TXC036S3 1280 39500 29000 3.59 13.00 11.0

TXC037S3 1400 40500 31000 3.68 13.00 11.0

TXC042C4+TAYTXV-3 1260 38500 27600 3.50 13.00 11.0

TXC048C4+TAYTXV-3 1350 39000 28800 3.55 13.00 11.0

TXC054S3 1400 39500 29400 3.59 13.00 11.0

TXC065S3 1400 40000 29600 3.64 13.00 11.0

TXH041A4+TAYTXV-3 1400 39500 29600 3.59 13.00 11.0

TXH054A4+TAYTXV-3 1400 41000 31200 3.73 13.00 11.0

TXH063P3 1400 42000 32000 3.82 13.00 11.0




2TEC3F42A1 1400 40500 31400 3.68 13.00 11.0

2TEC3F48A1 1400 41000 31400 3.73 13.00 11.0

2TEP3F48B1 1400 41000 31200 3.73 13.00 11.0

2TEP3F63B1 1500 40500 31200 3.68 13.00 11.0

2TGB3F42A1 1400 40500 31600 3.68 13.00 11.0

2TGB3F48A1 1440 41000 31600 3.73 13.00 11.0

TWE037E13 1360 39000 29000 3.48 13.25 11.2

TWE040E13 1400 41500 31800 3.71 13.25 11.2

TWE042P13 1400 39500 29400 3.59 13.00 11.0

TWE048C14+TAYTXV-3 1480 40000 31000 3.64 13.00 11.0

TWE048P13 1400 42000 32000 3.82 13.00 11.0

TWE049E13 1410 41500 30800 3.71 13.25 11.2

22-1769-01-1105 (EN) 15






TWE060P13 1400 42000 32000 3.82 13.00 11.0

TWG048A14+TAYTXV-3 1400 39500 29800 3.59 13.00 11.0




2CXAB042AC3+*UD080R9V4 1400 39500 29600 3.53 13.25 11.2

2CXAB048AC3+*UD080R9V4 1400 40500 30600 3.62 13.25 11.2

2CXAC043AC3+*DY100R9V4 1230 39000 28200 3.48 13.25 11.2

2CXAC043AC3+*UY100R9V4 1220 39000 28000 3.48 13.25 11.2

2CXAC049AC3+*DY100R9V4 1230 39500 28400 3.53 13.25 11.2

2CXAC049AC3+*UY100R9V4 1220 39500 28400 3.53 13.25 11.2

2CXAD050AC3+*DD120R9V5 1410 40500 30600 3.62 13.25 11.2

2CXAD050AC3+*DY120R9V5 1220 39500 28400 3.53 13.25 11.2

2CXAD050AC3+*UD120R9V5 1390 40500 30400 3.62 13.25 11.2

2CXAD050AC3+*UD140R9V5 1380 40500 30400 3.62 13.25 11.2

2CXAD050AC3+*UY120R9V5 1210 39500 28400 3.53 13.25 11.2

2CXCB042AC3+*UD080R9V4 1400 39500 29600 3.53 13.25 11.2

2CXCB048AC3+*UD080R9V4 1400 40500 30600 3.62 13.25 11.2

2CXCC043AC3+*DY100R9V4 1230 39000 28200 3.48 13.25 11.2

2CXCC043AC3+*UY100R9V4 1220 39000 28000 3.48 13.25 11.2

2CXCC049AC3+*DY100R9V4 1230 39500 28400 3.53 13.25 11.2

2CXCC049AC3+*UY100R9V4 1220 39500 28400 3.53 13.25 11.2

2CXCD050AC3+*DD120R9V5 1410 40500 30600 3.62 13.25 11.2

2CXCD050AC3+*DY120R9V5 1220 39500 28400 3.53 13.25 11.2

2CXCD050AC3+*UD120R9V5 1390 40500 30400 3.62 13.25 11.2

2CXCD050AC3+*UD140R9V5 1380 40500 30400 3.62 13.25 11.2

2CXCD050AC3+*UY120R9V5 1210 39500 28400 3.53 13.25 11.2

2TXCB036AS3+*UD080R9V4 1400 40500 30600 3.62 13.25 11.2

2TXCB042AC3+*UD080R9V4 1400 39500 29600 3.53 13.25 11.2

2TXCB048AC3+*UD080R9V4 1400 40500 30600 3.62 13.25 11.2

2TXCC037AS3+*DD100R9V5 1410 41000 31400 3.66 13.25 11.2

2TXCC037AS3+*DY100R9V4 1230 40000 29200 3.57 13.25 11.2

2TXCC037AS3+*UY100R9V4 1220 40500 29600 3.62 13.25 11.2

2TXCC043AC3+*DY100R9V4 1230 39000 28200 3.48 13.25 11.2

2TXCC043AC3+*UY100R9V4 1220 39000 28000 3.48 13.25 11.2

2TXCC049AC3+*DY100R9V4 1230 39500 28400 3.53 13.25 11.2

2TXCC049AC3+*UY100R9V4 1220 39500 28400 3.53 13.25 11.2

2TXCC054AS3+*DD100R9V5 1420 40000 30000 3.57 13.25 11.2

2TXCC054AS3+*DY100R9V4 1230 39000 27800 3.48 13.25 11.2

2TXCC054AS3+*UD100R9V5 1470 40500 30600 3.62 13.25 11.2

2TXCC054AS3+*UY100R9V4 1230 39500 28200 3.53 13.25 11.2

2TXCC060AC3+*DY100R9V4 1230 40000 28600 3.57 13.25 11.2

2TXCC060AC3+*UY100R9V4 1230 40000 28600 3.57 13.25 11.2

2TXCD050AC3+*DD120R9V5 1410 40500 30600 3.62 13.25 11.2

2TXCD050AC3+*DY120R9V5 1220 39500 28400 3.53 13.25 11.2

2TXCD050AC3+*UD120R9V5 1390 40500 30400 3.62 13.25 11.2

2TXCD050AC3+*UD140R9V5 1380 40500 30400 3.62 13.25 11.2

2TXCD050AC3+*UY120R9V5 1210 39500 28400 3.53 13.25 11.2

2TXCD065AS3+*DD120R9V5 1420 41000 30400 3.66 13.25 11.2




2TXCD065AS3+*DY120R9V5 1210 40000 28200 3.57 13.25 11.2

2TXCD065AS3+*UD120R9V5 1400 41000 30200 3.66 13.25 11.2

2TXCD065AS3+*UD140R9V5 1390 41000 30200 3.66 13.25 11.2

2TXCD065AS3+*UY120R9V5 1210 40000 28200 3.57 13.25 11.2

2TXFH041AS3+*DD100R9V5 1410 40000 30000 3.57 13.25 11.2

2TXFH041AS3+*DD120R9V5 1410 40000 30000 3.57 13.25 11.2

2TXFH041AS3+*DY100R9V4 1230 39000 28000 3.48 13.25 11.2

2TXFH041AS3+*DY120R9V5 1220 39000 28000 3.48 13.25 11.2

2TXFH041AS3+*UD080R9V4 1400 40000 30000 3.57 13.25 11.2

2TXFH041AS3+*UD100R9V5 1460 40000 30400 3.57 13.25 11.2

2TXFH041AS3+*UD120R9V5 1390 40000 30000 3.57 13.25 11.2

2TXFH041AS3+*UD140R9V5 1380 40000 29800 3.57 13.25 11.2

2TXFH041AS3+*UY100R9V4 1220 39500 28400 3.53 13.25 11.2

2TXFH041AS3+*UY120R9V5 1210 39500 28200 3.53 13.25 11.2

2TXFH054AS3+*DD100R9V5 1420 41500 31600 3.71 13.25 11.2

2TXFH054AS3+*DD120R9V5 1430 41500 31800 3.71 13.25 11.2

2TXFH054AS3+*DY100R9V4 1230 40500 29400 3.62 13.25 11.2

2TXFH054AS3+*DY120R9V5 1210 40500 29200 3.62 13.25 11.2

2TXFH054AS3+*UD080R9V4 1400 41500 31400 3.71 13.25 11.2

2TXFH054AS3+*UD100R9V5 1470 41500 32000 3.71 13.25 11.2

2TXFH054AS3+*UD120R9V5 1410 41500 31600 3.71 13.25 11.2

2TXFH054AS3+*UD140R9V5 1390 41500 31400 3.71 13.25 11.2

2TXFH054AS3+*UY100R9V4 1230 40500 29400 3.62 13.25 11.2

2TXFH054AS3+*UY120R9V5 1210 40500 29200 3.62 13.25 11.2

2TXFH063AS3+*DD100R9V5 1410 42500 32400 3.79 13.25 11.2

2TXFH063AS3+*DD120R9V5 1410 43000 32800 3.84 13.25 11.2

2TXFH063AS3+*DY100R9V4 1230 41500 30200 3.71 13.25 11.2

2TXFH063AS3+*DY120R9V5 1220 42000 30400 3.75 13.25 11.2

2TXFH063AS3+*UD080R9V4 1400 42500 32400 3.79 13.25 11.2

2TXFH063AS3+*UD100R9V5 1460 43000 33200 3.84 13.25 11.2

2TXFH063AS3+*UD120R9V5 1400 43000 32800 3.84 13.25 11.2

2TXFH063AS3+*UD140R9V5 1380 42500 32200 3.79 13.25 11.2

2TXFH063AS3+*UY100R9V4 1220 42000 30400 3.75 13.25 11.2

2TXFH063AS3+*UY120R9V5 1210 42000 30400 3.75 13.25 11.2

TXC036S3+*UD080R9V4 1400 40500 30600 3.62 13.25 11.2

TXC037S3+*DD100R9V5 1410 41000 31400 3.66 13.25 11.2

TXC037S3+*DY100R9V4 1230 40000 29200 3.57 13.25 11.2

TXC037S3+*UY100R9V4 1220 40500 29600 3.62 13.25 11.2

TXC054S3+*DD100R9V5 1420 40000 30000 3.57 13.25 11.2

TXC054S3+*DY100R9V4 1230 39000 27800 3.48 13.25 11.2

TXC054S3+*UD100R9V5 1470 40500 30600 3.62 13.25 11.2

TXC054S3+*UY100R9V4 1230 39500 28200 3.53 13.25 11.2






TXC065S3+*DD120R9V5 1420 41000 30400 3.66 13.25 11.2

TXC065S3+*DY120R9V5 1210 40000 28200 3.57 13.25 11.2

TXC065S3+*UD120R9V5 1400 41000 30200 3.66 13.25 11.2

TXC065S3+*UD140R9V5 1390 41000 30200 3.66 13.25 11.2

TXC065S3+*UY120R9V5 1210 40000 28200 3.57 13.25 11.2

























TXH063P3+*DD080R9V3 1340 42000 31600 3.75 13.25 11.2

TXH063P3+*DD100R9V5 1410 43000 32800 3.84 13.25 11.2

TXH063P3+*DD120R9V5 1410 43000 32800 3.84 13.25 11.2

TXH063P3+*DY100R9V4 1230 41500 30200 3.71 13.25 11.2

TXH063P3+*DY120R9V5 1220 42000 30400 3.75 13.25 11.2

TXH063P3+*UD080R9V3 1420 42500 32600 3.79 13.25 11.2

TXH063P3+*UD100R9V5 1460 43000 33400 3.84 13.25 11.2

TXH063P3+*UD120R9V5 1400 43000 32800 3.84 13.25 11.2

TXH063P3+*UD140R9V5 1380 43000 32600 3.84 13.25 11.2

TXH063P3+*UY080R9V3 1210 41500 30000 3.71 13.25 11.2

TXH063P3+*UY100R9V4 1220 42000 30400 3.75 13.25 11.2

TXH063P3+*UY120R9V5 1210 42000 30400 3.75 13.25 11.2

16 22-1769-01-1105 (EN)




2CXAB048AC3 1220 43000 29800 3.91 13.00 11.0

2CXAC049AC3 1600 45000 33800 4.09 13.00 11.0

2CXAC060AC3 1600 46000 34600 4.18 13.00 11.0

2CXAD050AC3 1600 45000 34000 4.09 13.00 11.0

2CXAD061AC3 1600 46000 34200 4.18 13.00 11.0

2CXCB048AC3 1220 43000 29800 3.91 13.00 11.0

2CXCC049AC3 1600 45000 33800 4.09 13.00 11.0

2CXCC060AC3 1600 46000 34600 4.18 13.00 11.0

2CXCD050AC3 1600 45000 34000 4.09 13.00 11.0

2CXCD061AC3 1600 46000 34200 4.18 13.00 11.0

2TXCB048AC3 1220 43000 29800 3.91 13.00 11.0

2TXCC049AC3[T] 1600 45500 32400 4.14 13.00 11.0

2TXCC054AS3 1600 44500 33200 4.05 13.00 11.0

2TXCC060AC3 1600 46000 34200 4.18 13.00 11.0

2TXCD050AC3 1600 45000 34000 4.09 13.00 11.0

2TXCD061AC3 1600 46000 34200 4.18 13.00 11.0

2TXCD065AS3 1600 45500 33400 4.14 13.00 11.0

2TXFH054AS3 1600 46500 35200 4.23 13.00 11.0

2TXFH063AS3 1600 47500 36200 4.32 13.00 11.0

TXA048C4+TAYTXV-3 1350 43500 30800 3.95 13.00 11.0

TXA049C4+TAYTXV-3 1600 44000 32400 4.00 13.00 11.0

TXA050C4+TAYTXV-3 1600 44500 33200 4.05 13.00 11.0

TXA061C5+BAY24X045 1600 45500 33800 4.14 13.00 11.0

TXC048C4+TAYTXV-3 1350 43500 30800 3.95 13.00 11.0

TXC049C4+TAYTXV-3 1600 44000 32400 4.00 13.00 11.0

TXC050C4+TAYTXV-3 1600 44500 33200 4.05 13.00 11.0

TXC054S3 1600 44500 33200 4.05 13.00 11.0

TXC060C5+BAY24X045 1600 45000 33200 4.09 13.00 11.0

TXC061C5+BAY24X045 1600 45500 33800 4.14 13.00 11.0

TXC065S3 1600 45500 33400 4.14 13.00 11.0

TXH054A4+TAYTXV-3 1600 46500 35200 4.23 13.00 11.0




2TEC3F48A1 1600 46000 35000 4.18 13.00 11.0

2TEP3F48B1 1600 46500 35400 4.23 13.00 11.0

2TEP3F63B1 1600 45500 34000 4.14 13.00 11.0

2TGB3F48A1 1600 46000 35000 4.18 13.00 11.0

TWE042P13 1600 44000 32800 4.00 12.75 11.0

TWE048C14+TAYTXV-3 1600 45000 34200 4.09 13.00 11.0

TWE048P13 1600 47000 35800 4.27 13.00 11.0

TWE049E13 1600 46500 34600 4.15 13.25 11.2

TWE060P13 1600 47000 35800 4.27 13.00 11.0

TWE063P13 1650 46500 35200 4.23 13.00 11.0

TWE065E13 1640 46500 34600 4.15 13.25 11.2

TWG048A14+TAYTXV-3 1600 44000 33000 4.00 13.00 11.0

22-1769-01-1105 (EN) 17






2CXAB048AC3+*UD080R9V4 1590 45000 34000 4.02 13.25 11.2

2CXAC049AC3+*DY100R9V4 1450 44000 32000 3.93 13.25 11.2

2CXAC049AC3+*UY100R9V4 1430 44500 32200 3.97 13.25 11.2

2CXAC060AC3+*DY100R9V4 1450 45500 33000 4.06 13.25 11.2

2CXAC060AC3+*UY100R9V4 1430 45500 32800 4.06 13.25 11.2

2CXAD050AC3+*DD120R9V5 1630 45500 34600 4.06 13.25 11.2

2CXAD050AC3+*DY120R9V5 1430 44500 32400 3.97 13.25 11.2

2CXAD050AC3+*UD120R9V5 1630 45500 34600 4.06 13.25 11.2

2CXAD050AC3+*UD140R9V5 1590 45500 34400 4.06 13.25 11.2

2CXAD050AC3+*UY120R9V5 1420 44500 32400 3.97 13.25 11.2

2CXAD061AC3+*DD120R9V5 1630 46500 34800 4.15 13.25 11.2

2CXAD061AC3+*DY120R9V5 1430 45500 32600 4.06 13.25 11.2

2CXAD061AC3+*UD120R9V5 1630 46500 34800 4.15 13.25 11.2

2CXAD061AC3+*UD140R9V5 1590 46500 34600 4.15 13.25 11.2

2CXAD061AC3+*UY120R9V5 1420 45500 32600 4.06 13.25 11.2

2CXCB048AC3+*UD080R9V4 1590 45000 34000 4.02 13.25 11.2

2CXCC049AC3+*DY100R9V4 1450 44000 32000 3.93 13.25 11.2

2CXCC049AC3+*UY100R9V4 1430 44500 32200 3.97 13.25 11.2

2CXCC060AC3+*DY100R9V4 1450 45500 33000 4.06 13.25 11.2

2CXCC060AC3+*UY100R9V4 1430 45500 32800 4.06 13.25 11.2

2CXCD050AC3+*DD120R9V5 1630 45500 34600 4.06 13.25 11.2

2CXCD050AC3+*DY120R9V5 1430 44500 32400 3.97 13.25 11.2

2CXCD050AC3+*UD120R9V5 1630 45500 34600 4.06 13.25 11.2

2CXCD050AC3+*UD140R9V5 1590 45500 34400 4.06 13.25 11.2

2CXCD050AC3+*UY120R9V5 1420 44500 32400 3.97 13.25 11.2

2CXCD061AC3+*DD120R9V5 1630 46500 34800 4.15 13.25 11.2

2CXCD061AC3+*DY120R9V5 1430 45500 32600 4.06 13.25 11.2

2CXCD061AC3+*UD120R9V5 1630 46500 34800 4.15 13.25 11.2

2CXCD061AC3+*UD140R9V5 1590 46500 34600 4.15 13.25 11.2

2CXCD061AC3+*UY120R9V5 1420 45500 32600 4.06 13.25 11.2

2TXCB048AC3+*UD080R9V4 1590 45000 34000 4.02 13.25 11.2

2TXCC049AC3+*DY100R9V4 1450 44000 32000 3.93 13.25 11.2

2TXCC049AC3+*UY100R9V4 1430 44500 32200 3.97 13.25 11.2

2TXCC054AS3+*DD100R9V5 1620 45000 33600 4.02 13.25 11.2

2TXCC054AS3+*DY100R9V4 1450 44000 31800 3.93 13.25 11.2

2TXCC054AS3+*UD100R9V5 1670 45000 34000 4.02 13.25 11.2

2TXCC054AS3+*UY100R9V4 1430 44000 31600 3.93 13.25 11.2

2TXCC060AC3+*DY100R9V4 1450 45000 32400 4.02 13.25 11.2

2TXCC060AC3+*UY100R9V4 1430 45500 32600 4.06 13.25 11.2

2TXCD050AC3+*DD120R9V5 1630 45500 34600 4.06 13.25 11.2

2TXCD050AC3+*DY120R9V5 1430 44500 32400 3.97 13.25 11.2

2TXCD050AC3+*UD120R9V5 1630 45500 34600 4.06 13.25 11.2

2TXCD050AC3+*UD140R9V5 1590 45500 34400 4.06 13.25 11.2

2TXCD050AC3+*UY120R9V5 1420 44500 32400 3.97 13.25 11.2

2TXCD061AC3+*DD120R9V5 1630 46500 34800 4.15 13.25 11.2

2TXCD061AC3+*DY120R9V5 1430 45500 32600 4.06 13.25 11.2

2TXCD061AC3+*UD120R9V5 1630 46500 34800 4.15 13.25 11.2

2TXCD061AC3+*UD140R9V5 1590 46500 34600 4.15 13.25 11.2

2TXCD061AC3+*UY120R9V5 1420 45500 32600 4.06 13.25 11.2

2TXCD065AS3+*DD120R9V5 1630 46000 34000 4.11 13.25 11.2




2TXCD065AS3+*DY120R9V5 1430 45000 32000 4.02 13.25 11.2

2TXCD065AS3+*UD120R9V5 1630 46000 34000 4.11 13.25 11.2

2TXCD065AS3+*UD140R9V5 1590 46000 33800 4.11 13.25 11.2

2TXCD065AS3+*UY120R9V5 1420 45000 32000 4.02 13.25 11.2

2TXFH054AS3+*DD100R9V5 1620 46500 35400 4.15 13.25 11.2

2TXFH054AS3+*DD120R9V5 1630 47000 36000 4.20 13.25 11.2

2TXFH054AS3+*DY100R9V4 1450 46000 33800 4.11 13.25 11.2

2TXFH054AS3+*DY120R9V5 1430 46000 33600 4.11 13.25 11.2

2TXFH054AS3+*UD080R9V4 1590 46500 35200 4.15 13.25 11.2

2TXFH054AS3+*UD100R9V5 1670 46500 35800 4.15 13.25 11.2

2TXFH054AS3+*UD120R9V5 1630 47000 36000 4.20 13.25 11.2

2TXFH054AS3+*UD140R9V5 1590 46500 35200 4.15 13.25 11.2

2TXFH054AS3+*UY100R9V4 1430 46000 33600 4.11 13.25 11.2

2TXFH054AS3+*UY120R9V5 1430 46000 33600 4.11 13.25 11.2

2TXFH063AS3+*DD100R9V5 1620 48000 36800 4.29 13.25 11.2

2TXFH063AS3+*DD120R9V5 1630 48500 37200 4.33 13.25 11.2

2TXFH063AS3+*DY100R9V4 1450 47000 34600 4.20 13.25 11.2

2TXFH063AS3+*DY120R9V5 1420 47000 34400 4.20 13.25 11.2

2TXFH063AS3+*UD080R9V4 1590 48000 36600 4.29 13.25 11.2

2TXFH063AS3+*UD100R9V5 1670 48000 37200 4.29 13.25 11.2

2TXFH063AS3+*UD120R9V5 1620 48000 36800 4.29 13.25 11.2

2TXFH063AS3+*UD140R9V5 1590 48000 36600 4.29 13.25 11.2

2TXFH063AS3+*UY100R9V4 1420 47000 34400 4.20 13.25 11.2

2TXFH063AS3+*UY120R9V5 1420 47500 34800 4.24 13.25 11.2

TXC054S3+*DD100R9V5 1620 45000 33600 4.02 13.25 11.2

TXC054S3+*DY100R9V4 1450 44000 31800 3.93 13.25 11.2






TXC054S3+*UD100R9V5 1670 45000 34000 4.02 13.25 11.2

TXC054S3+*UY100R9V4 1430 44000 31600 3.93 13.25 11.2

TXC065S3+*DD120R9V5 1630 46000 34000 4.11 13.25 11.2

TXC065S3+*DY120R9V5 1430 45000 32000 4.02 13.25 11.2

TXC065S3+*UD120R9V5 1630 46000 34000 4.11 13.25 11.2

TXC065S3+*UD140R9V5 1590 46000 33800 4.11 13.25 11.2

TXC065S3+*UY120R9V5 1420 45000 32000 4.02 13.25 11.2











TXH063P3+*DD100R9V5 1620 48000 36800 4.29 13.25 11.2

TXH063P3+*DD120R9V5 1630 48500 37200 4.33 13.25 11.2

TXH063P3+*DY100R9V4 1450 47000 34600 4.20 13.25 11.2

TXH063P3+*DY120R9V5 1420 47500 34800 4.24 13.25 11.2

TXH063P3+*UD100R9V5 1670 48500 37600 4.33 13.25 11.2

TXH063P3+*UD120R9V5 1620 48500 37200 4.33 13.25 11.2

TXH063P3+*UD140R9V5 1590 48000 36600 4.29 13.25 11.2

TXH063P3+*UY100R9V4 1420 47000 34400 4.20 13.25 11.2

TXH063P3+*UY120R9V5 1420 47500 34800 4.24 13.25 11.2

18 22-1769-01-1105 (EN)




2CXAC060AC3 1670 56500 40000 5.14 13.00 11.0

2CXAD061AC3 1990 57500 42500 5.23 13.00 11.0

2CXCC060AC3 1670 56500 40000 5.14 13.00 11.0

2CXCD061AC3 1990 57500 42500 5.23 13.00 11.0

2TXCC060AC3 1670 56000 39500 5.09 13.00 11.0

2TXCD061AC3[T] 1900 58000 42500 5.27 13.00 11.0

2TXCD065AS3 2000 57500 42000 5.23 13.00 11.0

2TXFH054AS3 1660 57000 40500 5.18 13.00 11.0

2TXFH063AS3 2000 60000 45500 5.45 13.00 11.0

TXA060C5+BAY24X045 1700 55500 39000 5.05 13.00 11.0

TXA061C5+BAY24X045 1860 56500 41000 5.14 13.00 11.0

TXC060C5+BAY24X045 1700 55500 39000 5.05 13.00 11.0

TXC061C5+BAY24X045 1860 56500 41000 5.14 13.00 11.0

TXC065S3 2000 57500 42000 5.23 13.00 11.0

TXH063P3 2000 60000 46000 5.45 13.00 11.0



Ratings



2TEC3F60A1 1810 57000 41000 5.18 13.00 11.0

2TEP3F48B1 1750 57500 41500 5.23 13.00 11.0

2TEP3F63B1 2000 57000 42500 5.43 12.50 10.5

TWE049E13 2080 58000 43500 5.50 12.75 10.6

TWE060A+BAY24X045 2000 55500 40500 5.14 12.75 10.8

TWE060P13 1750 58000 42000 5.27 13.00 11.0

TWE063P13 2000 57500 43000 5.53 12.25 10.4

TWE065E13 1815 57000 41000 5.09 13.25 11.2

22-1769-01-1105 (EN) 19

2TTB3060A1




2CXAD061AC3+*DD120R9V5 1630 56500 39500 5.04 13.25 11.2

2CXAD061AC3+*DY120R9V5 1645 56000 39000 5.09 13.00 11.0

2CXAD061AC3+*UD120R9V5 1625 56500 39500 5.04 13.25 11.2

2CXAD061AC3+*UD140R9V5 1595 56000 39000 5.00 13.25 11.2

2CXAD061AC3+*UY120R9V5 1680 56500 39500 5.14 13.00 11.0

2CXCD061AC3+*DD120R9V5 1630 56500 39500 5.04 13.25 11.2

2CXCD061AC3+*DY120R9V5 1645 56000 39000 5.09 13.00 11.0

2CXCD061AC3+*UD120R9V5 1625 56500 39500 5.04 13.25 11.2

2CXCD061AC3+*UD140R9V5 1595 56000 39000 5.00 13.25 11.2

2CXCD061AC3+*UY120R9V5 1680 56500 39500 5.14 13.00 11.0

2TXCD061AC3+*DD120R9V5 1630 56500 39500 5.04 13.25 11.2

2TXCD061AC3+*DY120R9V5 1645 56000 39000 5.09 13.00 11.0

2TXCD061AC3+*UD120R9V5 1625 56500 39500 5.04 13.25 11.2

2TXCD061AC3+*UD140R9V5 1595 56000 39000 5.00 13.25 11.2

2TXCD061AC3+*UY120R9V5 1680 56500 39500 5.14 13.00 11.0

2TXCD065AS3+*DD120R9V5 2020 57500 42000 5.32 12.75 10.8

2TXCD065AS3+*DY120R9V5 1730 56000 39000 5.28 12.75 10.6

2TXCD065AS3+*UD120R9V5 1970 57000 41500 5.40 12.75 10.6

2TXCD065AS3+*UD140R9V5 1960 57000 41500 5.38 12.75 10.6

2TXCD065AS3+*UY120R9V5 1790 56500 40000 5.23 12.75 10.8

2TXFH054AS3+*DD100R9V5 1625 57000 40000 5.09 13.25 11.2

2TXFH054AS3+*DD120R9V5 1635 57500 40500 5.13 13.25 11.2

2TXFH054AS3+*DY120R9V5 1625 56600 40000 5.15 13.00 11.0

2TXFH054AS3+*UD100R9V5 1670 57000 40500 5.09 13.25 11.2

2TXFH054AS3+*UD120R9V5 1630 57000 40000 5.09 13.25 11.2

2TXFH054AS3+*UD140R9V5 1590 57000 40000 5.09 13.25 11.2

2TXFH054AS3+*UY120R9V5 1670 57000 40500 5.18 13.25 11.0

2TXFH063AS3+*DD100R9V5 1625 58500 41500 5.22 13.25 11.2

2TXFH063AS3+*DD120R9V5 1625 59000 42000 5.27 13.25 11.2

2TXFH063AS3+*DY120R9V5 1650 58500 41500 5.22 13.25 11.2

2TXFH063AS3+*UD100R9V5 1675 59000 42000 5.27 13.25 11.2

2TXFH063AS3+*UD120R9V5 1620 58500 41500 5.22 13.25 11.2

2TXFH063AS3+*UD140R9V5 1595 58500 41000 5.22 13.25 11.2

2TXFH063AS3+*UY120R9V5 1680 58500 42000 5.22 13.25 11.2

TXC065S3+*DD120R9V5 2020 57500 42000 5.32 12.75 10.8

TXC065S3+*DY120R9V5 1730 56000 39000 5.28 12.75 10.6

TXC065S3+*UD120R9V5 1970 57000 41500 5.40 12.75 10.6

TXC065S3+*UD140R9V5 1960 57000 41500 5.38 12.75 10.6

TXC065S3+*UY120R9V5 1790 56500 40000 5.23 12.75 10.8

2TTB3018A1 WITH 2TXCA018AC3 AT 600 CFM

O.D.

D.B.

I.D.

W.B.

TOT.

CAP.

SENS. CAP. AT ENTERING D.B. TEMP.

72 75 78 80

TOTAL

KW

59 15.4 10.2 12.3 14.4 15.4 1.35

85 63 16.1 9.4 11.3 13.2 14.4 1.36

67 17.4 8.1 9.7 11.4 12.4 1.38

71 18.7 6.7 8.1 9.4 10.3 1.39

59 14.5 9.9 11.9 13.9 14.5 1.45

95 63 15.1 9.1 10.9 12.7 13.9 1.46

67 16.3 7.8 9.4 11.0 12.0 1.48

71 17.6 6.5 7.8 9.1 10.0 1.5

59 13.5 9.5 11.4 13.4 13.5 1.55

105 63 14.1 8.7 10.5 12.2 13.4 1.56

67 15.1 7.5 9.1 10.6 11.5 1.58

71 16.4 6.2 7.5 8.8 9.6 1.60

59 12.5 9.1 10.9 12.5 12.5 1.65

115 63 13.0 8.3 10.0 11.7 12.8 1.66

67 14.0 7.2 8.6 10.1 11.0 1.69

71 15.2 6.0 7.2 8.4 9.1 1.70

CORRECTION FACTORS FOR OTHER AIRFLOWS (MULTIPLY DATA BY FACTOR)

AIRFLOW TOTAL CAPACITY SENSIBLE CAPACITY

LOW 525 0.98 0.98

HIGH 675 1.02 1.02

NOTE: ALL TABLES ABOVE ARE AT ARI RATING CONDITIONS RATED WITH 25 FEET OF REFRIGERANT LINES.

* DRY COIL CONDITION (TOTAL CAPACITY = SENSIBLE CAPACITY)

TOTAL CAPACITY, COMP. KW AND APP. DEW PT. ARE VALID ONLY FOR WET COIL. ALL TEMPERATURES IN DEGREES F.

CORRECTION FACTORS FOR OTHER COMBINATIONS (MULTIPLY DATA BY FACTOR)

MBTUH MBTUH SYST

INDOOR MODEL CFM TOT SEN KW

2CXAA018AC3 NOMINAL 600 1.00 1.00 1.00

LOW 525 0.98 0.98 0.99

HIGH 675 1.02 1.02 1.01


LOW 525 1.00 0.98 1.02

HIGH 675 1.05 1.03 1.05

2CXAB025AC3 NOMINAL 600 1.04 1.01 1.04

LOW 525 1.01 0.98 1.02

HIGH 675 1.06 1.03 1.05

2CXAB025AC3+*DD060R9V3 NOMINAL 600 1.08 1.02 1.06

LOW 543 1.05 0.99 1.04

HIGH 698 1.10 1.04 1.07


LOW 586 1.06 1.01 1.06

HIGH 754 1.11 1.06 1.09

2CXAB025AC3+*DY060R9V3 NOMINAL 600 1.06 1.00 1.04

LOW 464 1.03 0.98 1.02

HIGH 596 1.08 1.02 1.05

2CXAB025AC3+*UD060R9V3 NOMINAL 600 1.09 1.03 1.07

LOW 560 1.06 1.00 1.05

HIGH 720 1.11 1.05 1.08


LOW 525 1.04 0.99 1.04

HIGH 675 1.09 1.04 1.07

2CXAB025AC3+*UY060R9V3 NOMINAL 600 1.07 1.01 1.05

LOW 508 1.04 0.98 1.03

HIGH 653 1.09 1.03 1.06

2CXCA018AC3 NOMINAL 600 1.00 1.00 1.00

LOW 525 0.98 0.98 0.99

HIGH 675 1.02 1.02 1.01


LOW 525 1.00 0.98 1.02

HIGH 675 1.05 1.03 1.05

Performance Data

Cooling

2TTB3018A1




2CXCB025AC3 NOMINAL 600 1.04 1.01 1.04

LOW 525 1.01 0.98 1.02

HIGH 675 1.06 1.03 1.05

2CXCB025AC3+*DD060R9V3 NOMINAL 600 1.08 1.02 1.06

LOW 543 1.05 0.99 1.04

HIGH 698 1.10 1.04 1.07


LOW 586 1.06 1.01 1.06

HIGH 754 1.11 1.06 1.09

2CXCB025AC3+*DY060R9V3 NOMINAL 600 1.06 1.00 1.04

LOW 464 1.03 0.98 1.02

HIGH 596 1.08 1.02 1.05

2CXCB025AC3+*UD060R9V3 NOMINAL 600 1.09 1.03 1.07

LOW 560 1.06 1.00 1.05

HIGH 720 1.11 1.05 1.08


LOW 525 1.04 0.99 1.04

HIGH 675 1.09 1.04 1.07

2CXCB025AC3+*UY060R9V3 NOMINAL 600 1.07 1.01 1.05

LOW 508 1.04 0.98 1.03

HIGH 653 1.09 1.03 1.06

2TEC3F18A1 NOMINAL 600 1.06 1.02 1.06

LOW 525 1.03 0.99 1.04

HIGH 675 1.08 1.04 1.07

2TEC3F24A1 NOMINAL 600 1.06 1.02 1.06

LOW 525 1.03 0.99 1.04

HIGH 675 1.08 1.04 1.07

2TFB3F18B1 NOMINAL 600 1.05 1.02 1.05

LOW 525 1.02 0.99 1.03

HIGH 675 1.07 1.04 1.06

2TFE3025A1 NOMINAL 600 1.06 1.02 1.04

LOW 525 1.03 0.99 1.02

HIGH 675 1.08 1.04 1.05

2TFE3F25B1 NOMINAL 600 1.06 1.00 1.04

LOW 438 1.03 0.98 1.02

HIGH 563 1.08 1.02 1.05

2TGB3F18A1 NOMINAL 600 1.04 1.02 1.04

LOW 525 1.01 0.99 1.02

HIGH 675 1.06 1.04 1.05

2TGB3F24A1 NOMINAL 600 1.04 1.02 1.04

LOW 525 1.01 0.99 1.02

HIGH 675 1.06 1.04 1.05

2TGB3F25A1 NOMINAL 600 1.04 1.02 1.04

LOW 525 1.01 0.99 1.02

HIGH 675 1.06 1.04 1.05

2TXCA024AC3 NOMINAL 600 1.03 1.01 1.04

LOW 525 1.00 0.98 1.02

HIGH 675 1.05 1.03 1.05

2TXCB025AC3 NOMINAL 600 1.04 1.01 1.04

LOW 525 1.01 0.98 1.02

HIGH 675 1.06 1.03 1.05

2TXCB025AC3+*DD060R9V3 NOMINAL 600 1.08 1.02 1.06

LOW 543 1.05 0.99 1.04

HIGH 698 1.10 1.04 1.07


LOW 586 1.06 1.01 1.06

HIGH 754 1.11 1.06 1.09

2TXCB025AC3+*DY060R9V3 NOMINAL 600 1.06 1.00 1.04

LOW 464 1.03 0.98 1.02

HIGH 596 1.08 1.02 1.05

2TXCB025AC3+*UD060R9V3 NOMINAL 600 1.09 1.03 1.07

LOW 560 1.06 1.00 1.05

HIGH 720 1.11 1.05 1.08

20 22-1769-01-1105 (EN)





LOW 525 1.04 0.99 1.04

HIGH 675 1.09 1.04 1.07

2TXCB025AC3+*UY060R9V3 NOMINAL 600 1.07 1.01 1.05

LOW 508 1.04 0.98 1.03

HIGH 653 1.09 1.03 1.06

2TXCB025AS3 NOMINAL 600 1.00 1.00 1.00

LOW 525 0.98 0.98 0.99

HIGH 675 1.02 1.02 1.01

2TXCB025AS3+*DD060R9V3 NOMINAL 600 1.02 1.00 1.00

LOW 543 0.99 0.98 0.99

HIGH 698 1.04 1.02 1.01


LOW 551 1.00 0.98 1.00

HIGH 709 1.05 1.03 1.03

2TXCB025AS3+*DY060R9V3 NOMINAL 600 1.00 0.98 0.98

LOW 464 0.98 0.96 0.97

HIGH 596 1.02 0.99 0.98

2TXCB025AS3+*UD060R9V3 NOMINAL 600 1.02 1.01 1.00

LOW 547 0.99 0.98 0.99

HIGH 703 1.04 1.03 1.01


LOW 534 0.99 0.98 0.99

HIGH 686 1.04 1.02 1.01

2TXCB025AS3+*UY060R9V3 NOMINAL 600 1.01 1.00 0.99

LOW 508 0.98 0.98 0.98

HIGH 653 1.03 1.02 0.99


LOW 525 1.03 0.99 1.04

HIGH 675 1.08 1.04 1.07


LOW 543 1.06 1.00 1.06

HIGH 698 1.11 1.05 1.09


LOW 586 1.08 1.01 1.07

HIGH 754 1.13 1.06 1.10


LOW 464 1.04 0.98 1.03

HIGH 596 1.09 1.03 1.06


LOW 560 1.07 1.00 1.06

HIGH 720 1.12 1.05 1.09


LOW 525 1.06 0.99 1.05

HIGH 675 1.11 1.04 1.08


LOW 508 1.05 0.99 1.04

HIGH 653 1.10 1.04 1.07

2TXFH018AS3 NOMINAL 600 1.00 1.00 1.00

LOW 525 0.98 0.98 0.99

HIGH 675 1.02 1.02 1.01

2TXFH018AS3+*DD060R9V3 NOMINAL 600 1.03 1.01 1.02

LOW 543 1.00 0.98 1.00

HIGH 698 1.05 1.03 1.03

2TXFH018AS3+*DY060R9V3 NOMINAL 600 1.01 0.99 0.99

LOW 464 0.98 0.97 0.98

HIGH 596 1.03 1.00 0.99

22-1769-01-1105 (EN) 21


Cooling 2TTB3018A1




2TXFH018AS3+*UD060R9V3 NOMINAL 600 1.03 1.01 1.02

LOW 551 1.00 0.98 1.00

HIGH 709 1.05 1.03 1.03


LOW 525 1.00 0.98 0.99

HIGH 675 1.05 1.02 1.02

2TXFH018AS3+*UY060R9V3 NOMINAL 600 1.02 1.00 1.00

LOW 508 0.99 0.98 0.99

HIGH 653 1.04 1.02 1.01


LOW 525 0.98 0.98 0.99

HIGH 675 1.02 1.02 1.01

TWE018P13 NOMINAL 600 1.06 1.02 1.06

LOW 525 1.03 0.99 1.04

HIGH 675 1.08 1.04 1.07

TWE024P13 NOMINAL 600 1.07 1.02 1.07

LOW 525 1.04 0.99 1.05

HIGH 675 1.09 1.04 1.08

TWE031E13 NOMINAL 600 1.09 1.03 1.07

LOW 569 1.06 1.00 1.05

HIGH 731 1.11 1.05 1.08

TXA025C4+TAYTXV-3 NOMINAL 600 1.01 1.00 1.02

LOW 525 0.98 0.98 1.00

HIGH 675 1.03 1.02 1.03

TXA025C4+TAYTXVH-3 NOMINAL 600 1.01 1.00 1.02

LOW 525 0.98 0.98 1.00

HIGH 675 1.03 1.02 1.03


LOW 525 0.99 0.98 1.00

HIGH 675 1.04 1.02 1.03


LOW 525 0.99 0.98 1.00

HIGH 675 1.04 1.02 1.03


LOW 525 1.01 0.98 1.02

HIGH 675 1.06 1.03 1.05


LOW 525 1.01 0.98 1.02

HIGH 675 1.06 1.03 1.05

TXC025C4+TAYTXV-3 NOMINAL 600 1.01 1.00 1.02

LOW 525 0.98 0.98 1.00

HIGH 675 1.03 1.02 1.03

TXC025C4+TAYTXVH-3 NOMINAL 600 1.01 1.00 1.02

LOW 525 0.98 0.98 1.00

HIGH 675 1.03 1.02 1.03

TXC025D4+TAYTXV-3 NOMINAL 600 1.01 1.00 1.02

LOW 525 0.98 0.98 1.00

HIGH 675 1.03 1.02 1.03

TXC025D4+TAYTXVH-3 NOMINAL 600 1.01 1.00 1.02

LOW 525 0.98 0.98 1.00

HIGH 675 1.03 1.02 1.03


LOW 525 0.99 0.98 1.00

HIGH 675 1.04 1.02 1.03


LOW 525 0.99 0.98 1.00

HIGH 675 1.04 1.02 1.03

2TTB3024A1 WITH 2TXCA024AC3 AT 800 CFM

O.D.

D.B.

I.D.

W.B.

TOT.

CAP.


72 75 78 80

TOTAL

KW

59 20.7 13.5 16.2 18.9 20.7 1.81

85 63 21.6 12.4 14.9 17.4 19.0 1.83

67 23.3 10.7 12.9 15.0 16.4 1.86

71 25.1 8.9 10.7 12.4 13.6 1.87

59 19.5 13.0 15.7 18.3 19.5 1.96

95 63 20.4 11.9 14.4 16.7 18.3 1.97

67 22.0 10.3 12.4 14.4 15.8 2.00

71 23.7 8.5 10.3 12.0 13.1 2.02

59 18.4 12.5 15.0 17.5 18.4 2.1

105 63 19.1 11.5 13.8 16.1 17.6 2.11

67 20.6 9.9 11.9 13.9 15.2 2.14

71 22.3 8.2 9.9 11.5 12.6 2.16

59 17.2 11.9 14.4 16.7 17.2 2.24

115 63 17.9 11.0 13.2 15.4 16.8 2.25

67 19.3 9.4 11.4 13.2 14.5 2.29

71 20.9 7.8 9.4 11.0 12.0 2.31



LOW 700 0.98 0.98

HIGH 900 1.02 1.02








LOW 700 0.97 0.98 0.98

HIGH 900 1.00 1.03 0.99


LOW 700 0.98 0.98 0.99

HIGH 900 1.02 1.03 1.01


LOW 700 0.99 0.98 0.99

HIGH 900 1.04 1.03 1.02


LOW 674 0.98 0.98 0.99

HIGH 866 1.03 1.03 1.01


LOW 621 0.98 0.98 0.98

HIGH 799 1.02 1.02 0.99


LOW 621 0.98 0.98 0.98

HIGH 799 1.02 1.02 0.99


LOW 726 0.99 0.99 0.99

HIGH 934 1.04 1.04 1.02


LOW 718 0.99 0.99 0.99

HIGH 923 1.04 1.04 1.02


LOW 709 0.99 0.99 0.99

HIGH 911 1.04 1.04 1.02


LOW 630 0.98 0.98 0.98

HIGH 810 1.02 1.02 0.99


LOW 613 0.98 0.98 0.98

HIGH 788 1.02 1.02 0.99



2TTB3024A1





LOW 700 0.98 0.98 0.99

HIGH 900 1.02 1.03 1.01


LOW 700 0.99 0.98 0.99

HIGH 900 1.04 1.03 1.02


LOW 674 0.98 0.98 0.99

HIGH 866 1.03 1.03 1.01


LOW 621 0.98 0.98 0.98

HIGH 799 1.02 1.02 0.99


LOW 621 0.98 0.98 0.98

HIGH 799 1.02 1.02 0.99


LOW 726 0.99 0.99 0.99

HIGH 934 1.04 1.04 1.02


LOW 718 0.99 0.99 0.99

HIGH 923 1.04 1.04 1.02


LOW 709 0.99 0.98 0.99

HIGH 911 1.04 1.03 1.02


LOW 630 0.98 0.98 0.98

HIGH 810 1.02 1.02 0.99


LOW 613 0.98 0.98 0.98

HIGH 788 1.02 1.02 0.99


LOW 700 0.98 0.98 0.99

HIGH 900 1.02 1.02 1.01


LOW 700 0.99 0.98 0.99

HIGH 900 1.04 1.03 1.02


LOW 674 0.99 0.98 0.99

HIGH 866 1.04 1.02 1.02


LOW 621 0.98 0.98 0.98

HIGH 799 1.02 1.02 0.99


LOW 621 0.98 0.98 0.98

HIGH 799 1.02 1.02 0.99


LOW 726 0.99 0.98 0.99

HIGH 934 1.04 1.03 1.02


LOW 718 0.99 0.98 0.99

HIGH 923 1.04 1.03 1.02


LOW 700 0.99 0.98 0.99

HIGH 900 1.04 1.03 1.02


LOW 630 0.98 0.98 0.98

HIGH 810 1.02 1.02 0.99


LOW 621 0.98 0.98 0.98

HIGH 799 1.02 1.02 0.99


LOW 700 0.97 0.98 0.98

HIGH 900 1.00 1.03 0.99

22 22-1769-01-1105 (EN)





LOW 700 0.98 0.98 0.99

HIGH 900 1.02 1.03 1.01


LOW 700 0.99 0.98 0.99

HIGH 900 1.04 1.03 1.02


LOW 674 0.98 0.98 0.99

HIGH 866 1.03 1.03 1.01


LOW 621 0.98 0.98 0.98

HIGH 799 1.02 1.02 0.99


LOW 621 0.98 0.98 0.98

HIGH 799 1.02 1.02 0.99


LOW 726 0.99 0.99 0.99

HIGH 934 1.04 1.04 1.02


LOW 718 0.99 0.99 0.99

HIGH 923 1.04 1.04 1.02


LOW 709 0.99 0.99 0.99

HIGH 911 1.04 1.04 1.02


LOW 630 0.98 0.98 0.98

HIGH 810 1.02 1.02 0.99


LOW 613 0.98 0.98 0.98

HIGH 788 1.02 1.02 0.99


LOW 700 0.98 0.98 0.99

HIGH 900 1.02 1.03 1.01


LOW 700 0.99 0.98 0.99

HIGH 900 1.04 1.03 1.02


LOW 674 0.98 0.98 0.99

HIGH 866 1.03 1.03 1.01


LOW 621 0.98 0.98 0.98

HIGH 799 1.02 1.02 0.99


LOW 621 0.98 0.98 0.98

HIGH 799 1.02 1.02 0.99


LOW 726 0.99 0.99 0.99

HIGH 934 1.04 1.04 1.02


LOW 718 0.99 0.99 0.99

HIGH 923 1.04 1.04 1.02


LOW 709 0.99 0.98 0.99

HIGH 911 1.04 1.03 1.02


LOW 630 0.98 0.98 0.98

HIGH 810 1.02 1.02 0.99


LOW 613 0.98 0.98 0.98

HIGH 788 1.02 1.02 0.99


LOW 700 0.98 0.98 0.99

HIGH 900 1.02 1.02 1.01

22-1769-01-1105 (EN) 23



2TTB3024A1





LOW 700 0.99 0.98 0.99

HIGH 900 1.04 1.03 1.02


LOW 674 0.99 0.98 0.99

HIGH 866 1.04 1.02 1.02


LOW 621 0.98 0.98 0.98

HIGH 799 1.02 1.02 0.99


LOW 621 0.98 0.98 0.98

HIGH 799 1.02 1.02 0.99


LOW 726 0.99 0.98 0.99

HIGH 934 1.04 1.03 1.02


LOW 718 0.99 0.98 0.99

HIGH 923 1.04 1.03 1.02


LOW 700 0.99 0.98 0.99

HIGH 900 1.04 1.03 1.02


LOW 630 0.98 0.98 0.98

HIGH 810 1.02 1.02 0.99


LOW 621 0.98 0.98 0.98

HIGH 799 1.02 1.02 0.99

2TEC3F24A1 NOMINAL 800 1.01 1.02 1.02

LOW 700 0.98 0.99 1.00

HIGH 900 1.03 1.04 1.03

2TEC3F30A1 NOMINAL 800 1.01 1.02 1.02

LOW 700 0.98 0.99 1.00

HIGH 900 1.03 1.04 1.03

2TFB3F24B1 NOMINAL 800 1.00 1.01 1.01

LOW 700 0.98 0.98 0.99

HIGH 900 1.02 1.03 1.02

2TFB3F30B1 NOMINAL 800 1.00 1.01 1.01

LOW 700 0.98 0.98 0.99

HIGH 900 1.02 1.03 1.02

2TFE3F25B1 NOMINAL 800 1.00 0.99 0.98

LOW 560 0.98 0.97 0.97

HIGH 720 1.02 1.00 0.98

2TGB3F24A1 NOMINAL 800 1.00 1.02 1.00

LOW 700 0.98 0.99 0.99

HIGH 900 1.02 1.04 1.01

2TGB3F25A1 NOMINAL 800 1.00 1.02 1.00

LOW 700 0.98 0.99 0.99

HIGH 900 1.02 1.04 1.01

2TGB3F30A1 NOMINAL 800 1.01 1.02 1.02

LOW 700 0.98 0.99 1.00

HIGH 900 1.03 1.04 1.03


LOW 700 0.98 0.98 0.99

HIGH 900 1.02 1.03 1.01


LOW 700 0.99 0.98 0.99

HIGH 900 1.04 1.03 1.02


LOW 674 0.98 0.98 0.99

HIGH 866 1.03 1.03 1.01


LOW 621 0.98 0.98 0.98

HIGH 799 1.02 1.02 0.99





LOW 621 0.98 0.98 0.98

HIGH 799 1.02 1.02 0.99


LOW 726 0.99 0.99 0.99

HIGH 934 1.04 1.04 1.02


LOW 718 0.99 0.99 0.99

HIGH 923 1.04 1.04 1.02


LOW 709 0.99 0.99 0.99

HIGH 911 1.04 1.04 1.02


LOW 630 0.98 0.98 0.98

HIGH 810 1.02 1.02 0.99


LOW 613 0.98 0.98 0.98

HIGH 788 1.02 1.02 0.99


LOW 683 0.92 0.97 0.95

HIGH 878 0.95 1.00 0.96


LOW 691 0.94 0.98 0.93

HIGH 889 0.97 1.02 0.94


LOW 665 0.93 0.96 0.93

HIGH 855 0.96 0.99 0.94


LOW 621 0.92 0.96 0.92

HIGH 799 0.95 0.99 0.93


LOW 621 0.92 0.96 0.92

HIGH 799 0.95 0.99 0.93


LOW 700 0.95 0.98 0.94

HIGH 900 0.98 1.02 0.95


LOW 691 0.94 0.98 0.93

HIGH 889 0.97 1.02 0.94


LOW 700 0.95 0.98 0.94

HIGH 900 0.98 1.02 0.95


LOW 630 0.92 0.96 0.92

HIGH 810 0.95 0.99 0.93


LOW 604 0.92 0.96 0.92

HIGH 776 0.95 0.99 0.93


LOW 700 0.98 0.98 0.99

HIGH 900 1.02 1.03 1.01


LOW 700 0.99 0.98 0.99

HIGH 900 1.04 1.03 1.02


LOW 674 0.98 0.98 0.99

HIGH 866 1.03 1.03 1.01


LOW 621 0.98 0.98 0.98

HIGH 799 1.02 1.02 0.99


LOW 621 0.98 0.98 0.98

HIGH 799 1.02 1.02 0.99



2TTB3024A1





LOW 726 0.99 0.99 0.99

HIGH 934 1.04 1.04 1.02


LOW 718 0.99 0.99 0.99

HIGH 923 1.04 1.04 1.02


LOW 709 0.99 0.98 0.99

HIGH 911 1.04 1.03 1.02


LOW 630 0.98 0.98 0.98

HIGH 810 1.02 1.02 0.99


LOW 613 0.98 0.98 0.98

HIGH 788 1.02 1.02 0.99


LOW 700 0.98 0.98 1.00

HIGH 900 1.03 1.03 1.03


LOW 709 1.01 0.99 1.00

HIGH 911 1.06 1.04 1.03


LOW 674 1.00 0.98 1.00

HIGH 866 1.05 1.03 1.03


LOW 621 0.99 0.98 0.99

HIGH 799 1.04 1.03 1.02


LOW 621 0.99 0.98 0.99

HIGH 799 1.04 1.03 1.02


LOW 726 1.01 0.99 1.00

HIGH 934 1.06 1.04 1.03


LOW 718 1.01 0.99 1.00

HIGH 923 1.06 1.04 1.03


LOW 709 1.01 0.99 1.00

HIGH 911 1.06 1.04 1.03


LOW 630 0.99 0.98 0.99

HIGH 810 1.04 1.03 1.02


LOW 613 0.98 0.98 0.99

HIGH 788 1.03 1.02 1.01


LOW 700 0.98 0.98 0.99

HIGH 900 1.02 1.02 1.01


LOW 700 0.99 0.98 0.99

HIGH 900 1.04 1.03 1.02


LOW 674 0.99 0.98 0.99

HIGH 866 1.04 1.02 1.02


LOW 621 0.98 0.98 0.98

HIGH 799 1.02 1.02 0.99


LOW 621 0.98 0.98 0.98

HIGH 799 1.02 1.02 0.99


LOW 726 0.99 0.98 0.99

HIGH 934 1.04 1.03 1.02

24 22-1769-01-1105 (EN)





LOW 718 0.99 0.98 0.99

HIGH 923 1.04 1.03 1.02


LOW 700 0.99 0.98 0.99

HIGH 900 1.04 1.03 1.02


LOW 630 0.98 0.98 0.98

HIGH 810 1.02 1.02 0.99


LOW 621 0.98 0.98 0.98

HIGH 799 1.02 1.02 0.99


LOW 700 1.00 0.99 1.01

HIGH 900 1.05 1.04 1.04


LOW 700 1.03 0.99 1.02

HIGH 900 1.08 1.04 1.05


LOW 674 1.02 0.99 1.01

HIGH 866 1.07 1.04 1.04


LOW 613 1.00 0.98 1.00

HIGH 788 1.05 1.02 1.03


LOW 621 1.01 0.98 1.00

HIGH 799 1.06 1.03 1.03


LOW 726 1.03 1.00 1.02

HIGH 934 1.08 1.05 1.05


LOW 718 1.03 1.00 1.02

HIGH 923 1.08 1.05 1.05


LOW 700 1.02 0.99 1.01

HIGH 900 1.07 1.04 1.04


LOW 630 1.01 0.98 1.00

HIGH 810 1.06 1.03 1.03


LOW 621 1.01 0.98 1.00

HIGH 799 1.06 1.03 1.03

2TXCC037AS3 NOMINAL 800 1.04 1.02 1.04

LOW 700 1.01 0.99 1.02

HIGH 900 1.06 1.04 1.05


LOW 700 0.95 0.98 0.94

HIGH 900 0.98 1.02 0.95


LOW 674 0.95 0.97 0.94

HIGH 866 0.98 1.00 0.95


LOW 621 0.94 0.96 0.93

HIGH 799 0.97 0.99 0.94


LOW 621 0.94 0.96 0.93

HIGH 799 0.97 0.99 0.94


LOW 709 0.96 0.98 0.95

HIGH 911 0.99 1.02 0.96


LOW 700 0.95 0.98 0.94

HIGH 900 0.98 1.02 0.95

22-1769-01-1105 (EN) 25



2TTB3024A1





LOW 630 0.93 0.96 0.93

HIGH 810 0.96 0.99 0.94


LOW 613 0.93 0.96 0.93

HIGH 788 0.96 0.99 0.94


LOW 700 0.98 0.98 0.99

HIGH 900 1.02 1.03 1.01


LOW 700 0.99 0.99 0.99

HIGH 900 1.04 1.04 1.02


LOW 683 0.98 0.98 0.99

HIGH 878 1.03 1.03 1.01


LOW 613 0.98 0.98 0.97

HIGH 788 1.02 1.02 0.98


LOW 621 0.98 0.98 0.98

HIGH 799 1.02 1.02 0.99


LOW 718 0.99 0.99 0.99

HIGH 923 1.04 1.04 1.02


LOW 718 0.99 0.99 0.99

HIGH 923 1.04 1.04 1.02


LOW 691 0.98 0.98 0.99

HIGH 889 1.03 1.03 1.01


LOW 621 0.98 0.98 0.97

HIGH 799 1.02 1.02 0.98


LOW 621 0.98 0.98 0.98

HIGH 799 1.02 1.02 0.99

TWE018P13 NOMINAL 800 1.00 1.01 1.01

LOW 700 0.98 0.98 0.99

HIGH 900 1.02 1.03 1.02

TWE024P13 NOMINAL 800 1.01 1.02 1.02

LOW 700 0.98 0.99 1.00

HIGH 900 1.03 1.04 1.03

TWE030C14+TAYTXV-3 NOMINAL 800 0.97 1.00 0.97

LOW 700 0.95 0.98 0.96

HIGH 900 0.98 1.02 0.97

TWE030P13 NOMINAL 800 0.99 1.00 0.99

LOW 700 0.97 0.98 0.98

HIGH 900 1.00 1.02 0.99

TWE031E13 NOMINAL 800 1.02 1.02 1.01

LOW 735 0.99 0.99 0.99

HIGH 945 1.04 1.04 1.02

TWE037E13 NOMINAL 800 1.03 1.02 1.02

LOW 700 1.00 0.99 1.00

HIGH 900 1.05 1.04 1.03

TWE040E13 NOMINAL 800 1.09 1.04 1.07

LOW 726 1.06 1.01 1.05

HIGH 934 1.11 1.06 1.08


LOW 691 0.94 0.98 0.95

HIGH 889 0.97 1.02 0.96


LOW 700 0.96 0.98 0.97

HIGH 900 0.99 1.02 0.98





LOW 700 0.98 0.98 0.99

HIGH 900 1.02 1.03 1.01


LOW 700 0.98 0.98 0.99

HIGH 900 1.02 1.03 1.01


LOW 700 0.96 0.98 0.97

HIGH 900 0.99 1.02 0.98


LOW 691 0.94 0.98 0.95

HIGH 889 0.97 1.02 0.96


LOW 691 0.94 0.98 0.95

HIGH 889 0.97 1.02 0.96


LOW 700 0.96 0.98 0.97

HIGH 900 0.99 1.02 0.98


LOW 700 0.96 0.98 0.97

HIGH 900 0.99 1.02 0.98


LOW 700 0.98 0.98 0.99

HIGH 900 1.02 1.03 1.01


LOW 700 0.98 0.98 0.99

HIGH 900 1.02 1.03 1.01


LOW 700 0.97 0.98 0.98

HIGH 900 1.00 1.02 0.99


LOW 700 0.97 0.98 0.98

HIGH 900 1.00 1.02 0.99

TXC031S3 NOMINAL 800 1.01 1.01 1.02

LOW 700 0.98 0.98 1.00

HIGH 900 1.03 1.03 1.03

TXC031S3+*DD060R9V3 NOMINAL 800 1.04 1.02 1.02

LOW 709 1.01 0.99 1.00

HIGH 911 1.06 1.04 1.03


LOW 674 1.00 0.98 1.00

HIGH 866 1.05 1.03 1.03

TXC031S3+*DY060R9V3 NOMINAL 800 1.02 1.01 1.01

LOW 621 0.99 0.98 0.99

HIGH 799 1.04 1.03 1.02


LOW 621 0.99 0.98 0.99

HIGH 799 1.04 1.03 1.02

TXC031S3+*UD060R9V3 NOMINAL 800 1.04 1.02 1.02

LOW 726 1.01 0.99 1.00

HIGH 934 1.06 1.04 1.03


LOW 718 1.01 0.99 1.00

HIGH 923 1.06 1.04 1.03


LOW 709 1.01 0.99 1.00

HIGH 911 1.06 1.04 1.03

TXC031S3+*UY060R9V3 NOMINAL 800 1.02 1.01 1.01

LOW 630 0.99 0.98 0.99

HIGH 810 1.04 1.03 1.02


LOW 613 0.98 0.98 0.99

HIGH 788 1.03 1.02 1.01



2TTB3024A1





LOW 700 0.96 0.98 0.97

HIGH 900 0.99 1.02 0.98


LOW 700 0.96 0.98 0.97

HIGH 900 0.99 1.02 0.98

TXC036S3 NOMINAL 800 1.03 1.02 1.03

LOW 700 1.00 0.99 1.01

HIGH 900 1.05 1.04 1.04


LOW 700 1.03 0.99 1.02

HIGH 900 1.08 1.04 1.05


LOW 674 1.02 0.99 1.01

HIGH 866 1.07 1.04 1.04


LOW 613 1.00 0.98 1.00

HIGH 788 1.05 1.02 1.03


LOW 621 1.01 0.98 1.00

HIGH 799 1.06 1.03 1.03


LOW 726 1.03 1.00 1.02

HIGH 934 1.08 1.05 1.05


LOW 718 1.03 1.00 1.02

HIGH 923 1.08 1.05 1.05


LOW 700 1.02 0.99 1.01

HIGH 900 1.07 1.04 1.04


LOW 630 1.01 0.98 1.00

HIGH 810 1.06 1.03 1.03


LOW 621 1.01 0.98 1.00

HIGH 799 1.06 1.03 1.03

TXC037S3 NOMINAL 800 1.04 1.02 1.04

LOW 700 1.01 0.99 1.02

HIGH 900 1.06 1.04 1.05

TXH033A4+TAYTXV-3 NOMINAL 800 1.00 1.01 1.00

LOW 700 0.98 0.98 0.99

HIGH 900 1.02 1.03 1.01

TXH033A4+TAYTXV-3+*DD060R9V3 NOMINAL 800 1.02 1.02 1.01

LOW 700 0.99 0.99 0.99

HIGH 900 1.04 1.04 1.02


LOW 683 0.98 0.98 0.99

HIGH 878 1.03 1.03 1.01

TXH033A4+TAYTXV-3+*DY060R9V3 NOMINAL 800 1.00 1.00 0.98

LOW 613 0.98 0.98 0.97

HIGH 788 1.02 1.02 0.98


LOW 621 0.98 0.98 0.98

HIGH 799 1.02 1.02 0.99

TXH033A4+TAYTXV-3+*UD060R9V3 NOMINAL 800 1.02 1.02 1.01

LOW 718 0.99 0.99 0.99

HIGH 923 1.04 1.04 1.02


LOW 718 0.99 0.99 0.99

HIGH 923 1.04 1.04 1.02


LOW 691 0.98 0.98 0.99

HIGH 889 1.03 1.03 1.01

26 22-1769-01-1105 (EN)




TXH033A4+TAYTXV-3+*UY060R9V3 NOMINAL 800 1.00 1.00 0.98

LOW 621 0.98 0.98 0.97

HIGH 799 1.02 1.02 0.98


LOW 621 0.98 0.98 0.98

HIGH 799 1.02 1.02 0.99

2TTB3030A1 WITH 2TXCB031AC3 AT 950 CFM

O.D.

D.B.

I.D.

W.B.

TOT.

CAP.


72 75 78 80

TOTAL

KW

59 24.7 16.2 19.5 22.7 24.7 2.17

85 63 25.8 14.8 17.8 20.8 22.7 2.18

67 27.8 12.8 15.4 18.0 19.6 2.22

71 30.0 10.6 12.8 14.9 16.3 2.24

59 23.5 15.8 19.1 22.2 23.5 2.35

95 63 24.5 14.5 17.5 20.4 22.3 2.36

67 26.4 12.5 15.1 17.6 19.2 2.40

71 28.5 10.4 12.5 14.6 15.9 2.42

59 22.2 15.5 18.6 21.7 22.2 2.52

105 63 23.1 14.2 17.1 19.9 21.8 2.54

67 24.9 12.2 14.7 17.2 18.8 2.58

71 26.9 10.1 12.2 14.2 15.6 2.60

59 20.9 15.0 18.1 20.9 20.9 2.70

115 63 21.8 13.8 16.6 19.3 21.1 2.72

67 23.5 11.9 14.3 16.7 18.2 2.76

71 25.4 9.9 11.9 13.8 15.1 2.79



LOW 831 0.98 0.98

HIGH 1069 1.02 1.02








LOW 875 0.98 0.98 0.99

HIGH 1125 1.03 1.03 1.02


LOW 875 1.00 0.98 0.99

HIGH 1125 1.05 1.03 1.02


LOW 831 0.99 0.98 0.99

HIGH 1069 1.04 1.03 1.01


LOW 761 0.98 0.98 0.98

HIGH 979 1.03 1.02 0.99


LOW 779 0.98 0.98 0.98

HIGH 1001 1.03 1.02 0.99

22-1769-01-1105 (EN) 27



2TTB3024A1




TXH033A4+TAYTXVH-3 NOMINAL 800 1.00 1.01 1.00

LOW 700 0.98 0.98 0.99

HIGH 900 1.02 1.03 1.01

2TTB3030A1





LOW 893 1.00 0.99 0.99

HIGH 1148 1.05 1.04 1.02


LOW 875 1.00 0.98 0.99

HIGH 1125 1.05 1.03 1.02


LOW 875 1.00 0.99 1.00

HIGH 1125 1.05 1.04 1.03


LOW 893 1.00 0.99 0.99

HIGH 1148 1.05 1.04 1.02


LOW 770 0.98 0.98 0.98

HIGH 990 1.03 1.02 0.99


LOW 753 0.98 0.98 0.98

HIGH 968 1.03 1.02 0.99


LOW 853 0.98 0.98 0.99

HIGH 1097 1.03 1.02 1.02


LOW 875 1.00 0.98 1.00

HIGH 1125 1.05 1.03 1.03


LOW 831 1.00 0.98 0.99

HIGH 1069 1.05 1.02 1.02


LOW 761 0.99 0.98 0.99

HIGH 979 1.04 1.02 1.01


LOW 779 0.99 0.98 0.99

HIGH 1001 1.04 1.02 1.01


LOW 893 1.00 0.98 1.00

HIGH 1148 1.05 1.03 1.03


LOW 875 1.00 0.98 1.00

HIGH 1125 1.05 1.03 1.03


LOW 875 1.01 0.98 1.00

HIGH 1125 1.06 1.03 1.03


LOW 893 1.00 0.98 1.00

HIGH 1148 1.05 1.03 1.03





LOW 770 0.99 0.98 0.99

HIGH 990 1.04 1.02 1.01


LOW 753 0.99 0.97 0.99

HIGH 968 1.04 1.00 1.01


LOW 875 1.00 0.98 1.01

HIGH 1125 1.05 1.03 1.04


LOW 875 1.02 0.99 1.01

HIGH 1125 1.07 1.04 1.04


LOW 831 1.01 0.98 1.00

HIGH 1069 1.06 1.03 1.03


LOW 761 1.00 0.98 1.00

HIGH 979 1.05 1.02 1.03


LOW 779 1.00 0.98 1.00

HIGH 1001 1.05 1.02 1.03


LOW 910 1.02 0.99 1.01

HIGH 1170 1.07 1.04 1.04


LOW 875 1.02 0.99 1.01

HIGH 1125 1.07 1.04 1.04


LOW 875 1.03 0.99 1.02

HIGH 1125 1.08 1.04 1.05


LOW 910 1.02 0.99 1.01

HIGH 1170 1.07 1.04 1.04


LOW 770 1.00 0.98 1.00

HIGH 990 1.05 1.02 1.03


LOW 753 1.00 0.98 1.00

HIGH 968 1.05 1.02 1.03

2CXAC037AC3 NOMINAL 950 1.03 1.01 1.03

LOW 875 1.00 0.98 1.01

HIGH 1125 1.05 1.03 1.04

2CXAC037AC3+*DY100R9V4 NOMINAL 950 1.06 1.03 1.05

LOW 919 1.03 1.00 1.03

HIGH 1181 1.08 1.05 1.06

2CXAC037AC3+*UY100R9V4 NOMINAL 950 1.06 1.03 1.05

LOW 919 1.03 1.00 1.03

HIGH 1181 1.08 1.05 1.06


LOW 853 0.98 0.98 0.99

HIGH 1097 1.02 1.03 1.01


LOW 875 1.00 0.98 0.99

HIGH 1125 1.05 1.03 1.02


LOW 831 0.99 0.98 0.99

HIGH 1069 1.04 1.03 1.01


LOW 761 0.98 0.98 0.98

HIGH 979 1.03 1.02 0.99


LOW 779 0.98 0.98 0.98

HIGH 1001 1.03 1.02 0.99



2TTB3030A1





LOW 893 1.00 0.99 0.99

HIGH 1148 1.05 1.04 1.02


LOW 875 1.00 0.98 0.99

HIGH 1125 1.05 1.03 1.02


LOW 875 1.00 0.99 1.00

HIGH 1125 1.05 1.04 1.03


LOW 893 1.00 0.99 0.99

HIGH 1148 1.05 1.04 1.02


LOW 770 0.98 0.98 0.98

HIGH 990 1.03 1.02 0.99


LOW 753 0.98 0.98 0.98

HIGH 968 1.03 1.02 0.99


LOW 875 0.98 0.98 0.99

HIGH 1125 1.03 1.02 1.02


LOW 875 1.00 0.98 1.00

HIGH 1125 1.05 1.03 1.03


LOW 831 1.00 0.98 0.99

HIGH 1069 1.05 1.02 1.02


LOW 761 0.99 0.98 0.99

HIGH 979 1.04 1.02 1.01


LOW 779 0.99 0.98 0.99

HIGH 1001 1.04 1.02 1.01


LOW 897 1.00 0.98 1.00

HIGH 1153 1.05 1.03 1.03


LOW 875 1.00 0.98 1.00

HIGH 1125 1.05 1.03 1.03


LOW 875 1.01 0.98 1.00

HIGH 1125 1.06 1.03 1.03


LOW 897 1.00 0.98 1.00

HIGH 1153 1.05 1.03 1.03


LOW 770 0.99 0.98 0.99

HIGH 990 1.04 1.02 1.01


LOW 753 0.99 0.97 0.99

HIGH 968 1.04 1.00 1.01


LOW 875 1.00 0.98 1.01

HIGH 1125 1.05 1.03 1.04


LOW 875 1.02 0.99 1.01

HIGH 1125 1.07 1.04 1.04


LOW 831 1.01 0.98 1.00

HIGH 1069 1.06 1.03 1.03


LOW 761 1.00 0.98 1.00

HIGH 979 1.05 1.02 1.03

28 22-1769-01-1105 (EN)





LOW 779 1.00 0.98 1.00

HIGH 1001 1.05 1.02 1.03


LOW 910 1.02 0.99 1.01

HIGH 1170 1.07 1.04 1.04


LOW 875 1.02 0.99 1.01

HIGH 1125 1.07 1.04 1.04


LOW 875 1.03 0.99 1.02

HIGH 1125 1.08 1.04 1.05


LOW 910 1.02 0.99 1.01

HIGH 1170 1.07 1.04 1.04


LOW 770 1.00 0.98 1.00

HIGH 990 1.05 1.02 1.03


LOW 753 1.00 0.98 1.00

HIGH 968 1.05 1.02 1.03

2CXCC037AC3 NOMINAL 950 1.03 1.01 1.03

LOW 875 1.00 0.98 1.01

HIGH 1125 1.05 1.03 1.04

2CXCC037AC3+*DY100R9V4 NOMINAL 950 1.06 1.03 1.05

LOW 919 1.03 1.00 1.03

HIGH 1181 1.08 1.05 1.06

2CXCC037AC3+*UY100R9V4 NOMINAL 950 1.06 1.03 1.05

LOW 919 1.03 1.00 1.03

HIGH 1181 1.08 1.05 1.06

2TEC3F30A1 NOMINAL 950 1.02 1.02 1.02

LOW 875 0.99 0.99 1.00

HIGH 1125 1.04 1.04 1.03

2TEC3F36A1 NOMINAL 950 1.03 1.02 1.03

LOW 875 1.00 0.99 1.01

HIGH 1125 1.05 1.04 1.04

2TEC3F42A1 NOMINAL 950 1.06 1.04 1.06

LOW 919 1.03 1.01 1.04

HIGH 1181 1.08 1.06 1.07

2TFB3F30B1 NOMINAL 950 1.02 1.02 1.02

LOW 875 0.99 0.99 1.00

HIGH 1125 1.04 1.04 1.03

2TFE3F25B1 NOMINAL 950 1.01 1.00 0.99

LOW 718 0.98 0.98 0.98

HIGH 923 1.03 1.02 0.99

2TGB3F30A1 NOMINAL 950 1.03 1.02 1.02

LOW 875 1.00 0.99 1.00

HIGH 1125 1.05 1.04 1.03

2TGB3F36A1 NOMINAL 950 1.03 1.02 1.02

LOW 875 1.00 0.99 1.00

HIGH 1125 1.05 1.04 1.03


LOW 788 0.91 0.96 0.94

HIGH 1013 0.94 0.99 0.95


LOW 840 0.94 0.97 0.94

HIGH 1080 0.97 1.00 0.95


LOW 823 0.94 0.97 0.94

HIGH 1058 0.97 1.00 0.95


LOW 770 0.93 0.96 0.92

HIGH 990 0.96 0.99 0.93

22-1769-01-1105 (EN) 29



2TTB3030A1





LOW 779 0.93 0.96 0.92

HIGH 1001 0.96 0.99 0.93


LOW 840 0.94 0.98 0.94

HIGH 1080 0.97 1.02 0.95


LOW 840 0.94 0.97 0.94

HIGH 1080 0.97 1.00 0.95


LOW 840 0.94 0.97 0.94

HIGH 1080 0.97 1.00 0.95


LOW 779 0.93 0.96 0.92

HIGH 1001 0.96 0.99 0.93


LOW 753 0.93 0.96 0.92

HIGH 968 0.96 0.99 0.93


LOW 875 1.00 0.98 0.99

HIGH 1125 1.05 1.03 1.02


LOW 831 0.99 0.98 0.99

HIGH 1069 1.04 1.03 1.01


LOW 761 0.98 0.98 0.98

HIGH 979 1.03 1.02 0.99


LOW 779 0.98 0.98 0.98

HIGH 1001 1.03 1.02 0.99


LOW 893 1.00 0.99 0.99

HIGH 1148 1.05 1.04 1.02


LOW 875 1.00 0.98 0.99

HIGH 1125 1.05 1.03 1.02


LOW 875 1.00 0.99 1.00

HIGH 1125 1.05 1.04 1.03


LOW 893 1.00 0.99 0.99

HIGH 1148 1.05 1.04 1.02


LOW 770 0.98 0.98 0.98

HIGH 990 1.03 1.02 0.99


LOW 753 0.98 0.98 0.98

HIGH 968 1.03 1.02 0.99


LOW 875 1.00 0.99 1.01

HIGH 1125 1.05 1.04 1.04


LOW 875 1.02 0.99 1.01

HIGH 1125 1.07 1.04 1.04


LOW 831 1.02 0.99 1.01

HIGH 1069 1.07 1.04 1.04


LOW 761 1.00 0.98 1.00

HIGH 979 1.05 1.02 1.03


LOW 779 1.00 0.98 1.00

HIGH 1001 1.05 1.03 1.03





LOW 910 1.02 1.00 1.01

HIGH 1170 1.07 1.05 1.04


LOW 875 1.02 0.99 1.01

HIGH 1125 1.07 1.04 1.04


LOW 875 1.03 0.99 1.02

HIGH 1125 1.08 1.04 1.05


LOW 919 1.03 1.00 1.02

HIGH 1181 1.08 1.05 1.05


LOW 770 1.00 0.98 1.00

HIGH 990 1.05 1.02 1.03


LOW 753 1.00 0.98 1.00

HIGH 968 1.05 1.02 1.03


LOW 875 0.98 0.98 0.99

HIGH 1125 1.03 1.02 1.02


LOW 875 1.00 0.98 1.00

HIGH 1125 1.05 1.03 1.03


LOW 831 1.00 0.98 0.99

HIGH 1069 1.05 1.02 1.02


LOW 761 0.99 0.98 0.99

HIGH 979 1.04 1.02 1.01


LOW 779 0.99 0.98 0.99

HIGH 1001 1.04 1.02 1.01


LOW 893 1.00 0.98 1.00

HIGH 1148 1.05 1.03 1.03


LOW 875 1.00 0.98 1.00

HIGH 1125 1.05 1.03 1.03


LOW 875 1.01 0.98 1.00

HIGH 1125 1.06 1.03 1.03


LOW 893 1.00 0.98 1.00

HIGH 1148 1.05 1.03 1.03


LOW 770 0.99 0.98 0.99

HIGH 990 1.04 1.02 1.01


LOW 753 0.99 0.97 0.99

HIGH 968 1.04 1.00 1.01


LOW 875 1.02 0.99 1.03

HIGH 1125 1.07 1.04 1.06


LOW 875 1.04 1.00 1.03

HIGH 1125 1.09 1.05 1.06


LOW 831 1.03 0.99 1.03

HIGH 1069 1.08 1.04 1.06


LOW 761 1.02 0.98 1.01

HIGH 979 1.07 1.03 1.04



2TTB3030A1





LOW 779 1.02 0.98 1.01

HIGH 1001 1.07 1.03 1.04


LOW 901 1.04 1.00 1.03

HIGH 1159 1.09 1.05 1.06


LOW 875 1.04 1.00 1.03

HIGH 1125 1.09 1.05 1.06


LOW 875 1.04 1.00 1.03

HIGH 1125 1.09 1.05 1.06


LOW 901 1.04 1.00 1.03

HIGH 1159 1.09 1.05 1.06


LOW 770 1.02 0.98 1.01

HIGH 990 1.07 1.03 1.04


LOW 753 1.02 0.98 1.01

HIGH 968 1.07 1.02 1.04


LOW 875 1.00 0.98 1.01

HIGH 1125 1.05 1.03 1.04


LOW 875 1.02 0.99 1.01

HIGH 1125 1.07 1.04 1.04


LOW 831 1.01 0.98 1.00

HIGH 1069 1.06 1.03 1.03


LOW 761 1.00 0.98 1.00

HIGH 979 1.05 1.02 1.03


LOW 779 1.00 0.98 1.00

HIGH 1001 1.05 1.02 1.03


LOW 910 1.02 0.99 1.01

HIGH 1170 1.07 1.04 1.04


LOW 875 1.02 0.99 1.01

HIGH 1125 1.07 1.04 1.04


LOW 875 1.03 0.99 1.02

HIGH 1125 1.08 1.04 1.05


LOW 910 1.02 0.99 1.01

HIGH 1170 1.07 1.04 1.04


LOW 770 1.00 0.98 1.00

HIGH 990 1.05 1.02 1.03


LOW 753 1.00 0.98 1.00

HIGH 968 1.05 1.02 1.03

2TXCC037AC3 NOMINAL 950 1.03 1.01 1.03

LOW 875 1.00 0.98 1.01

HIGH 1125 1.05 1.03 1.04

2TXCC037AC3+*DY100R9V4 NOMINAL 950 1.06 1.03 1.05

LOW 919 1.03 1.00 1.03

HIGH 1181 1.08 1.05 1.06

2TXCC037AC3+*UY100R9V4 NOMINAL 950 1.06 1.03 1.05

LOW 919 1.03 1.00 1.03

HIGH 1181 1.08 1.05 1.06

30 22-1769-01-1105 (EN)





LOW 875 1.03 1.00 1.04

HIGH 1125 1.08 1.05 1.07

2TXCC037AS3+*DY100R9V4 NOMINAL 950 1.09 1.04 1.07

LOW 928 1.06 1.01 1.05

HIGH 1193 1.11 1.06 1.08

2TXCC037AS3+*UY100R9V4 NOMINAL 950 1.09 1.04 1.07

LOW 919 1.06 1.01 1.05

HIGH 1181 1.11 1.06 1.08


LOW 853 0.98 0.98 0.99

HIGH 1097 1.02 1.03 1.01


LOW 866 0.99 0.98 0.99

HIGH 1114 1.04 1.03 1.01


LOW 840 0.99 0.98 0.99

HIGH 1080 1.04 1.03 1.01


LOW 753 0.98 0.98 0.98

HIGH 968 1.02 1.02 0.99


LOW 770 0.98 0.98 0.98

HIGH 990 1.02 1.02 0.99


LOW 884 0.99 0.99 0.99

HIGH 1136 1.04 1.04 1.01


LOW 884 0.99 0.99 0.99

HIGH 1136 1.04 1.04 1.01


LOW 875 1.00 0.99 0.99

HIGH 1125 1.05 1.04 1.02


LOW 884 0.99 0.99 0.99

HIGH 1136 1.04 1.04 1.01


LOW 761 0.98 0.98 0.98

HIGH 979 1.02 1.02 0.99


LOW 744 0.98 0.98 0.98

HIGH 956 1.02 1.02 0.99


LOW 875 1.00 0.98 1.01

HIGH 1125 1.05 1.03 1.04


LOW 866 1.03 0.99 1.02

HIGH 1114 1.08 1.04 1.05


LOW 840 1.03 0.99 1.02

HIGH 1080 1.08 1.04 1.05


LOW 761 1.01 0.98 1.00

HIGH 979 1.06 1.02 1.03


LOW 779 1.01 0.98 1.00

HIGH 1001 1.06 1.03 1.03


LOW 919 1.03 1.00 1.03

HIGH 1181 1.08 1.05 1.06


LOW 893 1.03 0.99 1.02

HIGH 1148 1.08 1.04 1.05

22-1769-01-1105 (EN) 31



2TTB3030A1





LOW 884 1.03 0.99 1.02

HIGH 1136 1.08 1.04 1.05


LOW 875 1.03 0.99 1.03

HIGH 1125 1.08 1.04 1.06


LOW 893 1.03 0.99 1.02

HIGH 1148 1.08 1.04 1.05


LOW 761 1.00 0.98 1.00

HIGH 979 1.05 1.02 1.03


LOW 744 1.00 0.98 1.00

HIGH 956 1.05 1.02 1.03


LOW 919 1.03 1.00 1.03

HIGH 1181 1.08 1.05 1.06

TWE024P13 NOMINAL 950 1.02 1.02 1.02

LOW 875 0.99 0.99 1.00

HIGH 1125 1.04 1.04 1.03


LOW 849 0.96 0.98 0.97

HIGH 1091 0.99 1.02 0.98

TWE030P13 NOMINAL 950 1.00 1.00 1.00

LOW 866 0.98 0.98 0.99

HIGH 1114 1.02 1.02 1.01

TWE031E13 NOMINAL 950 1.03 1.02 1.01

LOW 893 1.00 0.99 0.99

HIGH 1148 1.05 1.04 1.02


LOW 875 0.99 0.99 1.00

HIGH 1125 1.04 1.04 1.03

TWE036C14+TAYTXVH-3 NOMINAL 950 1.02 1.02 1.02

LOW 875 0.99 0.99 1.00

HIGH 1125 1.04 1.04 1.03

TWE036P13 NOMINAL 950 1.01 1.01 1.01

LOW 875 0.98 0.98 0.99

HIGH 1125 1.03 1.03 1.02

TWE037E13 NOMINAL 950 1.05 1.02 1.03

LOW 866 1.02 0.99 1.01

HIGH 1114 1.07 1.04 1.04

TWE040E13 NOMINAL 950 1.09 1.03 1.07

LOW 875 1.06 1.00 1.05

HIGH 1125 1.11 1.05 1.08


LOW 897 1.01 1.00 1.02

HIGH 1153 1.06 1.05 1.05


LOW 919 1.01 1.00 1.02

HIGH 1181 1.06 1.05 1.05

TWG036A14+TAYTXV-3 NOMINAL 950 1.00 1.01 1.00

LOW 853 0.98 0.98 0.99

HIGH 1097 1.02 1.03 1.01

TWG036A14+TAYTXVH-3 NOMINAL 950 1.00 1.01 1.00

LOW 875 0.98 0.98 0.99

HIGH 1125 1.02 1.03 1.01


LOW 770 0.95 0.97 0.96

HIGH 990 0.98 1.00 0.97


LOW 770 0.98 0.98 0.97

HIGH 990 1.02 1.02 0.98





LOW 858 0.97 0.98 0.98

HIGH 1103 1.00 1.02 0.99


LOW 853 0.98 0.98 0.99

HIGH 1097 1.02 1.03 1.01


LOW 875 0.98 0.98 0.99

HIGH 1125 1.02 1.03 1.01


LOW 858 0.97 0.98 0.98

HIGH 1103 1.00 1.02 0.99


LOW 875 1.00 0.98 1.00

HIGH 1125 1.05 1.03 1.03


LOW 875 1.00 0.98 1.00

HIGH 1125 1.05 1.03 1.03


LOW 858 0.97 0.98 0.98

HIGH 1103 1.00 1.02 0.99


LOW 858 0.97 0.98 0.98

HIGH 1103 1.00 1.02 0.99


LOW 853 0.98 0.98 0.99

HIGH 1097 1.02 1.03 1.01


LOW 875 0.98 0.98 0.99

HIGH 1125 1.02 1.03 1.01


LOW 853 0.98 0.98 0.99

HIGH 1097 1.02 1.02 1.01


LOW 875 0.98 0.98 0.99

HIGH 1125 1.02 1.02 1.01

TXC031S3 NOMINAL 950 1.03 1.02 1.03

LOW 875 1.00 0.99 1.01

HIGH 1125 1.05 1.04 1.04


LOW 875 1.02 0.99 1.01

HIGH 1125 1.07 1.04 1.04


LOW 831 1.02 0.99 1.01

HIGH 1069 1.07 1.04 1.04


LOW 761 1.00 0.98 1.00

HIGH 979 1.05 1.02 1.03


LOW 779 1.00 0.98 1.00

HIGH 1001 1.05 1.03 1.03


LOW 910 1.02 1.00 1.01

HIGH 1170 1.07 1.05 1.04


LOW 875 1.02 0.99 1.01

HIGH 1125 1.07 1.04 1.04


LOW 875 1.03 0.99 1.02

HIGH 1125 1.08 1.04 1.05


LOW 919 1.03 1.00 1.02

HIGH 1181 1.08 1.05 1.05



2TTB3030A1





LOW 770 1.00 0.98 1.00

HIGH 990 1.05 1.02 1.03


LOW 753 1.00 0.98 1.00

HIGH 968 1.05 1.02 1.03


LOW 858 0.97 0.98 0.98

HIGH 1103 1.00 1.02 0.99


LOW 858 0.97 0.98 0.98

HIGH 1103 1.00 1.02 0.99


LOW 875 1.00 0.98 1.00

HIGH 1125 1.05 1.03 1.03


LOW 875 1.00 0.98 1.00

HIGH 1125 1.05 1.03 1.03


LOW 875 0.98 0.98 0.99

HIGH 1125 1.03 1.03 1.02


LOW 875 0.98 0.98 0.99

HIGH 1125 1.03 1.03 1.02

TXC036S3 NOMINAL 950 1.05 1.02 1.05

LOW 875 1.02 0.99 1.03

HIGH 1125 1.07 1.04 1.06


LOW 875 1.04 1.00 1.03

HIGH 1125 1.09 1.05 1.06


LOW 831 1.03 0.99 1.03

HIGH 1069 1.08 1.04 1.06


LOW 761 1.02 0.98 1.01

HIGH 979 1.07 1.03 1.04


LOW 779 1.02 0.98 1.01

HIGH 1001 1.07 1.03 1.04


LOW 901 1.04 1.00 1.03

HIGH 1159 1.09 1.05 1.06


LOW 875 1.04 1.00 1.03

HIGH 1125 1.09 1.05 1.06


LOW 875 1.04 1.00 1.03

HIGH 1125 1.09 1.05 1.06


LOW 901 1.04 1.00 1.03

HIGH 1159 1.09 1.05 1.06


LOW 770 1.02 0.98 1.01

HIGH 990 1.07 1.03 1.04


LOW 753 1.02 0.98 1.01

HIGH 968 1.07 1.02 1.04

TXC037S3 NOMINAL 950 1.06 1.03 1.06

LOW 875 1.03 1.00 1.04

HIGH 1125 1.08 1.05 1.07


LOW 928 1.06 1.01 1.05

HIGH 1193 1.11 1.06 1.08

32 22-1769-01-1105 (EN)





LOW 919 1.06 1.01 1.05

HIGH 1181 1.11 1.06 1.08


LOW 853 0.98 0.98 0.99

HIGH 1097 1.02 1.03 1.01


LOW 866 0.99 0.98 0.99

HIGH 1114 1.04 1.03 1.01


LOW 840 0.99 0.98 0.99

HIGH 1080 1.04 1.03 1.01


LOW 753 0.98 0.98 0.98

HIGH 968 1.02 1.02 0.99


LOW 884 0.99 0.99 0.99

HIGH 1136 1.04 1.04 1.01


LOW 884 0.99 0.99 0.99

HIGH 1136 1.04 1.04 1.01


LOW 875 1.00 0.99 0.99

HIGH 1125 1.05 1.04 1.02


LOW 884 0.99 0.99 0.99

HIGH 1136 1.04 1.04 1.01


LOW 761 0.98 0.98 0.98

HIGH 979 1.02 1.02 0.99


LOW 875 0.98 0.98 0.99

HIGH 1125 1.02 1.03 1.01


LOW 875 1.00 0.98 1.01

HIGH 1125 1.05 1.03 1.04

22-1769-01-1105 (EN) 33



2TTB3030A1





LOW 866 1.03 0.99 1.02

HIGH 1114 1.08 1.04 1.05


LOW 840 1.03 0.99 1.02

HIGH 1080 1.08 1.04 1.05


LOW 761 1.01 0.98 1.00

HIGH 979 1.06 1.02 1.03


LOW 779 1.00 0.98 1.00

HIGH 1001 1.05 1.02 1.03


LOW 893 1.03 0.99 1.02

HIGH 1148 1.08 1.04 1.05


LOW 884 1.03 0.99 1.02

HIGH 1136 1.08 1.04 1.05


LOW 875 1.03 0.99 1.03

HIGH 1125 1.08 1.04 1.06


LOW 893 1.03 0.99 1.02

HIGH 1148 1.08 1.04 1.05


LOW 761 1.01 0.98 1.00

HIGH 979 1.06 1.02 1.03


LOW 744 1.01 0.98 1.00

HIGH 956 1.06 1.02 1.03


LOW 875 1.00 0.98 1.01

HIGH 1125 1.05 1.03 1.04


O.D. I.D. TOT. SENS. CAP. AT ENTERING D.B. TEMP. TOTAL

D.B. W.B. CAP. 72 75 78 80 KW

59 30.9 20.1 24.1 28.1 30.8 2.70

85 63 32.2 18.4 22.2 25.8 28.2 2.71

67 34.7 15.9 19.1 22.3 24.4 2.76

71 37.5 13.2 15.8 18.5 20.2 2.78

59 29.7 19.5 23.5 27.4 29.7 2.97

95 63 30.9 17.9 21.5 25.1 27.4 2.99

67 33.4 15.4 18.6 21.7 23.7 3.04

71 36.0 12.8 15.4 18.0 19.6 3.06

59 28.5 18.9 22.8 26.5 28.5 3.24

105 63 29.7 17.4 20.9 24.3 26.6 3.26

67 32.0 15.0 18.0 21.0 23.0 3.31

71 34.6 12.4 14.9 17.4 19.0 3.34

59 27.3 18.3 22.0 25.7 27.3 3.51

115 63 28.5 16.8 20.2 23.6 25.8 3.53

67 30.7 14.5 17.4 20.3 22.2 3.59

71 33.1 12.0 14.5 16.9 18.4 3.62



LOW 1050 0.98 0.98

HIGH 1350 1.02 1.02








LOW 1050 0.97 0.98 0.98

HIGH 1350 1.00 1.02 0.99


LOW 1068 0.98 0.98 0.97

HIGH 1373 1.02 1.02 0.98


LOW 989 0.97 0.98 0.96

HIGH 1271 1.00 1.02 0.97


LOW 954 0.97 0.98 0.96

HIGH 1226 1.00 1.02 0.97


LOW 963 0.96 0.97 0.96

HIGH 1238 0.99 1.00 0.97


LOW 1050 0.98 0.98 0.97

HIGH 1350 1.02 1.02 0.98


LOW 1050 0.98 0.98 0.97

HIGH 1350 1.02 1.02 0.98


LOW 1033 0.98 0.98 0.97

HIGH 1328 1.02 1.02 0.98


LOW 1094 0.98 0.98 0.97

HIGH 1406 1.02 1.03 0.98


LOW 945 0.96 0.97 0.96

HIGH 1215 0.99 1.00 0.97


LOW 901 0.96 0.97 0.96

HIGH 1159 0.99 1.00 0.97







LOW 1050 0.98 0.98 0.99

HIGH 1350 1.03 1.03 1.01


LOW 1068 0.98 0.98 0.99

HIGH 1373 1.03 1.03 1.01


LOW 989 0.98 0.98 0.98

HIGH 1271 1.03 1.02 0.99


LOW 954 0.98 0.98 0.97

HIGH 1226 1.02 1.02 0.98


LOW 963 0.98 0.98 0.97

HIGH 1238 1.02 1.02 0.98


LOW 1050 0.98 0.98 0.99

HIGH 1350 1.03 1.03 1.01


LOW 1050 0.98 0.98 0.99

HIGH 1350 1.03 1.03 1.01


LOW 1033 0.99 0.98 0.99

HIGH 1328 1.04 1.03 1.01


LOW 1094 0.98 0.99 0.99

HIGH 1406 1.03 1.04 1.01


LOW 945 0.98 0.98 0.97

HIGH 1215 1.02 1.02 0.98


LOW 901 0.98 0.98 0.97

HIGH 1159 1.02 1.02 0.98


LOW 1050 0.99 0.98 1.00

HIGH 1350 1.04 1.03 1.03


LOW 1068 1.00 0.99 0.99

HIGH 1373 1.05 1.04 1.02


LOW 989 0.99 0.98 0.99

HIGH 1271 1.04 1.03 1.01


LOW 954 0.99 0.98 0.99

HIGH 1226 1.04 1.03 1.01


LOW 963 0.98 0.98 0.99

HIGH 1238 1.03 1.03 1.01


LOW 1050 0.99 0.99 0.99

HIGH 1350 1.04 1.04 1.01


LOW 1050 0.99 0.99 0.99

HIGH 1350 1.04 1.04 1.01


LOW 1033 1.00 0.99 0.99

HIGH 1328 1.05 1.04 1.02


LOW 1094 0.99 0.99 0.99

HIGH 1406 1.04 1.04 1.01


LOW 945 0.98 0.98 0.99

HIGH 1215 1.03 1.02 1.01

34 22-1769-01-1105 (EN)





LOW 901 0.98 0.98 0.99

HIGH 1159 1.03 1.02 1.01


LOW 1050 0.98 0.98 0.99

HIGH 1350 1.03 1.03 1.01


LOW 919 0.98 0.98 0.98

HIGH 1181 1.03 1.02 0.99


LOW 919 0.98 0.98 0.98

HIGH 1181 1.03 1.02 0.99


LOW 1050 0.98 0.98 0.99

HIGH 1350 1.03 1.03 1.01


LOW 919 0.98 0.98 0.97

HIGH 1181 1.02 1.02 0.98


LOW 919 0.98 0.98 0.98

HIGH 1181 1.03 1.02 0.99


LOW 1050 0.97 0.98 0.98

HIGH 1350 1.00 1.02 0.99


LOW 1068 0.98 0.98 0.97

HIGH 1373 1.02 1.02 0.98


LOW 989 0.97 0.98 0.96

HIGH 1271 1.00 1.02 0.97


LOW 954 0.97 0.98 0.96

HIGH 1226 1.00 1.02 0.97


LOW 963 0.96 0.97 0.96

HIGH 1238 0.99 1.00 0.97


LOW 1050 0.98 0.98 0.97

HIGH 1350 1.02 1.02 0.98


LOW 1050 0.98 0.98 0.97

HIGH 1350 1.02 1.02 0.98


LOW 1033 0.98 0.98 0.97

HIGH 1328 1.02 1.02 0.98


LOW 1094 0.98 0.98 0.97

HIGH 1406 1.02 1.03 0.98


LOW 945 0.96 0.97 0.96

HIGH 1215 0.99 1.00 0.97


LOW 901 0.96 0.97 0.96

HIGH 1159 0.99 1.00 0.97


LOW 1050 0.98 0.98 0.99

HIGH 1350 1.03 1.03 1.01


LOW 1068 0.98 0.98 0.99

HIGH 1373 1.03 1.03 1.01


LOW 989 0.98 0.98 0.98

HIGH 1271 1.03 1.02 0.99

22-1769-01-1105 (EN) 35



2TTB3036A1





LOW 954 0.98 0.98 0.97

HIGH 1226 1.02 1.02 0.98


LOW 963 0.98 0.98 0.97

HIGH 1238 1.02 1.02 0.98


LOW 1050 0.98 0.98 0.99

HIGH 1350 1.03 1.03 1.01


LOW 1050 0.98 0.98 0.99

HIGH 1350 1.03 1.03 1.01


LOW 1033 0.99 0.98 0.99

HIGH 1328 1.04 1.03 1.01


LOW 1094 0.98 0.99 0.99

HIGH 1406 1.03 1.04 1.01


LOW 945 0.98 0.98 0.97

HIGH 1215 1.02 1.02 0.98


LOW 901 0.98 0.98 0.97

HIGH 1159 1.02 1.02 0.98


LOW 1050 0.99 0.98 1.00

HIGH 1350 1.04 1.03 1.03


LOW 1068 1.00 0.99 0.99

HIGH 1373 1.05 1.04 1.02


LOW 989 0.99 0.98 0.99

HIGH 1271 1.04 1.03 1.01


LOW 954 0.99 0.98 0.99

HIGH 1226 1.04 1.03 1.01


LOW 963 0.98 0.98 0.99

HIGH 1238 1.03 1.03 1.01


LOW 1050 0.99 0.99 0.99

HIGH 1350 1.04 1.04 1.01


LOW 1050 0.99 0.99 0.99

HIGH 1350 1.04 1.04 1.01


LOW 1033 1.00 0.99 0.99

HIGH 1328 1.05 1.04 1.02


LOW 1094 0.99 0.99 0.99

HIGH 1406 1.04 1.04 1.01


LOW 945 0.98 0.98 0.99

HIGH 1215 1.03 1.02 1.01


LOW 901 0.98 0.98 0.99

HIGH 1159 1.03 1.02 1.01


LOW 1050 0.98 0.98 0.99

HIGH 1350 1.03 1.03 1.01


LOW 919 0.98 0.98 0.98

HIGH 1181 1.03 1.02 0.99





LOW 919 0.98 0.98 0.98

HIGH 1181 1.03 1.02 0.99


LOW 1050 0.98 0.98 0.99

HIGH 1350 1.03 1.03 1.01


LOW 919 0.98 0.98 0.97

HIGH 1181 1.02 1.02 0.98


LOW 919 0.98 0.98 0.98

HIGH 1181 1.03 1.02 0.99

2TEC3F36A1 NOMINAL 1200 1.00 1.01 1.00

LOW 1050 0.98 0.98 0.99

HIGH 1350 1.02 1.03 1.01

2TEC3F42A1 NOMINAL 1200 1.03 1.03 1.03

LOW 1050 1.00 1.00 1.01

HIGH 1350 1.05 1.05 1.04

2TEC3F48A1 NOMINAL 1200 1.05 1.03 1.05

LOW 1120 1.02 1.00 1.03

HIGH 1440 1.07 1.05 1.06

2TFE3F25B1 NOMINAL 1200 0.98 1.00 0.96

LOW 901 0.96 0.98 0.95

HIGH 1159 0.99 1.02 0.96

2TGB3F36A1 NOMINAL 1200 1.00 1.02 1.00

LOW 1050 0.98 0.99 0.99

HIGH 1350 1.02 1.04 1.01

2TGB3F42A1 NOMINAL 1200 1.03 1.03 1.03

LOW 1050 1.00 1.00 1.01

HIGH 1350 1.05 1.05 1.04

2TGB3F48A1 NOMINAL 1200 1.03 1.02 1.03

LOW 1050 1.00 0.99 1.01

HIGH 1350 1.05 1.04 1.04


LOW 1068 0.98 0.98 0.97

HIGH 1373 1.02 1.02 0.98


LOW 989 0.97 0.98 0.96

HIGH 1271 1.00 1.02 0.97


LOW 954 0.97 0.98 0.96

HIGH 1226 1.00 1.02 0.97


LOW 963 0.96 0.97 0.96

HIGH 1238 0.99 1.00 0.97


LOW 1050 0.98 0.98 0.97

HIGH 1350 1.02 1.02 0.98


LOW 1050 0.98 0.98 0.97

HIGH 1350 1.02 1.02 0.98


LOW 1033 0.98 0.98 0.97

HIGH 1328 1.02 1.02 0.98


LOW 1094 0.98 0.98 0.97

HIGH 1406 1.02 1.03 0.98


LOW 945 0.96 0.97 0.96

HIGH 1215 0.99 1.00 0.97


LOW 901 0.96 0.97 0.96

HIGH 1159 0.99 1.00 0.97







LOW 1050 0.99 0.98 1.00

HIGH 1350 1.04 1.03 1.03


LOW 1068 1.00 0.99 0.99

HIGH 1373 1.05 1.04 1.02


LOW 989 0.99 0.98 0.99

HIGH 1271 1.04 1.03 1.01


LOW 954 0.99 0.98 0.99

HIGH 1226 1.04 1.03 1.01


LOW 963 0.98 0.98 0.99

HIGH 1238 1.03 1.03 1.01


LOW 1050 0.99 0.99 0.99

HIGH 1350 1.04 1.04 1.01


LOW 1050 1.00 0.99 0.99

HIGH 1350 1.05 1.04 1.02


LOW 1033 1.01 0.99 1.00

HIGH 1328 1.06 1.04 1.03


LOW 1094 0.99 0.99 0.99

HIGH 1406 1.04 1.04 1.01


LOW 945 0.99 0.98 0.99

HIGH 1215 1.04 1.03 1.01


LOW 901 0.98 0.98 0.99

HIGH 1159 1.03 1.02 1.01


LOW 1050 0.98 0.98 0.99

HIGH 1350 1.03 1.03 1.01


LOW 1068 0.98 0.98 0.99

HIGH 1373 1.03 1.03 1.01


LOW 989 0.98 0.98 0.98

HIGH 1271 1.03 1.02 0.99


LOW 954 0.98 0.98 0.97

HIGH 1226 1.02 1.02 0.98


LOW 963 0.98 0.98 0.97

HIGH 1238 1.02 1.02 0.98


LOW 1050 0.98 0.98 0.99

HIGH 1350 1.03 1.03 1.01


LOW 1050 0.98 0.98 0.99

HIGH 1350 1.03 1.03 1.01


LOW 1033 0.99 0.98 0.99

HIGH 1328 1.04 1.03 1.01


LOW 1094 0.98 0.99 0.99

HIGH 1406 1.03 1.04 1.01


LOW 945 0.98 0.98 0.97

HIGH 1215 1.02 1.02 0.98

36 22-1769-01-1105 (EN)





LOW 901 0.98 0.98 0.97

HIGH 1159 1.02 1.02 0.98


LOW 1050 0.99 0.98 1.00

HIGH 1350 1.04 1.03 1.03


LOW 1068 1.00 0.99 0.99

HIGH 1373 1.05 1.04 1.02


LOW 989 0.99 0.98 0.99

HIGH 1271 1.04 1.03 1.01


LOW 954 0.99 0.98 0.99

HIGH 1226 1.04 1.03 1.01


LOW 963 0.98 0.98 0.99

HIGH 1238 1.03 1.03 1.01


LOW 1050 0.99 0.99 0.99

HIGH 1350 1.04 1.04 1.01


LOW 1050 0.99 0.99 0.99

HIGH 1350 1.04 1.04 1.01


LOW 1033 1.00 0.99 0.99

HIGH 1328 1.05 1.04 1.02


LOW 1094 0.99 0.99 0.99

HIGH 1406 1.04 1.04 1.01


LOW 945 0.98 0.98 0.99

HIGH 1215 1.03 1.02 1.01


LOW 901 0.98 0.98 0.99

HIGH 1159 1.03 1.02 1.01


LOW 1050 0.98 0.98 0.99

HIGH 1350 1.03 1.03 1.01


LOW 919 0.98 0.98 0.98

HIGH 1181 1.03 1.02 0.99


LOW 919 0.98 0.98 0.98

HIGH 1181 1.03 1.02 0.99


LOW 1050 1.00 0.99 1.01

HIGH 1350 1.05 1.04 1.04


LOW 919 0.99 0.98 0.99

HIGH 1181 1.04 1.03 1.01


LOW 1050 0.98 0.98 0.99

HIGH 1350 1.03 1.03 1.01


LOW 919 0.98 0.98 0.97

HIGH 1181 1.02 1.02 0.98


LOW 1050 0.98 0.98 0.99

HIGH 1350 1.03 1.03 1.02


LOW 919 0.98 0.98 0.98

HIGH 1181 1.03 1.02 0.99

22-1769-01-1105 (EN) 37







LOW 1050 0.93 0.98 0.94

HIGH 1350 0.96 1.02 0.95


LOW 1059 0.95 0.98 0.94

HIGH 1361 0.98 1.03 0.95


LOW 989 0.95 0.98 0.94

HIGH 1271 0.98 1.02 0.95


LOW 936 0.94 0.98 0.93

HIGH 1204 0.97 1.02 0.94


LOW 971 0.94 0.98 0.93

HIGH 1249 0.97 1.02 0.94


LOW 919 0.94 0.98 0.93

HIGH 1181 0.97 1.02 0.94


LOW 1059 0.95 0.98 0.94

HIGH 1361 0.98 1.03 0.95


LOW 1050 0.95 0.98 0.94

HIGH 1350 0.98 1.03 0.95


LOW 1033 0.96 0.98 0.95

HIGH 1328 0.99 1.03 0.96


LOW 936 0.94 0.98 0.93

HIGH 1204 0.97 1.02 0.94


LOW 901 0.93 0.97 0.93

HIGH 1159 0.96 1.00 0.94


LOW 1050 0.98 0.98 0.99

HIGH 1350 1.03 1.03 1.01


LOW 1059 0.99 0.99 0.99

HIGH 1361 1.04 1.04 1.01


LOW 998 0.99 0.98 0.99

HIGH 1283 1.04 1.03 1.01


LOW 936 0.98 0.98 0.98

HIGH 1204 1.03 1.02 0.99


LOW 971 0.98 0.98 0.98

HIGH 1249 1.03 1.02 0.99


LOW 928 0.98 0.98 0.98

HIGH 1193 1.03 1.02 0.99


LOW 1059 0.99 0.98 0.99

HIGH 1361 1.04 1.03 1.01


LOW 1050 0.99 0.98 0.99

HIGH 1350 1.04 1.03 1.01


LOW 1033 0.99 0.98 0.99

HIGH 1328 1.04 1.03 1.01


LOW 1076 0.99 0.99 0.99

HIGH 1384 1.04 1.04 1.01





LOW 928 0.98 0.98 0.98

HIGH 1193 1.03 1.02 0.99


LOW 901 0.98 0.98 0.98

HIGH 1159 1.03 1.02 0.99

TWE030P13 NOMINAL 1200 0.95 0.99 0.95

LOW 919 0.93 0.97 0.94

HIGH 1181 0.96 1.00 0.95

TWE031E13 NOMINAL 1200 0.98 1.01 0.97

LOW 1068 0.96 0.98 0.96

HIGH 1373 0.99 1.03 0.97


LOW 1050 0.97 0.98 0.98

HIGH 1350 1.00 1.03 0.99


LOW 1050 0.97 0.98 0.98

HIGH 1350 1.00 1.03 0.99

TWE036P13 NOMINAL 1200 0.98 1.00 0.98

LOW 1050 0.96 0.98 0.97

HIGH 1350 0.99 1.02 0.98

TWE037E13 NOMINAL 1200 1.01 1.01 0.99

LOW 1015 0.98 0.98 0.98

HIGH 1305 1.03 1.03 0.99

TWE040E13 NOMINAL 1200 1.06 1.03 1.04

LOW 1050 1.03 1.00 1.02

HIGH 1350 1.08 1.05 1.05


LOW 1006 0.98 0.98 0.99

HIGH 1294 1.02 1.03 1.01


LOW 1006 0.98 0.98 0.99

HIGH 1294 1.02 1.03 1.01

TWE042P13 NOMINAL 1200 1.00 1.01 1.00

LOW 1050 0.98 0.98 0.99

HIGH 1350 1.02 1.03 1.01

TWE049E13 NOMINAL 1200 1.06 1.02 1.04

LOW 1050 1.03 0.99 1.02

HIGH 1350 1.08 1.04 1.05


LOW 1050 0.93 0.97 0.94

HIGH 1350 0.96 1.00 0.95


LOW 1050 0.98 0.98 0.99

HIGH 1350 1.02 1.03 1.01


LOW 1050 0.98 0.98 0.99

HIGH 1350 1.02 1.03 1.01


LOW 1050 0.96 0.98 0.97

HIGH 1350 0.99 1.02 0.98


LOW 1050 0.96 0.98 0.97

HIGH 1350 0.99 1.02 0.98


LOW 1050 0.98 0.98 0.99

HIGH 1350 1.02 1.02 1.01


LOW 1050 0.98 0.98 0.99

HIGH 1350 1.02 1.02 1.01


LOW 1050 0.97 0.98 0.98

HIGH 1350 1.00 1.02 0.99







LOW 1050 0.97 0.98 0.98

HIGH 1350 1.00 1.02 0.99


LOW 963 0.94 0.97 0.95

HIGH 1238 0.97 1.00 0.96


LOW 963 0.94 0.97 0.95

HIGH 1238 0.97 1.00 0.96


LOW 963 0.93 0.97 0.94

HIGH 1238 0.96 1.00 0.95


LOW 963 0.93 0.97 0.94

HIGH 1238 0.96 1.00 0.95


LOW 1050 0.98 0.98 0.99

HIGH 1350 1.02 1.03 1.01


LOW 1050 0.98 0.98 0.99

HIGH 1350 1.02 1.03 1.01


LOW 1050 0.96 0.98 0.97

HIGH 1350 0.99 1.02 0.98


LOW 1050 0.96 0.98 0.97

HIGH 1350 0.99 1.02 0.98

TXC036S3 NOMINAL 1200 1.02 1.01 1.02

LOW 1050 0.99 0.98 1.00

HIGH 1350 1.04 1.03 1.03


LOW 1068 1.00 0.99 0.99

HIGH 1373 1.05 1.04 1.02


LOW 989 0.99 0.98 0.99

HIGH 1271 1.04 1.03 1.01


LOW 954 0.99 0.98 0.99

HIGH 1226 1.04 1.03 1.01


LOW 963 0.98 0.98 0.99

HIGH 1238 1.03 1.03 1.01


LOW 1050 0.99 0.99 0.99

HIGH 1350 1.04 1.04 1.01


LOW 1050 1.00 0.99 0.99

HIGH 1350 1.05 1.04 1.02


LOW 1033 1.01 0.99 1.00

HIGH 1328 1.06 1.04 1.03


LOW 1094 0.99 0.99 0.99

HIGH 1406 1.04 1.04 1.01


LOW 945 0.99 0.98 0.99

HIGH 1215 1.04 1.03 1.01


LOW 901 0.98 0.98 0.99

HIGH 1159 1.03 1.02 1.01


LOW 1050 0.96 0.98 0.97

HIGH 1350 0.99 1.02 0.98

38 22-1769-01-1105 (EN)





LOW 1050 0.96 0.98 0.97

HIGH 1350 0.99 1.02 0.98

TXC037S3 NOMINAL 1200 1.03 1.02 1.03

LOW 1050 1.00 0.99 1.01

HIGH 1350 1.05 1.04 1.04


LOW 919 0.99 0.98 0.99

HIGH 1181 1.04 1.03 1.01


LOW 1050 0.98 0.98 0.99

HIGH 1350 1.02 1.02 1.01


LOW 1050 0.98 0.98 0.99

HIGH 1350 1.02 1.02 1.01


LOW 1050 0.97 0.98 0.98

HIGH 1350 1.00 1.02 0.99


LOW 1050 0.97 0.98 0.98

HIGH 1350 1.00 1.02 0.99

TXC054S3 NOMINAL 1200 1.01 1.01 1.01

LOW 1050 0.98 0.98 0.99

HIGH 1350 1.03 1.03 1.02


LOW 919 0.98 0.98 0.98

HIGH 1181 1.03 1.02 0.99


LOW 1050 0.93 0.98 0.94

HIGH 1350 0.96 1.02 0.95


LOW 1059 0.95 0.98 0.94

HIGH 1361 0.98 1.03 0.95


LOW 989 0.95 0.98 0.94

HIGH 1271 0.98 1.02 0.95

22-1769-01-1105 (EN) 39







LOW 1033 0.96 0.98 0.95

HIGH 1328 0.99 1.03 0.96


LOW 936 0.94 0.98 0.93

HIGH 1204 0.97 1.02 0.94


LOW 971 0.94 0.98 0.93

HIGH 1249 0.97 1.02 0.94


LOW 919 0.94 0.98 0.93

HIGH 1181 0.97 1.02 0.94


LOW 1059 0.95 0.98 0.94

HIGH 1361 0.98 1.03 0.95


LOW 1050 0.95 0.98 0.94

HIGH 1350 0.98 1.03 0.95


LOW 1033 0.96 0.98 0.95

HIGH 1328 0.99 1.03 0.96


LOW 1059 0.96 0.98 0.95

HIGH 1361 0.99 1.03 0.96


LOW 936 0.94 0.98 0.93

HIGH 1204 0.97 1.02 0.94


LOW 901 0.94 0.97 0.93

HIGH 1159 0.97 1.00 0.94


LOW 1050 0.98 0.98 0.99

HIGH 1350 1.03 1.03 1.01


LOW 1059 0.99 0.99 0.99

HIGH 1361 1.04 1.04 1.01


O.D.

D.B.

I.D.

W.B.

TOT.

CAP.


72 75 78 80

TOTAL

KW

59 37.6 23.2 27.8 32.5 35.5 3.33

85 63 39.2 21.3 25.6 29.8 32.6 3.35

67 42.3 18.3 22 25.7 28.1 3.40

71 45.7 15.2 18.3 21.3 23.3 3.43

59 35.6 22.4 26.9 31.4 34.3 3.55

95 63 37.1 20.5 24.7 28.8 31.5 3.58

67 40.0 17.7 21.3 24.8 27.2 3.64

71 43.1 14.7 17.7 20.6 22.5 3.67

59 33.5 21.5 25.9 30.2 33.0 3.78

105 63 34.9 19.8 23.8 27.7 30.3 3.81

67 37.6 17.1 20.5 23.9 26.1 3.87

71 40.6 14.1 17.0 19.8 21.7 3.91

59 31.4 20.7 24.8 29.0 31.4 4.01

115 63 32.7 18.9 22.8 26.6 29.0 4.04

67 35.3 16.3 19.7 22.9 25.1 4.10

71 38.1 13.6 16.3 19.0 20.8 4.14



LOW 1050 0.98 0.98

HIGH 1350 1.02 1.02








LOW 1094 0.94 0.98 0.95

HIGH 1406 0.97 1.02 0.96


LOW 1225 0.96 0.98 0.95

HIGH 1575 0.99 1.03 0.96


LOW 1068 0.95 0.98 0.96

HIGH 1373 0.98 1.02 0.97


LOW 1225 0.98 0.99 0.98

HIGH 1575 1.03 1.04 0.99


LOW 1225 0.96 0.99 0.97

HIGH 1575 0.99 1.04 0.98


LOW 1076 0.95 0.98 0.94

HIGH 1384 0.98 1.02 0.95


LOW 1068 0.95 0.98 0.94

HIGH 1373 0.98 1.02 0.95


LOW 1225 0.98 0.99 0.99

HIGH 1575 1.02 1.04 1.01


LOW 1076 0.96 0.98 0.95

HIGH 1384 0.99 1.02 0.96


LOW 1068 0.96 0.98 0.95

HIGH 1373 0.99 1.02 0.96

2CXAD050AC3 NOMINAL 1200 1.00 1.02 1.00

LOW 1225 0.98 0.99 0.99

HIGH 1575 1.02 1.04 1.01






2CXAD050AC3+*DD120R9V5 NOMINAL 1200 1.01 1.02 0.99

LOW 1234 0.98 0.99 0.98

HIGH 1586 1.03 1.04 0.99

2CXAD050AC3+*DY120R9V5 NOMINAL 1200 0.98 1.00 0.96

LOW 1068 0.96 0.98 0.95

HIGH 1373 0.99 1.02 0.96

2CXAD050AC3+*UD120R9V5 NOMINAL 1200 1.01 1.02 0.99

LOW 1216 0.98 0.99 0.98

HIGH 1564 1.03 1.04 0.99


LOW 1208 0.98 0.99 0.98

HIGH 1553 1.03 1.04 0.99

2CXAD050AC3+*UY120R9V5 NOMINAL 1200 0.98 1.00 0.96

LOW 1059 0.96 0.98 0.95

HIGH 1361 0.99 1.02 0.96


LOW 1094 0.94 0.98 0.95

HIGH 1406 0.97 1.02 0.96


LOW 1225 0.96 0.98 0.95

HIGH 1575 0.99 1.03 0.96


LOW 1068 0.95 0.98 0.96

HIGH 1373 0.98 1.02 0.97


LOW 1225 0.98 0.99 0.98

HIGH 1575 1.03 1.04 0.99


LOW 1225 0.96 0.99 0.97

HIGH 1575 0.99 1.04 0.98


LOW 1076 0.95 0.98 0.94

HIGH 1384 0.98 1.02 0.95


LOW 1068 0.95 0.98 0.94

HIGH 1373 0.98 1.02 0.95


LOW 1225 0.98 0.99 0.99

HIGH 1575 1.02 1.04 1.01


LOW 1076 0.96 0.98 0.95

HIGH 1384 0.99 1.02 0.96


LOW 1068 0.96 0.98 0.95

HIGH 1373 0.99 1.02 0.96

2CXCD050AC3 NOMINAL 1200 1.00 1.02 1.00

LOW 1225 0.98 0.99 0.99

HIGH 1575 1.02 1.04 1.01

2CXCD050AC3+*DD120R9V5 NOMINAL 1200 1.01 1.02 0.99

LOW 1234 0.98 0.99 0.98

HIGH 1586 1.03 1.04 0.99

2CXCD050AC3+*DY120R9V5 NOMINAL 1200 0.98 1.00 0.96

LOW 1068 0.96 0.98 0.95

HIGH 1373 0.99 1.02 0.96

2CXCD050AC3+*UD120R9V5 NOMINAL 1200 1.01 1.02 0.99

LOW 1216 0.98 0.99 0.98

HIGH 1564 1.03 1.04 0.99


LOW 1208 0.98 0.99 0.98

HIGH 1553 1.03 1.04 0.99

2CXCD050AC3+*UY120R9V5 NOMINAL 1200 0.98 1.00 0.96

LOW 1059 0.96 0.98 0.95

HIGH 1361 0.99 1.02 0.96

40 22-1769-01-1105 (EN)




2TEC3F42A1 NOMINAL 1200 1.01 1.03 1.01

LOW 1225 0.98 1.00 0.99

HIGH 1575 1.03 1.05 1.02

2TEC3F48A1 NOMINAL 1200 1.02 1.03 1.02

LOW 1225 0.99 1.00 1.00

HIGH 1575 1.04 1.05 1.03

2TEP3F48B1 NOMINAL 1200 1.02 1.03 1.02

LOW 1225 0.99 1.00 1.00

HIGH 1575 1.04 1.05 1.03

2TEP3F63B1 NOMINAL 1200 1.01 1.03 1.01

LOW 1313 0.98 1.00 0.99

HIGH 1688 1.03 1.05 1.02

2TGB3F42A1 NOMINAL 1200 1.01 1.03 1.01

LOW 1225 0.98 1.00 0.99

HIGH 1575 1.03 1.05 1.02

2TGB3F48A1 NOMINAL 1200 1.02 1.03 1.02

LOW 1260 0.99 1.00 1.00

HIGH 1620 1.04 1.05 1.03


LOW 1120 0.96 0.98 0.97

HIGH 1440 0.99 1.03 0.98


LOW 1225 0.98 0.99 0.98

HIGH 1575 1.03 1.04 0.99


LOW 1225 0.96 0.98 0.95

HIGH 1575 0.99 1.03 0.96


LOW 1068 0.95 0.98 0.96

HIGH 1373 0.98 1.02 0.97


LOW 1225 0.98 0.99 0.98

HIGH 1575 1.03 1.04 0.99


LOW 1225 0.98 1.00 0.99

HIGH 1575 1.03 1.05 1.02

2TXCC037AS3+*DD100R9V5 NOMINAL 1200 1.02 1.03 1.00

LOW 1234 0.99 1.00 0.99

HIGH 1586 1.04 1.05 1.01


LOW 1076 0.98 0.98 0.97

HIGH 1384 1.02 1.03 0.98


LOW 1068 0.98 0.98 0.98

HIGH 1373 1.03 1.03 0.99


LOW 1225 0.96 0.99 0.97

HIGH 1575 0.99 1.04 0.98


LOW 1076 0.95 0.98 0.94

HIGH 1384 0.98 1.02 0.95


LOW 1068 0.95 0.98 0.94

HIGH 1373 0.98 1.02 0.95


LOW 1225 0.98 0.99 0.99

HIGH 1575 1.02 1.04 1.01


LOW 1076 0.96 0.98 0.95

HIGH 1384 0.99 1.02 0.96


LOW 1068 0.96 0.98 0.95

HIGH 1373 0.99 1.02 0.96

22-1769-01-1105 (EN) 41







LOW 1225 0.96 0.98 0.97

HIGH 1575 0.99 1.03 0.98


LOW 1243 0.98 0.99 0.97

HIGH 1598 1.02 1.04 0.98


LOW 1076 0.95 0.98 0.94

HIGH 1384 0.98 1.02 0.95

2TXCC054AS3+*UD100R9V5 NOMINAL 1200 1.01 1.02 0.99

LOW 1286 0.98 0.99 0.98

HIGH 1654 1.03 1.04 0.99


LOW 1076 0.96 0.98 0.95

HIGH 1384 0.99 1.02 0.96


LOW 1225 0.98 0.99 0.99

HIGH 1575 1.03 1.04 1.02


LOW 1076 0.98 0.98 0.97

HIGH 1384 1.02 1.02 0.98


LOW 1076 0.98 0.98 0.97

HIGH 1384 1.02 1.02 0.98

2TXCD050AC3 NOMINAL 1200 1.00 1.02 1.00

LOW 1225 0.98 0.99 0.99

HIGH 1575 1.02 1.04 1.01

2TXCD050AC3+*DD120R9V5 NOMINAL 1200 1.01 1.02 0.99

LOW 1234 0.98 0.99 0.98

HIGH 1586 1.03 1.04 0.99

2TXCD050AC3+*DY120R9V5 NOMINAL 1200 0.98 1.00 0.96

LOW 1068 0.96 0.98 0.95

HIGH 1373 0.99 1.02 0.96

2TXCD050AC3+*UD120R9V5 NOMINAL 1200 1.01 1.02 0.99

LOW 1216 0.98 0.99 0.98

HIGH 1564 1.03 1.04 0.99


LOW 1208 0.98 0.99 0.98

HIGH 1553 1.03 1.04 0.99

2TXCD050AC3+*UY120R9V5 NOMINAL 1200 0.98 1.00 0.96

LOW 1059 0.96 0.98 0.95

HIGH 1361 0.99 1.02 0.96

2TXCD065AS3 NOMINAL 1200 1.00 1.01 1.00

LOW 1225 0.98 0.98 0.99

HIGH 1575 1.02 1.03 1.01

2TXCD065AS3+*DD120R9V5 NOMINAL 1200 1.02 1.02 1.00

LOW 1243 0.99 0.99 0.99

HIGH 1598 1.04 1.04 1.01

2TXCD065AS3+*DY120R9V5 NOMINAL 1200 1.00 1.00 0.98

LOW 1059 0.98 0.98 0.97

HIGH 1361 1.02 1.02 0.98

2TXCD065AS3+*UD120R9V5 NOMINAL 1200 1.02 1.02 1.00

LOW 1225 0.99 0.99 0.99

HIGH 1575 1.04 1.04 1.01


LOW 1216 0.99 0.99 0.99

HIGH 1564 1.04 1.04 1.01

2TXCD065AS3+*UY120R9V5 NOMINAL 1200 1.00 1.00 0.98

LOW 1059 0.98 0.98 0.97

HIGH 1361 1.02 1.02 0.98


LOW 1225 0.96 0.98 0.97

HIGH 1575 0.99 1.03 0.98





LOW 1234 0.98 0.99 0.97

HIGH 1586 1.02 1.04 0.98


LOW 1234 0.98 0.99 0.97

HIGH 1586 1.02 1.04 0.98


LOW 1076 0.95 0.98 0.94

HIGH 1384 0.98 1.02 0.95


LOW 1068 0.95 0.98 0.94

HIGH 1373 0.98 1.02 0.95


LOW 1225 0.98 0.99 0.97

HIGH 1575 1.02 1.04 0.98


LOW 1278 0.98 0.99 0.97

HIGH 1643 1.02 1.04 0.98


LOW 1216 0.98 0.99 0.97

HIGH 1564 1.02 1.04 0.98


LOW 1208 0.98 0.99 0.97

HIGH 1553 1.02 1.04 0.98


LOW 1068 0.96 0.98 0.95

HIGH 1373 0.99 1.02 0.96


LOW 1059 0.96 0.98 0.95

HIGH 1361 0.99 1.02 0.96


LOW 1225 0.99 1.00 1.00

HIGH 1575 1.04 1.05 1.03


LOW 1243 1.00 1.00 0.99

HIGH 1598 1.05 1.05 1.02


LOW 1251 1.00 1.00 0.99

HIGH 1609 1.05 1.05 1.02


LOW 1076 0.98 0.98 0.98

HIGH 1384 1.03 1.03 0.99


LOW 1059 0.98 0.98 0.98

HIGH 1361 1.03 1.03 0.99


LOW 1225 1.00 1.00 0.99

HIGH 1575 1.05 1.05 1.02


LOW 1286 1.00 1.01 0.99

HIGH 1654 1.05 1.06 1.02


LOW 1234 1.00 1.00 0.99

HIGH 1586 1.05 1.05 1.02


LOW 1216 1.00 1.00 0.99

HIGH 1564 1.05 1.05 1.02


LOW 1076 0.98 0.98 0.98

HIGH 1384 1.03 1.03 0.99


LOW 1059 0.98 0.98 0.98

HIGH 1361 1.03 1.03 0.99







LOW 1225 1.02 1.01 1.02

HIGH 1575 1.07 1.06 1.05


LOW 1234 1.03 1.01 1.02

HIGH 1586 1.08 1.06 1.05


LOW 1234 1.04 1.01 1.03

HIGH 1586 1.09 1.06 1.06


LOW 1076 1.00 0.99 0.99

HIGH 1384 1.05 1.04 1.02


LOW 1068 1.02 0.99 1.01

HIGH 1373 1.07 1.04 1.04


LOW 1225 1.03 1.01 1.02

HIGH 1575 1.08 1.06 1.05


LOW 1278 1.04 1.02 1.03

HIGH 1643 1.09 1.07 1.06


LOW 1225 1.04 1.01 1.03

HIGH 1575 1.09 1.06 1.06


LOW 1208 1.03 1.01 1.02

HIGH 1553 1.08 1.06 1.05


LOW 1068 1.02 0.99 1.01

HIGH 1373 1.07 1.04 1.04


LOW 1059 1.02 0.99 1.01

HIGH 1361 1.07 1.04 1.04

TWE037E13 NOMINAL 1200 0.97 1.01 0.95

LOW 1190 0.95 0.98 0.94

HIGH 1530 0.98 1.03 0.95

TWE040E13 NOMINAL 1200 1.03 1.03 1.01

LOW 1225 1.00 1.00 0.99

HIGH 1575 1.05 1.05 1.02

TWE042P13 NOMINAL 1200 0.98 1.01 0.98

LOW 1225 0.96 0.98 0.97

HIGH 1575 0.99 1.03 0.98


LOW 1295 0.98 1.00 0.99

HIGH 1665 1.02 1.05 1.01


LOW 1295 0.98 1.00 0.99

HIGH 1665 1.02 1.05 1.01

TWE048P13 NOMINAL 1200 1.05 1.04 1.04

LOW 1225 1.02 1.01 1.02

HIGH 1575 1.07 1.06 1.05

TWE049E13 NOMINAL 1200 1.03 1.03 1.01

LOW 1234 1.00 1.00 0.99

HIGH 1586 1.05 1.05 1.02

TWE060P13 NOMINAL 1200 1.05 1.04 1.04

LOW 1225 1.02 1.01 1.02

HIGH 1575 1.07 1.06 1.05


LOW 1225 0.96 0.99 0.97

HIGH 1575 0.99 1.04 0.98


LOW 1225 0.96 0.99 0.97

HIGH 1575 0.99 1.04 0.98

42 22-1769-01-1105 (EN)





LOW 1103 0.94 0.98 0.95

HIGH 1418 0.97 1.02 0.96


LOW 1103 0.94 0.98 0.95

HIGH 1418 0.97 1.02 0.96


LOW 1181 0.95 0.98 0.96

HIGH 1519 0.98 1.03 0.97


LOW 1181 0.95 0.98 0.96

HIGH 1519 0.98 1.03 0.97

TXC036S3 NOMINAL 1200 0.98 1.01 0.98

LOW 1120 0.96 0.98 0.97

HIGH 1440 0.99 1.03 0.98


LOW 1225 0.98 0.99 0.98

HIGH 1575 1.03 1.04 0.99

TXC037S3 NOMINAL 1200 1.01 1.03 1.01

LOW 1225 0.98 1.00 0.99

HIGH 1575 1.03 1.05 1.02


LOW 1234 0.99 1.00 0.99

HIGH 1586 1.04 1.05 1.01


LOW 1076 0.98 0.98 0.97

HIGH 1384 1.02 1.03 0.98


LOW 1068 0.98 0.98 0.98

HIGH 1373 1.03 1.03 0.99


LOW 1103 0.94 0.98 0.95

HIGH 1418 0.97 1.02 0.96


LOW 1103 0.94 0.98 0.95

HIGH 1418 0.97 1.02 0.96


LOW 1181 0.95 0.98 0.96

HIGH 1519 0.98 1.03 0.97


LOW 1181 0.95 0.98 0.96

HIGH 1519 0.98 1.03 0.97

TXC054S3 NOMINAL 1200 0.98 1.01 0.98

LOW 1225 0.96 0.98 0.97

HIGH 1575 0.99 1.03 0.98


LOW 1243 0.98 0.99 0.97

HIGH 1598 1.02 1.04 0.98


LOW 1076 0.95 0.98 0.94

HIGH 1384 0.98 1.02 0.95


LOW 1286 0.98 0.99 0.98

HIGH 1654 1.03 1.04 0.99


LOW 1076 0.96 0.98 0.95

HIGH 1384 0.99 1.02 0.96

TXC065S3 NOMINAL 1200 1.00 1.01 1.00

LOW 1225 0.98 0.98 0.99

HIGH 1575 1.02 1.03 1.01


LOW 1243 0.99 0.99 0.99

HIGH 1598 1.04 1.04 1.01

22-1769-01-1105 (EN) 43







LOW 1059 0.98 0.98 0.97

HIGH 1361 1.02 1.02 0.98


LOW 1225 0.99 0.99 0.99

HIGH 1575 1.04 1.04 1.01


LOW 1216 0.99 0.99 0.99

HIGH 1564 1.04 1.04 1.01


LOW 1059 0.98 0.98 0.97

HIGH 1361 1.02 1.02 0.98


LOW 1225 0.96 0.98 0.97

HIGH 1575 0.99 1.03 0.98


LOW 1173 0.96 0.98 0.95

HIGH 1508 0.99 1.03 0.96


LOW 1234 0.98 0.99 0.97

HIGH 1586 1.02 1.04 0.98


LOW 1234 0.98 0.99 0.98

HIGH 1586 1.03 1.04 0.99


LOW 1068 0.96 0.98 0.95

HIGH 1373 0.99 1.02 0.96


LOW 1243 0.96 0.99 0.95

HIGH 1598 0.99 1.04 0.96


LOW 1225 0.98 0.99 0.97

HIGH 1575 1.02 1.04 0.98


LOW 1278 0.98 1.00 0.98

HIGH 1643 1.03 1.05 0.99


LOW 1216 0.98 0.99 0.97

HIGH 1564 1.02 1.04 0.98


LOW 1208 0.98 0.99 0.97

HIGH 1553 1.02 1.04 0.98


LOW 1050 0.95 0.98 0.94

HIGH 1350 0.98 1.02 0.95


LOW 1068 0.96 0.98 0.95

HIGH 1373 0.99 1.02 0.96


LOW 1059 0.96 0.98 0.95

HIGH 1361 0.99 1.02 0.96


LOW 1225 0.96 0.98 0.97

HIGH 1575 0.99 1.03 0.98


LOW 1225 0.99 1.00 1.00

HIGH 1575 1.04 1.05 1.03


LOW 1173 0.99 0.99 0.99

HIGH 1508 1.04 1.04 1.01


LOW 1243 1.00 1.00 0.99

HIGH 1598 1.05 1.05 1.02





LOW 1251 1.02 1.01 1.01

HIGH 1609 1.07 1.06 1.04


LOW 1059 0.98 0.98 0.98

HIGH 1361 1.03 1.03 0.99


LOW 1243 0.99 1.00 0.99

HIGH 1598 1.04 1.05 1.01


LOW 1225 1.00 1.00 0.99

HIGH 1575 1.05 1.05 1.02


LOW 1286 1.00 1.01 0.99

HIGH 1654 1.05 1.06 1.02


LOW 1234 1.00 1.00 0.99

HIGH 1586 1.05 1.05 1.02


LOW 1216 1.00 1.00 0.99

HIGH 1564 1.05 1.05 1.02


LOW 1068 0.98 0.98 0.98

HIGH 1373 1.03 1.03 0.99


LOW 1076 0.98 0.98 0.98

HIGH 1384 1.03 1.03 0.99


LOW 1059 0.98 0.98 0.98

HIGH 1361 1.03 1.03 0.99


LOW 1225 0.99 1.00 1.00

HIGH 1575 1.04 1.05 1.03

TXH063P3 NOMINAL 1200 1.05 1.04 1.04

LOW 1225 1.02 1.01 1.02

HIGH 1575 1.07 1.06 1.05






TXH063P3+*DD080R9V3 NOMINAL 1200 1.05 1.03 1.03

LOW 1173 1.02 1.00 1.01

HIGH 1508 1.07 1.05 1.04


LOW 1234 1.04 1.01 1.03

HIGH 1586 1.09 1.06 1.06


LOW 1234 1.04 1.01 1.03

HIGH 1586 1.09 1.06 1.06

TXH063P3+*DY100R9V4 NOMINAL 1200 1.03 1.02 1.01

LOW 1076 1.00 0.99 0.99

HIGH 1384 1.05 1.04 1.02


LOW 1068 1.02 0.99 1.01

HIGH 1373 1.07 1.04 1.04

TXH063P3+*UD080R9V3 NOMINAL 1200 1.06 1.04 1.04

LOW 1243 1.03 1.01 1.02

HIGH 1598 1.08 1.06 1.05


LOW 1278 1.04 1.02 1.03

HIGH 1643 1.09 1.07 1.06


LOW 1225 1.04 1.01 1.03

HIGH 1575 1.09 1.06 1.06


LOW 1208 1.04 1.01 1.03

HIGH 1553 1.09 1.06 1.06

TXH063P3+*UY080R9V3 NOMINAL 1200 1.03 1.02 1.01

LOW 1059 1.00 0.99 0.99

HIGH 1361 1.05 1.04 1.02


LOW 1068 1.02 0.99 1.01

HIGH 1373 1.07 1.04 1.04


LOW 1059 1.02 0.99 1.01

HIGH 1361 1.07 1.04 1.04

44 22-1769-01-1105 (EN)

2TTB3048A1 WITH 2TXCC049AC3 AT 1600 CFM

O.D. I.D. TOT. SENS. CAP. AT ENTERING D.B. TEMP. TOTAL

D.B. W.B. CAP. 72 75 78 80 KW

59 42.6 27.4 33.0 38.4 42.0 3.75

85 63 44.5 25.2 30.3 35.3 38.6 3.77

67 47.9 21.7 26.1 30.4 33.3 3.83

71 51.7 18.0 21.7 25.2 27.6 3.87

59 40.5 26.6 32.0 37.3 40.5 4.04

95 63 42.2 24.4 29.3 34.2 37.4 4.07

67 45.5 21.1 25.3 29.5 32.3 4.14

71 49.1 17.5 21.0 24.5 26.8 4.18

59 38.3 25.7 30.9 36 38.3 4.34

105 63 39.9 23.6 28.3 33 36.1 4.37

67 43.0 20.3 24.5 28.5 31.2 4.44

71 46.4 16.9 20.3 23.7 25.9 4.48

59 36.1 24.7 29.7 34.7 36.1 4.63

115 63 37.6 22.7 27.3 31.8 34.8 4.66

67 40.5 19.6 23.5 27.4 30.0 4.74

71 43.7 16.2 19.5 22.8 24.9 4.78



LOW 1400 0.98 0.98

HIGH 1800 1.02 1.02








LOW 1068 0.92 0.95 0.93

HIGH 1373 0.95 0.98 0.94


LOW 1391 0.96 0.98 0.96

HIGH 1789 0.99 1.02 0.97


LOW 1400 0.96 0.98 0.97

HIGH 1800 0.99 1.02 0.98


LOW 1269 0.94 0.97 0.93

HIGH 1631 0.97 1.00 0.94


LOW 1251 0.95 0.97 0.94

HIGH 1609 0.98 1.00 0.95


LOW 1400 0.98 0.98 0.99

HIGH 1800 1.03 1.03 1.01


LOW 1269 0.98 0.98 0.97

HIGH 1631 1.02 1.02 0.98


LOW 1251 0.98 0.98 0.97

HIGH 1609 1.02 1.02 0.98


LOW 1400 0.96 0.98 0.97

HIGH 1800 0.99 1.03 0.98


LOW 1426 0.98 0.98 0.97

HIGH 1834 1.02 1.03 0.98


LOW 1251 0.95 0.98 0.94

HIGH 1609 0.98 1.02 0.95

22-1769-01-1105 (EN) 45







LOW 1426 0.98 0.98 0.97

HIGH 1834 1.02 1.03 0.98


LOW 1391 0.98 0.98 0.97

HIGH 1789 1.02 1.03 0.98


LOW 1243 0.95 0.98 0.94

HIGH 1598 0.98 1.02 0.95


LOW 1400 0.98 0.98 0.99

HIGH 1800 1.03 1.03 1.01


LOW 1426 0.99 0.98 0.99

HIGH 1834 1.04 1.03 1.01


LOW 1251 0.98 0.98 0.97

HIGH 1609 1.02 1.02 0.98


LOW 1426 0.99 0.98 0.99

HIGH 1834 1.04 1.03 1.01


LOW 1391 0.99 0.98 0.99

HIGH 1789 1.04 1.03 1.01


LOW 1243 0.98 0.98 0.97

HIGH 1598 1.02 1.02 0.98


LOW 1068 0.92 0.95 0.93

HIGH 1373 0.95 0.98 0.94


LOW 1391 0.96 0.98 0.96

HIGH 1789 0.99 1.02 0.97


LOW 1400 0.96 0.98 0.97

HIGH 1800 0.99 1.02 0.98


LOW 1269 0.94 0.97 0.93

HIGH 1631 0.97 1.00 0.94


LOW 1251 0.95 0.97 0.94

HIGH 1609 0.98 1.00 0.95


LOW 1400 0.98 0.98 0.99

HIGH 1800 1.03 1.03 1.01


LOW 1269 0.98 0.98 0.97

HIGH 1631 1.02 1.02 0.98


LOW 1251 0.98 0.98 0.97

HIGH 1609 1.02 1.02 0.98


LOW 1400 0.96 0.98 0.97

HIGH 1800 0.99 1.03 0.98


LOW 1426 0.98 0.98 0.97

HIGH 1834 1.02 1.03 0.98


LOW 1251 0.95 0.98 0.94

HIGH 1609 0.98 1.02 0.95


LOW 1426 0.98 0.98 0.97

HIGH 1834 1.02 1.03 0.98





LOW 1391 0.98 0.98 0.97

HIGH 1789 1.02 1.03 0.98


LOW 1243 0.95 0.98 0.94

HIGH 1598 0.98 1.02 0.95


LOW 1400 0.98 0.98 0.99

HIGH 1800 1.03 1.03 1.01


LOW 1426 0.99 0.98 0.99

HIGH 1834 1.04 1.03 1.01


LOW 1251 0.98 0.98 0.97

HIGH 1609 1.02 1.02 0.98


LOW 1426 0.99 0.98 0.99

HIGH 1834 1.04 1.03 1.01


LOW 1391 0.99 0.98 0.99

HIGH 1789 1.04 1.03 1.01


LOW 1243 0.98 0.98 0.97

HIGH 1598 1.02 1.02 0.98

2TEC3F48A1 NOMINAL 1600 1.01 1.01 1.00

LOW 1400 0.98 0.98 0.99

HIGH 1800 1.03 1.03 1.01

2TEP3F48B1 NOMINAL 1600 1.02 1.02 1.02

LOW 1400 0.99 0.99 1.00

HIGH 1800 1.04 1.04 1.03

2TEP3F63B1 NOMINAL 1600 1.00 1.01 1.00

LOW 1400 0.98 0.98 0.99

HIGH 1800 1.02 1.03 1.01

2TGB3F48A1 NOMINAL 1600 1.01 1.01 1.00

LOW 1400 0.98 0.98 0.99

HIGH 1800 1.03 1.03 1.01


LOW 1068 0.92 0.95 0.93

HIGH 1373 0.95 0.98 0.94


LOW 1391 0.96 0.98 0.96

HIGH 1789 0.99 1.02 0.97


LOW 1269 0.94 0.97 0.93

HIGH 1631 0.97 1.00 0.94


LOW 1251 0.95 0.97 0.94

HIGH 1609 0.98 1.00 0.95


LOW 1400 0.95 0.98 0.96

HIGH 1800 0.98 1.02 0.97


LOW 1418 0.96 0.98 0.96

HIGH 1823 0.99 1.02 0.97


LOW 1269 0.94 0.97 0.93

HIGH 1631 0.97 1.00 0.94

2TXCC054AS3+*UD100R9V5 NOMINAL 1600 0.98 1.01 0.97

LOW 1461 0.96 0.98 0.96

HIGH 1879 0.99 1.03 0.97


LOW 1251 0.94 0.97 0.93

HIGH 1609 0.97 1.00 0.94







LOW 1400 0.98 0.98 0.99

HIGH 1800 1.03 1.03 1.01


LOW 1269 0.96 0.98 0.96

HIGH 1631 0.99 1.02 0.97


LOW 1251 0.98 0.98 0.97

HIGH 1609 1.02 1.02 0.98


LOW 1400 0.96 0.98 0.97

HIGH 1800 0.99 1.03 0.98


LOW 1426 0.98 0.98 0.97

HIGH 1834 1.02 1.03 0.98


LOW 1251 0.95 0.98 0.94

HIGH 1609 0.98 1.02 0.95


LOW 1426 0.98 0.98 0.97

HIGH 1834 1.02 1.03 0.98


LOW 1391 0.98 0.98 0.97

HIGH 1789 1.02 1.03 0.98


LOW 1243 0.95 0.98 0.94

HIGH 1598 0.98 1.02 0.95


LOW 1400 0.98 0.98 0.99

HIGH 1800 1.03 1.03 1.01


LOW 1426 0.99 0.98 0.99

HIGH 1834 1.04 1.03 1.01


LOW 1251 0.98 0.98 0.97

HIGH 1609 1.02 1.02 0.98


LOW 1426 0.99 0.98 0.99

HIGH 1834 1.04 1.03 1.01


LOW 1391 0.99 0.98 0.99

HIGH 1789 1.04 1.03 1.01


LOW 1243 0.98 0.98 0.97

HIGH 1598 1.02 1.02 0.98


LOW 1400 0.98 0.98 0.99

HIGH 1800 1.02 1.02 1.01


LOW 1426 0.98 0.98 0.98

HIGH 1834 1.03 1.03 0.99


LOW 1251 0.96 0.97 0.96

HIGH 1609 0.99 1.00 0.97


LOW 1426 0.98 0.98 0.98

HIGH 1834 1.03 1.03 0.99


LOW 1391 0.98 0.98 0.98

HIGH 1789 1.03 1.02 0.99


LOW 1243 0.96 0.97 0.96

HIGH 1598 0.99 1.00 0.97

46 22-1769-01-1105 (EN)





LOW 1400 0.99 0.98 1.00

HIGH 1800 1.04 1.03 1.03


LOW 1418 0.99 0.99 0.99

HIGH 1823 1.04 1.04 1.01


LOW 1426 1.00 0.99 0.99

HIGH 1834 1.05 1.04 1.02


LOW 1269 0.98 0.98 0.98

HIGH 1631 1.03 1.02 0.99


LOW 1251 0.98 0.98 0.98

HIGH 1609 1.03 1.02 0.99


LOW 1391 0.99 0.98 0.99

HIGH 1789 1.04 1.03 1.01


LOW 1461 0.99 0.99 0.99

HIGH 1879 1.04 1.04 1.01


LOW 1426 1.00 0.99 0.99

HIGH 1834 1.05 1.04 1.02


LOW 1391 0.99 0.98 0.99

HIGH 1789 1.04 1.03 1.01


LOW 1251 0.98 0.98 0.98

HIGH 1609 1.03 1.02 0.99


LOW 1251 0.98 0.98 0.98

HIGH 1609 1.03 1.02 0.99


LOW 1400 1.01 0.99 1.02

HIGH 1800 1.06 1.04 1.05


LOW 1418 1.02 1.00 1.01

HIGH 1823 1.07 1.05 1.04


LOW 1426 1.03 1.00 1.02

HIGH 1834 1.08 1.05 1.05


LOW 1269 1.00 0.98 0.99

HIGH 1631 1.05 1.03 1.02


LOW 1243 1.00 0.98 0.99

HIGH 1598 1.05 1.03 1.02


LOW 1391 1.02 1.00 1.01

HIGH 1789 1.07 1.05 1.04


LOW 1461 1.02 1.00 1.01

HIGH 1879 1.07 1.05 1.04


LOW 1418 1.02 1.00 1.01

HIGH 1823 1.07 1.05 1.04


LOW 1391 1.02 1.00 1.01

HIGH 1789 1.07 1.05 1.04


LOW 1243 1.00 0.98 0.99

HIGH 1598 1.05 1.03 1.02

22-1769-01-1105 (EN) 47







LOW 1243 1.01 0.98 1.00

HIGH 1598 1.06 1.03 1.03

TWE042P13 NOMINAL 1600 0.96 1.00 0.96

LOW 1400 0.94 0.98 0.95

HIGH 1800 0.97 1.02 0.96


LOW 1400 0.96 0.98 0.97

HIGH 1800 0.99 1.03 0.98


LOW 1400 0.96 0.98 0.97

HIGH 1800 0.99 1.03 0.98

TWE048P13 NOMINAL 1600 1.03 1.02 1.03

LOW 1400 1.00 0.99 1.01

HIGH 1800 1.05 1.04 1.04

TWE049E13 NOMINAL 1600 1.02 1.01 1.00

LOW 1400 0.99 0.98 0.99

HIGH 1800 1.04 1.03 1.01

TWE060P13 NOMINAL 1600 1.03 1.02 1.03

LOW 1400 1.00 0.99 1.01

HIGH 1800 1.05 1.04 1.04

TWE063P13 NOMINAL 1600 1.02 1.01 1.02

LOW 1444 0.99 0.98 1.00

HIGH 1856 1.04 1.03 1.03

TWE065E13 NOMINAL 1600 1.02 1.01 1.00

LOW 1435 0.99 0.98 0.99

HIGH 1845 1.04 1.03 1.01


LOW 1400 0.94 0.98 0.95

HIGH 1800 0.97 1.02 0.96


LOW 1400 0.94 0.98 0.95

HIGH 1800 0.97 1.02 0.96


LOW 1181 0.93 0.96 0.94

HIGH 1519 0.96 0.99 0.95


LOW 1181 0.93 0.96 0.94

HIGH 1519 0.96 0.99 0.95


LOW 1400 0.94 0.98 0.95

HIGH 1800 0.97 1.02 0.96


LOW 1400 0.94 0.98 0.95

HIGH 1800 0.97 1.02 0.96


LOW 1400 0.95 0.98 0.96

HIGH 1800 0.98 1.02 0.97


LOW 1400 0.95 0.98 0.96

HIGH 1800 0.98 1.02 0.97

TXA061C5+BAY24X045 NOMINAL 1600 1.00 1.00 1.00

LOW 1400 0.98 0.98 0.99

HIGH 1800 1.02 1.02 1.01


LOW 1181 0.93 0.96 0.94

HIGH 1519 0.96 0.99 0.95


LOW 1181 0.93 0.96 0.94

HIGH 1519 0.96 0.99 0.95


LOW 1400 0.94 0.98 0.95

HIGH 1800 0.97 1.02 0.96





LOW 1400 0.94 0.98 0.95

HIGH 1800 0.97 1.02 0.96


LOW 1400 0.95 0.98 0.96

HIGH 1800 0.98 1.02 0.97


LOW 1400 0.95 0.98 0.96

HIGH 1800 0.98 1.02 0.97

TXC054S3 NOMINAL 1600 0.97 1.00 0.97

LOW 1400 0.95 0.98 0.96

HIGH 1800 0.98 1.02 0.97


LOW 1418 0.96 0.98 0.96

HIGH 1823 0.99 1.02 0.97


LOW 1269 0.94 0.97 0.93

HIGH 1631 0.97 1.00 0.94


LOW 1461 0.96 0.98 0.96

HIGH 1879 0.99 1.03 0.97


LOW 1251 0.94 0.97 0.93

HIGH 1609 0.97 1.00 0.94

TXC060C5+BAY24X045 NOMINAL 1600 0.98 1.00 0.98

LOW 1400 0.96 0.98 0.97

HIGH 1800 0.99 1.02 0.98


LOW 1400 0.98 0.98 0.99

HIGH 1800 1.02 1.02 1.01

TXC065S3 NOMINAL 1600 1.00 1.00 1.00

LOW 1400 0.98 0.98 0.99

HIGH 1800 1.02 1.02 1.01


LOW 1426 0.98 0.98 0.98

HIGH 1834 1.03 1.03 0.99


LOW 1251 0.96 0.97 0.96

HIGH 1609 0.99 1.00 0.97


LOW 1426 0.98 0.98 0.98

HIGH 1834 1.03 1.03 0.99


LOW 1391 0.98 0.98 0.98

HIGH 1789 1.03 1.02 0.99


LOW 1243 0.96 0.97 0.96

HIGH 1598 0.99 1.00 0.97


LOW 1400 0.99 0.98 1.00

HIGH 1800 1.04 1.03 1.03


LOW 1418 0.99 0.99 0.99

HIGH 1823 1.04 1.04 1.01


LOW 1426 1.00 0.99 0.99

HIGH 1834 1.05 1.04 1.02







LOW 1269 0.98 0.98 0.98

HIGH 1631 1.03 1.02 0.99


LOW 1251 0.98 0.98 0.98

HIGH 1609 1.03 1.02 0.99


LOW 1391 0.99 0.98 0.99

HIGH 1789 1.04 1.03 1.01


LOW 1461 1.00 0.99 0.99

HIGH 1879 1.05 1.04 1.02


LOW 1426 1.00 0.99 0.99

HIGH 1834 1.05 1.04 1.02


LOW 1391 0.99 0.98 0.99

HIGH 1789 1.04 1.03 1.01


LOW 1251 0.98 0.98 0.98

HIGH 1609 1.03 1.02 0.99


LOW 1251 0.98 0.98 0.98

HIGH 1609 1.03 1.02 0.99


LOW 1400 0.99 0.98 1.00

HIGH 1800 1.04 1.03 1.03


LOW 1418 1.02 1.00 1.01

HIGH 1823 1.07 1.05 1.04


LOW 1426 1.03 1.00 1.02

HIGH 1834 1.08 1.05 1.05


LOW 1269 1.00 0.98 0.99

HIGH 1631 1.05 1.03 1.02


LOW 1243 1.01 0.98 1.00

HIGH 1598 1.06 1.03 1.03


LOW 1461 1.03 1.00 1.02

HIGH 1879 1.08 1.05 1.05


LOW 1418 1.03 1.00 1.02

HIGH 1823 1.08 1.05 1.05


LOW 1391 1.02 1.00 1.01

HIGH 1789 1.07 1.05 1.04


LOW 1243 1.00 0.98 0.99

HIGH 1598 1.05 1.03 1.02


LOW 1243 1.01 0.98 1.00

HIGH 1598 1.06 1.03 1.03

48 22-1769-01-1105 (EN)

2TTB3060A1 WITH 2TXCD061AC3 AT 1900 CFM

O.D.

D.B.

I.D.

W.B.

TOT.

CAP.


72 75 78 80

TOTAL

KW

59 53.6 35.7 42.9 50.0 53.6 4.62

85 63 55.9 32.8 39.4 45.9 50.2 4.65

67 60.2 28.3 34.0 39.6 43.3 4.73

71 65.0 23.4 28.2 32.9 35.9 4.77

59 51.6 34.8 41.9 48.8 51.6 5.15

95 63 53.8 32.0 38.4 44.8 49.0 5.19

67 58.0 27.6 33.1 38.6 42.2 5.27

71 62.6 22.9 27.5 32.1 35.0 5.32

59 49.5 33.9 40.8 47.5 49.5 5.69

105 63 51.7 31.1 37.4 43.6 47.7 5.72

67 55.7 26.8 32.3 37.6 41.1 5.82

71 60.1 22.3 26.8 31.2 34.1 5.87

59 47.5 33.0 39.6 46.2 47.5 6.22

115 63 49.5 30.2 36.4 42.4 46.3 6.26

67 53.4 26.1 31.4 36.6 40.0 6.36

71 57.6 21.6 26.0 30.3 33.2 6.42



LOW 1663 0.98 0.98

HIGH 2138 1.02 1.02








LOW 1461 0.95 0.96 0.96

HIGH 1879 0.98 0.99 0.97


LOW 1741 0.97 0.98 0.98

HIGH 2239 1.00 1.02 0.99


LOW 1425 0.95 0.95 0.94

HIGH 1832 0.98 0.98 0.95


LOW 1439 0.94 0.95 0.95

HIGH 1850 0.97 0.98 0.96


LOW 1422 0.95 0.95 0.94

HIGH 1828 0.98 0.98 0.95


LOW 1395 0.94 0.95 0.93

HIGH 1793 0.97 0.98 0.94


LOW 1469 0.95 0.96 0.96

HIGH 1889 0.98 0.99 0.97


LOW 1461 0.95 0.96 0.96

HIGH 1879 0.98 0.99 0.97


LOW 1741 0.97 0.98 0.98

HIGH 2239 1.00 1.02 0.99


LOW 1425 0.95 0.95 0.94

HIGH 1832 0.98 0.98 0.95


LOW 1439 0.94 0.95 0.95

HIGH 1850 0.97 0.98 0.96

22-1769-01-1105 (EN) 49







LOW 1422 0.95 0.95 0.94

HIGH 1828 0.98 0.98 0.95


LOW 1395 0.94 0.95 0.93

HIGH 1793 0.97 0.98 0.94


LOW 1469 0.95 0.96 0.96

HIGH 1889 0.98 0.99 0.97

2TEC3F60A1 NOMINAL 1900 0.98 0.98 0.98

LOW 1584 0.96 0.96 0.97

HIGH 2036 0.99 0.99 0.98

2TEP3F48B1 NOMINAL 1900 0.99 0.99 0.99

LOW 1531 0.97 0.97 0.98

HIGH 1969 1.00 1.00 0.99

2TEP3F63B1 NOMINAL 1900 0.98 1.00 1.03

LOW 1750 0.96 0.98 1.01

HIGH 2250 0.99 1.02 1.04


LOW 1461 0.94 0.95 0.95

HIGH 1879 0.97 0.98 0.96


LOW 1425 0.95 0.95 0.94

HIGH 1832 0.98 0.98 0.95


LOW 1439 0.94 0.95 0.95

HIGH 1850 0.97 0.98 0.96


LOW 1422 0.95 0.95 0.94

HIGH 1828 0.98 0.98 0.95


LOW 1395 0.94 0.95 0.93

HIGH 1793 0.97 0.98 0.94


LOW 1469 0.95 0.96 0.96

HIGH 1889 0.98 0.99 0.97


LOW 1750 0.97 0.97 0.98

HIGH 2250 1.00 1.00 0.99


LOW 1768 0.97 0.97 0.99

HIGH 2273 1.00 1.00 1.01


LOW 1514 0.94 0.95 0.99

HIGH 1946 0.97 0.98 1.01


LOW 1724 0.96 0.97 1.00

HIGH 2216 0.99 1.00 1.03


LOW 1715 0.96 0.97 1.00

HIGH 2205 0.99 1.00 1.03


LOW 1566 0.95 0.96 0.98

HIGH 2014 0.98 0.99 0.99


LOW 1453 0.96 0.96 0.97

HIGH 1868 0.99 0.99 0.98


LOW 1420 0.96 0.96 0.95

HIGH 1826 0.99 0.99 0.96


LOW 1430 0.97 0.96 0.96

HIGH 1838 1.00 0.99 0.97





LOW 1422 0.95 0.96 0.96

HIGH 1828 0.98 0.99 0.97


LOW 1461 0.96 0.96 0.95

HIGH 1879 0.99 0.99 0.96


LOW 1427 0.96 0.96 0.95

HIGH 1835 0.99 0.99 0.96


LOW 1392 0.96 0.96 0.95

HIGH 1790 0.99 0.99 0.96


LOW 1461 0.96 0.96 0.97

HIGH 1879 0.99 0.99 0.98


LOW 1750 1.00 0.98 1.01

HIGH 2250 1.05 1.03 1.04


LOW 1421 0.98 0.97 0.98

HIGH 1827 1.02 1.00 0.99


LOW 1423 0.98 0.97 0.99

HIGH 1829 1.03 1.00 1.01


LOW 1442 0.98 0.97 0.98

HIGH 1854 1.02 1.00 0.99


LOW 1465 0.98 0.98 0.99

HIGH 1883 1.03 1.02 1.01


LOW 1419 0.98 0.97 0.98

HIGH 1825 1.02 1.00 0.99


LOW 1395 0.98 0.97 0.98

HIGH 1793 1.02 1.00 0.99


LOW 1469 0.98 0.97 0.98

HIGH 1889 1.02 1.00 0.99

TWE049E13 NOMINAL 1900 1.00 1.00 1.04

LOW 1820 0.98 0.98 1.02

HIGH 2340 1.02 1.02 1.05

TWE060A+BAY24X045 NOMINAL 1900 0.95 0.98 0.97

LOW 1750 0.93 0.96 0.96

HIGH 2250 0.96 0.99 0.97






TWE060P13 NOMINAL 1900 1.00 0.99 1.00

LOW 1531 0.98 0.97 0.99

HIGH 1969 1.02 1.00 1.01

TWE063P13 NOMINAL 1900 0.99 1.00 1.04

LOW 1750 0.97 0.98 1.02

HIGH 2250 1.00 1.02 1.05

TWE065E13 NOMINAL 1900 0.98 0.98 0.96

LOW 1588 0.96 0.96 0.95

HIGH 2042 0.99 0.99 0.96


LOW 1488 0.93 0.95 0.94

HIGH 1913 0.96 0.98 0.95


LOW 1628 0.95 0.96 0.96

HIGH 2093 0.98 0.99 0.97


LOW 1488 0.93 0.95 0.94

HIGH 1913 0.96 0.98 0.95


LOW 1628 0.95 0.96 0.96

HIGH 2093 0.98 0.99 0.97

TXC065S3 NOMINAL 1900 0.99 0.99 0.99

LOW 1750 0.97 0.97 0.98

HIGH 2250 1.00 1.00 0.99


LOW 1768 0.97 0.97 0.99

HIGH 2273 1.00 1.00 1.01


LOW 1514 0.94 0.95 0.99

HIGH 1946 0.97 0.98 1.01


LOW 1724 0.96 0.97 1.00

HIGH 2216 0.99 1.00 1.03


LOW 1715 0.96 0.97 1.00

HIGH 2205 0.99 1.00 1.03


LOW 1566 0.95 0.96 0.98

HIGH 2014 0.98 0.99 0.99

TXH063P3 NOMINAL 1900 1.03 1.01 1.03

LOW 1750 1.00 0.98 1.01

HIGH 2250 1.05 1.03 1.04

50 22-1769-01-1105 (EN)

Electrical


Schematic Diagrams

(SEE LEGEND)

2TTB3018,042,048A 2TTB3024,030A

22-1769-01-1105 (EN) 51

Electrical



(SEE LEGEND)

2TTB3036A 2TTB3060A

52 22-1769-01-1105 (EN)

Electrical



LEGEND

SYMBOLS

22-1769-01-1105 (EN) 53

Dimensions

2TTB3 Outline Drawing

NOTE: ALL DIMENSIONS ARE IN MM (INCHES)

MODELS BASE FIG. A B C D E F G H J K

2TTB3018A 2 2 651 (25-5/8) 724 (28-1/2) 651 (25-5/8) 5/8 1/4 127 (5) 57 (2-1/4) 181 (7-1/8) 44 (1-3/4) 457 (18)

2TTB3024A 2 2 832 (32-3/4) 724 (28-1/2) 651 (25-5/8) 3/4 5/16 137 (5-3/8) 65 (2-5/8) 210 (8-1/4) 57 (2-1/4) 457 (18)

2TTB3030A 3 2 832 (32-3/4) 829 (32-5/8) 756 (29-3/4) 3/4 5/16 137 (5-3/8) 86 (3-3/8) 210 (8-1/4) 79 (3-1/8) 508 (20)

2TTB3036A 3 2 832 (32-3/4) 829 (32-5/8) 756 (29-3/4) 7/8 3/8 137 (5-3/8) 86 (3-3/8) 210 (8-1/4) 79 (3-1/8) 508 (20)

2TTB3042A 4 1 841 (33-1/8) 946 (37-1/4) 870 (34-1/4) 7/8 3/8 152 (6) 98 (3-7/8) 219 (8-5/8) 86 (3-3/8) 508 (20)

2TTB3048A 4 1 1045 (41-1/8) 946 (37-1/4) 870 (34-1/4) 1-1/8 3/8 152 (6) 98 (3-7/8) 219 (8-5/8) 86 (3-3/8) 508 (20)

2TTB3060A 4 1 1045 (41-1/8) 946 (37-1/4) 870 (34-1/4) 1-1/8 3/8 152 (6) 98 (3-7/8) 219 (8-5/8) 86 (3-3/8) 508 (20)

From Dwg. 21D153074 Rev. 10

54 22-1769-01-1105 (EN)

General

The 2TTB3 shall be fully charged from

the factory for matched indoor section

and up to 15 feet of piping. This unit must

be designed to operate at outdoor

ambient temperatures as high as 115°F.

Cooling capacities shall be matched with

a wide selection of air handlers and

furnace coils that are ARI certified. The

unit shall be UL listed. Exterior must be

designed for outdoor application.

Casing

Unit casing is constructed of heavy

gauge, galvanized steel and painted with

a weather-resistant powder paint.

Corrosion and weatherproof CMBP-G30

DuraTuff base.

Refrigerant Controls

Refrigeration system controls include

condenser fan and compressor

contactor. High and low pressure controls

are inherent to the compressor. Another

standard feature is the liquid line dryer.

Compressor

The Climatuff ® compressor features

internal over temperature and pressure

protector, total dipped hermetic motor.

Other features include: roto lock suction

and discharge refrigeration connections,

centrifugal oil pump, and low vibration

and noise. The Climatuff ® compressor is

standard with a 5 year limited warranty.

22-1769-01-1105 (EN) 55

Mechanical

Specification Options

Condenser Coil

The Spine Fin coil shall be continuously

wrapped, corrosion resistant all aluminum

with minimum brazed joints. This

coil is 3/8 inch O.D. seamless aluminum

glued to a continuous aluminum fin. Coils

are lab tested to withstand 2,000 pounds

of pressure per square inch. The outdoor

coil provides low airflow resistance and

efficient heat transfer. The coil is protected

on all four sides by louvered

panels and has a 5 year limited warranty.

Low Ambient Cooling

As manufactured, this unit has a cooling

capability to 55°F. The addition of an

evaporator defrost control permits

operation to 40°F. The addition of an

evaporator defrost control with TXV

permits low ambient cooling to 30°F.

Accessories

Thermostats — Heating/Cooling

(manual and automatic changeover).

Sub-base to match thermostat and

locking thermostat cover.

Evaporator Defrost Control — See Low

Ambient Cooling.

Outdoor Thermostat — Supplemental

heat outdoor ambient lockout from

46 to –10°F.

Trane

A business of

American Standard Companies

www.trane.com

Literature Order Number SS-PRC007-EN SS-PRC022-EN

P.I.

File Number PR-UN-2TTB-SSC-PRC-EN —

11/05

Supersedes New SS-PRC007-EN 2/02

Stocking Location PI Electronic Louisville Only

& Webb/Mason Houston

Trane has a policy of continuous product and product data improvement and it reserves the right to change

design and specifications without notice.

Split System Cooling Product & Performance Data - Trane

Transform your PDFs into Flipbooks and boost your revenue!

Split System Cooling Product & Performance Data - Trane

Transform your PDFs into Flipbooks and boost your revenue!

Delete template?

Save as template ?
