Digital Urban Simulation: Documentation of the teaching results from the fall semester 2016

Documentation of the teaching results from the fall semester 2016

Digital Urban Simulation

Peter Buš, Estefania Tapias, and Gerhard Schmitt

Chair of

Information

iAArchitecture

Chair of Information Architecture


Documentation of teaching results


iA


Teaching


Syllabi

http://www.ia.arch.ethz.ch/category/teaching/hs2016-digital-urban-simulation/

Seminar

New Methods in Urban Analysis and Simulation

Students

Nima Morkoç, Diem Basile, Gianluca Genova, Patrick Zeller, Michael Fehr, Tian Zhou,

Difei Yang, Laura Cowie, Carlos Pacheco, Roberta Murad Lima

Published by

Swiss Federal Institute of Technology in Zurich (ETHZ)

Department of Architecture


Wolfgang-Pauli-Strasse 27, HIT H 31.6

8093 Zurich

Switzerland

Zurich, March 2017

Layout Editor

Brigitte M. Clements

Contact

bus@arch.ethz.ch | http://www.ia.arch.ethz.ch/bus/

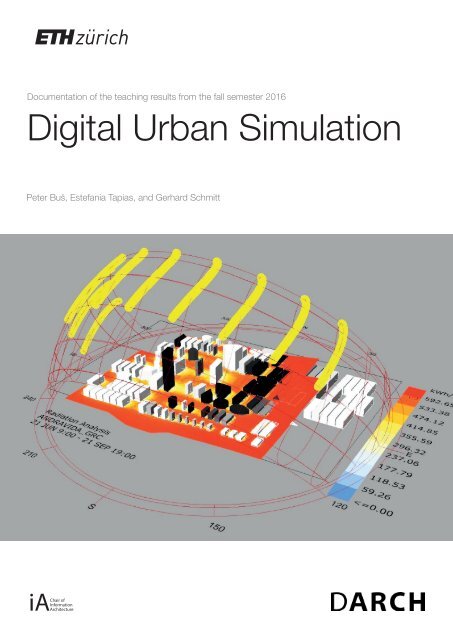

Cover picture:

Front side: Carlos Pacheco, Sunpath Curves, Zürich

Course Description and Program


Mondays 14:00 - 18:00

063-1357-16G | 4 ECTS*


In this course students analyze architectural and urban design

using current computational methods. Based on these analyses

the effects of planning can be simulated and understood. An

important focus of this course is the interpretation of the analysis

and simulation results and the application of these corresponding

methods in early planning phases.

The students learn how the design and planning of cities can be

evidence based by using scientific methods. The teaching unit

conveys knowledge in state-of-the-art and emerging spatial

analysis and simulation methods and equip students with skills

in modern software systems. The course consists of lectures,

associated exercises, workshops as well as of one integral

project work.

Where

HIT H 31.4 (Video wall)

26.09.2016












Introduction into Analysis and Simulation

Ex> Tool: Rhino Grasshopper

Connectivity, Accessibility, Spatiality (shortest or other

Path Distance Detection), Urban Networks. Ex> Tool: Rhino

Grasshopper + Cheetah ConfigUrbanist addon

Visibility: Space Syntax, Isovist Analysis, Urban Attractors

Ex> Tool: Rhino Grasshopper + SmartSpaceAnalyzer addon

(or DecodingSpaces)

Urban Pattern Formation: Behavioural Patterns, Bottom-up

Patterns, Urban Graininess

Ex> Tool: Rhino Grasshopper + Elk | Heron + Processing

examples (Agents, EmCity tool)

Seminar Week

Urban Climate I

Ex>Tool: Rhino Grasshopper + LadyBug

Urban Climate II

Ex>Tool: Rhino Grasshopper + HoneyBee

Energy Simulation

Ex>Tool: Rhino Grasshopper + HoneyBee + LadyBug

Digital Parametrics Workshop

Optimization processes | Evolutionary Algorithms

Ex>Tool: Rhino Grasshopper + Galapagos | Octopus

Guest Lecture

Final consultation

Project Presentations, Final Critiques

Supervision

Dr. Peter Bus

Estefania Tapias

bus@arch.ethz.ch

tapias.arch.ethz.ch

*Total 120 h = 4 ECTS

6 Exercises 25% (documentations)

Presentation 25% (project at the end)

Written documentation 50%

The most recent outline will be found on www.ia.arch.ethz.ch

Prof. Dr. Gerhard Schmitt


Information Science Lab

Wolfgang-Pauli-Strasse 27, 8093 Zurich

www.ia.arch.ethz.ch

Content

Didactic Public Sequences

Student:Nima Morkoç

Grand Ensemble 2.0

Student: Diem Basile

Plattenstrasse 10

Student: Gianluca Genova

Planning the Periphery

Student: Patrick Zeller

Settlement Growth Analysis

Student: Michael Fehr

p.9

p.19

p.31

p.43

p.59

Analysis of a New Sub-Centre in Shanghai

Student: Tian Zhou

Huangguang East Town Planning

Student: Difei Yang

Comparison of Grid Patterns

Student: Laura Cowie

Summer Urban Thermal Comfort Design

Student: Carlos Pacheco

Kilchberg

Student: Roberta Murad Lima

p.67

p.73

p.83

p.91

p.101

Didactic Public Sequences

Student:Nima Morkoç

Summary:

This semester I am in the design studio of guest professor Xaveer de Geyter where we are dealing with

the topic ‘High-rise and public space’. The site of this project is at the Sihlquai bus station near the

central station of Zürich. The point of this project is to understand a high-rise project and its impact on

the city and near surrounding. In short: the project has the working title ‘didactic public sequences’

because I have explored the literal repeating of existing streets on top of each other in order to fulfil the

‘public needs’ of people instead of ‘cramming’ them into a high-rise building.

IDACTIC PUBLIC SEQUENCES

ITAL URBAN SIMULATION: FINAL EXAMINATION

The Digital Urban Simulation course offered a new set of tools to analyse the existing and planned

interventions, but also interpret them in order to make design decisions. With ELK and CONFIGURBANIST

I have analysed the existing surrounding of the site, with Ladybug and Honeybee I could analyse

the^planned interventions in a complex urban setting and understand the microclimates. As the design

project is about the placing of a high-rise in an complex urban setting, I found most of the tools

offered in this course useful, but only in combination with the knowledge to export lines and visuals

from Rhinoceros to other programs such as Illustrator to make the information more ‘readable’ and

presentable. In this report I will present the tools that were most useful for me and had the most impact

on my design-process. In another document I will have my complete documentation with all the used

tools.

Motivation:

By understanding a high-rise project as an ‘high-impact’ project we can divide this into subtopics that

can be measured. For example, this high-rise object has a high impact on the surrounding buildings

and their sun exposure and with that comes the question of whether it is feasible or considerable to

place the highrise object on a certain place. It is mostly the question of how this new building can make

itself comfortable inside the city without making other buildings uncomfortable. Without analysing this

and considering the surrounding built environment our cities would be lost and in some cases they

are. A good design is timeconsuming. Doing a precise shadow analysis difficult to do by hand and is

therefore almost never done, only roughly. Therefore it is exciting that these tools are now available to

us and that they are fast to work with.

e:

Nima Morkoc

ervision:

Dr. Peter Buš


Information

10

New Methods Estefania in Tapias Urban Analysis and Simulation | Final project documentation iA Architecture

the shortest path would be starting from the Sihlquai bus terminal. It did not give me any design input, but

it did help me to realise that making a residential building on the site creates a certain amount of actors

that become part of a network on a daily basis, starting from the site and then going back.

buildings and location

overal map

network and buildings

public transport

shops, offices, etc.

green public spaces and trees

cycling

walking

shortest distance to offices

Digital Urban Simulation | Final Examination | Nima Morkoc

Using Openstreet maps together with the tools in ELK and Congifurbanist I created a number of maps

that I could use for the analysis. After obtaining lines and points in Rhinoceros, I made more appealing

visualizations with Illustrator. I find it most interesting that all offices, shops, etc. are clearly organized

in the data and are easy to use, normally making these maps takes forever. I choose five of them and

looked at what the shortest path would be starting from the Sihlquai bus terminal. It did not give me any

design input, but it did help me to realise that making a residential building on the site creates a certain

amount of actors that become part of a network on a daily basis, starting from the site and then going

back.

New Methods in Urban Analysis and Simulation | Final project documentation

11

as ‘obstacles’. The pictures A below design are decision site photos made of from my design this was project to place at Sihlquai the roof and of looking the bus at terminal it from the on HB the and edge from of

the the site, streets making that it accessible connect to by the stairs bus terminal. to have an The overview view towards of the the city. water Of course is mostly this open, was except obvious, for but obvious

gave obstacles ´proof´ and like a trees diagram and busses, to show but this for openness. this exercise I will only take the existing buildings into account

the

tool

as ‘obstacles’. A design decision made from this was to place the roof of the bus terminal on the edge of

the site, making it accessible by stairs to have an overview of the city. Of course this was obvious, but the

tool gave ´proof´ and a diagram to show this openness.



The pictures below are site photos of my design project at Sihlquai and looking at it from the HB and

from the streets that connect to the bus terminal. The view towards the water is mostly open, except for

obvious obstacles like trees and busses, but for this exercise I will only take the existing buildings into

account as ‘obstacles’. A design decision made from this was to place the roof of the bus terminal on

the edge of the site, making it accessible by stairs to have an overview of the city. Of course this was

obvious, but the tool gave ´proof´ and a diagram to show this openness.

12



Information

iA Architecture

uildings in a constant state of darkness.

21st July

21st December

Prior to analysis


Location after Analysis

First one must let the ladybug fly. I did the shadow analysis on my skyscraper project in Zurich and that

was quite useful. For this exercise I tried to put as many towers as possible on my site and see whether

the square in between the busstop and the towers would still be a pleasant square. What is a shame is

that one cannot see how the shadow of one mesh ‘crawls’ on the other meshes. But in the end it was

still enough information for me to decide on chaning the location of my towers as they were putting the

existing buildings in a constant state of darkness.


13

place my transportation centres (elevators and stairs) on the places with the least exposure, so on the

inside. Also this analysis made me think of treating every facade differently in terms of glass-use and openness.

The design is not finished yet, but in the images below one can see the work in progress.

Radation analysis of latest option

inside

inside

inside

inside

park

outside outside square inside

park

outside

square

Consequence for the facades (work in progress)


In this second exercise of using ladybug and measuring urban microclimates we looked at a way to

measure radiation analysis. Now this is extremely interesting, but I did not have plans of using solar

panels or robotic elements in my design, so I just followed the tutorial using the surfaces of my updated

building. I checked where in my building the radiation exposure is the most and had the conclusion that

I should place my transportation centres (elevators and stairs) on the places with the least exposure, so

on the inside. Also this analysis made me think of treating every facade differently in terms of glass-use

and openness.The design is not finished yet, but in the images below one can see the work in progress.

14



Information

iA Architecture

have to choose another option.

Wind analysis

Wind analysis

Consequence for the masses (work in progress)

Consequence Digital Urban Simulation for the masses | Final (work Examination progress) | Nima Morkoc


The one thing that I was missing in my analysis and also wondering was the wind. As I am sort of

creating tunnel-like moments in my building I can imagine that there are some problems. I could not find

a ‘‘wind analysis on the internet, but I did find that Ladybug and Honeybee have a tool to understand

the wind by means of wind roses. I took the Munich weather-file that I was also using for the other

microclimate analysis. As the wind was indeed a problem I tried different directions for the streets to

face towards and still have to choose another option.


15

Conclusion:

In the end there are parts of the design process still cannot be quantified with only analytical tools as a

design also deals with things such as atmosphere and ‘feelings’. Nevertheless, the tools that were

presented to us have been very useful, as a lot of factors in the built environment were considered

(which always should be considered). Some of the analysis that I normally do were much quicker

with the new tools, such as the tools provided by ELK and configurbanist that have categorized the

information very well.

Other tools were also useful such as the shadow analysis, but were not that accurate as the shadows

were only shown on a flat surface and did not show how the shadows ‘fall’ on other buildings. The

radiation tool on the other hand gave me a few break-troughs and made me decide to design every

facade separately.In the end I found that the tools give me a lot of information, but found it difficult to

find the right way to visualize it. Sometimes I could bake the information and make a quick visualization,

but with the example of the ‘shortest path’, it could not be baked and them I am forced to redraw the

lines in another program. The design project is going to last another two weeks, but I am positive that

I will at least still do the shadow and radiation analysis again and update my design to it accordingly.

16



Information

iA Architecture


17

Grand Ensemble 2.0

Student: Diem Basile

The site, situated in the south east of the

belgian capital, in Anderlecht. The brief of the

project is pretty open, with a difficult point,

generate on the site the energy needed for

1km2 of the city, that represent 130 GWh.

100’000 visitors from all over Belgium and

further horizons reunite at this place every

weekend.

Towards a new waste incineration plan - bring the energy production where it is needed. The actual

system of energy production with waste in Brussels follow a standard scheme, with the a single power

plant situated on the outskirt of the city. The old power plant, built in 1996, will need a serious revision in

10 years. I propose to replace the actual one with a network of smaller one, closer to the enery demand

and to the combustible.

20



Information

iA Architecture

Using Openstreet maps together with the tools in ELK and Congifurbanist I created a number of maps

that I could use for the analysis. After obtaining lines and points in Rhinoceros, I made more appealing

visualizations with Illustrator. I find it most interesting that all offices, shops, etc. are clearly organized

in the data and are easy to use, normally making these maps takes forever. I choose five of them and

looked at what the shortest path would be starting from the Sihlquai bus terminal. It did not give me any

design input, but it did help me to realise that making a residential building on the site creates a certain

amount of actors that become part of a network on a daily basis, starting from the site and then going

back.


21

Basile

.2016

find the best kind of design at

cale, I first analysed the range

nd what you can see when

the site, by the main entrance.

art of the site is occupied by

f asile history, the market roof of the

house. 016 But beyond that, as

e, the vision is blocked by the

houses and other wharehouses.

nd the best kind of design at

le, I first analysed the range

what you can see when

e site, by the main entrance.

t of the site is occupied by

istory, the market roof of the

use. used But the beyond isovist component that, as

ding the vision space. is blocked by the

uses and other wharehouses.

In order to find the best kind of design at a urban scale,

I first analysed the range of vision and what you can

see when you enter the site, by the main entrance.

The first part of the site is occupied by a piece of

history, the market roof of the slaughterhouse. But

beyond that, as we can see, the vision is blocked by

the slaughterhouses and other wharehouses.

y the new design need more

from the entrance of the side.

e ed achieved the isovist by opening component a cenoing

space. through till the road in the

we can see, this already let you

tter look to the different buildg

the site, in contrary to the old

ion.

For that, I used the isovist component from decoding

space.

he new design need more

m the entrance of the side.

achieved by opening a ceng

through till the road in the

can see, this already let you

r look to the different buildthe

site, in contrary to the old

.

22



Information

iA Architecture

t, I used the isovist component

coding space.

hy the new design need more

s from the entrance of the side.

ll be achieved by opening a cendgoing

through till the road in the

s we can see, this already let you

better look to the different building

the site, in contrary to the old

ation.

That’s why the new design need more openess from

the entrance of the side. This will be achieved by

opening a central roadgoing through till the road in

the north. As we can see, this already let you have a

better look to the different building forming the site,

in contrary to the old organisation.


23

f of the studio is

ssels with renewathe

potential of the

ucing this energy

f of the studio is

osition.

ssels with renewathe

potential of the

tential of solar

ucing this energy

the actual roofs

osition.

this purpose, with

wh.

tential of solar

the actual roofs

an rapidly see that

this purpose, with

ave this kind of

wh.

an rapidly see that

ave this kind of

urning system

energy needed,

sustainable enhe

solar panels,

urning system

with the project


tential for that, as

sustainable enhe

solar panels,

.3 GWh if all the

are covered with



.3 GWh if all the


As one of the main brief of the studio is to power 1

km2 of Brussels with renewable energy, I analysed

the potential of the actual building in producing this

energy with the surface at disposition. As we can

see, the potential of solar energy on the site with the

actual roofs isn’t satisfying at all for this purpose, with

a potential of just 1.2 Gwh. If we extrapolate, we can

rapidly see that the site itself doesn’t have this kind

of potential.

24



Information

iA Architecture

n rapidly see that

ve this kind of

urning system

e energy needed,

sustainable enthe

solar panels,

rning system




sustainable

.3 GWh if all

ene

are solar covered panels, with


n


ntial for that, as

3 GWh if all the


In order to power the burning systemchosen to

generate the energy needed, the research towards a

sustainable energy could tend to be the solar panels,

as we can see, the site with the project could have

enough potential for that, as it could be producing

2.3 GWh if all the roofs of the new design are covered

with solar panels.


25

ize the design of

of the design proto

energy power

an open market

ld one to shelter

hadows could give

the maximal height

his case, is to avoid

n the residential

ing this building.

I used the ladybug

wing to calculate

gth of the shadf

hours in a day.

n the first proposal,

rowing shadow on

ilding next to it.

In order to optimize the design of the centre piece of the design

proposal, the waste to energy power plant surmonting an

open market roof helping the old one to shelter the market, the

shadows could give us a direction for the maximal height of the

building. The purpose in this case, is to avoid to much shade on

the residential building surrounding this building.

t, the right part

the plan), was

ze its impact on the

nately, it’s not posr

down because of

helters.

nalysis, some

nd potential were

oice of energy

uced but we now

e could 26be autonopanels.



Information

iA Architecture

ize the design of

of the design proto

energy power

an open market

ld one to shelter

hadows could give

the maximal height

his case, is to avoid

n the residential

ing this building.

I used the ladybug








the plan), was




helters.

nalysis, some




e could be autonopanels.

of the central street

ell as the height of

rding to the other.

for a lot of them

e were informat

have though of.

To analyse that, I used the ladybug components allowing to

calculate the place and length of the shadows in a range of

hours in a day. As we can see, in the first proposal, the building is

throwing shadow on the residential building next to it. In order to

fix that, the right part of the buildng (on the plan), was lowered to

minimize its impact on the dwelling. Unfortunately, it’s not possible

to go further down because of the functions it shelters.


27








n the plan), was




helters.

nalysis, some




e could be autonopanels.

of the central street

ell as the height of

rding to the other.

for a lot of them

e were informat

have though of.

Thank to these analyses, some important point and potential were

revealed. The choice of energy possible was reduced but we now

know that the site could be autonomous with solar panels. The

importance of the central street was shown, as well as the height

of the building according to the other. The results were for a lot

of them awaited, but some were informations we couldn’t have

though of.

28



Information

iA Architecture


29


Student: Gianluca Genova

Summary:


Residential Tower, UZH Zürich

The project building is located at hochschulquartier in Zurich. Analysis in this project has two focus

points which some of them is concentrating on urban scale whereas others on building scale. Plattenstrasse

10 is recognized as one of the most significant modern constructions of Zürich, built in 1959

by Swiss architect Jakob Zweifel. The building was originally designed to provide dormitories for the

Name: hospital Gianluca staff. Genova The building has 18 above ground floors, and still today with exclusion of the ground floor,

Date: is 05/12/2016 entirely used for residential purposes.

People who are accommodating in this building are mainly working in the UZH Hospital campus. Where

urban scale analysis like accessibility, path detection and isovist could be useful. There some renovation

plans for the building in the future itself. For building scale analysis like shadow calculation and solar

power

1. Summary:

potential can be also useful for taking further decision in this renovations.

The project building is located at hochschulquartier in Zurich. Analysis in this project has two

focus points which some of them is concentrating on urban scale whereas others on building

scale.

Plattenstrasse 10 is recognized as one of the most significant modern constructions of Zürich,

built in 1959 by Swiss architect Jakob Zweifel. The building was originally designed to provide

dormitories for the hospital staff. The building has 18 above ground floors, and still today with

Motivation: exclusion of the ground floor, is entirely used for residential purposes.

This

People

particular

who are

building

accommodating

is my study case

in this

for

building

my integrated

are mainly

design

working

studio.

in

In


this

UZH

studio

Hospital

we are integrating

campus.

architectural and engineering aspects together to find future strategies in terms of space quality and

Where urban scale analysis like accessibility, path detection and isovist could be useful. There

energy efficiency not only for the Plattenstrasse 10 but also for the whole hochschulquartier. Digital

some renovation plans for the building in the future itself. For building scale analysis like shadow

Urban simulation course provide very useful tools where analysis both in urban scale and building

calculation and solar power potential can be also useful for taking further decision in this

scale can be done which can be very useful for complex task that I have in my studio. Analysis like

accessibility renovations. and path detection can help me to define the future functions of the building as well as the

connectivity in the master plan of the Hochschulquartier. Shadow analysis and solar power potential will

give a very initial inside about the solar radiation distribution in the building and its surrounding cluster.

32


iA 1


Information

Architecture

2. Motivation:


3. Analyses and Interpretation:

A) Urban Scale Analysis

Accessibility:

3. Analyses This and analysis Interpretation:

shows the accessible buildings in curtain range by walking and with bike. The

This

A)

particular

Urban result Scale show building

Analysis that is my all the study

:Accessibility

hospital case for buildings my integrated are in design range studio. between In this 150m studio – 900m we are and the respective

integrating time architectural varies from and 3 min engineering to 6min aspects walking. together This can to find help future to distribute strategies the in terms workers of to the closest

space This quality analysis accommodation and This

shows energy particular

the facility efficiency accessible

building to not increase only buildings

is my for the study the accessibility. in Plattenstrasse curtain

case for

range Also my 10 it integrated

by but helps walking also to for define design

and the whole the with

studio. distances bike.

In

The

this to results

studio most we

show

are

hochschulquartier. that all important the hospital integrating Digital services buildings Urban like architectural simulation stores, are public in range course and transportation, engineering provide between very 150m aspects useful post, – tools bank 900m together where etc. and to analysis the find respective future both strategies time varies in terms from of

in 3 urban min scale to 6min and building

space walking. scale

quality This can

and can be done

energy help which to efficiency distribute can be very

not the useful

only workers for complex

for the to Plattenstrasse the task closest that I have accommodation 10 but also for the facility whole to

in increase my studio. the Analysis

hochschulquartier. accessibility. like accessibility Also Digital it helps and path

Urban to define detection

simulation the can distances help me to

course provide to define most the

very important future

useful tools services where analysis like stores, both

functions public transportation, of the building as

in urban scale post, well as

and bank the

building etc. connectivity in the master plan of hochschulquartier.

Shadow analysis and solar power potential will scale give a can very be initial done inside which about can be the very solar useful radiation for complex task that I have

distribution in the in building my studio. and its surrounding Analysis like cluster. accessibility and path detection can help me to define the future

functions of the building as well as the connectivity in the master plan of hochschulquartier.

Shadow analysis and solar power potential will give a very initial inside about the solar radiation

distribution in the building and its surrounding cluster.

2

2


33

Path Detection

This analysis helps to define the distance and required time to reach curtain buildings.





4

34



Information

iA Architecture

This analysis shows a nice compression between the walking time and cycling time. From the

This results analysis it easily shows can be a nice said compression that for short between distances the walking walking and time for and far distances cycling time. cycling From could the be

results more efficient it easily and can respective be said that paths for short can be distances considered walking for this and uses. for far distances cycling could be

more efficient and respective paths can be considered for this uses.

This analysis shows a nice compression between the walking time and cycling time. From

the results it easily can be said that for short distances walking and for far distances cycling

This could analysis be more shows efficient a nice and compression respective between paths can the walking be considered time and for cycling this uses. time. From the

results it easily can be said that for short distances walking and for far distances cycling could be

more efficient and respective paths can be considered for this uses.

5

5


35

Isovist:

Isovist:

A single isovist is the volume of space visible

from a given point in space, together with a

A single isovist is the volume of space visible from a

specification of the location of that point. Isovist

Analysis helps to see the visible range from

given Isovist: point in space, together with a specification

of the location of that point. Isovist Analysis help to

one point. Introducing this analysis through the

see the visible range from one point. Introducing

path will give a numerical data about the visible

this A single analysis isovist through is the volume the path of will space give visible a numerical from a

objects during the journey which can help to

data given about point in the space, visible together objects with during a specification

the journey

design the visual experience through the path.

which of the location can help of to that design point. Isovist the visual Analysis experience help to

through see the the visible path. range from one point. Introducing

this analysis through the path will give a numerical

data about the visible objects during the journey

which can help to design the visual experience

through the path.

6

36


6


Information

iA Architecture

The result of isovit analysis

shows that the visible range

varies during the path. Just

outside of the tower because of

the plan there is a large visible

he result of isovit analysis

range whereas getting closer to

s that the visible range

the Nord hospital buildings the

es during the path. Just

visible range decreases between

ide of the tower because of

plan there


is a

buildings.

large visible

e whereas getting closer to

Nord hospital buildings the

le range decreases between

buildings.

The result of isovit analysis

shows that the visible range

varies during the path. Just

outside of the tower because of

The result of isovit analysis shows that the visible range varies during the path. Just outside

the plan there is a large visible

of the tower because of the plan there is a large visible range whereas getting closer to the

range whereas getting closer to

Nord hospital buildings the visible range decreases between the buildings.

the Nord hospital buildings the

visible range decreases between

the buildings.

7


37

B) Building Scale Analysis

B) Building Scale Analysis

Shadows

B) Building Shadows Scale Analysis

Shadow analysis is important to gather data for the building cluster to understand which building

is shadowing which building during specific time and date. This kind of analysis can give us

Shadows Shadow analysis is important to gather data for the building cluster to understand

an idea if another building will shadow our PV modules during the most efficient time which will

which building is shadowing which building during specific time and date. This kind of

change all the energy calculations.

analysis can Shadow give us analysis idea is if important another building to gather will data shadow for the our building PV modules cluster during to understand the most

efficient which building time which is shadowing will change which all the building energy calculations.

during specific time and date. This kind of

analysis can give us an idea if another building will shadow our PV modules during the most

efficient time which will change all the energy calculations.

8

38



Information

iA Architecture

8

Solar Power Potential:

Solar radiation analysis helps us to be able to see incoming solar radiation to all surfaces to the

building Solar to the Power define Potential: time period. In the project case the time period was one whole year to be

able to understand possible solar gains to the walls. This energy can be captured to produce

ower Potential:

Solar thermal radiation heat or analysis electricity. helps us to be able to see incoming

solar

analysis helps radiation

us to to Solar

be all able surfaces Power Potential:

to see to incoming the building to the define time

solar

surfaces to period. the building In the project to the define case the time time period was one whole

year

roject case to the be

Solar

time able

radiation

to period understand

analysis

was one possible

helps us to

whole solar

be able

gains

to

to

see


incoming

walls.

solar

year

This

radiation to all surfaces to the building to the define time

nderstand energy possible can solar be gains captured to the to walls. produce thermal heat or

period. In the project case the time period was one whole

This

year

captured to electricity. produce to be able thermal to understand heat or possible solar gains to the walls.

This

energy can be captured to produce thermal heat or

electricity.

9

New Methods in Urban Analysis and Simulation | Final project documentation9

9

39

The total possible generated electricity is compared with the whole electricity demand of the

The building total through possible the generated year. If electricity whole potential is is compared facades with would the be whole covered electricity with 0.21 demand efficient of of the

PV

building modules through the generated the the year. electricity If If all whole potential would potential façades be able facades to would cover would be 46% covered be of the covered with whole 0.21 with electricity efficient 0.21 efficient demand PV mod-

PV of

modules the building. then the generated If it would electricity be covered would the same be able façade to to cover with 46% solar of of thermal whole collectors electricity in this demand case of it

of the would the building. cover 38% If If it the of would the same thermal be façade covered heating would the demand same be covered façade of the with building. solar thermal collectors then in this 38% case of it

the would thermal cover heating 38% of the demand thermal of the heating building demand would of the be covered. building.

4. Conclusion:

All the analysis which was done by these grasshopper tools helped me to integrate architectural

and engineering aspects together to find future strategies in terms of space quality and

energy efficiency not only for the Plattenstrasse 10 but also for the whole hochschulquartier.

These tools allowed me to do analysis both in urban scale and building scale can which was

very useful for complex tasks. Analysis like accessibility and path detection can help me to

define the future functions of the building as well as the connectivity in the master plan of the

Hochschulquartier. Shadow analysis and solar power potential will give a very initial inside

about the solar radiation distribution in the building and its surrounding cluster.

10

10

40



Information

iA Architecture


41

Planning the Periphery

Student: Patrick Zeller

Summary:

The subject of the semester was the city of Turin. We tried to adopt the palazzo-typology, which is

very typical for Turin, in a way that it would be applicable for a large site in the periphery. In a first

step, a masterplan had to be developed. In a second step one building within the masterplan was

designed in more detail.

Name:

Date:

Patrick Zeller

autumn semester 2016

planning the periphery

44



Information

iA Architecture

Motivation:

On a project of this scale, it was clear from the beginning that I would need a systematic approach.

If I would have to invent a new set of rules for every square or street, there would have been too

many variables to be able to create a cohesive solution. This systematic approach had to be as

objective and basic as possible, so that the masterplan would be appropriate for the entire site.

Satellite Image of the Turins Centre

satellite image of turins center

Summary:

The subject of the semester New Methods was the in city Urban of Analysis turin. We and tried Simulation to adopt | the Final palazzo-typology, project documentation which is

very typical for turin, in a way that it would be applicable for a large site in the periphery. In a first

45

Isovist field (occlusivity)

isovist field (occlusivity)

Challenges

Some of the tools that I encountered during this class would have been useful to examine the

masterplan, and also the building that I designed in more detail. The aim of the masterplan was

to find a balance between the domestic character of the periphery and the urban density that

Some

comes

of

with

the tools

the use

that


I


encountered

palazzo-typology.

during this

For

class

the final

would

examination

have been useful

of this

to

course,

examine

I tried


to

masterplan,

verify the

and

decisions

also the

I made,

building

using

that


I designed

isovist fields

in more

and

detail.

some

The

of the

aim

tools


used

masterplan

to measure

was

urban

to find a

balance

microclimate.

between the domestic character of the periphery and the urban density that comes with the

use of the palazzo-typology.

For

Analyses

the final

and

examination

Interpretation

of this course, I tried to verify the decisions I made, using the isovist

fields

The results

and some

of this


verification

the tools used

are presented

to measure

on

urban

the following

microclimate.

pages. The aim was not to change

the design of the masterplan or the building, but to verify the design deciscions.

Analyses and Interpretation

The results of this veryfication are presented on the following pages. The aim was not to change

the design of the masterplan or the building, but to verify the design deciscions.

46 Digital Urban New Simulation Methods | in Final Urban examination Analysis and Simulation | Final project documentation


Information

iA Architecture

The Site

The site is located in the periphery. It contains mostly industrial buildings. A graveyard boarders

on its edge. Since the site is located far away from the city center, it seemed inapropriate to have

extensive commercial use on the ground floor level. Instead, ground floor living should be made

possible the site by the design of the masterplan.

The site is located in the periphery. It contains mostly

industrial buildings. A graveyard boarders on its egde.

the periphery. Since It contains the site mostly is located far away from the city center,

A graveyard boarders it seemed on inapropriate its egde. to have extensive commercial use

ted far away on from the the ground city center, floor level. Instead, ground floor living

te to have extensive should be commercial made possible use by the design of the masterplan.

level. Instead, ground floor living

ible by the design of the masterplan.

Digital Urban Simulation |


Final examination

47

Masterplan

The masterplan for the site tries to find a balance between the domestic character of the periphery

and the urban density that is inherent to the palazzo typology. The street grid is therefore divided

into masterplan accesing streets and domestic streets. The accesing streets are usable by car and connect the

two main streets that follow the site on the exterior. The few shops and communal spaces would

The masterplan for the site tries to find a balance between

be located

the domestic

along

character

these streets.

of the periphery

The domestic

and the

streets are intended to create a calm, backyard-like

atmosphere. urban density that They is inherent are pedestrian to the palazzo streets typology.

The street grid is therefore divided into accesing

streets and domestic streets. The accesing streets are

usable by car and connect the two main streets that

follow the site on the exterior. The few shops and communal

spaces would be located along these streets. The

the periphery. It contains mostly

domestic streets are intended to create a calm, backyard-like

atmosphere. on its egde. They are pedestrian streets with

A graveyard boarders

ted far away ground from the floor city living center, and few commercial use.

te to have extensive commercial use

level. Instead, Digital ground Urban floor Simulation living | Final examination

ible by the design of the masterplan.

48



Information

iA Architecture

Masterplan Analysis

Here I test the steps that the masterplan went through during the semester, regarding the

occlusivity values. Areas with high occlusivity (green) have a more domestic character than areas

with low occlusivity (red).

step 1

step 2

step 3

A grid of typical pallazzi In the middle of the blocks, Next, I shift the fassades

masterplan analysis

Here is applied I test the within steps that a regular I introduce small squares. on the inside of the block

the masterplan went through during the semester,regarding the occlusivity values.

Areas street with grid. high occlusivity Measuring They are enclosed by all slightly, trying to further

(green) have a more domestic character than areas with low occlusivity (red).

the occlusivity of the the surrounding buildings, increase the enclosure of

step 1

step 2

step 3

A street grid of grid, typical one pallazzi can is applyied see thus they achieve higher the spaces. The results of

In the middle of the blocks, I introduce

small squares. They are en-

inside of the block slightly, trying

Next, I shift the fassades the

within that a the regular resulting street grid. values occlusivity-values.

the occlusivity confirm the

Measuring

are relatively

the occlusivity

low. These

of the closed by the surrounding buildings, to intention. further increase the enclosure

street grid, one can see that the achieving higher occlusivity-values. of the spaces. The results of the

resulting spaces values are very are relatively open and low.

occlusivity confirm the intention.

These therefore spaces not are domestic.

very open and

therefore not domestic.


Digital Urban Simulation | Final examination

49

Here I test an extract of my masterplan applying further measurments provided by the isovist field

tool. Interpreting these results, one can see that the design of the masterplan is able to provide a wide

range of spatial characteristics.

occlusivity

compactness

perimeter

The compactness measures the ratio of area The perimeter measures the length of the

to perimeter in relation to an ideal circle. The perimeter of the view field. Similar as the

courtyards Here I I test an an of extract the blocks of of my my masterplan result in high applying values.

further measurments occlusivity, provided it gives by by the the information isovist field tool. about Interpreting the level

I these interpret results, these one one can results can see see that as the confirmation the design of of the the of masterplan the is is of able able enclosement. to to provide a a wide The range results of of spatial are therefor characteristics. similar,

plan

demonstrating how the squares and the streets

compactness

with

perimeter

shifted facades are more enclosed.

the the compactness measures the the ratio of of area to to perimeter the the perimeter measures the the length of of the the perimeter

of of the the view field. Similar as as the the occlusivity, it it

result in in high high values. I I interpret these results as as confor-

gives information about the the level of of enclosement.

in in relation to to an an ideal circle. The The courtyards of of the the blocks


Information

50

New Methods in Urban Analysis and Simulation | Final project documentation iA Architecture

mation of of the the plan plan

The The results are are therefor similar, evidencing how how

the the squares and and the the streets with with shifted fassades

Floorplan

A defining quality of the pallazzo typology are the balconies on the inner courtyard. They often

serve as an access to the appartments. For my building, I tried do use the potential of these

access ways to create a neighbourly atmosphere. Important issues to consider were the light and

the privacy of the appartments that can be affected by these balconies. To test the effectivnes of

my design regarding these two aspects I compared my building with a typical palazzo of the city

center, measuring the isovist field and the ladybug tool.

floorplan

the pallazzo A defining typology quality are the of the bal-pallazzourtyardconies They often on the serve inner as courtyard. an They often serve as an

typology are the bal-

ments. For access my building, to the I appartments. tried do use For my building, I tried do use

e access the ways potential to create of a these neighbouronsider

were Important the light issues and to the consider pri-

were the light and the pri-

access ways to create a neighbourly

atmosphere.

nts that vacy can be of affected the appartments by these that can be affected by these

e effectivnes balconies. of my To design test regarding the effectivnes of my design regarding

compared these my building two aspects with a typical I compared my building with a typical

enter, measuring palazzo the of the isovist city field center, and measuring the isovist field and

the ladybug tool.

ation |

Digital Final examination

Urban Simulation |



51

my My floorplan Floorplan

typical palazzo

Typical Palazzo

The Isovist Field

The inner The fassade inner of fassade my floorplan of my is shifted, floorplan so that is shifted, the entrances so that of the appartments entrances of are the enclosed appartments within a small

space. The functionality of this design is evidenced by the results of the isovist field measurment: Compared with the

are enclosed within a small space. The functionality of this design is evidenced by the

typical floor plan of a palazzo (see next page), the isovist field has a considerably smaller overlap with the interior of

the appartments. results of Also the the isovist area of field the measurment: courtyard results Compared less covered with by the the typical view field. floor plan of a palazzo

(see next page), the isovist field has a considerably smaller overlap with the interior of

the appartments. Also the area of the courtyard results less covered by the view field.

52



Information

iA Architecture

The Apartment

In front of the living room that faces the interior courtyard, the floor slab of the balcony is opened.

These funnels provide more light to the appartments. The effect of this is measured by the urban

microclimate tool, also known as ladybug.

appartment

In front of the living room that faces the interior courtyard,

the floor interior slab court-

of the balcony is opened. These fun-

room that faces

of the balcony nels is provide opened. more These light funht

to the appartments. of this is measured The effect by the urban microclimate tool, also

to the appartments. The effect

by the urban known microclimate as ladybug. tool, also

lation |





53

june, 09:00 AM



Illumination

The funnel in the floor slab provides additional light to the livingroom. On the traditional floorplan of the palazzo type,

the illumination is worse, as evidenced by this comparison of traditional appartments (on the right) and my appartments

The funnel in the floor slab provides additional light to the livingroom. On the traditional floorplan of the

(on the left). The impact of these seemingly small differences can be further understood on the next page,where the

palazzo sun-radiation type, is the measured. illumination is worse, as evidenced by this comparison of traditional appartments (on

the right) and my appartments (on the left). The impact of these seemingly small differences can be

further understood on the next page, where the sun-radiation is measured.

54




Information

iA Architecture

shadow on june, 16pm

sun-radiation, time set: january - december




55

grasshopper definition for the isovist fields

Grasshopper grasshopper definition for the isovist fields

fields

grasshopper definition for the isovist view area

Grasshopper grasshopper definition for the the isovist isovist view view area

area

Conclusion

Grasshopper grasshopper definition for the the urban urban microclimate

grasshopper definition for the urban microclimate

Conclusion

Conclusion

To conclude one can say that these tools can be a very usefool instrument not only to test but also

to illustrate design To choices. conclude I one found can the say tools that to these be very tools interesting can be a as very a method usefool to instrument measure, not verify only to tes

and visualize qualities to To illustrate conclude that we one design as can architects choices. say that I often found these find the tools difficult tools can be to a describe. very usefool interesting The word instrument as "density" a method not for

only to measu

to tes

example can mean and to illustrate visualize so many design qualities things, choices. and that often we I found as during architects the discussions tools often to be it find very is not difficult interesting clear to what describe. as one a method means The word to measu "de

exactly. The isovist for and example field visualize tool can provides qualities mean so a that number many we things, as of architects ways and to often examine often during find the discussions difficult density to of describe. it a is place not clear using

The word what "de one

traceable measurments. exactly. for example The On can isovist the mean other field so hand many tool I provides things, am not and sure a number often wether during of ways I can discussions to use examine these it the tools is not density for clear the of what a place

one

design process. traceable exactly. The time The that measurments.

isovist needed field by tool my provides (moderatly a number fast) computer of ways to to calculate examine these density models

of a place

(especially the isovist On traceable the fields) other measurments.

is hand hard I to am integrate not sure in wether a smooth I can work use flow. these But tools I'm sure for the that design these process. tools The

will become more is On needed efficient the other by in my the hand (moderatly future.

I am not sure fast) wether computer I can to use calculate these tools these for models the design (especially process. the isovis

The

hard is needed to integrate by my (moderatly in a smooth fast) work computer flow. But to I'm calculate sure that these these models tools (especially will become the more isovis ef

the hard future.

to integrate in a smooth work flow. But I'm sure that these tools will become more ef

Digital the future. Urban Simulation | Final examination

56

New Digital Methods Urban in Urban Simulation Analysis | and Final Simulation examination | Final project documentation


Information

iA Architecture


57

Settlement Growth Analysis

Student: Michael Fehr

Summary & Motivation

To get as much insight into not just the Rhinoceros/ Grasshopper combination itself, but also

the different plugins and their offer of tools and analyses, the rest being the translation of a

GeoTIFF image file into elevated topography. Then, different exclusion criteria for building

positions were set up. After the creation of (cylindrical) buildings of varying height and

diameter, an analyses of annual solar gains was conducted to evaluate the design.

Even if there is probably not a lot of scientic value in this project, it can show how many

factors infuence the growth of settlements and present some of the possiblities of the

software environment used.

1 https://geodata4edu.ethz.ch

Topography

After downloading relief and elevation pictures from the net (1), these were transformed into

grayscale JPEG to be used by Grasshopper image sample. The real extensions and height

extremes were then used by a grid to get the real profile. It shows an area of St. Gallen:

60



Information

iA Architecture

Tessellation & Street Network Analysis

Because of a better use of space and manageable computation effort, the tessellation for

the building plot creating and network analysis was done with a hexagonal grid. Feeding

this grid and the topography to the streetNetwork tool (Configururbanist plugin) result in a

coloured grid showing the distances to a set point. The chosen point (black spot) in this case

is located around the historical centre of the village, close to school and church.

Exclusion Factors

For the development of a settlement with centre, not all places are suitable. The behavoiur

of the settlers in this project was set to “ecological” - in different ways:

River



The settlers want to leave the river its original path and bed. This is beneficial for plants and

animals living in and around the river. It also helps reducing the risk and damage of floods.

No building should be closer to the river (black line) than 20 meters.

Slopes



Buildings should not be standing in very steep terrain, which decreases the potential damage

from landslides and the building costs. The threshold values were set from knowledge of

the site and applied on a (slightly blurred) gradient image which holds the information of

steepness.


61

Distance to Centre

The maximum distance to the point set as centre should not exceed a certain distance

(800m in this case). The distance also determines the building heights so as to have



more people close to the centre.

Sun

To reduce heating loads in winter, buildings should not be built on north facing hillsides.



Instead of a large solar potential analysis, a vector based (and much faster) approach

was chosen: at each plot, the vector normal to the topography (without east-west

component) was compared to the sun ray vector of equinox (spring). Plots with an

angle of more than 90˚ between these vectors are dismissed.

Forest



Areas covered by forest and ponds are not taking into consideration for building sites.

An aerial view of the site was used to find the outlines of these.

Top left: Elevation image where brighter pixels are higher. Top right: Areas covered by forests etc.

Bottom left: Relief image. Bottom right: Gradient image showing slopes as brighter pixels.

Top left: Elevation image where brighter pixels are higher. Top right: Areas covered by

forests etc. Bottom left: Relief image. Bottom right: Gradient image showing sloped

as brighter pixels

62



Information

iA Architecture

Circle Offset & Extrusion

All plots that were not eliminated by one of the exclusion criteria have their seed circle offset.

Plots with smaller angles in the sun criterion get enlarged circles, buildings with ^high angles

get a size reduction. This measure should reduce the shading effect on other buildings.

The extrusion is the last step. Buildings are given heights between 3.5 m (one story) and 21

m (6 stories)


63

Solar Analysis

To see whether the energy measures make sense, a solar analysis was conducted using

Ladybug features. The extruded buildings were analysed using the weather file of Zurich.

Not surprisingly is that the roofs of all have the same intensive red. The facades are more

interesting. Lower parts in dense areas get significantly lower solar gains than higher floors.

This problem could be solved by reducing building heights or diameters in dense areas or

change the shape. Different shapes could also help to distribute solar gains away from the

roof. But this again would be wanted when using photovoltaics.

64



Information

iA Architecture

Conclusion

After spending some time fixing mistakes, finding errors and struggling with computer crashes,

the result is comprehensible and seems to make sense. The combination of geological data

and images with Grasshopper programming (and also Matlab and Photoshop) offers many

possibilities!


65

Analysis of a New Sub-Centre in Shanghai

Student: Tian Zhou

Summary:

As the new city sub-center of northeast Shanghai, Wujiaochang is not merely a

shopping center but also an active hub of high-tech innovative companies and an

essential connection of the four universities (TJU, FDU, SMMU, SUFE) near it.

Source: ctps.cn Source: landscape.cn

Tian Zhou

In order to analysis the rationality of the new city sub-center and to give some

reasonable suggestions on the development of this sub-center, the following analysis

are carried out and interpreted in this report: Choice analysis, Integration analysis,

Accessibility analysis, Path detection, Isovist analysis, Isovist field analysis, and Solar

irradiation analysis.

Analysis of a New City Sub-Center in Shanghai

Name: Tian Zhou

Date: 04.12.2016

1. Summary:

As the new city sub-center of northeast Shanghai, Wujiaochang is not merely a

shopping center but also an active hub of high-tech innovative companies and an

essential connection of the four universities (TJU, FDU, SMMU, SUFE) near it.

Source: ctps.cn

Source: landscape.cn

SUFE

SMMU

FDU

TJU

68

In order to analysis the rationality of the new city sub-center and to give some

reasonable suggestions on the development of this sub-center, the following analysis


are carried out and interpreted in this report: Choice analysis, Integration analysis,

Accessibility analysis, Path detection, Isovist analysis, Isovist field analysis, and Solar


Information

iA Architecture


Tian Zhou

2. I had Motivation: lived in this area for 4 years before I came to Zurich. It was interesting seeing the fast

development I had lived of in this integrated area for 4 new years city before sub-center, I came to so Zurich. I believe It was it is interesting also valuable seeing to check

the mechanism the fast development behind the of prosperity this integrated and derive new city some sub-center, possible strategies so I believe for it this also urban area.

Therefore, valuable choice to check analysis the mechanism and integration behind analysis the prosperity are implemented and derive to some assess possible the rationality

of the strategies spatial location; for this accessibility urban area. Therefore, analysis and choice path analysis detection and are integration implemented analysis to check are the

convenience implemented of the to spatial assess location; the rationality isovist of analysis the spatial is carried location; out accessibility to assess the analysis visual results; and

and path solar detection irradiation are analysis implemented is applied to check to look the for convenience an environmental-friendly of the spatial location; energy-saving

solution. isovist analysis is carried out to assess the visual results; and solar irradiation analysis

is applied to look for an environmental-friendly energy-saving solution.

3. 3. Analyses Analyses and and Interpretation:

Choice (1) analysis Choice analysis (Segment (Segment analysis): analysis):

As shown As shown in the in right the figure, right figure, for this for urban this urban area, the area,

roads the around roads Wujiaochang around Wujiaochang are mostly are chosen mostly by

people, chosen which by means people, it which is reasonable means it to is consider

Wujiaochang reasonable to the consider local center. Wujiaochang as the

local center.

Integration analysis:

(2) Integration analysis:

Single point situation (right)

shows

Single


point

distance

situation

network

to

(right)

Wujiaochang.

shows the

Multiple

distance

points

network

situation

to Wujiaochang.

(right) shows

the integration using various

positions of point of interest

with various weigh values.

Points 0 (Wujiaochang) and 1

(Hongkou Football Stadium)

are two big shopping

centers, which share a weigh

Multiple points situation (right) shows the

value of 10/10; while points 2

integration using various positions of

(Jiangpu Road) and 3 (Daxue

point of interest with various weigh

Road) are two relatively small

values. Points 0 (Wujiaochang) and 1

shopping centers, which

(Hongkou Football Stadium) are two big

have a weigh value of 5/10.

shopping centers, which share a weigh

value of 10/10; while points 2 (Jiangpu

The result shows that the

Road) and 3 (Daxue Road) are two

urban area is well covered

relatively small shopping centers, which

by the services from the four

have a weigh value of 5/10. The result

shopping centers, which

shows that the urban area is well

indicates a convenient life

covered by the services from the four

within this urban area.

shopping centers, which indicates a

convenient life within this urban area.

1

3

0

2

Digital Urban New Simulation Methods | in Final Urban examination

Analysis and Simulation | Final project documentation

69

Accessibility analysis:

(3) Accessibility analysis:

(3) - Spatial Accessibility

Spatial accessibility accessibility

analysis: of 500 of 500 meters, meters, 1 kilometer kilometer and and 2 kilometers.

(3) kilometers.

Accessibility

Spatial accessibility

analysis:

of 500 meters, kilometer and kilometers.

- Spatial accessibility of 500 meters, 1 kilometer and 2 kilometers.

Tian Zhou

Tian Zhou

Tian Zhou

Temporal walking accessibility of 10 minutes, 20 minutes and 30 minutes.

- Temporal walking walking accessibility of 10 of 10 minutes, 20 20 minutes and and 30 30 minutes.

- Temporal walking accessibility of 10 minutes, 20 minutes and 30 minutes.

Tian Zhou

(3) Accessibility analysis:

- Spatial accessibility of 500 meters, 1 kilometer and 2 kilometers.

Temporal cycling accessibility of minutes, 10 minutes and 15 minutes.

Temporal cycling accessibility of minutes, 10 minutes and 15 minutes.

- - Temporal cycling cycling accessibility of 5 of 5 minutes, 10 10 minutes and and 15 15 minutes.

- Temporal walking accessibility of 10 minutes, 20 minutes and 30 minutes.

- Temporal cycling accessibility of 5 minutes, 10 minutes and 15 minutes.

70

From the results, we could see that this urban area, with diameter of more than km,

From

is


quite

results,

big and

we

Wujiaochang

could see that

could

this urban

be considered

area, with

as the

diameter

center



more

this area.

than With

km,

From

is


30-minute

quite

results,

big and

we

walking

Wujiaochang

could see that

or 15-minute

could

this urban

cycling

be considered

area, with

from Wujiaochang,

as

a


diameter

center


most


more

buildings

this area.

than 2

could

With

km, From is the

30-minute

quite results, big and we

be approached.

walking

Wujiaochang could see that

or 15-minute

could this urban

cycling

be considered area, with


as a the diameter center of

most

of more

buildings

this area. than 2

could

With

km, is

30-minute

quite big


walking

and Wujiaochang

or 15-minute

could

cycling

be considered


as the center

most buildings

of this area.

could

With 30-minute


walking or 15-minute cycling from Wujiaochang, most buildings

could be approached.

From the results, we could see that this urban area, with a diameter of more than 2

(4) Path detection:

km, is quite big and Wujiaochang could be considered as the center of this area.

(4) Path detection:

With 30-minute walking or 15-minute cycling from Wujiaochang, most buildings

could be approached.

(4) Path 4. Path detection: detection:

The paths from Wujiaochang to the nearby

universities

The paths from

are detected.

(4) Wujiaochang Path detection:

As to

result,

the we

nearby

could

see

universities

The The paths paths from

that Wujiaochang

are from detected.

Wujiaochang Wujiaochang

The paths is from well

As to

Wujiaochang connected

result,

the to 4 the we

nearby

to the 4 nearby with

could 4

are detected. As a result, we could


see

universities nearby

universities

that Wujiaochang universities are detected.

and

see that

could

is are well

As detected. a

Wujiaochang

be

connected

result, we As

considered

with

could a

is well as the

bond


see

universities result, that Wujiaochang we could

or the bridge

and the universities between

could see is well that

and be

connected

could the

considered Wujiaochang with

be different

as as the the

bond or the bridge between the universities.

bond

the universities is or well the connected bridge

and

between

could with be the the

considered universities different

as the

universities.

universities.

bond and or could the bridge be considered between the as different the bond

universities. or the bridge

Digital Urban

between

Simulation |



different

Digital Urban universities. Simulation Final examination

Digital Urban Simulation Final examination

Digital

New

Urban

Methods

Simulation

in Urban

|

Analysis


and Simulation | Final project documentation


Information

iA Architecture

Tian Zhou

5. Isovist point analysis: Isovist areas at different positions (east, south, west, north

to (5) the Isovist elliptical point plaza analysis: of Wujiaochang) Isovist areas at are different visualized positions below. (east, south, west, north

Tian Zhou

to the elliptical plaza of Wujiaochang) are visualized below.

(5) Isovist point analysis: Isovist areas at different positions (east, south, west, north

to the elliptical plaza of Wujiaochang) are visualized below.

(6) Isovist field analysis: This analysis is implemented for the shopping center zone

of Wujiaochang. From the results shown below, we can easily notice that isovist

6. Isovist field analysis: This analysis is implemented for the shopping center zone of

area of some parts are small due to the visual block effect by the high-rise buildings.

Wujiaochang. From the results shown below, we can easily notice that isovist area of some

parts (6) are Isovist small field due analysis: to the visual This block analysis effect is implemented by the high-rise for the buildings. shopping center zone

of Wujiaochang. From the results shown below, we can easily notice that isovist

area of some parts are small due to the visual block effect by the high-rise buildings.

Isovist area Perimeter Occlusivity

(7) Solar irradiation analysis: This analysis is also implemented for the shopping

center zone of Wujiaochang, and the results are shown below. As a result, we can

see Isovist that area most part of the roofs has high Perimeter solar potentials (>1000kWh/m 2 ). Therefore, Occlusivity I

7. Solar

(7) would Solar

irradiation suggest irradiation

analysis: that analysis: PV or This PVT analysis

This panels analysis

is could also

is also

implemented be integrated implemented on for the

for high the

shopping

shopping solar potential center zone

of Wujiaochang,

center part of zone the roofs and

of Wujiaochang,

the of the results relatively are

and

shown low the buildings, results

below.

are since As

shown

a result, it’s below. easier we can to As implement. a

see

result,

that

we

most

can

part of

the roofs see that has most high solar part of potentials the roofs (>1000kWh/m2). has high solar potentials Therefore, (>1000kWh/m I would suggest 2 ). Therefore, that PV I or

PVT panels would suggest could be that integrated PV or PVT on panels the high could solar be potential integrated part on of the the high roofs solar of the potential relatively

low buildings, part of the since roofs it’s of easier the relatively to implement. low buildings, since it’s easier to implement.


As a new city sub-center of Shanghai, Wujiaochang has a perfect location and works

well as a bond of different elements nearby. Together with other local centers, a

Conclusion:


convenient urban life could be provided to the citizens. However, the high solar

As potential a new of city this sub-center area should of Shanghai, be taken advantage Wujiaochang of, in has order a perfect to involve location the city and in works a

As a new well more as city

ecological a sub-center bond of and different of

energy-saving

Shanghai, elements Wujiaochang

way. nearby. Together has a with perfect other location local centers, and works a well

as a bond convenient of different urban life elements could be nearby. provided Together to citizens. with other However, local centers, the high a solar convenient

urban Digital

potential life Urban could of

Simulation be this provided area should

| Final to the be

examination citizens. taken advantage However, of, the in order high to solar involve potential the city of in this a area

should more be taken ecological advantage and energy-saving of, order to way. involve the city in a more ecological and energysaving

way.



71

Huangguang East Town Planning

Student: Difei Yang

Huangguang East Town – Planning Analysis and Service

Design Summary:

Name: With Difei the Yang growth of economy, Huanggang is planning a new town near Baitan

Date: 01.12.2016 Lake to meet the increasing demand for office and residential buildings.

Huangguang East Town – Planning Analysis and Service

Design

1. Summary:

Name:

With

Difei


Yang

growth of economy, Huanggang is planning a new town near Baitan Lake to meet

Date: 01.12.2016

the increasing demand for office and residential buildings.

1. Summary:

With the growth of economy, Huanggang is planning a new town near Baitan Lake to meet

the increasing demand for office and residential buildings.

Figure 1. Masterplan of Huanggang East Town

Figure 1. Masterplan of Huanggang East Town

Figure 2. Functional Design


Figure 2. Functional Design

74




Information

iA Architecture

Figure 3. Development Guide

This project aims to analyze connectivity, accessibility, visibility of the master plan, also

the solar potential that could be used in buildings’ operation.

This project aims to analyze connectivity, accessibility, visibility of the master plan,

2. Motivation: also the solar potential that could be used in buildings’ operation.

I was working on this project three years ago, as a sustainability consultant and cooperated

with planners. It was anguishing for us that we could hardly find a way to show the

connectivity 2. Motivation: of the road network, also to find locations for services and bus stops to build a

friendly neighborhood of everything within walking distance. Such issues could be analyzed

and

Figure 3. Development Guide

This I project was

also

working

clear images

aims to on analyze this

could

project

be developed

connectivity, three years

with

accessibility, ago,

Grasshopper.

as visibility a sustainability of the master consultant plan, also and

the solar cooperated potential with that planners. could be used It was in anguishing buildings’ operation. for us that we could hardly find a way

3. Analyses and Interpretation:

to show the connectivity of the road network, also to find locations for services and

3.1 Connectivity

2. Motivation: bus stops to build a friendly neighborhood of everything within walking distance.

I was Such working issues on could this project be analyzed three years and ago, also as clear a sustainability images could consultant be developed and cooperated with

with Grasshopper.

planners. It was anguishing for us that we could hardly find a way to show the

connectivity of the road network, also to find locations for services and bus stops to build a

friendly neighborhood of everything within walking distance. Such issues could be analyzed

and 3. also Analyses clear images and Interpretation:

could be developed with Grasshopper.

3. Analyses 3.1 Connectivity and Interpretation:

3.1 Connectivity

Figure 4. Locations that to be analyzed

Figure 4. Locations that to be analyzed



75

Figure 5. Connectivity

Connectivity is analyzed based on four major functional area of the project:

residential buildings, Connectivity main government is analyzed building, based cultural on four plot, major

connected functional with area each of other.

project: residential

and CBD. The result

shows they are well

3.2 Segment buildings, main government building, cultural

plot, and CBD. The result shows they are

well connected Figure with 5. Connectivity each other.

Connectivity is analyzed based on four major functional area of the project:

residential buildings, main government building, cultural plot, and CBD. The result

shows they are well connected with each other.

3.2 Segment

Figure 6. Segment

The roads around the middle area of CBD performs a higher choice level, which

indicates that it’s better not manage to run bus lines get in or across this area.

3.3 Accessibility

As to accessibility, the first analysis would be conducted that how far people could get

to from the selected locations, within 15 minutes of walking or cycling.

Figure 6. Segment

The roads around the middle area of CBD performs a higher choice level, which

indicates that it’s better The not roads manage around to run the bus middle lines get area in of or CBD across this area.

3.3 Accessibility performs a higher choice level, which

As to accessibility, the indicates first analysis that it’s would better not conducted manage that to how run far people could get

to from the selected bus locations, lines get within in or 15 across minutes this of area. walking or cycling.

3.3 Accessibility As to accessibility, the

first analysis would be conducted that how

far people could get to from the selected

locations, within 15 minutes of walking or

cycling.


76



Information

iA Architecture

Figure 7. Walking 15 min from Residential Area (Point 0)

For the residential area, occupants could get to the center part within walking of 15

mins. Thus, basic services like supermarket, day-care, post-office, etc. could be places

near the center.

For the residential area, occupants

could get to the center part within

walking of 15 mins. Thus, basic

services like supermarket, day-care,

post-office, etc. could be places near

Figure 7. Walking 15 min from Residential Area (Point 0)

the center.

For the residential area, occupants could get to the center part within walking of 15

mins. Thus, basic Figure services 7. Walking like supermarket, 15 min from day-care, Residential post-office, Area (Point etc. 0) could be places

For near the the residential center. area, occupants could get to the center part within walking of 15

mins. Thus, basic services like supermarket, day-care, post-office, etc. could be places

near the center.

Figure 8. Walking 15 min from Cultural Plot (Point 1)



Figure 9. Walking 15 min from Government Building (Point 2)





77

Figure 10. Walking 15 min from CBD (Point 3)

Figure 10. Walking 15 min from CBD (Point 3)

Figure 11. Cycling 10 min from Each Location

None of each location could cover the whole area with 15 mins’ walking, while

cycling with around 10 mins could reach every building. So it’s a must to provide a

shuttle None of bus each for the location people Figure could who 11. prefer cover Cycling public the 10 min whole transportation from area Each with Location than 15 cycling mins’ walking, to get round while

this None cycling area. of with each around location 10 could mins cover could the reach whole every area with building. 15 mins’ So it’s walking, a must while to provide

cycling a shuttle with bus around for the 10 people mins could who reach prefer every public building. transportation So it’s a must than to cycling provide to a get

shuttle round this bus for area. the people who prefer public transportation than cycling to get round

this area.

Figure 12. Route and Stops of the Shuttle Bus

Figure 12. Route and Stops of the Shuttle Bus


78



Information

iA Architecture

On account of analysis above, the route and stops of the shuttle bus are shown as

On account of analysis above, the route and stops of the shuttle bus are shown as the

the image.

image.

1 2 3 4

On account of analysis above, the route and stops of the shuttle bus are shown as the

image.

1 2 3 4

5 6 7

5 6 7

Table 1. Walking 5 mins from Each Stop

Though several buildings cannot be reached on above analysis, considering that

Grasshopper Though several has a buildings limit on dealing cannot with be reached road network on above with high analysis, density, considering pavements

within that Grasshopper each plot are has not cover a limit in on this dealing report. with Hence, road considering network with the distance high density, between

buildings pavements and within bus stops, each Table all plot bus 1. are Walking stops not could 5 cover mins be from in reached this Each report. within Stop Hence, 5 mins walk. considering

Though the distance several between buildings buildings cannot be and reached bus stops, on above all bus analysis, stops considering could be reached that

Grasshopper 3.4 within Isovist 5 mins of has Bus walk. a limit Stops on dealing with road network with high density, pavements

within each plot are not cover in this report. Hence, considering the distance between

buildings and bus stops, 1 all bus stops could be reached within 5 mins 2 walk.

3.4 Isovist of Bus Stops

1 2

3 4

3 4

5 6

5 6

Digital Urban Simulation New Methods | Final Urban examination Analysis and Simulation | Final project documentation

79

3.5 Isovist Field of CBD

As the CBD has a significant amount of transients every day which comes for

business meetings, isovist plays a major role in this area, and it is analyzed

with minimal and maximal radial. Though areas around buildings have relatively

lower isovist, the intersections perform better.

7

7

Table 2. Isovist of Each Stop

3.5 Isovist Field of CBD

As the CBD has a significant amount of transients every day which comes for business

meetings, isovist plays a major Table role 2. in Isovist this area, of Each and Stop it is analyzed with minimal and

maximal 3.5 Isovist radial. Field of Though CBD areas around buildings have relatively lower isovist, the

intersections As the CBD has perform a significant better. amount of transients every day which comes for business

meetings, isovist MinRadial plays a major role in this area, and it is MaxRadial analyzed with minimal and

3.6 Solar Potential

maximal radial. Though areas around buildings have relatively lower isovist, the

intersections perform better.

MinRadial

MaxRadial



Table 3. Isovist Field of CBD

Table 3. Isovist Field of CBD

80



Information

iA Architecture

Figure 13. Solar Potential of the Government Building

Figure

Due to the

13.

limit

Solar

of Grasshopper,

Potential of

only


two

Government

solar panel

Building.

could be analyzed,

Due to

otherwise

the limits of

Grasshopper, the software would only two get stuck. solar panel Total solar could potential be analyzed, is 259.32MWh/yr. otherwise the software would

get stuck. Total solar potential is 259.32MWh/yr.


Nowadays, urban planning would not only care about connectivity, but also renewable

potential it could provide to deliver a sustainable and livable life. Grasshopper could help

in analyzing and presenting such kind of design work. However, the capacity limits the

application of this method. As in segment analysis, pavements would lead to the

overburden. In the case of solar analysis, a model of large scale (even only part of it are

chosen to analyze) will cause ‘No Response’ of the software. As a result, to implement

grasshopper in urban planning, it’s better to set clear limitations to get rid of time wasted in

dealing with such beyond capacity issues.

Conclusion:

Nowadays, urban planning would not only care about connectivity, but also renewable

potential it could provide to deliver a sustainable and livable life. Grasshopper could

help in analyzing and presenting such kind of design work. However, the capacity

limits the application of this method. As in segment analysis, pavements would lead

to the overburden. In the case of solar analysis, a model of large scale (even only

part of it are chosen to analyze) will cause ‘No Response’ of the software. As a

result, to implement grasshopper in urban planning, it’s better to set clear limitations

to get rid of time wasted in dealing with such beyond capacity issues.


81

Comparison of Grid Patterns

Student: Laura Cowie

1. Summary:

The goal of this project was to develop two clusters of buildings, one at an

intersection, the other along a road, using various different grid patterns for buildings

and roads, and then compare these clusters using segment analysis and isovist

tools to determine which pattern would produce the most desired cluster in terms

of choice, visibility and compactness.


The results of this project will be useful for future projects that require building

layouts to be designed with visibility, as well as choice and compactness, in mind.

One such project would be the Empower Shack development project which, in

its pilot phase, is focused on developing a cluster of 68 houses located within

an informal settlement in South Africa. The results of this project could be used

for the basis of the initial design concept for building positioning. In this instance

visibility and choice would be very important for developing a safe, resilient living

environment.

3. Pattern Grid Development:

Growth of the different grid patterns used to generate buildings and roads, using

the same curve as a detractor and the same central points to generate building

clusters around. One cluster was centred at a Y-junction and the other at a bend

in the main road.

84



Information

iA Architecture

Pattern Randomized grid Curve as detractor Building footprints Buildings and roads

Voronoi

Hexagonal

Radial

Triangular

Rectangular

Square

Digital Urban Simulation | Final examination 2


85

4.

4.

Analyses

Analyses

and

and

Interpretation:

Interpretation:

The chosen analysis tools are listed below:

The chosen analysis tools are listed below:

Choice - measures movement flows through spaces

Choice - measures o higher movement = better flows through spaces

o higher = better Visibility – all points that can be seen from a location in space

Visibility – all points o higher that can = better

seen from a location in space

o higher = better Isovist Area - area of a view field

Isovist Area - area

o lower

of a view

number

field

means less visible area from center point

o lower number o means lower less = visible worse area from center point

o lower = worse

Compactness - ratio of area to perimeter in relation to an ideal circle

Compactness o - ratio lower of area number to perimeter means in less relation compact to an ideal circle

o lower number Min means radial less - shortest compact view ray

Min radial - shortest o larger view number ray means larger distance between buildings

o larger number means larger distance between buildings

The visual

The

results

visual

and

results

average

and

values

average

from

values

different

from

the analysis

different

tools


are

analysis

shown below.

tools are

shown below.

Segment Analysis – Choice

radius of 150m

Average

Isovist Area – Visibility

500 count points, radius of 180m Area at Y Area at I

0.20023 17,398 7,741

0.12488 17,337 7,202


86



Information

iA Architecture

0.194856 28,987 8,766

0.13279 17,303 14,804

0.153923 22,939 16,467

0.116686 17,398 12,101



87

Isovist area max 3e+8 Compactness 0 - 1 Min radial max 200

1.398e+8 0.33 47.29

1.394e+8 0.33 47.7

1.435e+8 0.28 46.19

1.379e+8 0.34 45.64

1.377e+8 0.22 48.11

1.398e+8 0.33 47.29


88



Information

iA Architecture

5. Results and Conclusions:

Using the interpretation indicated previously, the following patterns were indicated as best using

the different analysis tools from above.

Choice = voronoi

Visibility – Y-intersection = radial, I-intersection = rectangular

Isovist Area = radial

Compactness = rectangular is least compact

Min radial = rectangular largest distance between buildings

The conclusion of this analysis was be to focus on using a radial or rectangular grid as the base

pattern for building placement in future projects, especially where visibility and compactness are

important. For projects where choice is the most desired outcome then a voronoi pattern may be

preferential.


89

Summer Urban Thermal Comfort Design

Student: Carlos Pacheco

Summer urban thermal comfort design


Summary

Carlos Pacheco, ETH Zurich 2016

This exercise intends to design a new urban development in a

hot summer area near Málaga ,Spain crossed by a river, with

the use of parametric design in growth, attraction points and

total direct solar radiation Summary parameters. First, an specific grid

shape is chosen with thermal and wind comfort criteria.

This exercise intends to design a new urban development in a hot summer area near Málaga ,Spain

crossed by a river, Second, with the plot use densification, of parametric design both height in growth, and attraction plot ground points floor and total direct solar

radiation parameters. area, First, is defined an specific with grid proximity shape is criteria chosen to with different thermal points and of wind comfort criteria.

Second, plot densification, interest (POI) both height in the urban and plot space. ground floor area, is defined with proximity criteria to

different points of interest (POI) in the urban space.

Figure 1. Given topography, Madrid, Spain.

Carlos Pacheco / Urban thermal comfort design 1

92



Information

iA Architecture

Figure 2. Rhino topography

Motivation

Motivation

Figure 2. Rhino topography

The motivation of the following study is to optimize the design of an urban development considering

classical elements

The


motivation

urban design


as well

following

as pedestrian

study is to

thermal

optimize

comfort

the design

in an


area where estival

an urban development considering classical elements of urban

tourism will be the main economic activity of the new Master Plan.

design as well as pedestrian Motivation thermal comfort in an area where

estival tourism will be the main economic activity of the new

The motivation of Master the following Plan. study is to optimize the design of an urban development considering

Design process

classical elements of urban design as well as pedestrian thermal comfort in an area where estival

tourism will be the Design main economic processactivity of the new Master Plan.

In the design process Rhino and Grasshopper software are implemented as a tool to model and

parametrize the different In the variables design process of the design. Rhino First, and aGrasshopper rectangular grid software with cells are of 13x46 units is

chosen facing east-west implemented to maximize as a cooling tool effect by convection with most frequent wind in that

Design

to model

process

and parametrize the different

area.

variables of the design. First, a rectangular grid with cells of 13x46

units is chosen facing east-west to maximize cooling effect by

In the design process Rhino and Grasshopper software are implemented as a tool to model and

convection with the most frequent wind in that area.

parametrize the different variables of the design. First, a rectangular grid with cells of 13x46 units is

chosen facing east-west to maximize cooling effect by convection with the most frequent wind in that

area.

Figure 3. Rectangular grid (46x13)units cells


Figure 3. Rectangular grid (46x13)units cells


New Methods in Urban Analysis and Simulation | Final project documentation 93

Second, a double river is modelled as a point of interest and building plot geometry is

Second, modified a double with river the use is modelled of voronoi as a patterns point of interest around and the building center of plot the geometry river to is allow modified for bigger with the

use

open

of voronoi

areas.

patterns

The densification

around the center

strategy


consists

river to

in

allow

increasing

for bigger

urban

open

space

areas.

around

The densification

the river,

limiting large building plot areas close to it.

strategy consists in increasing urban space around the river, limiting large building plot areas close to it.

Second, a double river is modelled as a point of interest and building plot geometry is modified with the

use of voronoi patterns around the center of the river to allow for bigger open areas. The densification

strategy consists in increasing urban space around the river, limiting large building plot areas close to it.

Figure 4, River and grid impact of river attractor (left). Building plot density distribution (right)

Third, 3 points of urban growth are distributed around the city center. A reduction factor is applied to all

of them to fulfil urban regulations in terms of open areas per m2 built.

Third, Figure 3 points 4, River of urban and grid growth impact are of river distributed attractor (left). around Building the city plot center. density distribution A reduction (right) factor is

applied to all of them to fulfil urban regulations in terms of open areas per m2 built.

Third, 3 points of urban growth are distributed around the city center. A reduction factor is applied to all

of them to fulfil urban regulations in terms of open areas per m2 built.

Figure 5, 3 points of urban growth.

Fourth, Height is defined in terms of distance to the river with the following function to reduce height

gradient: H eight = z / √d where z is a given factor and d, distance to the center of the city.

Figure 5, 3 points of urban growth.


Fourth, Height is defined in terms of distance to the river with the following function to reduce height

Fourth, Height is defined in terms of distance to the river with the following function to

gradient: H eight = z / √d where z is a given factor and d, distance to the center of the city.

reduce height gradient: Height = z / √d where z is a given factor and d , distance to the

center of the city.


94



Information

iA Architecture

Figure 6, Final envelope of the buildings.

Finally, direct radiation to the residual urban space is calculated. In order to improve surface

temperature in the whole area during the hottest period of the year an optimization is implemented to

minimize direct radiation. Building direct solar radiation is not taken in account and buildings are used as

context and shading. The objective function is total direct radiation across the summer(21 June to 21

September) just for the hottest hours of the day in that latitude from (9:00 to 19:00) in the whole summer.

The dependent Finally, variables direct are the radiation size of to the the grid residual cells and urban the space factor is z of calculated. the height In function. order

to improve surface temperature in the whole area during the hottest

Constraints for period dependent of the variables year an areoptimization also set; Theis Ximplemented dimension of the to minimize cell is restricted direct to the domain

(9,25) units of length. radiation. TheBuilding Y dimension direct issolar restricted radiation to (30,50) is not units taken of length. in account The height and factor of the

buildings is also buildings limited to are 500 used units. as context and shading. The objective function is

The original design total direct has (13x45)units2 radiation across cells, the 200 summer(21 units of June height to factor 21 September) and captures just 3449 units of

energy/m2 of pavement for the hottest during hours the summer of the period. day in that The latitude optimized from solution (9:00 to has 19:00) (9 x 36) in units2 cells,

310 units of height the whole factor summer. and captures 2045 units of energy/m2 of pavement during the summer

period.

The dependent variables are the size of the grid cells and the factor

z of the height function. Constraints for dependent variables are also

set; The X dimension of the cell is restricted to the domain (9,25) units

of length. The Y dimension is restricted to (30,50) units of length. The

height factor of the buildings is also limited to 500 units.

The original design has (13x45)units2 cells, 200 units of height factor

and captures 3449 units of energy/m2 of pavement during the summer

period. The optimized solution has (9 x 36) units2 cells, 310 units of

height factor and captures 2045 units of energy/m2 of pavement during

the summer period.



95

Figure 7, Sun path curves from summer solstice 21 June to autumn equinox 21 September 10 hours/day 9:00 -

19:00

Figure 7, Sun path curves from summer solstice 21 June to autumn equinox 21 September 10 hours/day 9:00 -

19:00

Figure 8, Comparison original solar radiation (left) to optimized solar radiation in urban space (right).

Figure 8, Comparison original solar radiation (left) to optimized solar radiation in urban space (right).


iA Architecture


96 Carlos Pacheco New / Urban Methods thermal in comfort Urban design Analysis and Simulation | Final project documentation

5

Information

Figure 9, Galapagos optimization panel. (Selected genome in blue)

Figure 10, Comparison original design (left) to optimized direct solar radiation design (right).

Figure 11, Comparison original design (left) to optimized direct solar radiation design (right).



97

Final urban quality analysis

Final urban quality analysis

After the study some analysis in terms of urban function are carried to validate urban quality of the

After space. the First, study a some distance analysis analysis in terms is conducted of urban function to show are level carried the to of validate integration urban of quality each of segment the of

space. the urban First, connection a distance analysis grid respect is conducted Final to 3 points urban to show of quality interests level analysis the depicted of integration figure of each 8. segment of the

urban connection grid respect to 3 points of interests depicted in figure 8.

After the study some analysis in terms of urban function are carried to validate urban quality of the

space. First, a distance analysis is conducted to show level the of integration of each segment of the

urban connection grid respect to 3 points of interests depicted in figure 8.

Figure 12, Network segment distance to three points of interest (POI). POI 0 (upper left) POI 1 (upper right) POI 2

lower.

Second, distance of building plots to the three points of interest is analysed represented in a red-yellow

Figure 12, Network segment distance to three points of interest (POI). POI 0 (upper left) POI 1 (upper right) POI 2

color code.

Second, distance of building lower. plots to the three

points of interest is analysed represented in a redyellow

plots color to the code. three points of interest is analysed represented in a red-yellow

Second, distance of building

color code.

Figure 13, color code of building plots distance to the 3 POI (in red)


Figure 13, color code of building plots distance to the 3 POI (in red)


98



Information

iA Architecture

In order to assess use dynamics in the new urban development, temporal and spatial catchment

ratio are analyzed to confirm the correct operation of the urban space.

In order to assess use dynamics in the new urban development, temporal and spatial catchment ratio

are analyzed to confirm the correct operation of the urban space.

Figure 14, temporal catchment radio = 2 units(10mins) (left) spatial catchment radio = 200 units(1km) (right).

Conclusion

Conclusion

The results of this study shows that parametric and optimization approaches in urban design can be

very useful to assess different energy aspects of the cities. In this case, thermal comfort is optimized

with The the results master of this plan study geometry shows that for the parametric hottest and time optimization period of the approaches year in a mediterranean in urban design area. can be As very a

result useful 40% to assess of the different original energy solar radiation aspects of is reduced the cities. until In this 2045 case, units thermal of energy/m2 comfort is pavement. optimized with the

master plan geometry for the hottest time period of the year in a mediterranean area. As a result 40% of

the original solar radiation is reduced until 2045 units of energy/m2 pavement.



99

Kilchberg

Student: Roberta Murad Lima

Kilchberg

Roberta Murad Lima

mroberta@student.ethz.ch

05 December 2016

102



Information

iA Architecture

1. Introduction

Kilchberg is a municipality with over 8’000 inhabitants in the canton of Zürich, and it is

the place I currently live in (Figure 1).

1. Introduction

Kilchberg is a municipality with over 8’000 inhabitants in the canton of Zürich, and it is the place I

currently live in (Figure 1).

Page 1

Figure 1. My currently address in Kilchberg represented as the yellow pin.

After living there for around four months, I decided it was time for a change - I am about to move

to an apartment in the city of Zurich, but I will always carry this lovely place in my heart. Before I

leave, I wanted to understand the municipality a bit better and, therefore, I thought about doing

this project on it. Some analyses were made, with the help of the tools learned during the extent of

the course, to help me with this task.

After living there for around four months, I decided it was time for a change - I am about

2. to Analysis move to an apartment in the city of Zurich, but I will always carry this lovely place in my

heart. Before I leave, I wanted to understand the municipality a bit better and, therefore,

I thought 2.1 Distance about Network doing Analysis this project on it. Some analyses were made, with the help of the

tools The first learned analysis during made the was extent to find of out the the course, distance to of help all me network with segments this task. towards a set of

attraction points. The points chosen are consistent throughout the work, and they are the ones

which are of biggest interest to me, being them: 1) my house, 2) the train station, 3) the

2. supermarket, Analysis and 4) the hospital. As it can be seen in Figure 2, the area close to the train station

and the supermarket is the most important one, which is logical, since two of the points used in the

2.1 analysis Distance are situated Network there. Analysis The house is also in a pretty good position, but the hospital is a bit

distant from everything else.

The first analysis made was to find out the distance of all network segments towards a

set of attraction points. The points chosen are consistent throughout the work, and they

are the ones which are of biggest interest to me, being them: 1) my house, 2) the train

station, 3) the supermarket, and 4) the hospital. As it can be seen in Figure 2, the area

close to the train station and the supermarket is the most important one, which is logical,

since two of the points used in the analysis are situated there. The house is also in a

pretty good position, but the hospital is a bit distant from everything else.


103

Figure 2. Network distance calculator.

2.2 Proximity and Vicinity

2.2 Proximity and Vicinity

As a second analysis, the Figure proximity 2. Network and distance vicinity calculator. were considered. Here, the idea was to find out how

close the

2.2 Proximity As house a second is to all

and Vicinity analysis, destinations the of proximity interest, which and is vicinity the whole were municipality considered. segment Here, depicted.

It can be the seen idea in figure was 3 to that find the out hospital how is close one of the furthest house buildings is to all from destinations the house, of since it is

As

represented

a second analysis, the proximity and vicinity were considered. Here, the idea was to find out how

interest, by a which colder colour. is the whole municipality segment depicted. It can be seen

close the house is to all destinations of interest, which is the whole municipality segment depicted.

in figure 3 that the hospital is one of the furthest buildings from the house,

It can be seen in figure 3 that the hospital is one of the furthest buildings from the house, since it is

since it is represented by a colder colour.

represented by a colder colour.

Figure 3. Proximity and vicinity.

Figure 3. Proximity and vicinity.

104



Information

iA Architecture


With the goal of finding how long it would take to the places of interest, several analyses were


made. Two means of transportation were considered: walking and cycling. Since the train station

and the With supermarket the goal of finding are located how long very it close would to take one to another, places it was of interest, considered several the analyses time necessary were

to reach made. both. Two In means Figure of transportation 4, the locations were that considered: can be reached walking and by cycling. a 10-minute Since the walk train are station shown –

the minimum and the supermarket time where are both located locations very close 1 and to 2 one were another, reached. it was To considered get to the the hospital time necessary (Figure 5), it

would to be reach required both. In 17 Figure minutes 4, the walking, locations which that can is be not reached so convenient by a 10-minute the walk case are of shown an emergency. – the

The exact minimum same time scenarios where both were locations found 1 and by biking 2 were for reached. 3 minutes To get to (Figure the hospital 4) and (Figure biking 5), for it would 6 minutes

(Figure be 5). required 17 minutes walking, which is not so convenient in the case of an emergency. The exact

same scenarios were found by biking for 3 minutes (Figure 4) and biking for 6 minutes (Figure 5).

Figure 4. Places one can reach by walking for 10 minutes or cycling for 3 minutes..

Figure 5. Places one can reach by walking for 17 minutes or cycling for 6 minutes.


105

It was also found, using the spatial analysis, that the train station/supermarket are in a 796-meterradius

from the house, whereas the hospital is on a 1’341-meter-radius.

It was also found, using the spatial analysis, that the train station/supermarket are in a

796-meterradius from the house, whereas the hospital is on a 1’341-meter-radius. 2.4

Shortest Path Detection It was also of interest to find the shortest path between the

2.4 Shortest Path Detection

house and the other locations aforementioned. The result can be seen in Figure 6.

It was also of interest to find the shortest path between the house and the other locations

aforementioned. The result can be seen in Figure 6.

Figure 6. Shortest path detection.

The paths were assigned different colors for an easier identification, but since the train station is

on the way to the supermarket, the route to the latter is only depicted in a new color from point 1

to 2.

The paths were assigned different colors for an easier identification, but since the train

station 2.5 Isovist

on the way to the supermarket, the route to the latter is only depicted in a new

color from point 1 to 2.

2.5.1 Isovist from Individual Point

2.5 Isovist

The isovist from an individual point analysis was made and then compared to a real scenario, to see

how much it represents reality. The point was placed right in front of my house, and the result can be

2.5.1 Isovist from Individual Point

seen in Figure 7. When it comes to the view on the same street level, the outcome is pretty accurate,

as it can be seen in Figure 8 (where a picture was taken from approximately the same point). The view

The isovist from an individual point analysis was made and then compared to a real

to the front of the house is a bit exaggerated, as there are trees and houses standing on the way and

scenario, to see how much it represents reality. The point was placed right in front of my

hence blocking it.

house, and the result can be seen in Figure 7. When it comes to the view on the same

street level, the outcome is pretty accurate, as it can be seen in Figure 8 (where a picture

was taken from approximately the same point). The view to the front of the house is a bit

exaggerated, as there are trees and houses standing on the way and hence blocking it.

106



Information

iA Architecture

Figure 7. Isovist from a point in front of my house.

Figure 8. Reality view from the same point represented in Figure 9.

2.5.2 Isovist Field

The isovist area measures the area of a view field, where warmer colors indicate the ones more

2.5.2 connected Isovist within Fieldthe environment. Thus, the area around the house has a small isovist area and

visibility (Figure 9). This is beneficial, since it means that the space is more visually blocked, a good

The aspect isovist for the area safety measures and privacy the in area a residential of a view zone. field, where warmer colors indicate the ones

more connected within the environment. Thus, the area around the house has a small

isovist area and visibility (Figure 9). This is beneficial, since it means that the space is more

visually blocked, a good aspect for the safety and privacy in a residential zone.


107

Figure 9. Isovist area.

The isovist perimeter represents the circumference of a view field, and it has also small values

The isovist perimeter represents the circumference of a view field, and it has also small

around the house (Figure 10).

values around the house (Figure 10).

Figure 9. Isovist area.

The isovist perimeter represents the circumference of a view field, and it has also small values

around the house (Figure 10).

Figure 10. Isovist perimeter.

The occlusivity measures the length of hidden edges. The area in question has medium to low

occlusivity values (Figure 11), which is also good for a safety feeling.

Figure 10. Isovist perimeter.

The occlusivity measures the length of hidden edges. The area in question has medium to low

The occlusivity measures the length of hidden edges. The area in question has medium

occlusivity values (Figure 11), which is also good for a safety feeling.

to low occlusivity values (Figure 11), which is also good for a safety feeling.

108



Information

iA Architecture

Figure 11. Occlusivity.

3 Conclusion

Grasshopper is a powerful tool, not only to support decisions for new projects, but also to help with

the 3 Conclusion

understanding of existing areas. The analyses gave me a pretty good comprehension of

Kilchberg and were in general quite accurate. The time found to reach the desired places by foot or

with Grasshopper the bicycle are is reasonable a powerful when tool, compared not only to reality. support The decisions shortest paths for new were projects, also right, but as it also

was to compared help with with the other understanding routing tools. of The existing isovist areas. from an The individual analyses point gave was the me only a pretty analysis good

which comprehension was a bit off, but of Kilchberg it was still a and good were estimate. in general The isovist quite field accurate. gave a decent The time overview found of to the reach

area the around desired me, places and it by was foot interesting or with to the see bicycle the results. are All reasonable the analyses when show compared that the area to is reality. a

pretty The quiet shortest and paths private were residential also right, zone. Nonetheless, as it was compared basic services with are other found routing nearby, tools. and they

can be easily reached by bike or by foot, with a longer time required for the latter.

The isovist from an individual point was the only analysis which was a bit off, but it was

still a good estimate. The isovist field gave a decent overview of the area around me, and

4 References it was interesting to see the results. All the analyses show that the area is a pretty quiet

and private residential zone. Nonetheless, basic services are found nearby, and they can

Cover Picture:

be easily reached by bike or by foot, with a longer time required for the latter.

4 References

Cover Picture:


109


Information

iA Architecture

Digital Urban Simulation: Documentation of the teaching results from the fall semester 2016

Transform your PDFs into Flipbooks and boost your revenue!

Delete template?

Save as template ?
