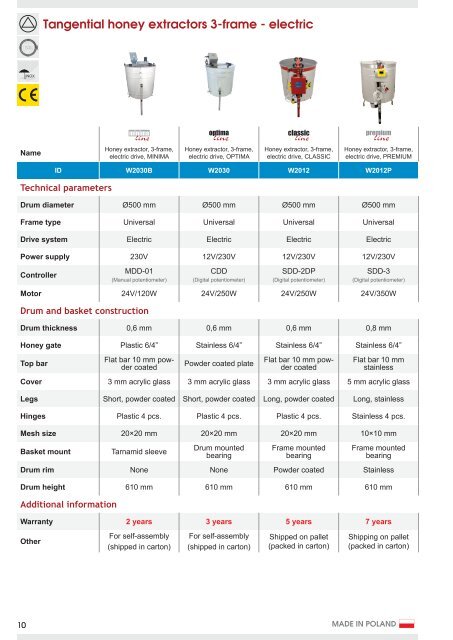

Tangential honey extractors 3-frame - electric<br />
Name<br />
Honey extractor, 3-frame,<br />
electric drive, MINIMA<br />
Honey extractor, 3-frame,<br />
electric drive, OPTIMA<br />
Honey extractor, 3-frame,<br />
electric drive, CLASSIC<br />
Honey extractor, 3-frame,<br />
electric drive, PREMIUM<br />
ID W2030B W2030 W2012 W2012P<br />
Technical parameters<br />
Drum diameter Ø500 mm Ø500 mm Ø500 mm Ø500 mm<br />
Frame type Universal Universal Universal Universal<br />
Drive system Electric Electric Electric Electric<br />
Power supply 230V 12V/230V 12V/230V 12V/230V<br />
Controller<br />
MDD-01<br />
(Manual potentiometer)<br />
CDD<br />
(Digital potentiometer)<br />
SDD-2DP<br />
(Digital potentiometer)<br />
SDD-3<br />
(Digital potentiometer)<br />
Motor 24V/120W 24V/250W 24V/250W 24V/350W<br />
Drum and basket construction<br />
Drum thickness 0,6 mm 0,6 mm 0,6 mm 0,8 mm<br />
Honey gate Plastic 6/4” Stainless 6/4” Stainless 6/4” Stainless 6/4”<br />
Top bar<br />
Flat bar 10 mm powder<br />
coated<br />
Powder coated plate<br />
Flat bar 10 mm powder<br />
coated<br />
Flat bar 10 mm<br />
stainless<br />
Cover 3 mm acrylic glass 3 mm acrylic glass 3 mm acrylic glass 5 mm acrylic glass<br />
Legs Short, powder coated Short, powder coated Long, powder coated Long, stainless<br />
Hinges Plastic 4 pcs. Plastic 4 pcs. Plastic 4 pcs. Stainless 4 pcs.<br />
Mesh size 20×20 mm 20×20 mm 20×20 mm 10×10 mm<br />
Basket mount<br />
Tarnamid sleeve<br />
Drum mounted<br />
bearing<br />
Frame mounted<br />
bearing<br />
Frame mounted<br />
bearing<br />
Drum rim None None Powder coated Stainless<br />
Drum height 610 mm 610 mm 610 mm 610 mm<br />
Additional information<br />
Warranty 2 years 3 years 5 years 7 years<br />
Other<br />
For self-assembly<br />
(shipped in carton)<br />
For self-assembly<br />
(shipped in carton)<br />
Shipped on pallet<br />
(packed in carton)<br />
Shipping on pallet<br />
(packed in carton)<br />
10<br />
MADE IN POLAND
