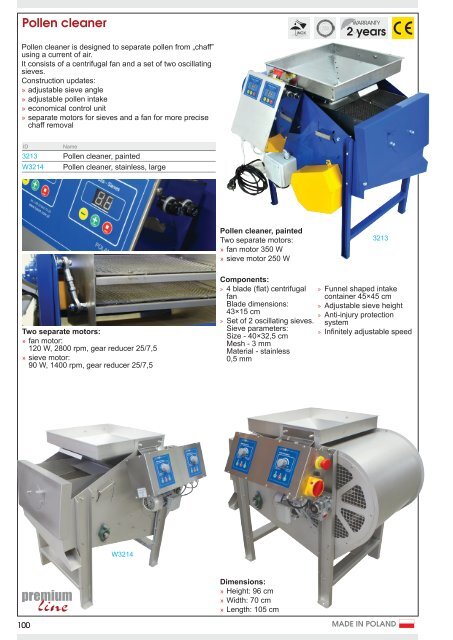

Pollen cleaner<br />
Pollen cleaner is designed to separate pollen from „chaff”<br />
using a current of air.<br />
It consists of a centrifugal fan and a set of two oscillating<br />
sieves.<br />
Construction updates:<br />
»»<br />
adjustable sieve angle<br />
»»<br />
adjustable pollen intake<br />
»»<br />
economical control unit<br />
»»<br />
separate motors for sieves and a fan for more precise<br />
chaff removal<br />
WARRANTY<br />
2 years<br />
ID<br />
Name<br />
3213 Pollen cleaner, painted<br />
W3214 Pollen cleaner, stainless, large<br />
Pollen cleaner, painted<br />
Two separate motors:<br />
»»<br />
fan motor 350 W<br />
»»<br />
sieve motor 250 W<br />
3213<br />
Two separate motors:<br />
»»<br />
fan motor:<br />
120 W, 2800 rpm, gear reducer 25/7,5<br />
»»<br />
sieve motor:<br />
90 W, 1400 rpm, gear reducer 25/7,5<br />
Components:<br />
»»<br />
4 blade (flat) centrifugal<br />
fan<br />
Blade dimensions:<br />
43×15 cm<br />
»»<br />
Set of 2 oscillating sieves.<br />
Sieve parameters:<br />
Size - 40×32,5 cm<br />
Mesh - 3 mm<br />
Material - stainless<br />
0,5 mm<br />
»»<br />
Funnel shaped intake<br />
container 45×45 cm<br />
»»<br />
Adjustable sieve height<br />
»»<br />
Anti-injury protection<br />
system<br />
»»<br />
Infinitely adjustable speed<br />
W3214<br />
Dimensions:<br />
»»<br />
Height: 96 cm<br />
»»<br />
Width: 70 cm<br />
»»<br />
Length: 105 cm<br />
100<br />
MADE IN POLAND
