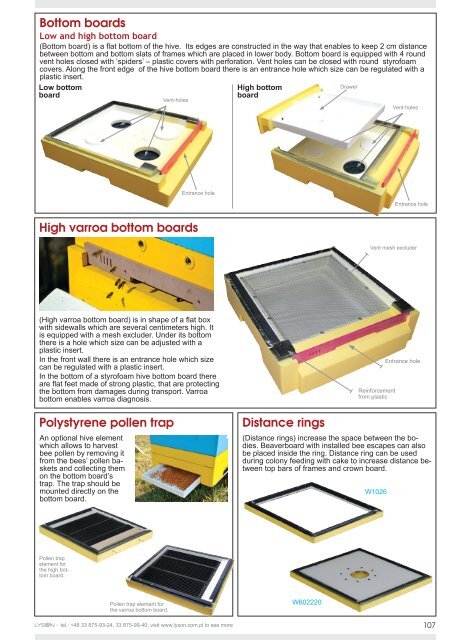

Bottom boards
Low and high bottom board
(Bottom board) is a flat bottom of the hive. Its edges are constructed in the way that enables to keep 2 cm distance
between bottom and bottom slats of frames which are placed in lower body. Bottom board is equipped with 4 round
vent holes closed with ‘spiders’ – plastic covers with perforation. Vent holes can be closed with round styrofoam
covers. Along the front edge of the hive bottom board there is an entrance hole which size can be regulated with a
plastic insert.
Low bottom
board
Vent-holes
High bottom
board
Drawer
Vent-holes
Entrance hole
Entrance hole
High varroa bottom boards
Vent mesh excluder
(High varroa bottom board) is in shape of a flat box
with sidewalls which are several centimeters high. It
is equipped with a mesh excluder. Under its bottom
there is a hole which size can be adjusted with a
plastic insert.
In the front wall there is an entrance hole which size
can be regulated with a plastic insert.
In the bottom of a styrofoam hive bottom board there
are flat feet made of strong plastic, that are protecting
the bottom from damages during transport. Varroa
bottom enables varroa diagnosis.
Reinforcement
from plastic
Entrance hole
Polystyrene pollen trap
An optional hive element
which allows to harvest
bee pollen by removing it
from the bees’ pollen baskets
and collecting them
on the bottom board’s
trap. The trap should be
mounted directly on the
bottom board.
Distance rings
(Distance rings) increase the space between the bodies.
Beaverboard with installed bee escapes can also
be placed inside the ring. Distance ring can be used
during colony feeding with cake to increase distance between
top bars of frames and crown board.
W1026
Pollen trap
element for
the high bottom
board.
Pollen trap element for
the varroa bottom board.
W602220
