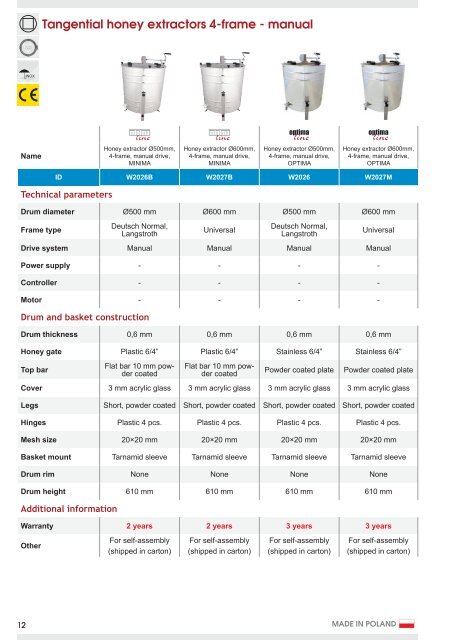

Tangential honey extractors 4-frame - manual<br />
Name<br />
Honey extractor Ø500mm,<br />
4-frame, manual drive,<br />
MINIMA<br />
Honey extractor Ø600mm,<br />
4-frame, manual drive,<br />
MINIMA<br />
Honey extractor Ø500mm,<br />
4-frame, manual drive,<br />
OPTIMA<br />
Honey extractor Ø600mm,<br />
4-frame, manual drive,<br />
OPTIMA<br />
ID W2026B W2027B W2026 W2027M<br />
Technical parameters<br />
Drum diameter Ø500 mm Ø600 mm Ø500 mm Ø600 mm<br />
Frame type<br />
Deutsch Normal,<br />
Langstroth<br />
Universal<br />
Deutsch Normal,<br />
Langstroth<br />
Universal<br />
Drive system Manual Manual Manual Manual<br />
Power supply - - - -<br />
Controller - - - -<br />
Motor - - - -<br />
Drum and basket construction<br />
Drum thickness 0,6 mm 0,6 mm 0,6 mm 0,6 mm<br />
Honey gate Plastic 6/4” Plastic 6/4” Stainless 6/4” Stainless 6/4”<br />
Top bar<br />
Flat bar 10 mm powder<br />
coated<br />
Flat bar 10 mm powder<br />
coated<br />
Powder coated plate<br />
Powder coated plate<br />
Cover 3 mm acrylic glass 3 mm acrylic glass 3 mm acrylic glass 3 mm acrylic glass<br />
Legs Short, powder coated Short, powder coated Short, powder coated Short, powder coated<br />
Hinges Plastic 4 pcs. Plastic 4 pcs. Plastic 4 pcs. Plastic 4 pcs.<br />
Mesh size 20×20 mm 20×20 mm 20×20 mm 20×20 mm<br />
Basket mount Tarnamid sleeve Tarnamid sleeve Tarnamid sleeve Tarnamid sleeve<br />
Drum rim None None None None<br />
Drum height 610 mm 610 mm 610 mm 610 mm<br />
Additional information<br />
Warranty 2 years 2 years 3 years 3 years<br />
Other<br />
For self-assembly<br />
(shipped in carton)<br />
For self-assembly<br />
(shipped in carton)<br />
For self-assembly<br />
(shipped in carton)<br />
For self-assembly<br />
(shipped in carton)<br />
12<br />
MADE IN POLAND
