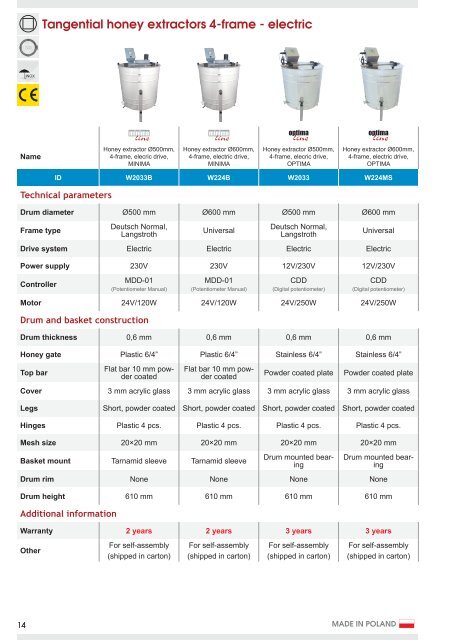

Tangential honey extractors 4-frame - electric<br />
Name<br />
Honey extractor Ø500mm,<br />
4-frame, elecric drive,<br />
MINIMA<br />
Honey extractor Ø600mm,<br />
4-frame, electric drive,<br />
MINIMA<br />
Honey extractor Ø500mm,<br />
4-frame, elecric drive,<br />
OPTIMA<br />
Honey extractor Ø600mm,<br />
4-frame, electric drive,<br />
OPTIMA<br />
ID W2033B W224B W2033 W224MS<br />
Technical parameters<br />
Drum diameter Ø500 mm Ø600 mm Ø500 mm Ø600 mm<br />
Frame type<br />
Deutsch Normal,<br />
Langstroth<br />
Universal<br />
Deutsch Normal,<br />
Langstroth<br />
Universal<br />
Drive system Electric Electric Electric Electric<br />
Power supply 230V 230V 12V/230V 12V/230V<br />
Controller<br />
MDD-01<br />
(Potentiometer Manual)<br />
MDD-01<br />
(Potentiometer Manual)<br />
CDD<br />
(Digital potentiometer)<br />
CDD<br />
(Digital potentiometer)<br />
Motor 24V/120W 24V/120W 24V/250W 24V/250W<br />
Drum and basket construction<br />
Drum thickness 0,6 mm 0,6 mm 0,6 mm 0,6 mm<br />
Honey gate Plastic 6/4” Plastic 6/4” Stainless 6/4” Stainless 6/4”<br />
Top bar<br />
Flat bar 10 mm powder<br />
coated<br />
Flat bar 10 mm powder<br />
coated<br />
Powder coated plate<br />
Powder coated plate<br />
Cover 3 mm acrylic glass 3 mm acrylic glass 3 mm acrylic glass 3 mm acrylic glass<br />
Legs Short, powder coated Short, powder coated Short, powder coated Short, powder coated<br />
Hinges Plastic 4 pcs. Plastic 4 pcs. Plastic 4 pcs. Plastic 4 pcs.<br />
Mesh size 20×20 mm 20×20 mm 20×20 mm 20×20 mm<br />
Basket mount Tarnamid sleeve Tarnamid sleeve<br />
Drum mounted bearing<br />
Drum mounted bearing<br />
Drum rim None None None None<br />
Drum height 610 mm 610 mm 610 mm 610 mm<br />
Additional information<br />
Warranty 2 years 2 years 3 years 3 years<br />
Other<br />
For self-assembly<br />
(shipped in carton)<br />
For self-assembly<br />
(shipped in carton)<br />
For self-assembly<br />
(shipped in carton)<br />
For self-assembly<br />
(shipped in carton)<br />
14<br />
MADE IN POLAND
