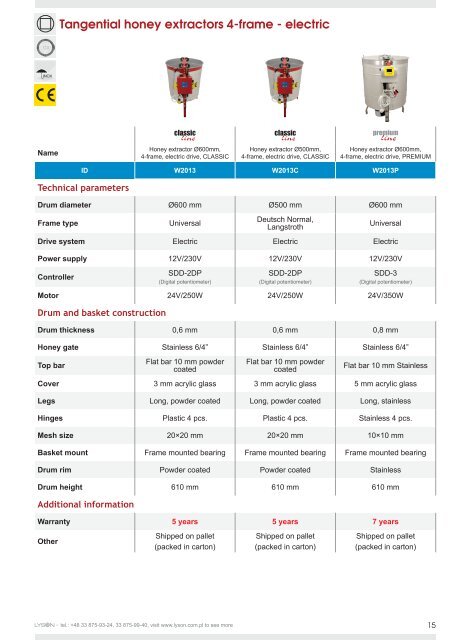

Tangential honey extractors 4-frame - electric<br />
Name<br />
Honey extractor Ø600mm,<br />
4-frame, electric drive, CLASSIC<br />
Honey extractor Ø500mm,<br />
4-frame, electric drive, CLASSIC<br />
Honey extractor Ø600mm,<br />
4-frame, electric drive, PREMIUM<br />
ID W2013 W2013C W2013P<br />
Technical parameters<br />
Drum diameter Ø600 mm Ø500 mm Ø600 mm<br />
Frame type<br />
Universal<br />
Deutsch Normal,<br />
Langstroth<br />
Universal<br />
Drive system Electric Electric Electric<br />
Power supply 12V/230V 12V/230V 12V/230V<br />
Controller<br />
SDD-2DP<br />
(Digital potentiometer)<br />
SDD-2DP<br />
(Digital potentiometer)<br />
SDD-3<br />
(Digital potentiometer)<br />
Motor 24V/250W 24V/250W 24V/350W<br />
Drum and basket construction<br />
Drum thickness 0,6 mm 0,6 mm 0,8 mm<br />
Honey gate Stainless 6/4” Stainless 6/4” Stainless 6/4”<br />
Top bar<br />
Flat bar 10 mm powder<br />
coated<br />
Flat bar 10 mm powder<br />
coated<br />
Flat bar 10 mm Stainless<br />
Cover 3 mm acrylic glass 3 mm acrylic glass 5 mm acrylic glass<br />
Legs Long, powder coated Long, powder coated Long, stainless<br />
Hinges Plastic 4 pcs. Plastic 4 pcs. Stainless 4 pcs.<br />
Mesh size 20×20 mm 20×20 mm 10×10 mm<br />
Basket mount Frame mounted bearing Frame mounted bearing Frame mounted bearing<br />
Drum rim Powder coated Powder coated Stainless<br />
Drum height 610 mm 610 mm 610 mm<br />
Additional information<br />
Warranty 5 years 5 years 7 years<br />
Other<br />
Shipped on pallet<br />
(packed in carton)<br />
Shipped on pallet<br />
(packed in carton)<br />
Shipped on pallet<br />
(packed in carton)<br />
tel.: +48 33 875-93-24, 33 875-99-40, visit www.lyson.com.pl to see more<br />
15
