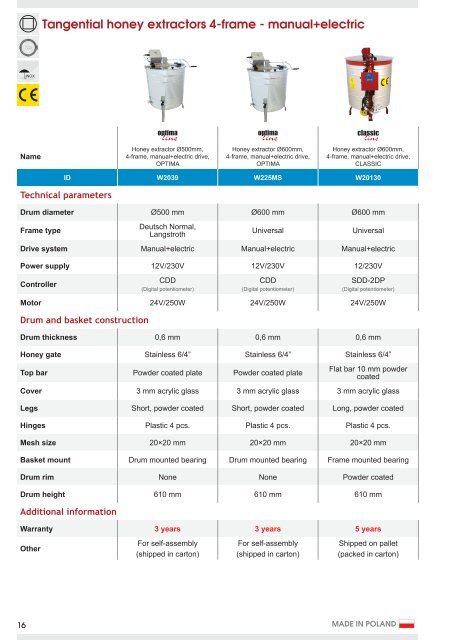

Tangential honey extractors 4-frame - manual+electric<br />
Name<br />
Honey extractor Ø500mm,<br />
4-frame, manual+electric drive,<br />
OPTIMA<br />
Honey extractor Ø600mm,<br />
4-frame, manual+electric drive,<br />
OPTIMA<br />
Honey extractor Ø600mm,<br />
4-frame, manual+electric drive,<br />
CLASSIC<br />
ID W2039 W225MS W20130<br />
Technical parameters<br />
Drum diameter Ø500 mm Ø600 mm Ø600 mm<br />
Frame type<br />
Deutsch Normal,<br />
Langstroth<br />
Universal<br />
Universal<br />
Drive system Manual+electric Manual+electric Manual+electric<br />
Power supply 12V/230V 12V/230V 12/230V<br />
Controller<br />
CDD<br />
(Digital potentiometer)<br />
CDD<br />
(Digital potentiometer)<br />
SDD-2DP<br />
(Digital potentiometer)<br />
Motor 24V/250W 24V/250W 24V/250W<br />
Drum and basket construction<br />
Drum thickness 0,6 mm 0,6 mm 0,6 mm<br />
Honey gate Stainless 6/4” Stainless 6/4” Stainless 6/4”<br />
Top bar Powder coated plate Powder coated plate<br />
Flat bar 10 mm powder<br />
coated<br />
Cover 3 mm acrylic glass 3 mm acrylic glass 3 mm acrylic glass<br />
Legs Short, powder coated Short, powder coated Long, powder coated<br />
Hinges Plastic 4 pcs. Plastic 4 pcs. Plastic 4 pcs.<br />
Mesh size 20×20 mm 20×20 mm 20×20 mm<br />
Basket mount Drum mounted bearing Drum mounted bearing Frame mounted bearing<br />
Drum rim None None Powder coated<br />
Drum height 610 mm 610 mm 610 mm<br />
Additional information<br />
Warranty 3 years 3 years 5 years<br />
Other<br />
For self-assembly<br />
(shipped in carton)<br />
For self-assembly<br />
(shipped in carton)<br />
Shipped on pallet<br />
(packed in carton)<br />
16<br />
MADE IN POLAND
