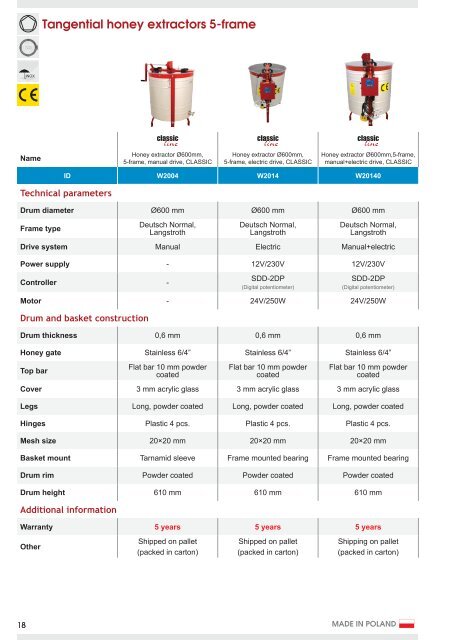

Tangential honey extractors 5-frame<br />
Name<br />
Honey extractor Ø600mm,<br />
5-frame, manual drive, CLASSIC<br />
Honey extractor Ø600mm,<br />
5-frame, electric drive, CLASSIC<br />
Honey extractor Ø600mm,5-frame,<br />
manual+electric drive, CLASSIC<br />
ID W2004 W2014 W20140<br />
Technical parameters<br />
Drum diameter Ø600 mm Ø600 mm Ø600 mm<br />
Frame type<br />
Deutsch Normal,<br />
Langstroth<br />
Deutsch Normal,<br />
Langstroth<br />
Deutsch Normal,<br />
Langstroth<br />
Drive system Manual Electric Manual+electric<br />
Power supply - 12V/230V 12V/230V<br />
Controller -<br />
SDD-2DP<br />
(Digital potentiometer)<br />
SDD-2DP<br />
(Digital potentiometer)<br />
Motor - 24V/250W 24V/250W<br />
Drum and basket construction<br />
Drum thickness 0,6 mm 0,6 mm 0,6 mm<br />
Honey gate Stainless 6/4” Stainless 6/4” Stainless 6/4”<br />
Top bar<br />
Flat bar 10 mm powder<br />
coated<br />
Flat bar 10 mm powder<br />
coated<br />
Flat bar 10 mm powder<br />
coated<br />
Cover 3 mm acrylic glass 3 mm acrylic glass 3 mm acrylic glass<br />
Legs Long, powder coated Long, powder coated Long, powder coated<br />
Hinges Plastic 4 pcs. Plastic 4 pcs. Plastic 4 pcs.<br />
Mesh size 20×20 mm 20×20 mm 20×20 mm<br />
Basket mount Tarnamid sleeve Frame mounted bearing Frame mounted bearing<br />
Drum rim Powder coated Powder coated Powder coated<br />
Drum height 610 mm 610 mm 610 mm<br />
Additional information<br />
Warranty 5 years 5 years 5 years<br />
Other<br />
Shipped on pallet<br />
(packed in carton)<br />
Shipped on pallet<br />
(packed in carton)<br />
Shipping on pallet<br />
(packed in carton)<br />
18<br />
MADE IN POLAND
