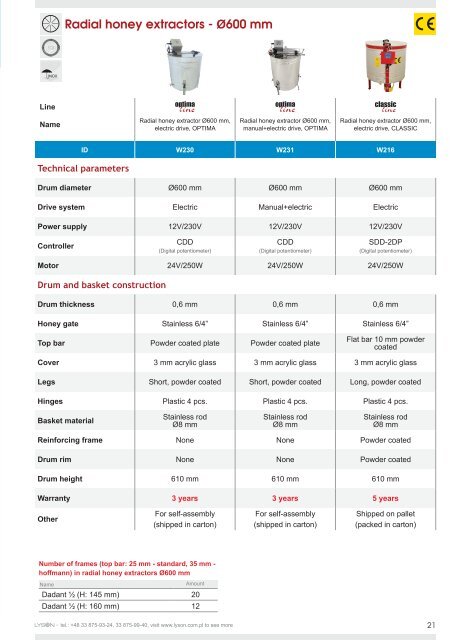

Radial honey extractors - Ø600 mm<br />
Line<br />
Name<br />
Radial honey extractor Ø600 mm,<br />
electric drive, OPTIMA<br />
Radial honey extractor Ø600 mm,<br />
manual+electric drive, OPTIMA<br />
Radial honey extractor Ø600 mm,<br />
electric drive, CLASSIC<br />
ID W230 W231 W216<br />
Technical parameters<br />
Drum diameter Ø600 mm Ø600 mm Ø600 mm<br />
Drive system Electric Manual+electric Electric<br />
Power supply 12V/230V 12V/230V 12V/230V<br />
Controller<br />
CDD<br />
(Digital potentiometer)<br />
CDD<br />
(Digital potentiometer)<br />
SDD-2DP<br />
(Digital potentiometer)<br />
Motor 24V/250W 24V/250W 24V/250W<br />
Drum and basket construction<br />
Drum thickness 0,6 mm 0,6 mm 0,6 mm<br />
Honey gate Stainless 6/4” Stainless 6/4” Stainless 6/4”<br />
Top bar Powder coated plate Powder coated plate<br />
Flat bar 10 mm powder<br />
coated<br />
Cover 3 mm acrylic glass 3 mm acrylic glass 3 mm acrylic glass<br />
Legs Short, powder coated Short, powder coated Long, powder coated<br />
Hinges Plastic 4 pcs. Plastic 4 pcs. Plastic 4 pcs.<br />
Basket material<br />
Stainless rod<br />
Ø8 mm<br />
Stainless rod<br />
Ø8 mm<br />
Stainless rod<br />
Ø8 mm<br />
Reinforcing frame None None Powder coated<br />
Drum rim None None Powder coated<br />
Drum height 610 mm 610 mm 610 mm<br />
Warranty 3 years 3 years 5 years<br />
Other<br />
For self-assembly<br />
(shipped in carton)<br />
For self-assembly<br />
(shipped in carton)<br />
Shipped on pallet<br />
(packed in carton)<br />
Number of frames (top bar: 25 mm - standard, 35 mm -<br />
hoffmann) in radial honey extractors Ø600 mm<br />
Name<br />
Amount<br />
Dadant ½ (H: 145 mm) 20<br />
Dadant ½ (H: 160 mm) 12<br />
tel.: +48 33 875-93-24, 33 875-99-40, visit www.lyson.com.pl to see more<br />
21
