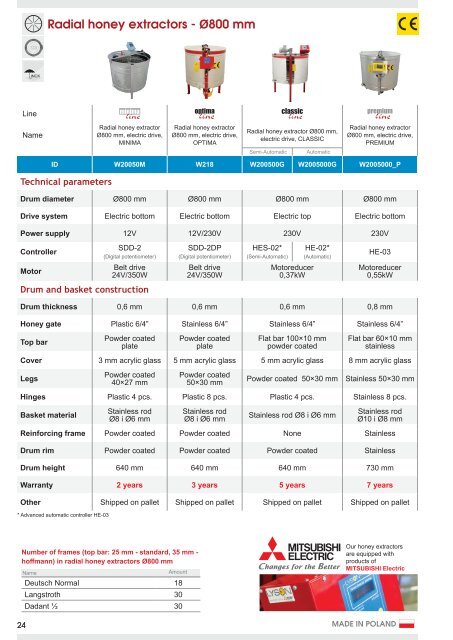

Radial honey extractors - Ø800 mm<br />
Line<br />
Name<br />
Radial honey extractor<br />
Ø800 mm, electric drive,<br />
MINIMA<br />
Radial honey extractor<br />
Ø800 mm, electric drive,<br />
OPTIMA<br />
Radial honey extractor Ø800 mm,<br />
electric drive, CLASSIC<br />
Radial honey extractor<br />
Ø800 mm, electric drive,<br />
PREMIUM<br />
Semi-Automatic<br />
Automatic<br />
ID W20050M W218 W200500G W2005000G W2005000_P<br />
Technical parameters<br />
Drum diameter Ø800 mm Ø800 mm Ø800 mm Ø800 mm<br />
Drive system Electric bottom Electric bottom Electric top Electric bottom<br />
Power supply 12V 12V/230V 230V 230V<br />
Controller<br />
SDD-2<br />
(Digital potentiometer)<br />
SDD-2DP<br />
(Digital potentiometer)<br />
HES-02*<br />
(Semi-Automatic)<br />
HE-02*<br />
(Automatic)<br />
HE-03<br />
Motor<br />
Belt drive<br />
24V/350W<br />
Belt drive<br />
24V/350W<br />
Motoreducer<br />
0,37kW<br />
Motoreducer<br />
0,55kW<br />
Drum and basket construction<br />
Drum thickness 0,6 mm 0,6 mm 0,6 mm 0,8 mm<br />
Honey gate Plastic 6/4” Stainless 6/4” Stainless 6/4” Stainless 6/4”<br />
Top bar<br />
Powder coated<br />
plate<br />
Powder coated<br />
plate<br />
Flat bar 100×10 mm<br />
powder coated<br />
Flat bar 60×10 mm<br />
stainless<br />
Cover 3 mm acrylic glass 5 mm acrylic glass 5 mm acrylic glass 8 mm acrylic glass<br />
Legs<br />
Powder coated<br />
40×27 mm<br />
Powder coated<br />
50×30 mm<br />
Powder coated 50×30 mm<br />
Stainless 50×30 mm<br />
Hinges Plastic 4 pcs. Plastic 8 pcs. Plastic 4 pcs. Stainless 8 pcs.<br />
Basket material<br />
Stainless rod<br />
Ø8 i Ø6 mm<br />
Stainless rod<br />
Ø8 i Ø6 mm<br />
Stainless rod Ø8 i Ø6 mm<br />
Stainless rod<br />
Ø10 i Ø8 mm<br />
Reinforcing frame Powder coated Powder coated None Stainless<br />
Drum rim Powder coated Powder coated Powder coated Stainless<br />
Drum height 640 mm 640 mm 640 mm 730 mm<br />
Warranty 2 years 3 years 5 years 7 years<br />
Other Shipped on pallet Shipped on pallet Shipped on pallet Shipped on pallet<br />
* Advanced automatic controller HE-03<br />
Number of frames (top bar: 25 mm - standard, 35 mm -<br />
hoffmann) in radial honey extractors Ø800 mm<br />
Name<br />
Amount<br />
Deutsch Normal 18<br />
Langstroth 30<br />
Dadant ½ 30<br />
Our honey extractors<br />
are equipped with<br />
products of<br />
MITSUBISHI Electric<br />
24<br />
MADE IN POLAND
