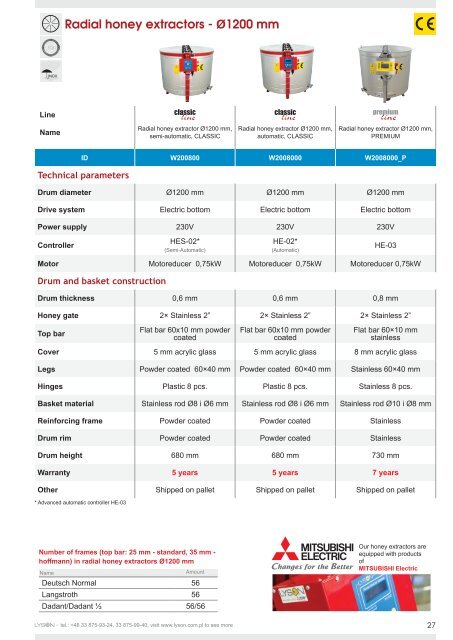

Lyson Catálogo 2017

Radial honey extractors - Ø1200 mm
Line
Name
Radial honey extractor Ø1200 mm,
semi-automatic, CLASSIC
Radial honey extractor Ø1200 mm,
automatic, CLASSIC
Radial honey extractor Ø1200 mm,
PREMIUM
ID W200800 W2008000 W2008000_P
Technical parameters
Drum diameter Ø1200 mm Ø1200 mm Ø1200 mm
Drive system Electric bottom Electric bottom Electric bottom
Power supply 230V 230V 230V
Controller
HES-02*
(Semi-Automatic)
HE-02*
(Automatic)
HE-03
Motor Motoreducer 0,75kW Motoreducer 0,75kW Motoreducer 0,75kW
Drum and basket construction
Drum thickness 0,6 mm 0,6 mm 0,8 mm
Honey gate 2× Stainless 2” 2× Stainless 2” 2× Stainless 2”
Top bar
Flat bar 60x10 mm powder
coated
Flat bar 60x10 mm powder
coated
Flat bar 60×10 mm
stainless
Cover 5 mm acrylic glass 5 mm acrylic glass 8 mm acrylic glass
Legs Powder coated 60×40 mm Powder coated 60×40 mm Stainless 60×40 mm
Hinges Plastic 8 pcs. Plastic 8 pcs. Stainless 8 pcs.
Basket material Stainless rod Ø8 i Ø6 mm Stainless rod Ø8 i Ø6 mm Stainless rod Ø10 i Ø8 mm
Reinforcing frame Powder coated Powder coated Stainless
Drum rim Powder coated Powder coated Stainless
Drum height 680 mm 680 mm 730 mm
Warranty 5 years 5 years 7 years
Other Shipped on pallet Shipped on pallet Shipped on pallet
* Advanced automatic controller HE-03
Number of frames (top bar: 25 mm - standard, 35 mm -
hoffmann) in radial honey extractors Ø1200 mm
Name
Amount
Deutsch Normal 56
Langstroth 56
Dadant/Dadant ½ 56/56
tel.: +48 33 875-93-24, 33 875-99-40, visit www.lyson.com.pl to see more
Our honey extractors are
equipped with products
of
MITSUBISHI Electric
27
