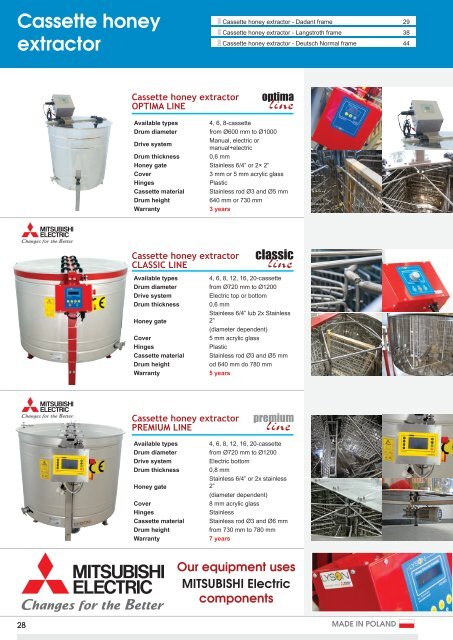

Cassette honey extractor Cassette honey extractor - Dadant frame 29 Cassette honey extractor - Langstroth frame 38 Cassette honey extractor - Deutsch Normal frame 44 Cassette honey extractor OPTIMA LINE Available types Drum diameter Drive system Drum thickness 4, 6, 8-cassette from Ø600 mm to Ø1000 Manual, electric or manual+electric 0,6 mm Honey gate Stainless 6/4” or 2× 2” Cover 3 mm or 5 mm acrylic glass Hinges Plastic Cassette material Stainless rod Ø3 and Ø5 mm Drum height 640 mm or 730 mm Warranty 3 years FOTO FOTO FOTO FOTO Cassette honey extractor CLASSIC LINE classic Available types Drum diameter 4, 6, 8, 12, 16, 20-cassette from Ø720 mm to Ø1200 FOTO Drive system Electric top or bottom Drum thickness 0,6 mm Honey gate Stainless 6/4” lub 2x Stainless 2” (diameter dependent) Cover Hinges 5 mm acrylic glass Plastic FOTO FOTO Cassette material Stainless rod Ø3 and Ø5 mm Drum height od 640 mm do 780 mm Warranty 5 years Cassette honey extractor PREMIUM LINE Available types Drum diameter 4, 6, 8, 12, 16, 20-cassette from Ø720 mm to Ø1200 FOTO FOTO Drive system Electric bottom Drum thickness 0,8 mm Honey gate Cover Stainless 6/4” or 2x stainless 2” (diameter dependent) 8 mm acrylic glass FOTO FOTO Hinges Stainless Cassette material Stainless rod Ø3 and Ø6 mm Drum height from 730 mm to 780 mm Warranty 7 years Our equipment uses MITSUBISHI Electric components 28 MADE IN POLAND
Honey extractors 4-cassette Dadant Line Name Honey extractor 4-cassette Ø600 mm manual, OPTIMA Honey extractor 4-cassette Ø600 mm electric, OPTIMA Honey extractor 4-cassette Ø600 mm manual+electric, OPTIMA ID W222M W223S W221MS Technical parameters Type of frame 4× Dadant, 8× Dadant ½ (H= 145 mm) 4× Dadant, 8× Dadant ½ (H= 145 mm) 4× Dadant, 8× Dadant ½ (H= 145 mm) Drum diameter Ø600 mm Ø600 mm Ø600 mm Drive system Manual Electric Manual+electric Power supply - 12V/230V 12V/230V Controller - CDD (Digital potentiometer) CDD (Digital potentiometer) Motor - 24V/250W 24V/250W Drum and basket construction Drum thickness 0,6 mm 0,6 mm 0,6 mm Honey gate Stainless 6/4” Stainless 6/4” Stainless 6/4” Top bar Flat bar 10 mm powder coated Powder coated plate Flat bar 10 mm powder coated Cover 3 mm acrylic glass 3 mm acrylic glass 3 mm acrylic glass Legs Short, powder coated Short, powder coated Short, powder coated Hinges Plastic 4 pcs. Plastic 4 pcs. Plastic 4 pcs. Reinforcing frame None None None Cassette material Stainless rod Ø3 and Ø5 mm Stainless rod Ø3 and Ø5 mm Stainless rod Ø3 and Ø5 mm Drum rim None None None Drum height 730 mm 730 mm 730 mm Warranty 3 years 3 years 3 years Other For self-assembly (shipped in carton) For self-assembly (shipped in carton) For self-assembly (shipped in carton) Dimensions of frames / cassettes Name Frame size Cassette size Dadant 435×300 mm 440×315 mm Dadant ½ 435×145 mm 440×315 mm tel.: +48 33 875-93-24, 33 875-99-40, visit www.lyson.com.pl to see more W126 Cassette size reducer insert If you have a frame eg. Dadant, you can reduce the size of a cassette to fit a smaller sleeve. 29
