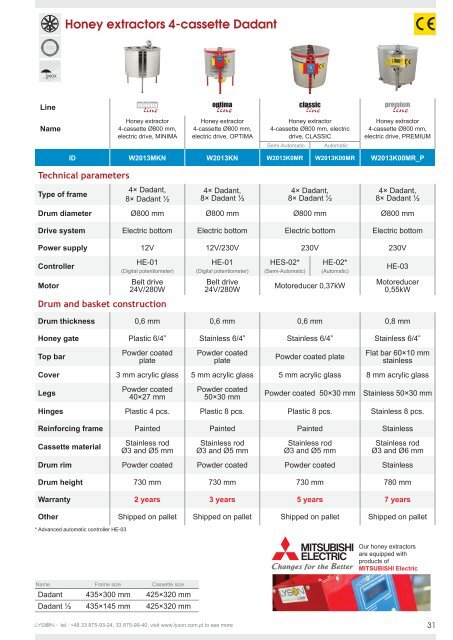

Honey extractors 4-cassette Dadant<br />
Line<br />
Name<br />
Honey extractor<br />
4-cassette Ø800 mm,<br />
electric drive, MINIMA<br />
Honey extractor<br />
4-cassette Ø800 mm,<br />
electric drive, OPTIMA<br />
Honey extractor<br />
4-cassette Ø800 mm, electric<br />
drive, CLASSIC<br />
Honey extractor<br />
4-cassette Ø800 mm,<br />
electric drive, PREMIUM<br />
Semi-Automatic<br />
Automatic<br />
ID W2013MKN W2013KN W2013K0MR W2013K00MR W2013K00MR_P<br />
Technical parameters<br />
Type of frame<br />
4× Dadant,<br />
8× Dadant ½<br />
4× Dadant,<br />
8× Dadant ½<br />
4× Dadant,<br />
8× Dadant ½<br />
4× Dadant,<br />
8× Dadant ½<br />
Drum diameter Ø800 mm Ø800 mm Ø800 mm Ø800 mm<br />
Drive system Electric bottom Electric bottom Electric bottom Electric bottom<br />
Power supply 12V 12V/230V 230V 230V<br />
Controller<br />
HE-01<br />
(Digital potentiometer)<br />
HE-01<br />
(Digital potentiometer)<br />
HES-02*<br />
(Semi-Automatic)<br />
HE-02*<br />
(Automatic)<br />
HE-03<br />
Motor<br />
Belt drive<br />
24V/280W<br />
Belt drive<br />
24V/280W<br />
Motoreducer 0,37kW<br />
Motoreducer<br />
0,55kW<br />
Drum and basket construction<br />
Drum thickness 0,6 mm 0,6 mm 0,6 mm 0,8 mm<br />
Honey gate Plastic 6/4” Stainless 6/4” Stainless 6/4” Stainless 6/4”<br />
Top bar<br />
Powder coated<br />
plate<br />
Powder coated<br />
plate<br />
Powder coated plate<br />
Flat bar 60×10 mm<br />
stainless<br />
Cover 3 mm acrylic glass 5 mm acrylic glass 5 mm acrylic glass 8 mm acrylic glass<br />
Legs<br />
Powder coated<br />
40×27 mm<br />
Powder coated<br />
50×30 mm<br />
Powder coated 50×30 mm<br />
Stainless 50×30 mm<br />
Hinges Plastic 4 pcs. Plastic 8 pcs. Plastic 8 pcs. Stainless 8 pcs.<br />
Reinforcing frame Painted Painted Painted Stainless<br />
Cassette material<br />
Stainless rod<br />
Ø3 and Ø5 mm<br />
Stainless rod<br />
Ø3 and Ø5 mm<br />
Stainless rod<br />
Ø3 and Ø5 mm<br />
Stainless rod<br />
Ø3 and Ø6 mm<br />
Drum rim Powder coated Powder coated Powder coated Stainless<br />
Drum height 730 mm 730 mm 730 mm 780 mm<br />
Warranty 2 years 3 years 5 years 7 years<br />
Other Shipped on pallet Shipped on pallet Shipped on pallet Shipped on pallet<br />
* Advanced automatic controller HE-03<br />
Our honey extractors<br />
are equipped with<br />
products of<br />
MITSUBISHI Electric<br />
Name Frame size Cassette size<br />
Dadant 435×300 mm 425×320 mm<br />
Dadant ½ 435×145 mm 425×320 mm<br />
tel.: +48 33 875-93-24, 33 875-99-40, visit www.lyson.com.pl to see more<br />
31
