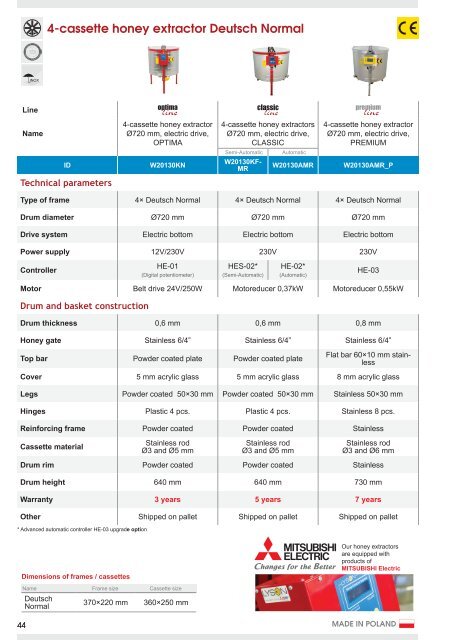

4-cassette honey extractor Deutsch Normal<br />
Line<br />
Name<br />
4-cassette honey extractor<br />
Ø720 mm, electric drive,<br />
OPTIMA<br />
4-cassette honey extractors<br />
Ø720 mm, electric drive,<br />
CLASSIC<br />
4-cassette honey extractor<br />
Ø720 mm, electric drive,<br />
PREMIUM<br />
ID<br />
W20130KN<br />
Semi-Automatic<br />
W20130KF-<br />
MR<br />
Automatic<br />
W20130AMR<br />
W20130AMR_P<br />
Technical parameters<br />
Type of frame 4× Deutsch Normal 4× Deutsch Normal 4× Deutsch Normal<br />
Drum diameter Ø720 mm Ø720 mm Ø720 mm<br />
Drive system Electric bottom Electric bottom Electric bottom<br />
Power supply 12V/230V 230V 230V<br />
Controller<br />
HE-01<br />
(Digital potentiometer)<br />
HES-02*<br />
(Semi-Automatic)<br />
HE-02*<br />
(Automatic)<br />
HE-03<br />
Motor Belt drive 24V/250W Motoreducer 0,37kW Motoreducer 0,55kW<br />
Drum and basket construction<br />
Drum thickness 0,6 mm 0,6 mm 0,8 mm<br />
Honey gate Stainless 6/4” Stainless 6/4” Stainless 6/4”<br />
Top bar Powder coated plate Powder coated plate<br />
Flat bar 60×10 mm stainless<br />
Cover 5 mm acrylic glass 5 mm acrylic glass 8 mm acrylic glass<br />
Legs Powder coated 50×30 mm Powder coated 50×30 mm Stainless 50×30 mm<br />
Hinges Plastic 4 pcs. Plastic 4 pcs. Stainless 8 pcs.<br />
Reinforcing frame Powder coated Powder coated Stainless<br />
Cassette material<br />
Stainless rod<br />
Ø3 and Ø5 mm<br />
Stainless rod<br />
Ø3 and Ø5 mm<br />
Stainless rod<br />
Ø3 and Ø6 mm<br />
Drum rim Powder coated Powder coated Stainless<br />
Drum height 640 mm 640 mm 730 mm<br />
Warranty 3 years 5 years 7 years<br />
Other Shipped on pallet Shipped on pallet Shipped on pallet<br />
* Advanced automatic controller HE-03 upgrade option<br />
Dimensions of frames / cassettes<br />
Our honey extractors<br />
are equipped with<br />
products of<br />
MITSUBISHI Electric<br />
Name Frame size Cassette size<br />
Deutsch<br />
Normal<br />
370×220 mm 360×250 mm<br />
44<br />
MADE IN POLAND
